DESCRIPTION

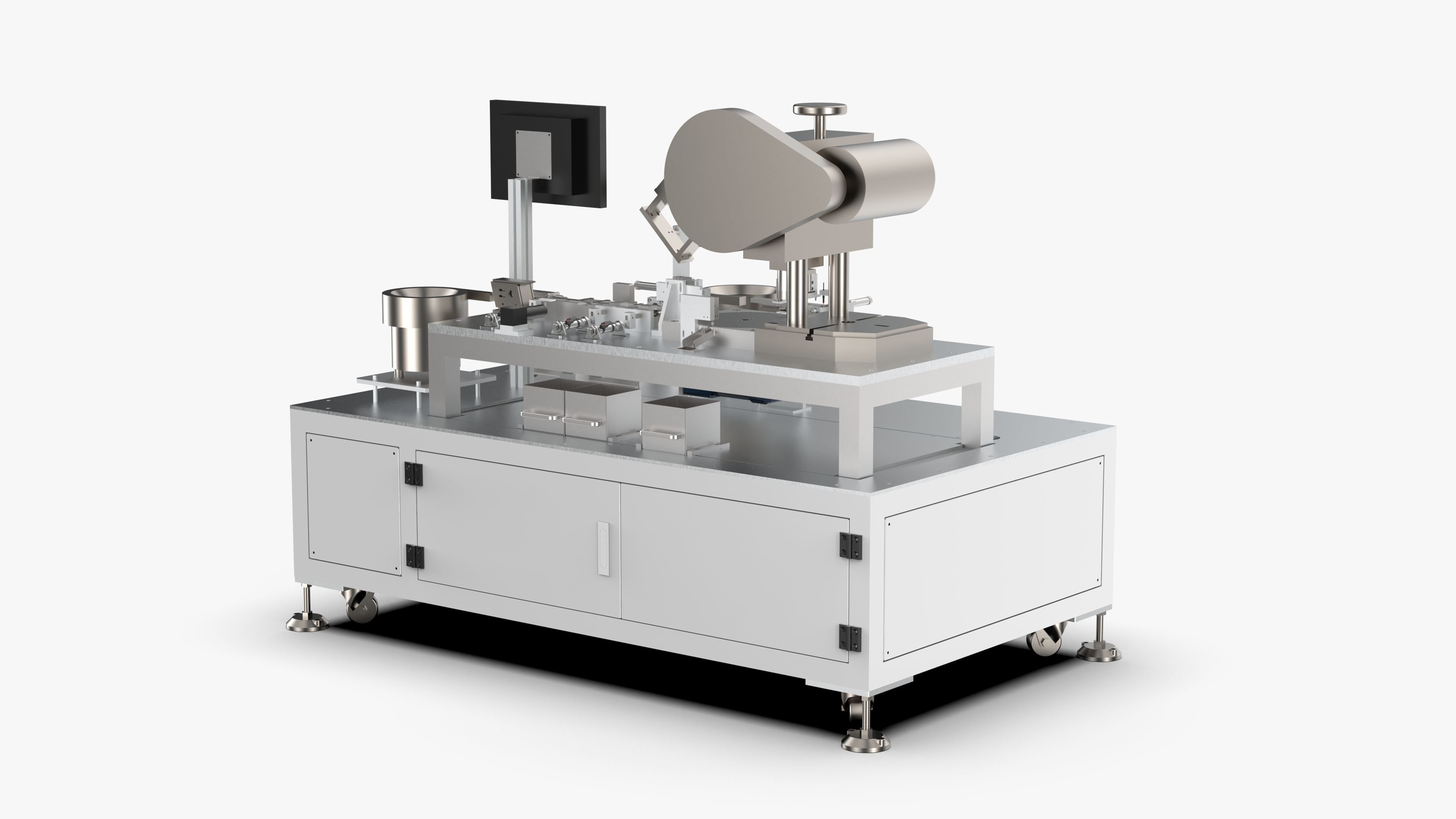

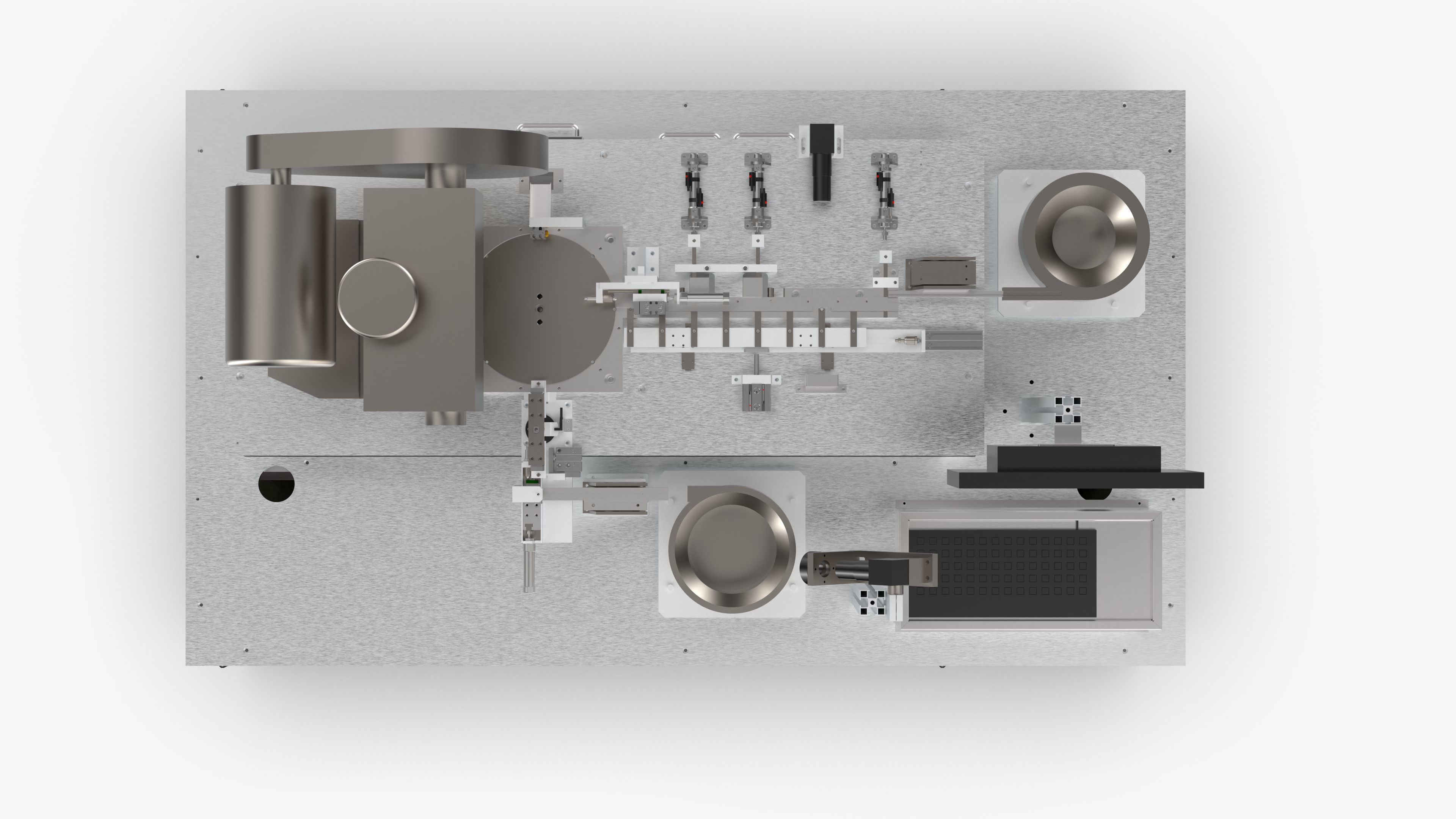

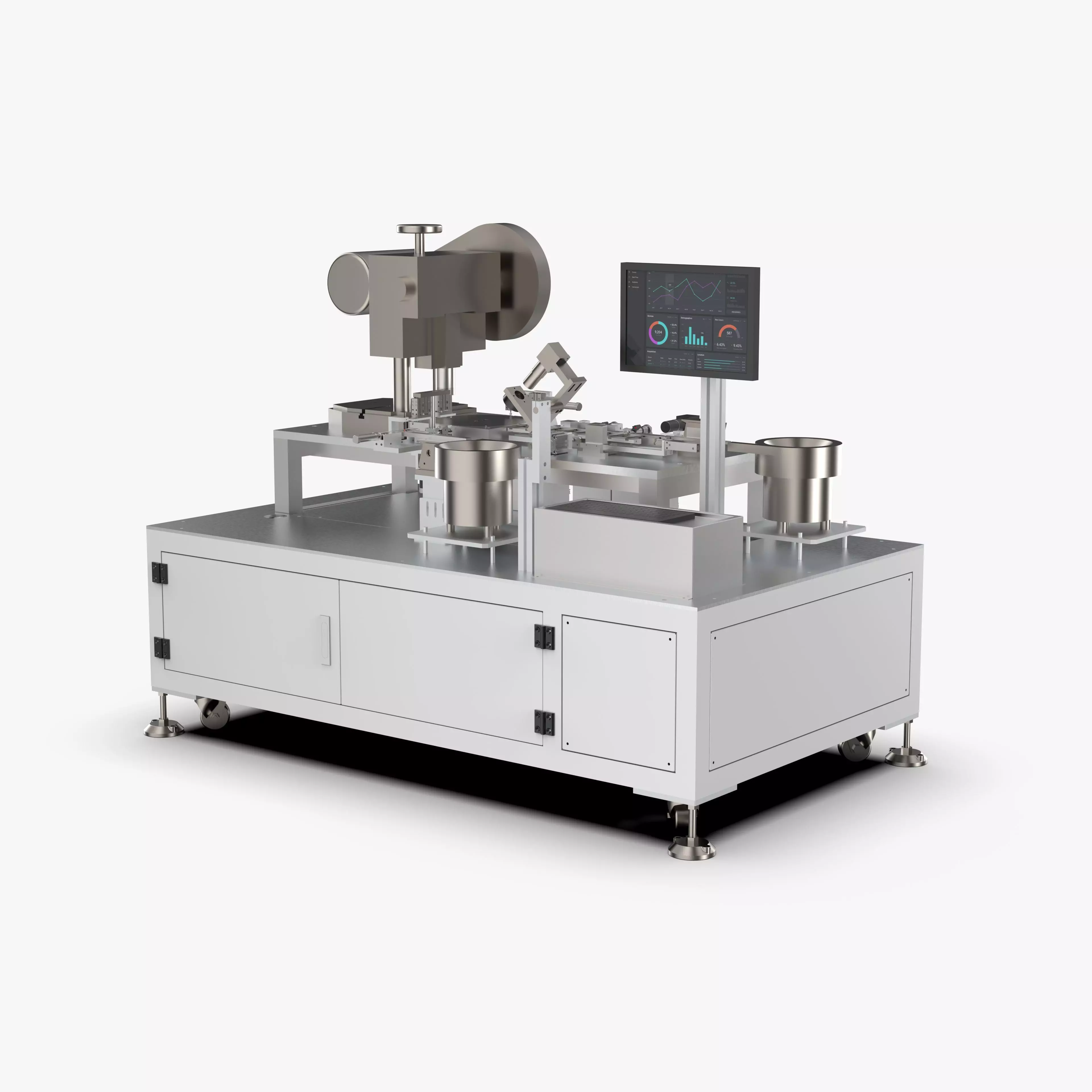

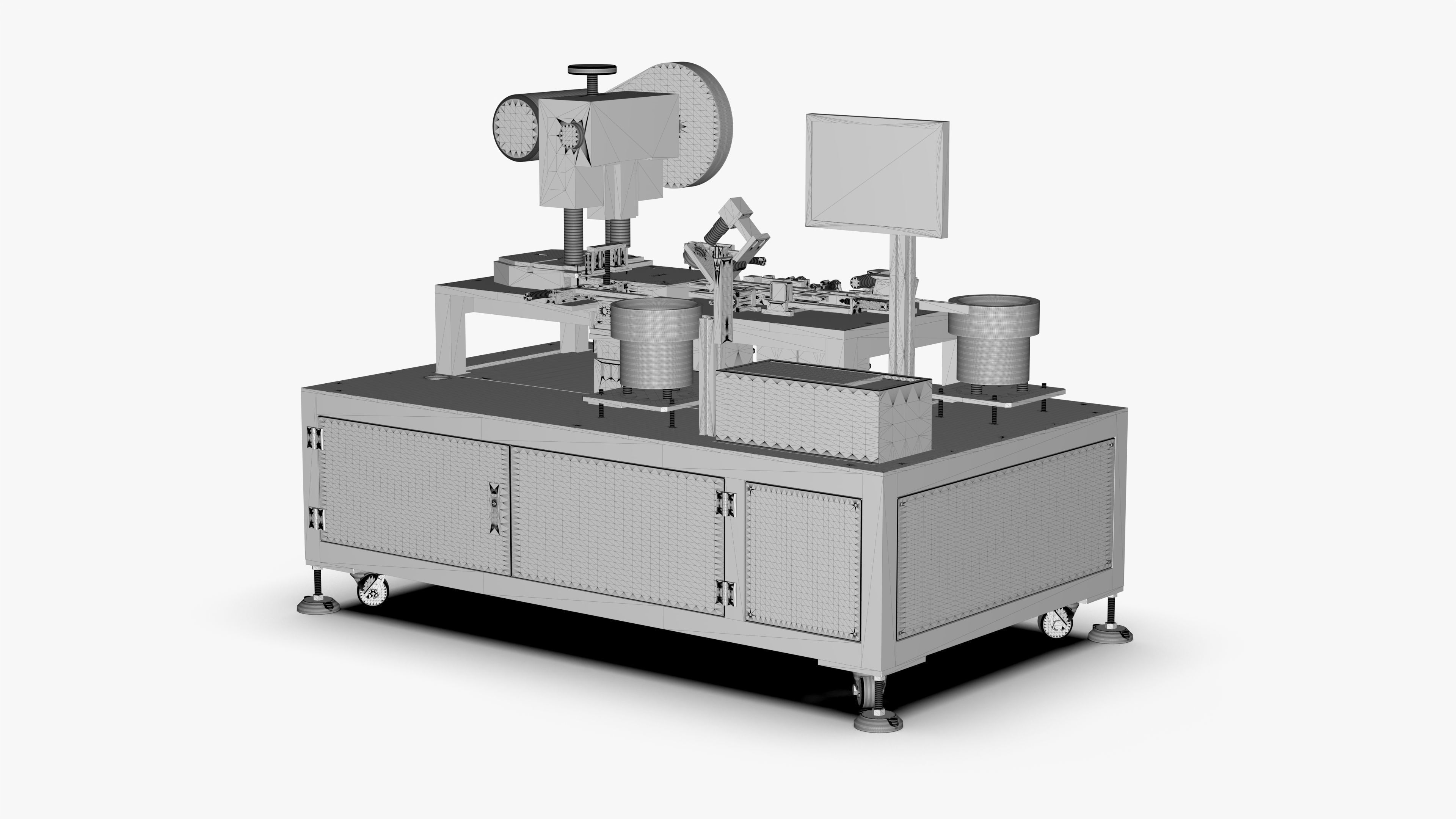

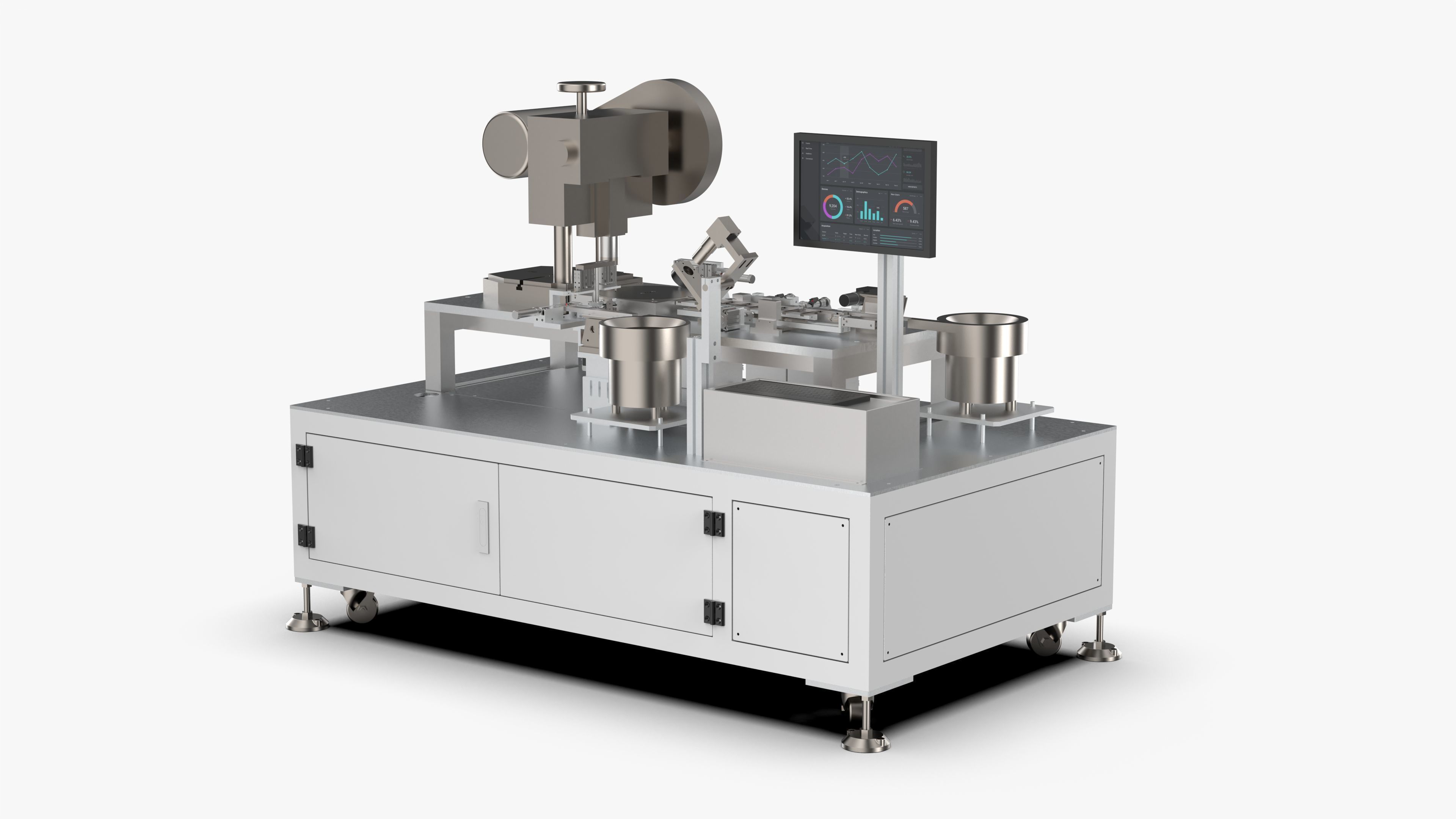

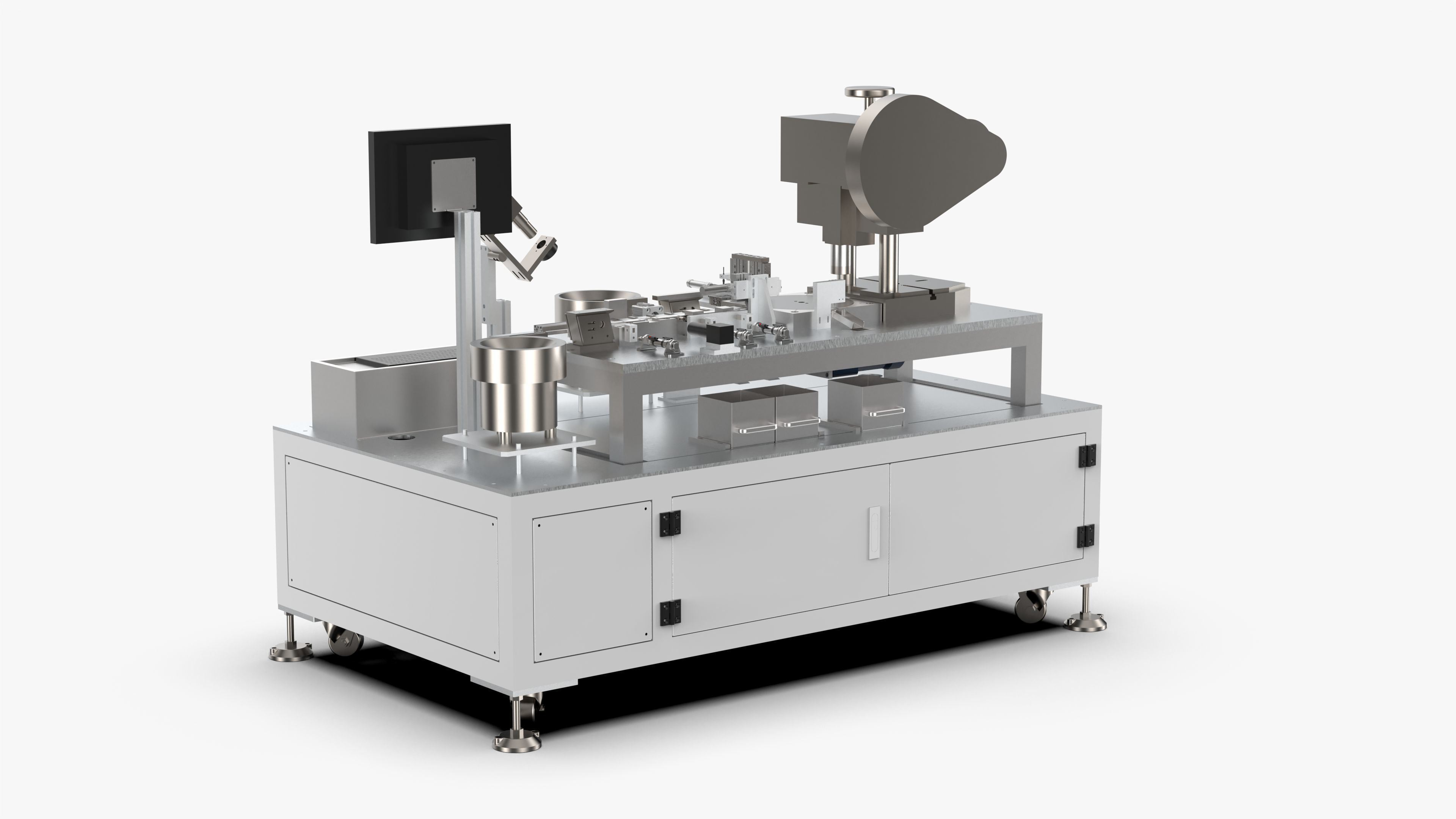

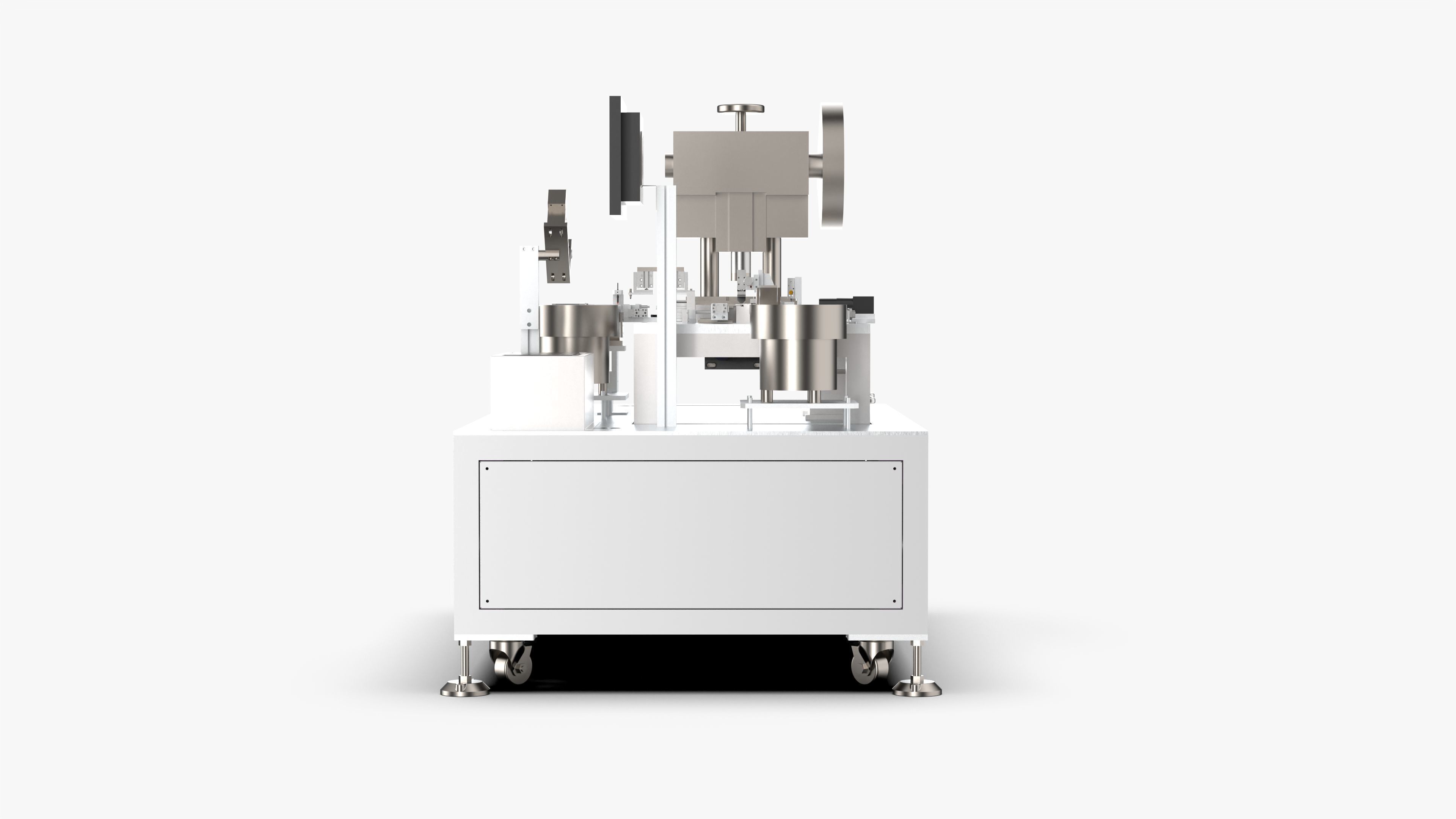

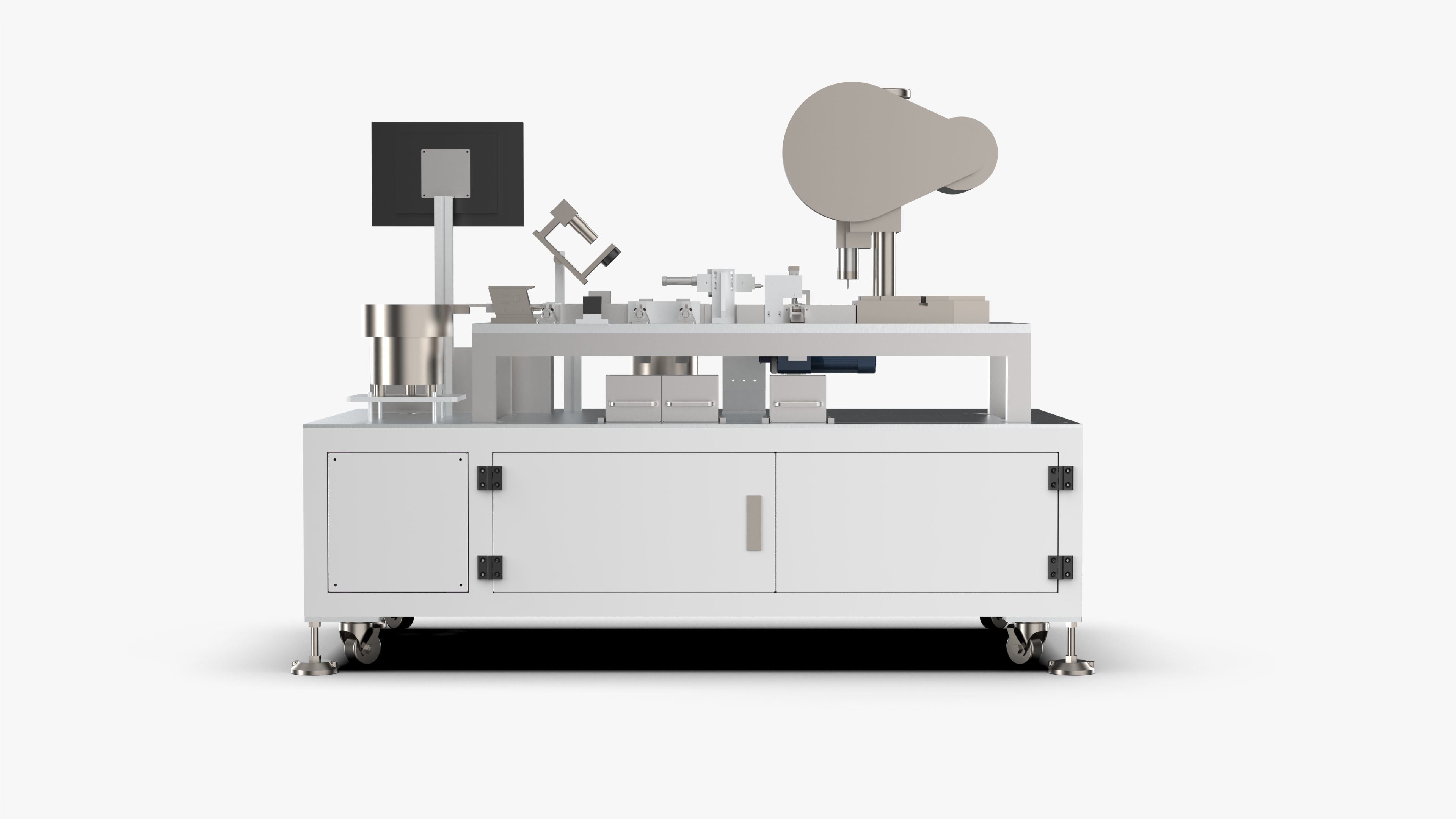

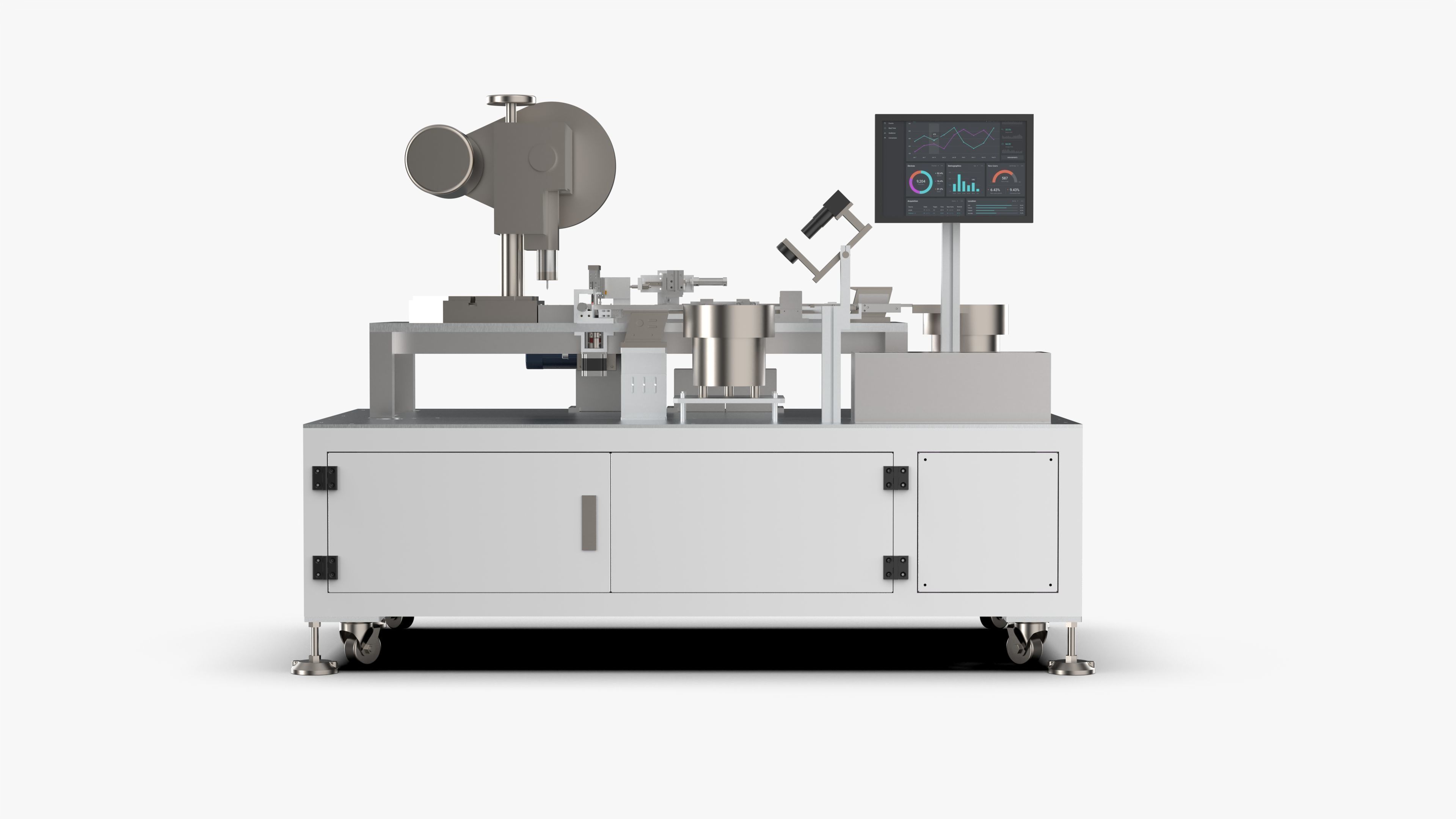

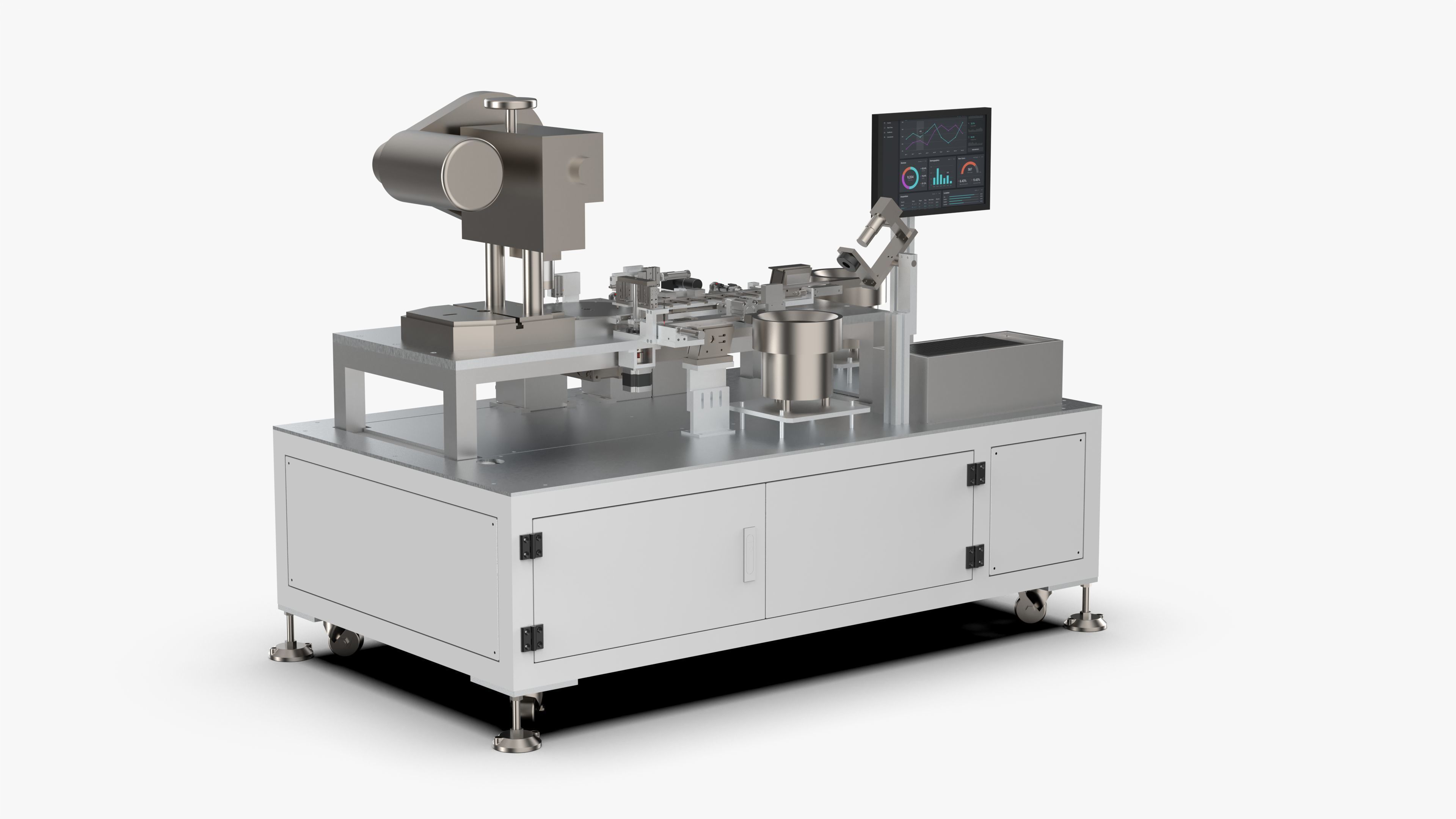

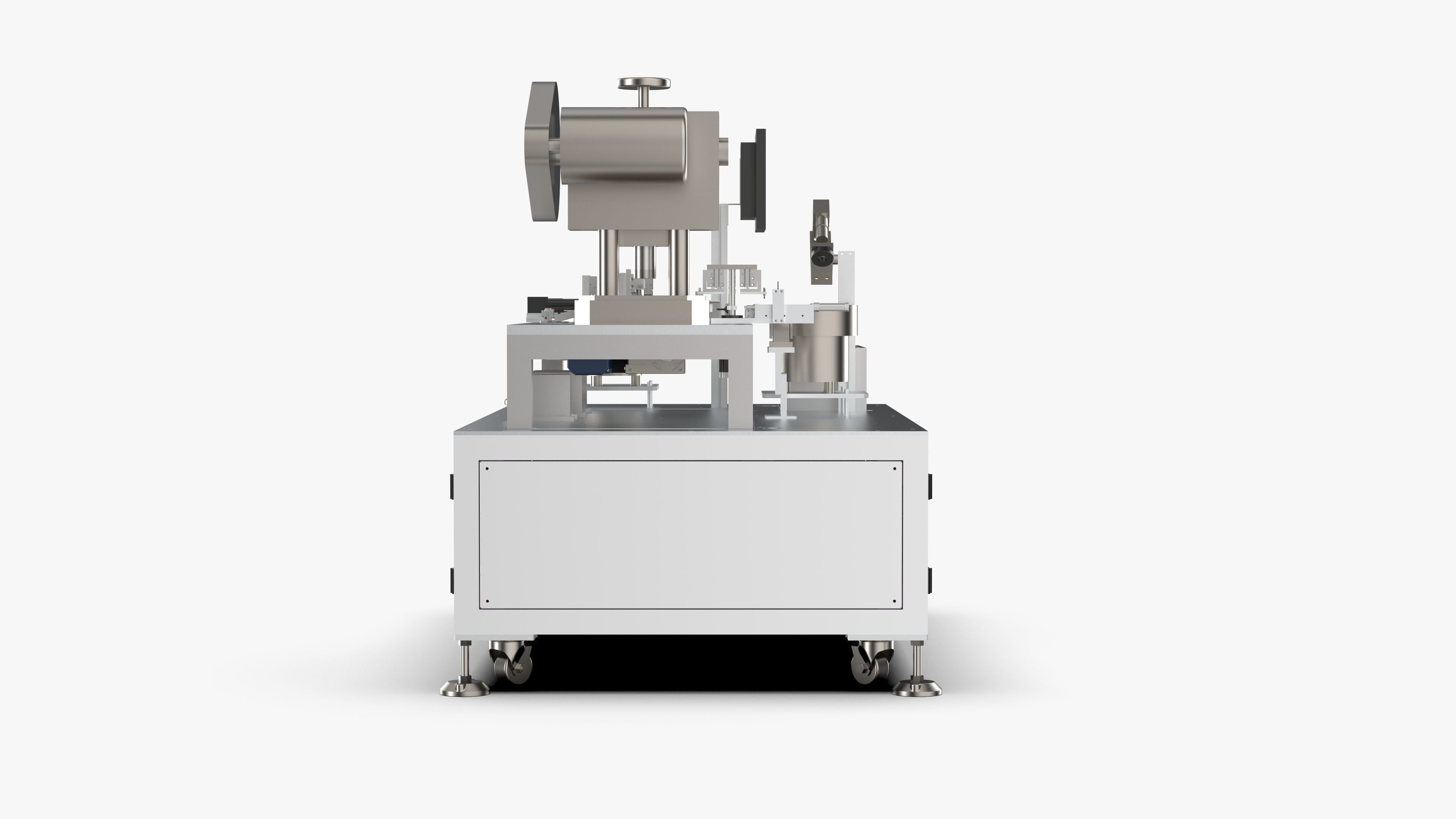

Automatic Electronic Lock Assembly Machine

Introduction

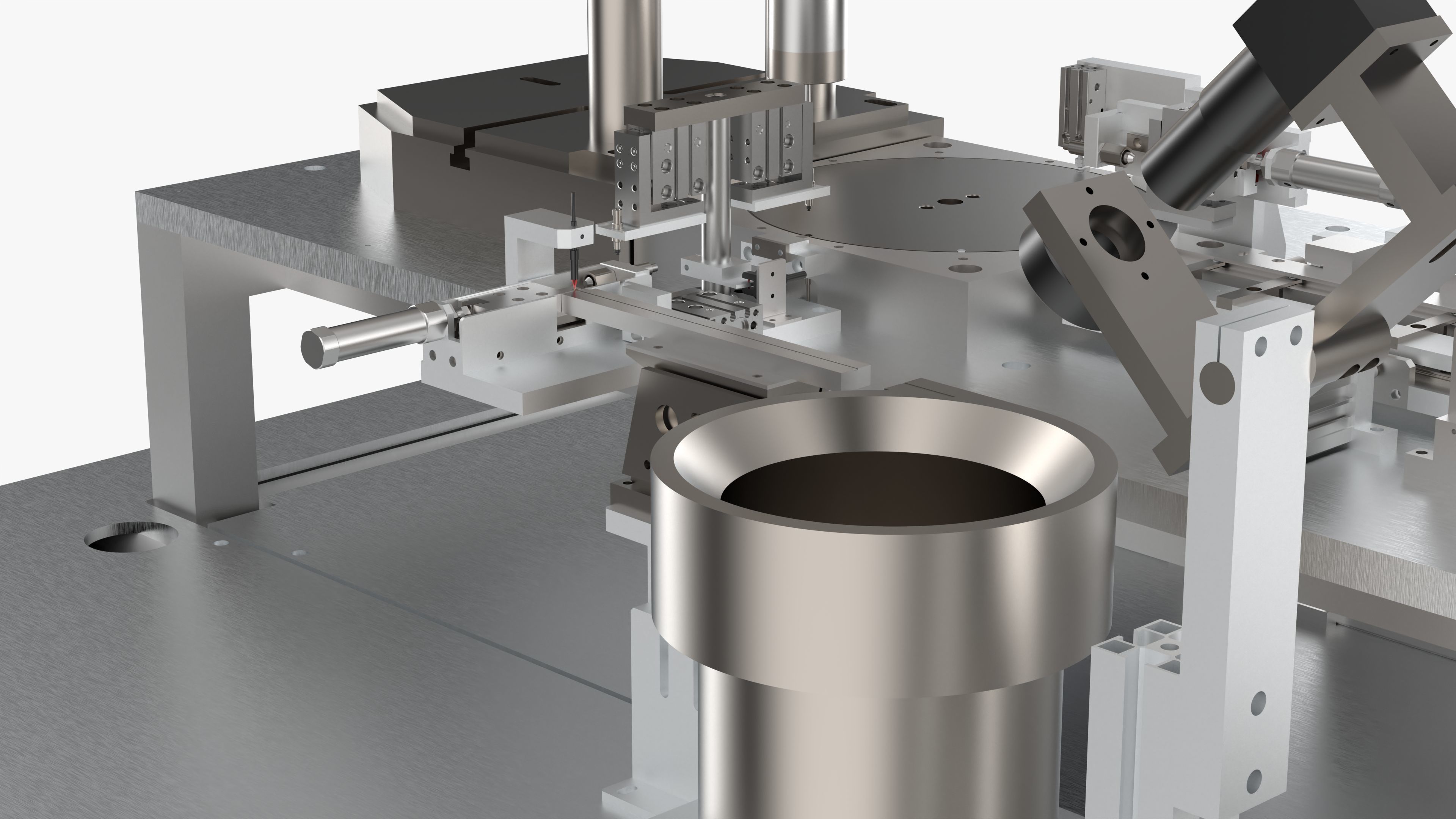

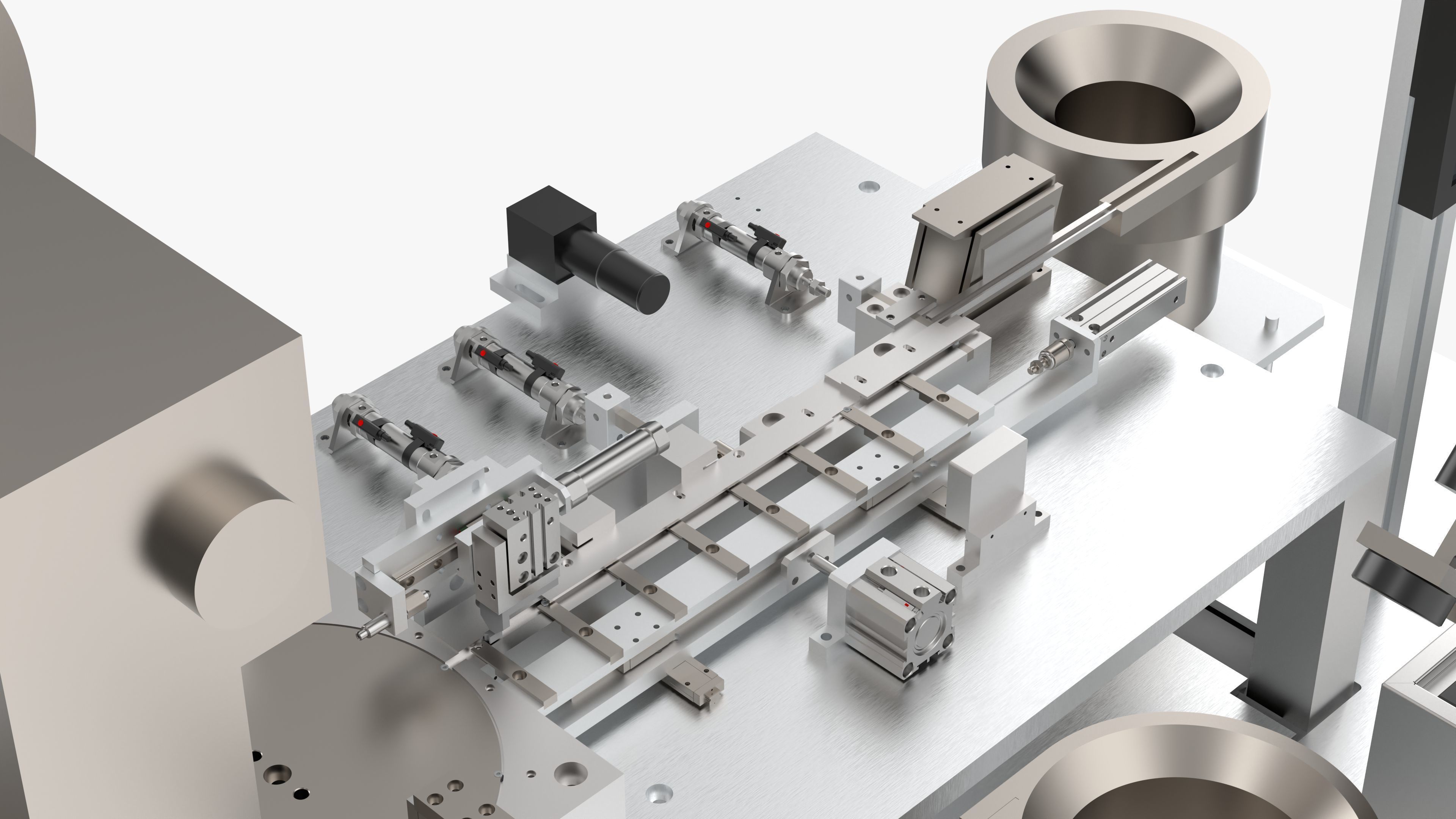

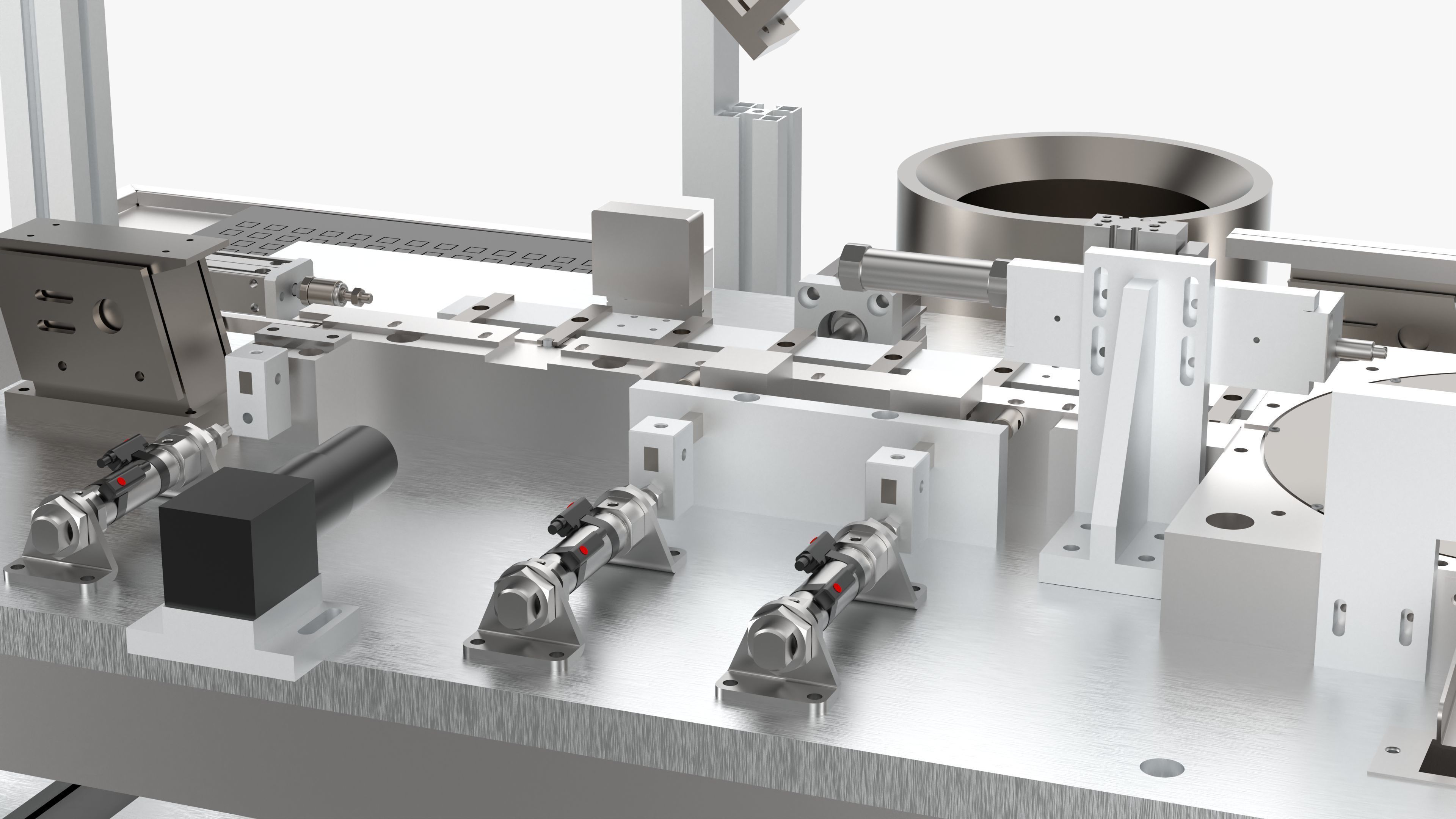

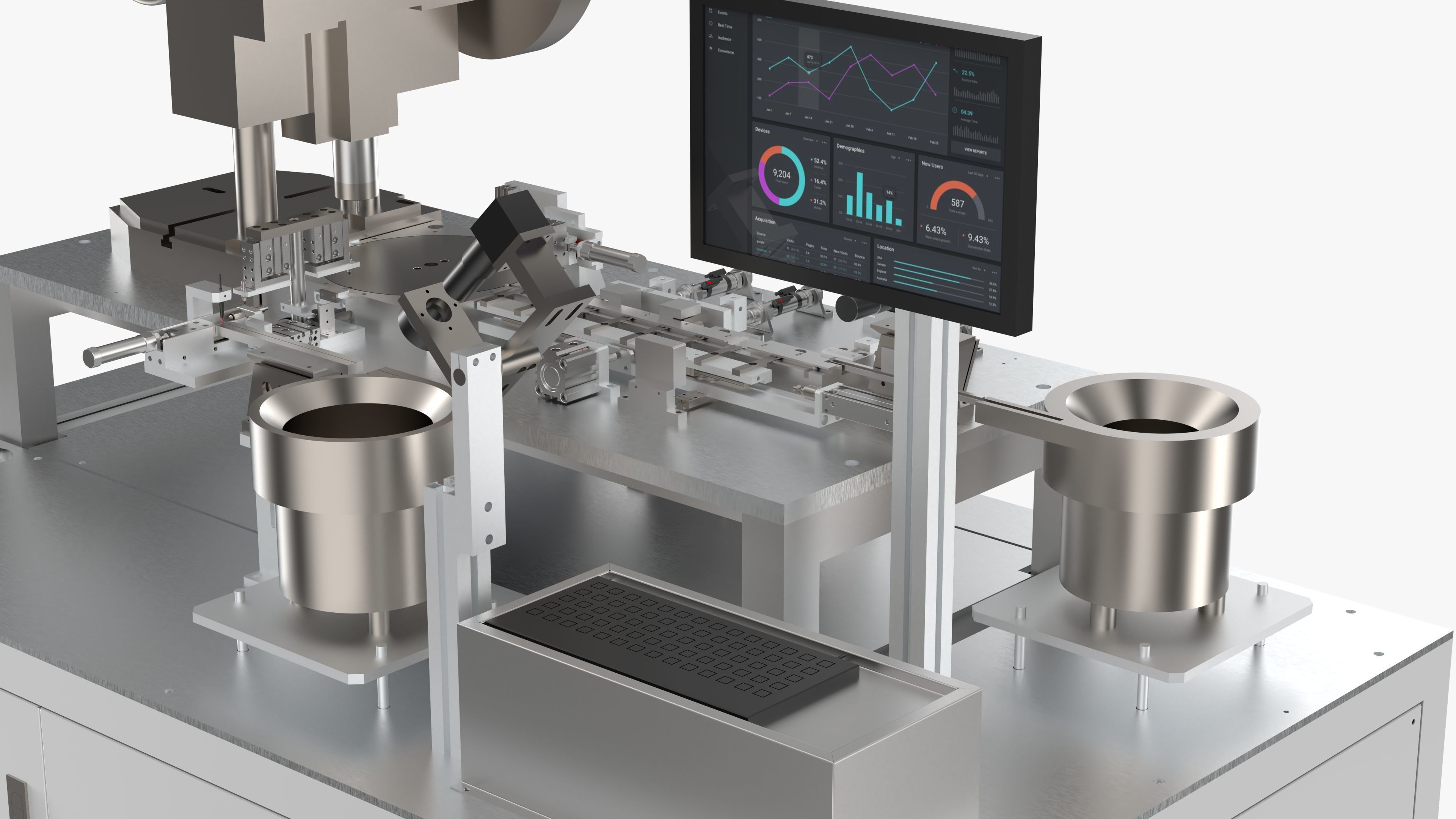

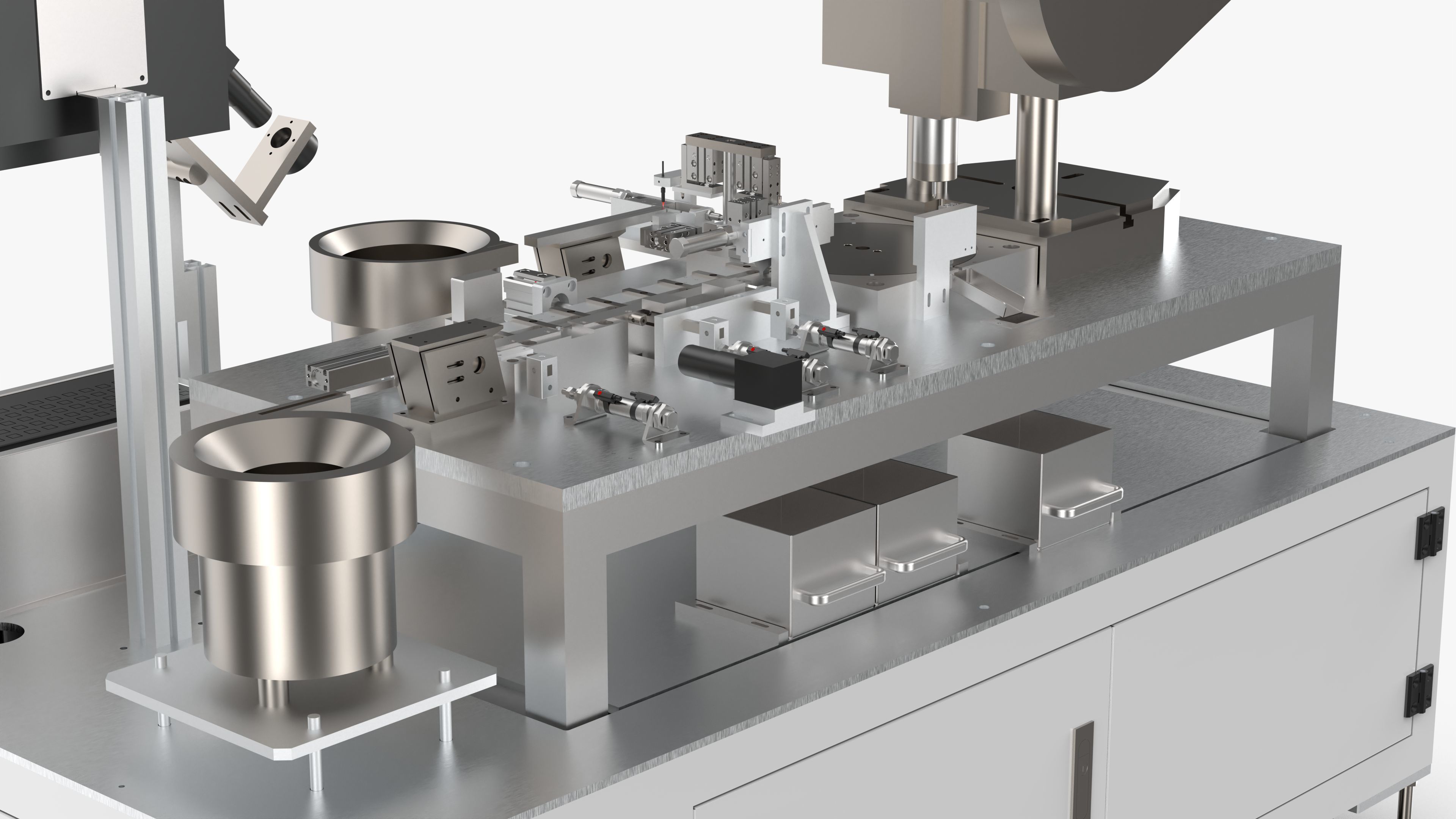

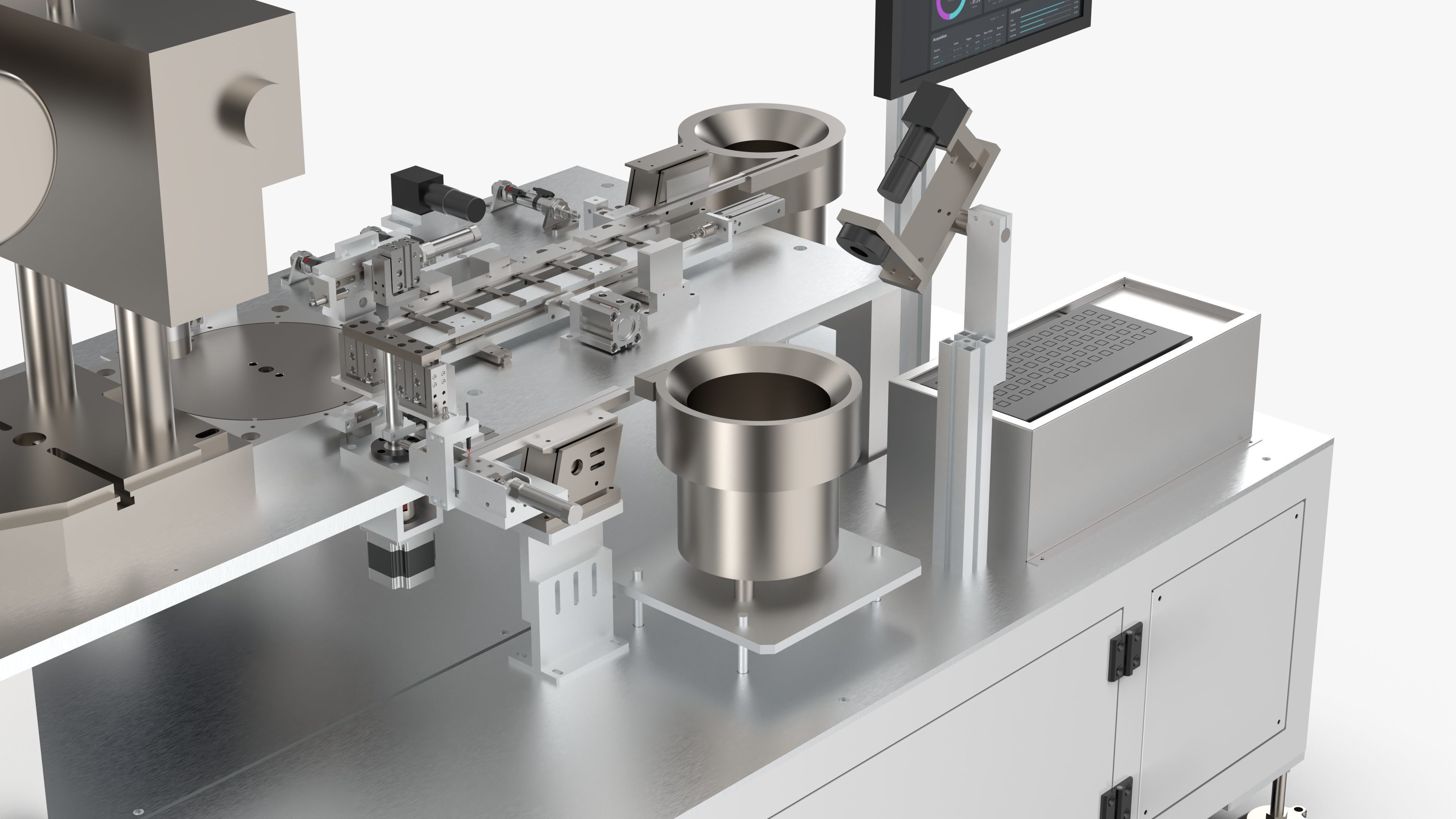

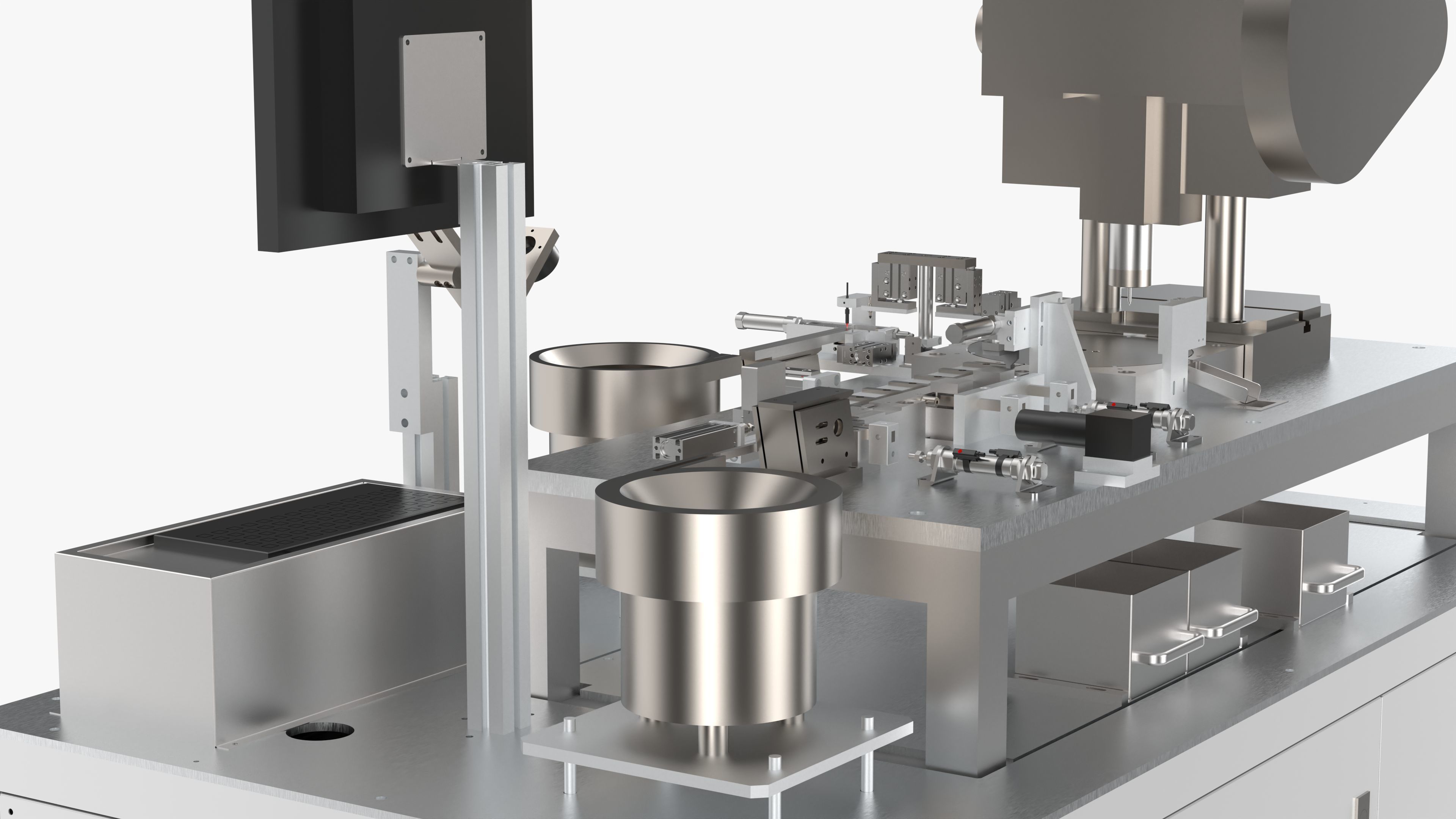

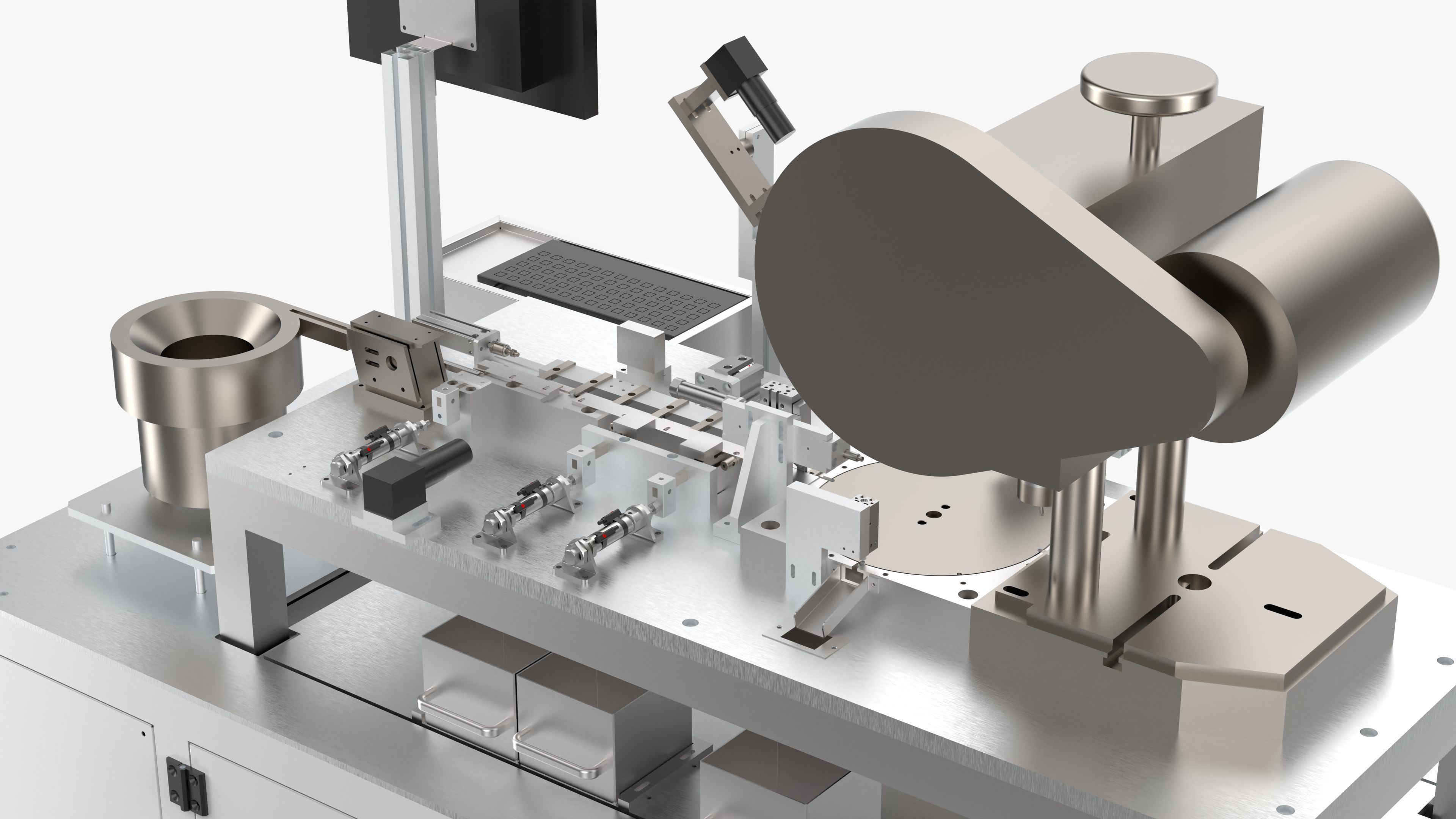

This equipment is a fully automatic assembly machine, which uses a vibrating plate to feed, and the feeding structure is indirect. It uses CCD to detect the front and back of the product and the height (tolerance is plus or minus 0.02mm). Finally, it is stamped and assembled by a small beetle. Welcome to download and learn, thank you

File Formats

  • SolidWorks 2018 | Keyshot 10
  • STEP (Standard for the Exchange of Product Data)
  • IGES (Initial Graphics Exchange Specification)
  • STL (Standard Tessellation Language )
  • OBJ (Object Files)
  • x_t (Parasolic Model Part File)

Geometry

  • Polygons: 845,003
  • Vertice: 2,535,009
Related Tagsautomaticelectroniclockassemblymachineindustrialsolidworkdesignmodeling
3d
automationmachinerypartmechanismlineproductionrobotmanufacturedrawingindustrial machine
