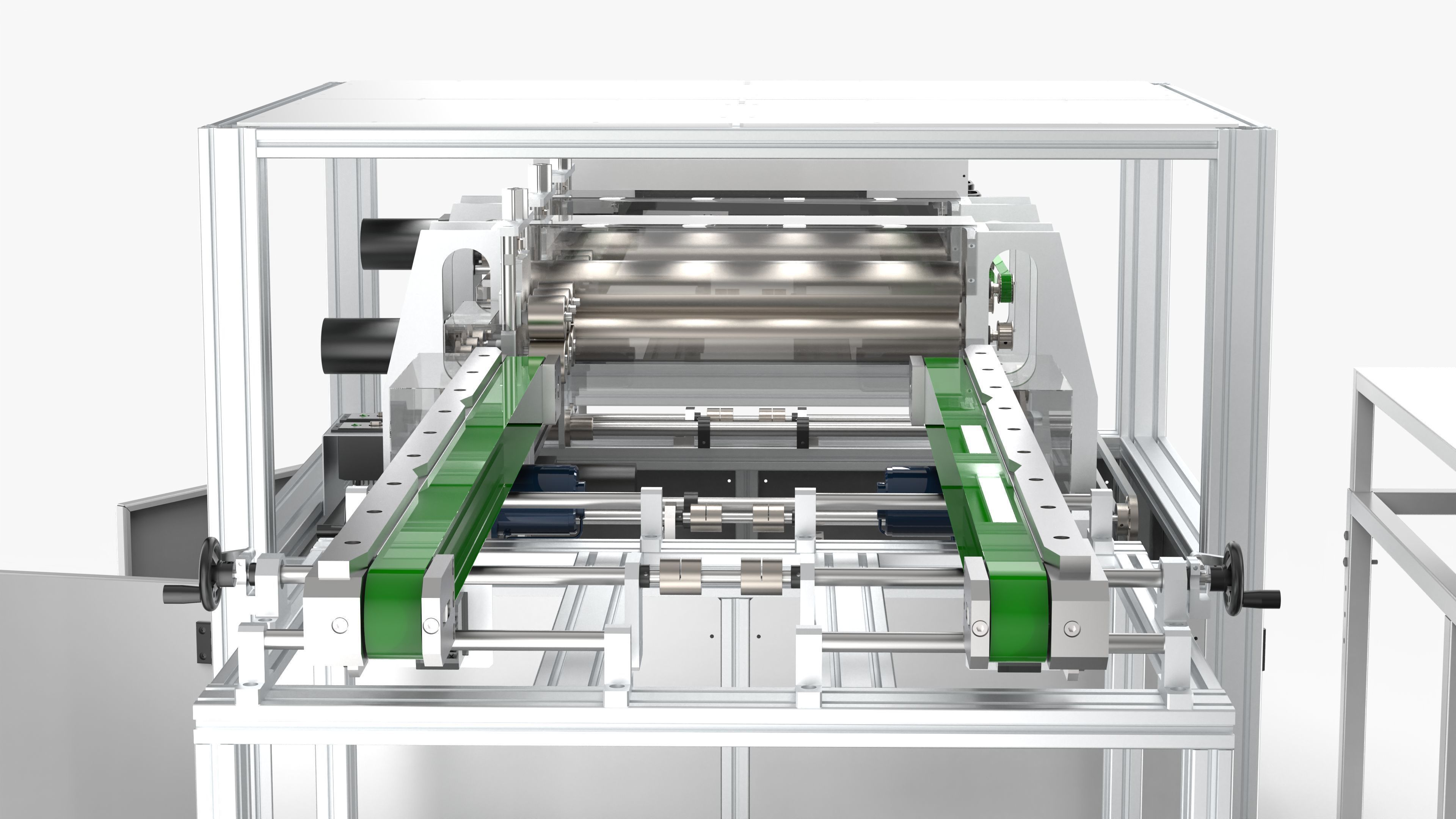

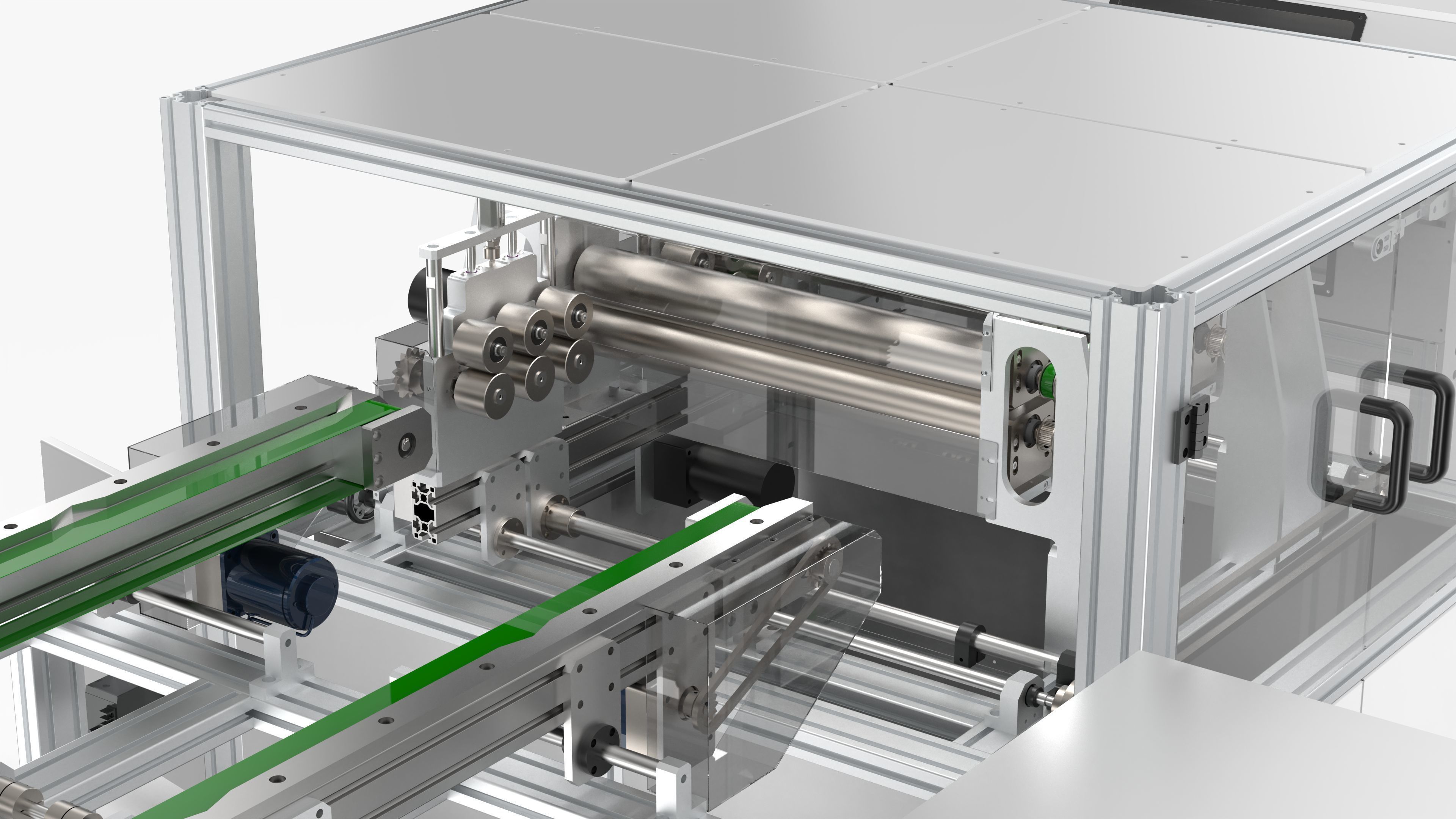

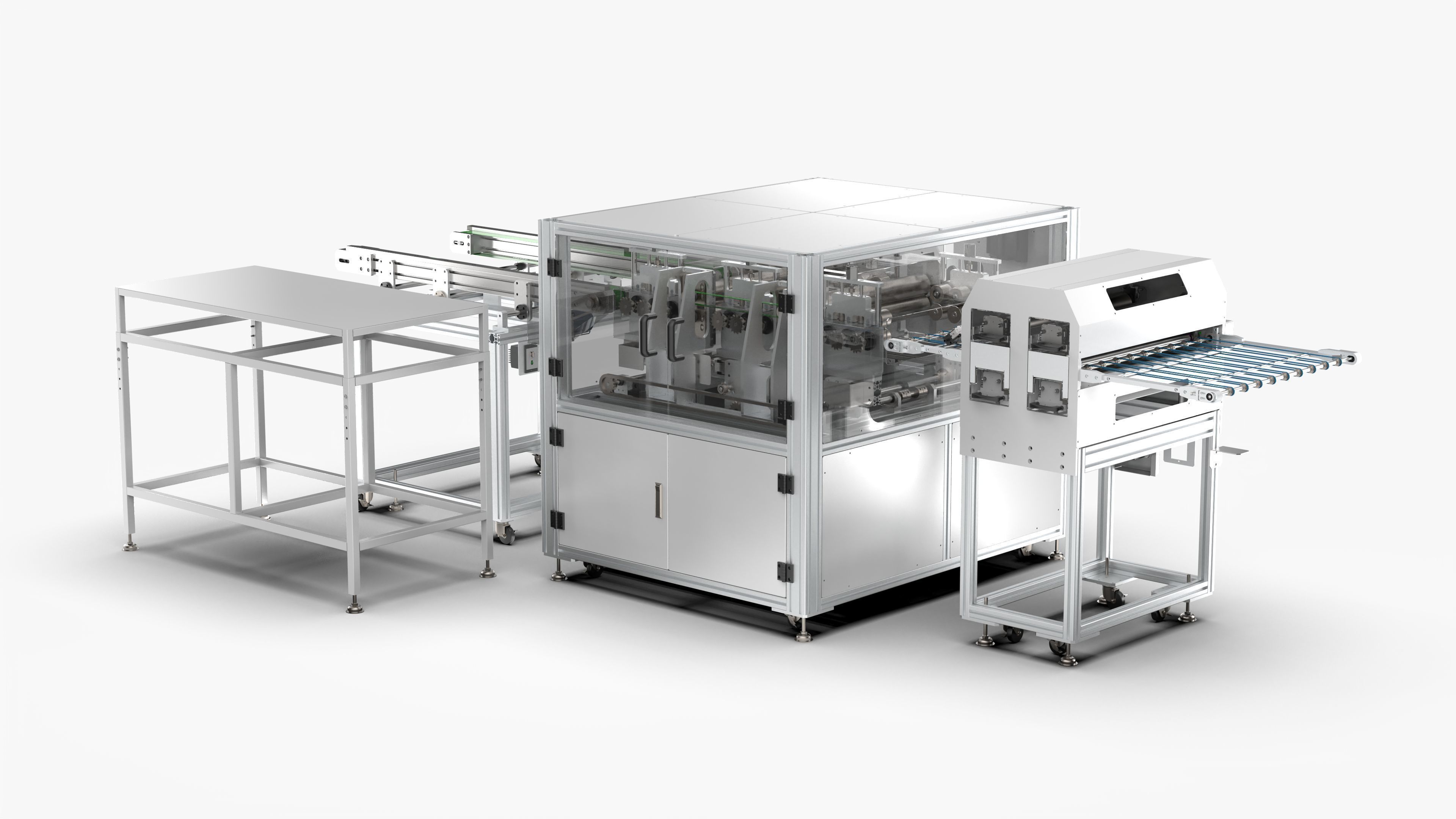

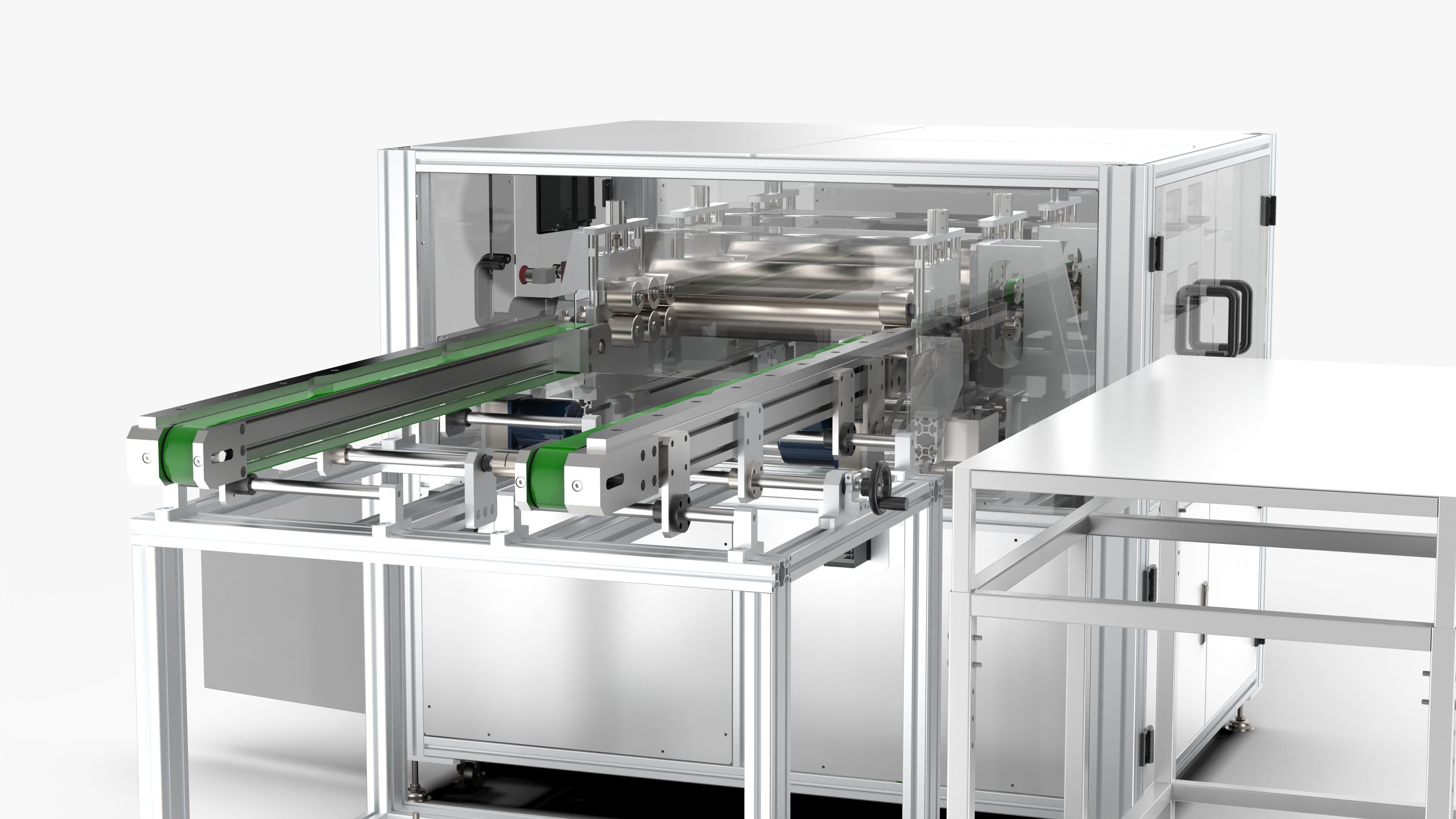

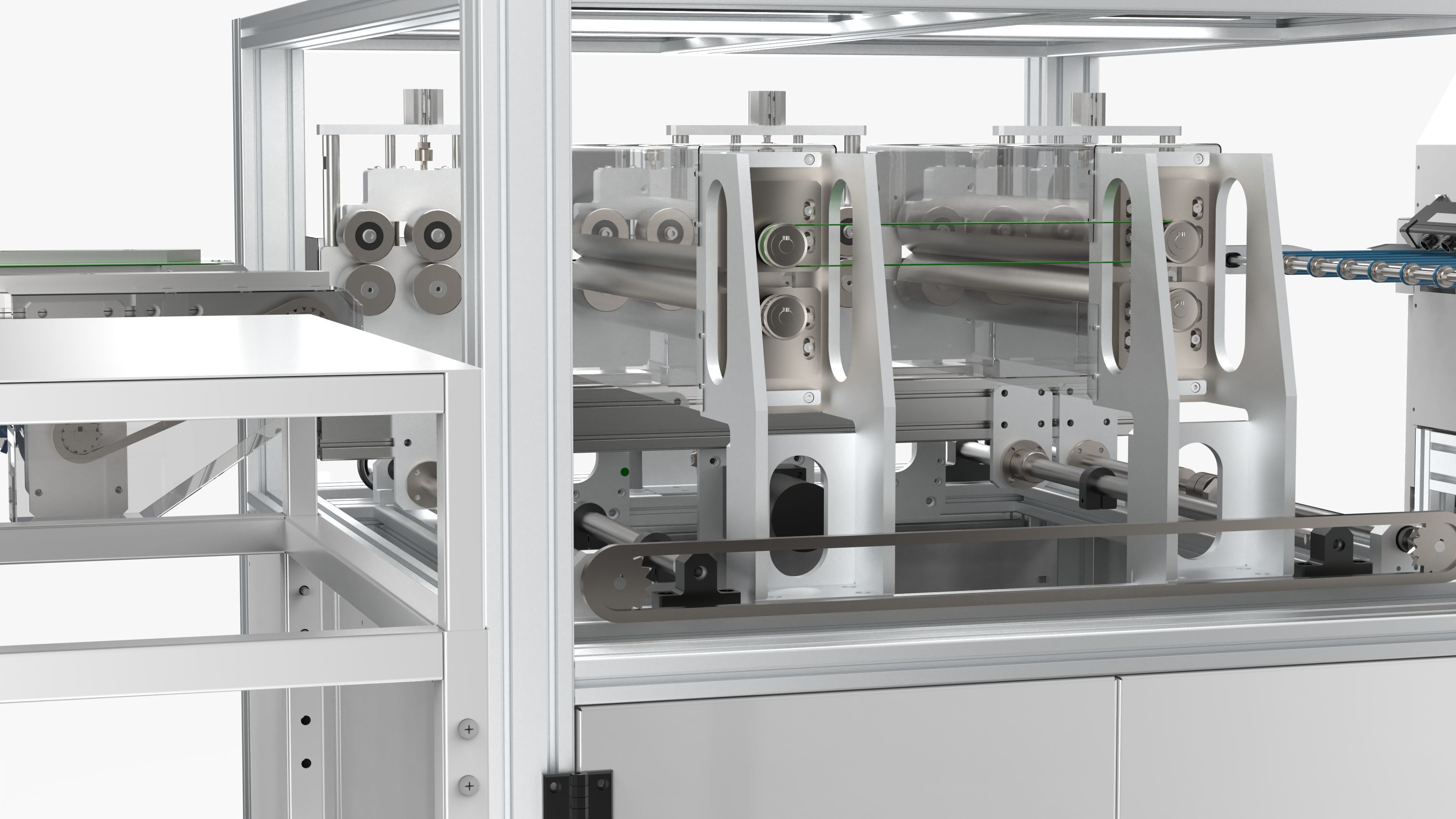

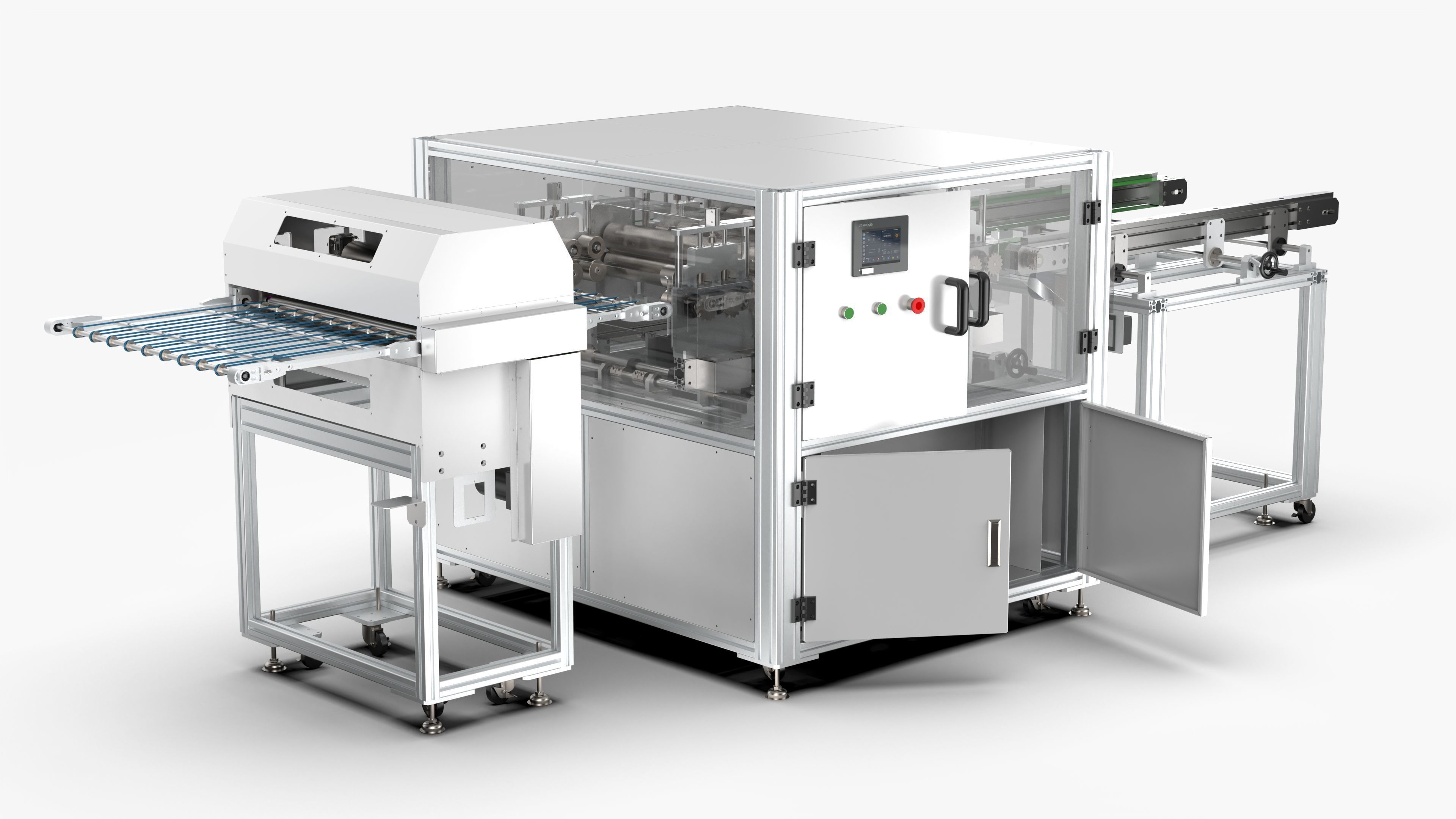

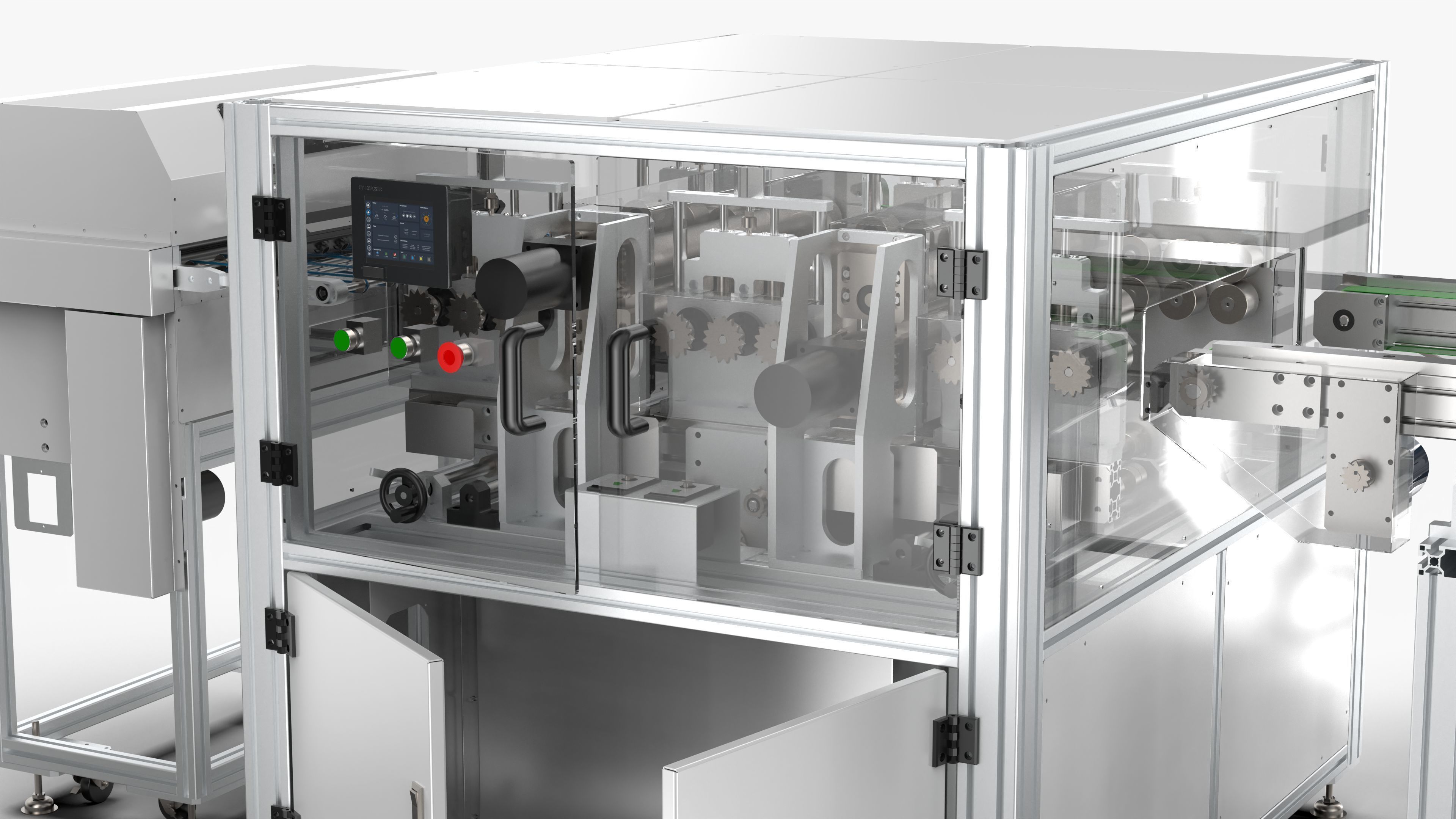

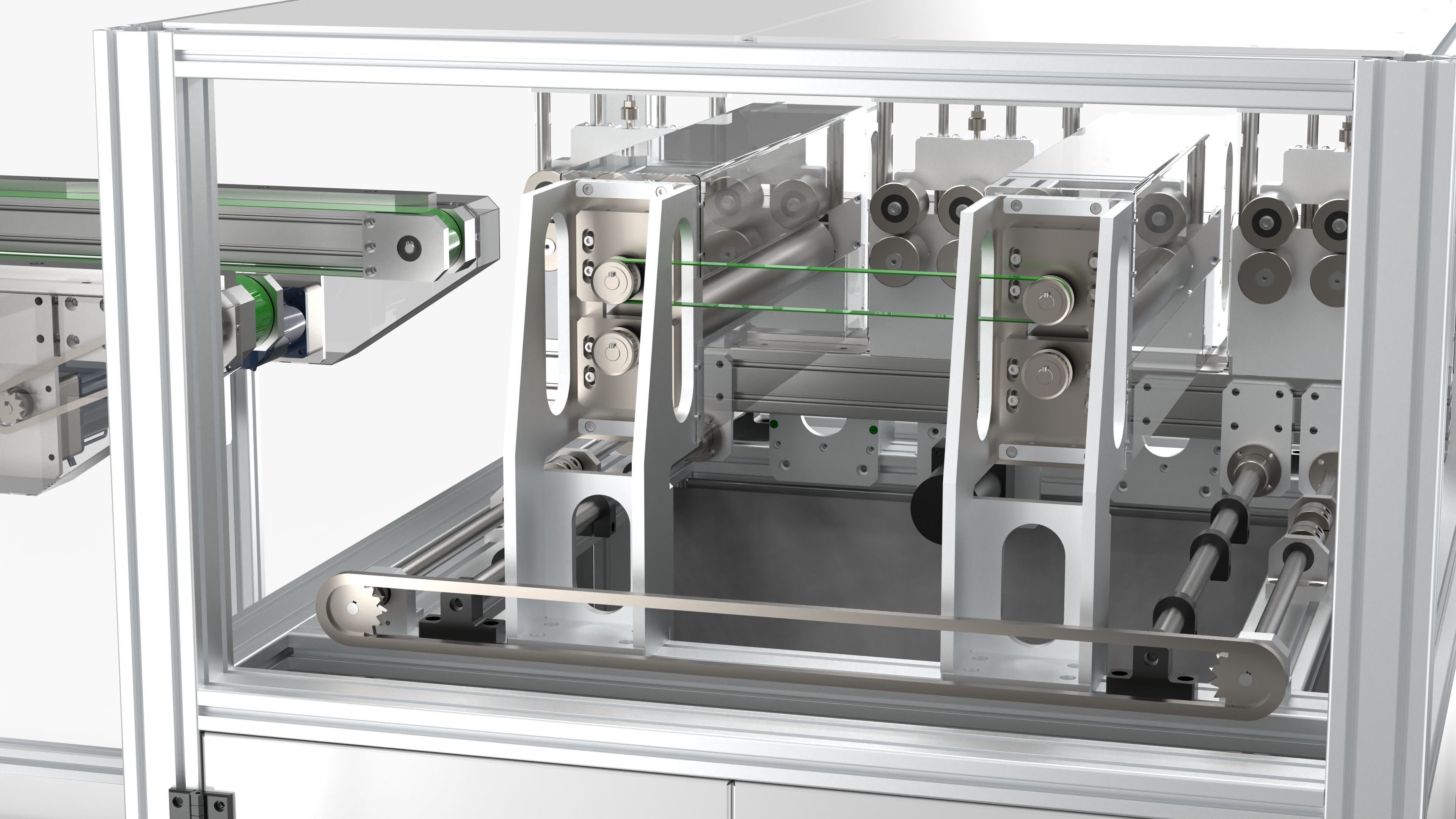

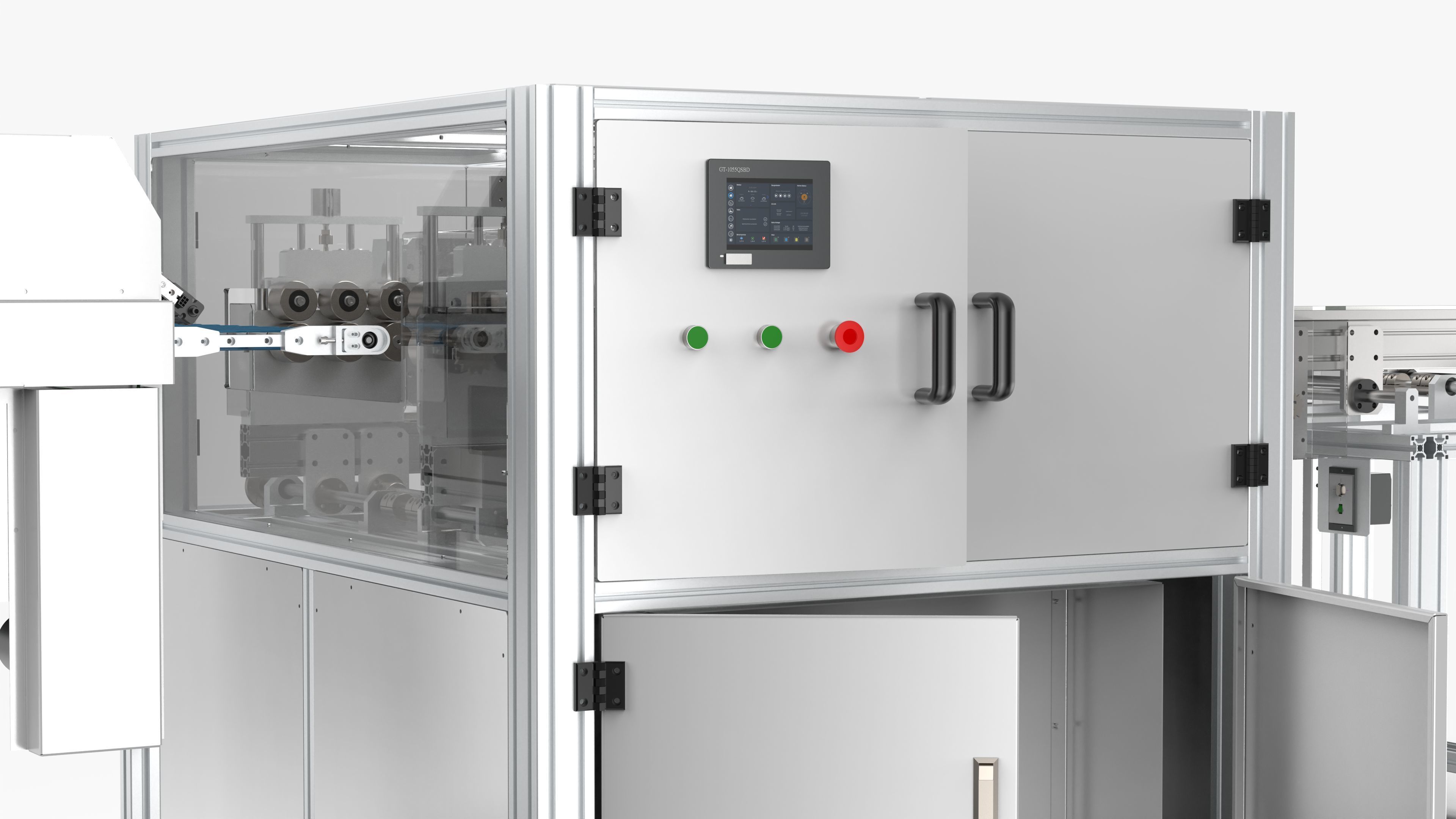

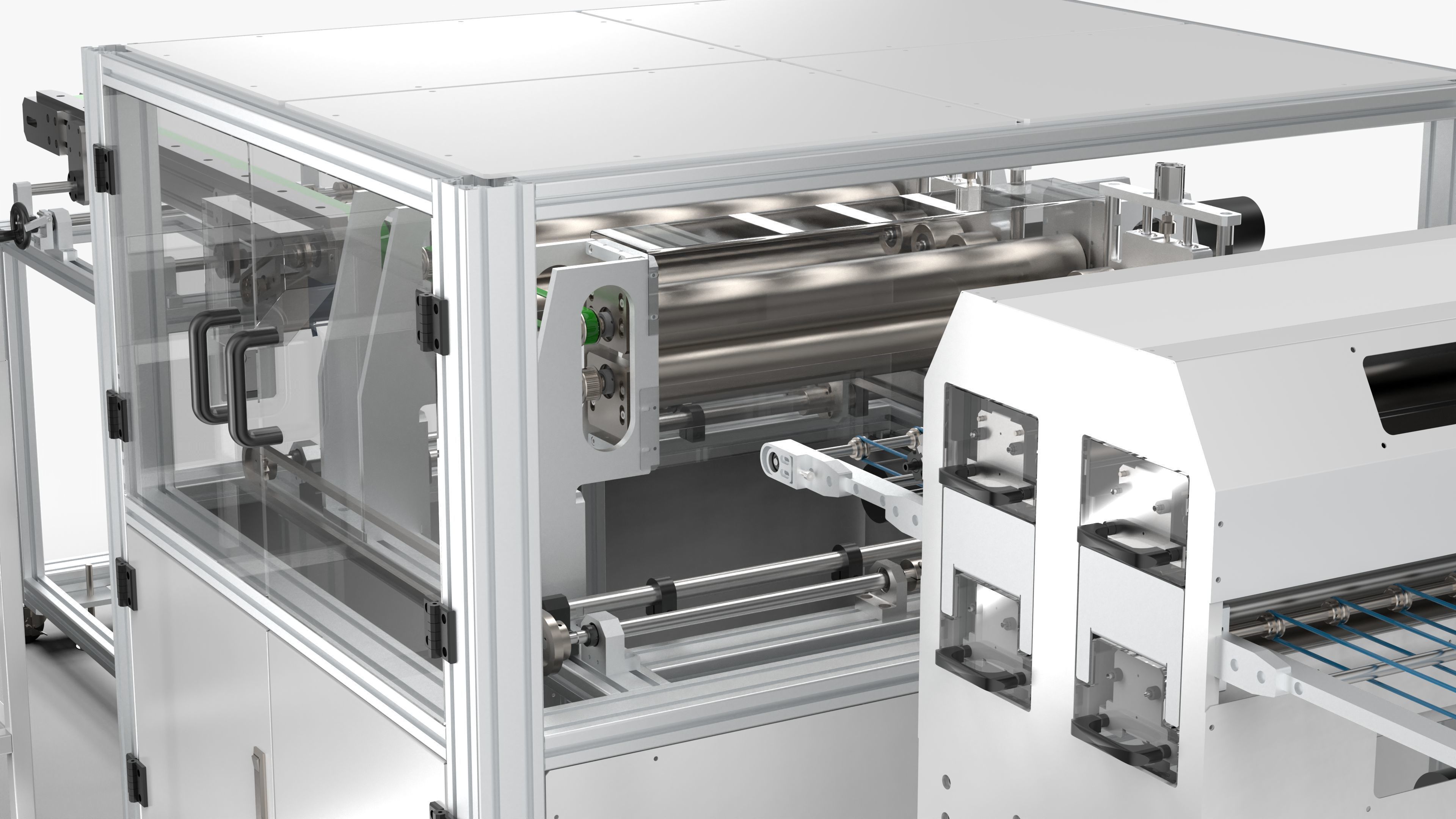

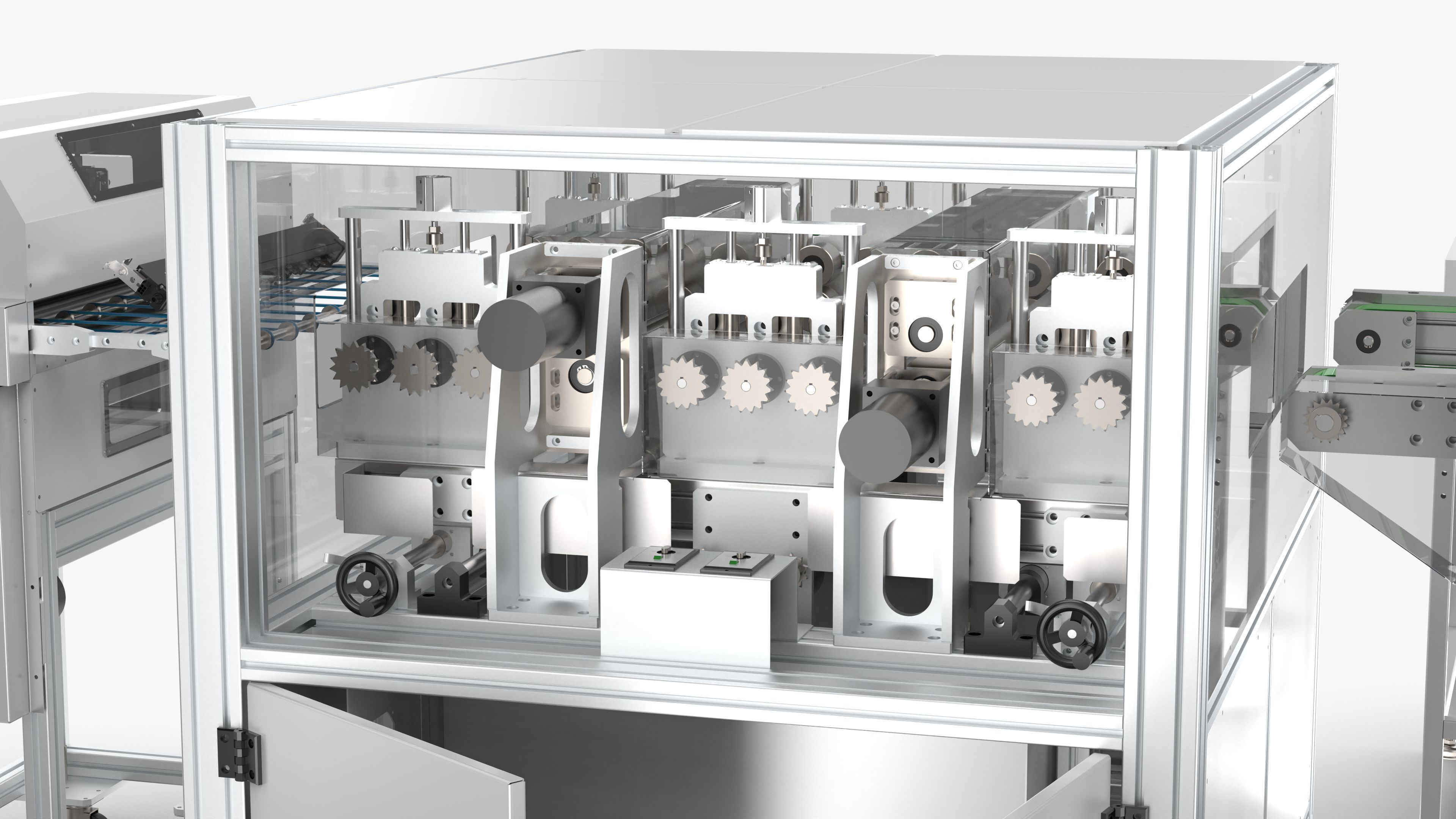

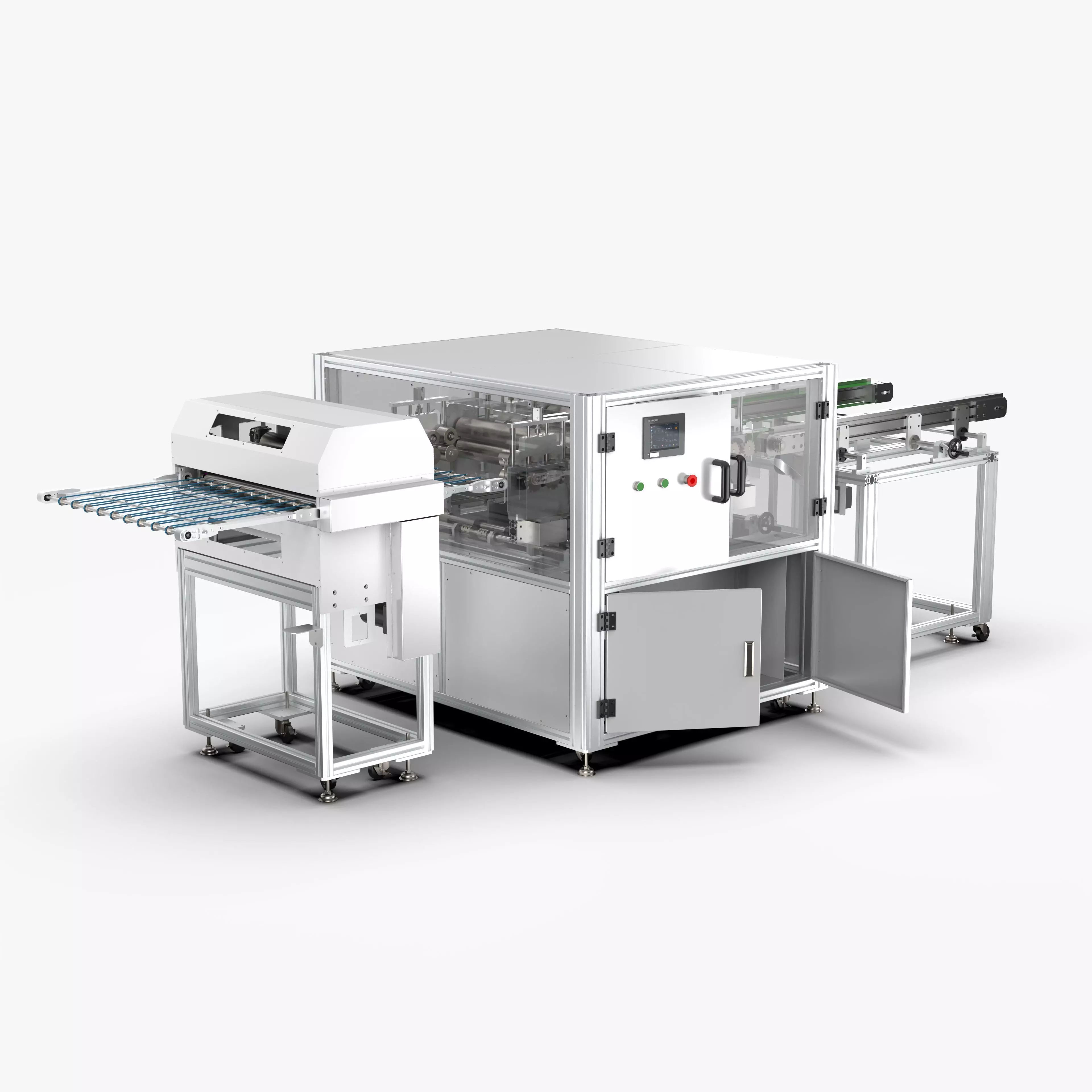

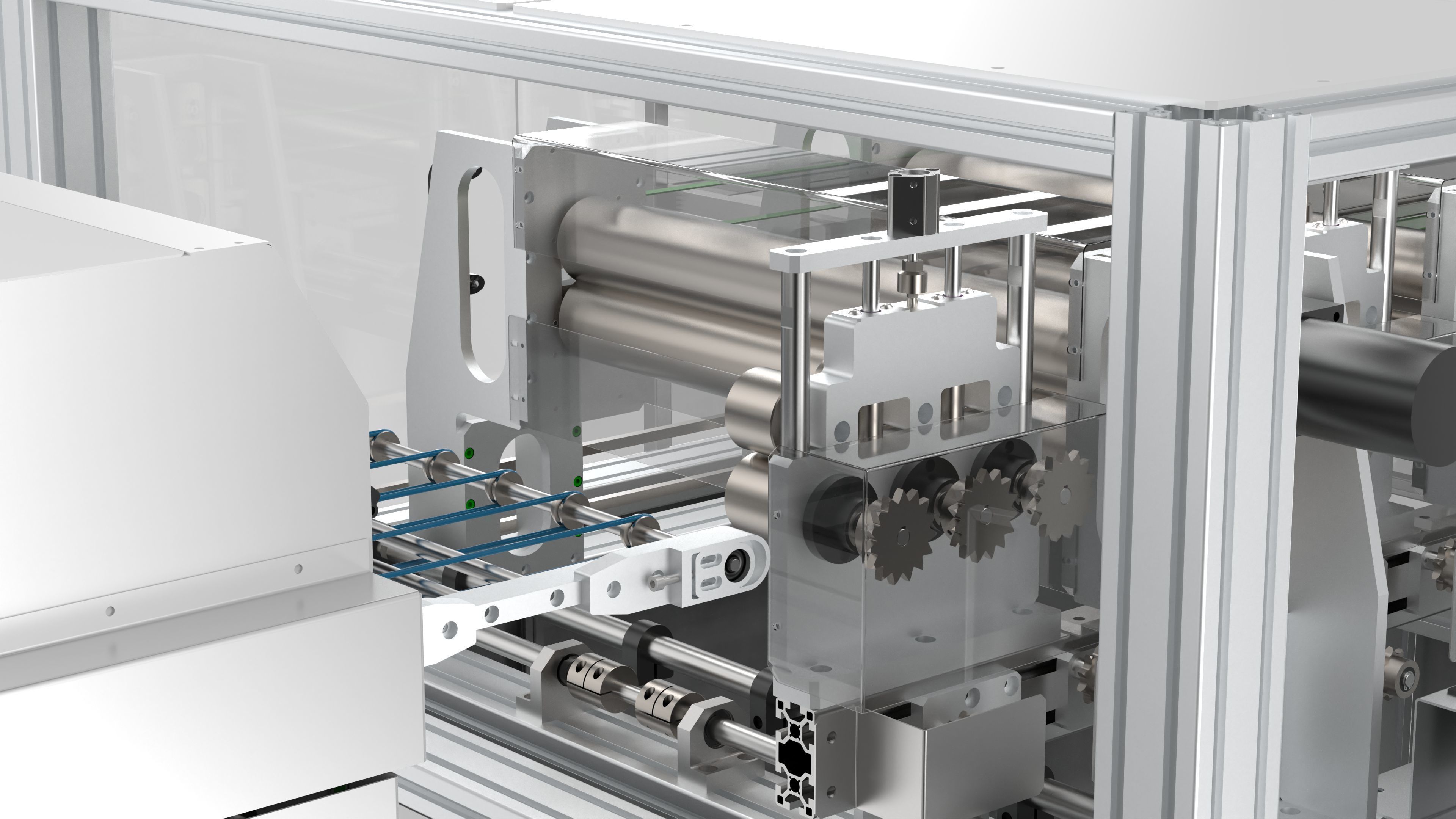

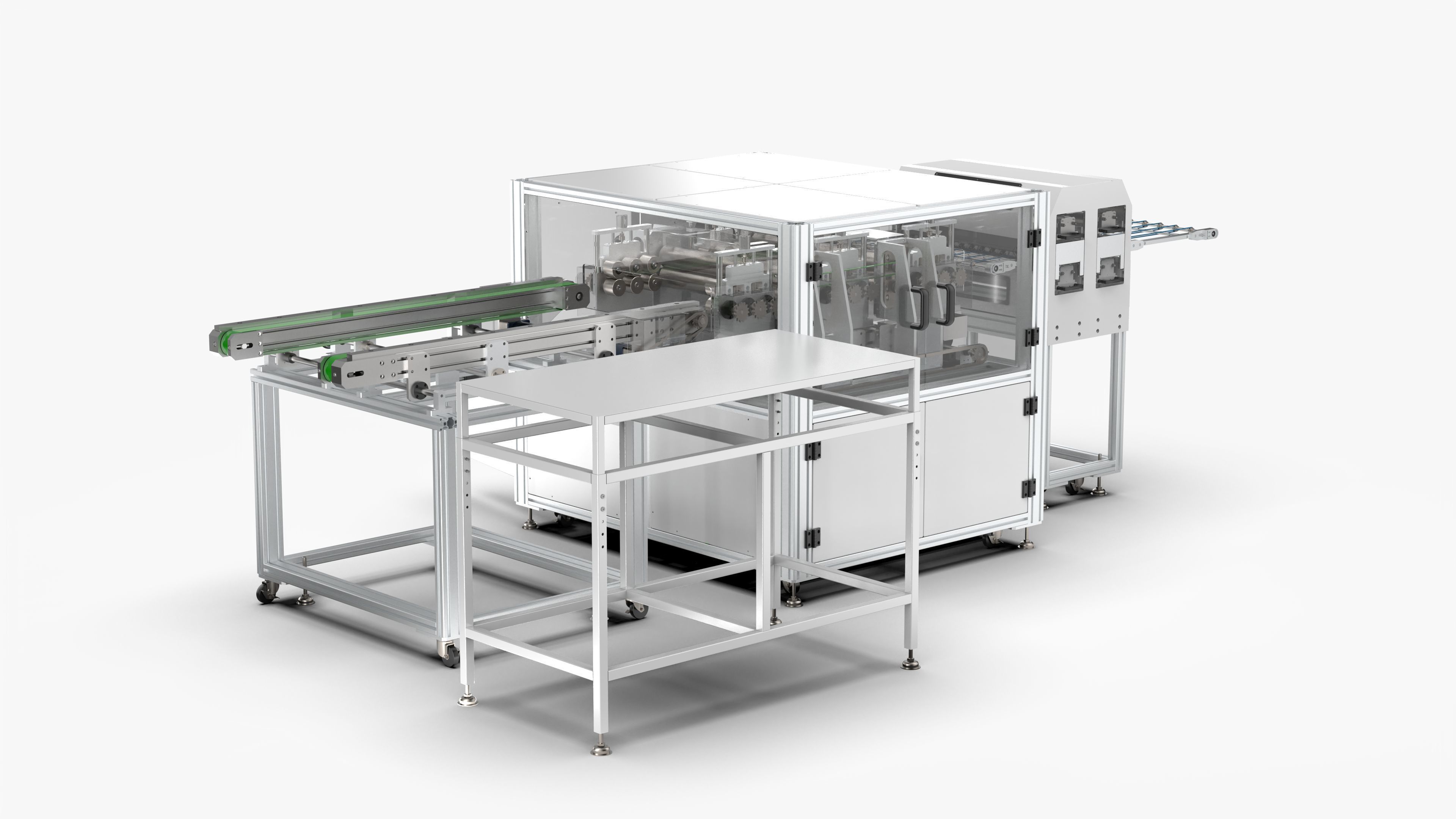

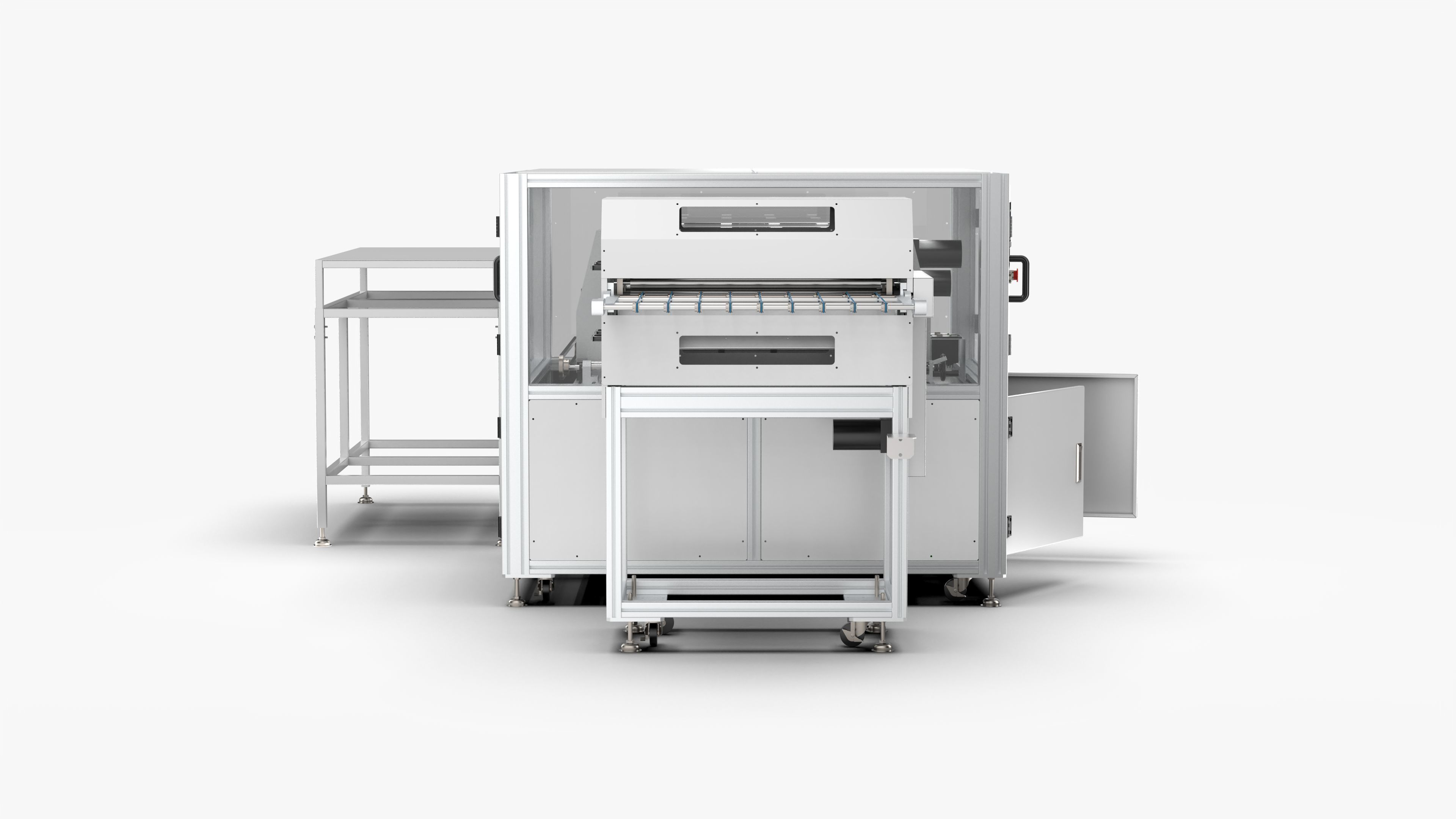

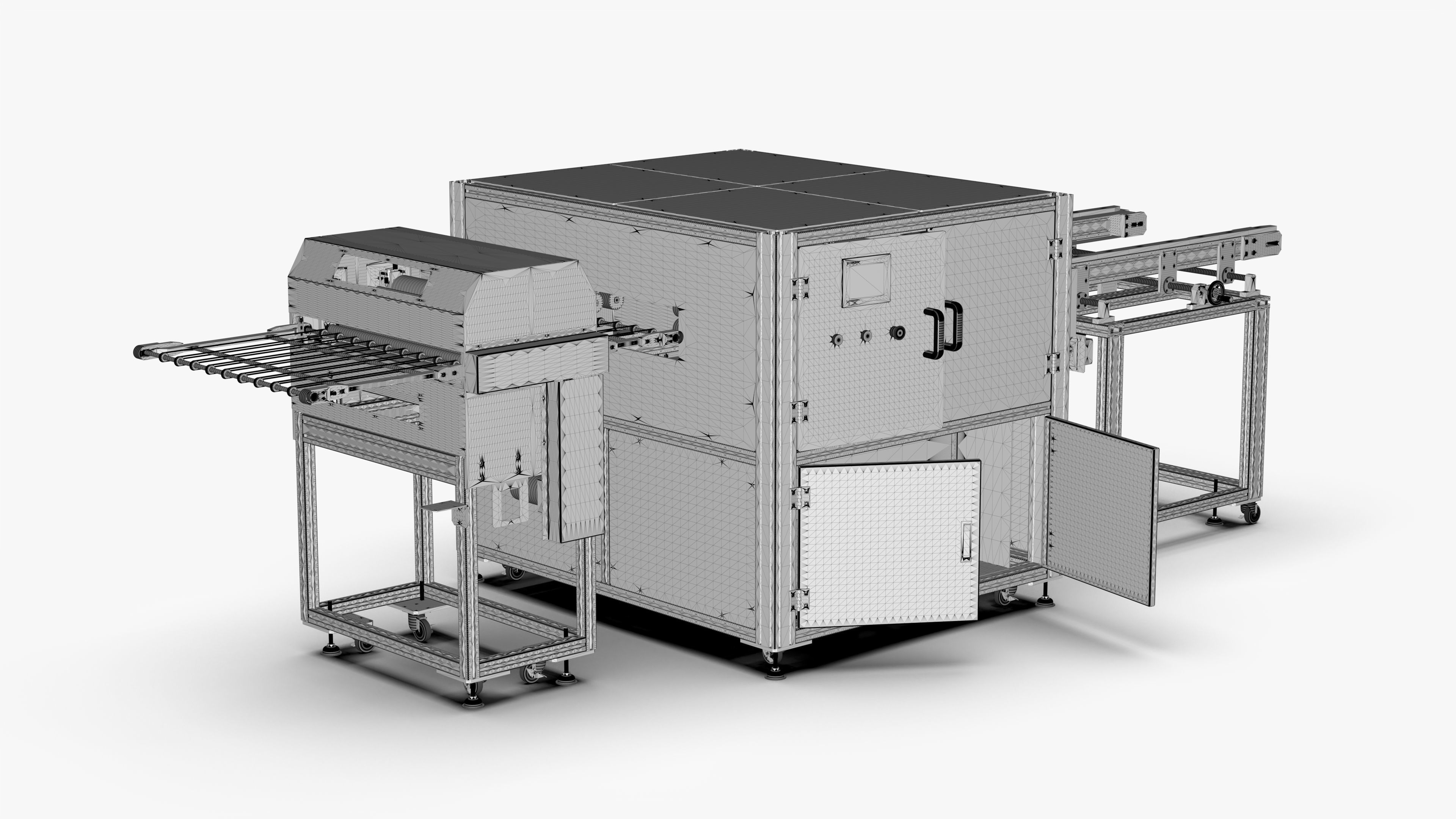

Automatic PCB Partition Cleaning Machine 3D model

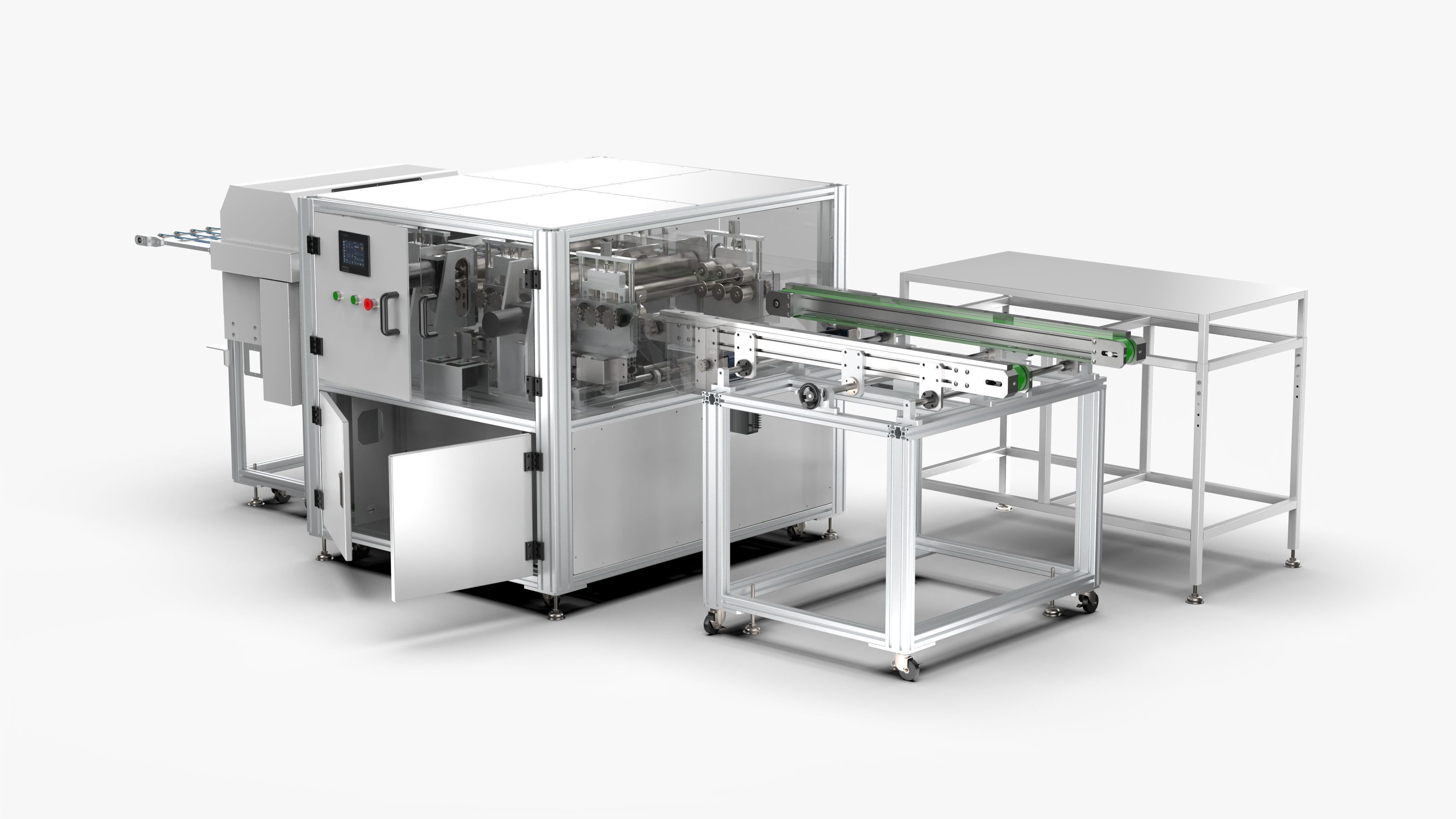

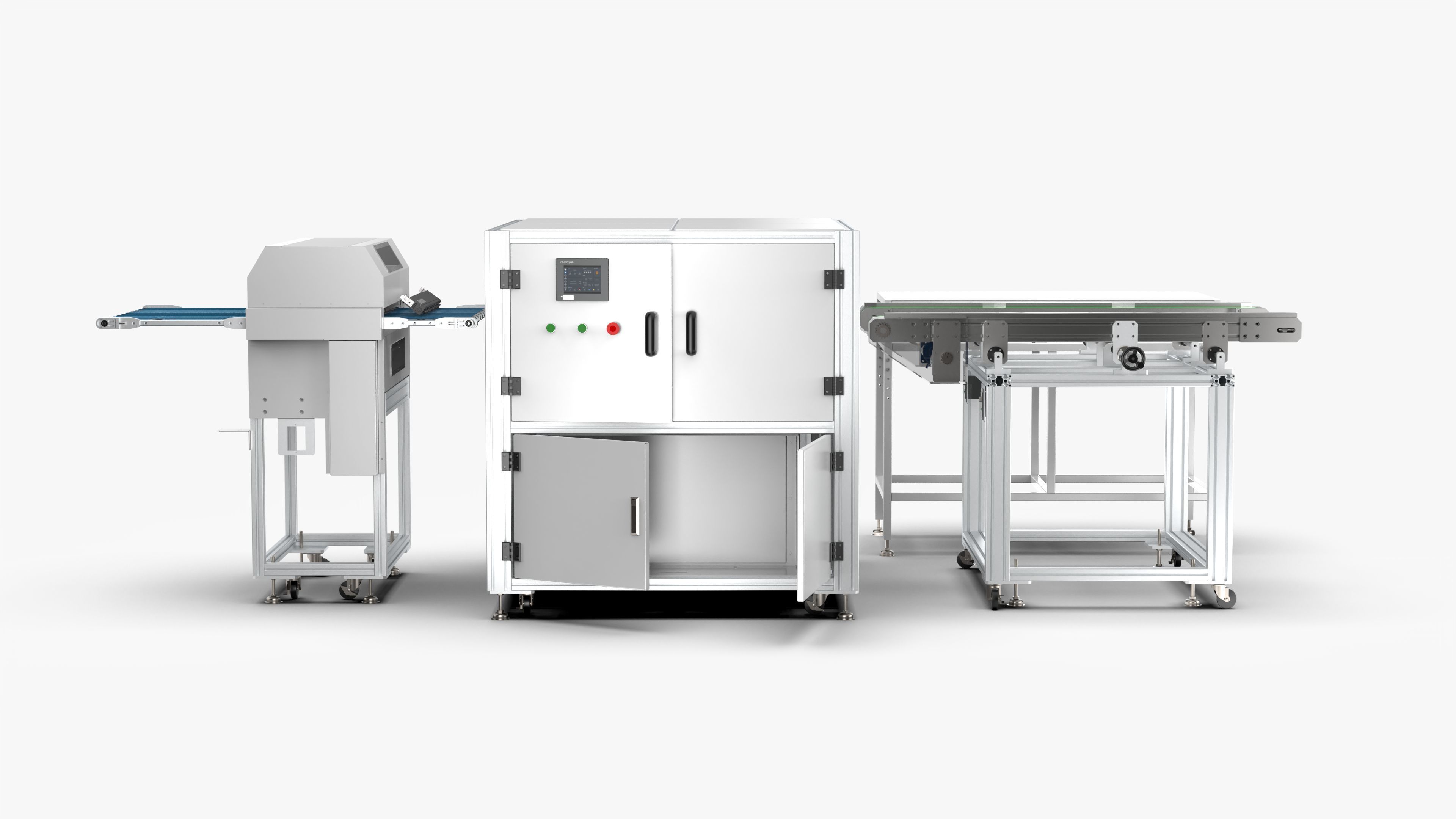

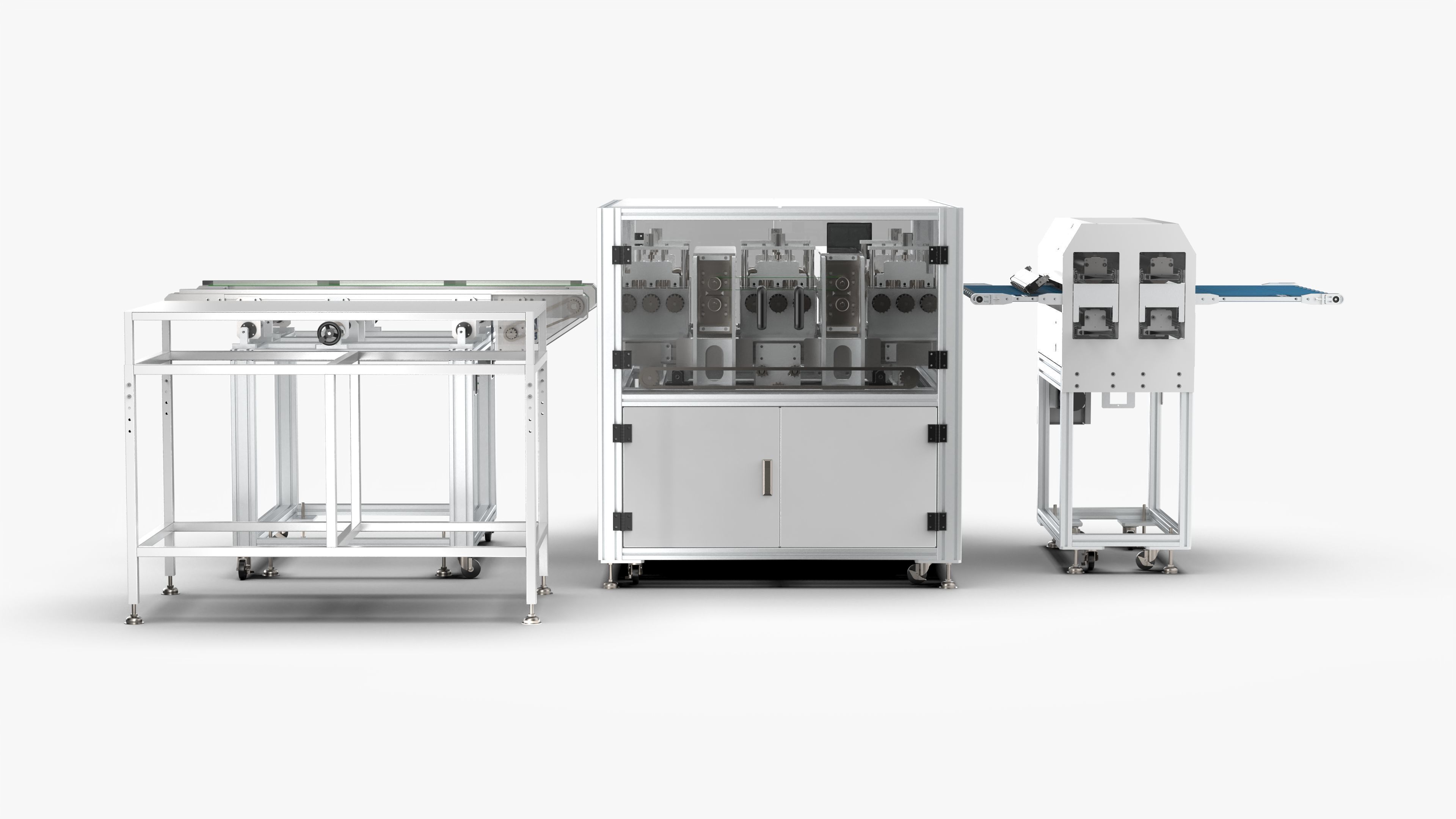

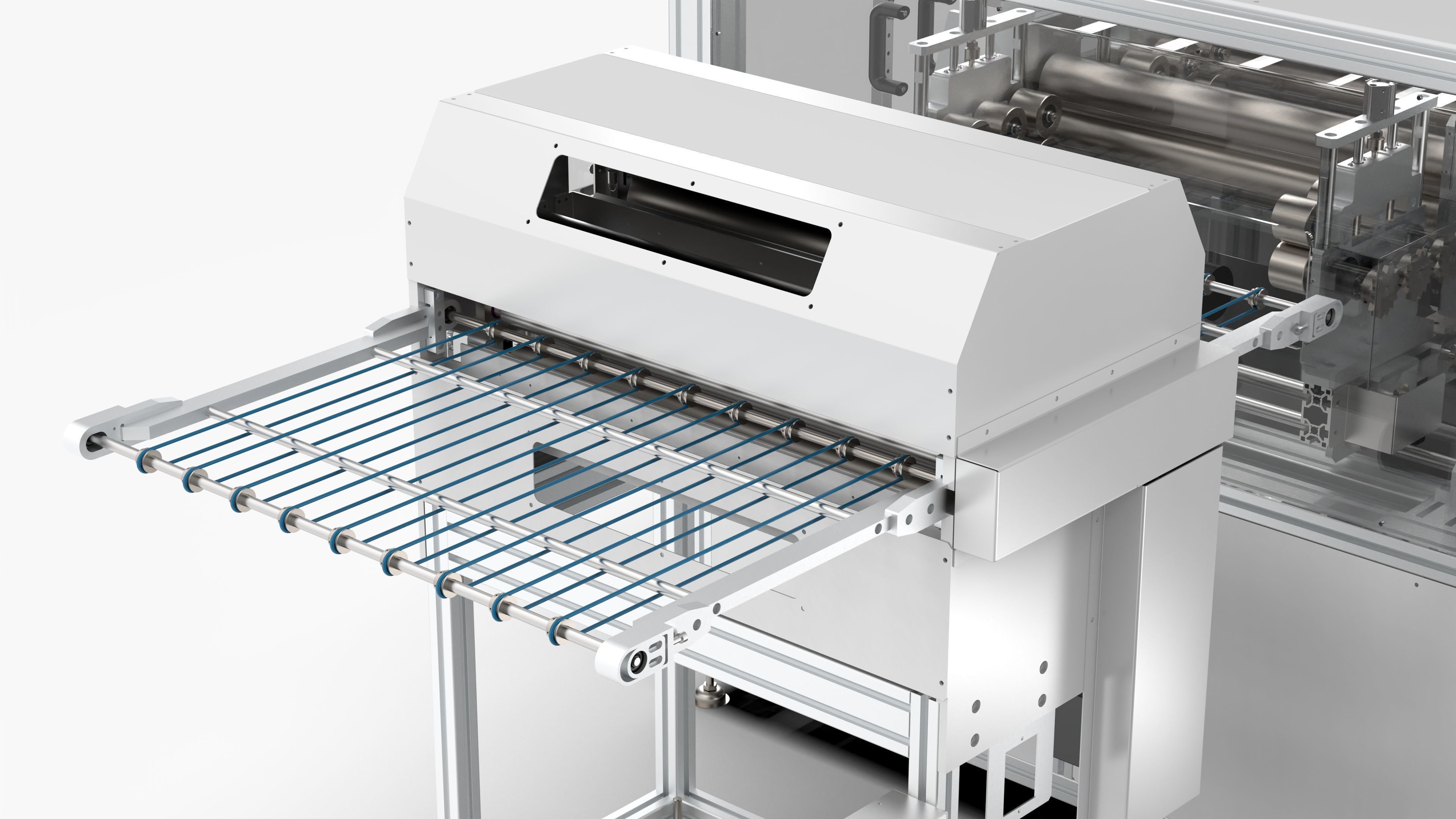

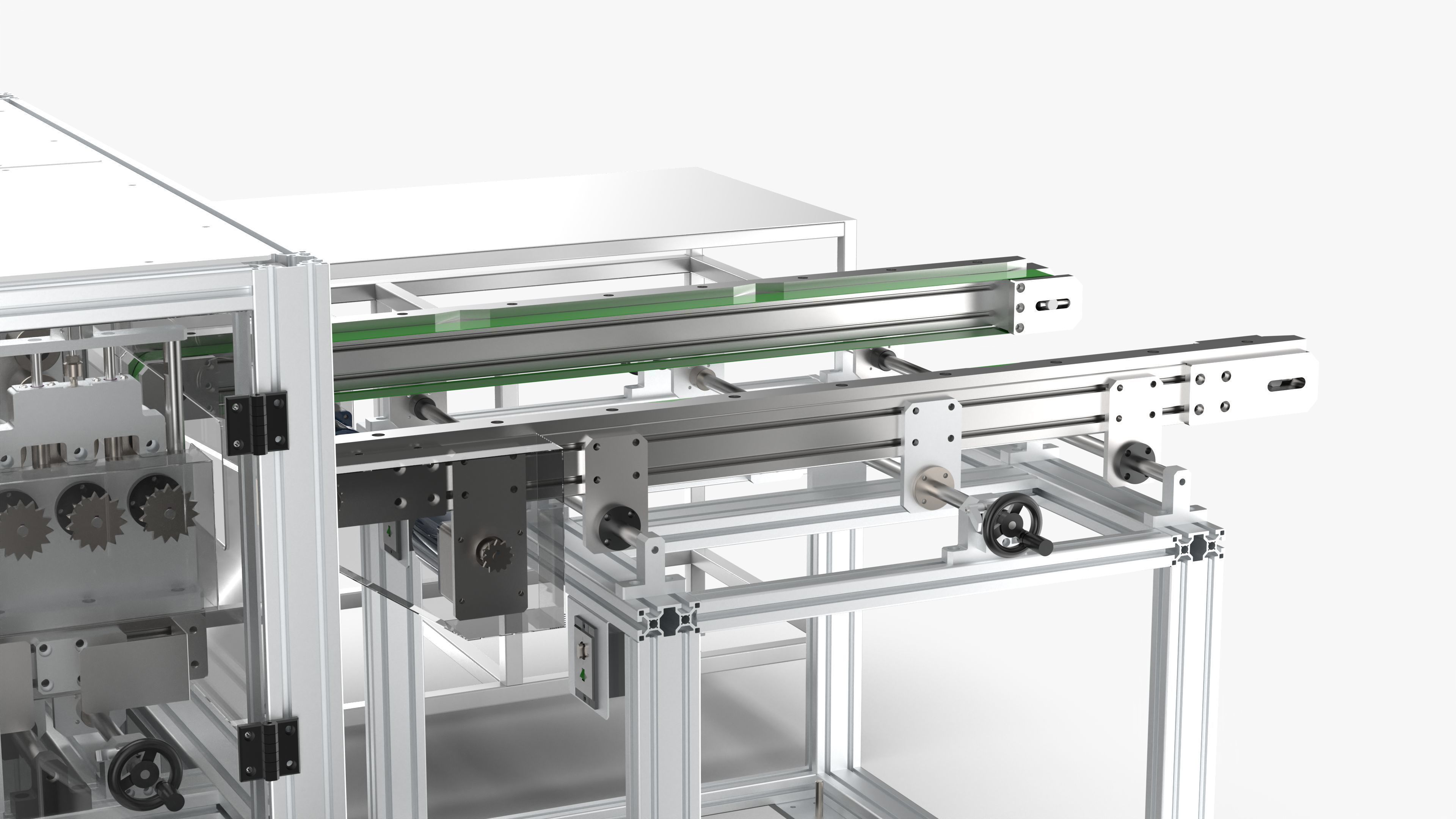

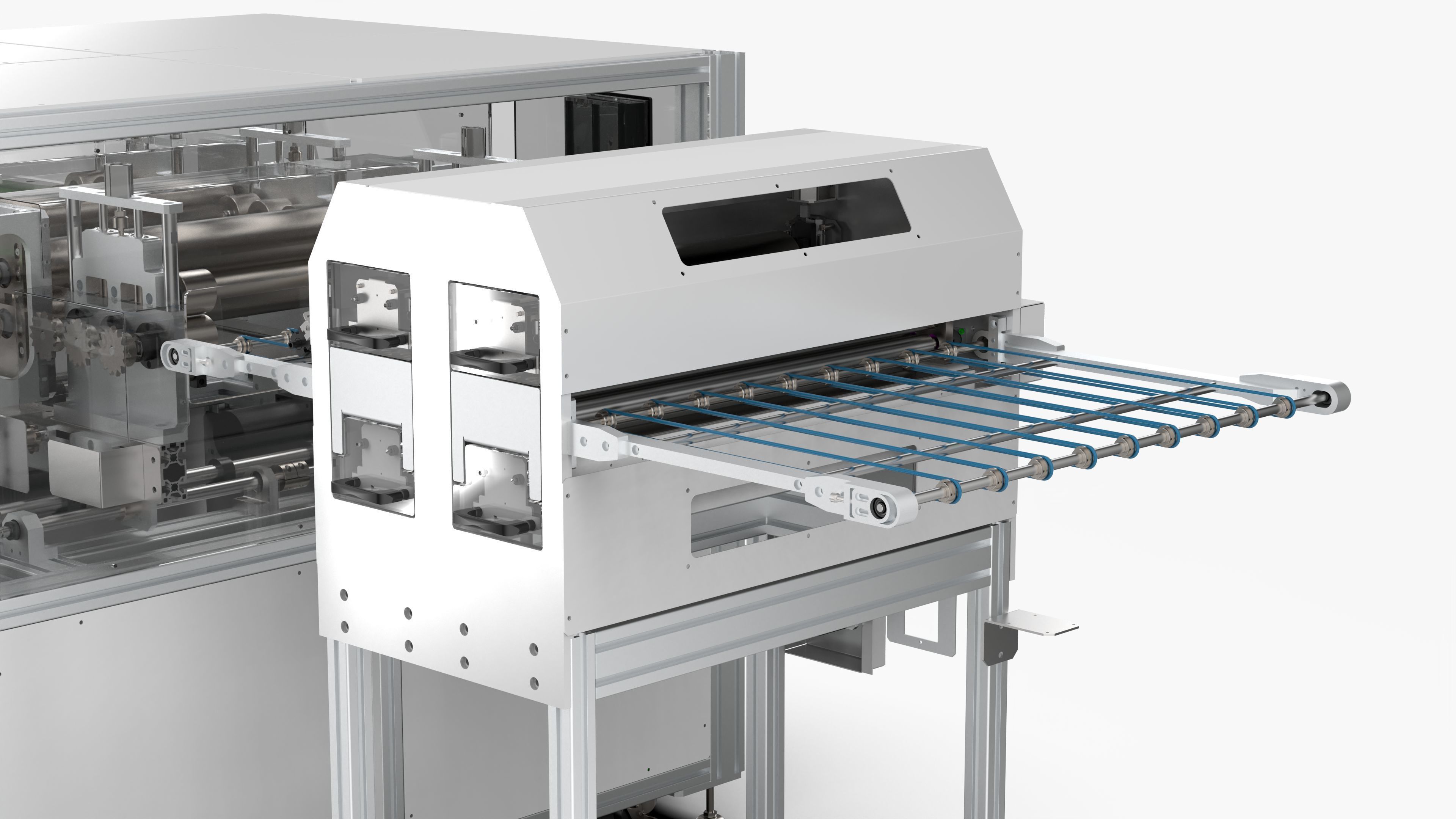

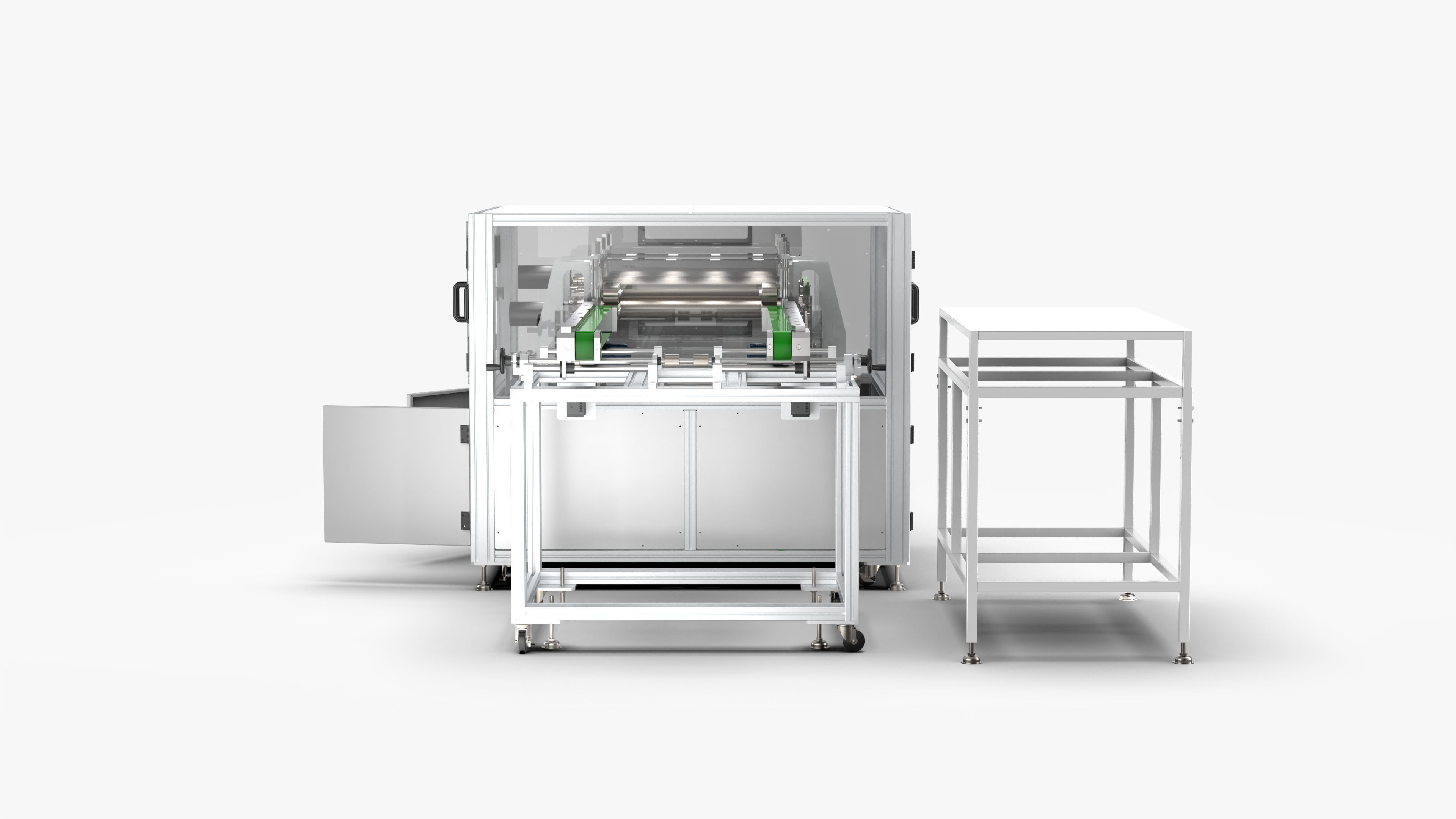

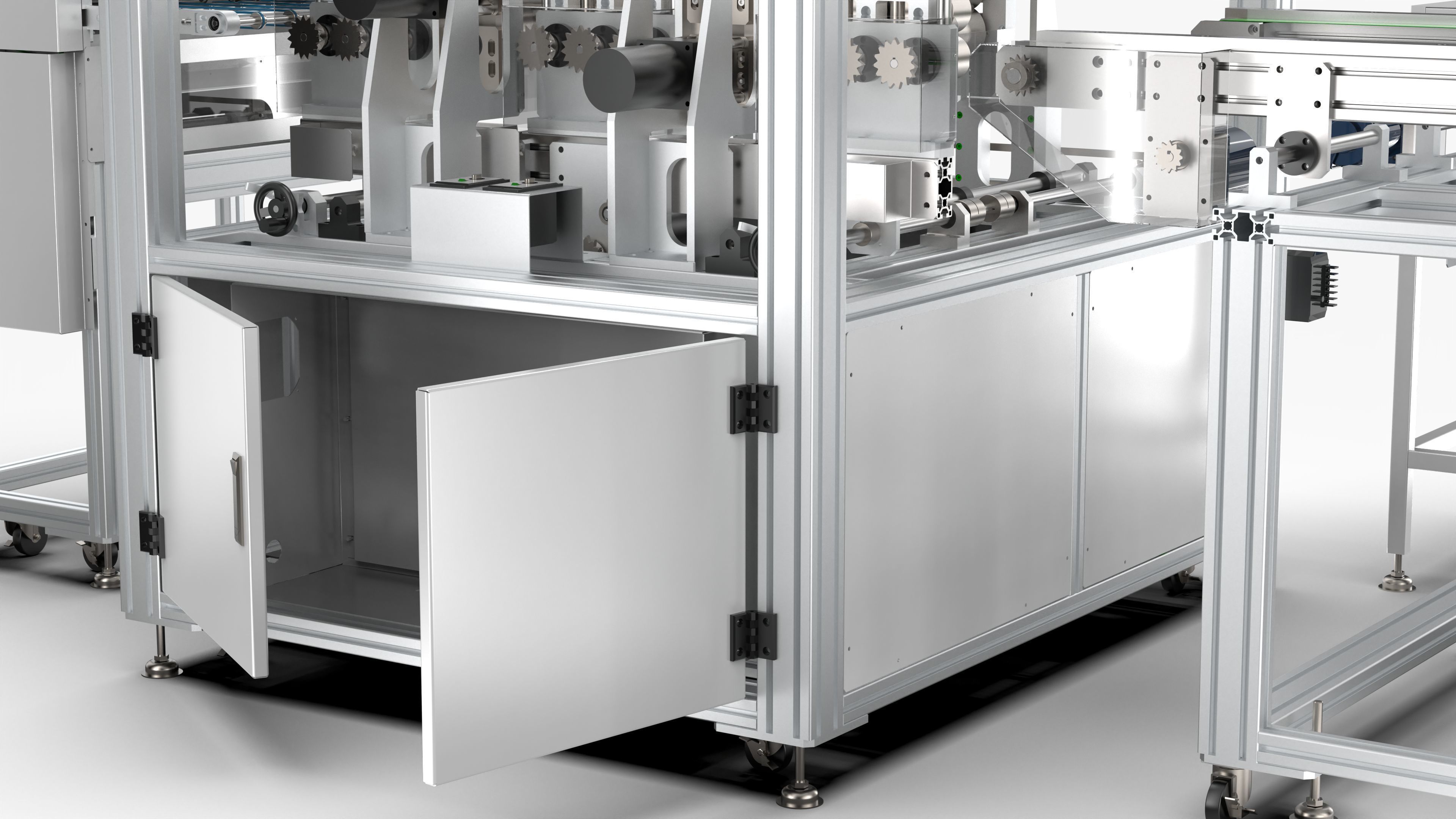

Automatic PCB Partition Cleaning Machine

Introduction

The model design of Japanese PCB board partition cleaning equipment, the actual size is relatively large, the computer needs a certain configuration, the structure is clear, the parts are relatively complete, and the automatic PCB partition cleaning equipment purchased in Japan (with engineering) Figure PDF) 3D drawings also have certain complexity, including igs, PDF, and SolidWorks files of all files. It is a good set of models for learning and research.

File Formats

• SolidWorks 2022 | Keyshot 10
• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)

Geometry

• Polygons: 4,679,995
• Vertice: 14,039,850
