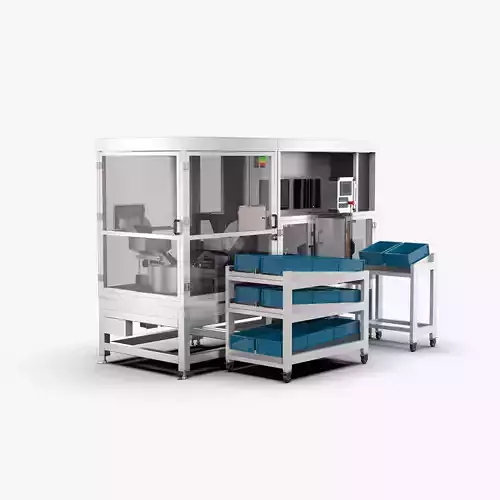

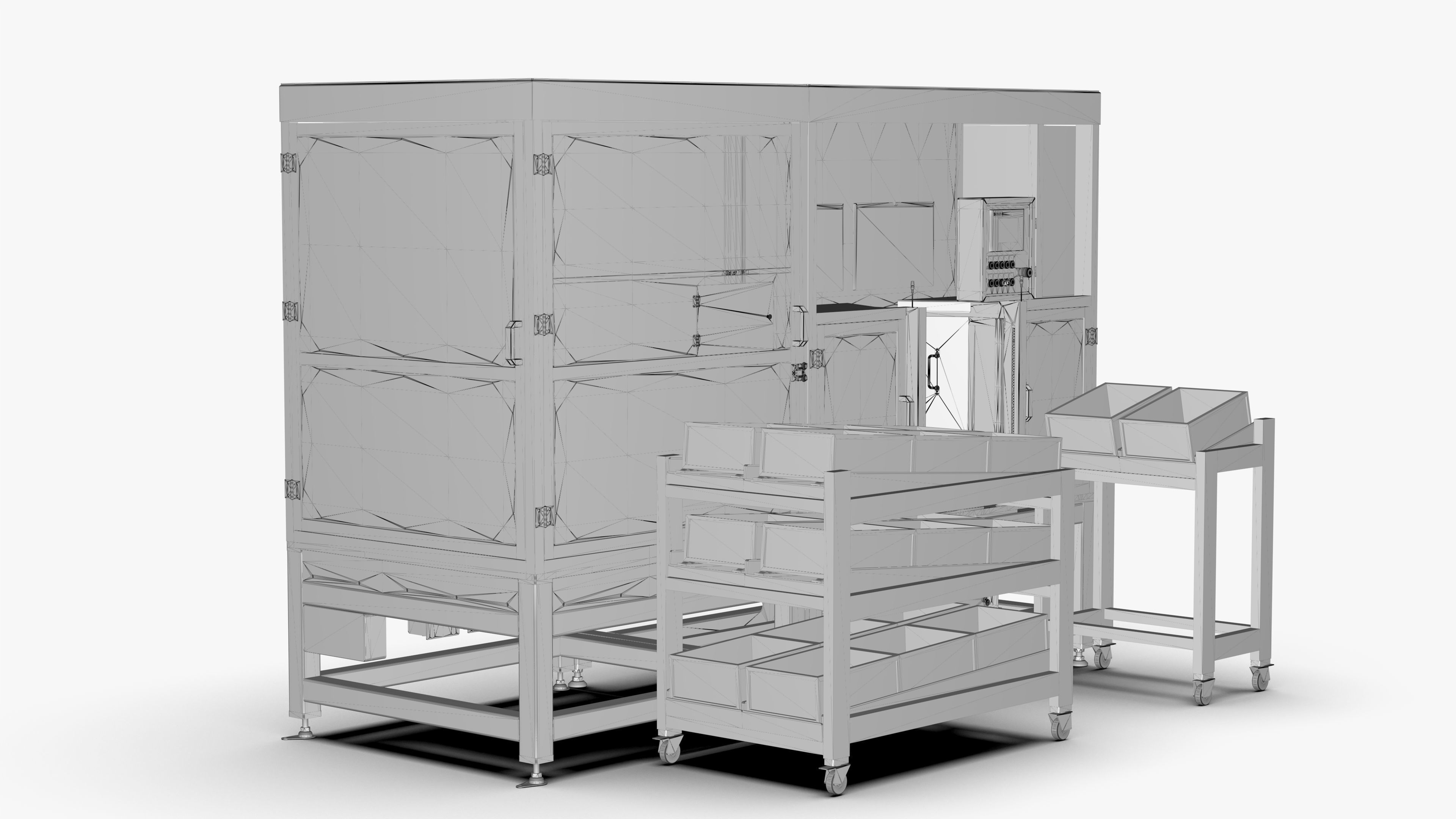

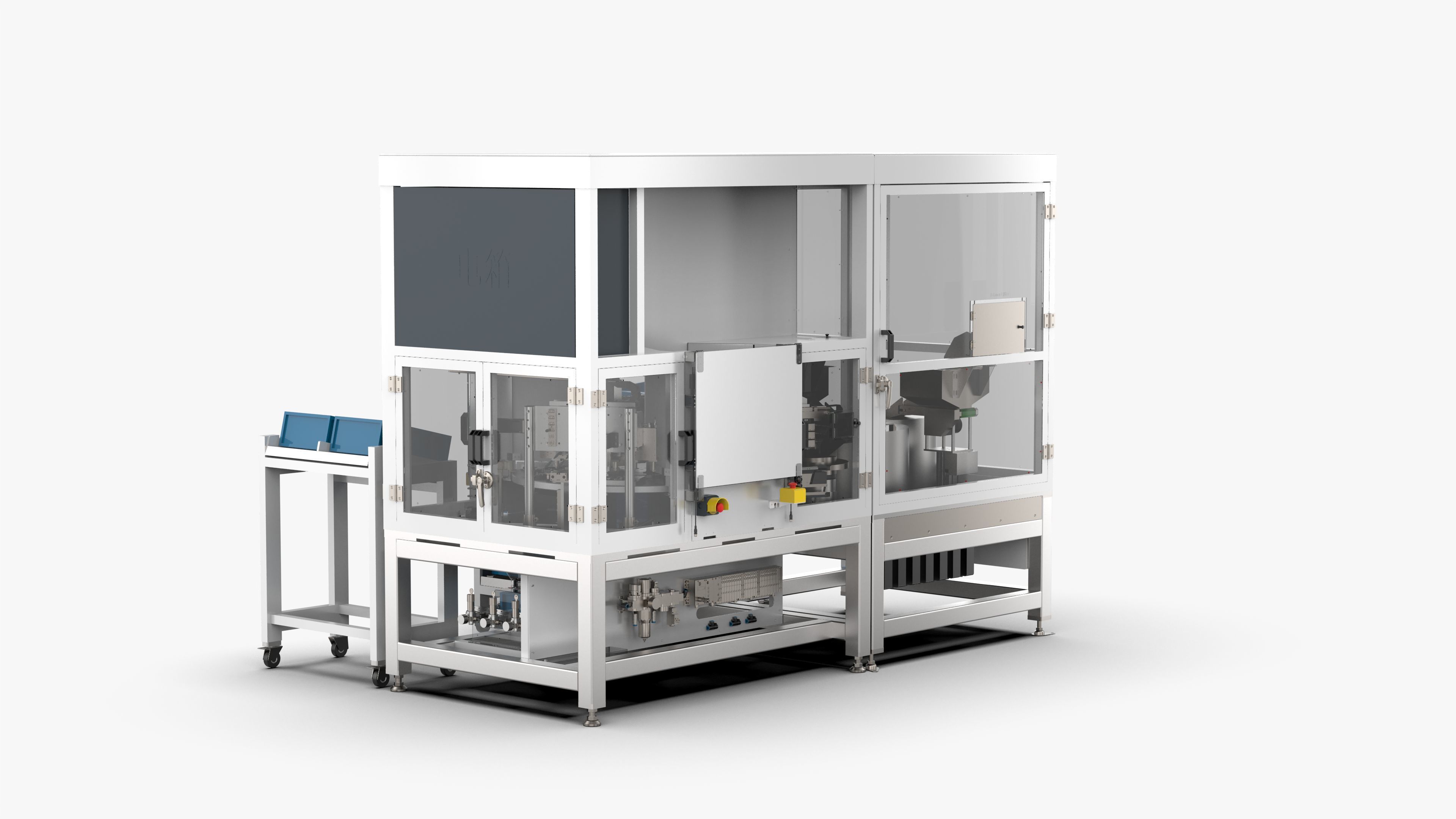

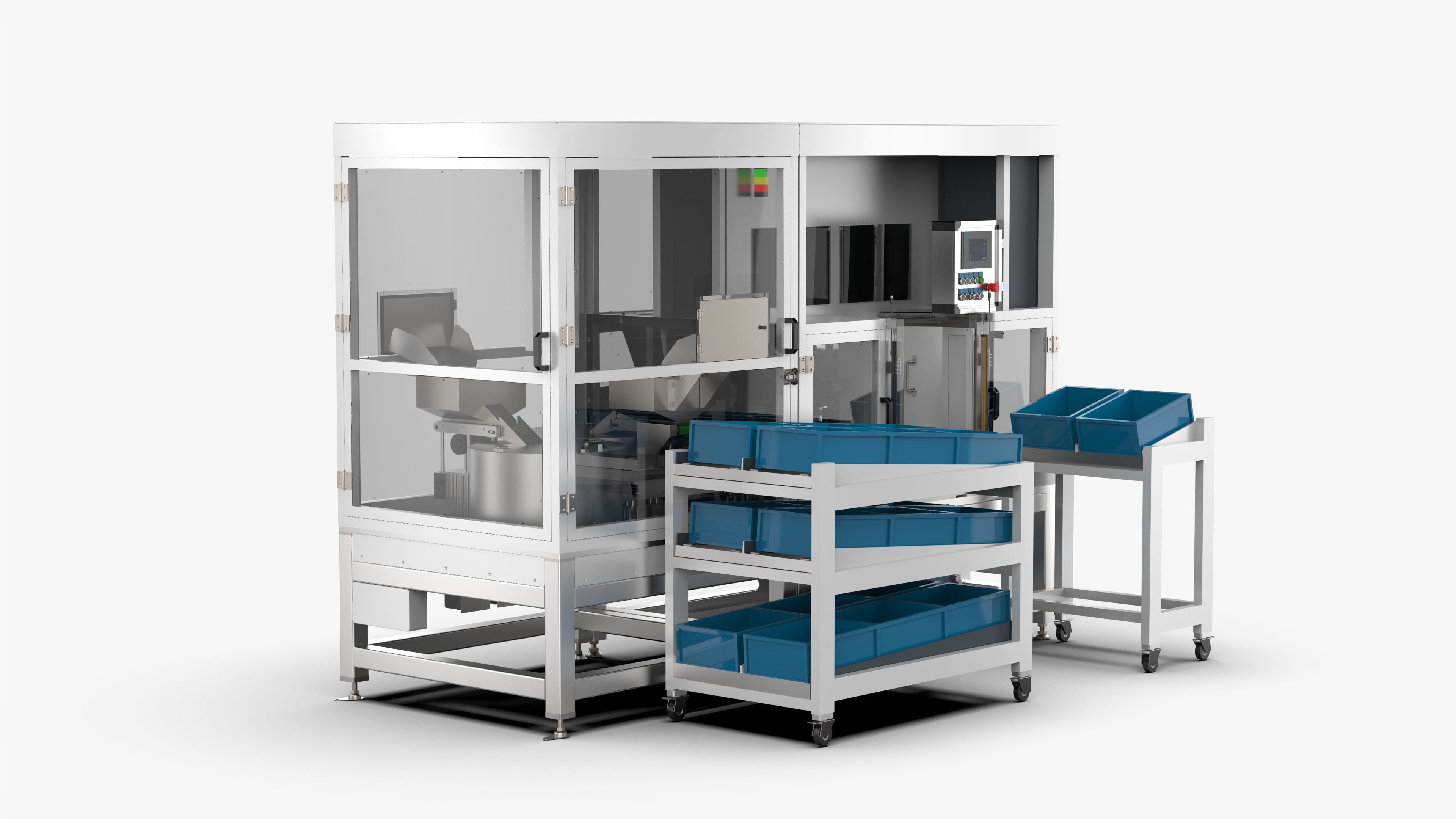

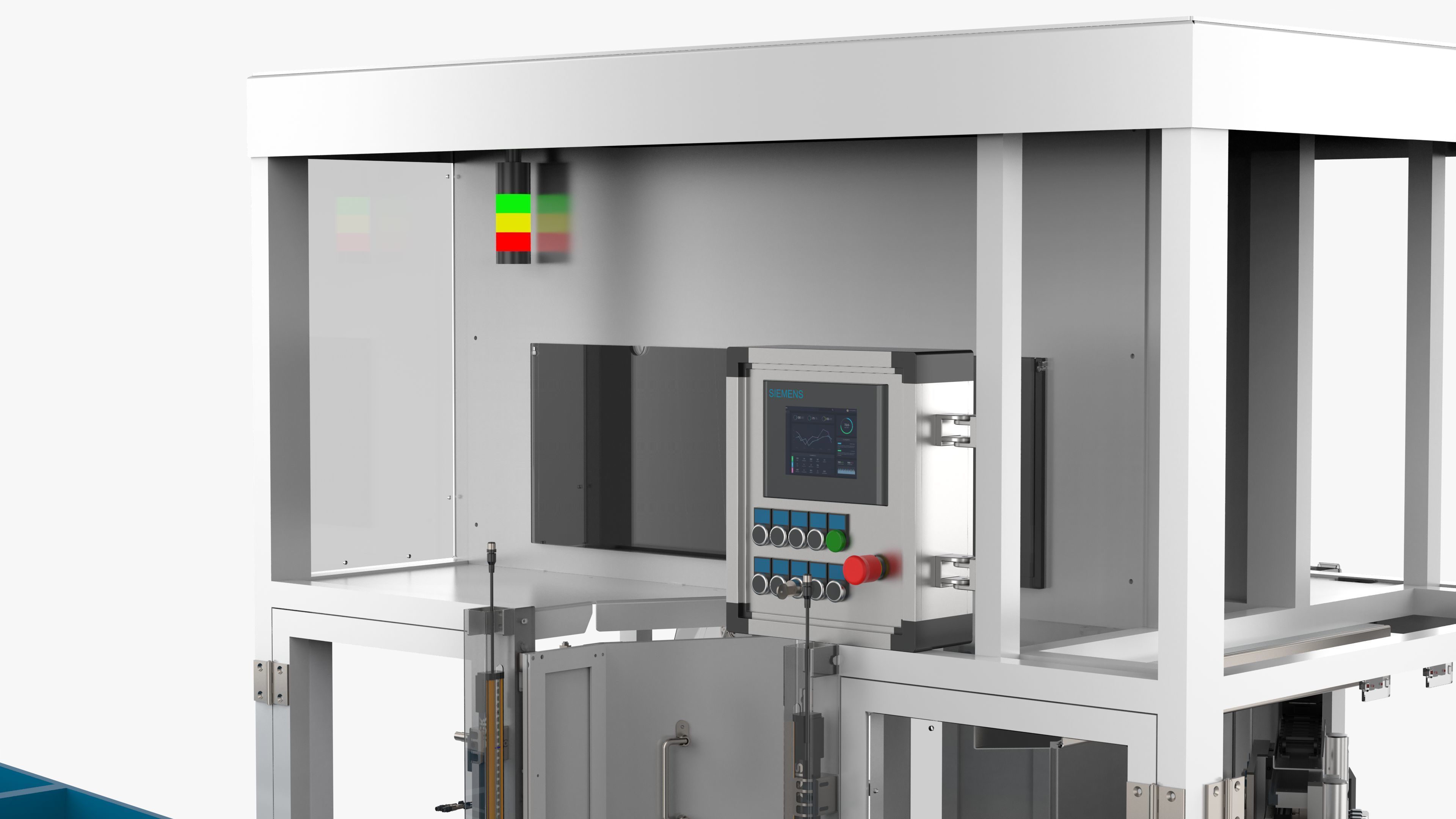

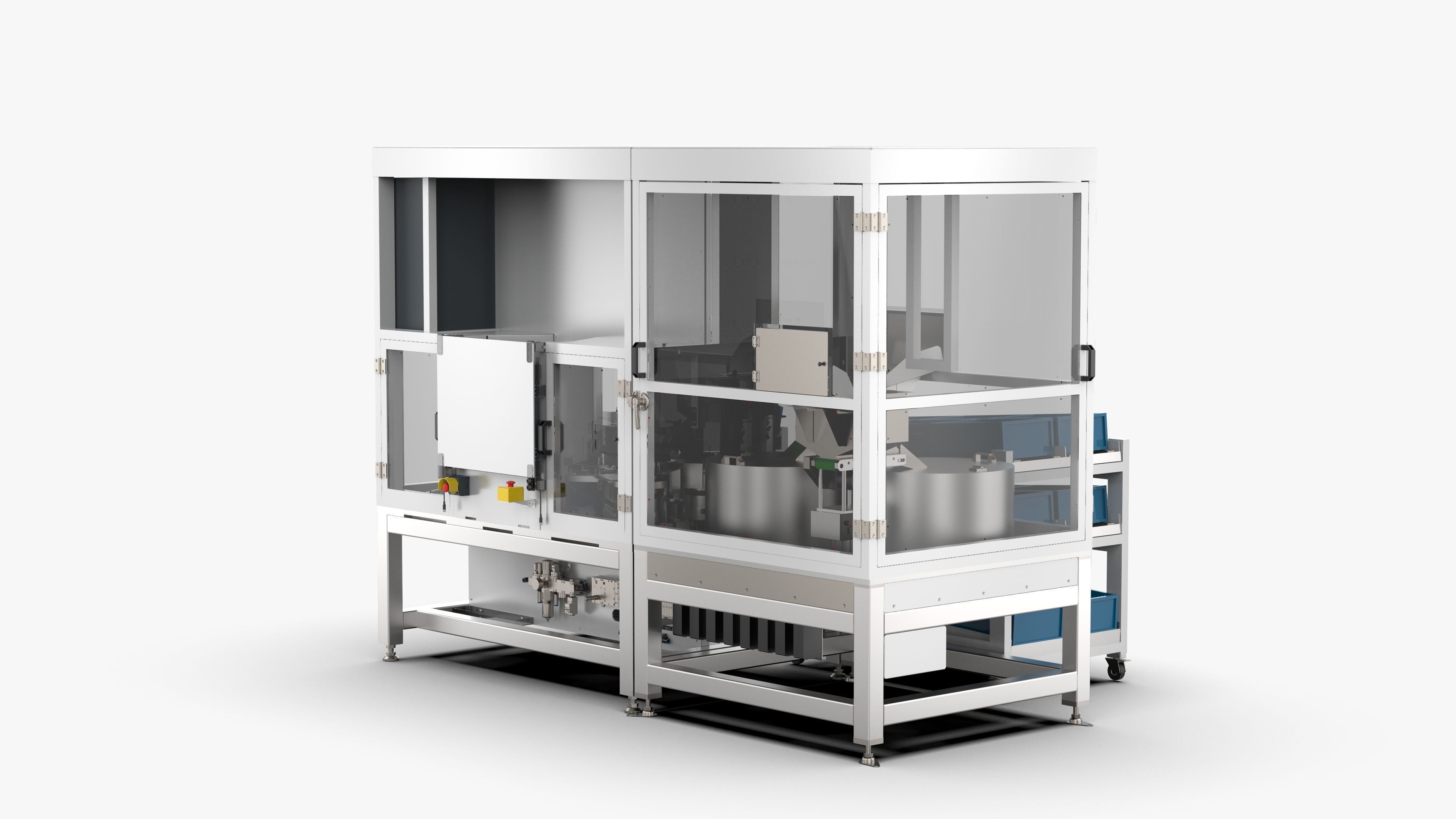

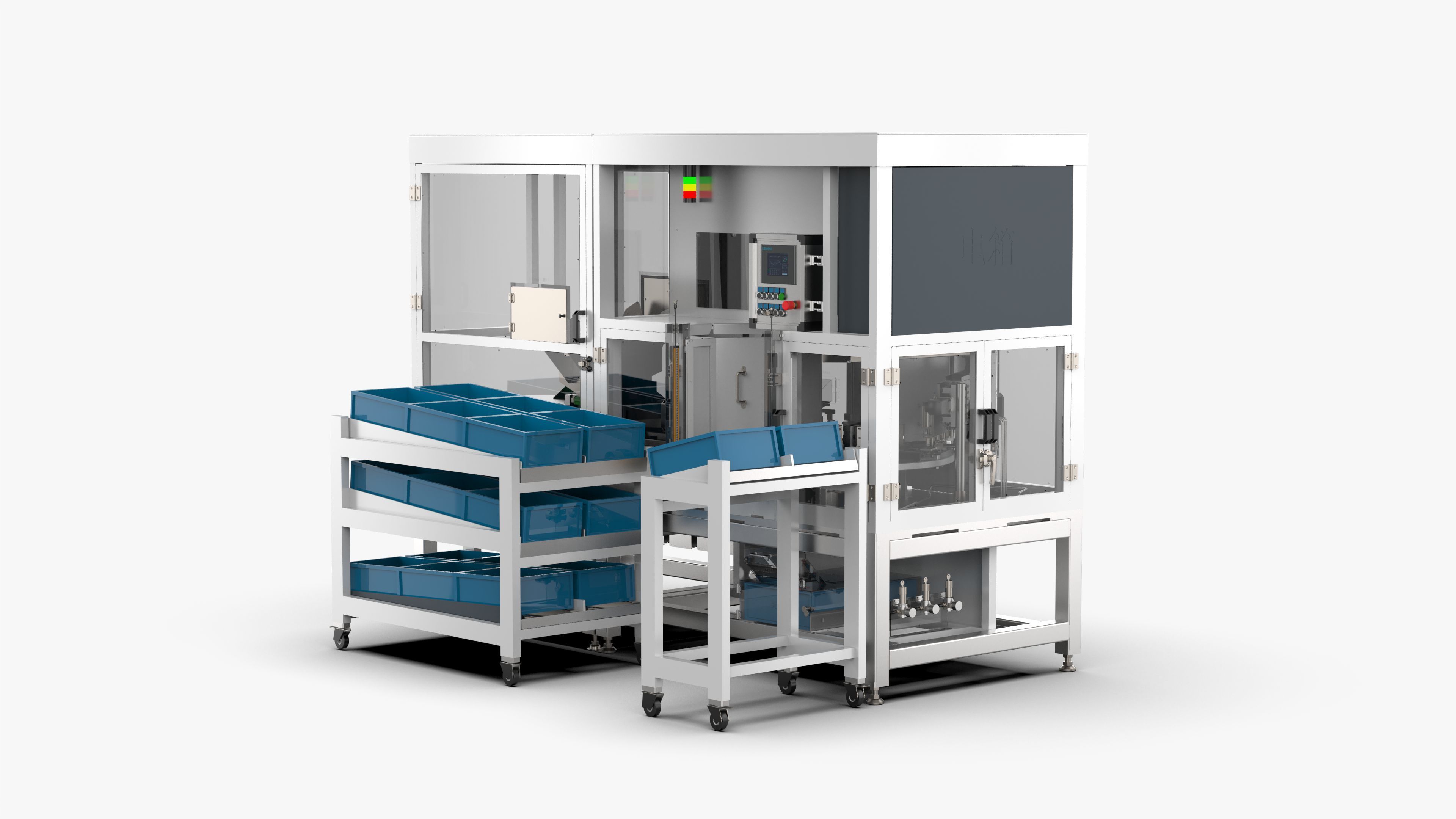

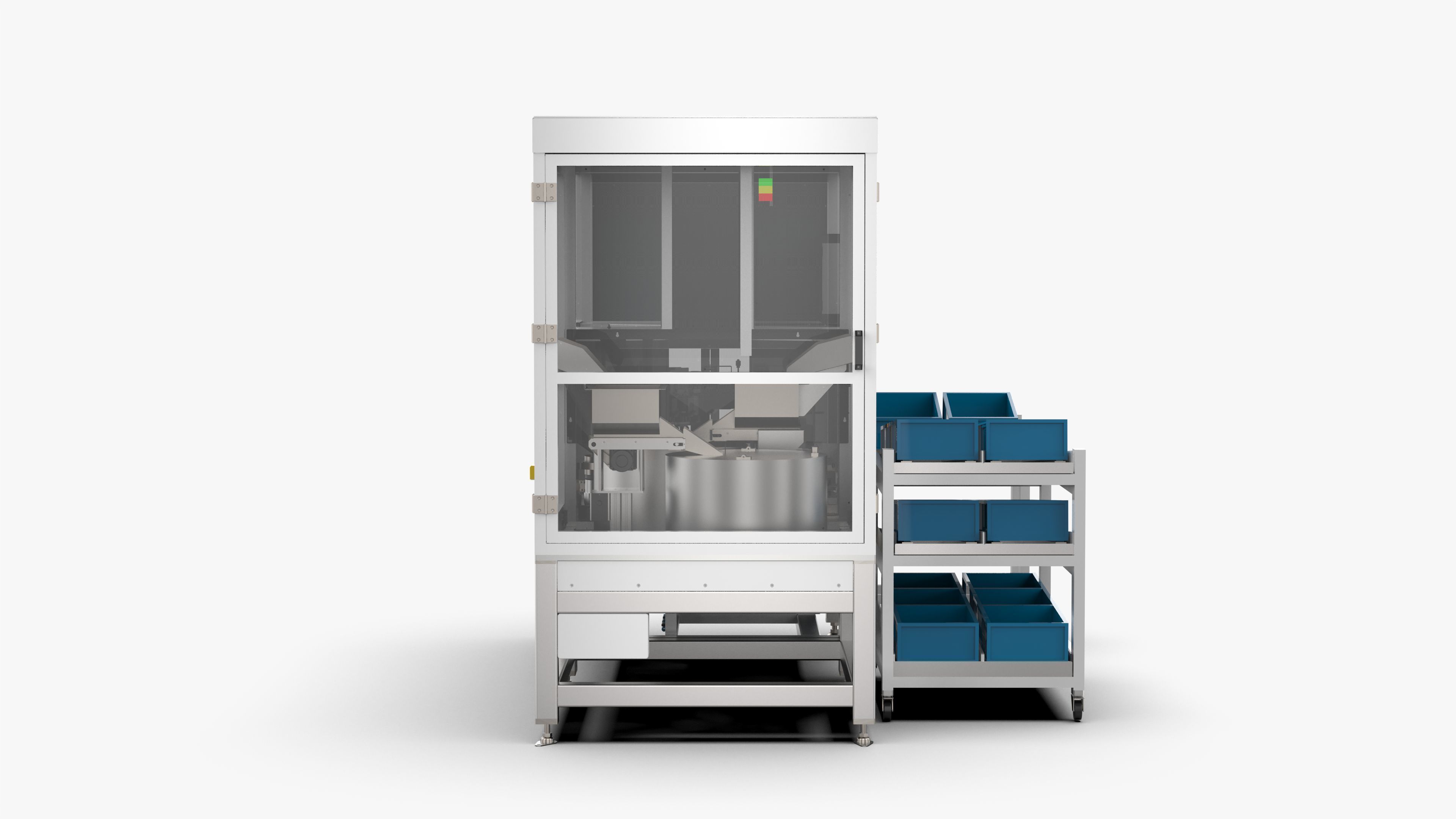

Automatic Small Motor Gearbox Assembly Machine 3D model

Automatic Small Motor Gearbox Assembly Machine

Introduction

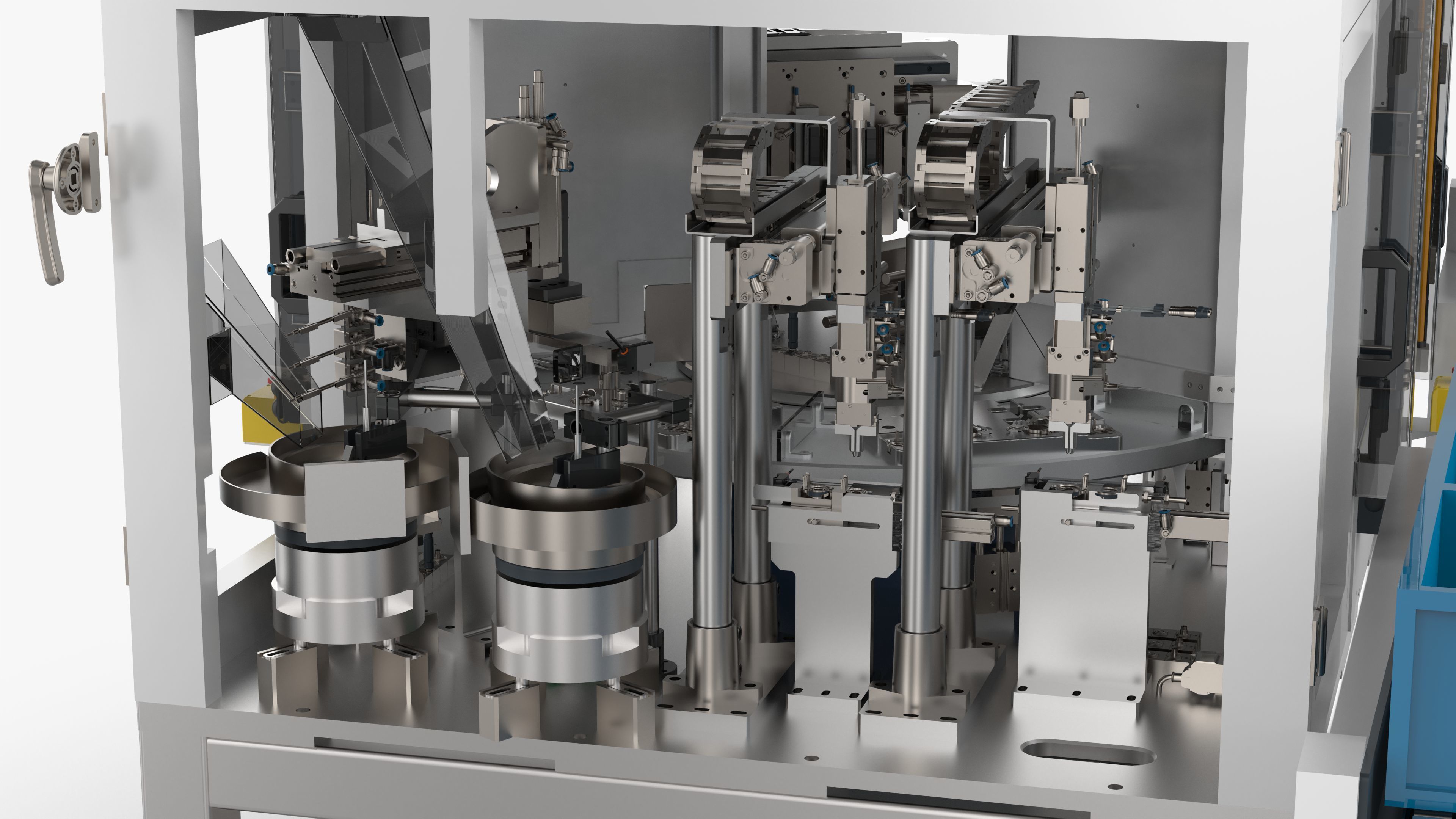

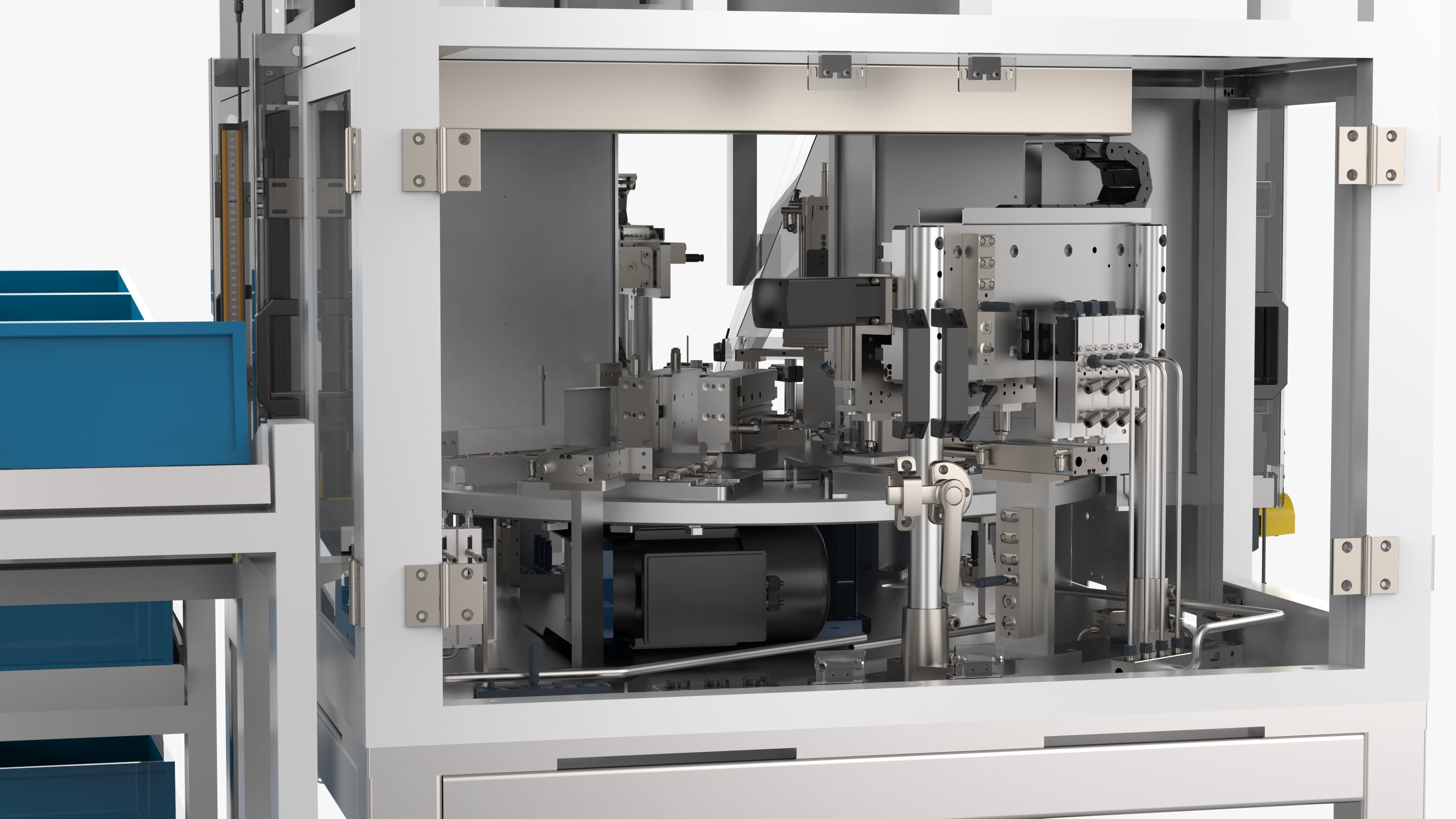

The equipment uses a fully automatic turntable to assemble small motor gearboxes. The production of the equipment is stable and reliable, and the structure is compact and reasonable. The motor adopts manual loading and unloading, and the upper and lower shell covers, gaskets, sealing rings, etc. are automatically loaded by vibrating trays. The equipment includes the following processes: motor loading and detection, automatic loading of upper and lower shell covers, automatic loading and assembly of gaskets, Sealing ring automatic feeding assembly, quantity detection and oiling, motor assembly, screw oiling, etc.

File Formats

• SolidWorks 2018 | Keyshot 10
• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)

Geometry

• Polygons: 7,173,179
• Vertice: 21,519,537
