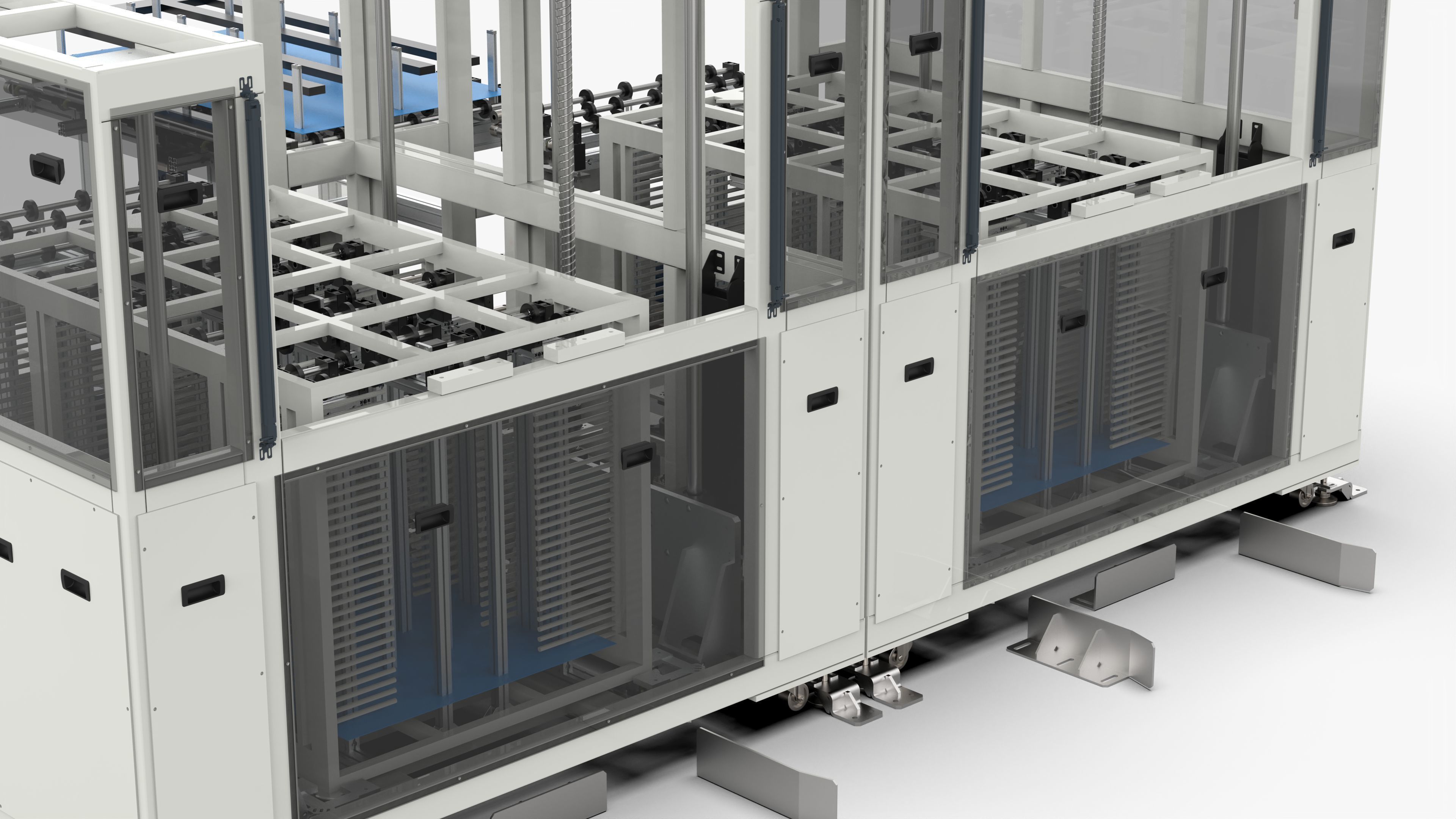

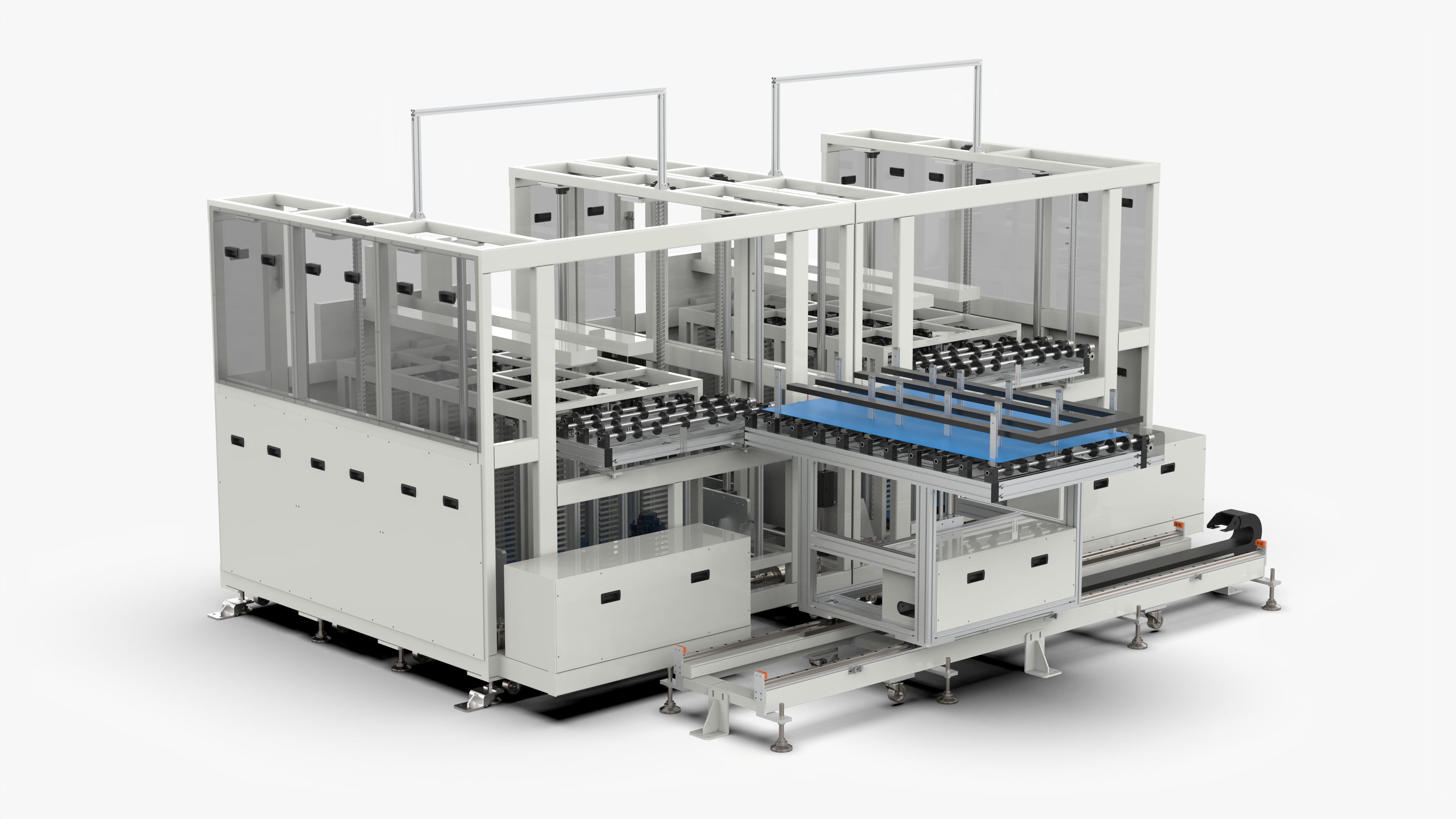

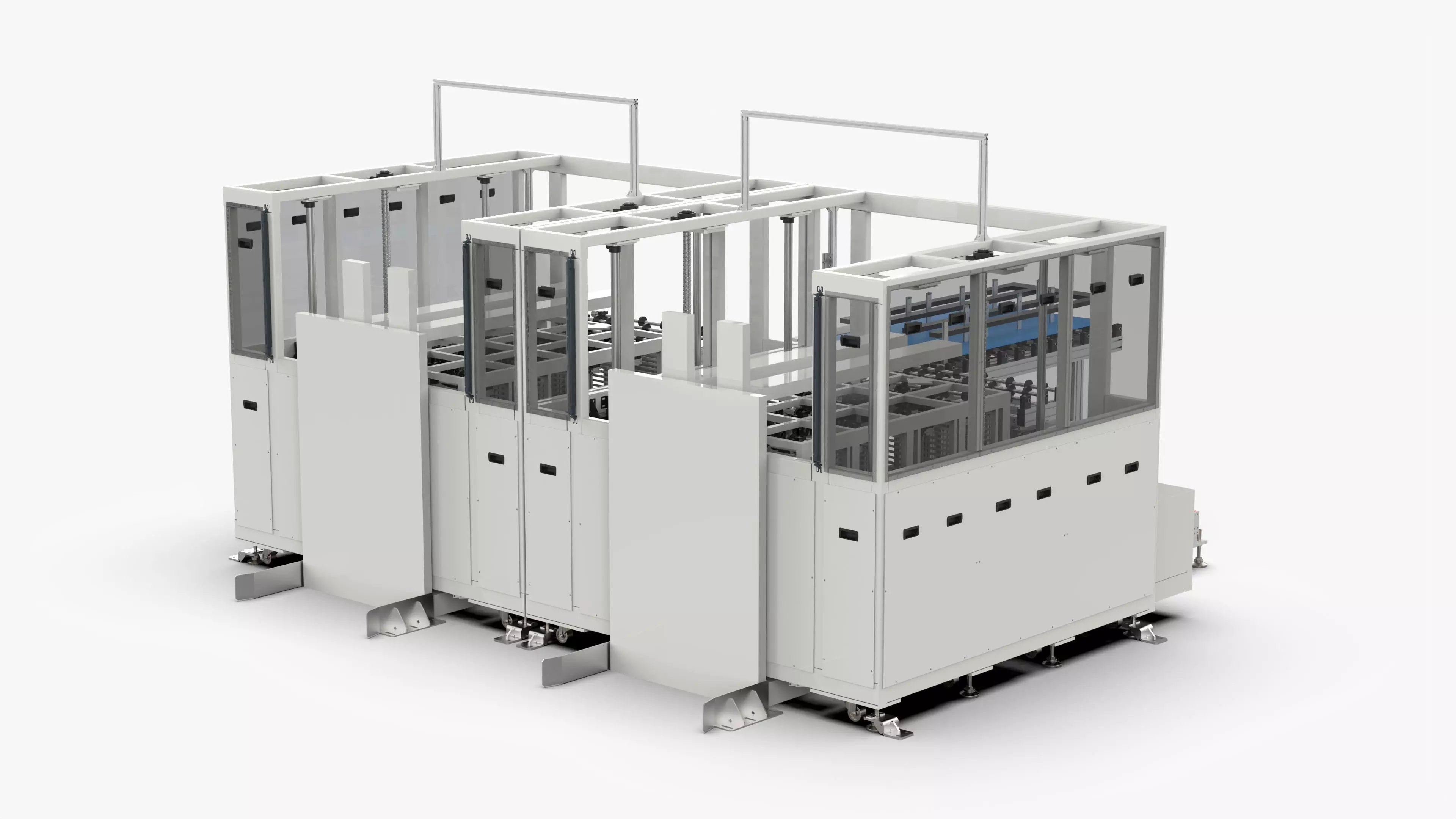

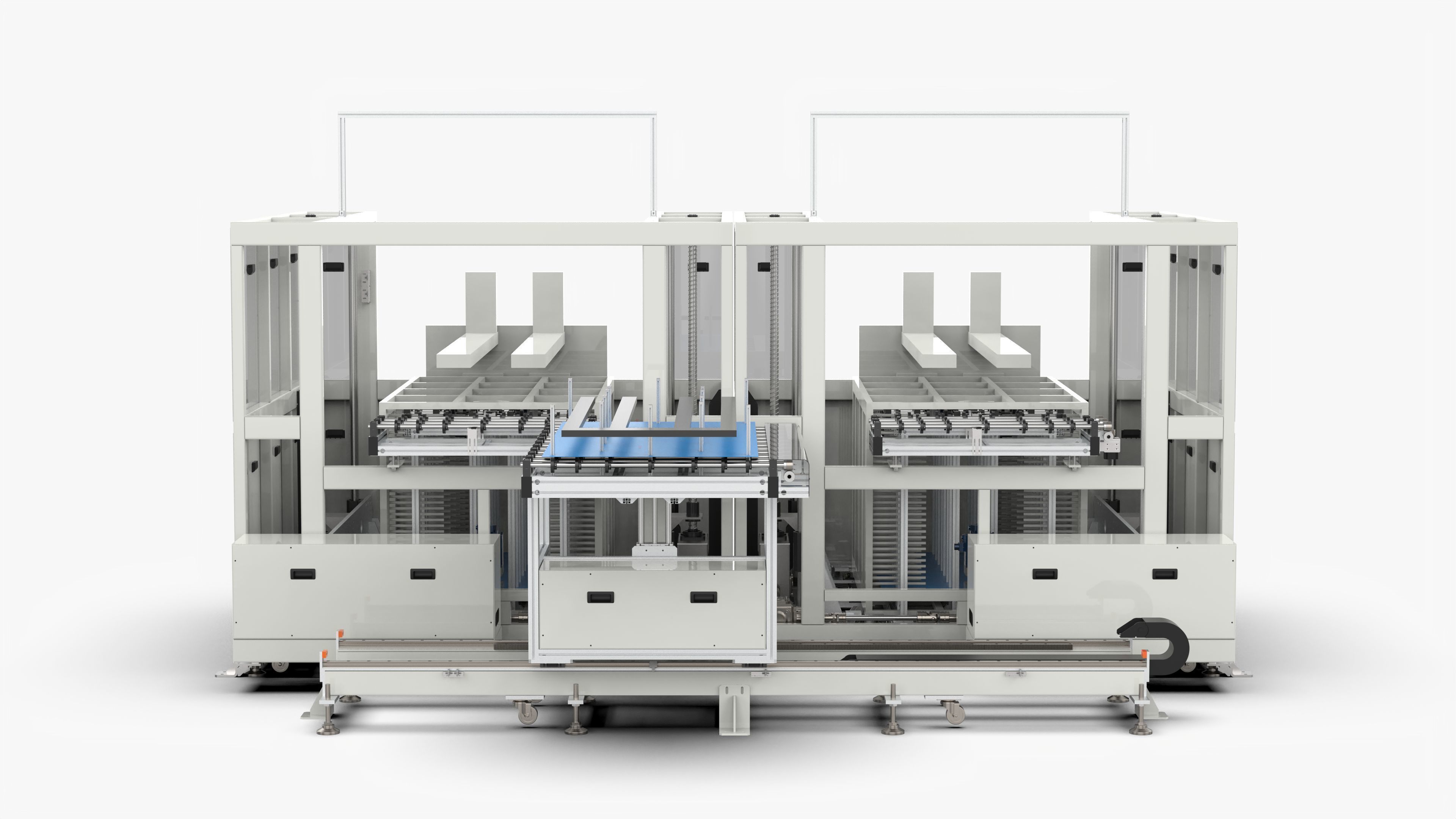

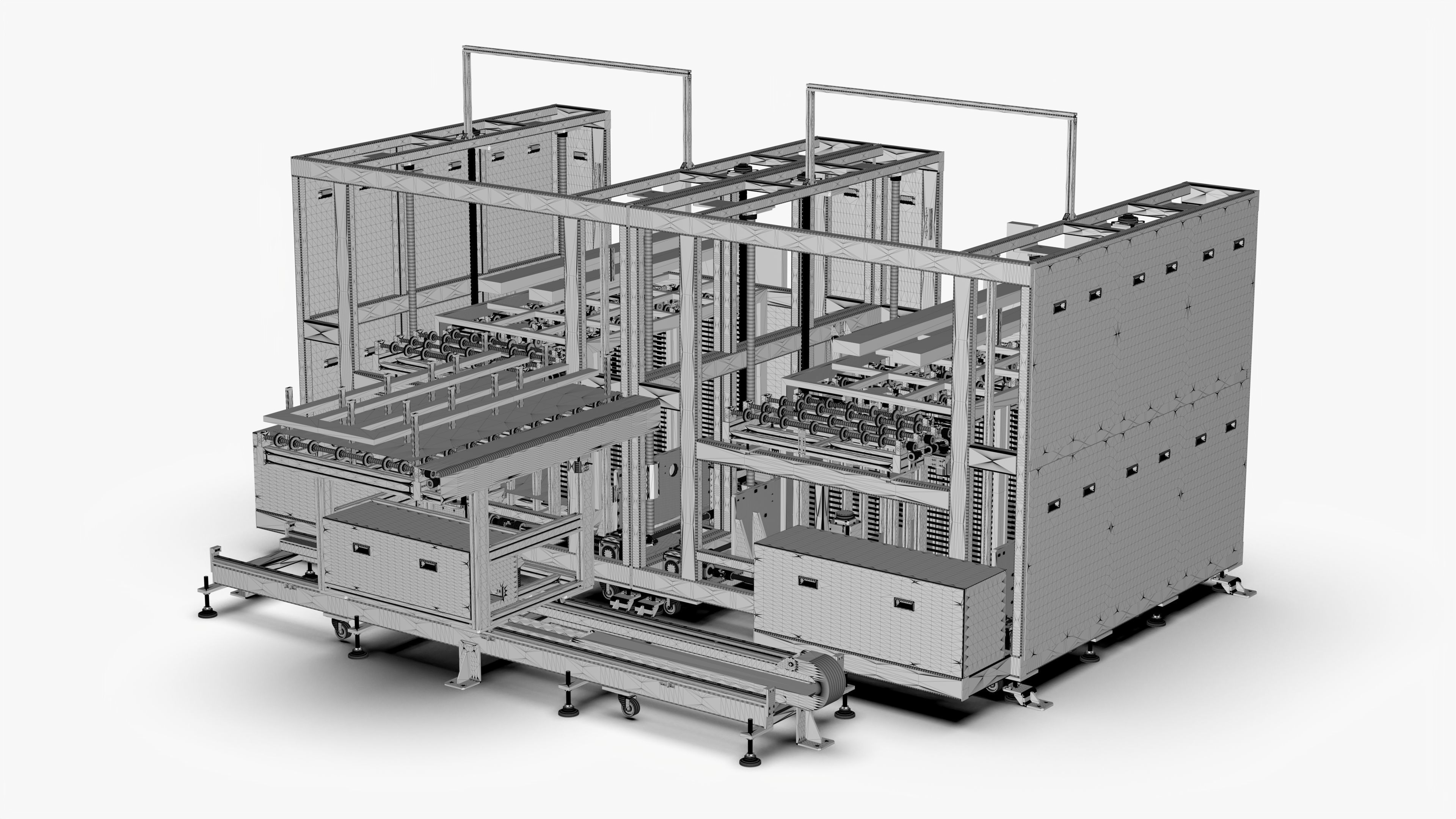

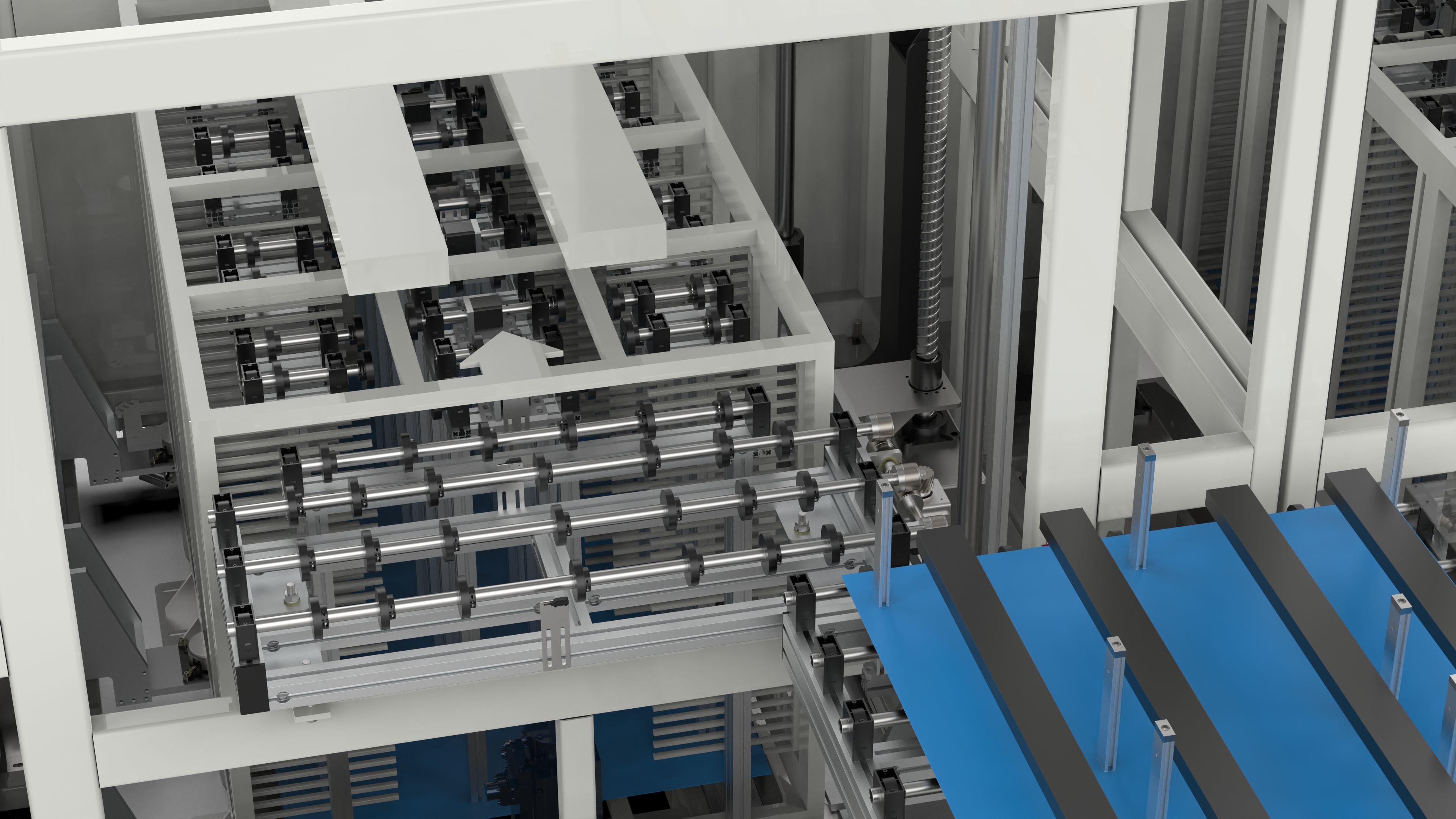

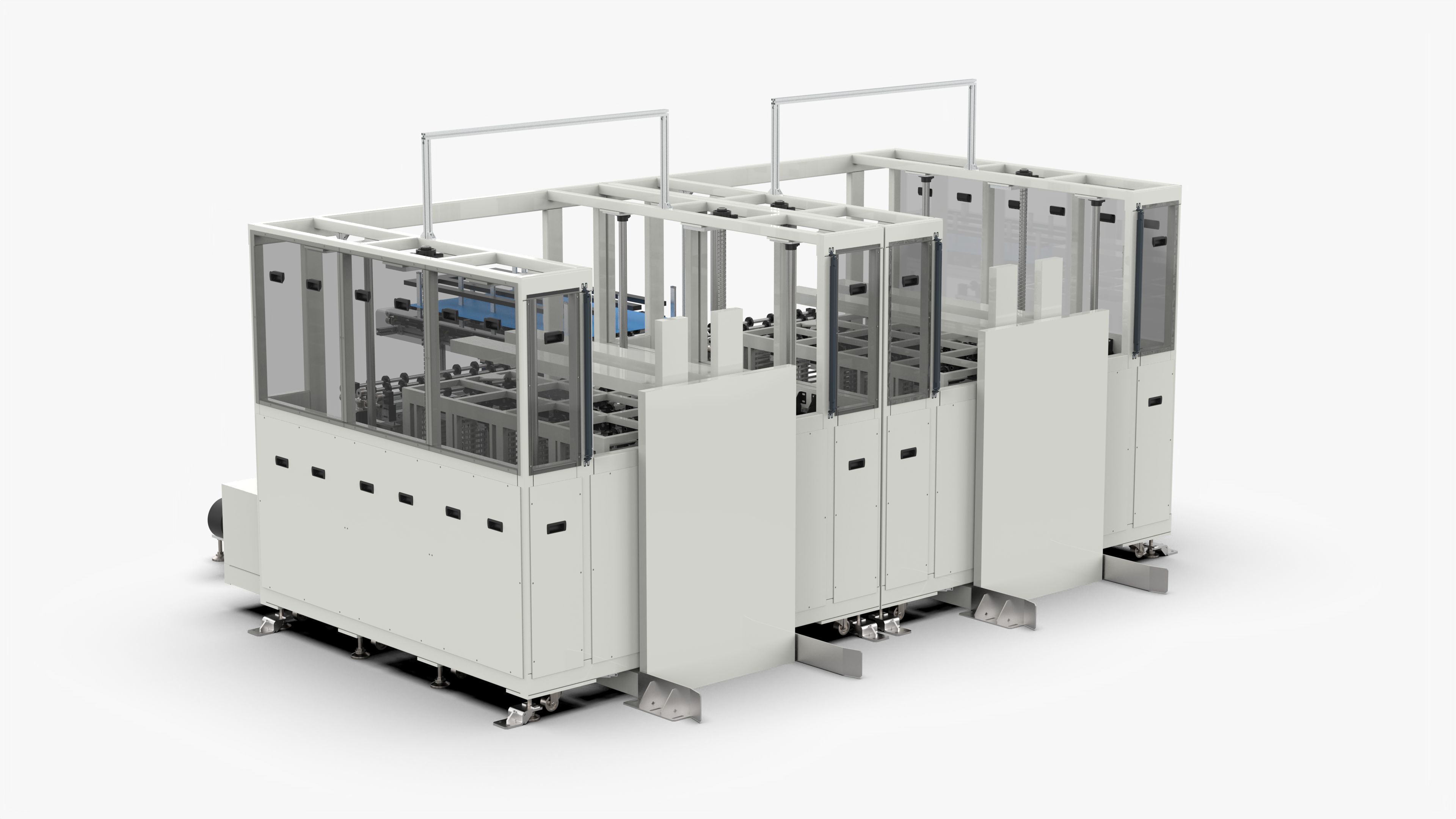

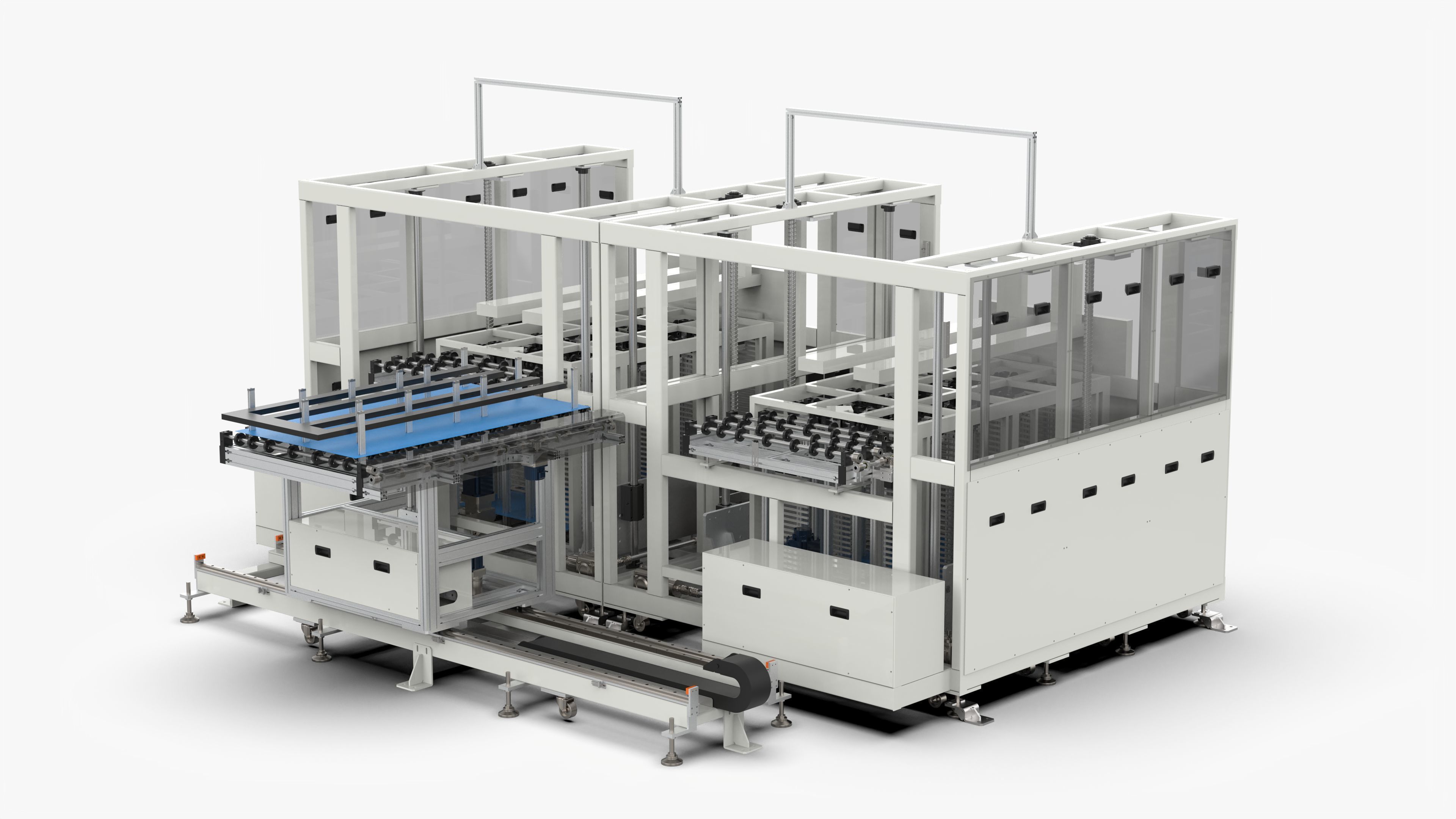

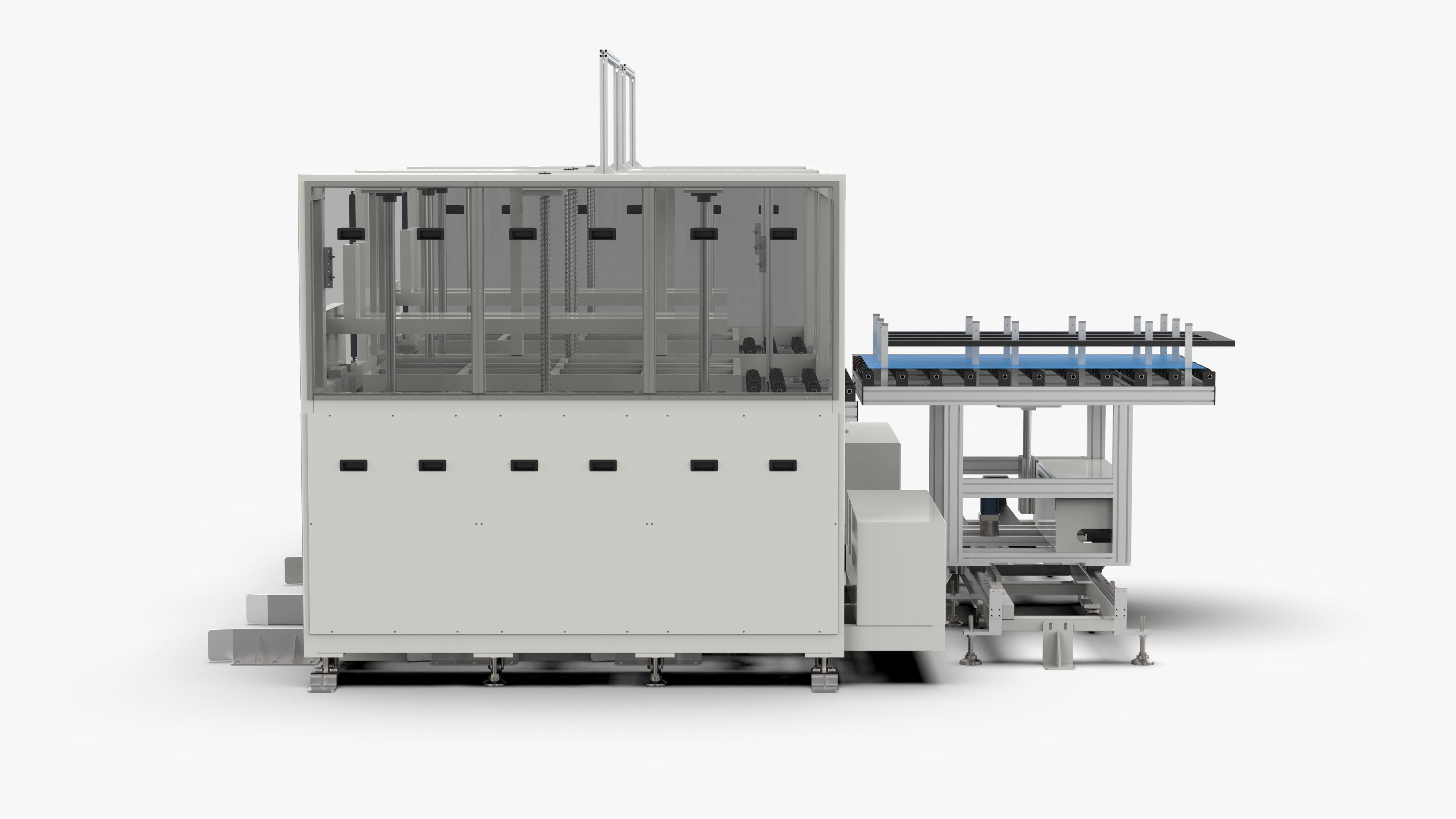

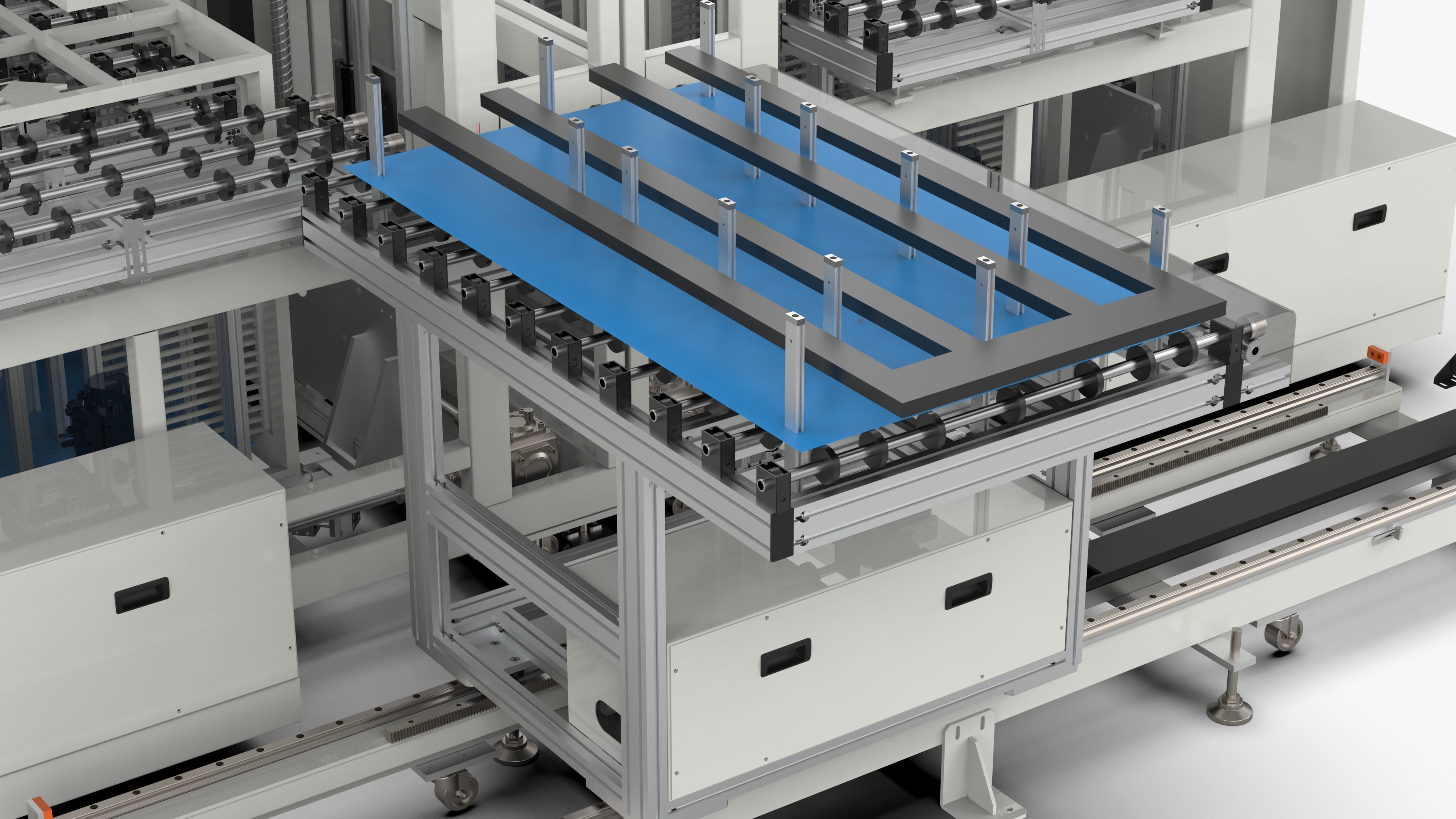

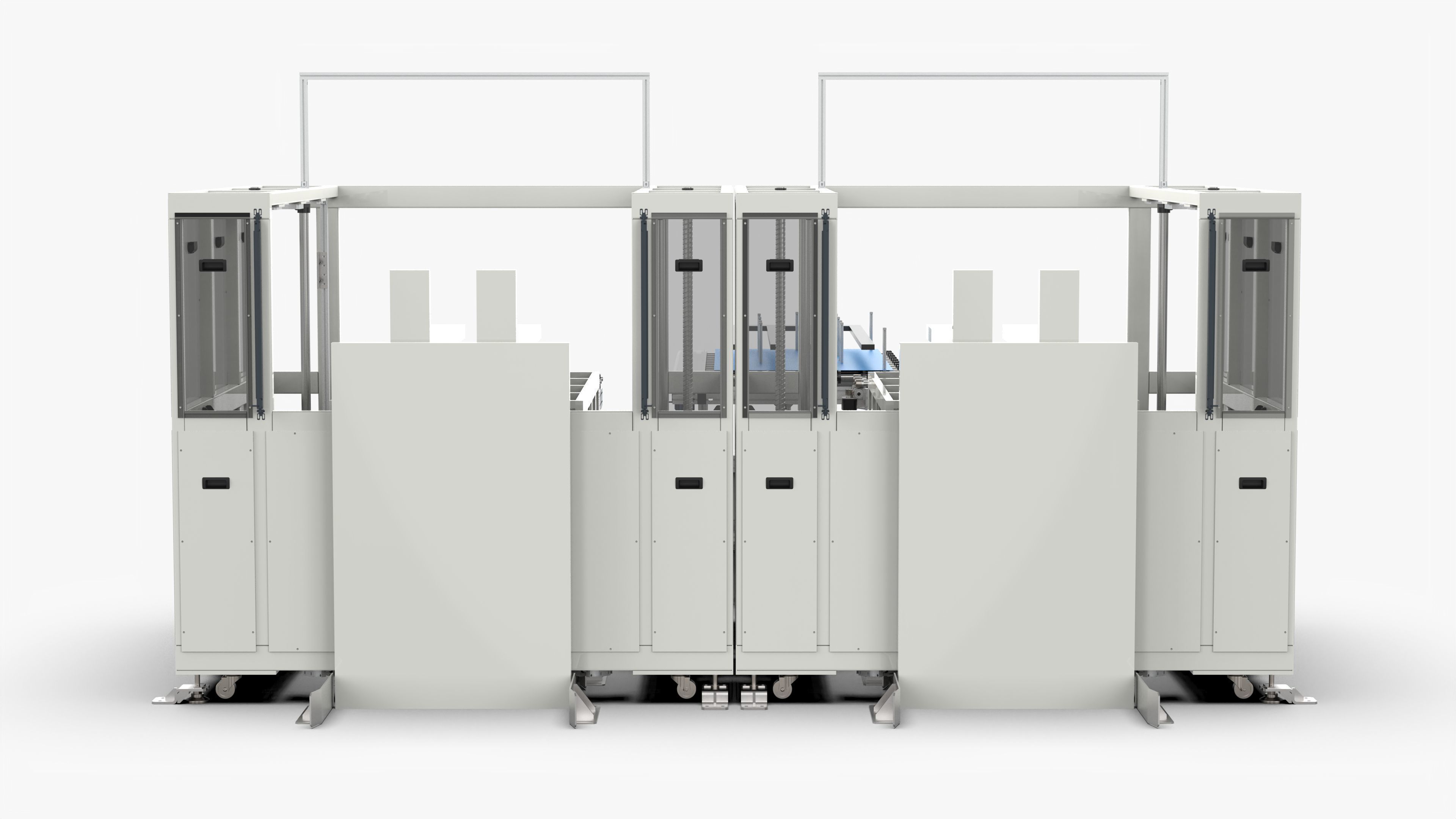

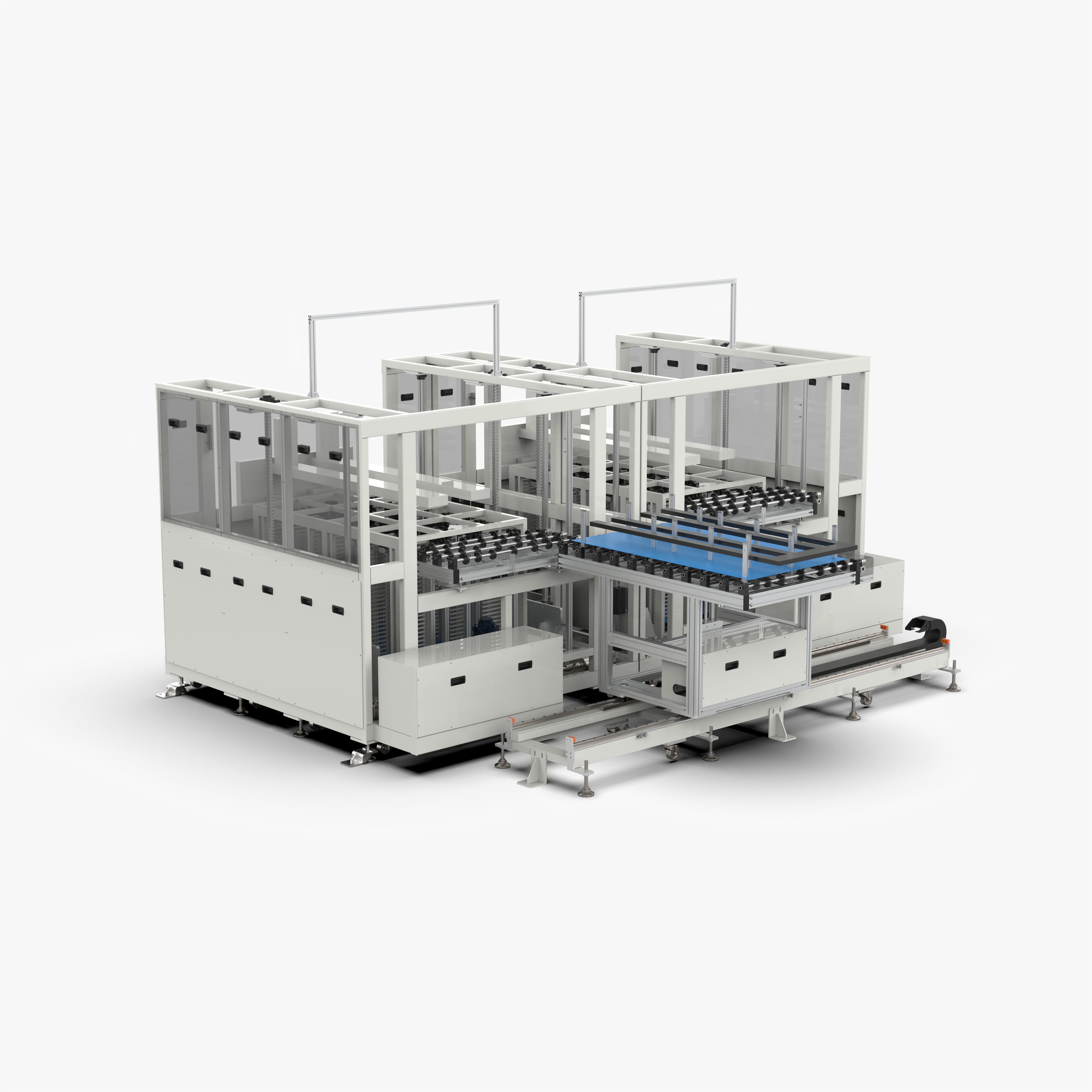

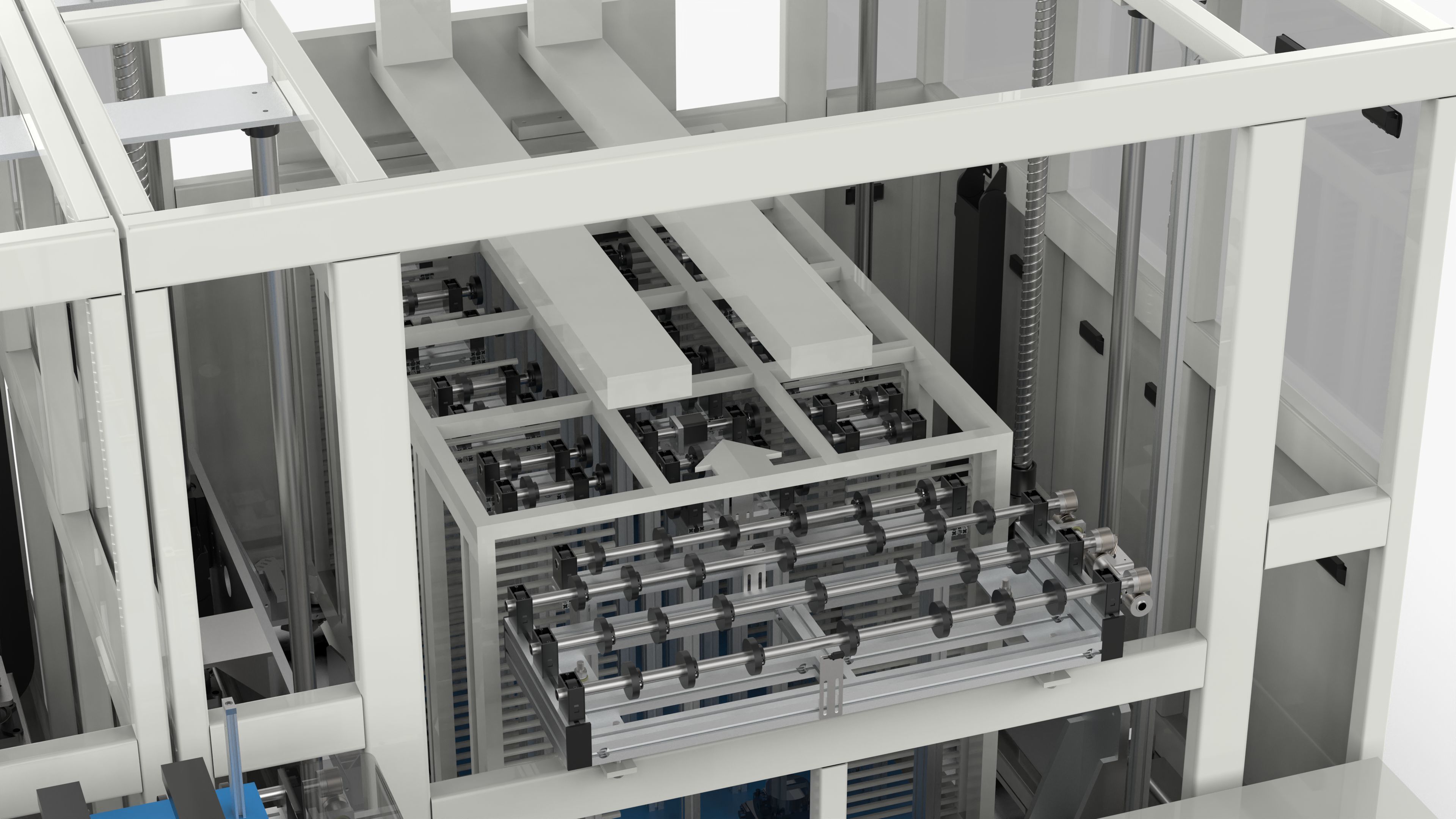

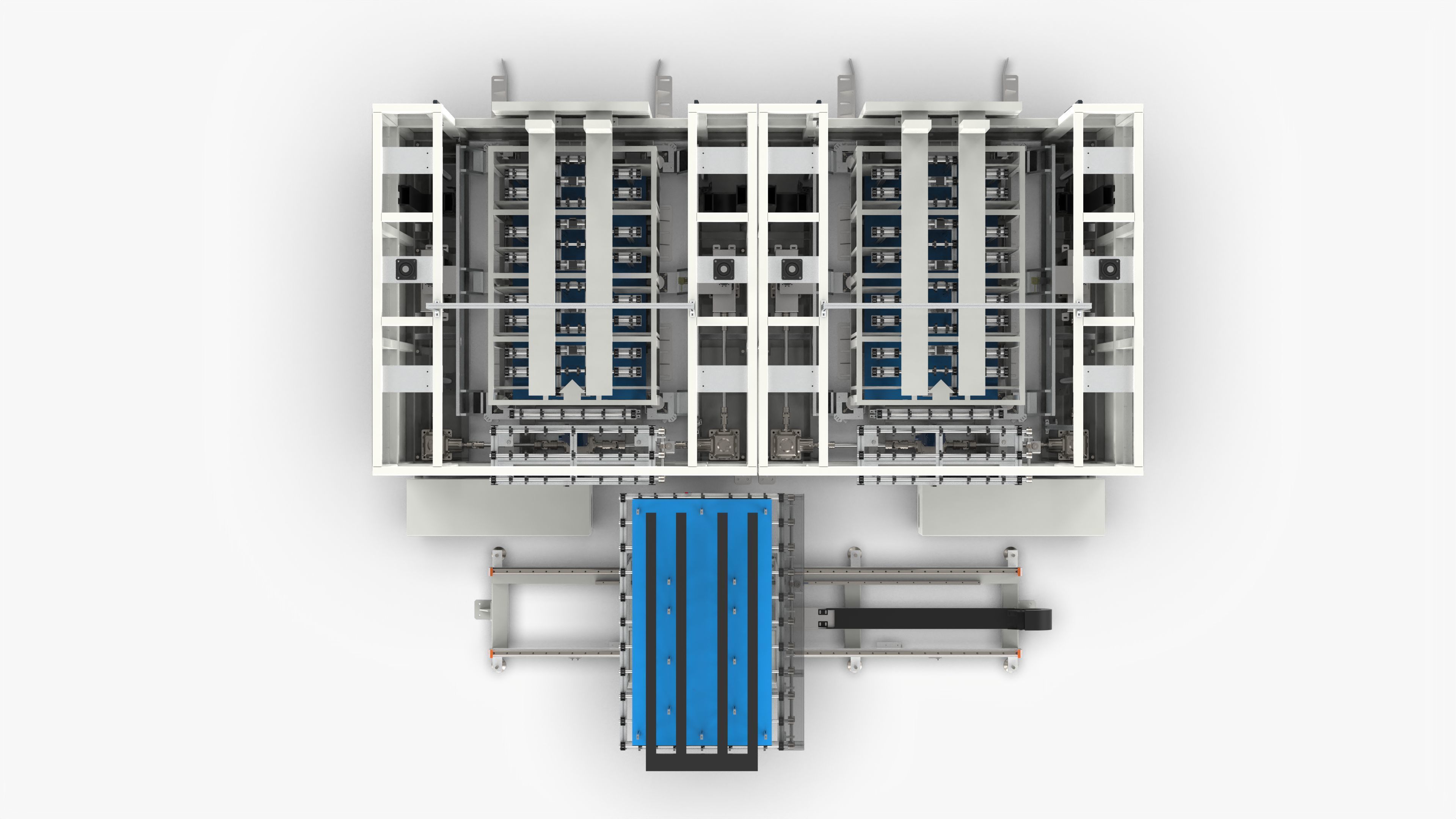

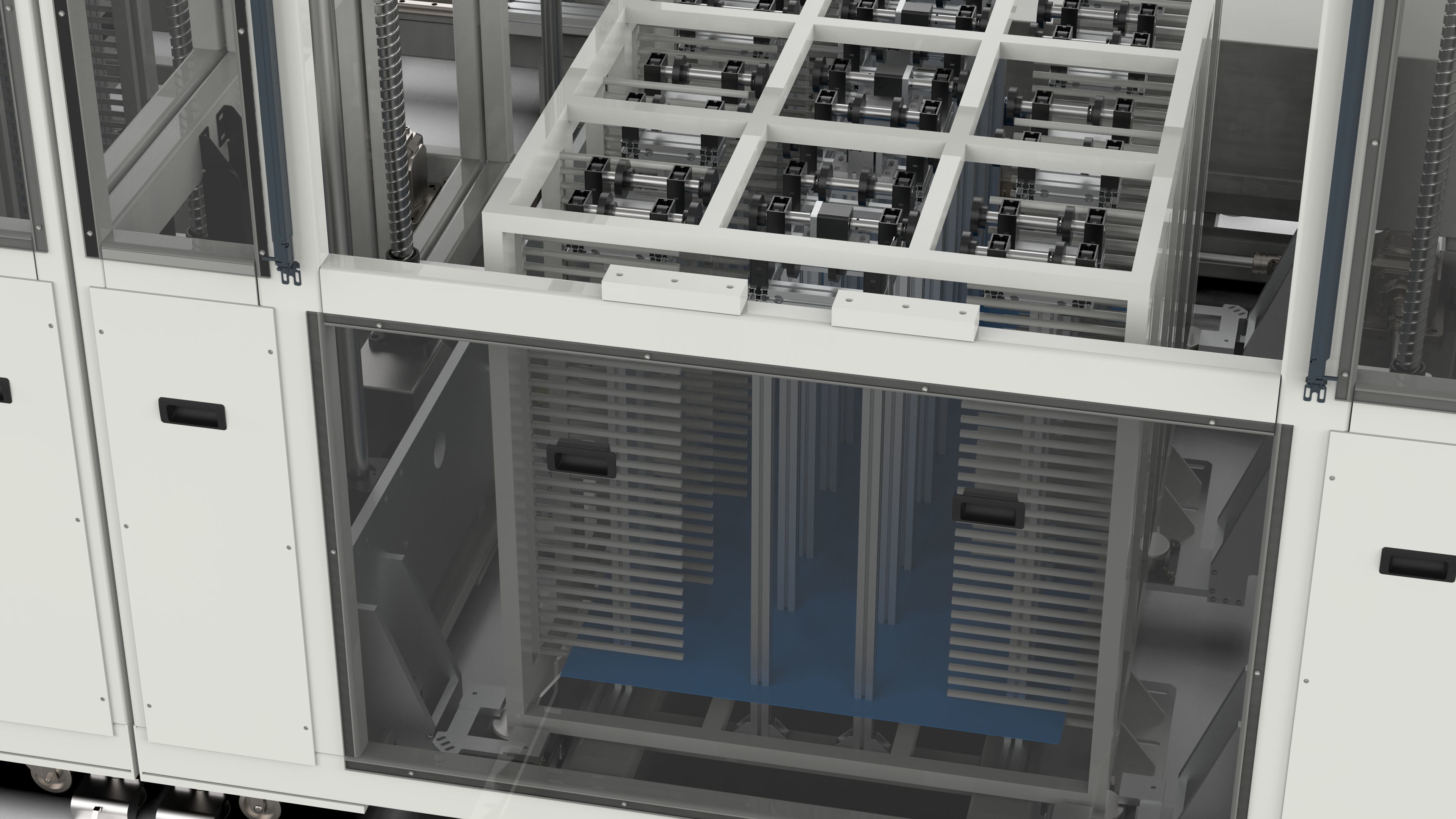

Automatic Panel Cassette Lifting and Transfer Machine 3D model

Automatic Panel Cassette Lifting and Transfer Machine

Introduction

Panel production line equipment automatically places production panels on cards In the box, and transported by trolley or unmanned vehicle to other production lines and placed in the same equipment, the inner panel of the box can be flowed into the new process line.

File Formats

• SolidWorks 2018 | Keyshot 10
• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)

Geometry

• Polygons: 7,193,072
• Vertice: 21,579,216
