Automatic Mobile Phone LED Assembly Dispensing Testing Equipment 3D model

Automatic Mobile Phone LED Assembly Dispensing Testing Equipment

Introduction

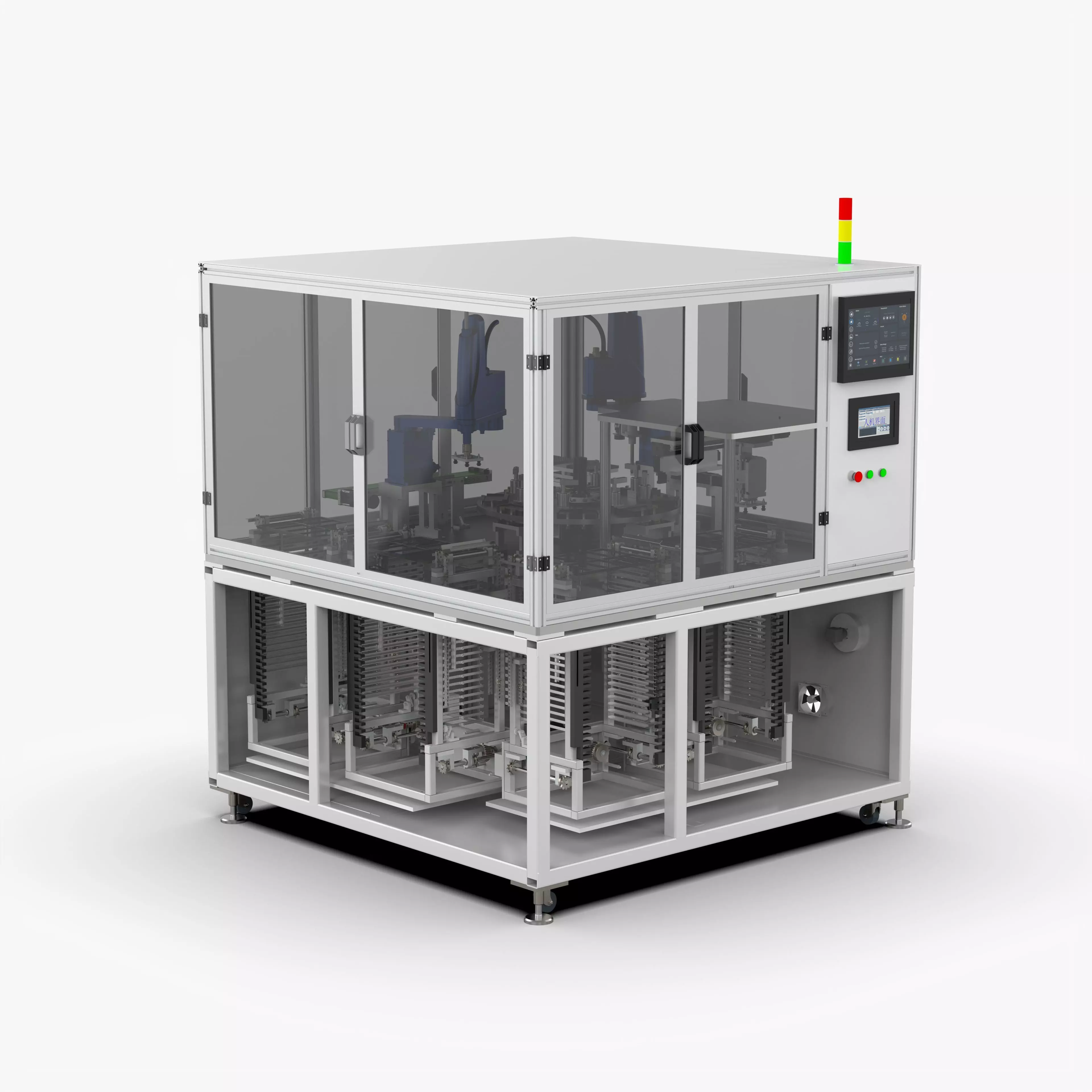

Mobile phone LED assembly dispensing testing equipment, the thickness of the table is 30mm, the lower frame is made of square tube welded door with stainless steel door, the upper frame is made of extruded aluminum frame, and the door is made of transparent acrylic. All the doors of the upper rack are equipped with sensors, and there is an alarm prompt when the door is opened. The equipment is equipped with an air storage tank, an air filter unit, etc. The turntable is driven by an 8-segment divider to complete the feeding, dispensing, fixing, testing and other stations, and the production equipment is running stably.

File Formats

• SolidWorks 2018 | Keyshot 10
• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)

Geometry

• Polygons: 3,474,408
• Vertice: 10,423,224
