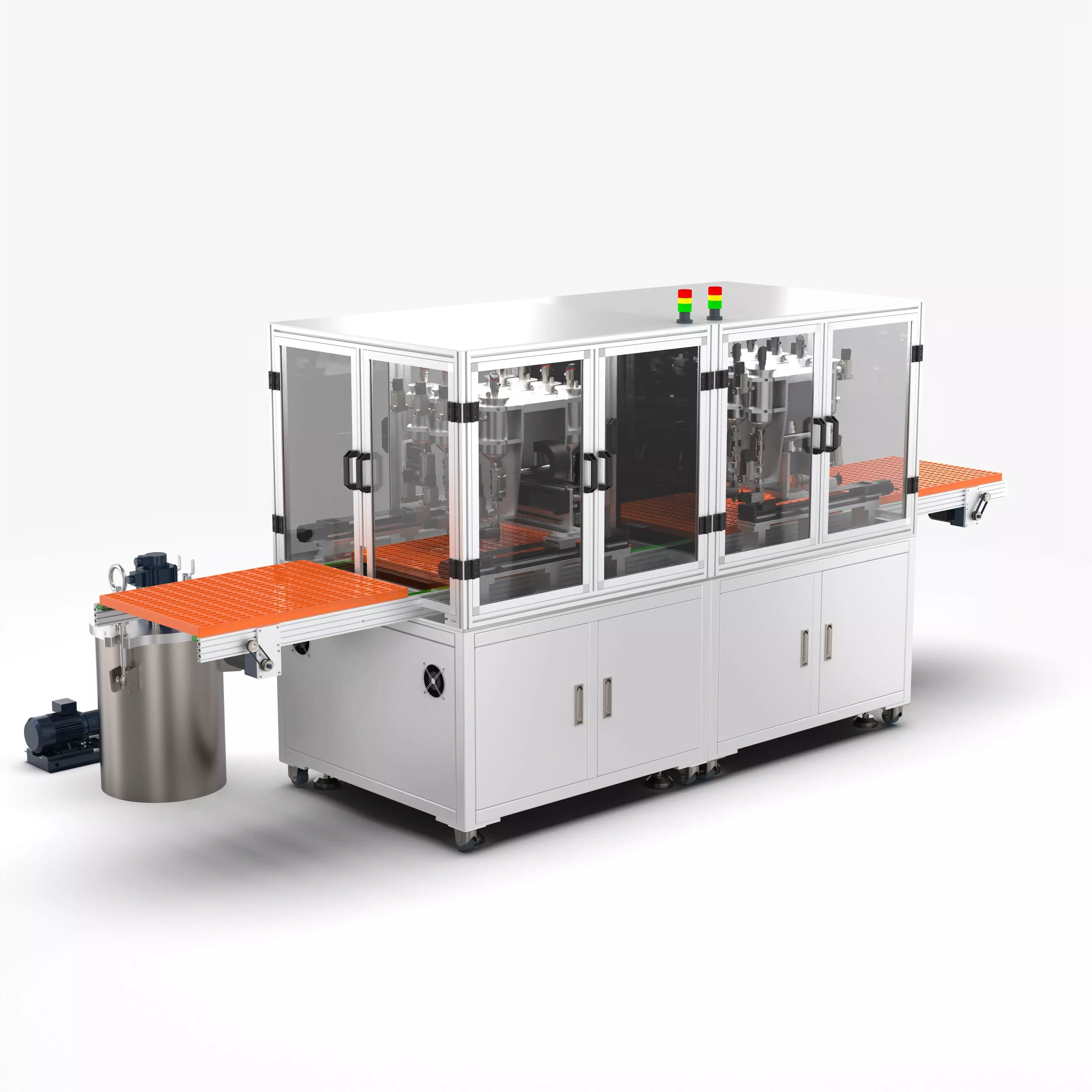

Automatic Double Station Pouring Machine 3D model

Automatic Double Station Pouring Machine

Introduction

Automatic pouring equipment process:

1. The material tray flows out from the upper end equipment and enters the equipment.
2. Flows to the pouring station for positioning and lifting to ensure the flatness of the material tray
3. The XY axis mobile module is equipped with a pouring bucket for automatic pouring.
4. After half of the completion Flow to the next station to pour the remaining half of the product, and the double machine works at the same time to reduce the beat of the equipment.
5. After the whole tray is completed, the tray flows out of the equipment.

File Formats

• SolidWorks 2018 | Keyshot 10
• STEP (Standard for the Exchange of Product Data)
• IGES (Initial Graphics Exchange Specification)
• STL (Standard Tessellation Language )
• OBJ (Object Files)

Geometry

• Polygons: 4,151,829
• Vertice: 12,455,487
