Automatic Battery Module End Plate and Insulation Board 3D model
DESCRIPTION

Automatic Battery Module End Plate and Insulation Board

Introduction

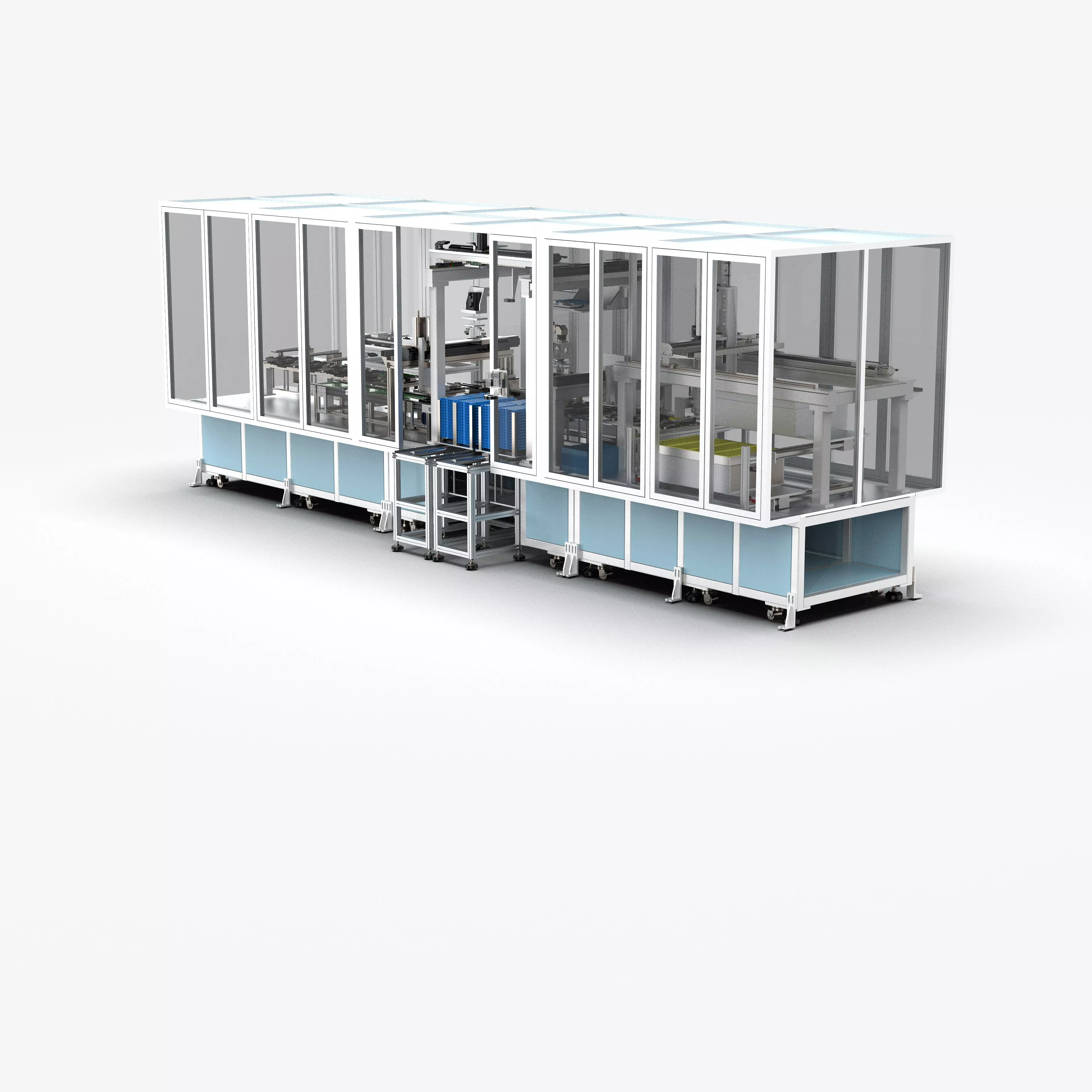

This automated feeding line is designed for the energy storage battery project, specifically handling end plates and insulation boards. Insulation boards are fed from an external conveyor with pre-packed boxes, while end plates are loaded by a small cart. Servo-driven lifting and gantry robots ensure precise assembly, with visual inspection to check for deformation of the insulation sheets. The line operates at 12 parts per minute, ensuring high efficiency and reliability.

The equipment is suitable for manufacturing environments requiring precision handling and quality control.

File Formats

  • Solidworks 2020 | Keyshot 10
  • FBX (Filmbox)
  • STEP (Standard for the Exchange of Product Data)
  • IGES (Initial Graphics Exchange Specification)
  • STL (Standard Tessellation Language)
  • OBJ (Object Files)
  • x_t (Parasolid Model Part File)

Geometry

  • Polygons: 14,697,998
  • Vertices: 7,350,389
Related Tagsfeedinglinegantryrobotvisualinspectionbatterymoduleinsulationboardenergystoragestepfilestlobjservolift
