Automatic Battery Module End Plate and Insulation Board 3D model
DESCRIPTION

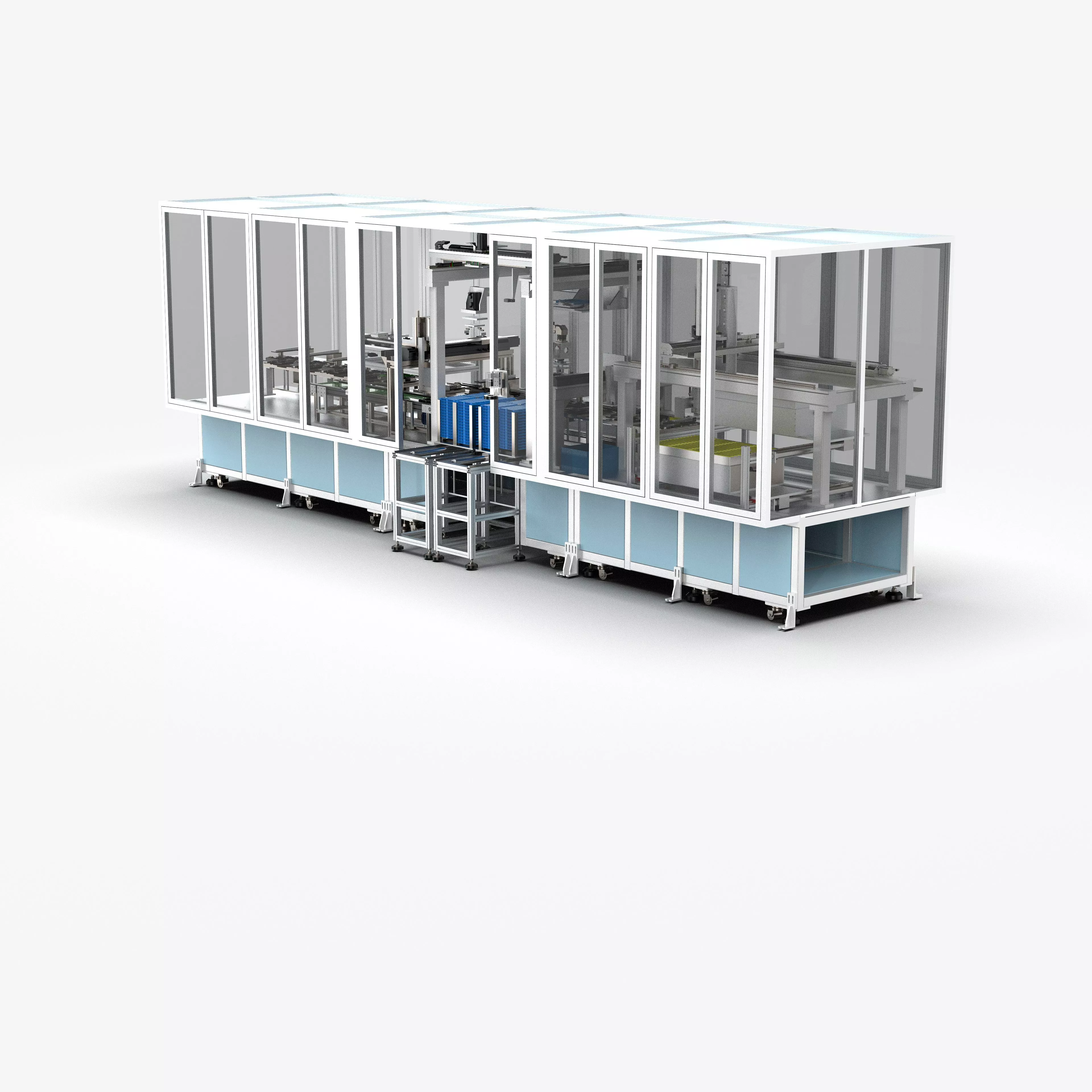

Automatic Energy Storage Battery Module End Plate and Insulation Board Feeding Line

Introduction

This automated production line is designed for the energy storage battery project, specifically for feeding module end plates and insulation boards. The insulation board uses a pre-packed tray from an external manual line, with one as backup. End plates are fed using a servo-lift mechanism and a gantry robot arm. A visual inspection system checks if the insulation sheet has deformed before assembly. The entire process ensures a cycle time of 12 pieces per minute (PPM), making it highly referenceable for industrial automation projects.

The line is designed to ensure at least half an hour's worth of material supply, with efficient handling and precise assembly.

File Formats

  • Solidworks 2020 | Keyshot 10
  • FBX (Filmbox)
  • STEP (Standard for the Exchange of Product Data)
  • IGES (Initial Graphics Exchange Specification)
  • STL (Standard Tessellation Language)
  • OBJ (Object Files)
  • x_t (Parasolid Model Part File)

Geometry

  • Polygons: 14,697,998
  • Vertices: 44,093,994
Related Tagsenergystoragebatteryproductionautomationlinemoduleendplateinsulationboardmechanismgantryrobotarmvisualinspectionsystem
