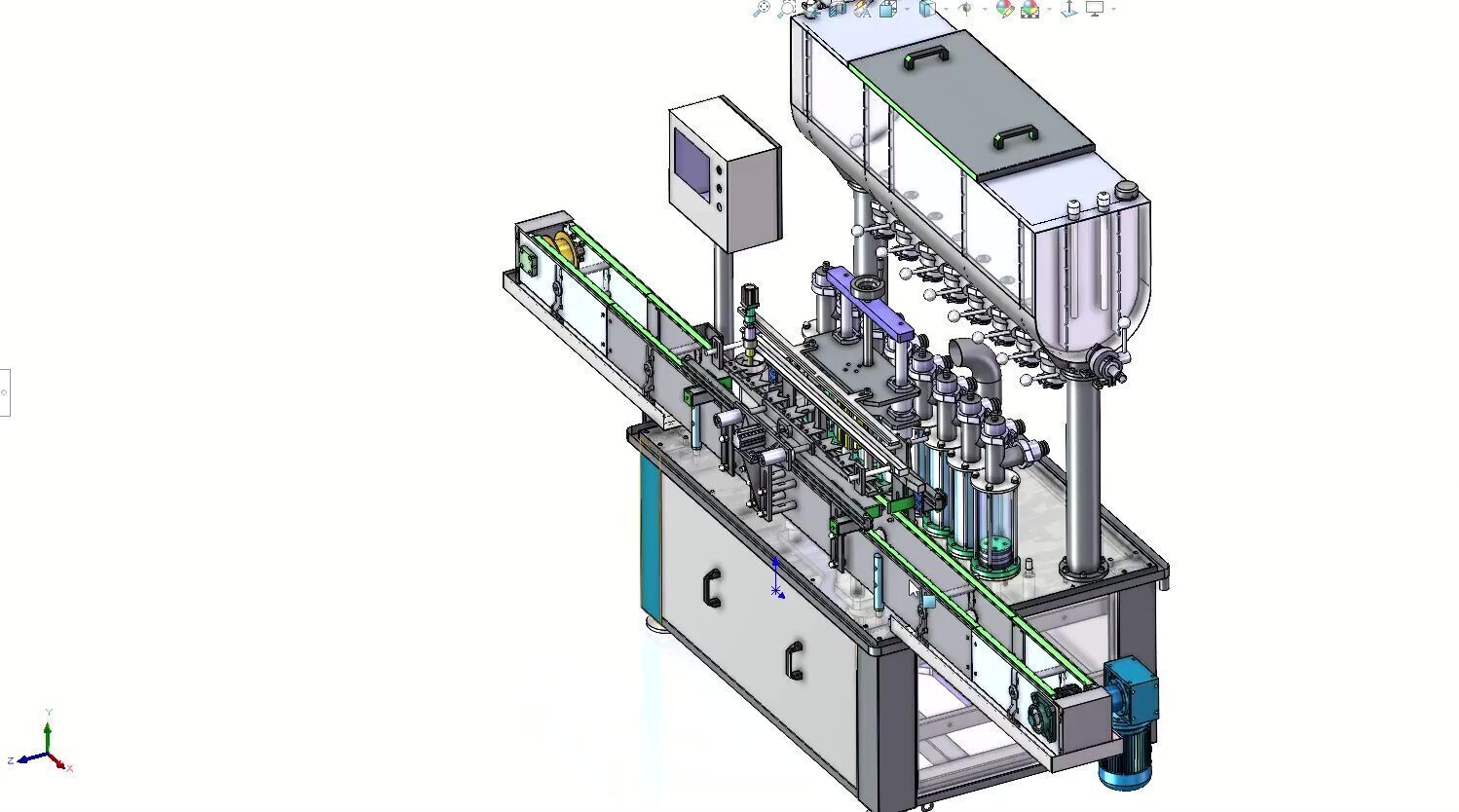

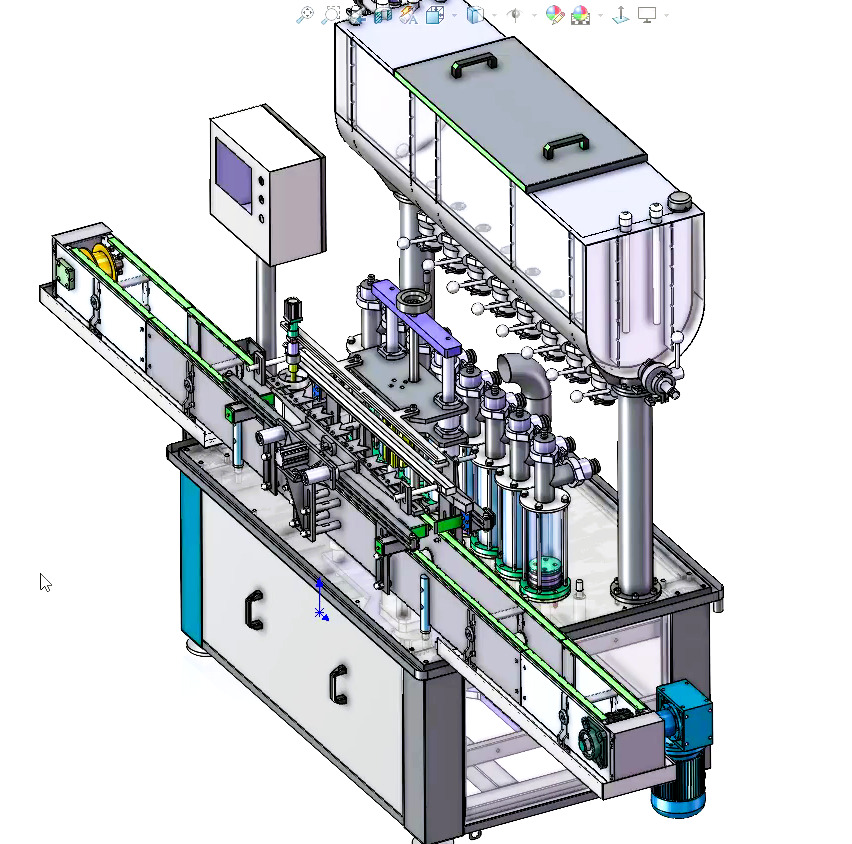

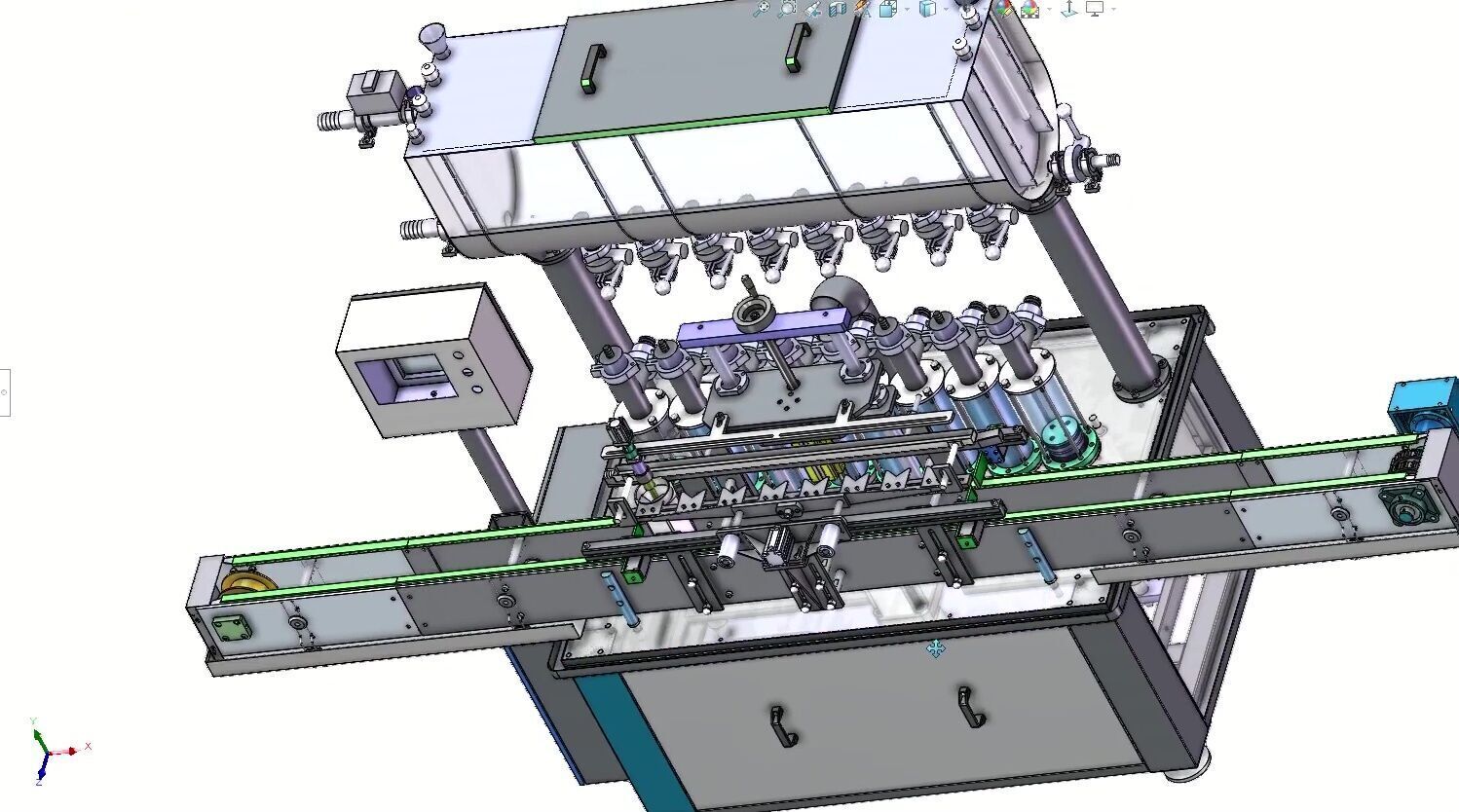

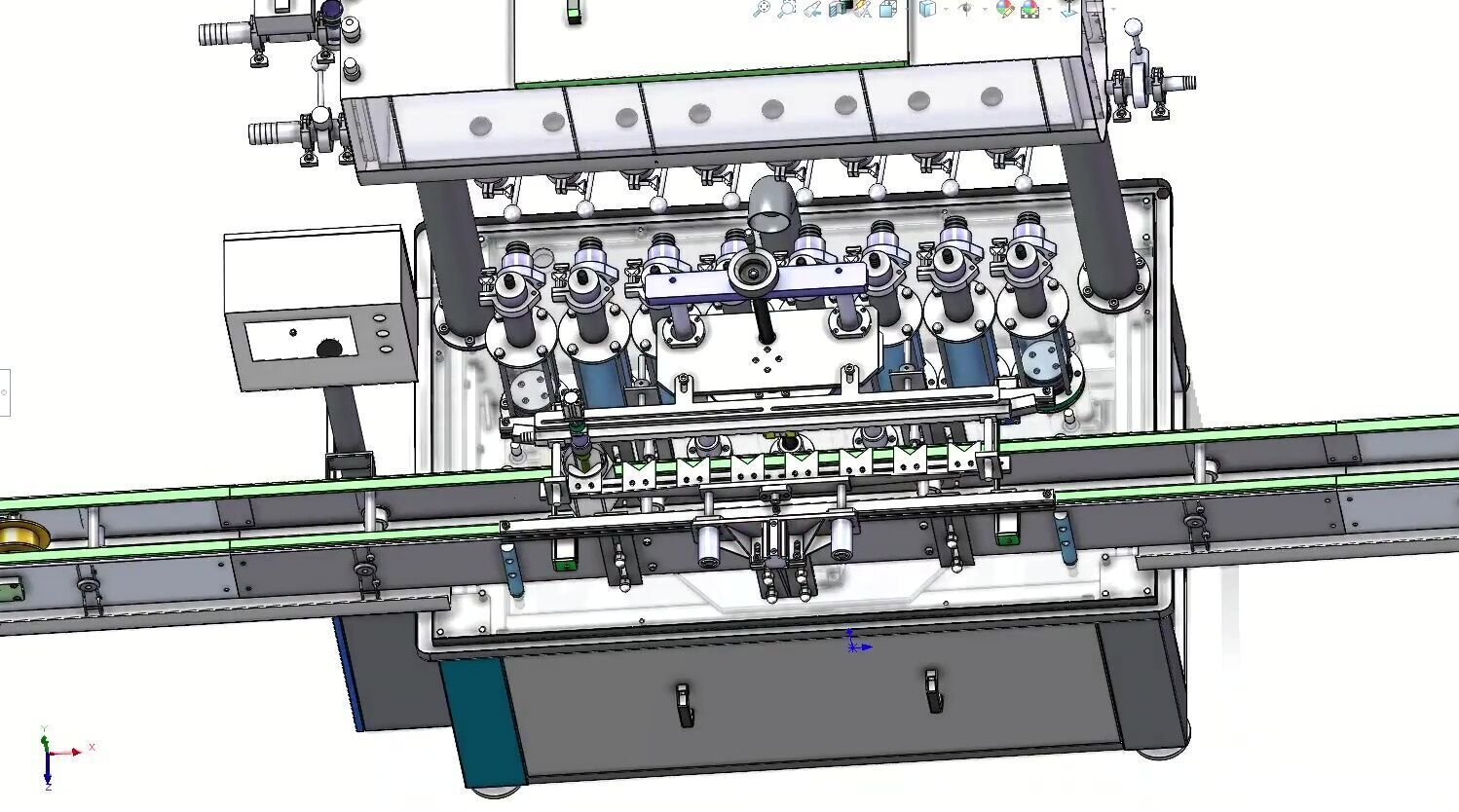

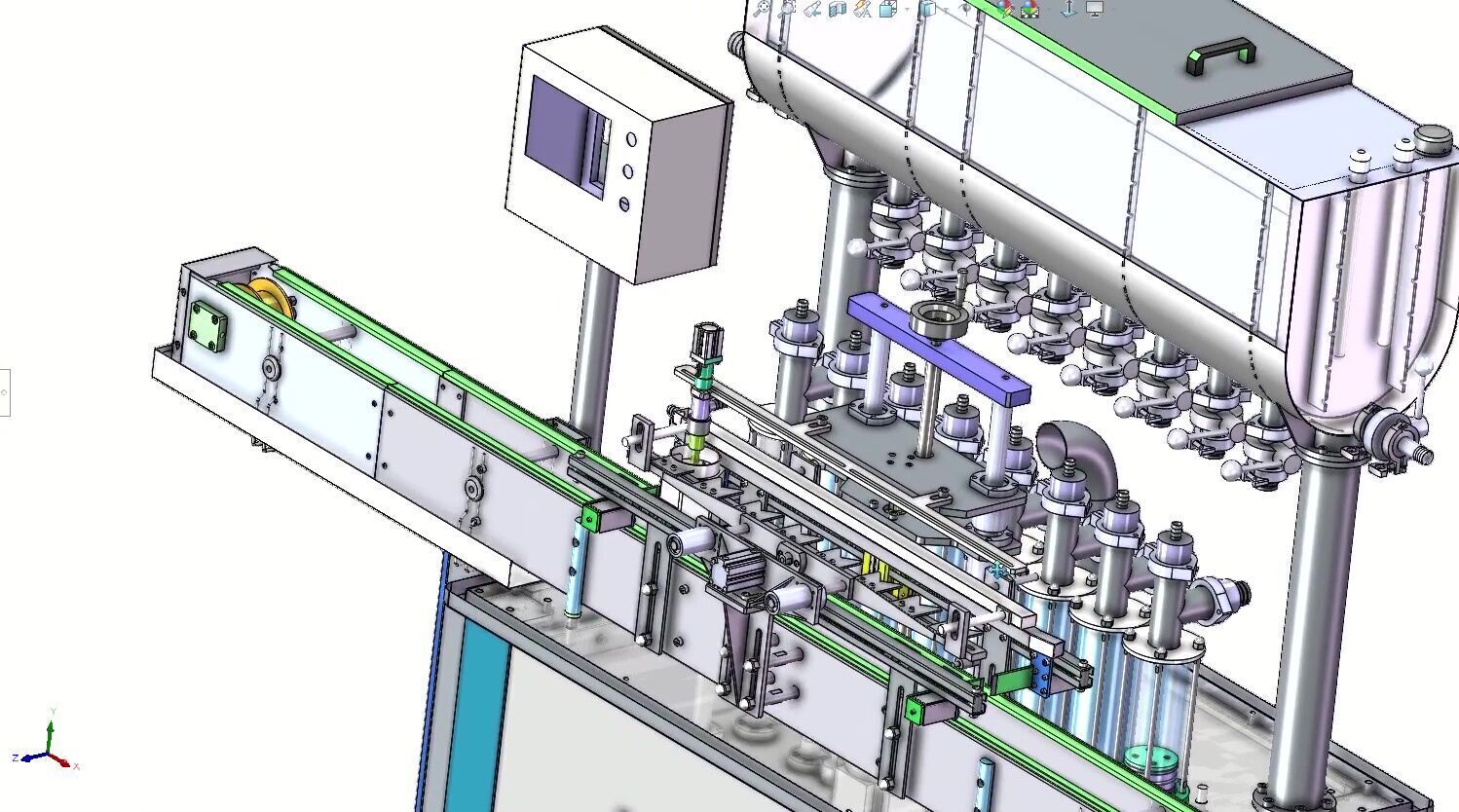

Automatic 8-Head Liquid Filling Machine with Precision Control 3D model

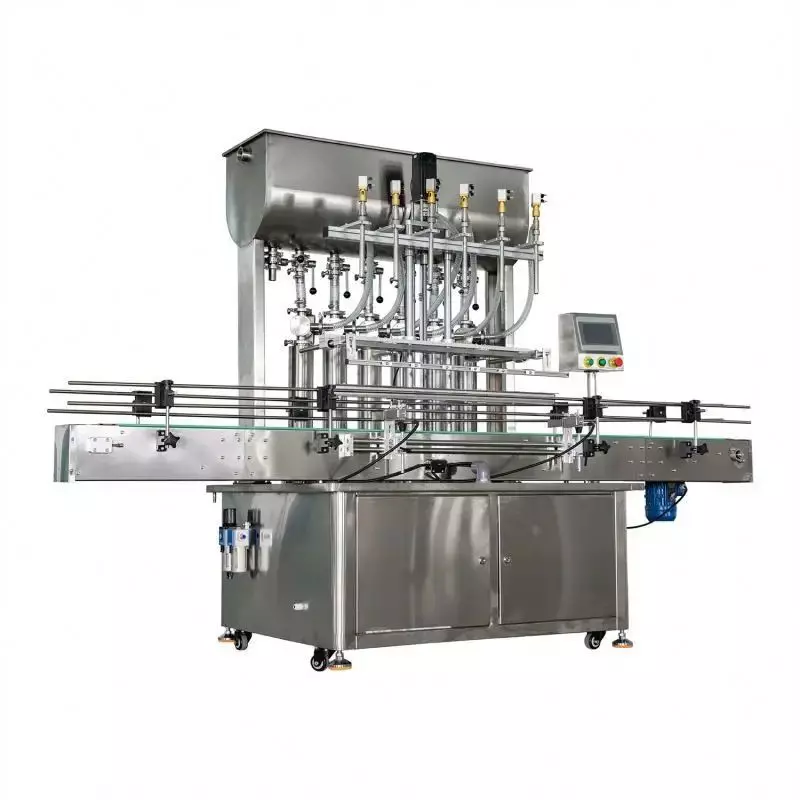

This industrial 3D model represents a fully automatic 8-head liquid filling machine, designed for high-precision, efficient, and seamless liquid filling across various industries. The machine ensures ease of operation, precise filling accuracy, simplified installation, and low-maintenance requirements.

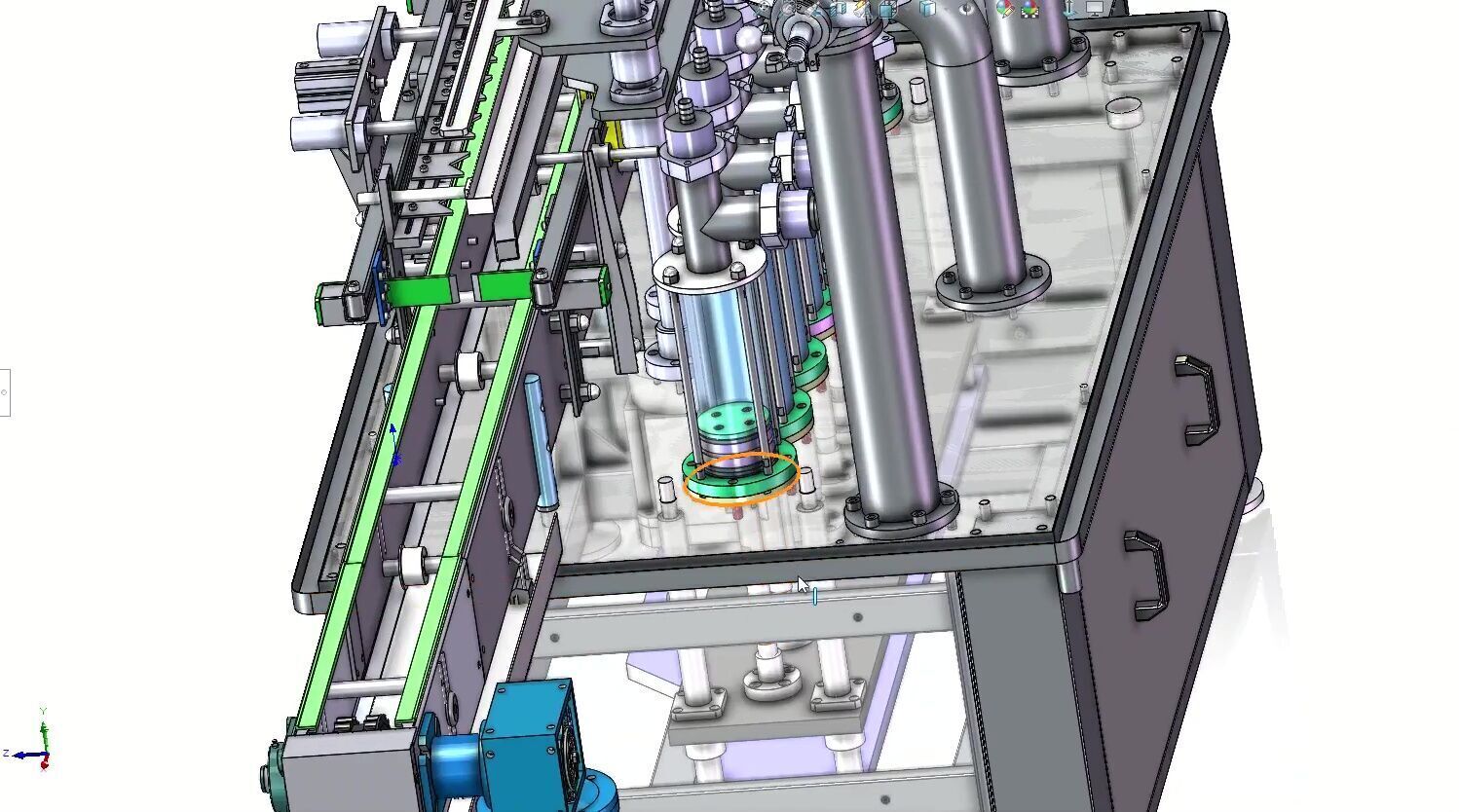

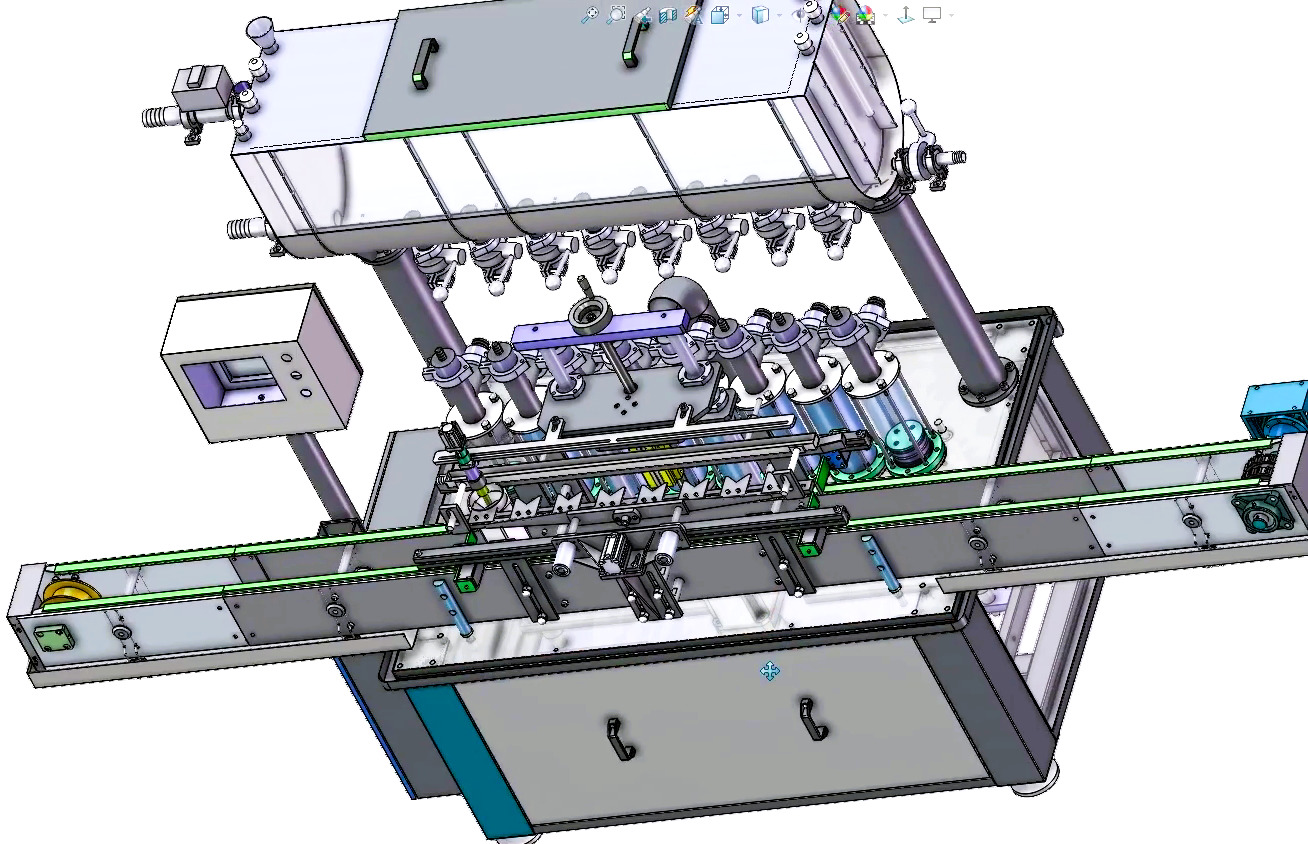

The detailed 3D model includes technical drawings, in-drawing assemblies, and fully editable parts, providing a clear and comprehensive representation of the machine’s structure and functionality.

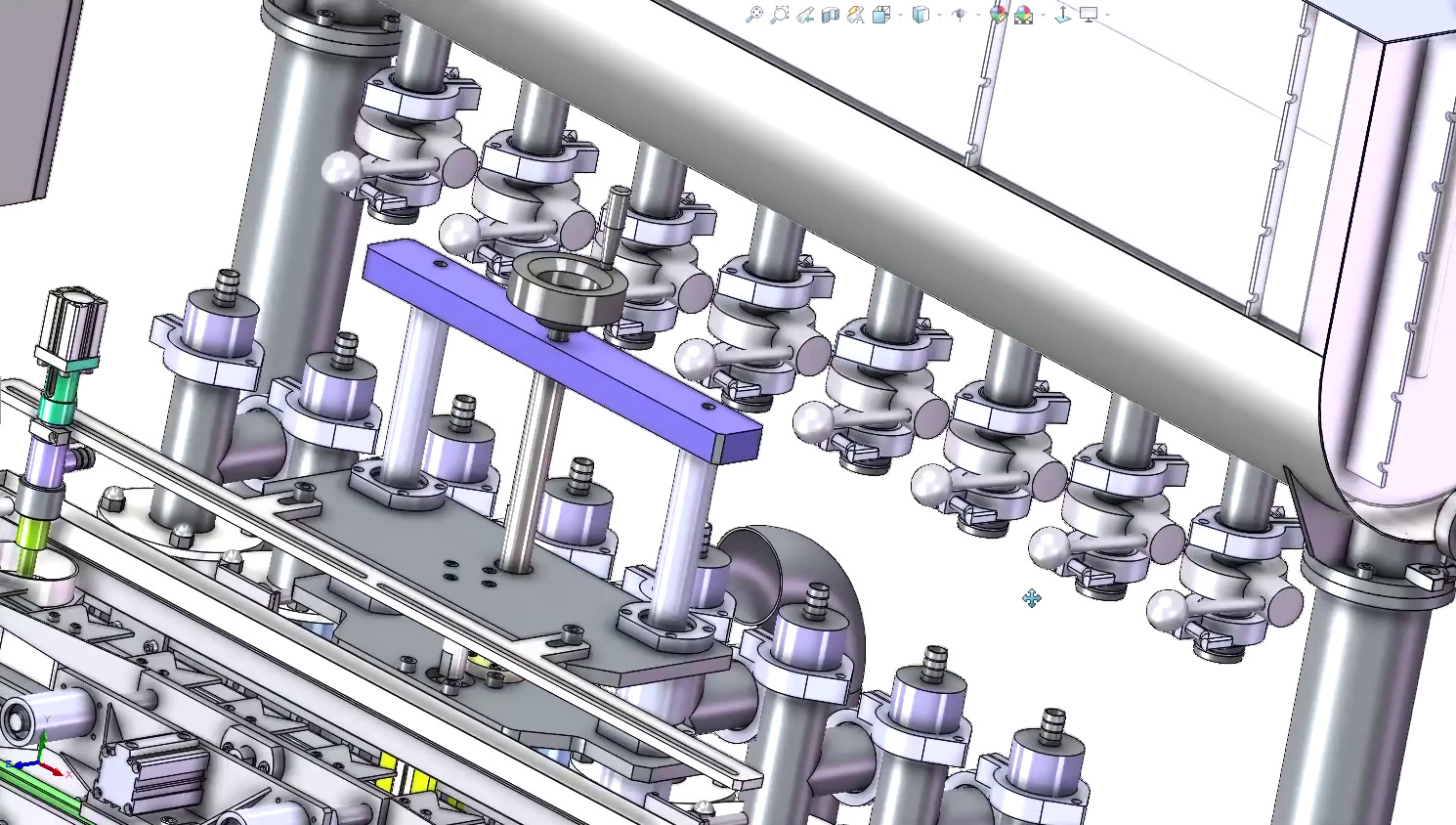

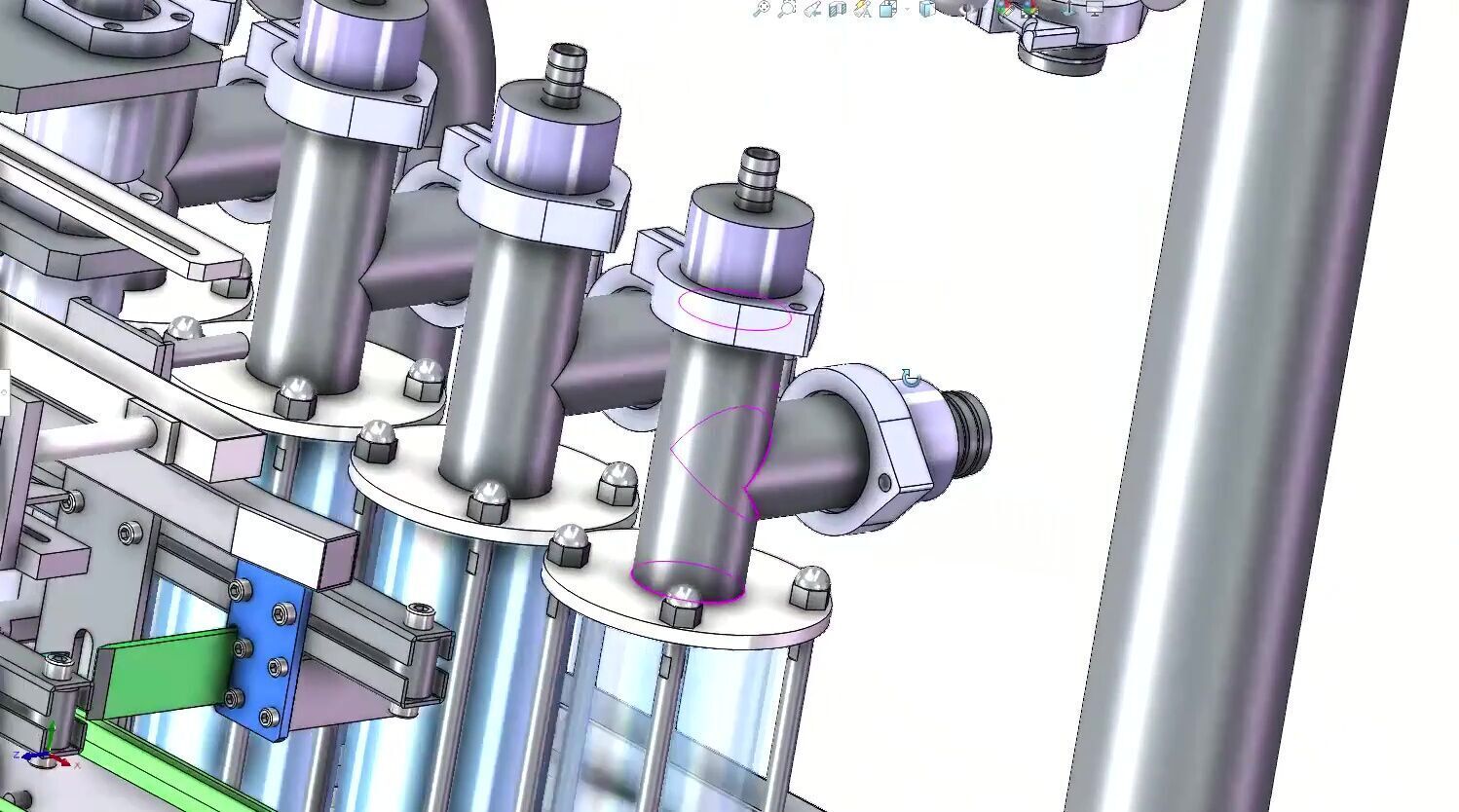

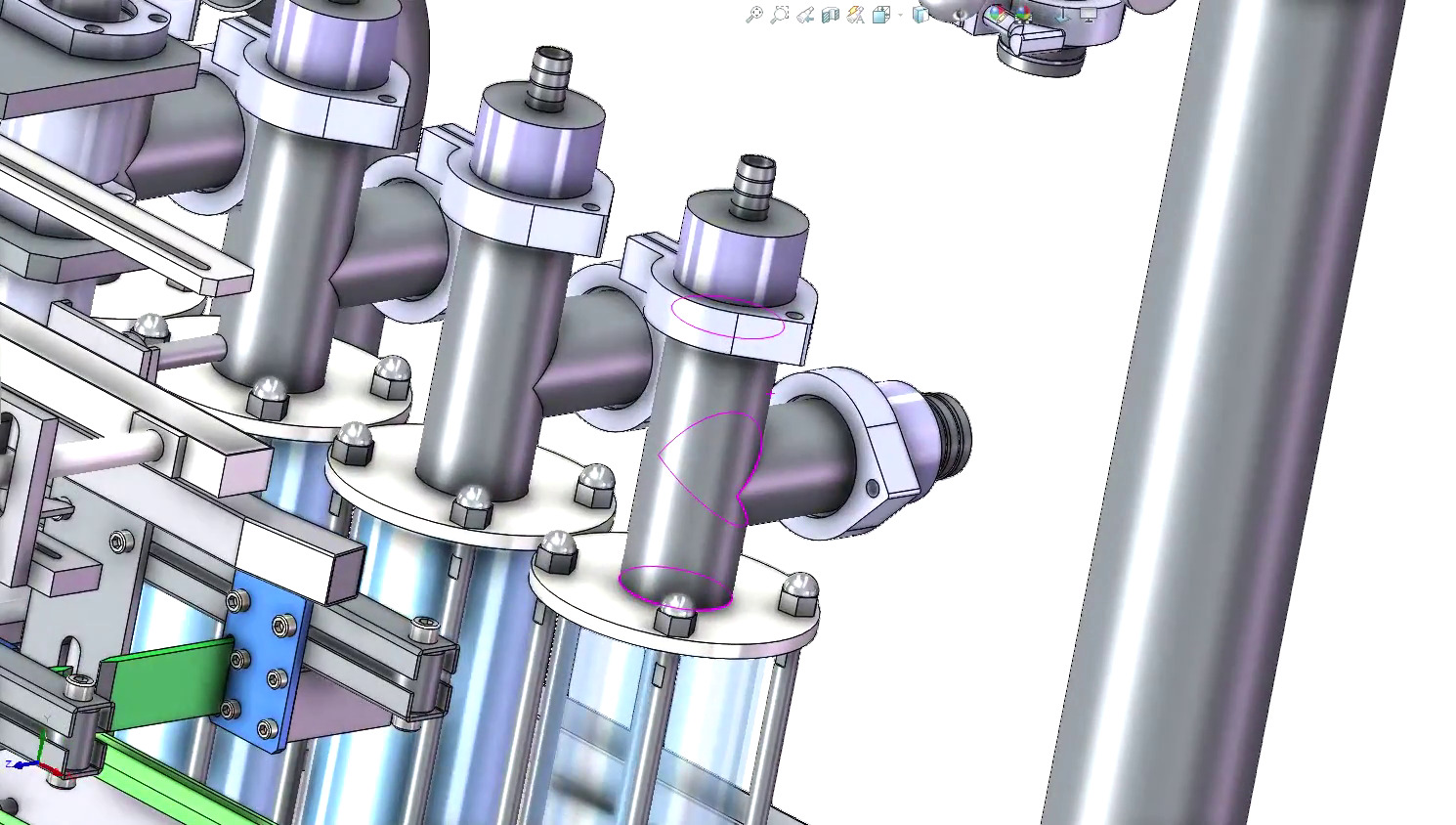

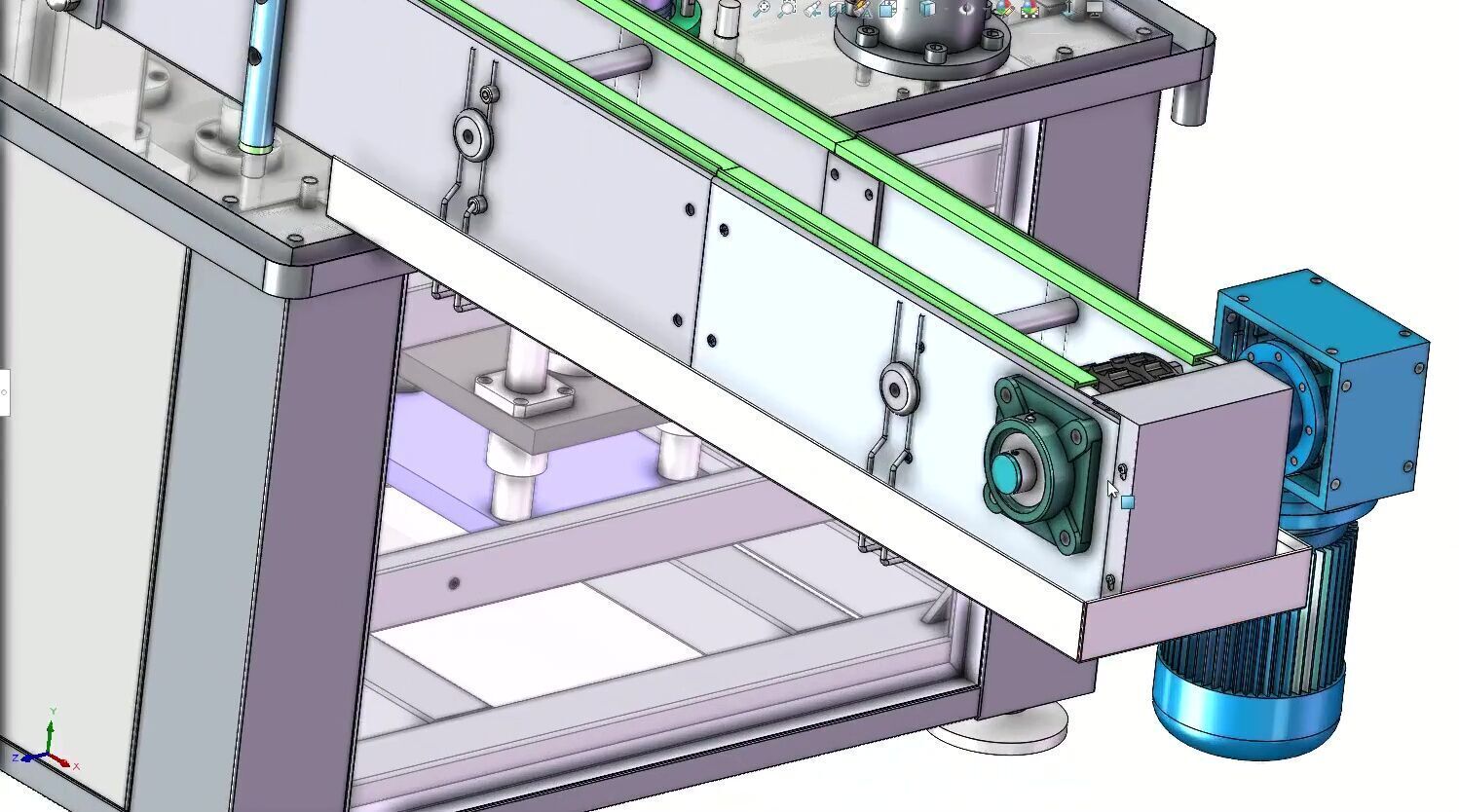

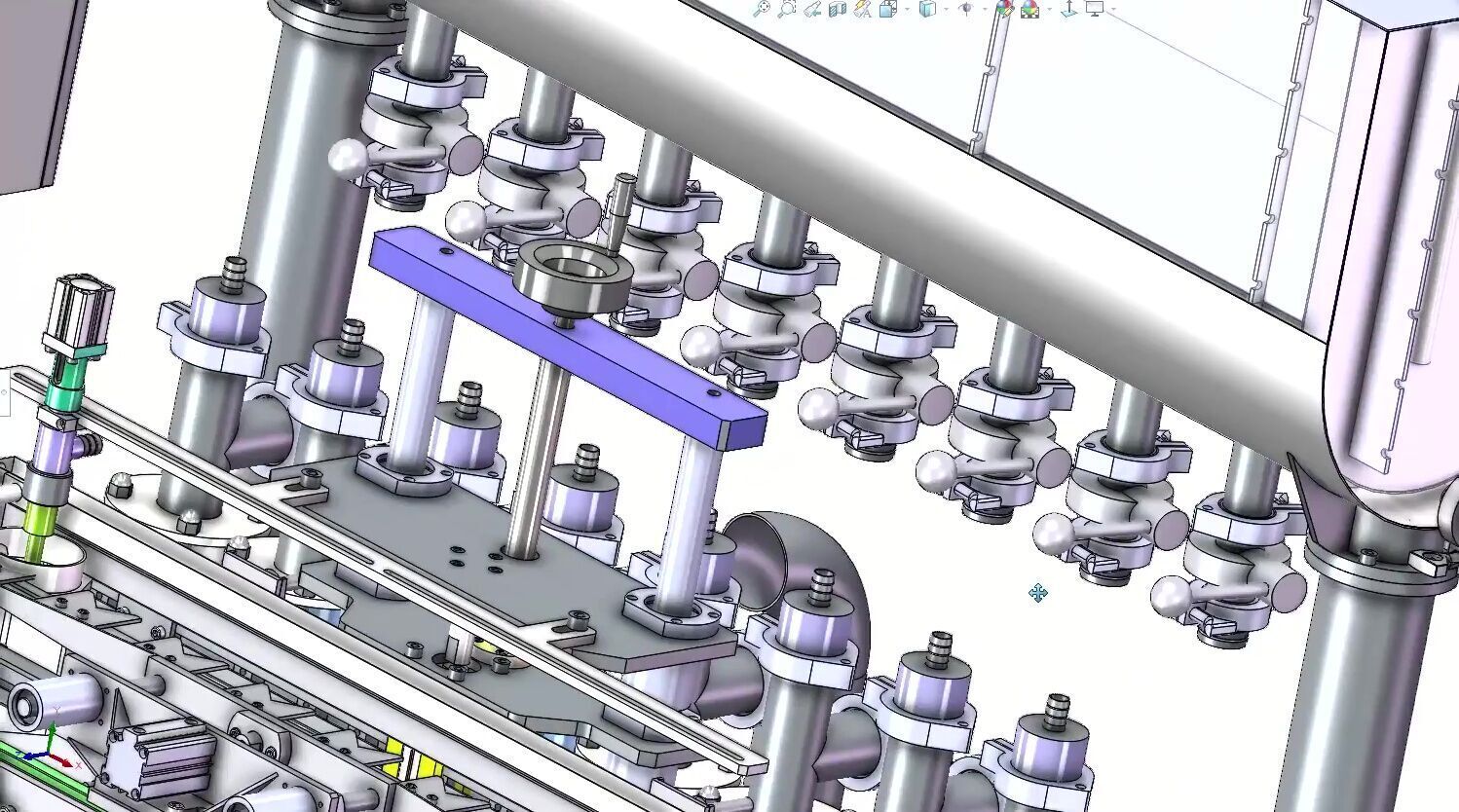

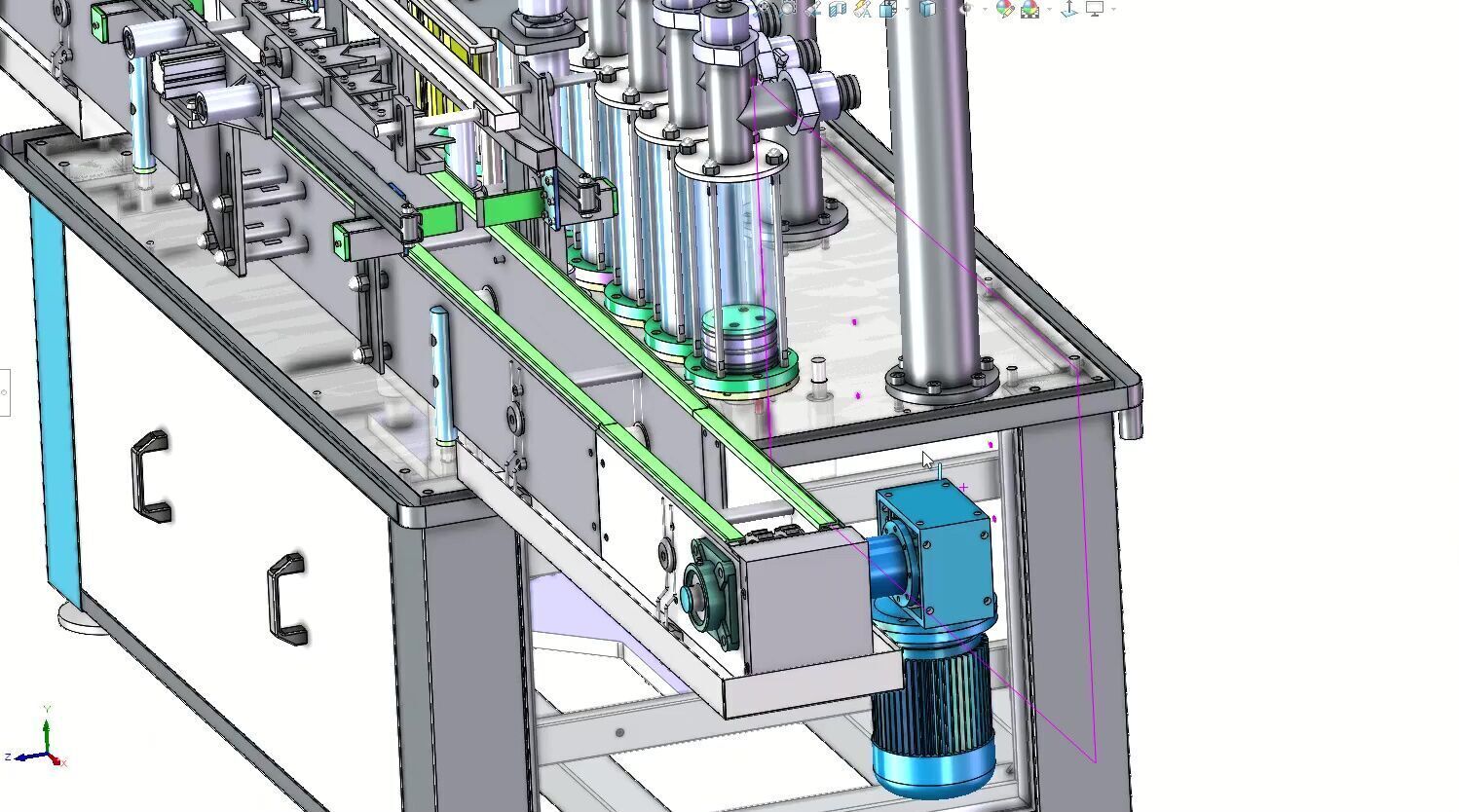

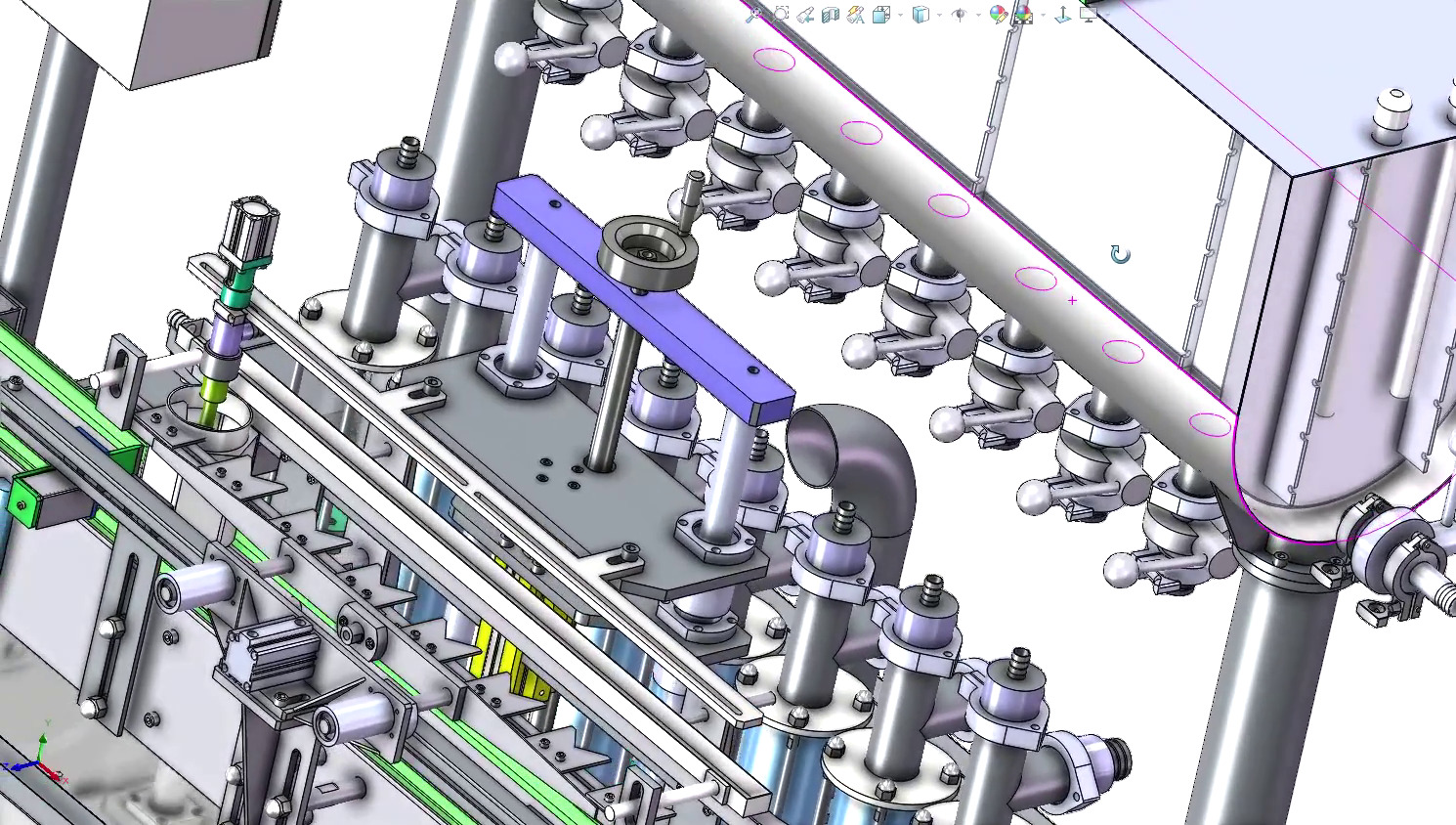

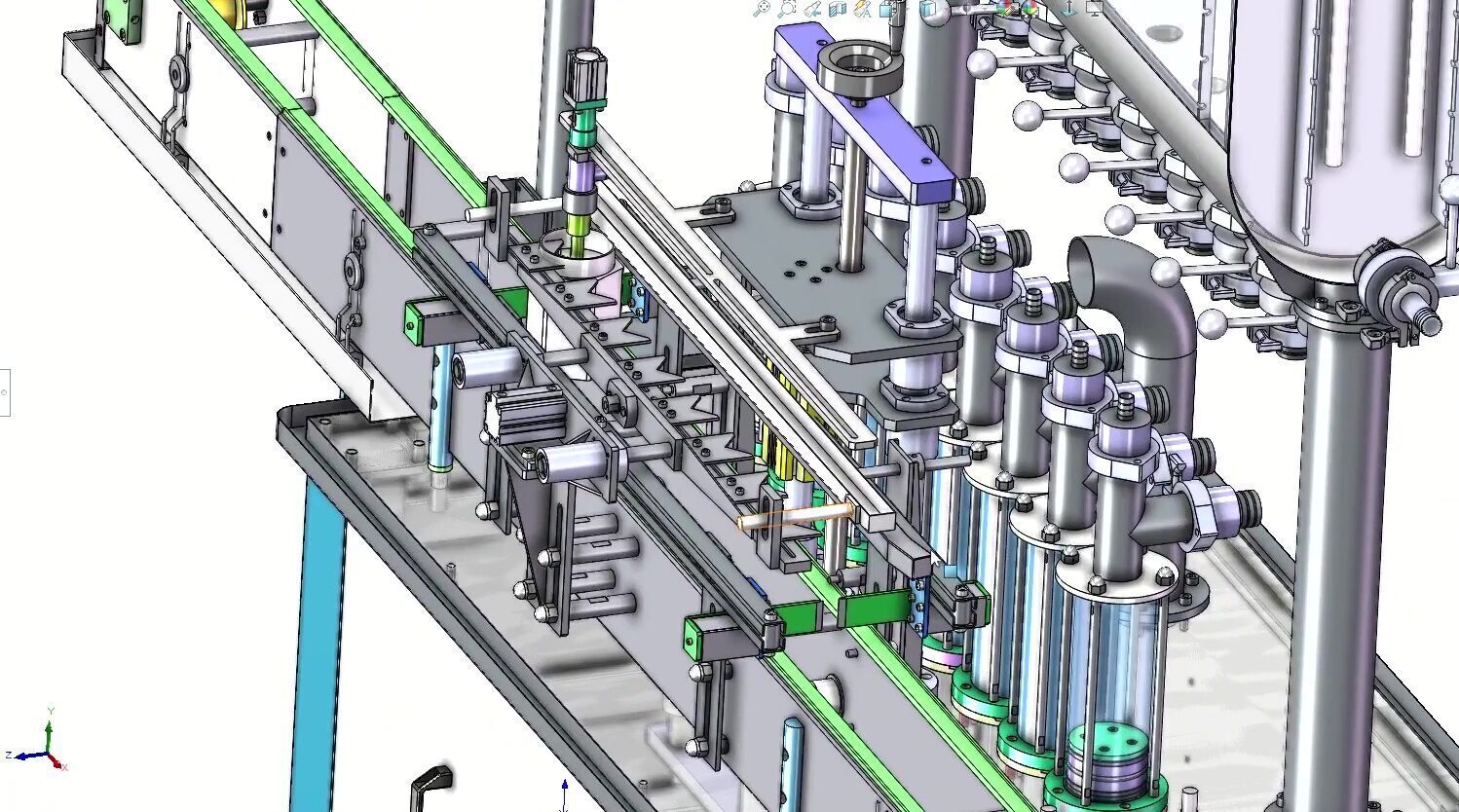

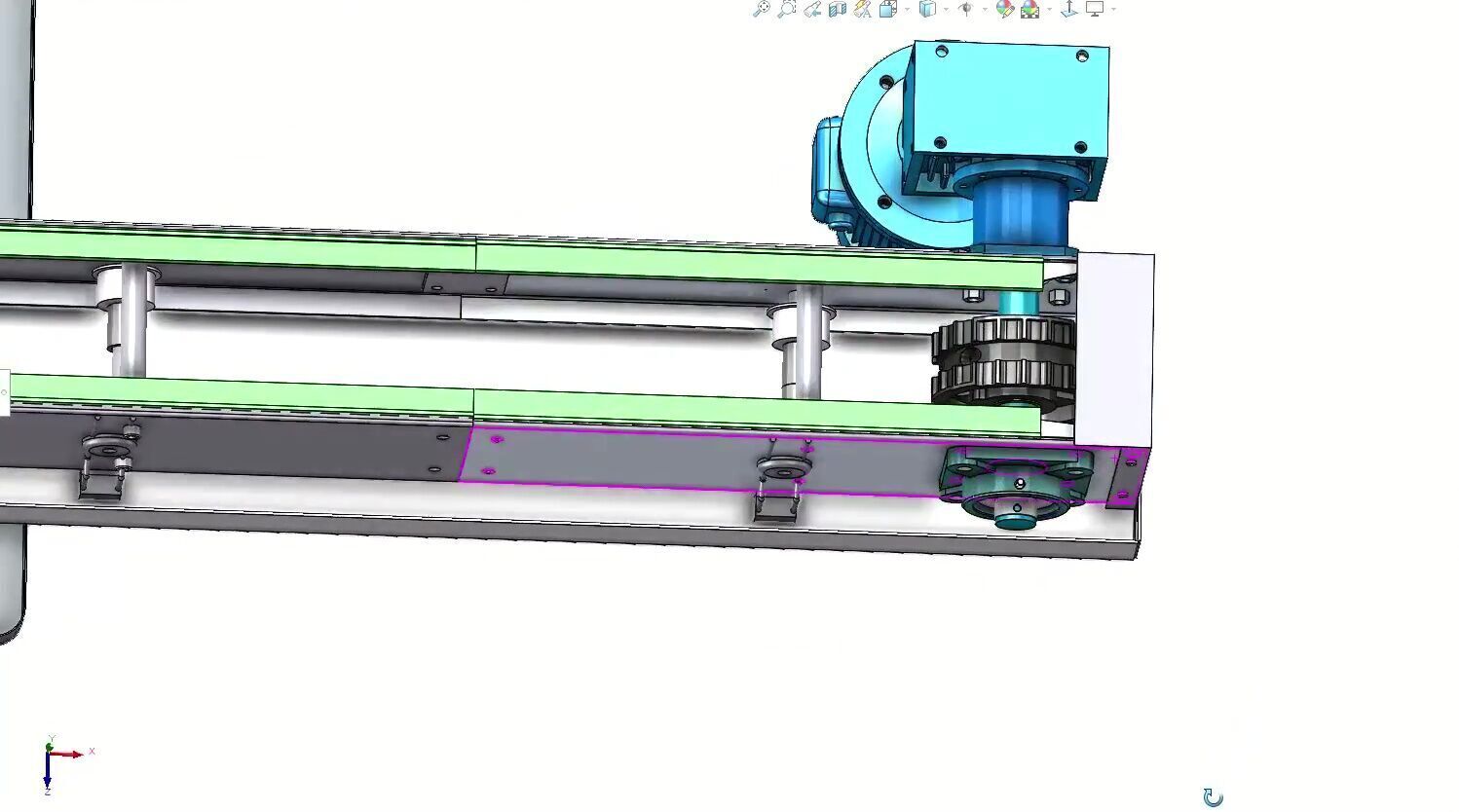

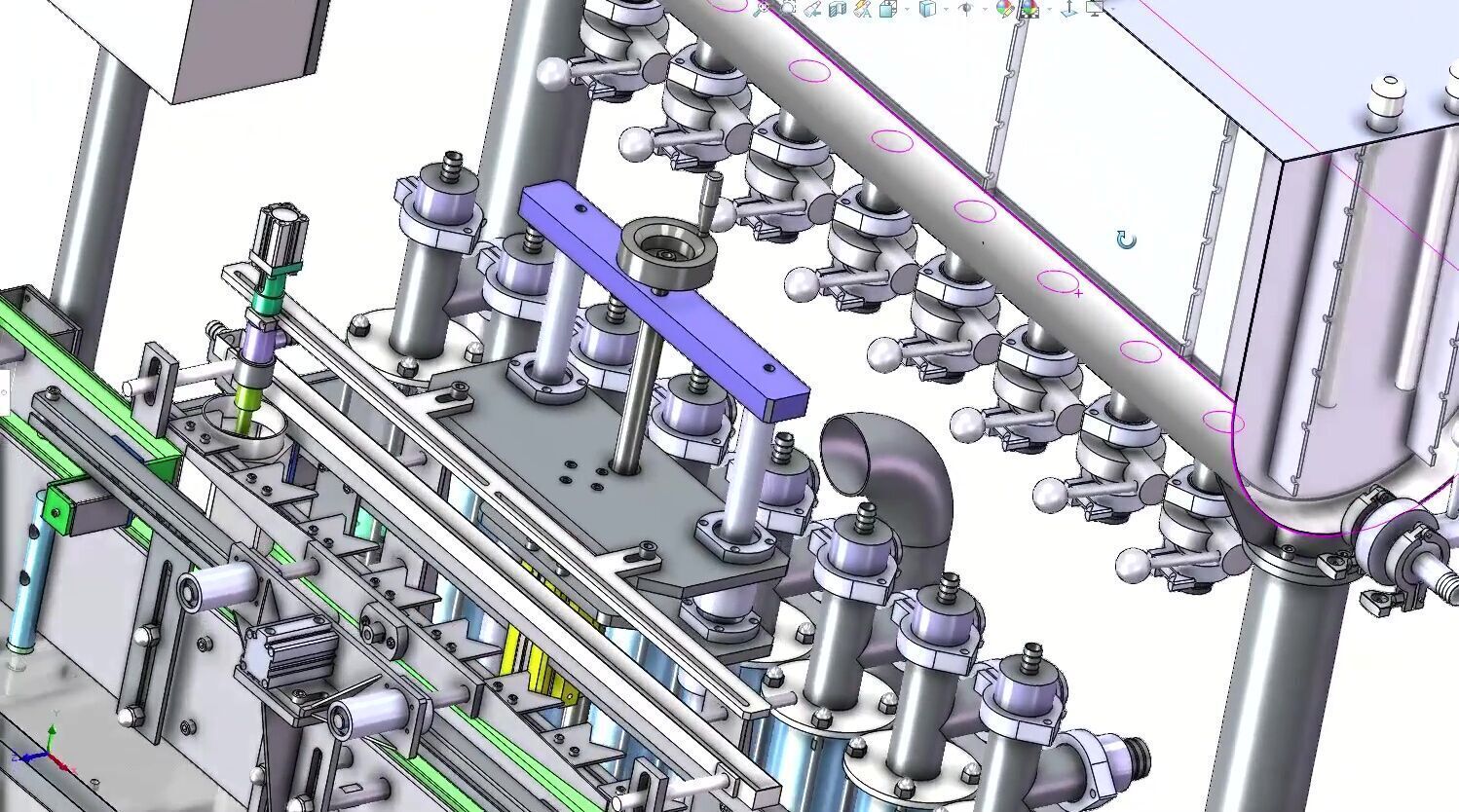

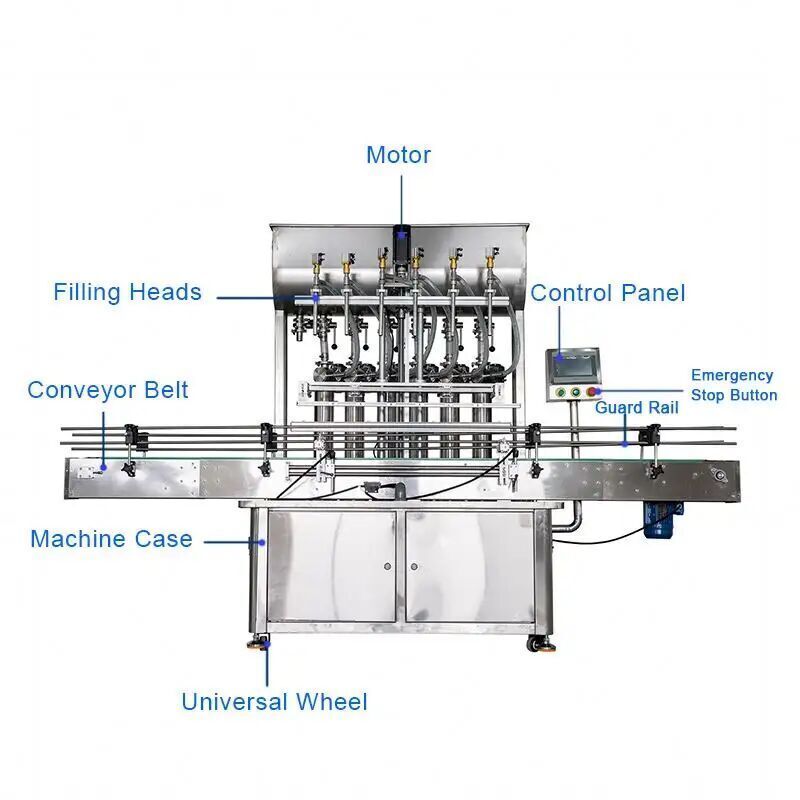

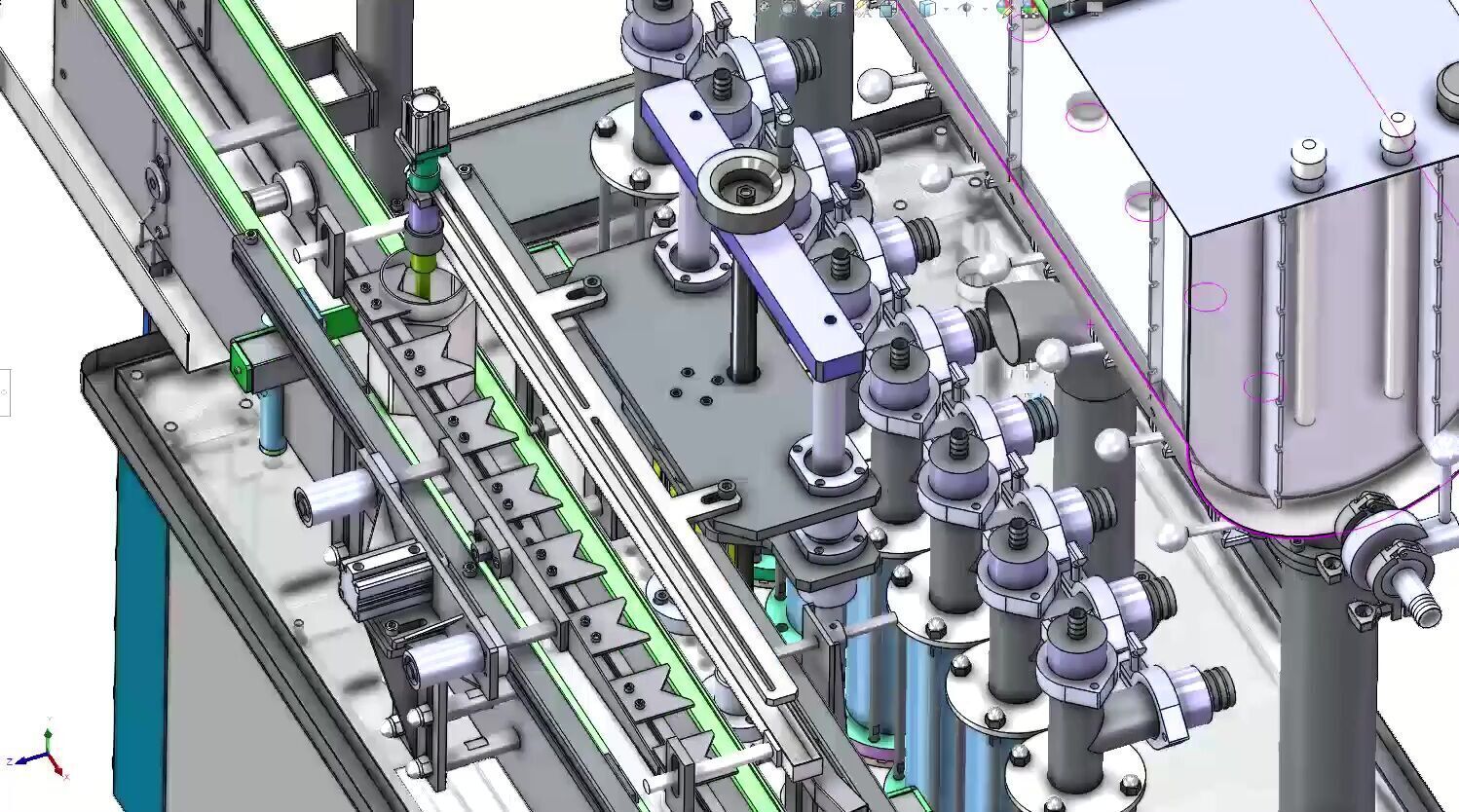

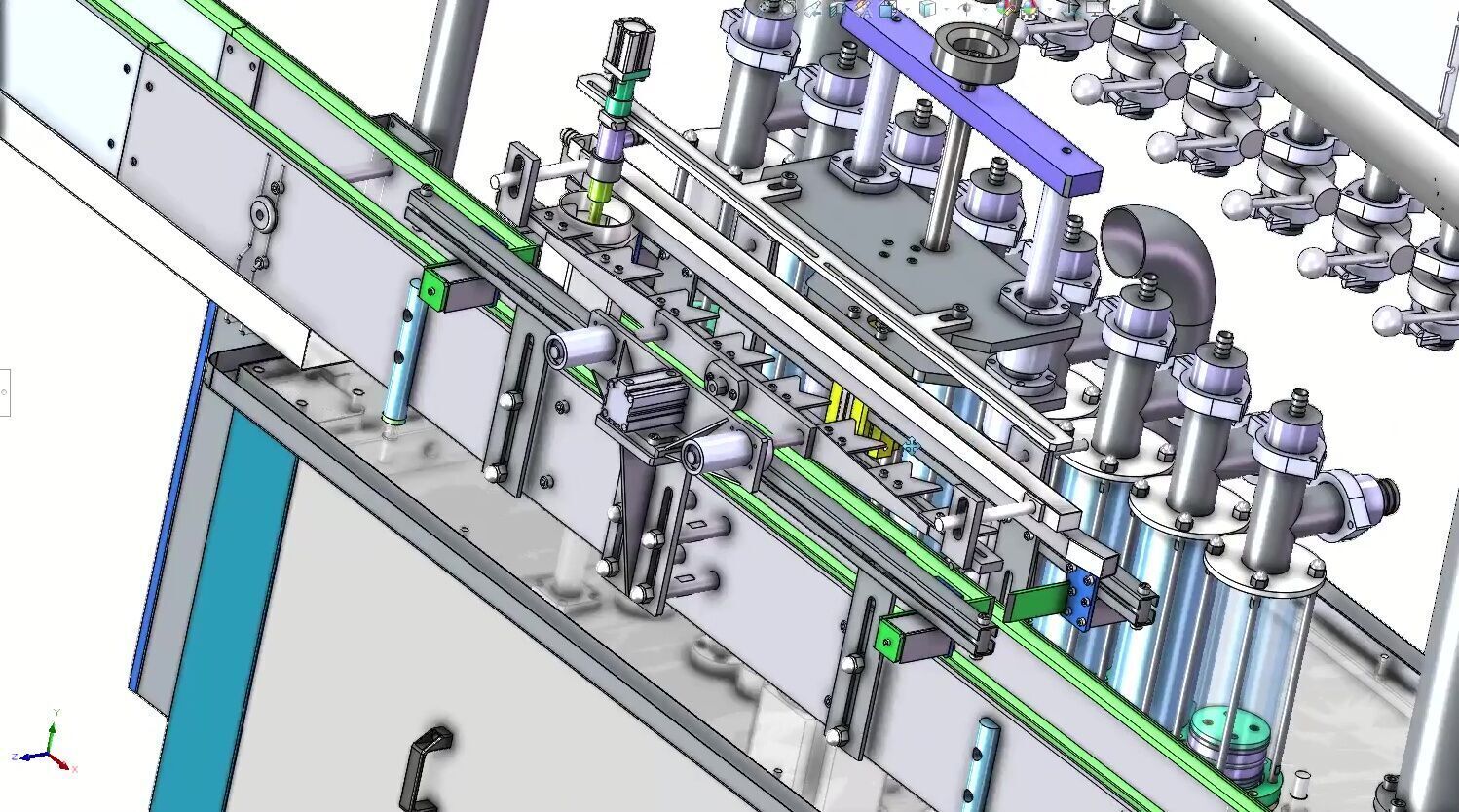

Key Features & Components:8-Head Piston Filling System – Ensures accurate and simultaneous liquid dispensing.Conveyor System – Facilitates smooth bottle movement throughout the filling process.Liquid Level Control (Probe) – Maintains consistent filling levels.Bottle Limiter Assembly – Precisely positions bottles for accurate filling.Bottle Mouth Limiter Assembly – Ensures correct alignment of nozzles with bottle openings.Bottle Clogging Detection Assembly (Stainless Steel) – Prevents obstructions and enhances efficiency.Filling Nozzle Holder Assembly (Plug-in) – Designed for easy removal and maintenance.This comprehensive and highly detailed 3D model is ideal for industrial use, providing an accurate reference for manufacturing, design modifications, and process optimization.
