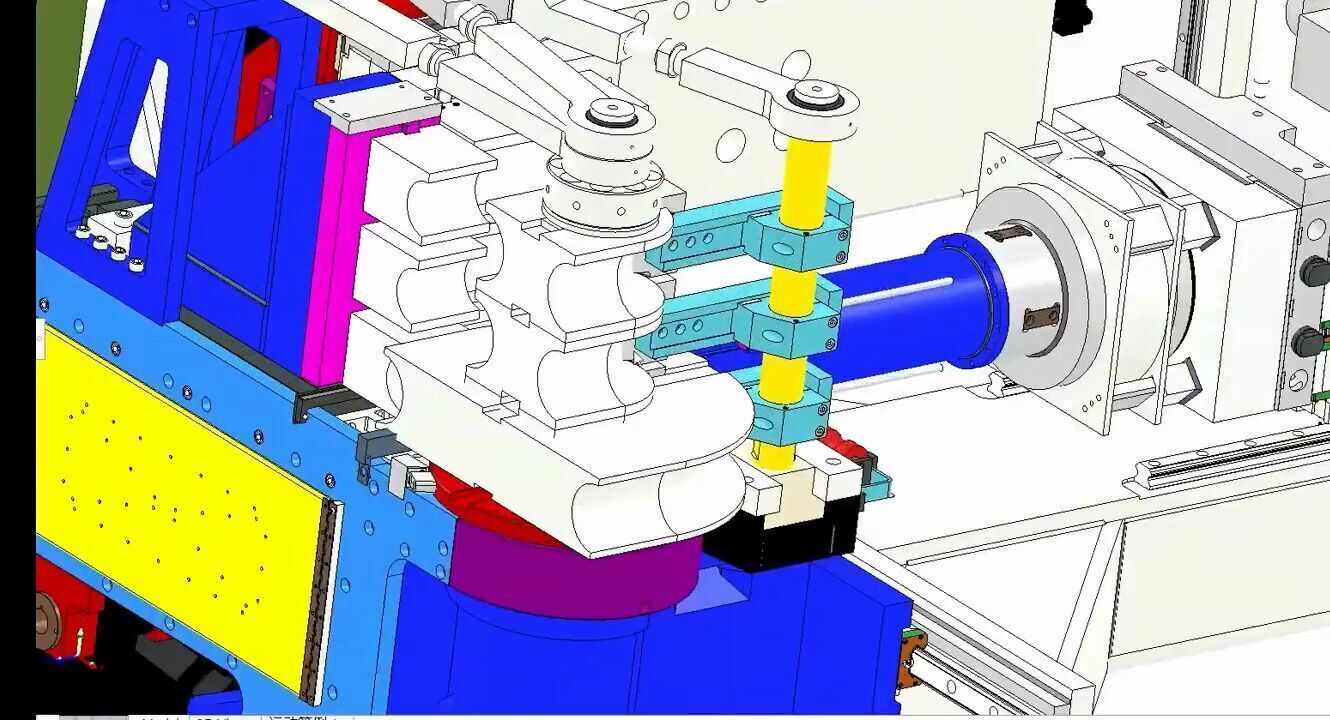

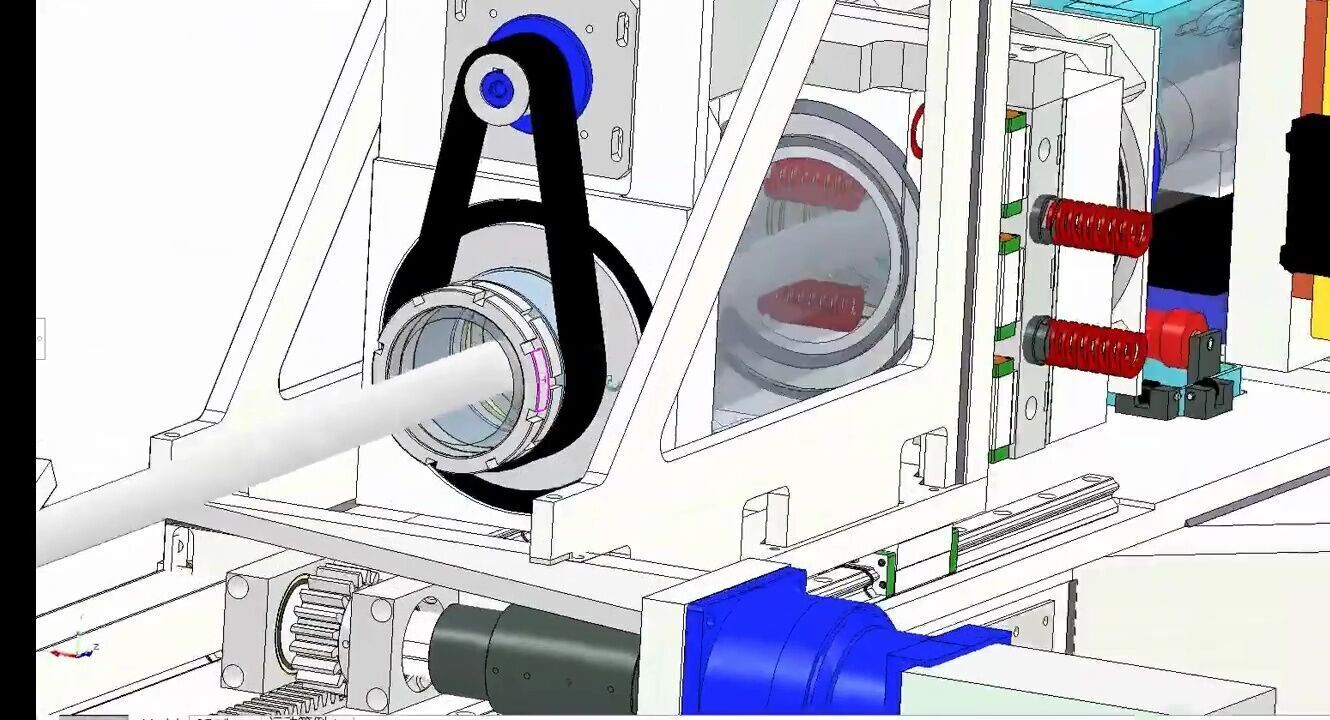

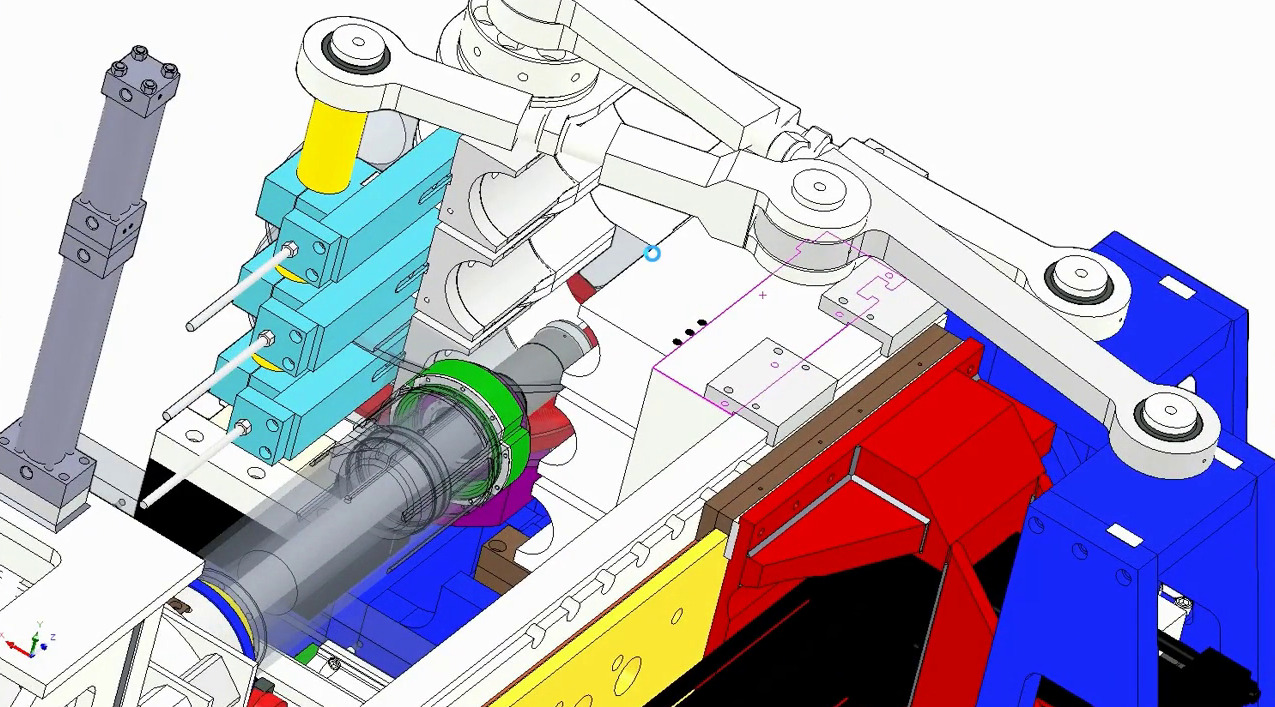

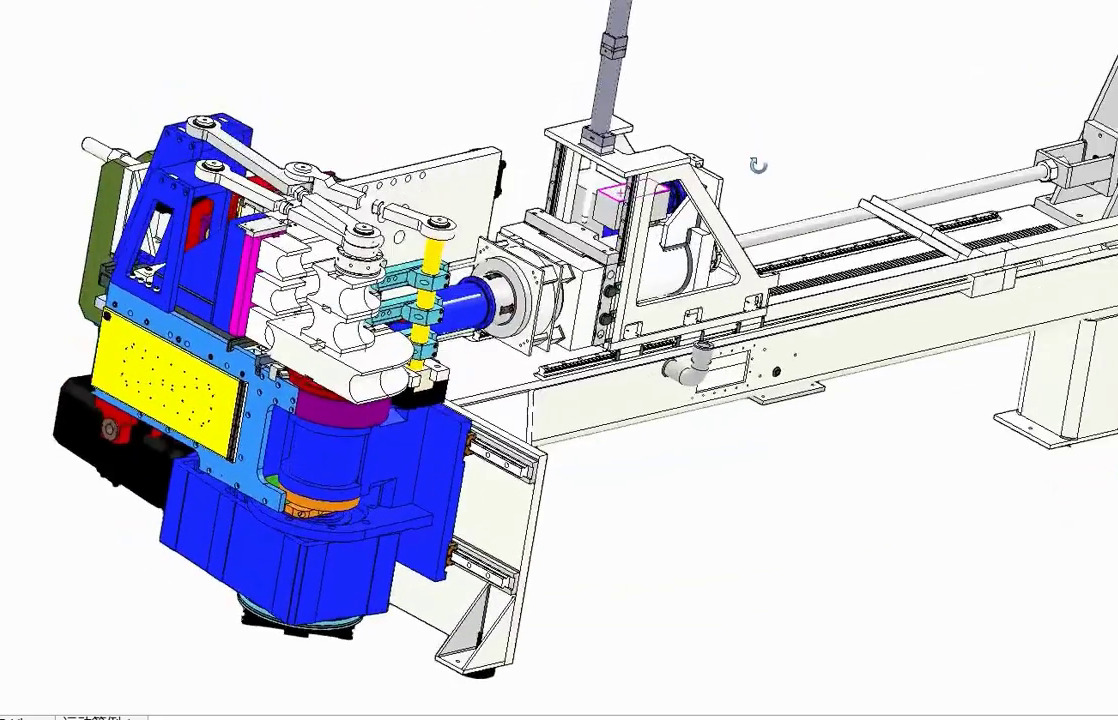

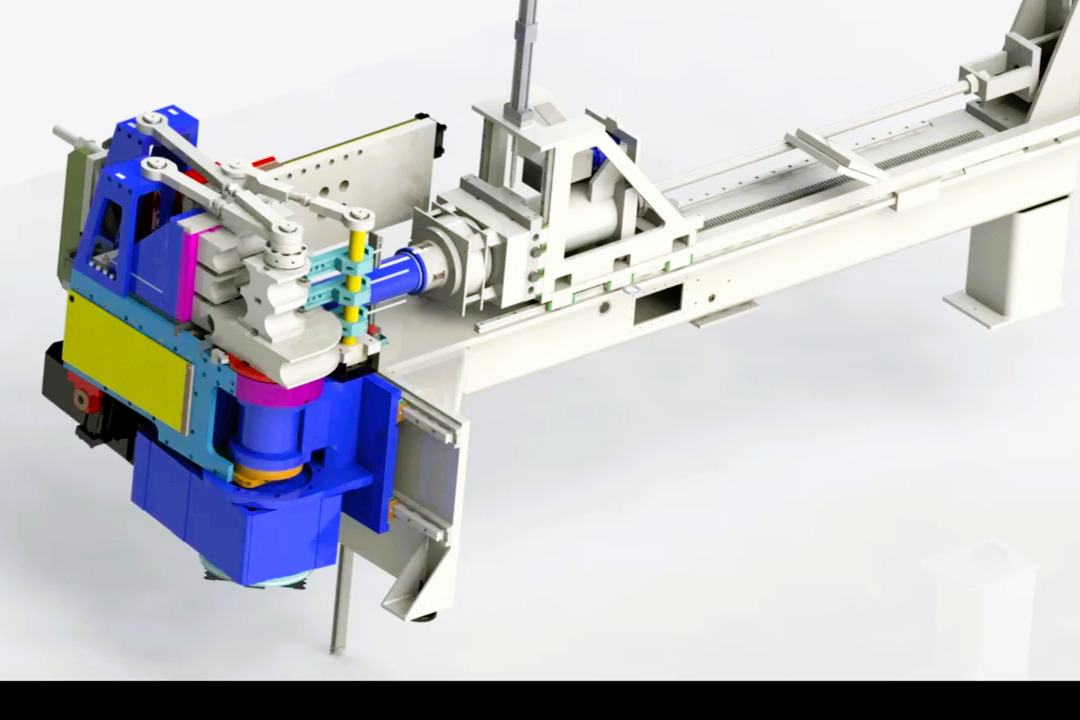

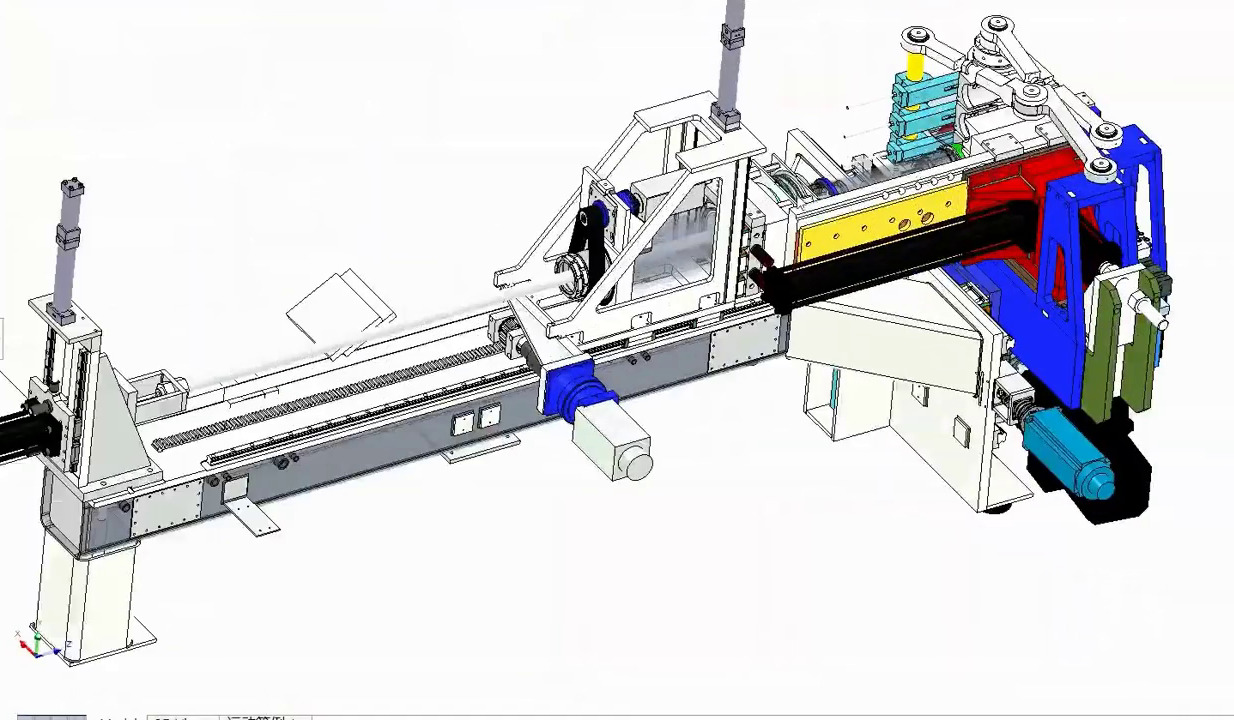

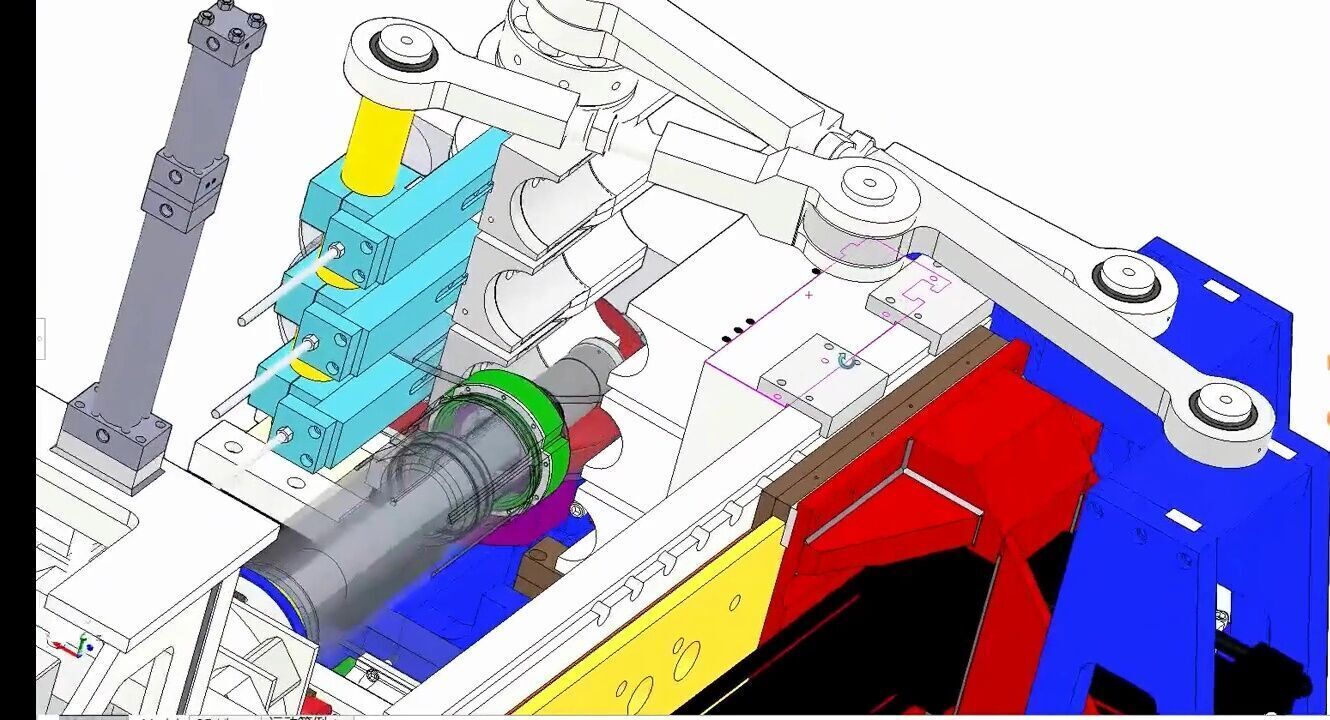

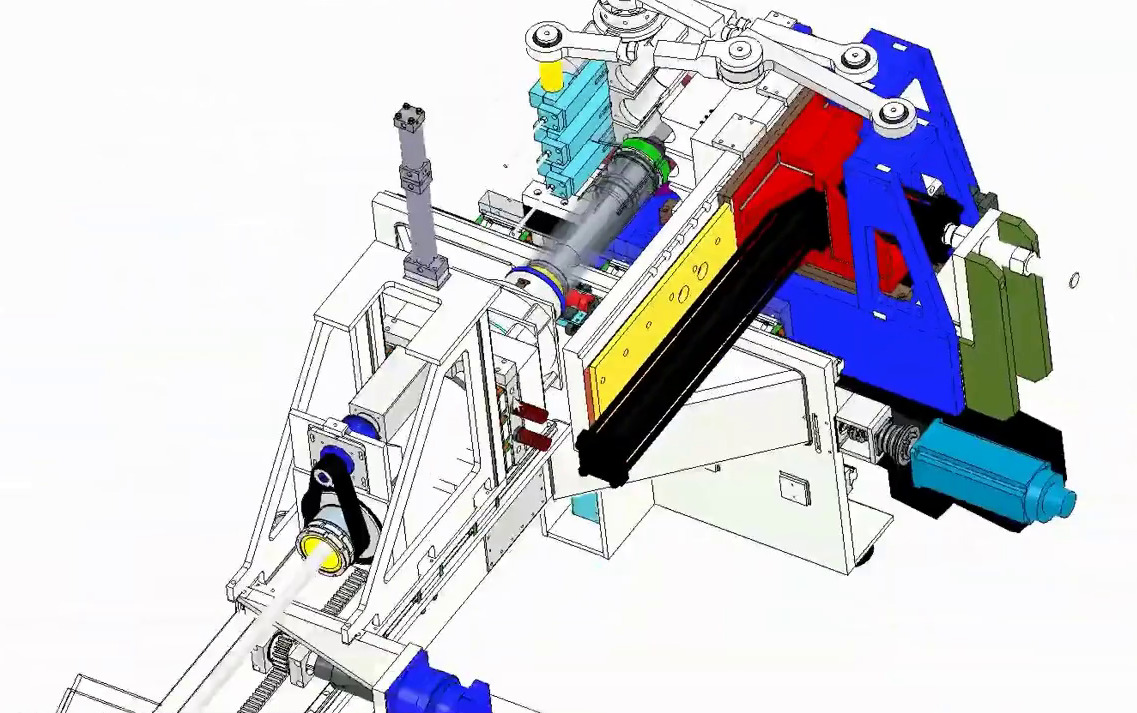

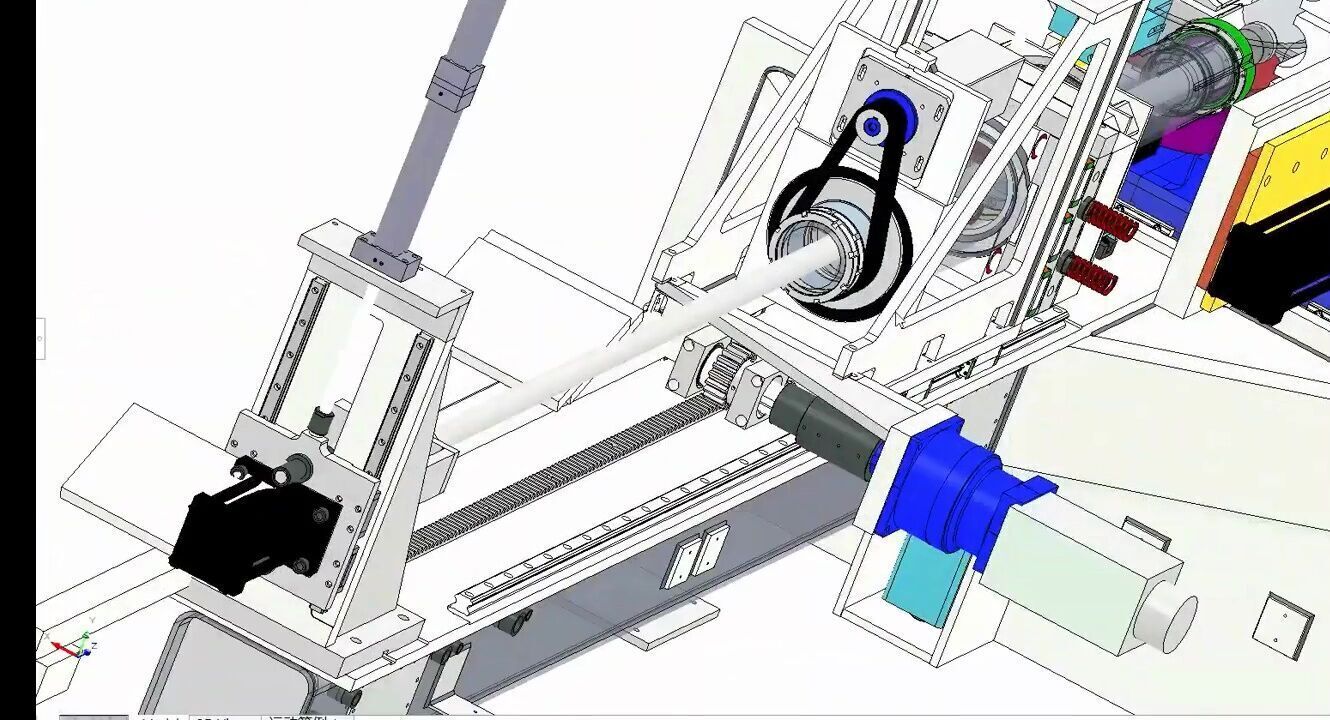

Automatic CNC Pipe Bending Machine 3D model

A 3D Design for an Automatic CNC Pipe Bending Machine is a detailed digital model that visually represents the structure, components, and operational mechanisms of a high-precision pipe bending system. This design is essential for engineering analysis, prototyping, and manufacturing, ensuring accuracy, efficiency, and seamless production planning.

Key Features of the 3D Design:High-Precision Modeling: Accurately represents bending arms, rollers, clamps, and CNC control systems.Realistic Rendering: Displays materials, dimensions, and mechanical components with lifelike details.Motion Simulation: Demonstrates pipe feeding, bending angles, and multi-axis movement.Customization & Optimization: Allows design modifications for different pipe diameters, bending angles, and automation levels.Integration with Automation: Visualizes CNC programming, servo motors, and hydraulic/pneumatic systems.Components Modeled in 3D:Pipe Feeding System – Automatically guides pipes into the bending section.Bending Arm & Die – Forms precise bends without deformation.Clamp & Pressure Die – Holds the pipe securely during bending.CNC Control Panel – Allows programming of multiple bending angles and sequences.Hydraulic/Pneumatic System – Powers the bending process with controlled force.Support Rollers & Guides – Ensures smooth pipe movement and positioning.Safety Covers & Frame – Protects operators and enhances machine durability.Benefits of 3D Design in CNC Pipe Bending Machines:Error Reduction: Identifies potential design flaws before manufacturing.Cost Efficiency: Optimizes material usage and reduces production waste.Improved Performance: Ensures smooth mechanical operations and precise bending.Faster Prototyping: Speeds up the design and development process.
