Revit KITCHEN CORE FAMILIES COLLECTION Parametric UK 11 Units 3D model

Fully parametric Revit families collection built to UK standards and ready for residential interiors. Clean geometry, adjustable sizes, and easy setup for practical everyday use.

What’s Included:

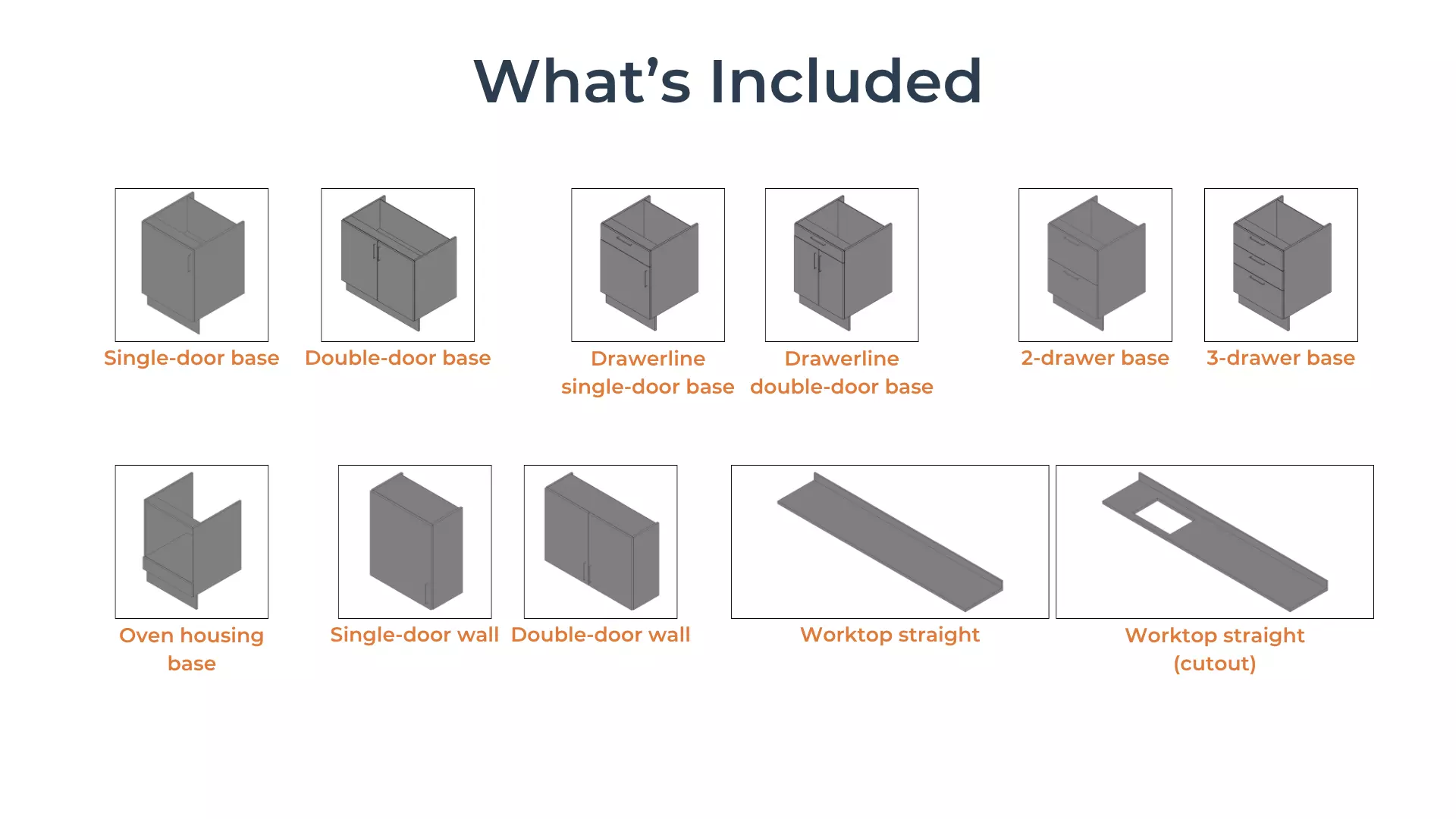

11 families:

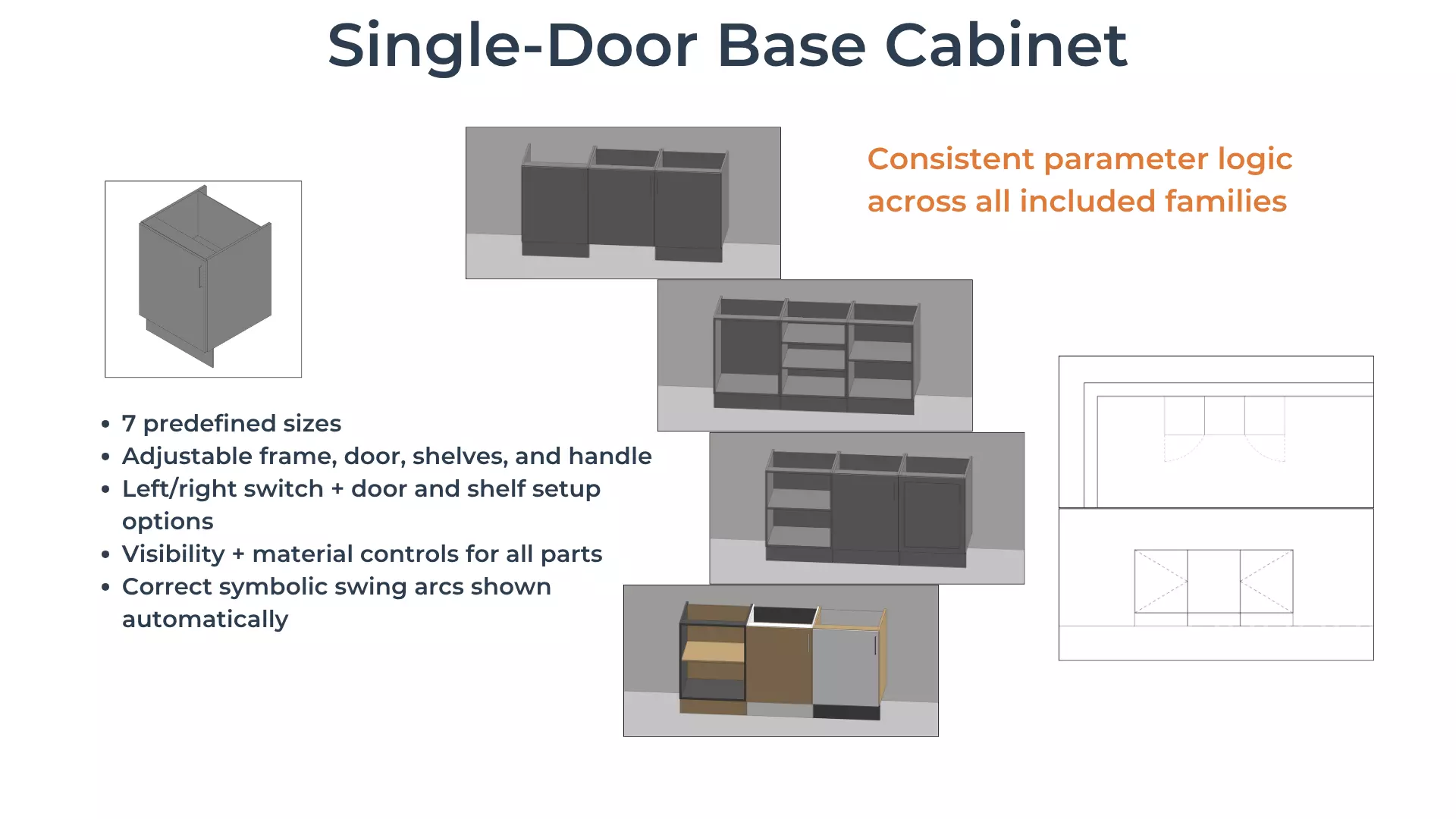

• Single-door base cabinet
• Double-door base cabinet
• Drawerline single-door base cabinet
• Drawerline double-door base cabinet
• 2-drawer base cabinet
• 3-drawer base cabinet
• Single-door wall cabinet
• Double-door wall cabinet
• Oven housing base cabinet
• Worktop straight
• Worktop straight with cutout

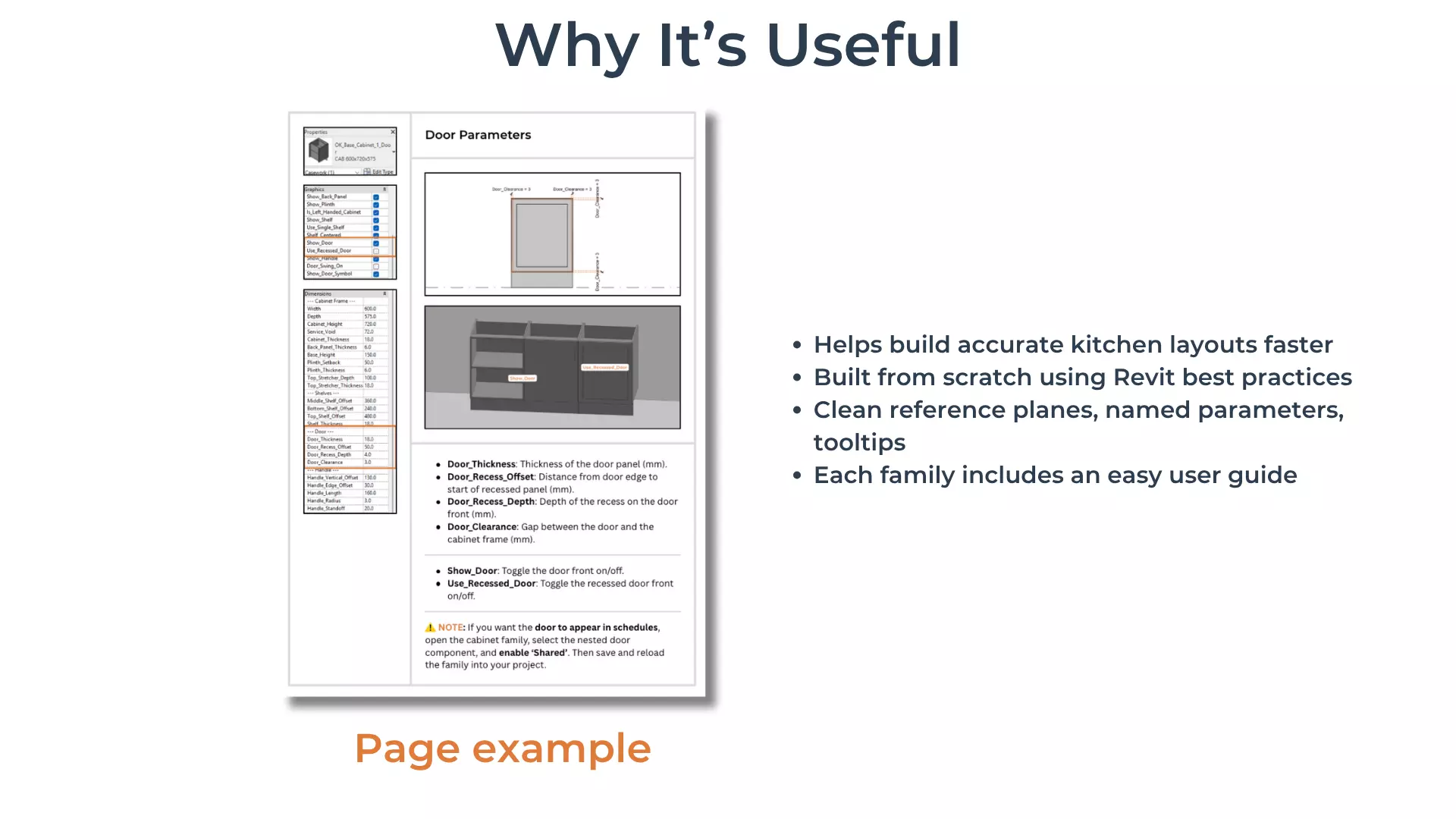

User Guide for each family

Main Features:

• Includes commonly used predefined sizes
• Adjustable dimensions for cabinet frame, doors, shelves, and handles
• Easily switch between left- and right-handed setups (where applicable)
• Independent visibility control for back panels, plinths, shelves, doors, and handles
• One-click toggles for door type, shelf setup, and handedness
• Editable materials for all key components
• Lightweight geometry for smooth performance
• Non-hosted placement - won’t be deleted with walls
• Independent visibility for swing arcs and door side indicators. Correct left- or right-hand symbols are shown automatically based on cabinet orientation (where applicable)

Why It’s Useful:

• Designed for everyday Revit work - helping you build accurate kitchen layouts faster and keep your model clean and editable.
• Created from scratch using Revit best practices
• No cleanup needed - just load and start using
• Easy to edit in the Family Editor - clean reference planes, named parameters, and tooltips for quick adjustments
• Each family includes a simple user guide for quick setup

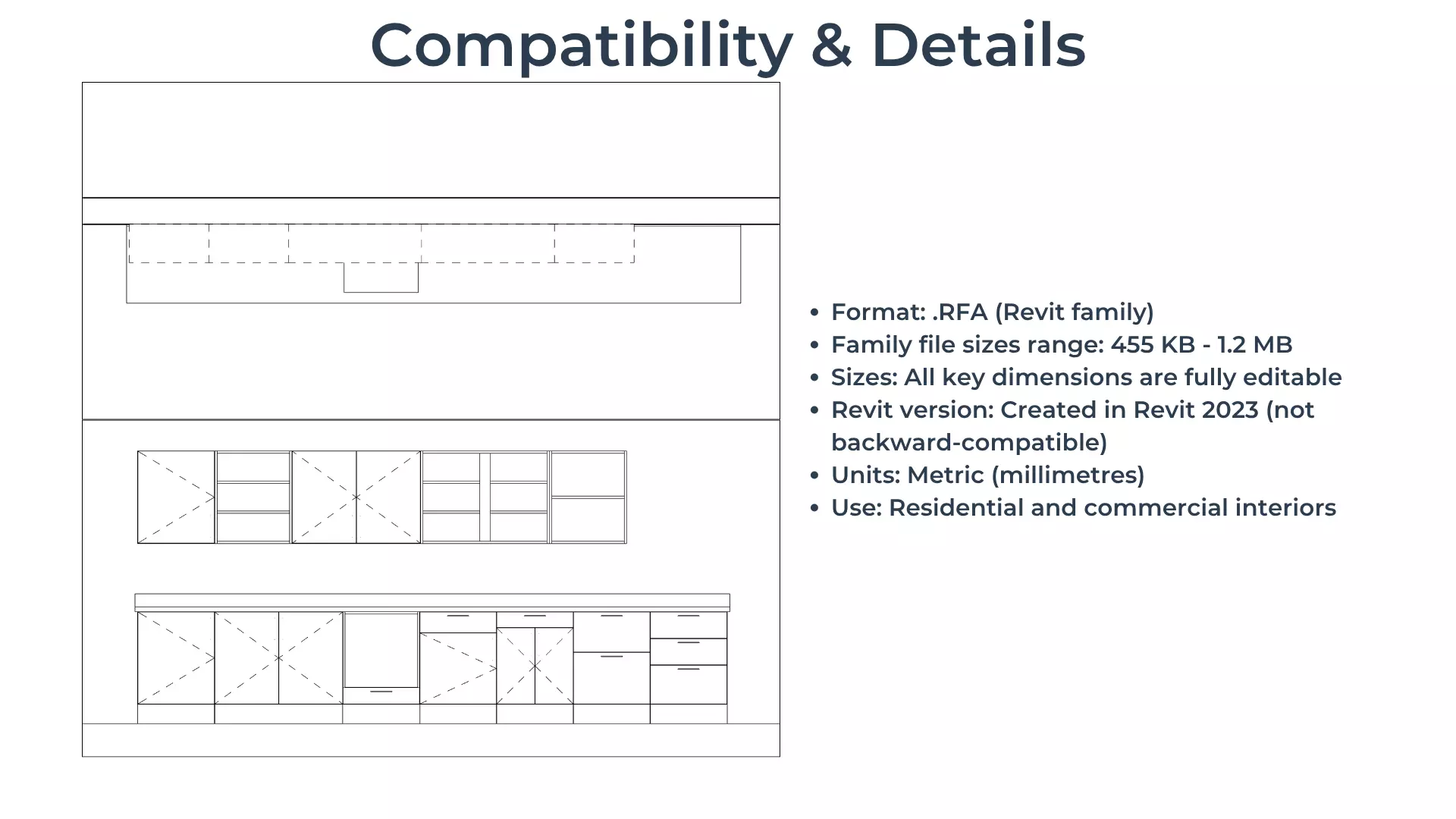

Compatibility & Details:

• Format: .RFA (Revit family)
• Family file sizes range: 455 KB - 1.2 MB
• Sizes: All key dimensions are fully editable
• Revit version: Created in Revit 2023 (not backward-compatible)
• Units: Metric (millimetres)
• Use: Residential and commercial interiors

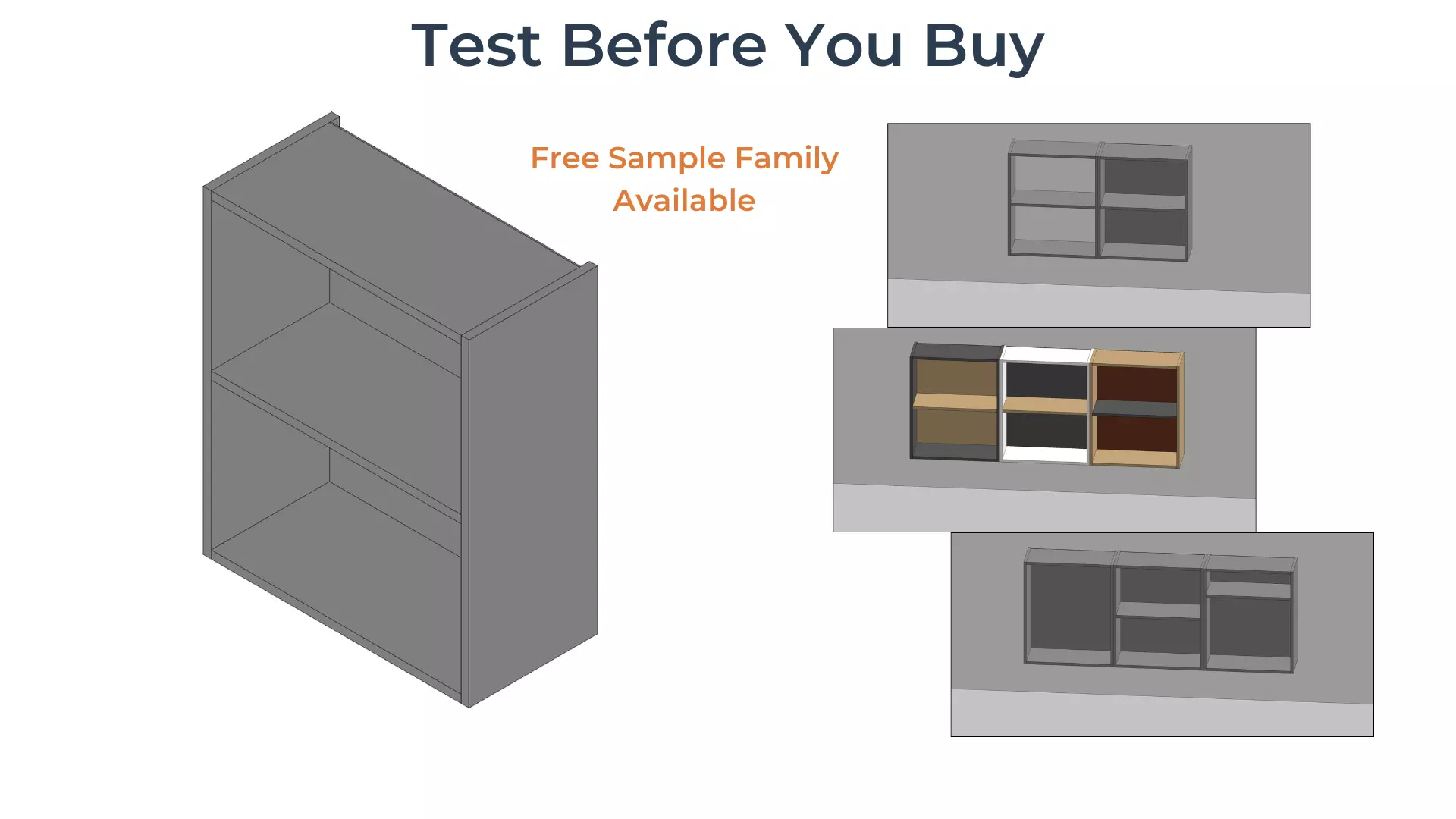

If you’d like to test the quality and parameters before buying, you can download a free sample family here:

https://www.cgtrader.com/free-3d-models/furniture/cabinet/parametric-revit-family-adjustable-wall-cabinet-frame-with-shelf

It’s a simplified but fully usable version, built with the same structure as this bundle.

​​Looking for matching units or layout packs?See my full Revit collection here:

https://www.cgtrader.com/designers/revitfams

Also available separately:

If you only need specific items, each family from this collection is also available as a standalone file:

Single-door base cabinethttps://www.cgtrader.com/3d-models/furniture/cabinet/parametric-revit-family-base-cabinet-1-door-with-shelf-handles

Double-door base cabinethttps://www.cgtrader.com/3d-models/furniture/cabinet/parametric-revit-family-base-cabinet-2-doors-with-shelf-handles

Drawerline single-door base cabinethttps://www.cgtrader.com/3d-models/furniture/cabinet/parametric-revit-family-drawerline-base-cabinet-with-1-door

Drawerline double-door base cabinethttps://www.cgtrader.com/3d-models/furniture/cabinet/parametric-revit-family-drawerline-base-cabinet-with-2-doors

2-drawer base cabinethttps://www.cgtrader.com/3d-models/furniture/cabinet/parametric-revit-family-base-cabinet-with-2-drawers-and-handles

3-drawer base cabinethttps://www.cgtrader.com/3d-models/furniture/cabinet/parametric-revit-family-base-cabinet-storage-with-3-drawers

Single-door wall cabinethttps://www.cgtrader.com/3d-models/furniture/cabinet/parametric-revit-family-wall-cabinet-with-shelves-2-door-style

Double-door wall cabinethttps://www.cgtrader.com/3d-models/furniture/cabinet/parametric-revit-family-wall-cabinet-frame-with-shelves

Oven housing base cabinethttps://www.cgtrader.com/3d-models/furniture/cabinet/oven-housing-base-cabinet-revit-family-uk-parametric

Worktop straighthttps://www.cgtrader.com/3d-models/furniture/cabinet/worktop-straight-revit-family-uk-parametric

Worktop straight with cutouthttps://www.cgtrader.com/3d-models/furniture/cabinet/worktop-straight-with-cutout-revit-family-uk-parametric
