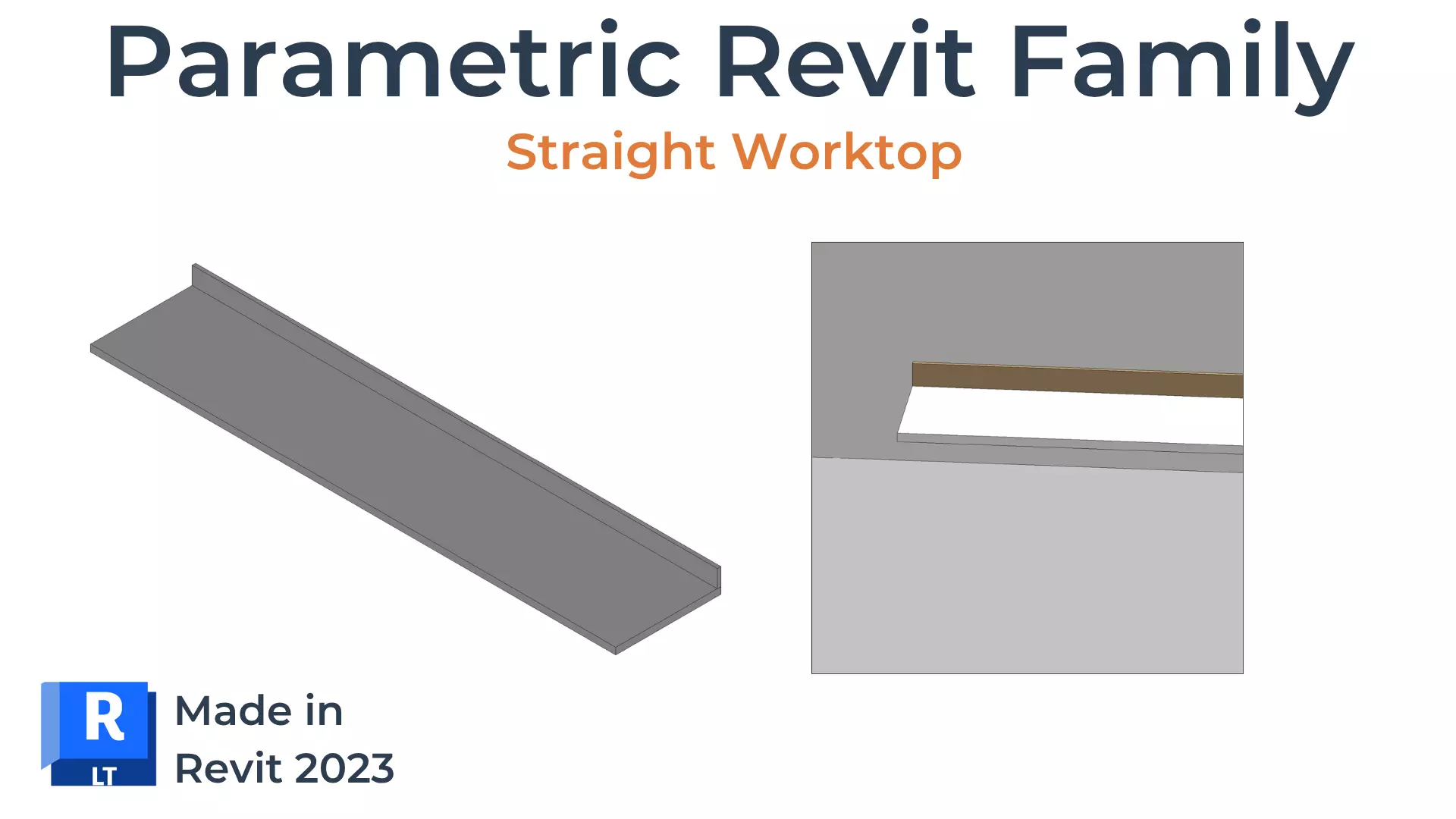

WORKTOP STRAIGHT Revit Family UK Parametric 3D model

Fully parametric Revit family for a straight worktop, built to UK standards and ready for residential interiors.

Main Features:

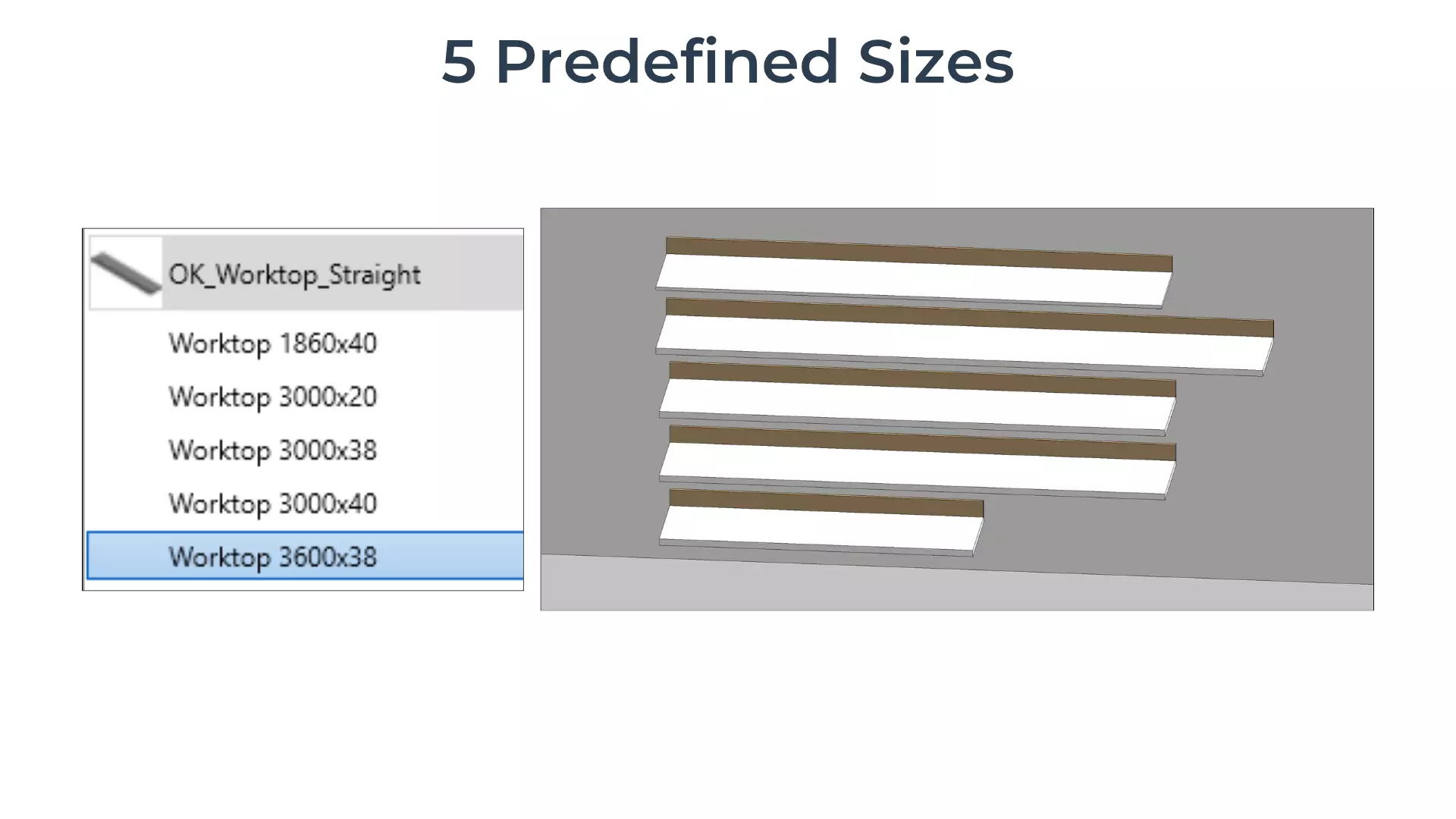

• 5 predefined sizes included

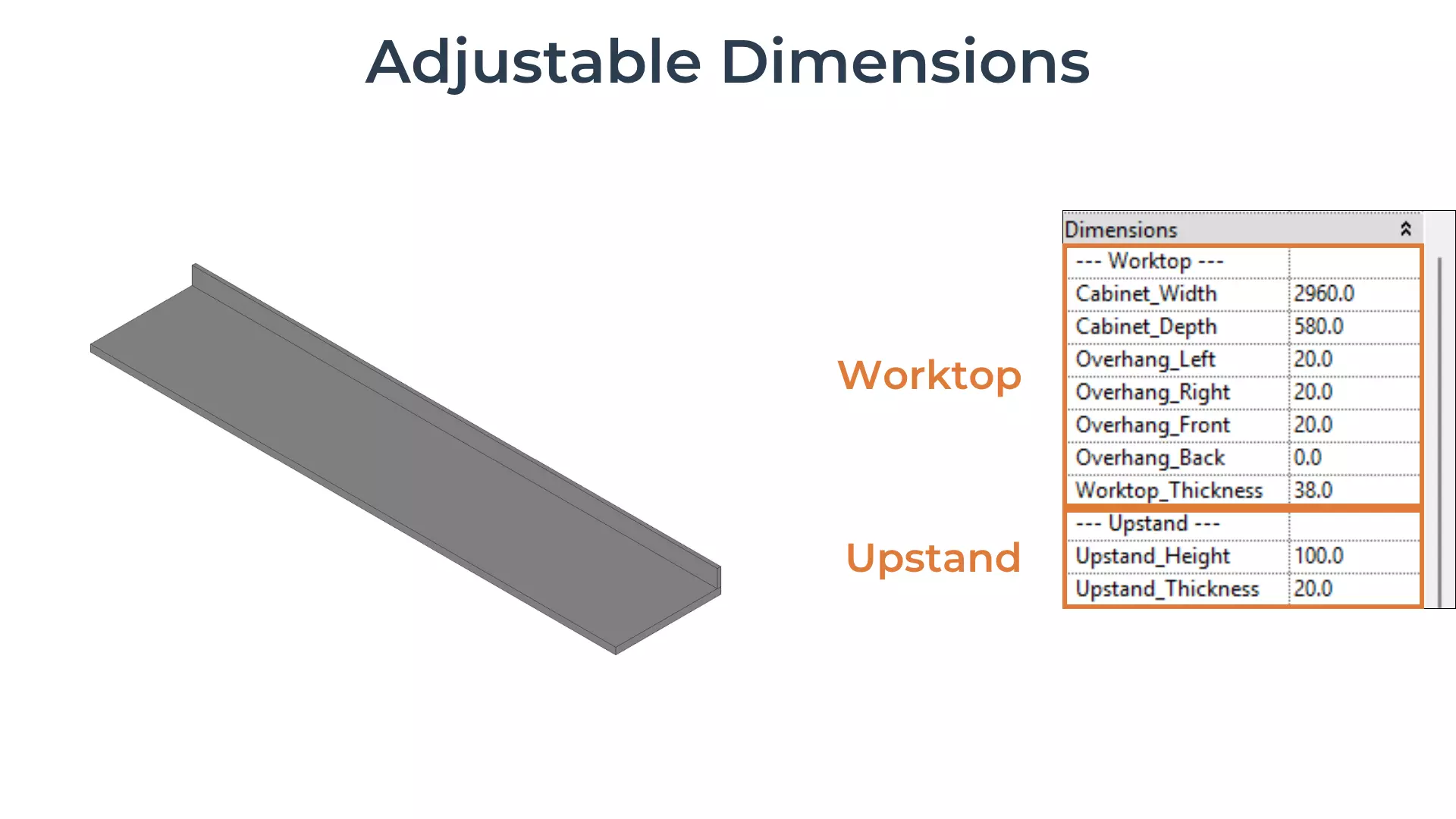

• Adjustable dimensions for worktop and upstand

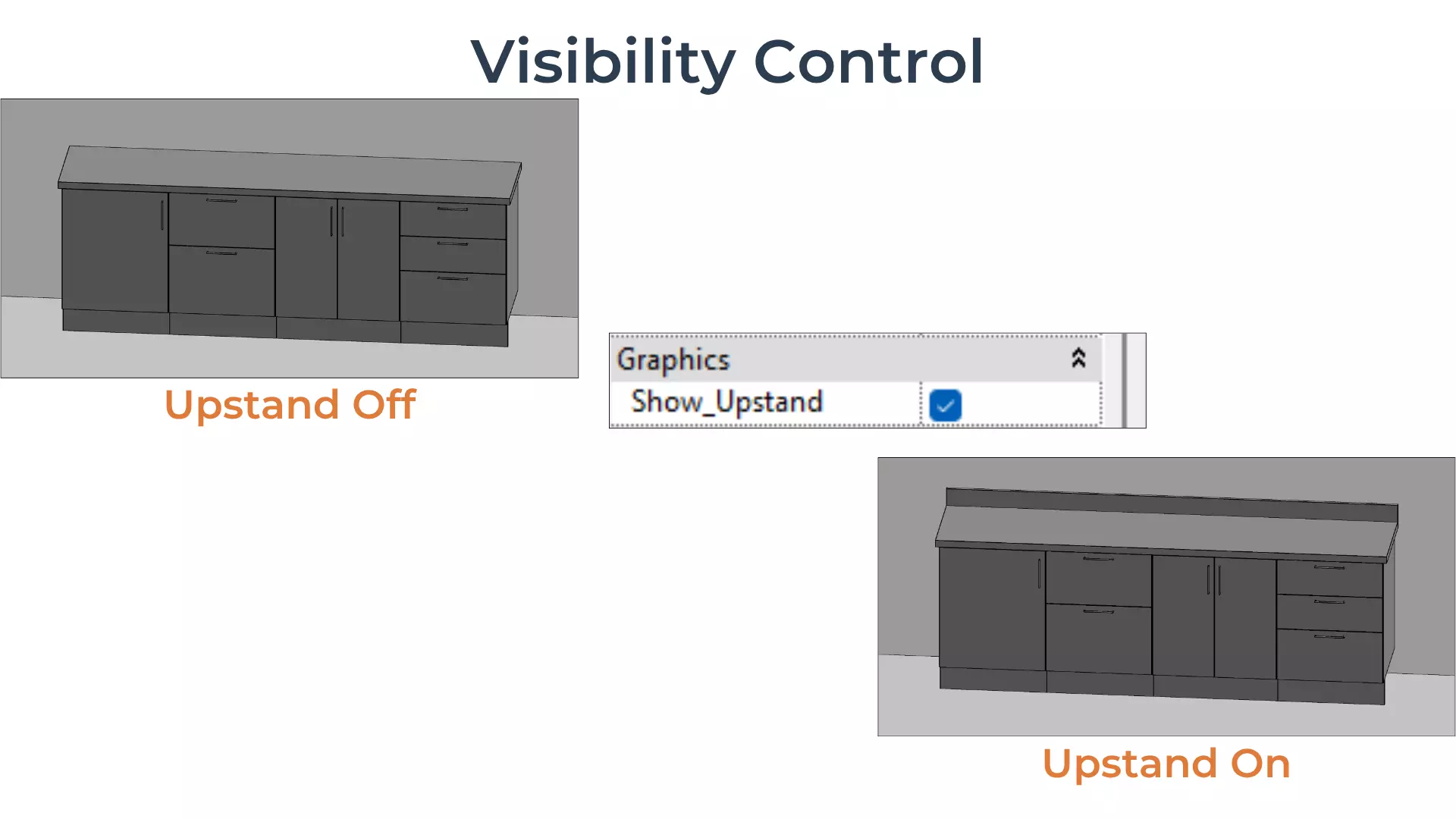

• Visibility control for upstand

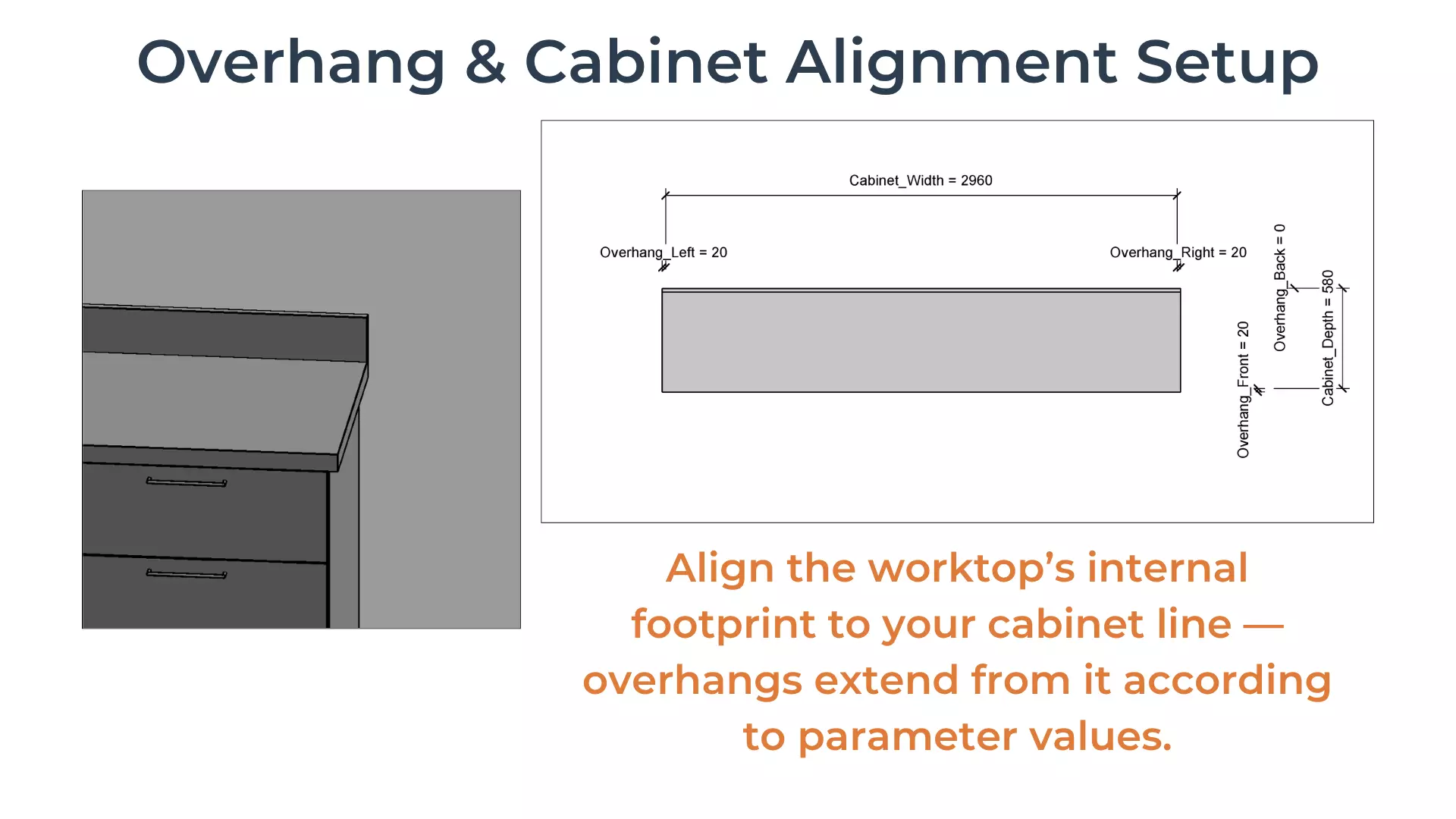

• Built-in logic for overhangs and alignment with cabinets

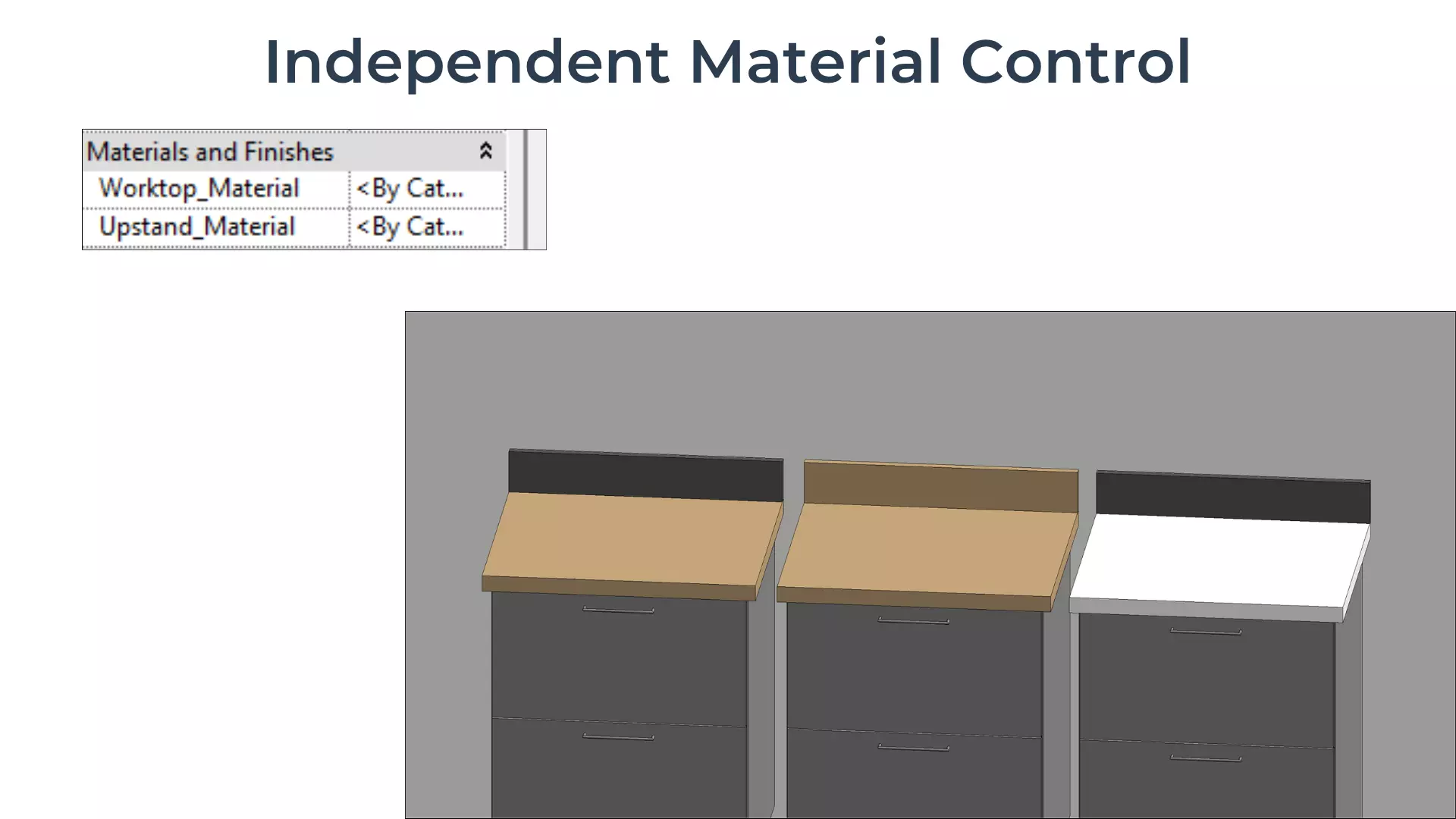

• Editable materials for worktop and upstand

Why Choose This Family?

• Created from scratch using Revit best practices
• No cleanup needed - just load and start using
• Easy to edit in the Family Editor - clean reference planes, named parameters, and tooltips for quick adjustments

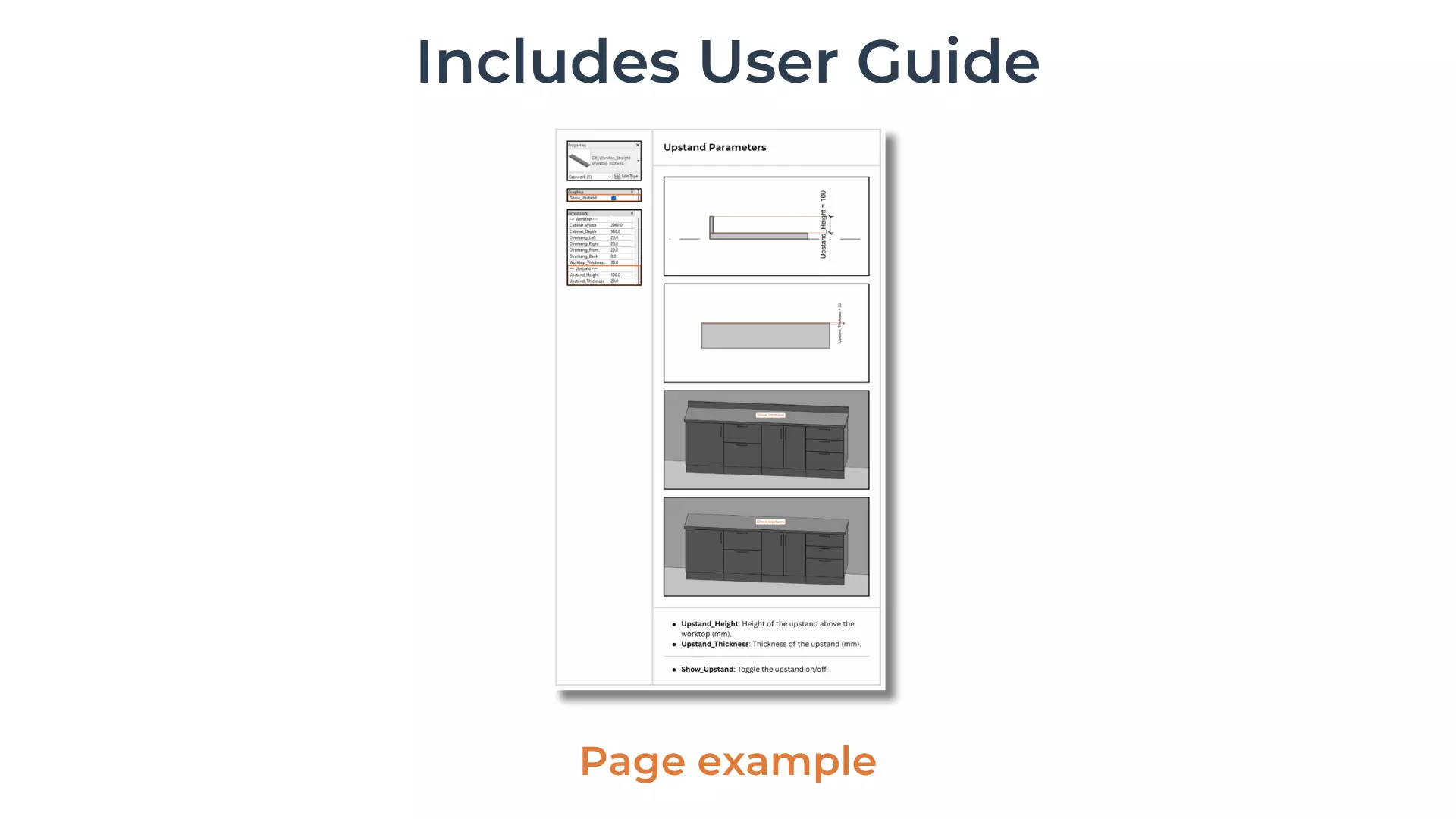

• Includes a simple user guide for quick setup

Compatibility & Details:

• Format: .RFA (Revit family)
• Family File Size: 455 KB
• Sizes: All key dimensions are fully editable
• Revit Version: Created in Revit 2023 (not backward-compatible)
• Units: Metric (millimetres)
• Use: Residential and commercial interiors
