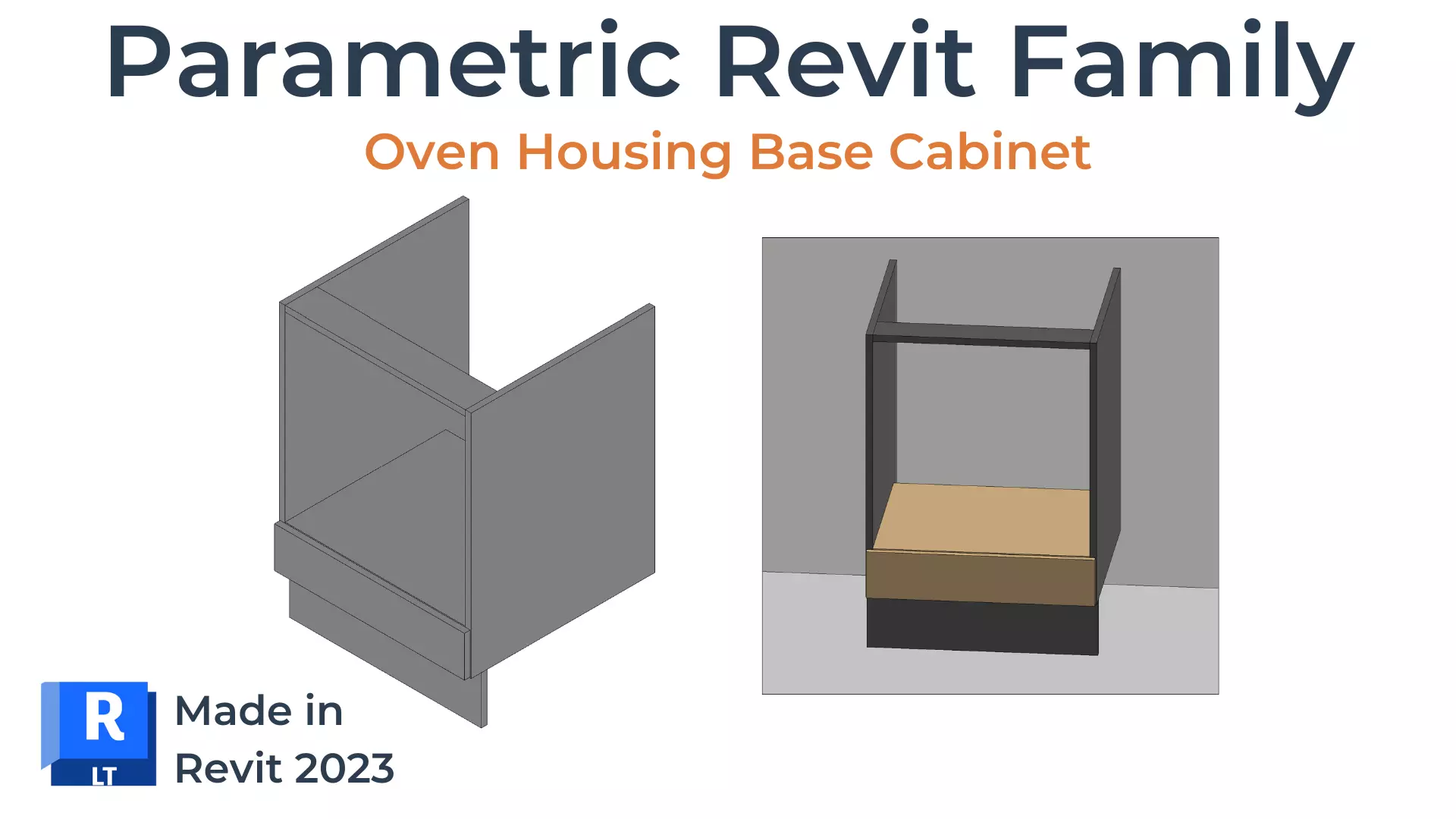

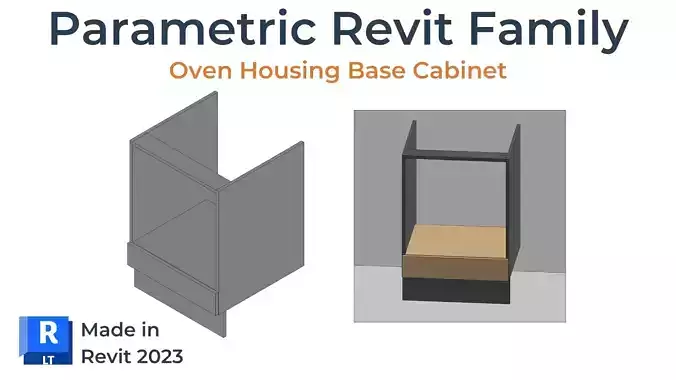

OVEN HOUSING BASE Cabinet Revit Family UK Parametric 3D model

Fully parametric Revit family for oven housing base cabinet, built to UK standards and ready for residential interiors.

Main Features:

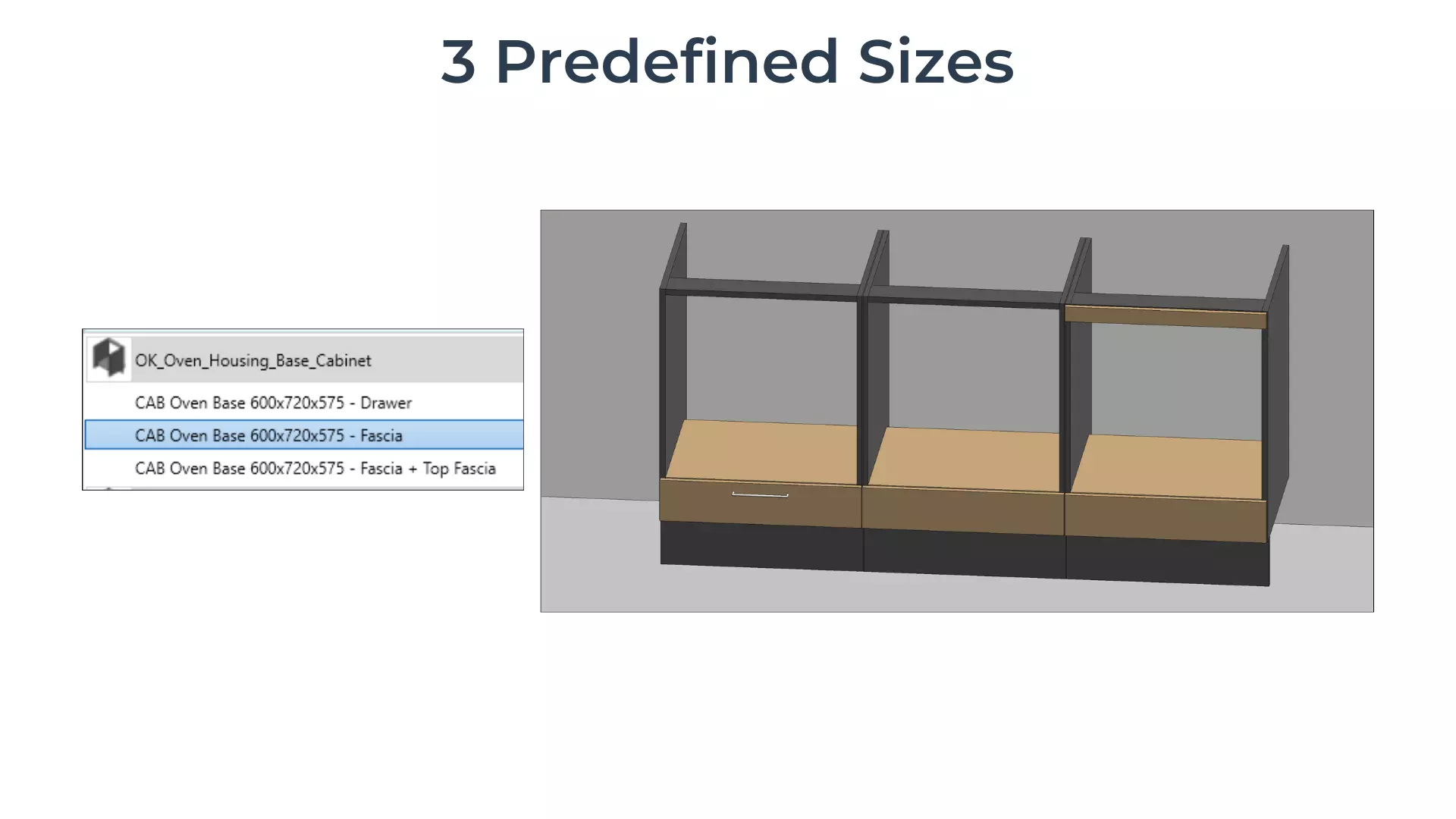

• 3 predefined sizes included

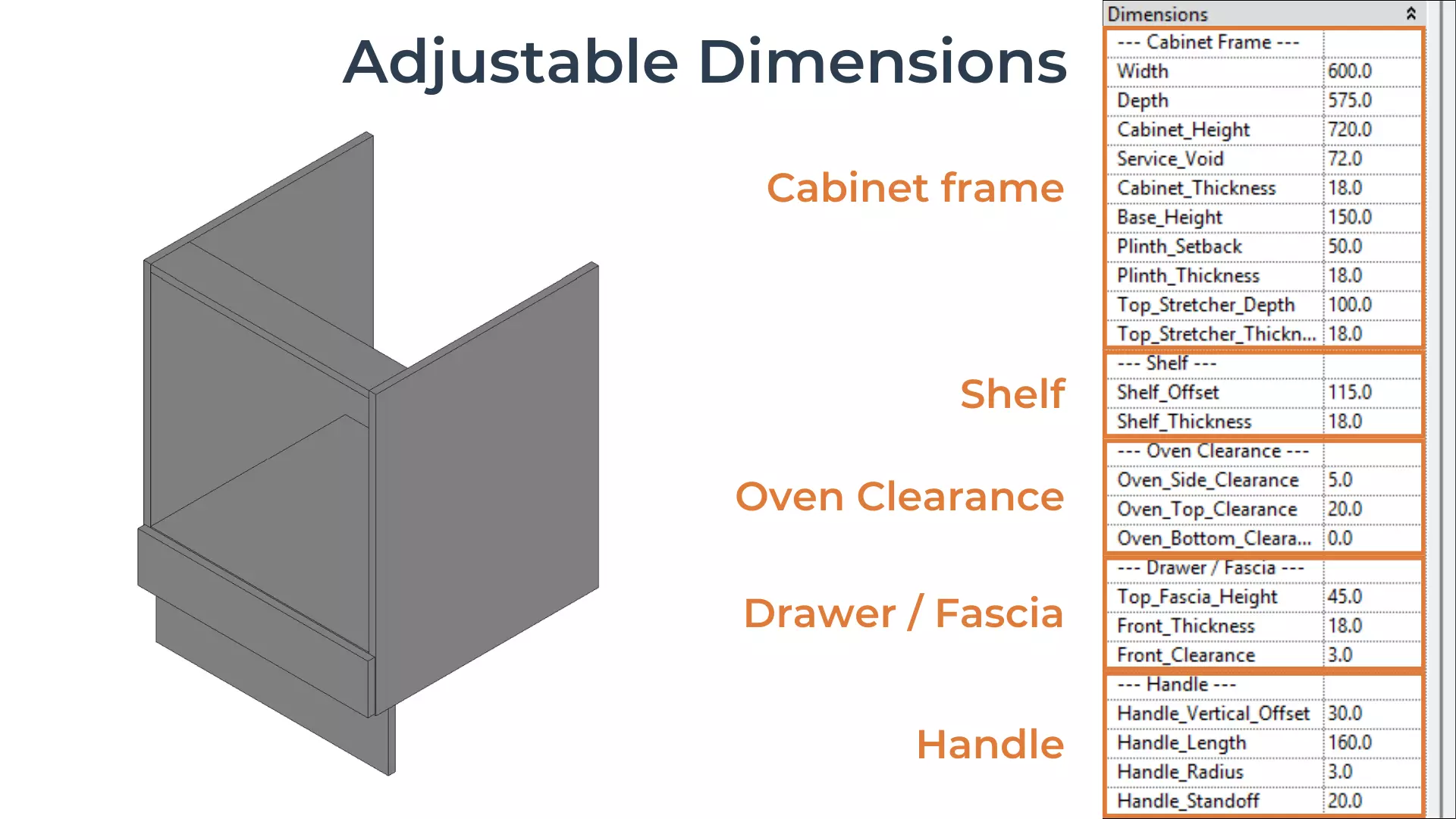

• Adjustable dimensions for cabinet frame (incl. top stretcher), front panels, shelf, oven clearance, and handle

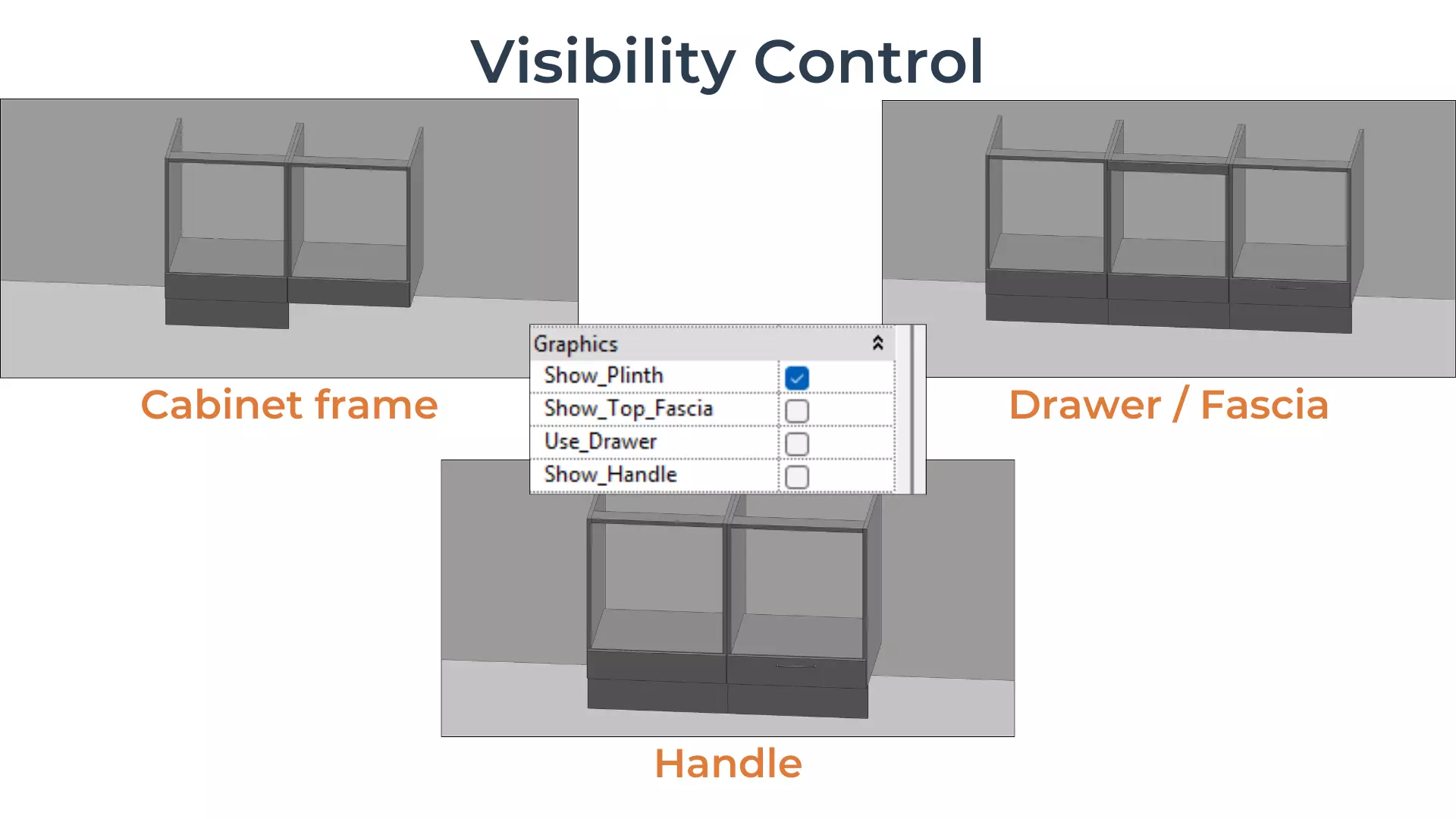

• Visibility controls for plinth, top fascia, and handle
• Switch easily between drawer and bottom fascia setups
• The drawer comes with a fixed slab front

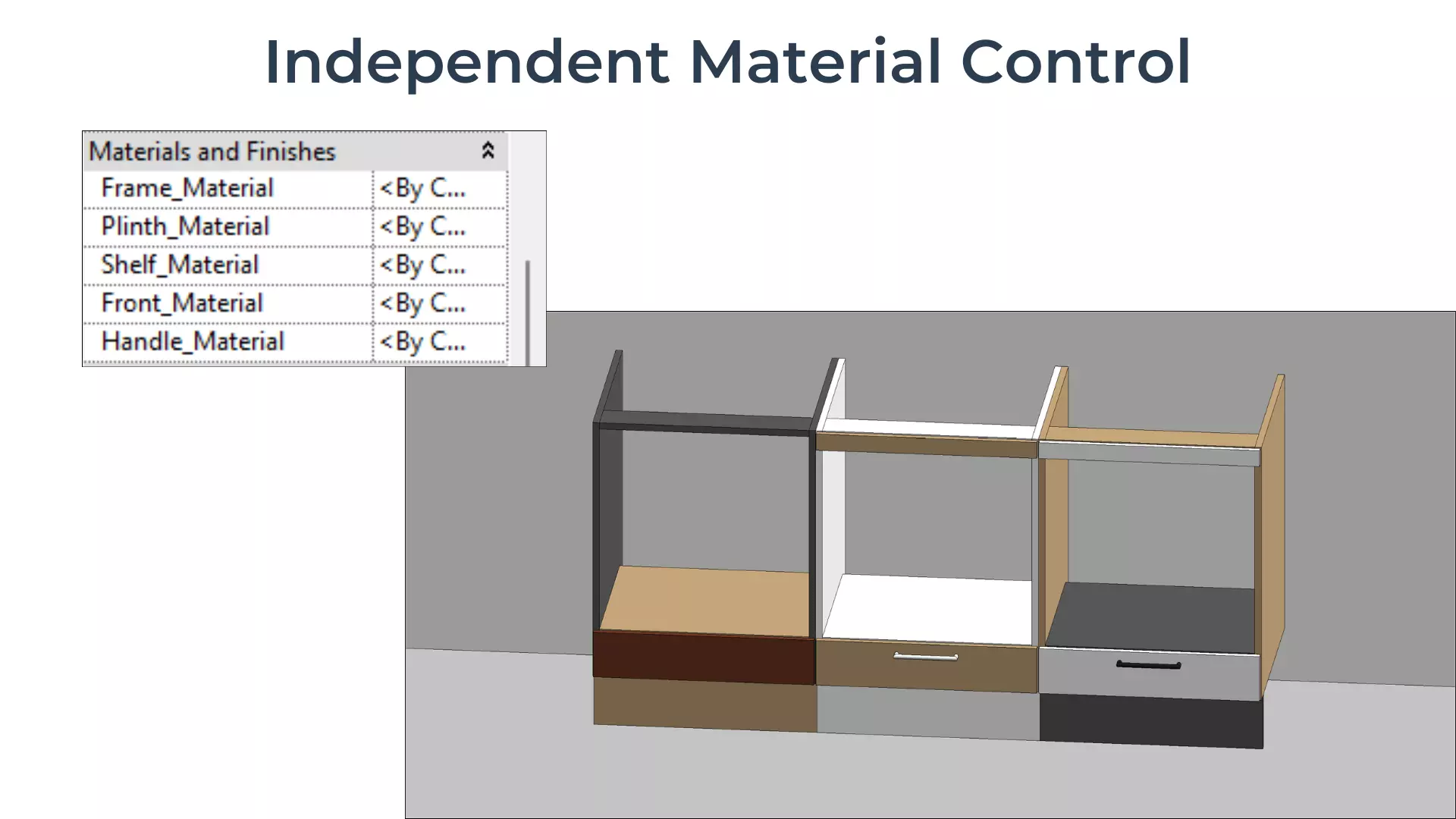

• Editable materials for cabinet frame, plinth, shelf, front, and handle

Why Choose This Family?

• Created from scratch using Revit best practices
• No cleanup needed - just load and start using
• Easy to edit in the Family Editor - clean reference planes, named parameters, and tooltips for quick adjustments

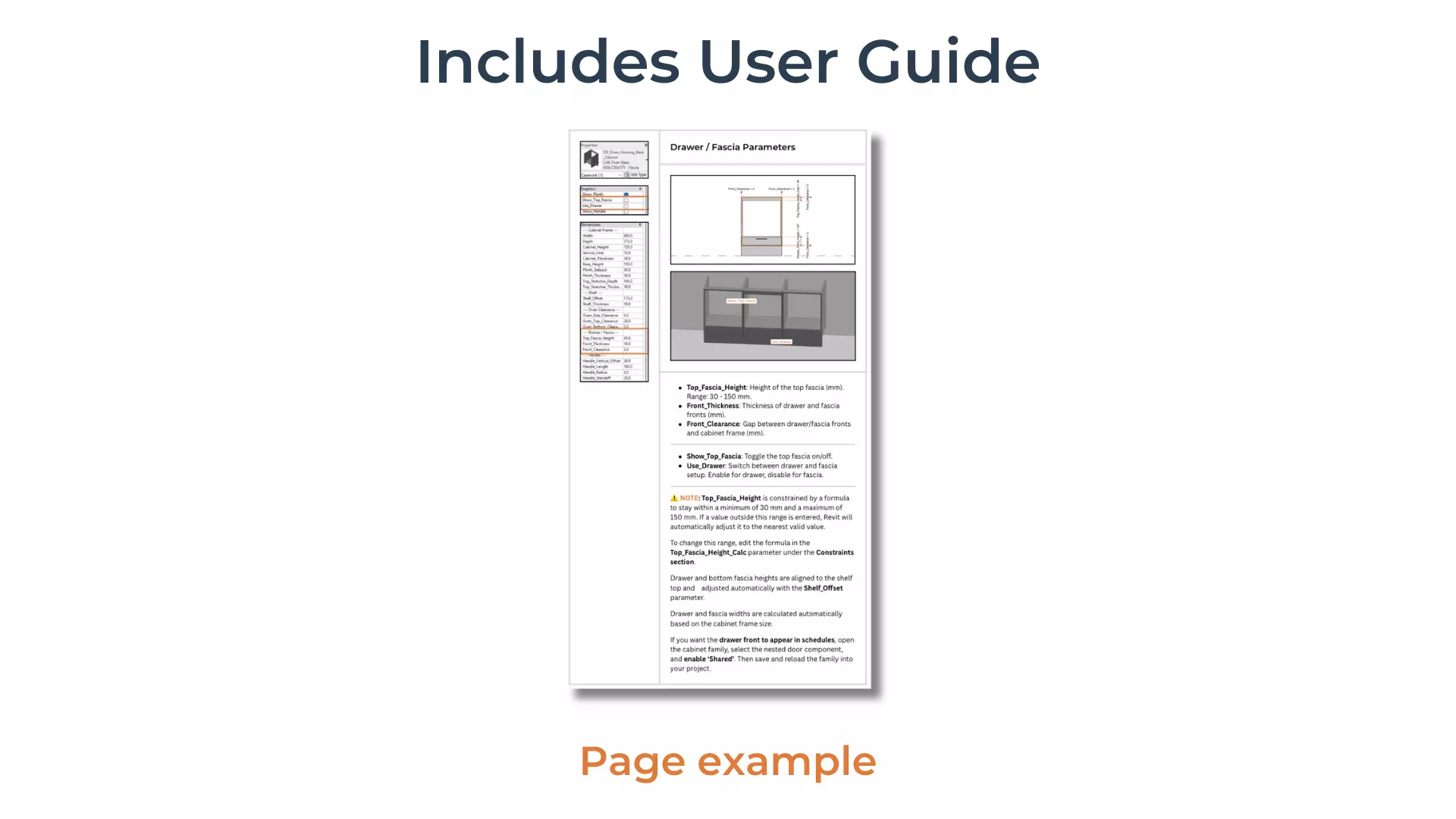

• Includes a simple user guide for quick setup

Compatibility & Details:

• Format: .RFA (Revit family)
• Family File Size: 762 KB
• Sizes: All key dimensions are fully editable
• Revit Version: Created in Revit 2023 (not backward-compatible)
• Units: Metric (millimetres)
• Use: Residential and commercial interiors
