Fully parametric Revit family for a drawerline single-door base cabinet, built to UK standards and ready for residential interiors.
Main Features:

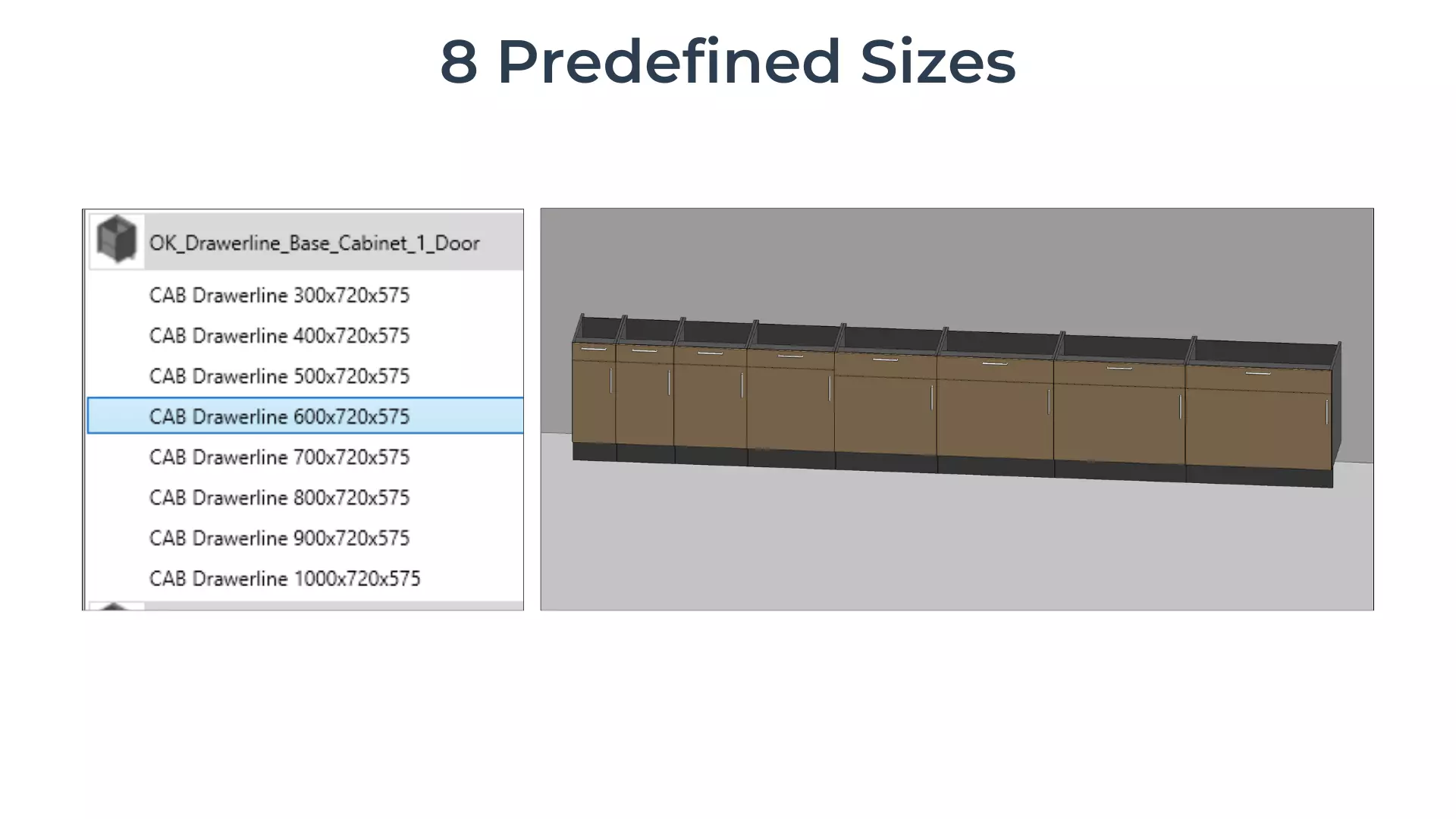

- 8 predefined sizes included

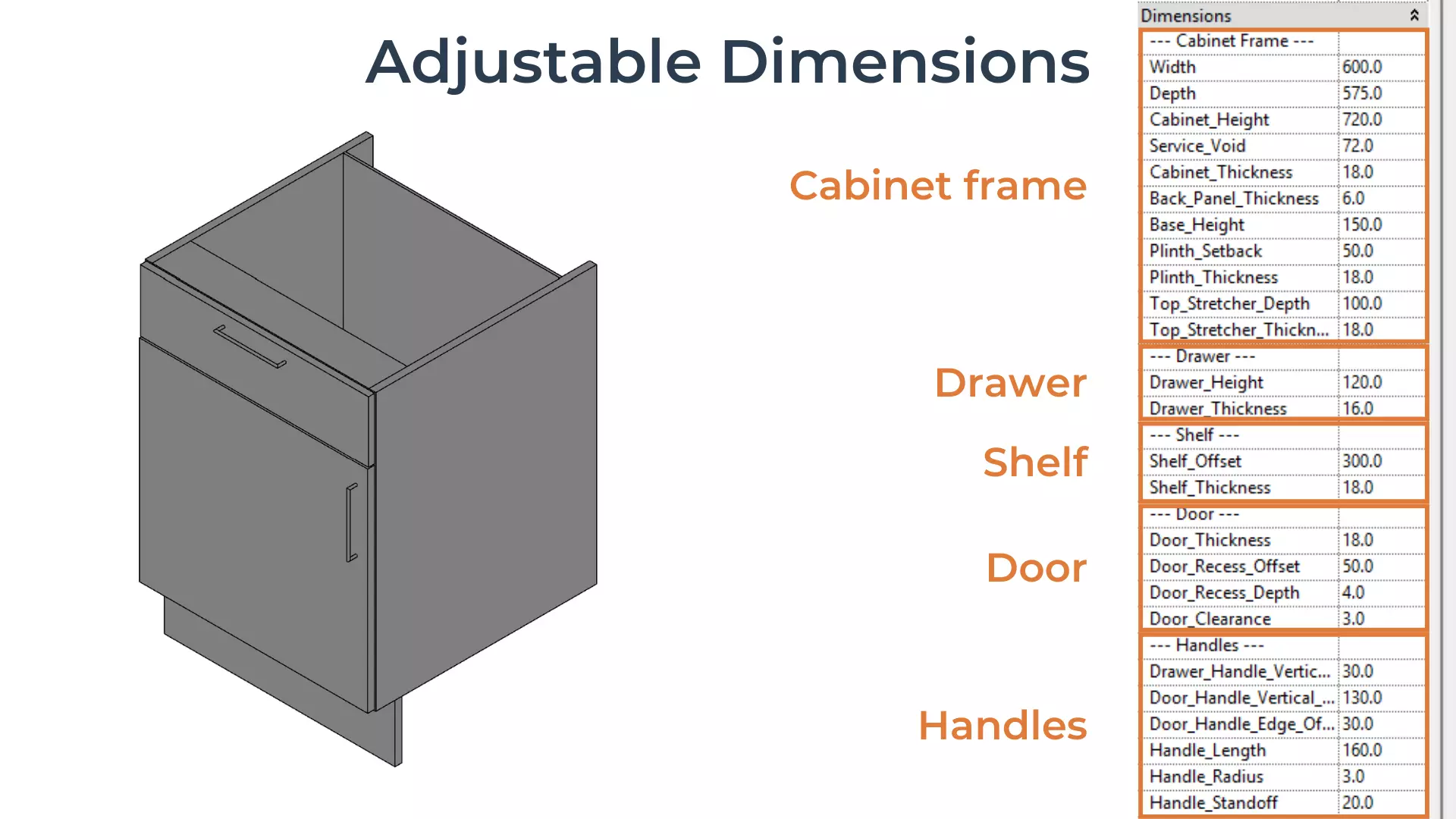

- Adjustable dimensions for cabinet frame, drawer, shelf, door, and handles
- Switch easily between left- and right-handed setups

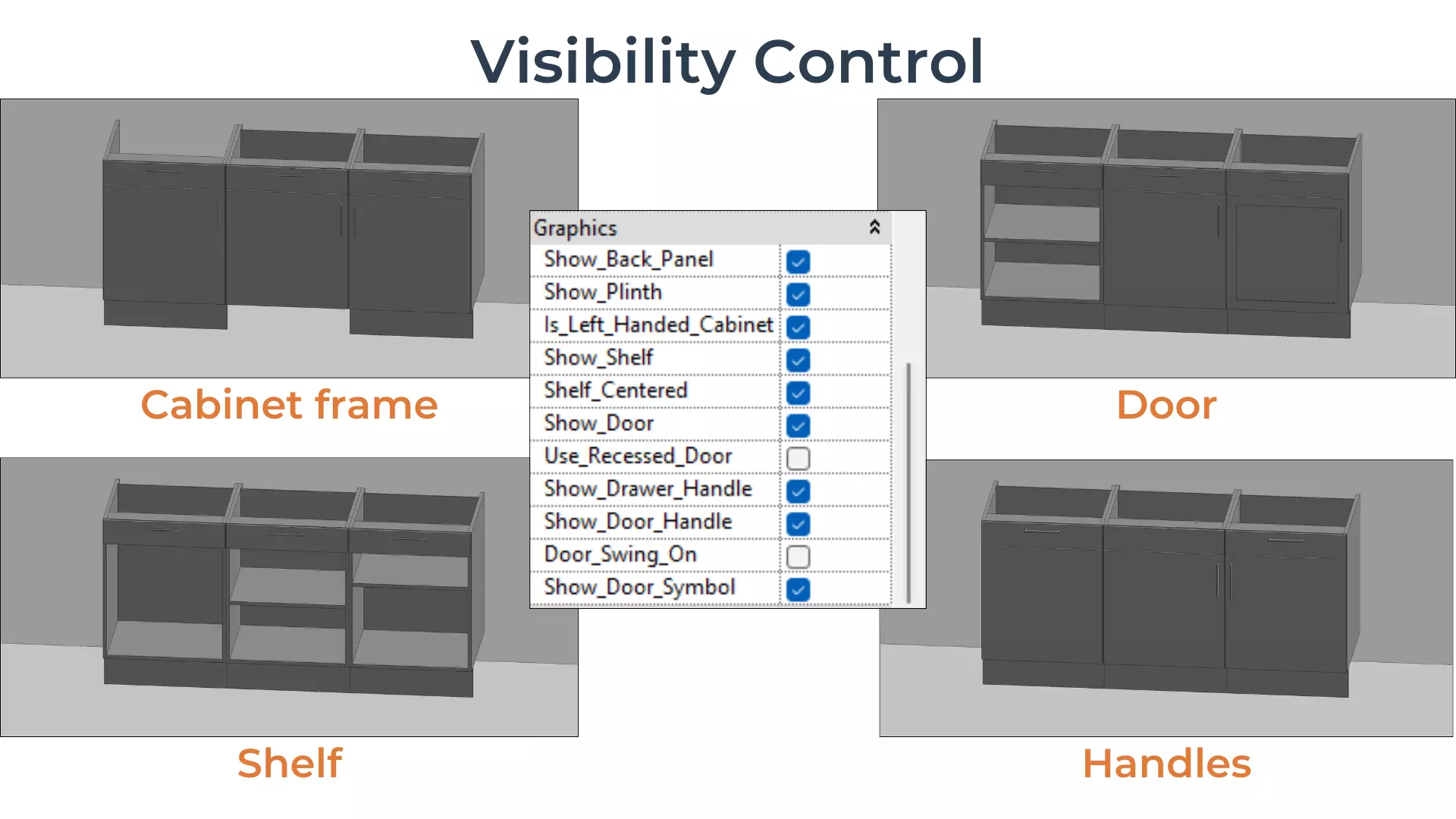

- Visibility controls for back panel, plinth, shelf, door, and handles
- Switch easily between slab and recessed door panels
- The drawer comes with a fixed slab front

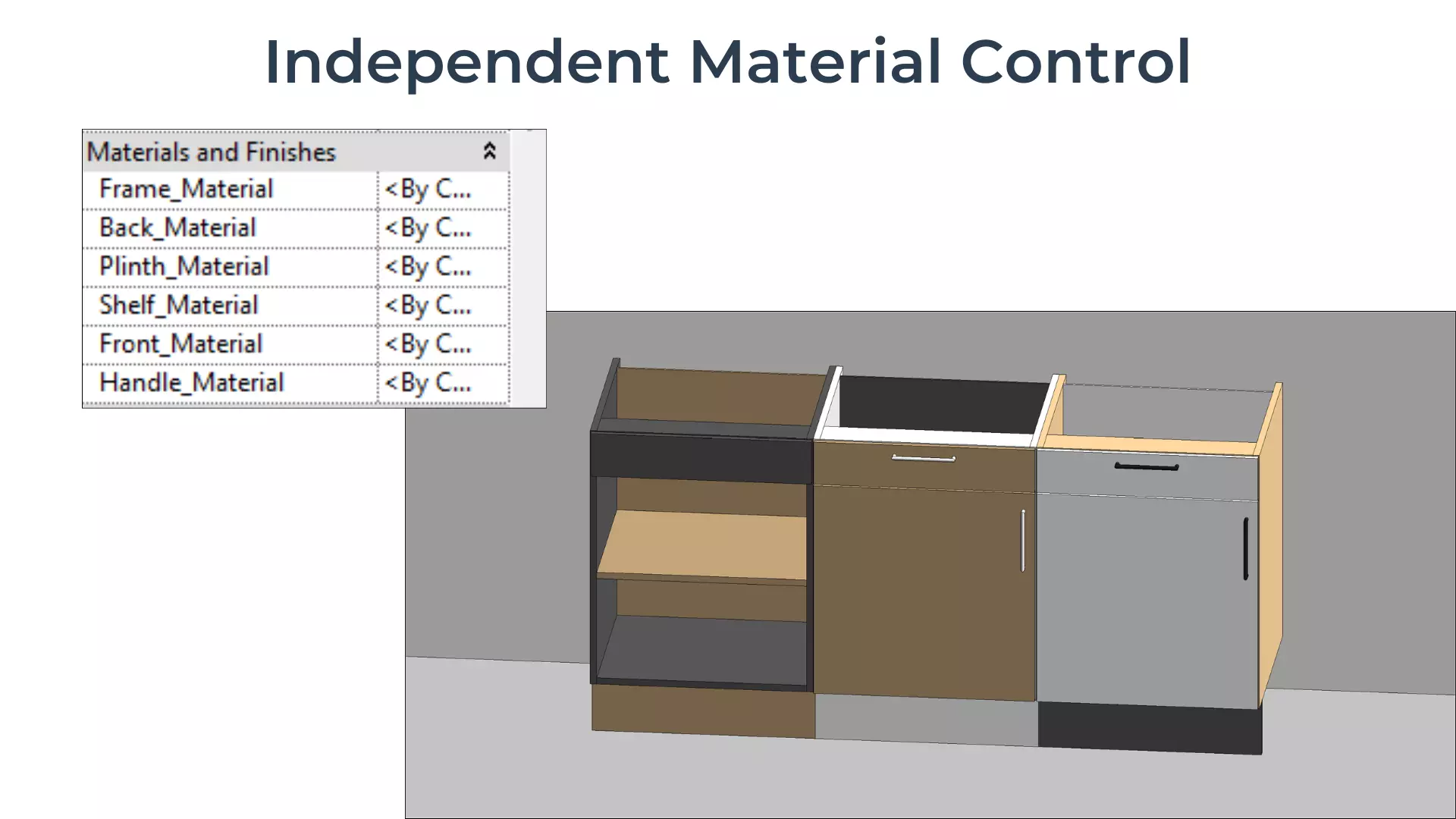

- Editable materials for cabinet frame (incl. top stretcher), back panel, plinth, shelf, front, and handle

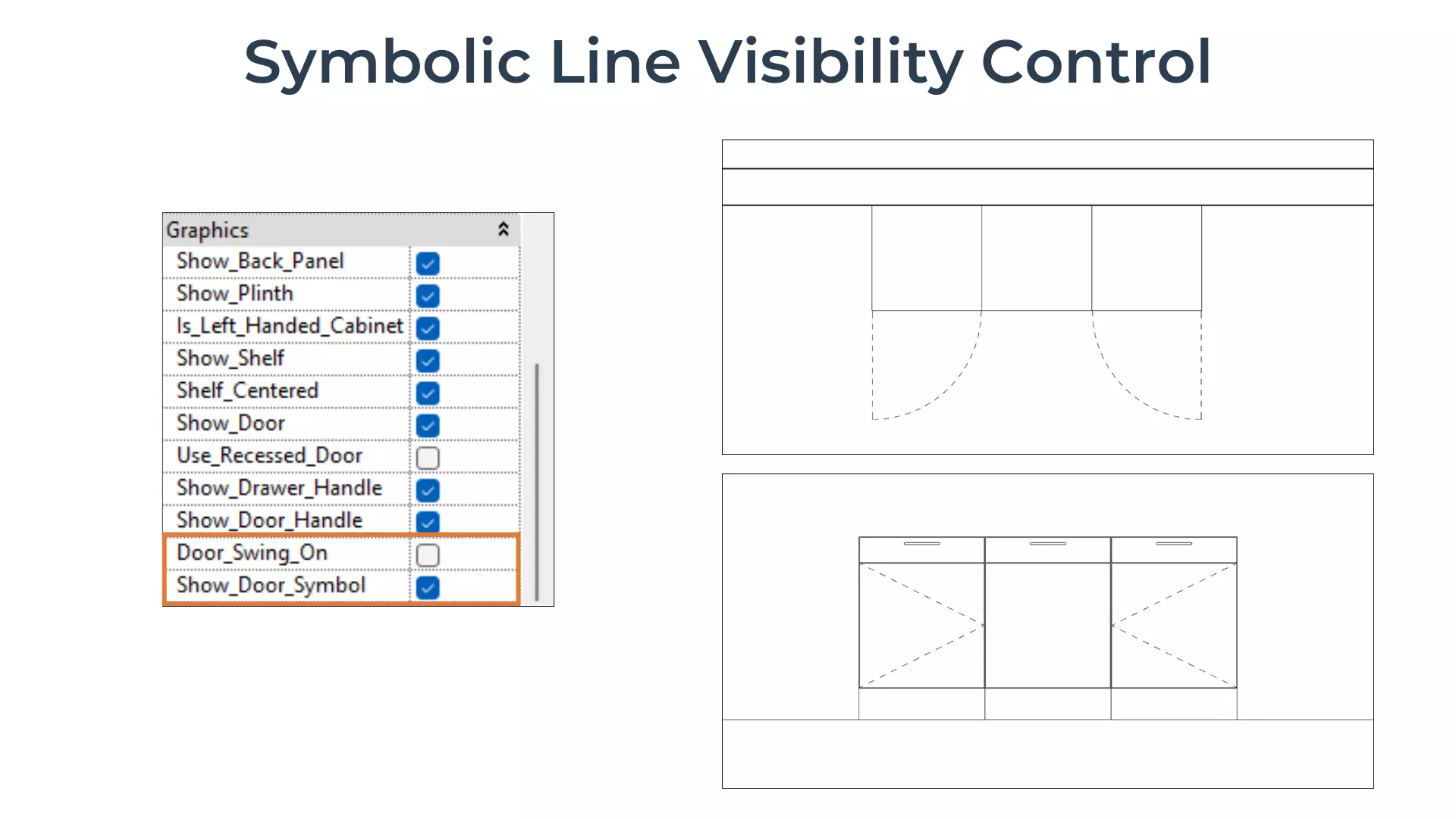

- Independent visibility for swing arcs and door side indicators. Based on the cabinet orientation, the correct left or right symbols will be shown automatically.
Why Choose This Family?
- Created from scratch using Revit best practices
- No cleanup needed - just load and start using
-
Easy to edit in the Family Editor - clean reference planes, named parameters, and tooltips for quick adjustments

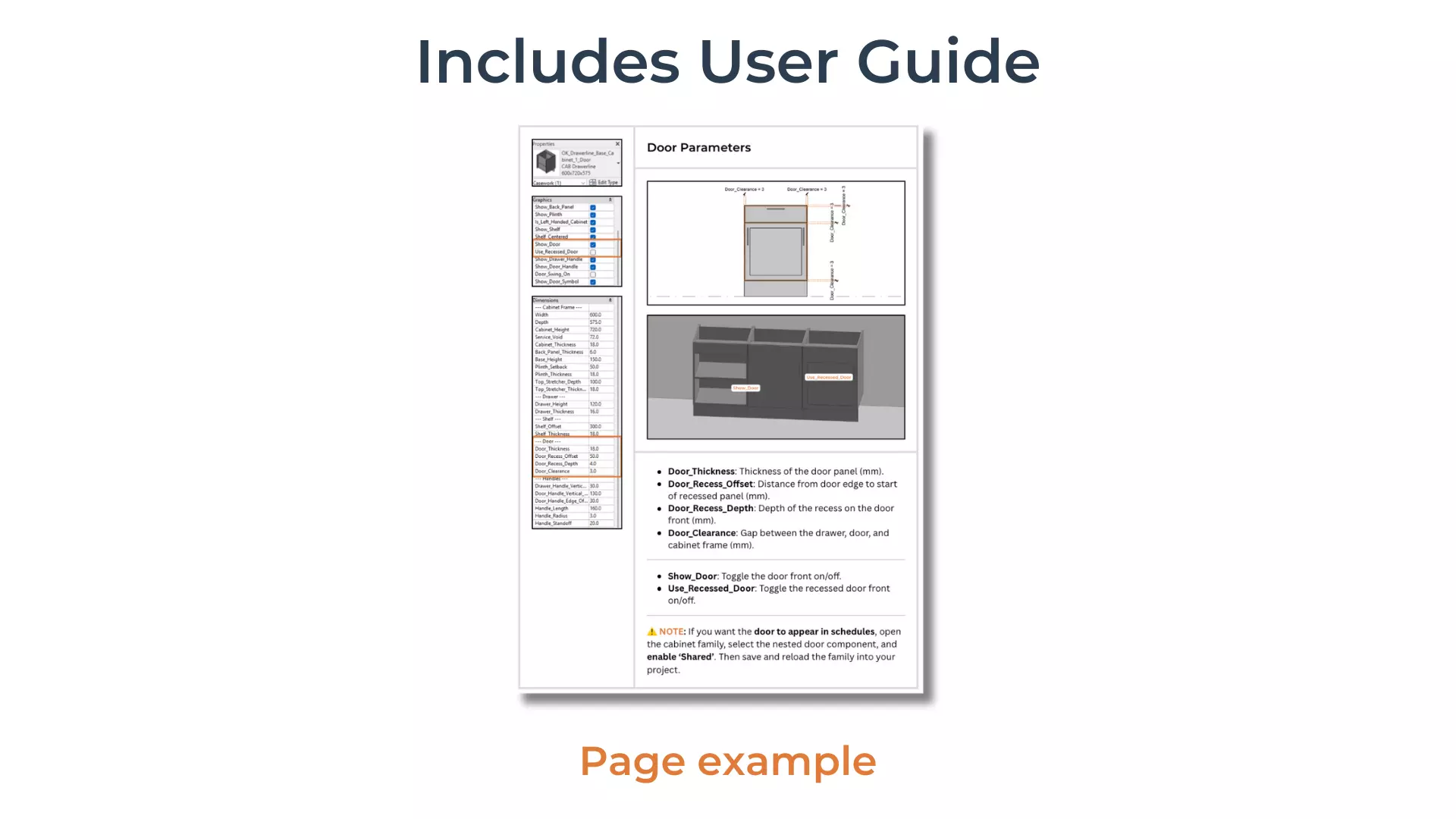

- Includes a simple user guide for quick setup
Compatibility & Details:
- Format: .RFA (Revit family)
- Family File Size: 877 KB
- Sizes: All key dimensions are fully editable
- Revit Version: Created in Revit 2023 (not backward-compatible)
- Units: Metric (millimetres)
- Use: Residential and commercial interiors
