DESCRIPTION

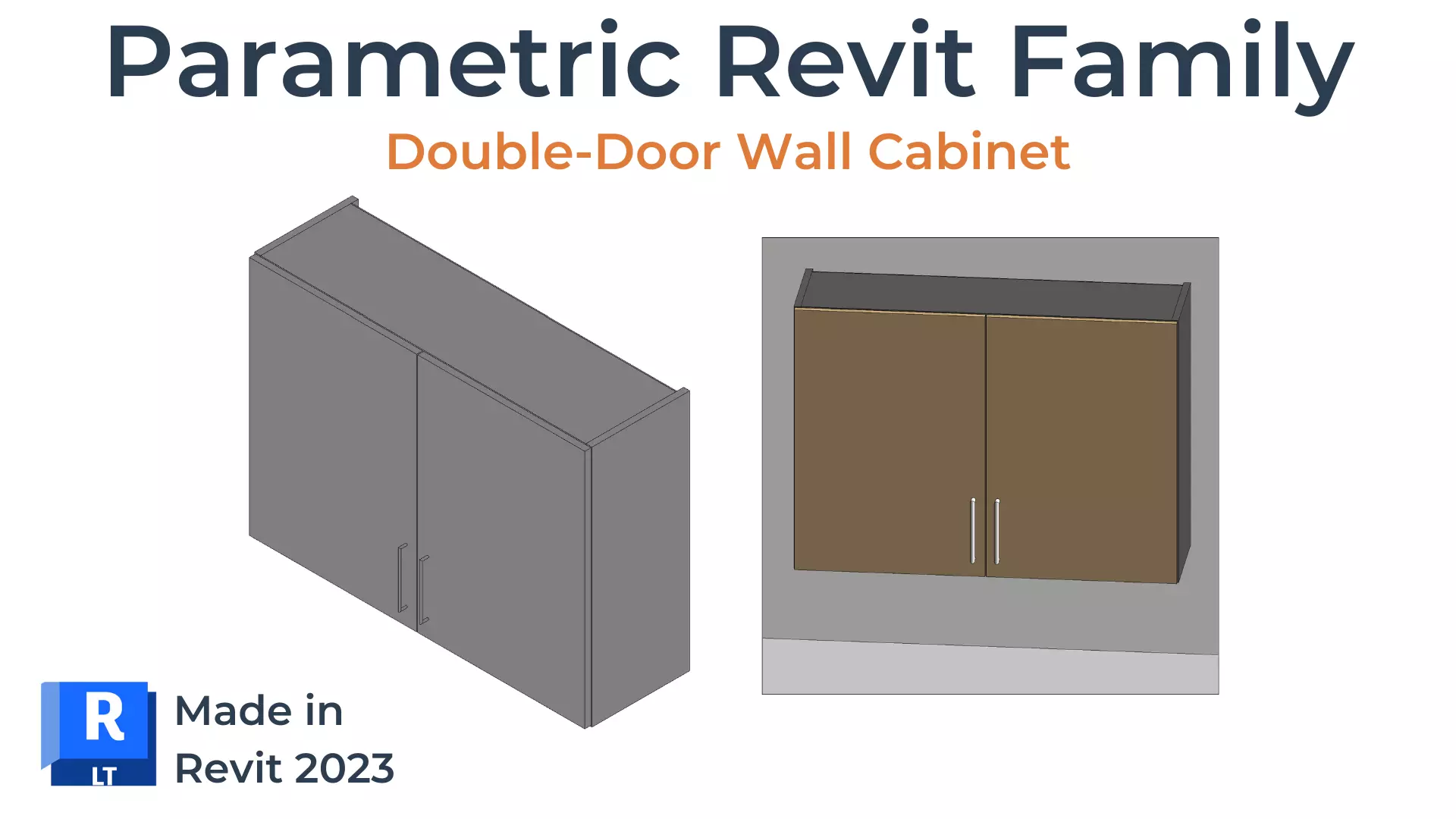

Fully parametric Revit family for a double-door wall cabinet, built to UK standards and ready for residential interiors.

Main Features:

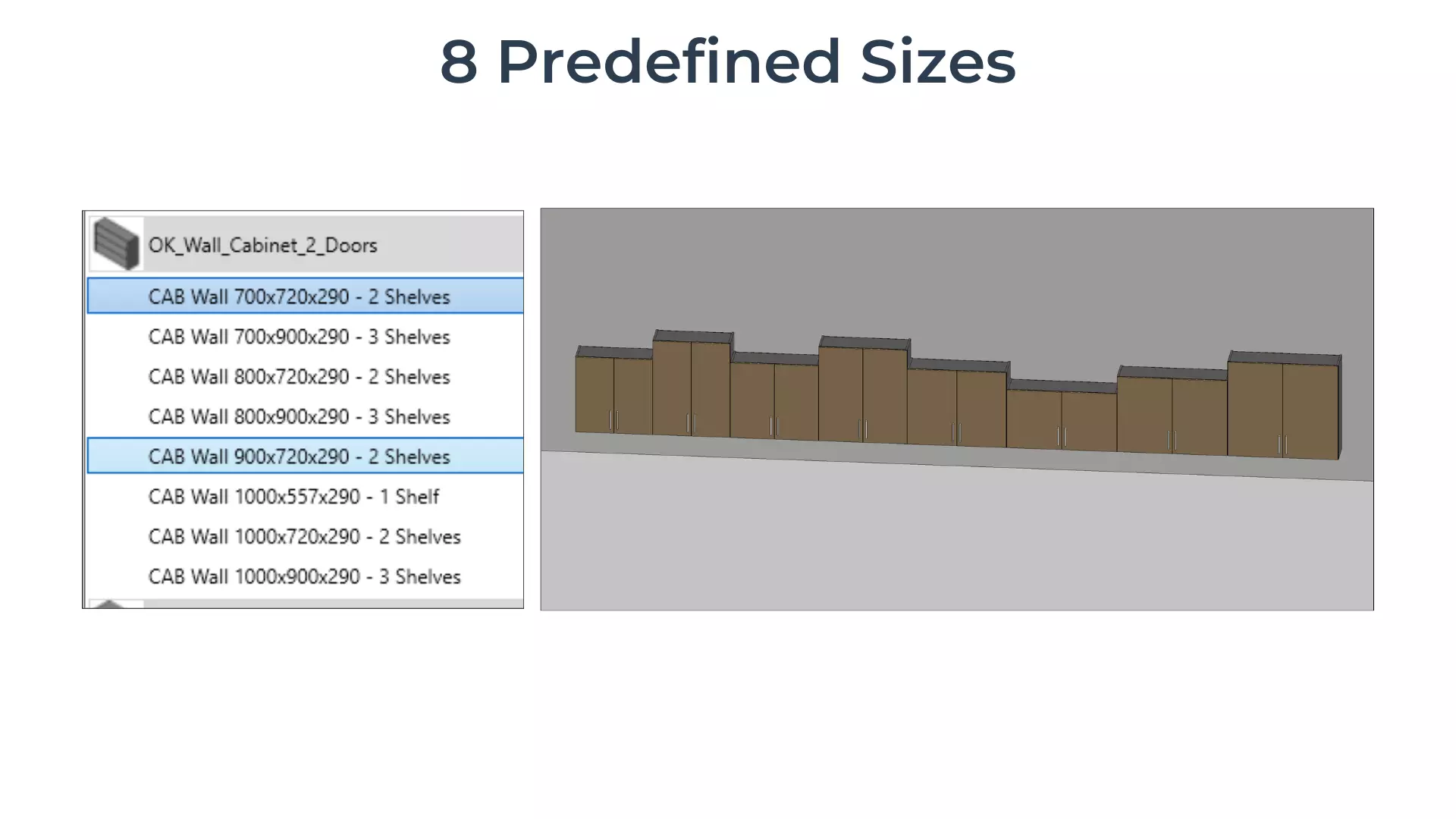

  • 8 predefined sizes included

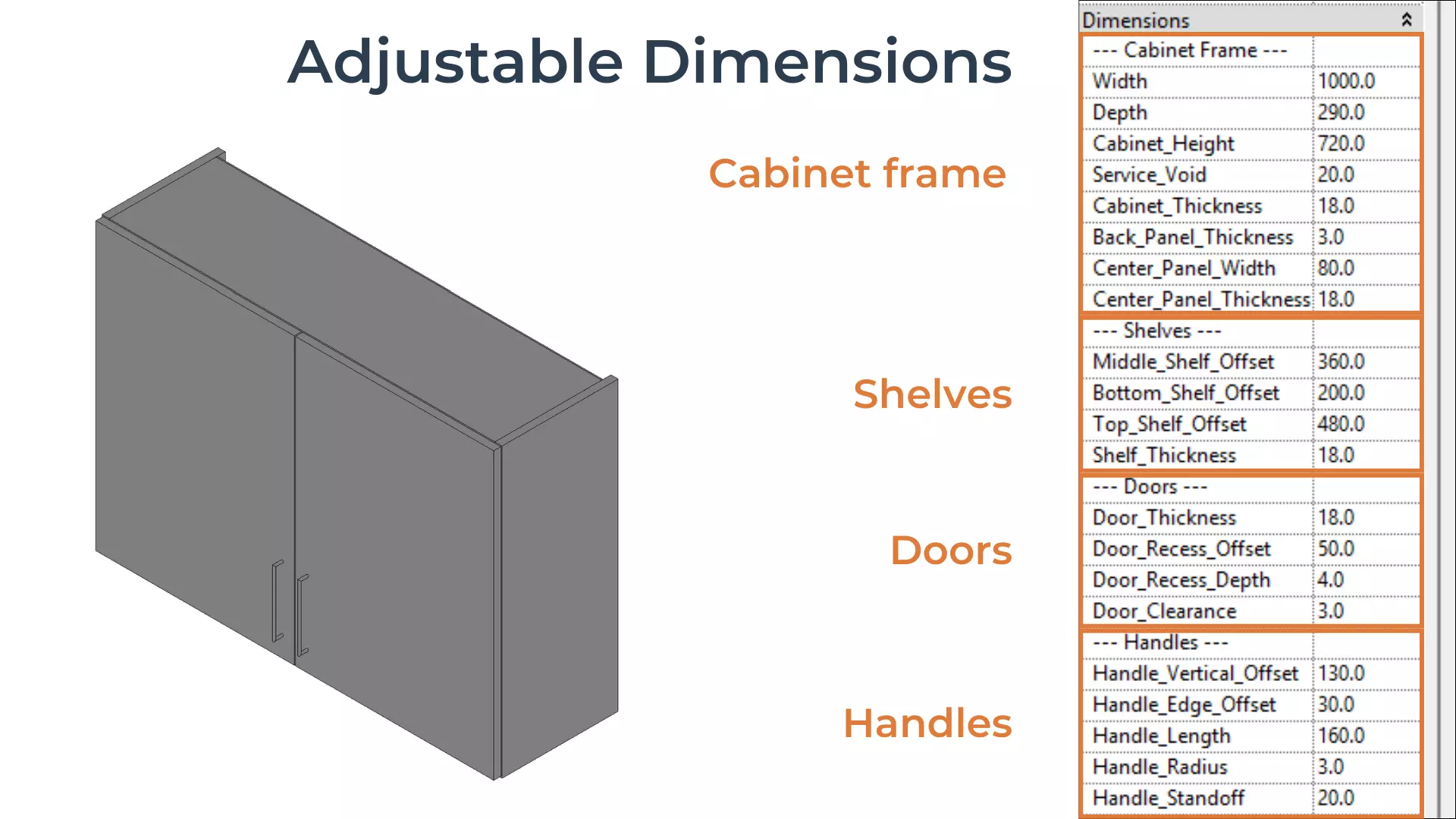

  • Adjustable dimensions for cabinet frame, center panel, doors, shelves, and handles

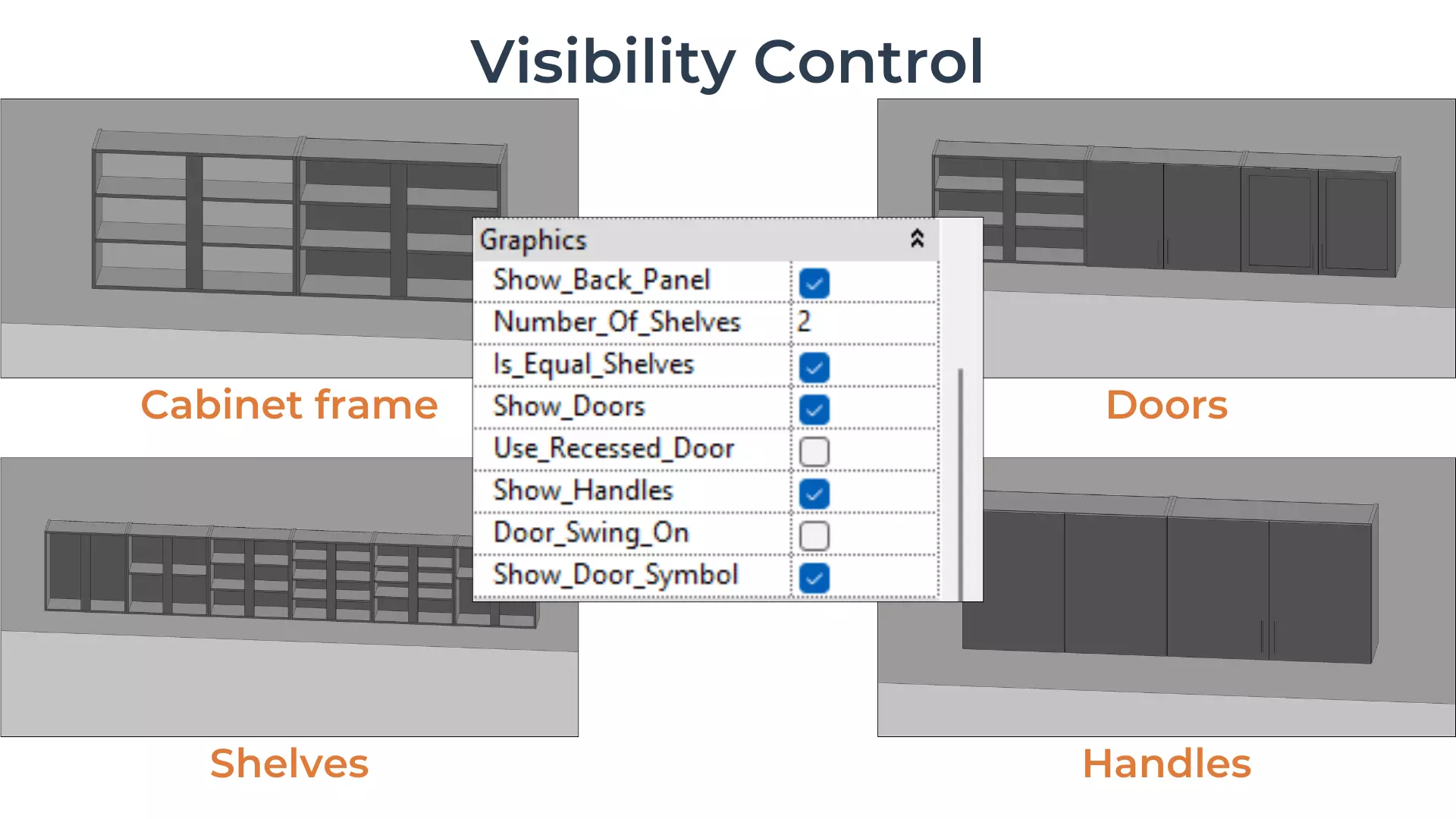

  • Visibility controls for back panel, shelf, doors, and handles
  • Switch easily between 1, 2, and 3 shelf setups
  • Switch easily between auto-even shelf positioning and manual adjustment for each setup
  • Switch easily between slab and recessed door panels

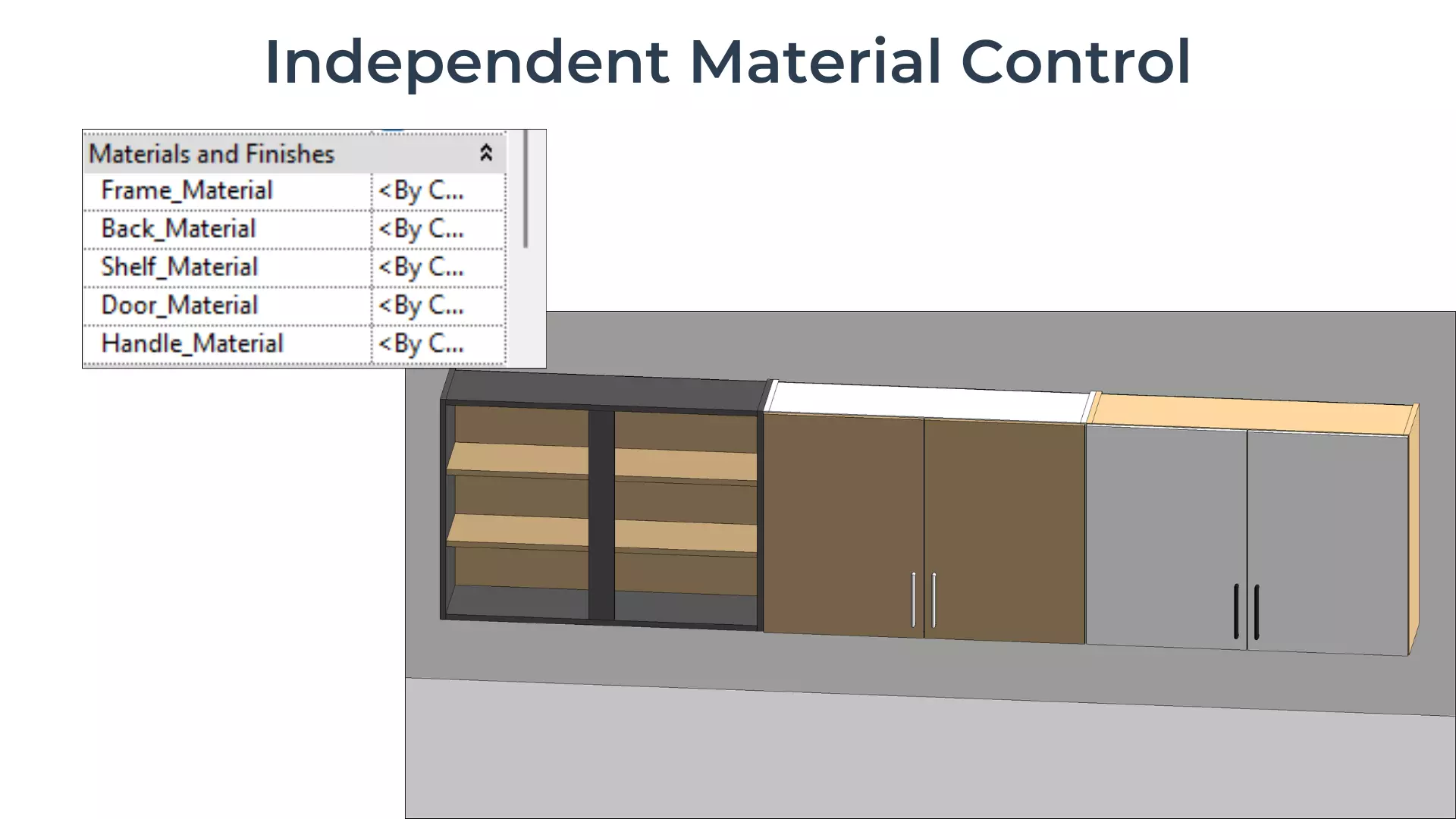

  • Editable materials for cabinet frame, back panel, shelf, door fronts, and handles

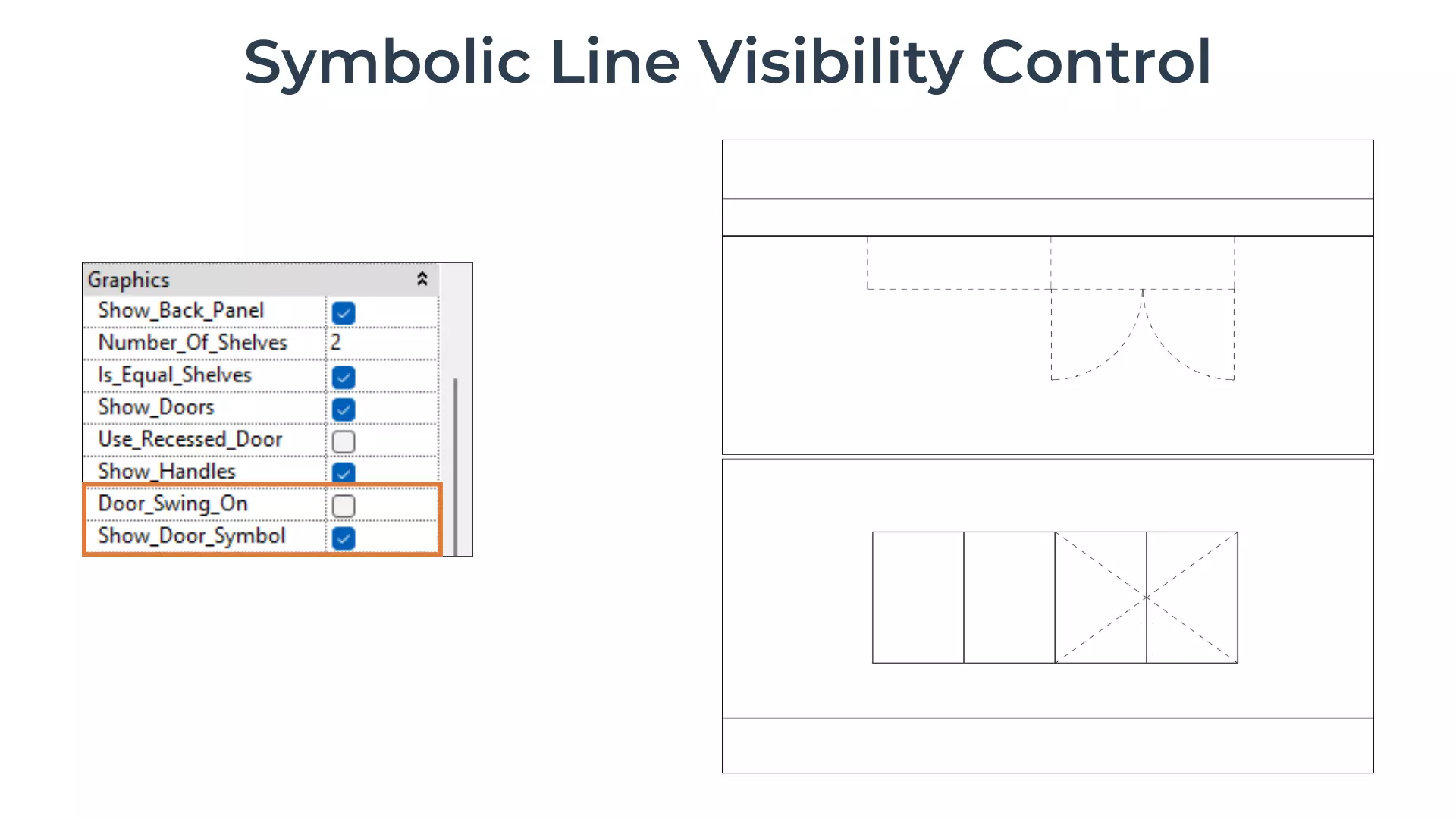

  • Independent visibility for swing arcs and door side indicators.
  • Non-hosted placement, won’t be deleted with walls

Why Choose This Family?

  • Created from scratch using Revit best practices
  • No cleanup needed - just load and start using
  • Easy to edit in the Family Editor - clean reference planes, named parameters, and tooltips for quick adjustments

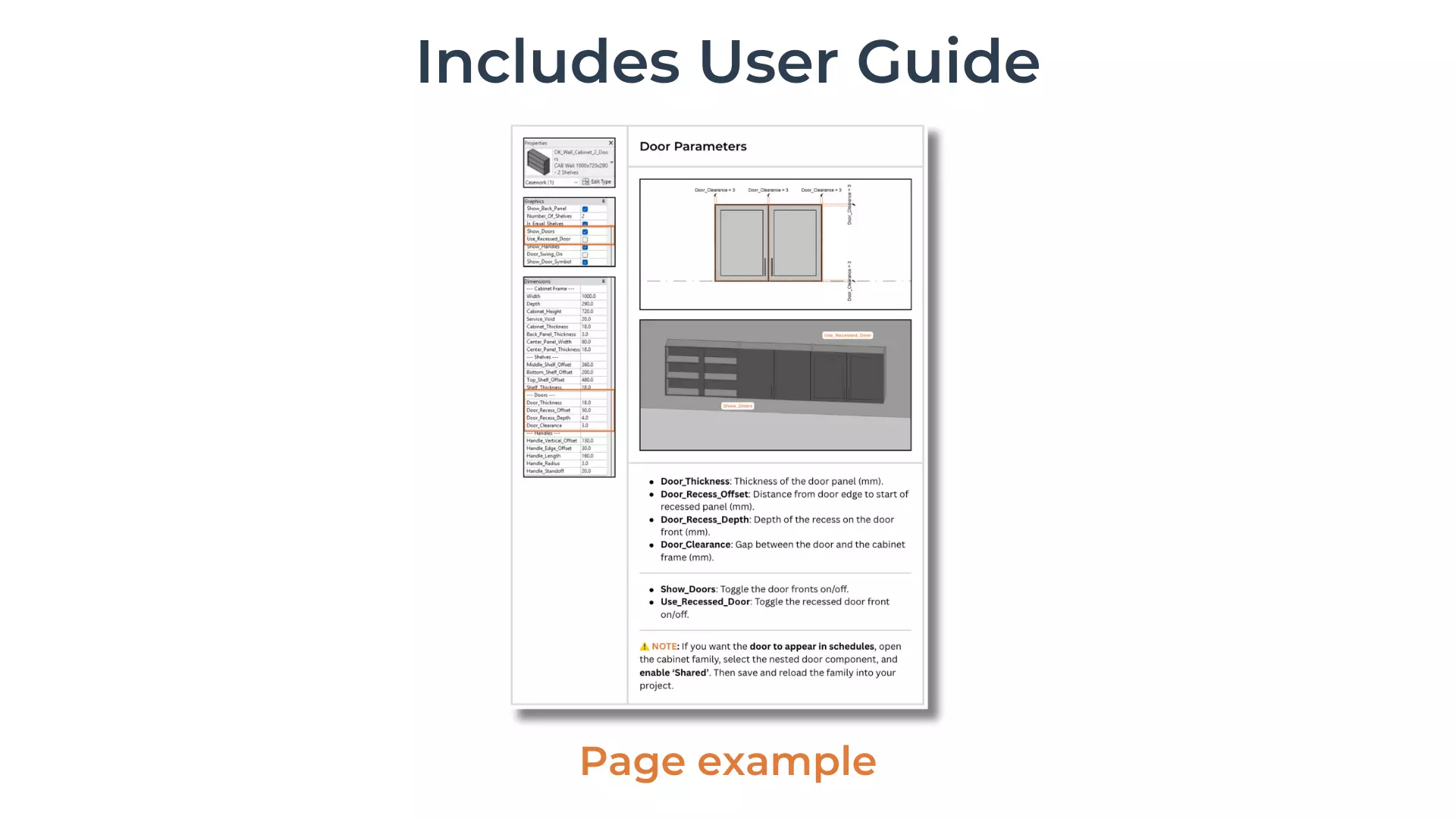

  • Includes a simple user guide for quick setup

Compatibility & Details:

  • Format: .RFA (Revit family)
  • Family File Size: 877 KB
  • Sizes: All key dimensions are fully editable
  • Revit Version: Created in Revit 2023 (not backward-compatible)
  • Units: Metric (millimetres)
  • Use: Residential and commercial interiors

More Revit families available here:https://www.cgtrader.com/designers/revitfams

This family is part of the Revit Kitchen Core Families Collection:https://www.cgtrader.com/3d-models/furniture/cabinet/parametric-revit-family-kitchen-base-cabinet-bundle-6-units
