DESCRIPTION

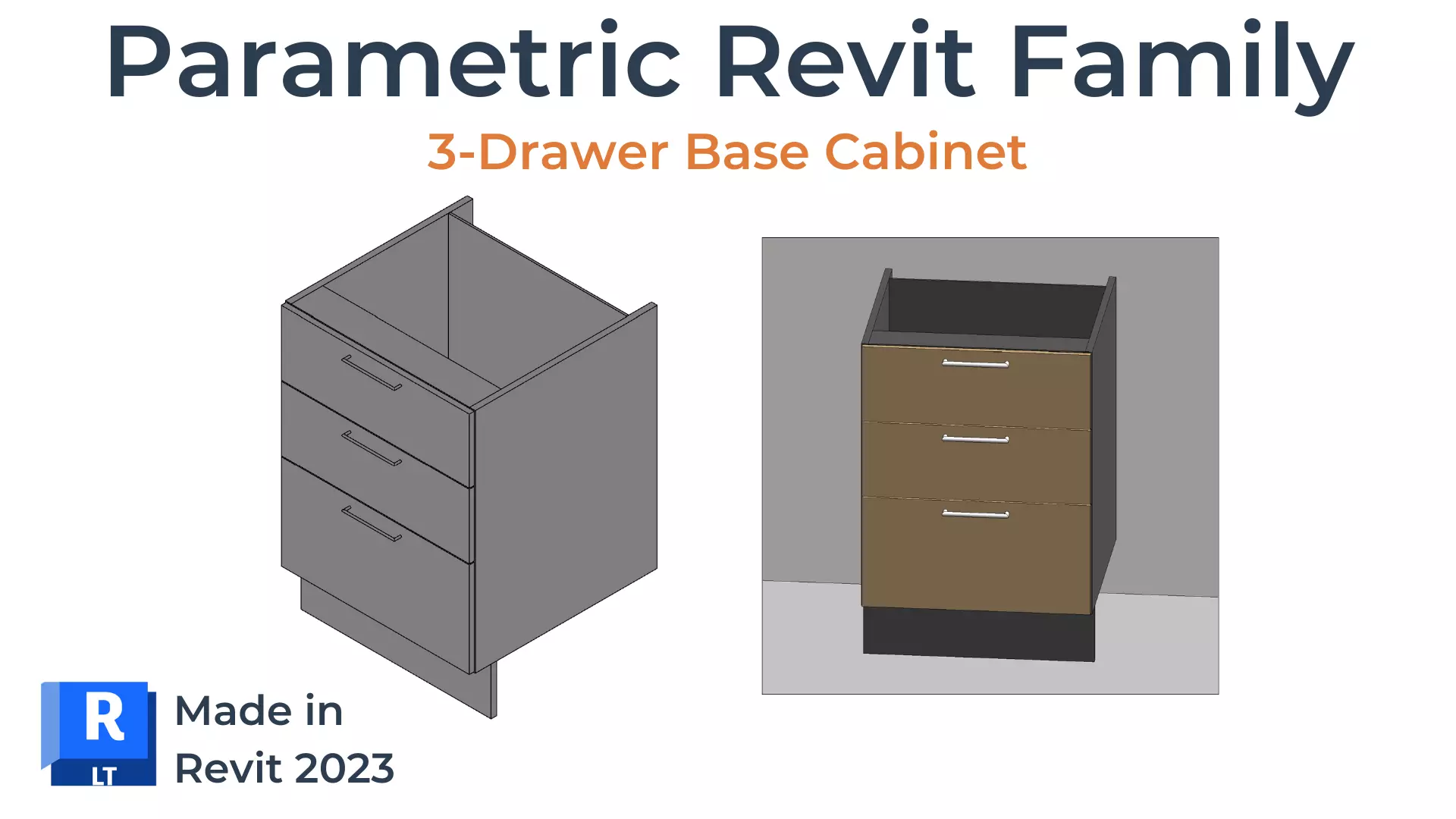

Fully parametric Revit family for a 3-drawer base cabinet, built to UK standards and ready for residential interiors.

Main Features:

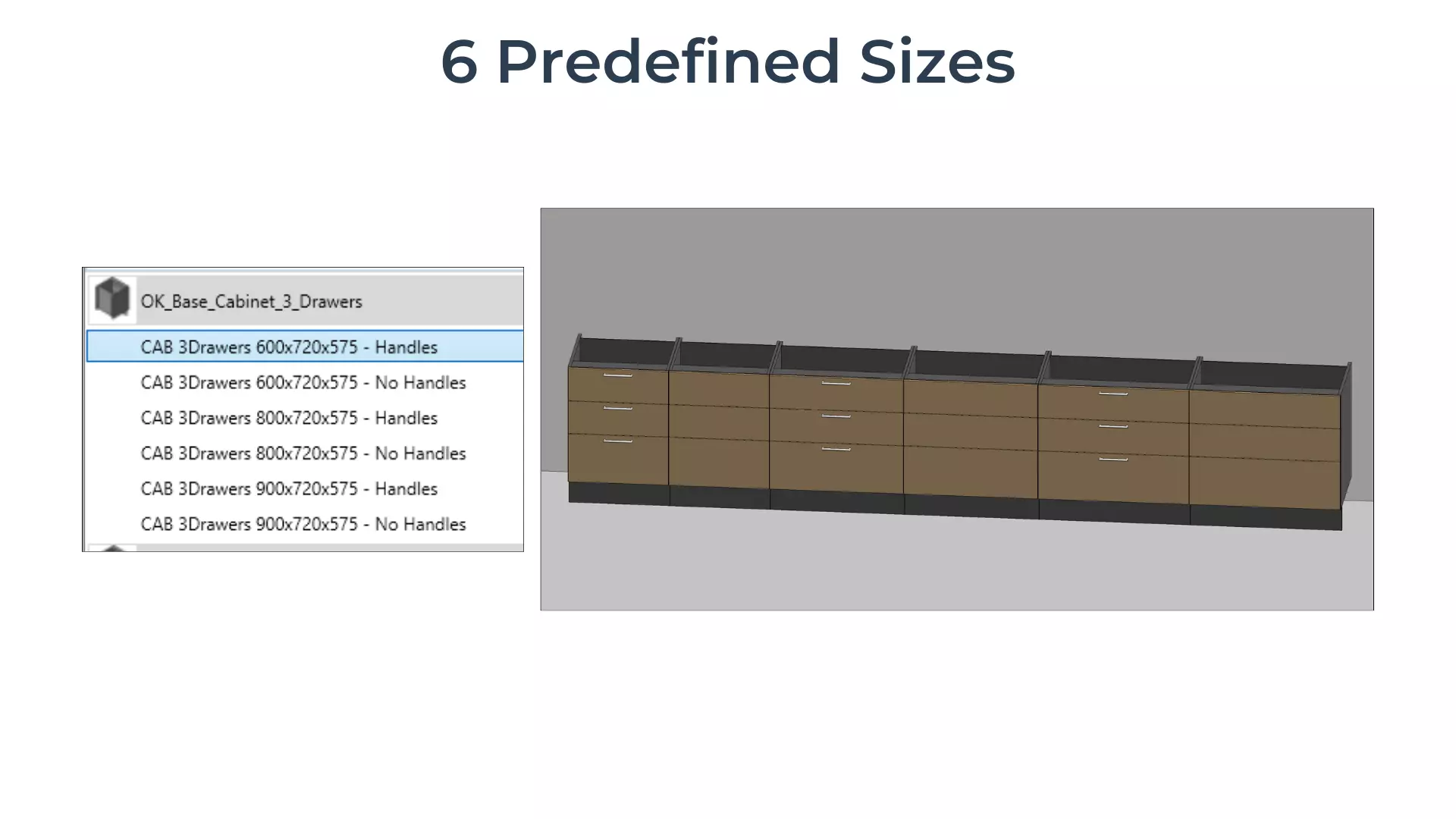

  • 6 predefined sizes included

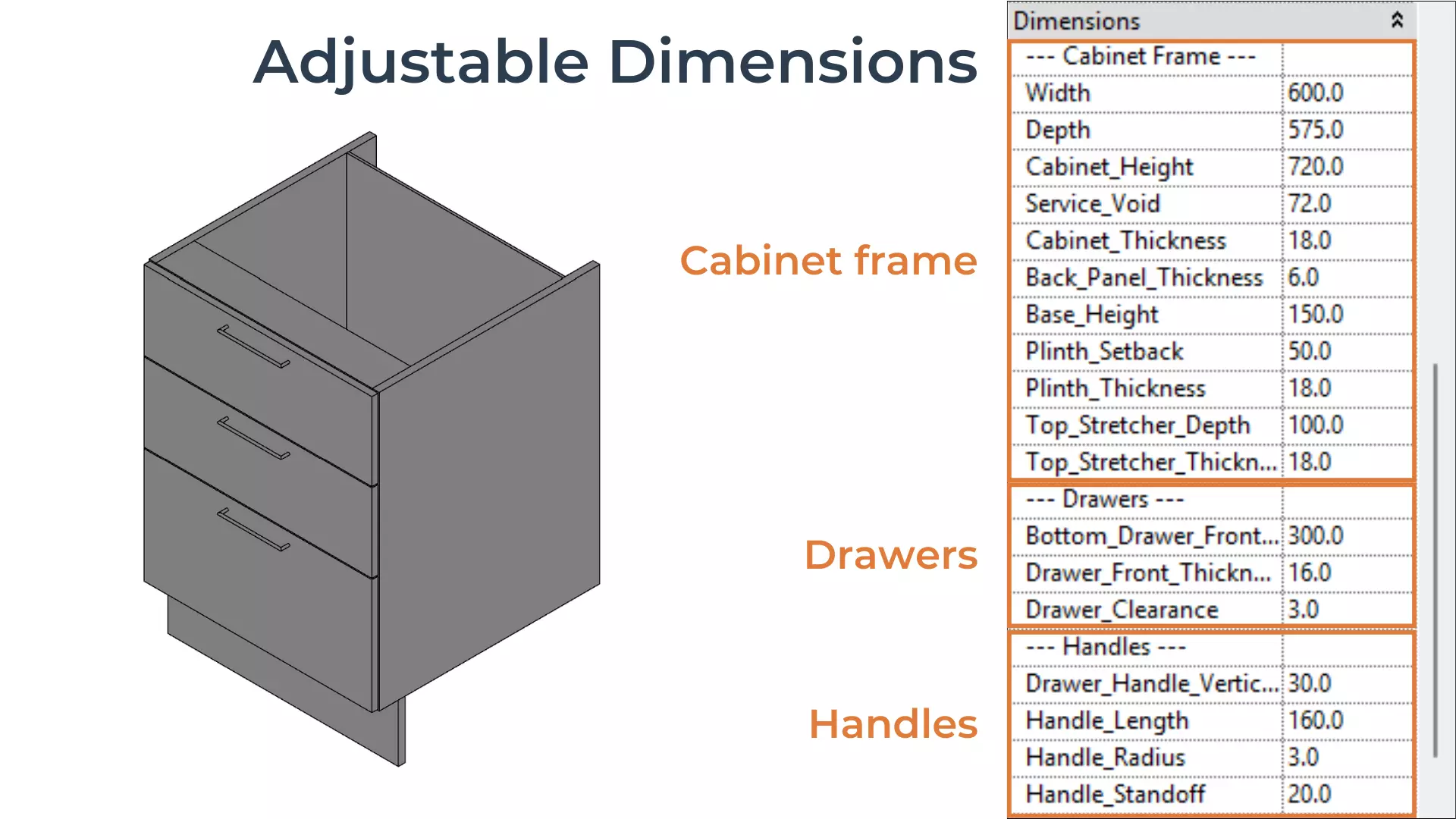

  • Adjustable dimensions for cabinet frame, drawers, and handles

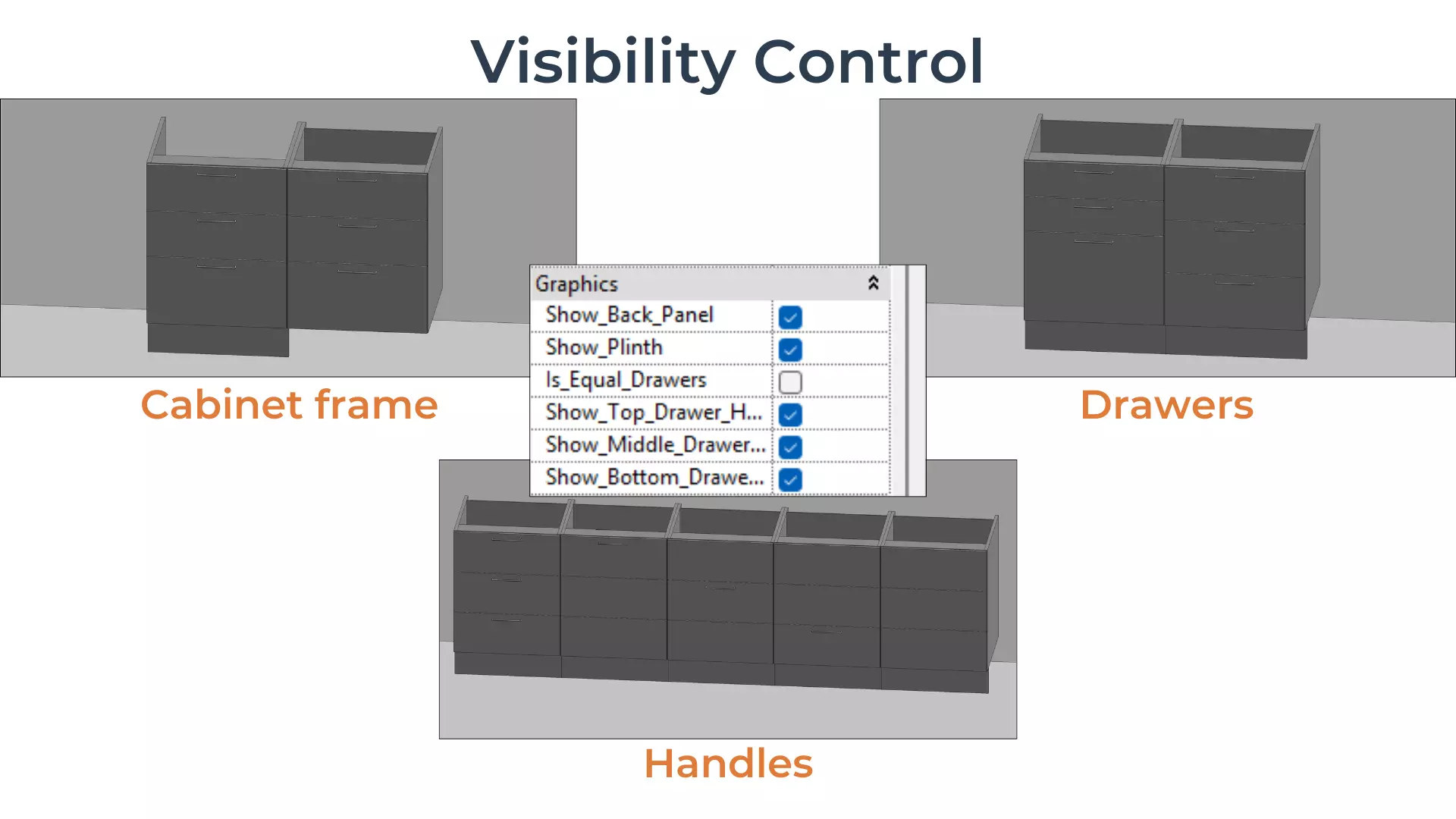

  • Visibility controls for back panel, plinth, and handles
  • The drawers come with a fixed slab front

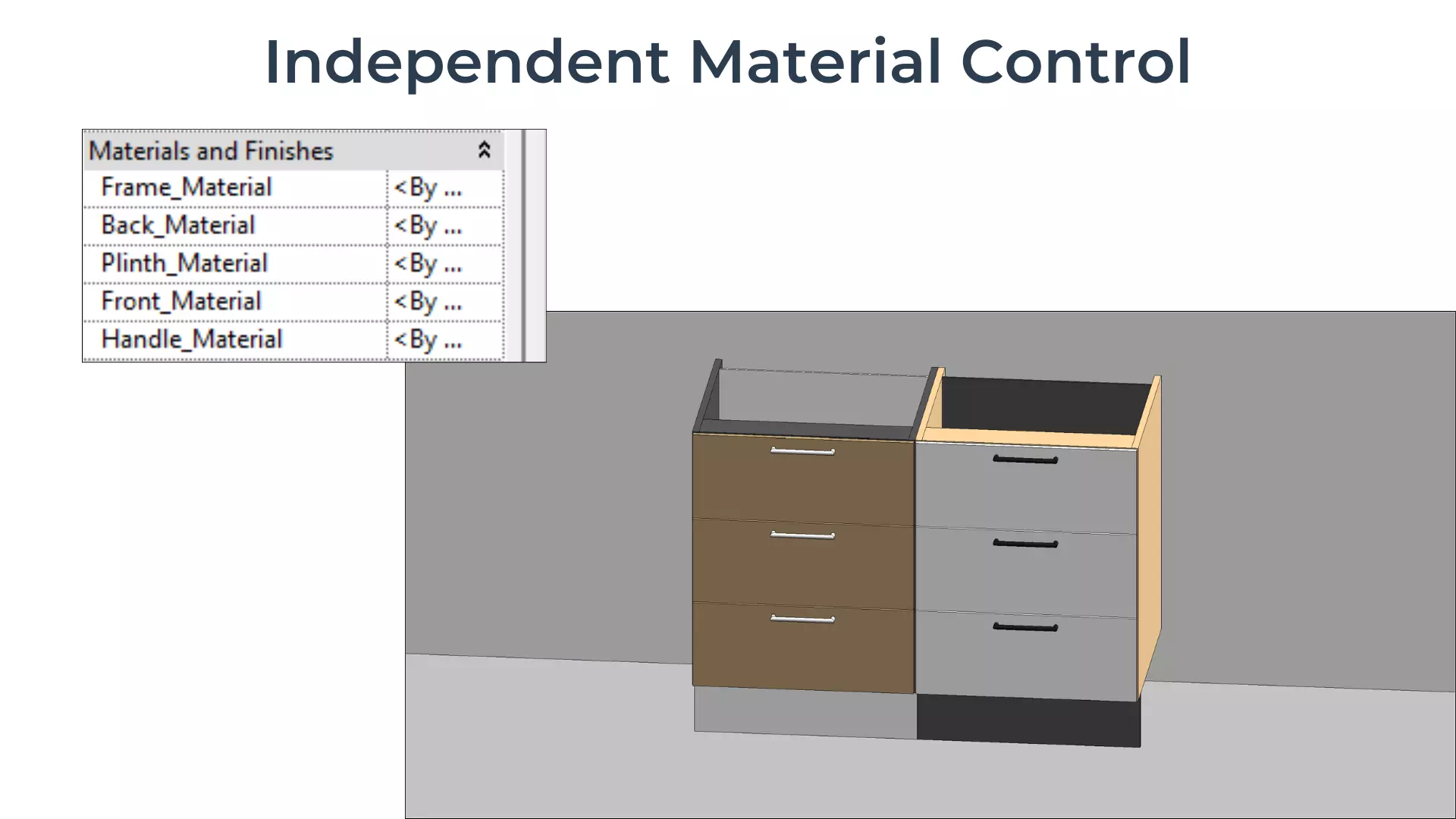

  • Editable materials for cabinet frame (incl. top stretcher), back panel, plinth, front, and handle

Why Choose This Family?

  • Created from scratch using Revit best practices
  • No cleanup needed - just load and start using
  • Easy to edit in the Family Editor - clean reference planes, named parameters, and tooltips for quick adjustments

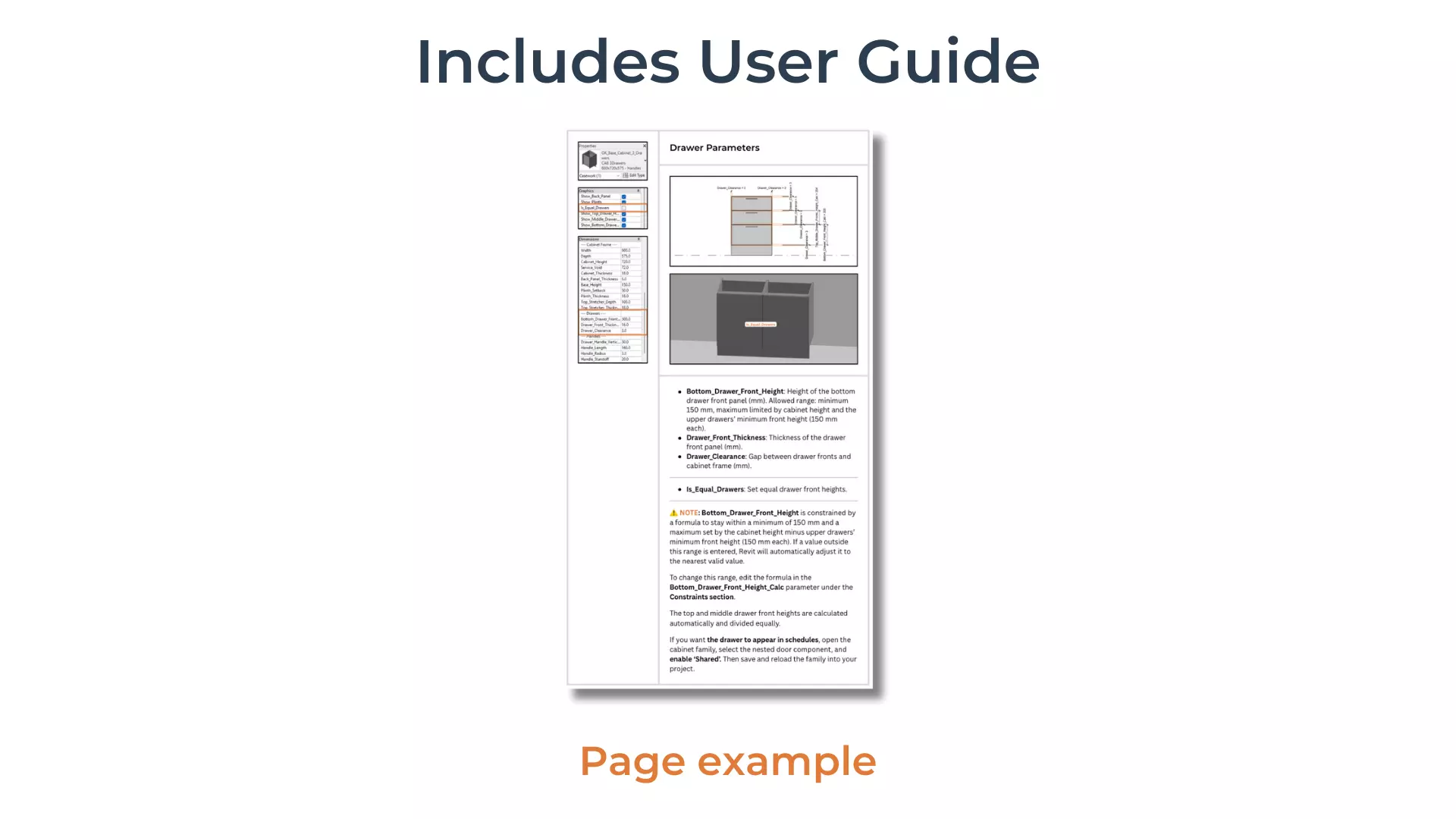

  • Includes a simple user guide for quick setup

Compatibility & Details:

  • Format: .RFA (Revit family)
  • Family File Size: 676 KB
  • Sizes: All key dimensions are fully editable
  • Revit Version: Created in Revit 2023 (not backward-compatible)
  • Units: Metric (millimetres)
  • Use: Residential and commercial interiors

More Revit families available here:https://www.cgtrader.com/designers/revitfams

This family is part of the Revit Kitchen Core Families Collection:https://www.cgtrader.com/3d-models/furniture/cabinet/parametric-revit-family-kitchen-base-cabinet-bundle-6-units
