PARAMETRIC REVIT FAMILY Base Cabinet 2 Doors with Shelf Handles 3D model

This fully parametric Revit family lets you create an adjustable base cabinet with customisable shelves, two doors, and optional handles. Designed for kitchen, office, or storage spaces, it adapts easily to different dimensions and design needs.

• Includes 4 predefined size variations compatible with standard kitchen and storage unit dimensions for quick placement.

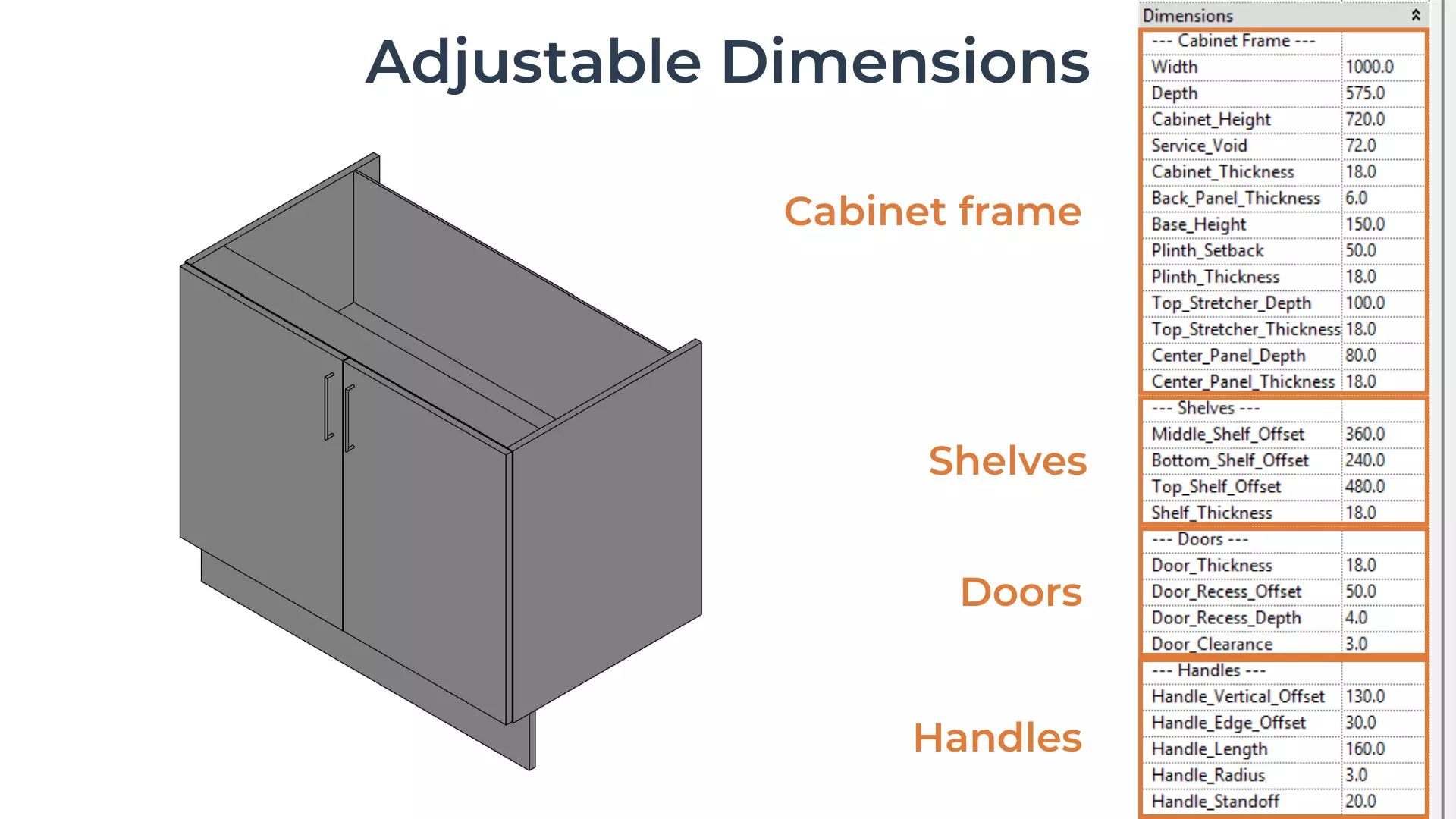

• Adjust cabinet frame dimensions: width, height, depth, base height and recess, service void, center panel and top stretcher depth to fit your layout.
• Set individual thickness for frame, center panel, top stretcher, door, shelf, and back panel to match brand requirements.

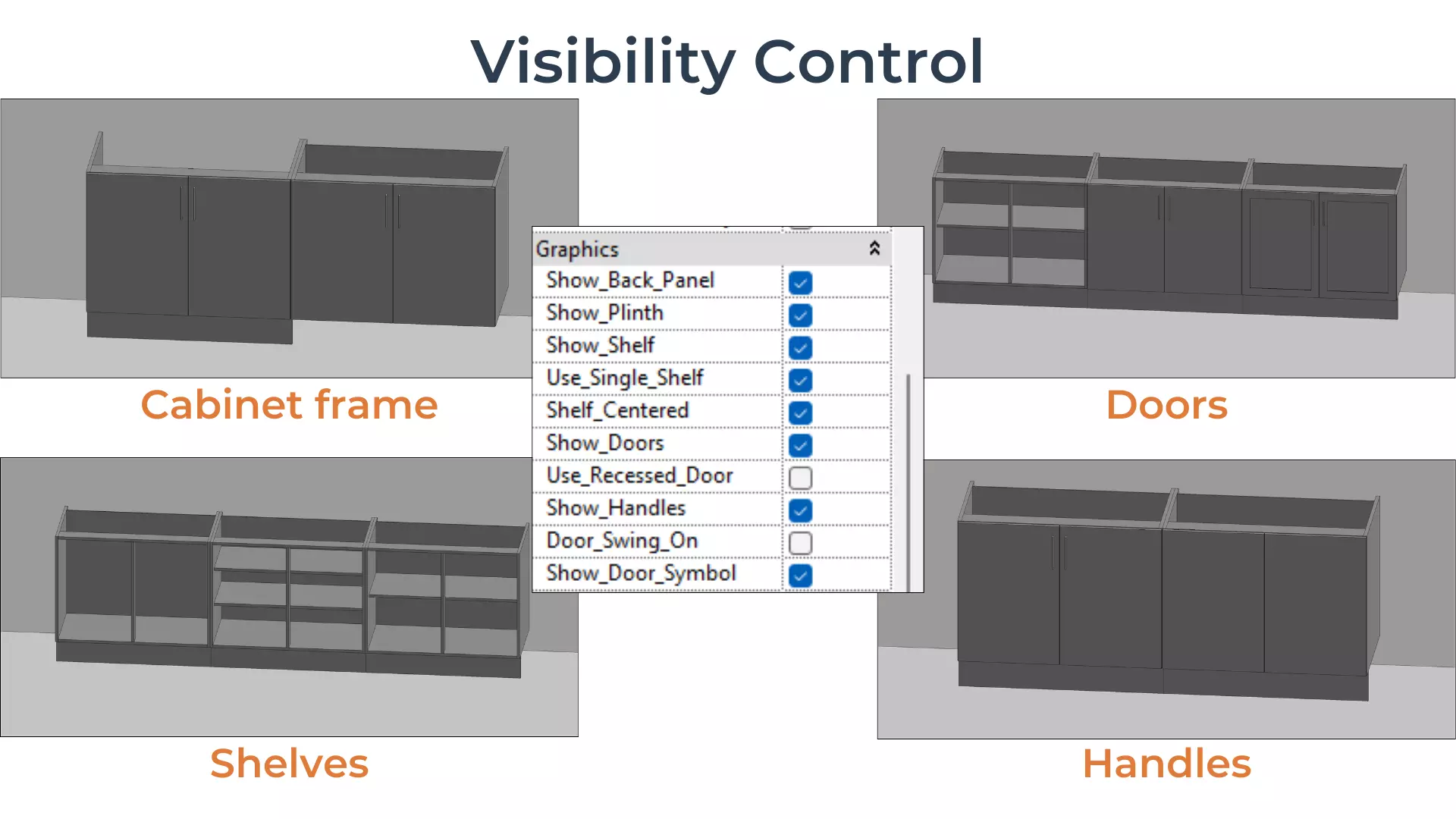

• Toggle the back panel on or off as needed.
• Enable or disable the cabinet shelf as needed.
• Choose between a single shelf or two shelves. If single, position it manually or center it with one click. If two, adjust top and bottom shelves independently.
• Choose between recessed and slab door fronts. When enabled, the recessed style automatically replaces the slab version. Customise recess offset and depth as needed.
• Enable or disable the cabinet handles as needed.
• Customise handle length, radius, standoff, edge offset, and vertical placement.

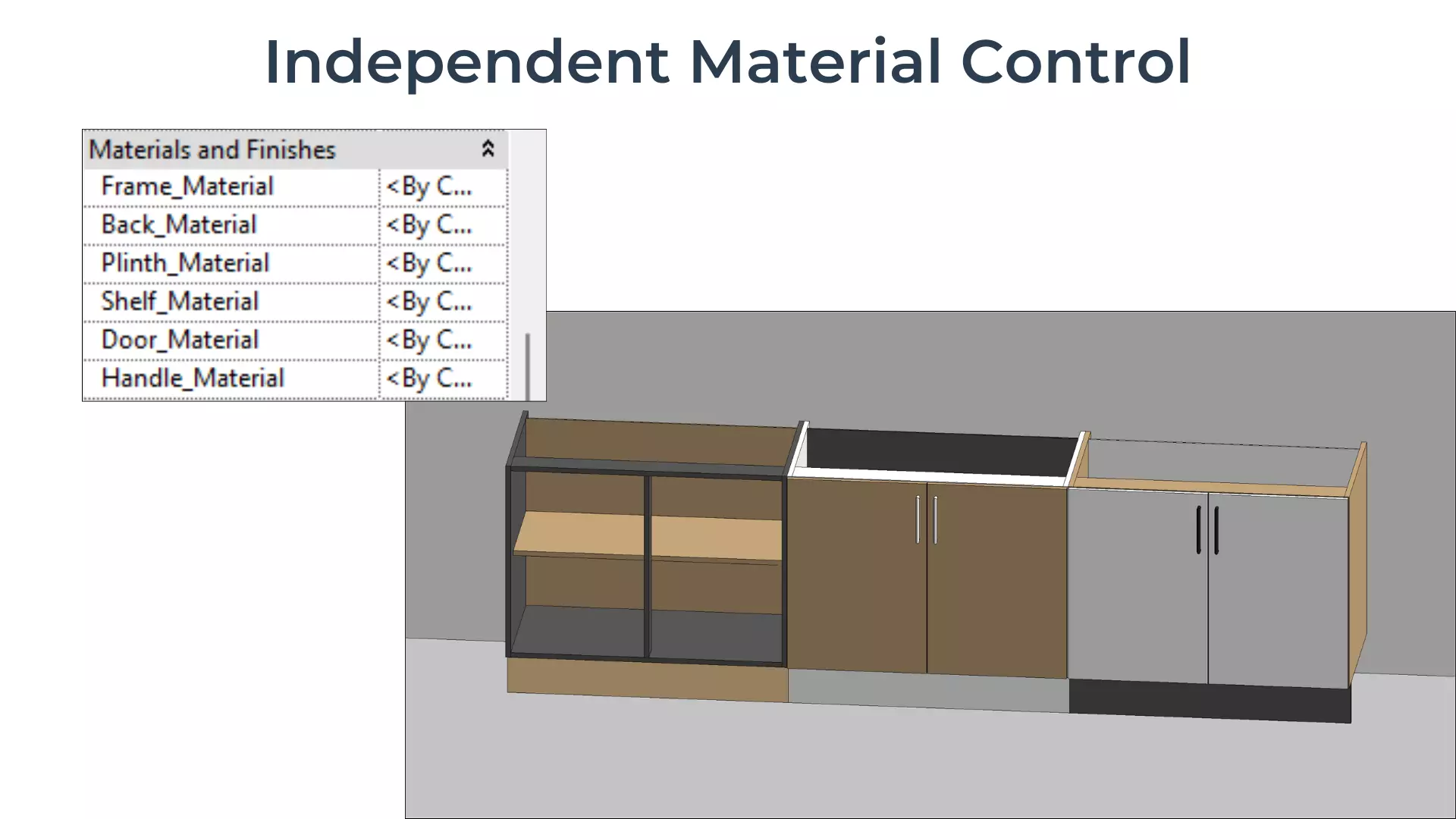

• Assign materials independently to the frame, back panel, base, shelf, doors, and handles.

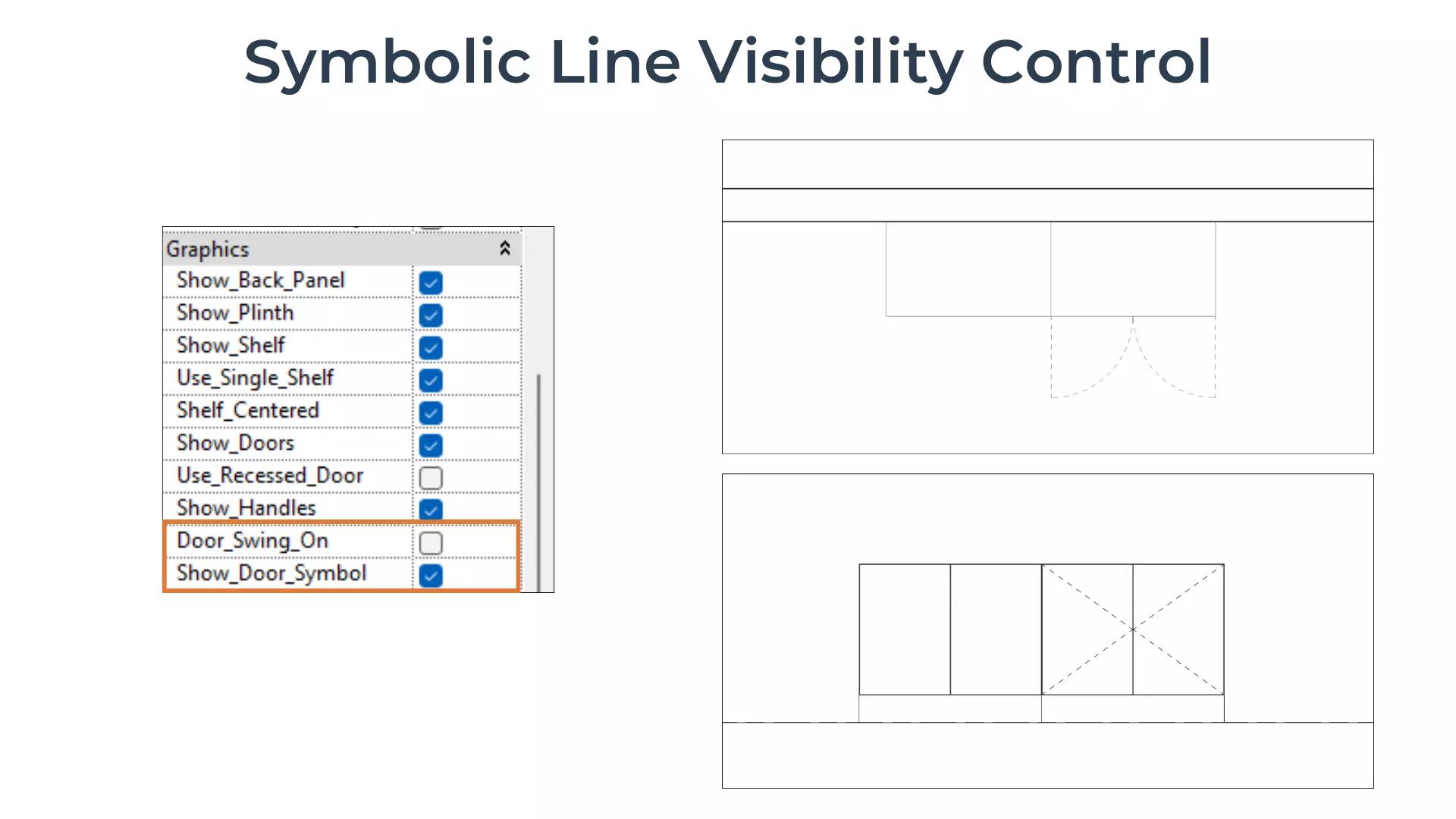

• Includes symbolic swing arcs and door side indicators for clear documentation in 2D views.
• Designed for efficiency – lightweight and easy to work with in real projects.

Why This Family?

• Built from scratch using Revit best practices
• Designed for professional BIM workflows
• No cleanup required – just load and use it in your project
• Easy to modify in the Family Editor – with clean reference planes, named parameters, and tooltips for quick adjustments

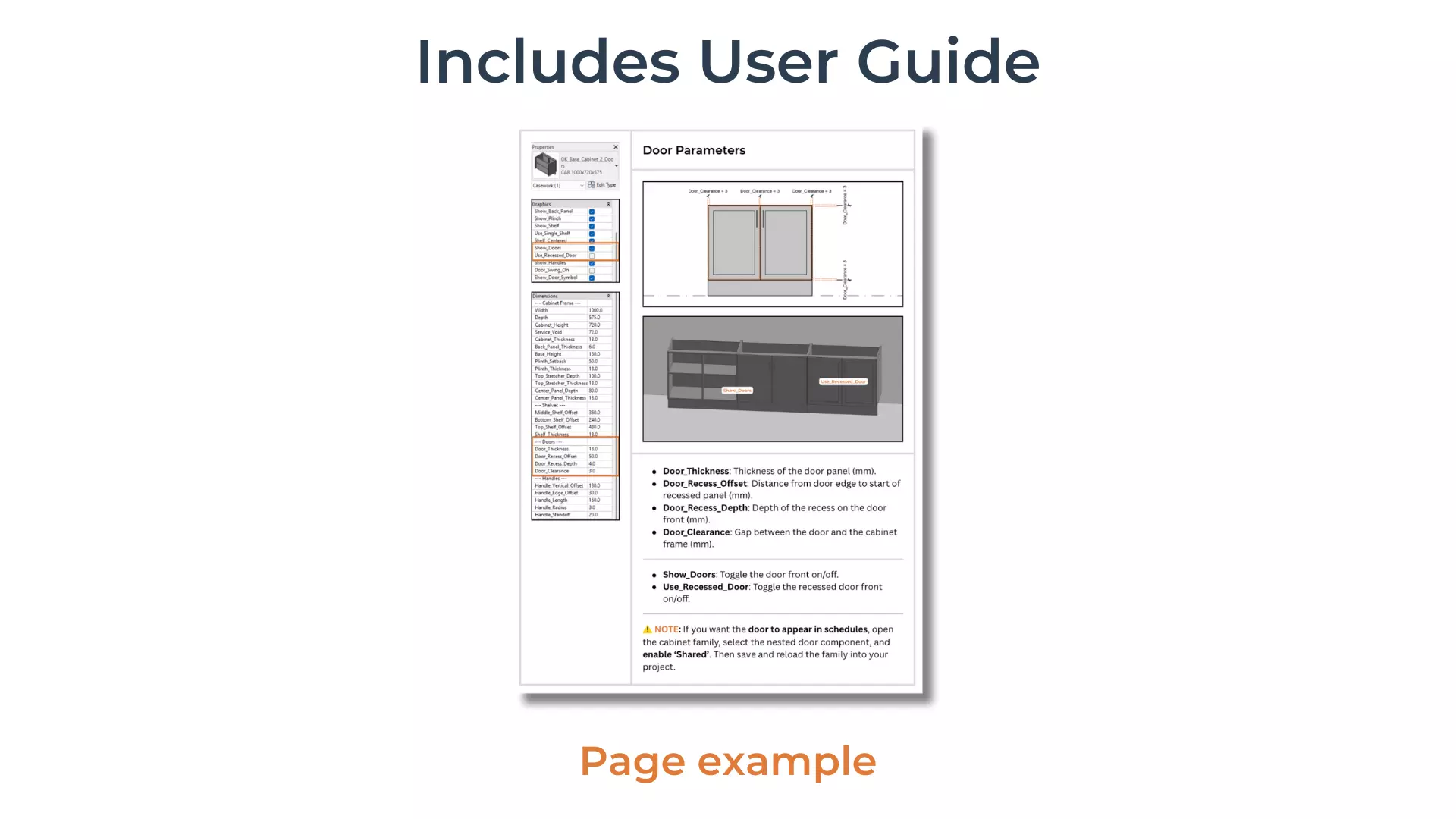

• Includes a clear, concise user guide for fast setup

Compatibility & Details:

• Formats: .RFA (Revit Family)
• Family File Size: 881 KB
• Adjustable Sizes: All key dimensions are fully editable
• Revit Version: Created in Revit 2023 (not backward-compatible)
• Intended Use: Residential & commercial interior design
