DESCRIPTION

Fully parametric Revit family for a single-shelf wall cabinet, built to UK standards and ready for residential interiors.

This free family is a sample from my kitchen cabinet library. It’s fully usable in projects but simplified compared to my paid models, so you can test the family structure, parameters, and quality before exploring the full range available in my store.

Main Features:

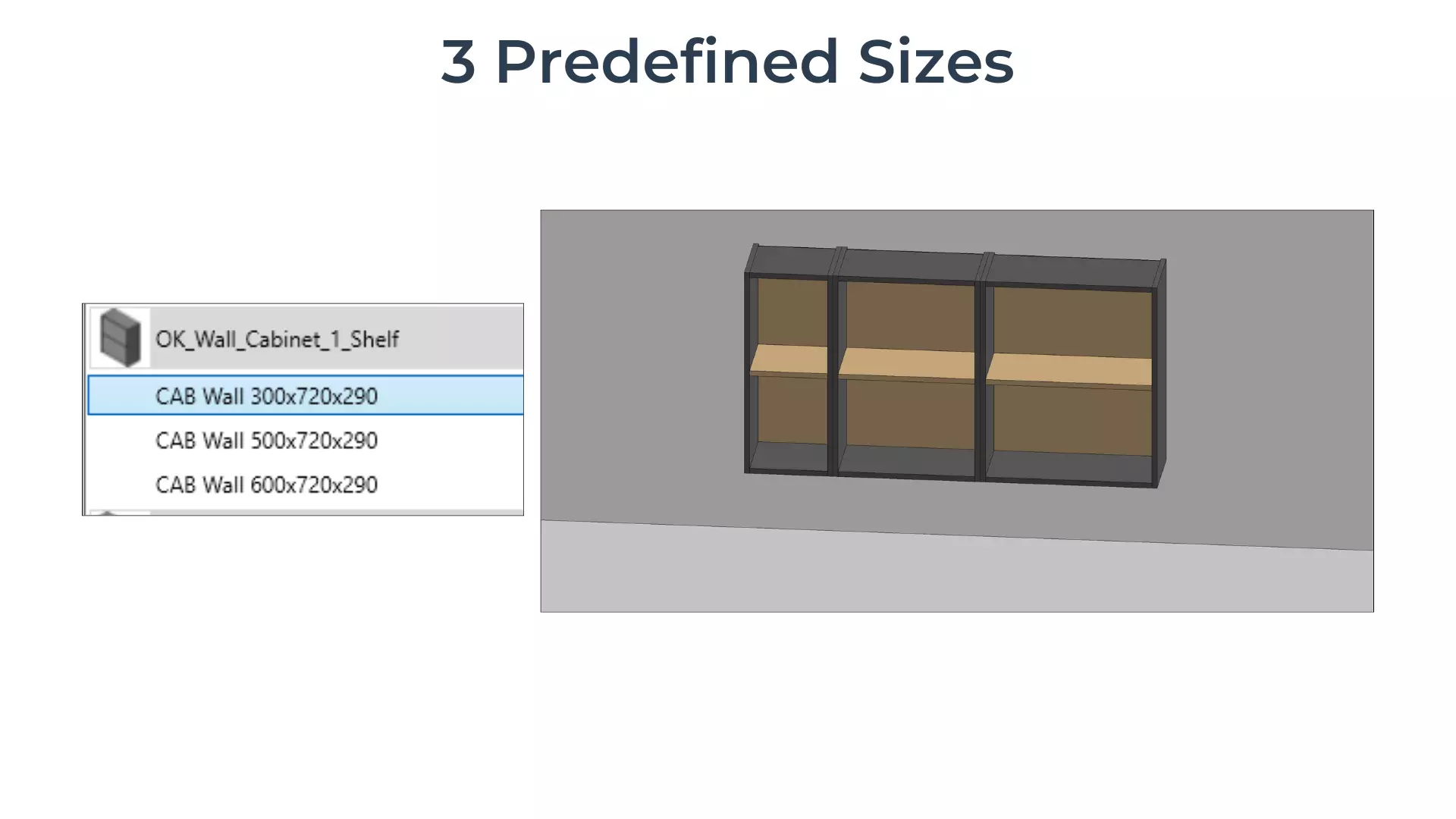

  • 3 predefined sizes included

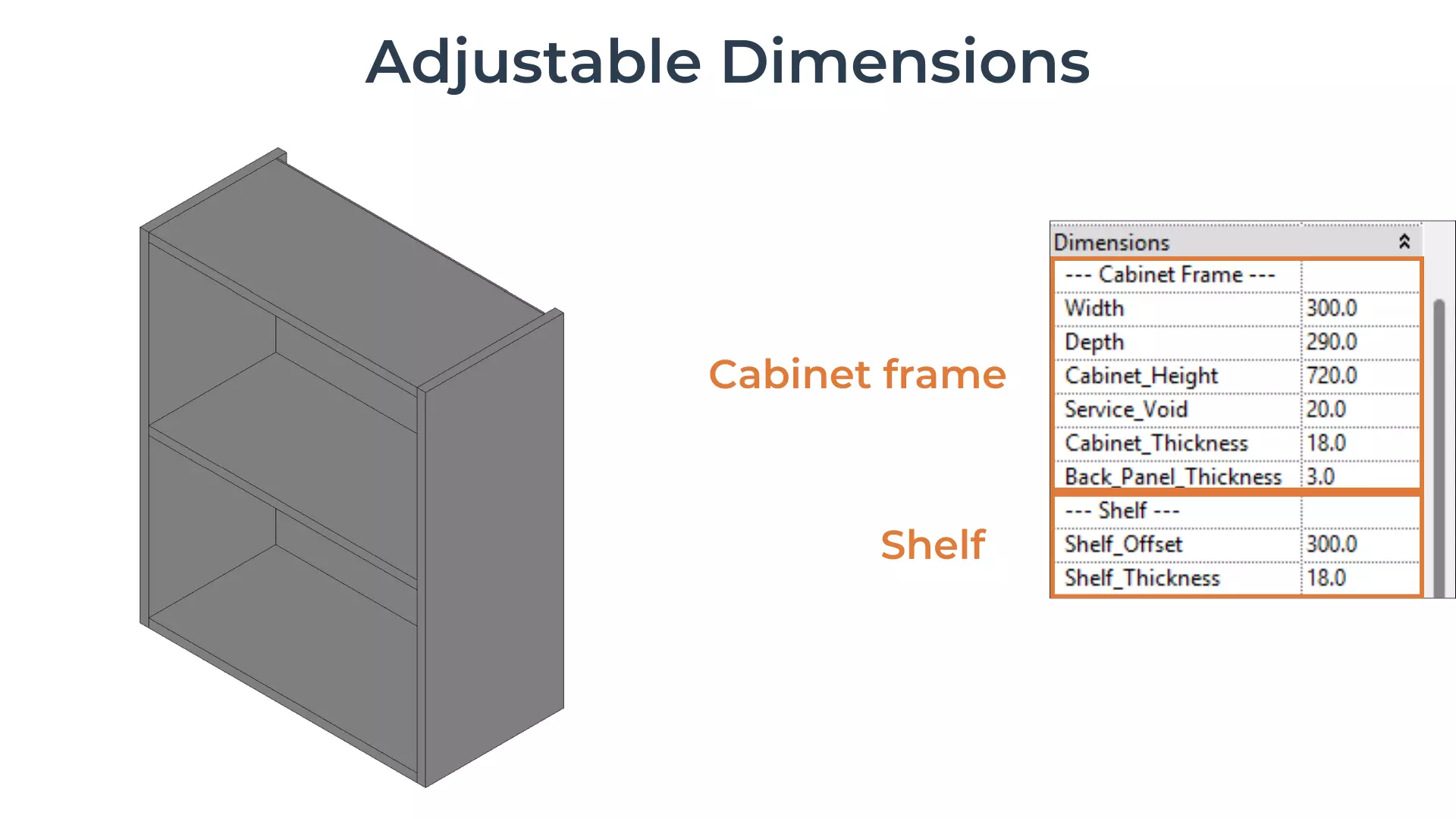

  • Adjustable dimensions for cabinet frame and shelf

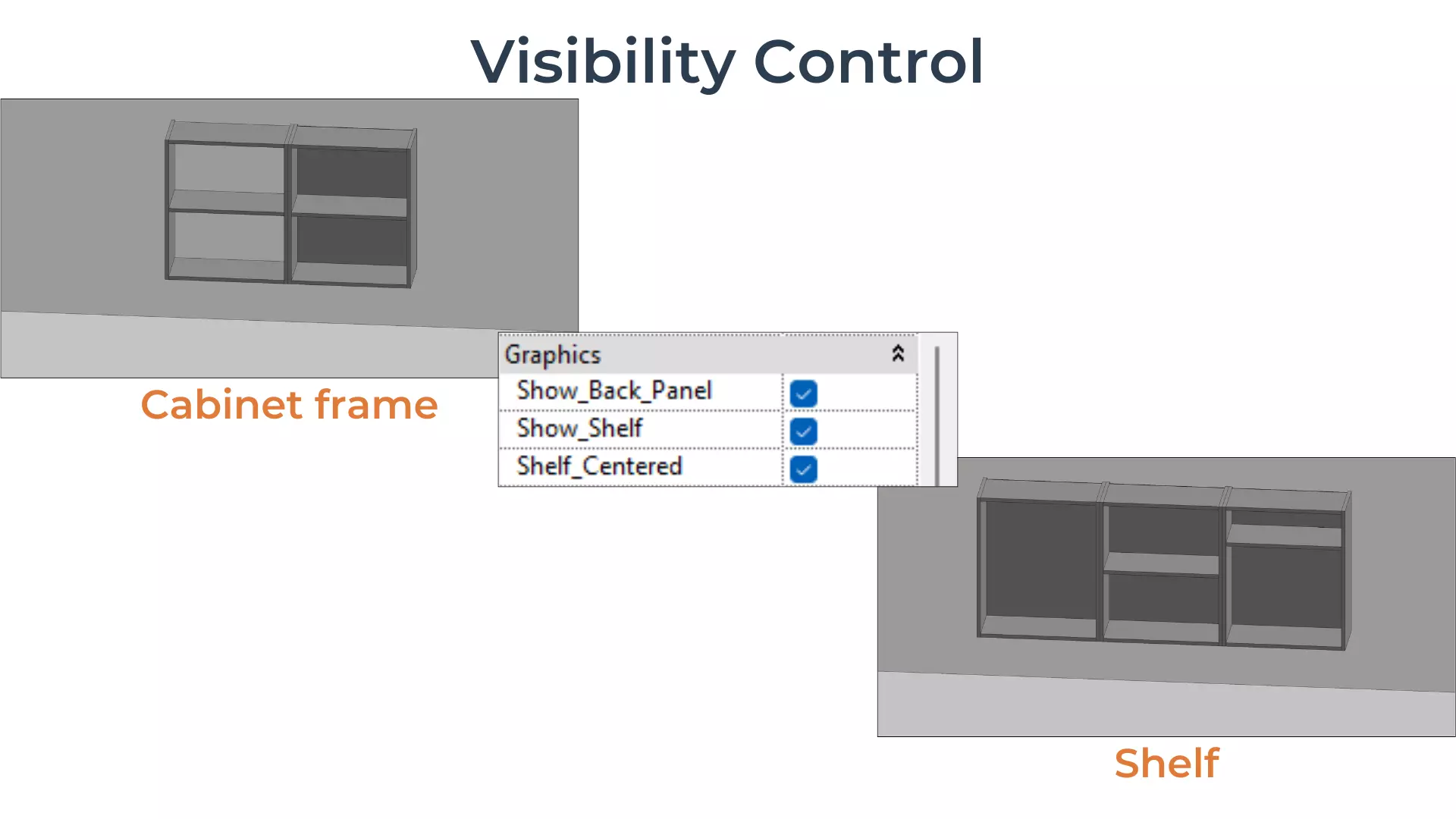

  • Visibility controls for back panel and shelf

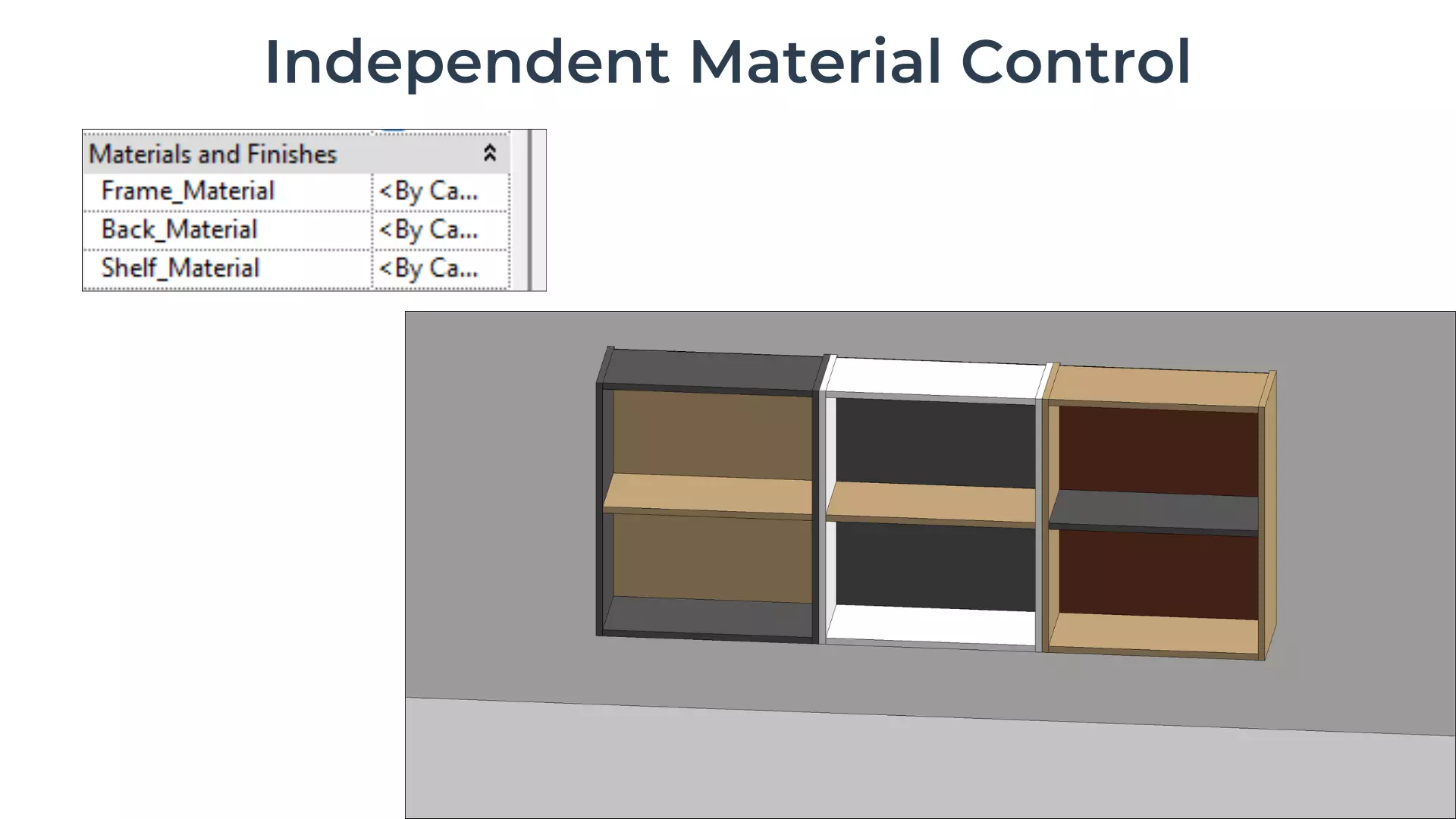

  • Editable materials for cabinet frame, back panel, and shelf
  • Non-hosted placement, won’t be deleted with walls

Why Choose This Family?

  • Created from scratch using Revit best practices
  • No cleanup needed - just load and start using
  • Easy to edit in the Family Editor - clean reference planes, named parameters, and tooltips for quick adjustments

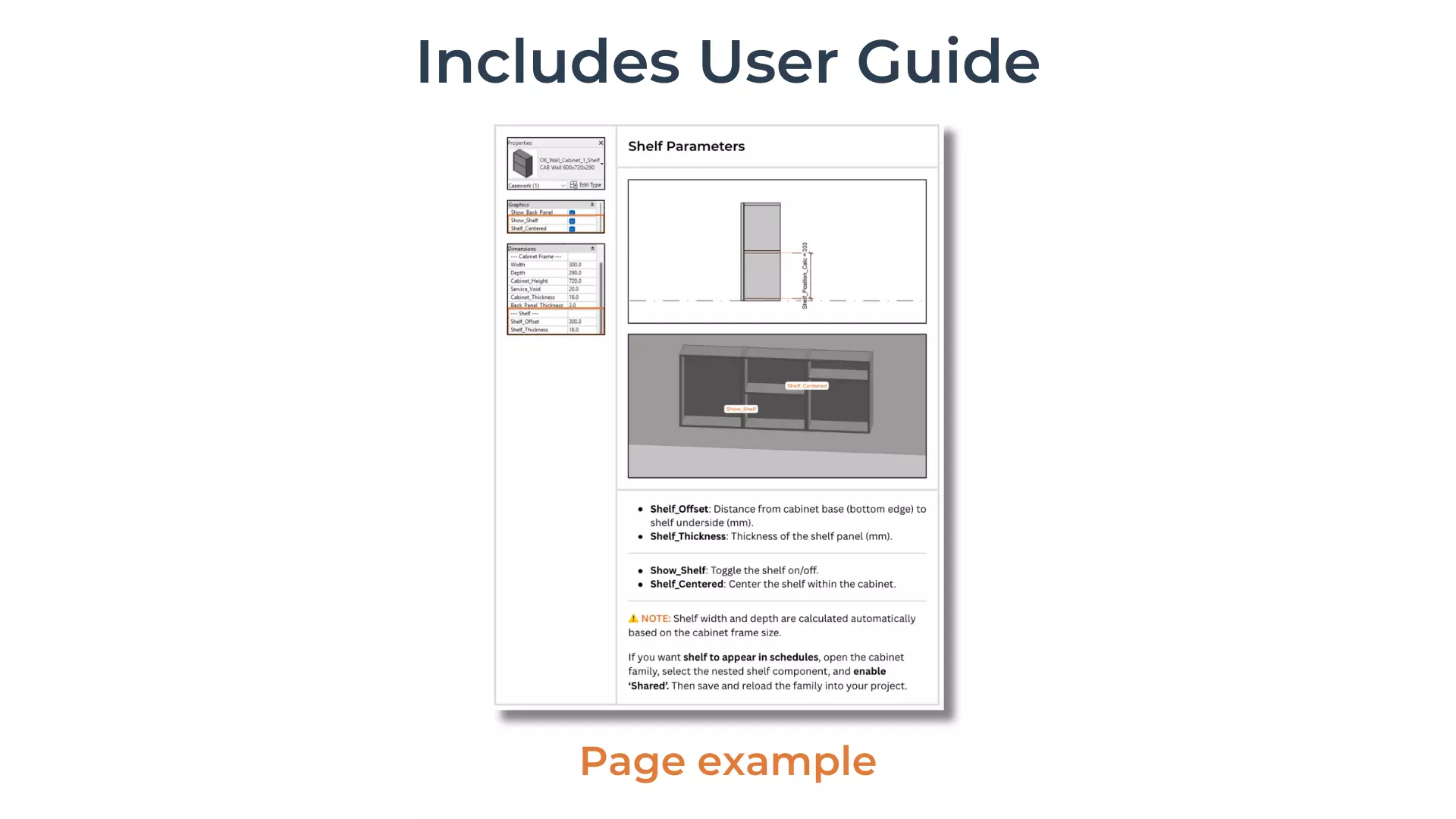

  • Includes a simple user guide for quick setup

Compatibility & Details:

  • Format: .RFA (Revit family)
  • Family File Size: 573 KB
  • Sizes: All key dimensions are fully editable
  • Revit Version: Created in Revit 2023 (not backward-compatible)
  • Units: Metric (millimetres)
  • Use: Residential and commercial interiors

More Revit families available here:https://www.cgtrader.com/designers/revitfams
