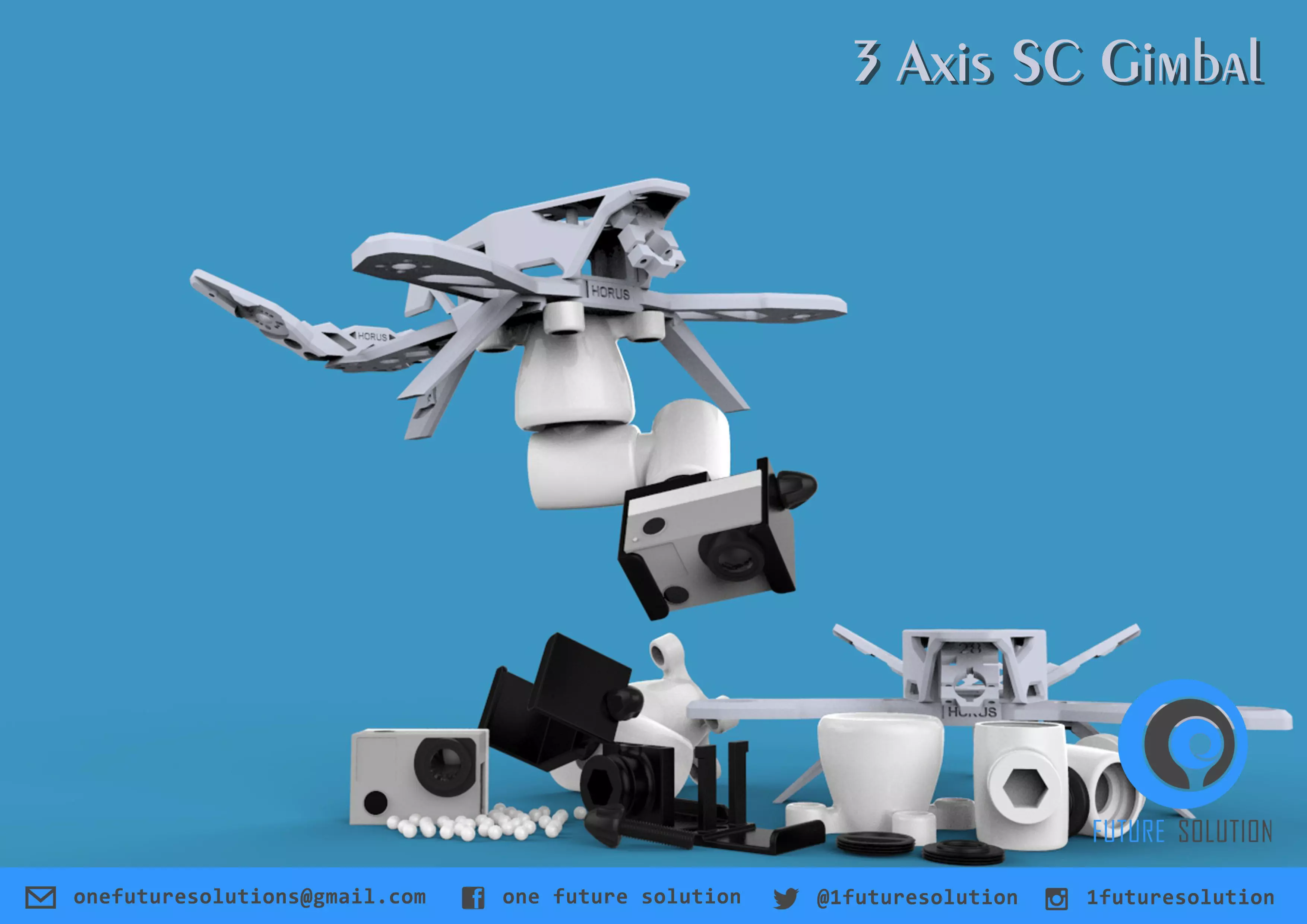

3 Axis SC Gimbal

Designed by Ridwan S ( https://www.instagram.com/ridwan.sept/ )

Modeled with SolidWorks 2014

Rendered with KeyShot 5

File Types : .SLDPRT, .SLDASM, .IGS, .OBJ, .STL.

Vertices : 254229

Polygons : 508310

This gimbal are common drone accessories in the market. Why I chose to make this?

I want to highlight the advantages and ease of 3D Printing to manufacture these accessories.

Number of axis, it doesn't matter. The focus is to make Gimbal that's use 3D Printing for manufacturing process.

With 3D Printing, gimbal manufactured process will be more :

easy, fast and uncomplicated.

With some of the material in print directly as a single assembly, the complicated manuals assembly process are not needed anymore.

Please see the images attached gimbal and compare it with 3D Printing Gimbal. I think you will know the different with your own.

There's motor space that will close with Cap (separately 3D printed part). So we easy to add motor in this Gimbal.

The main 3D printing material that's we use is ABS plastic material.

You can download this model for Free, but you should to hit ♥ button as the payment :).
