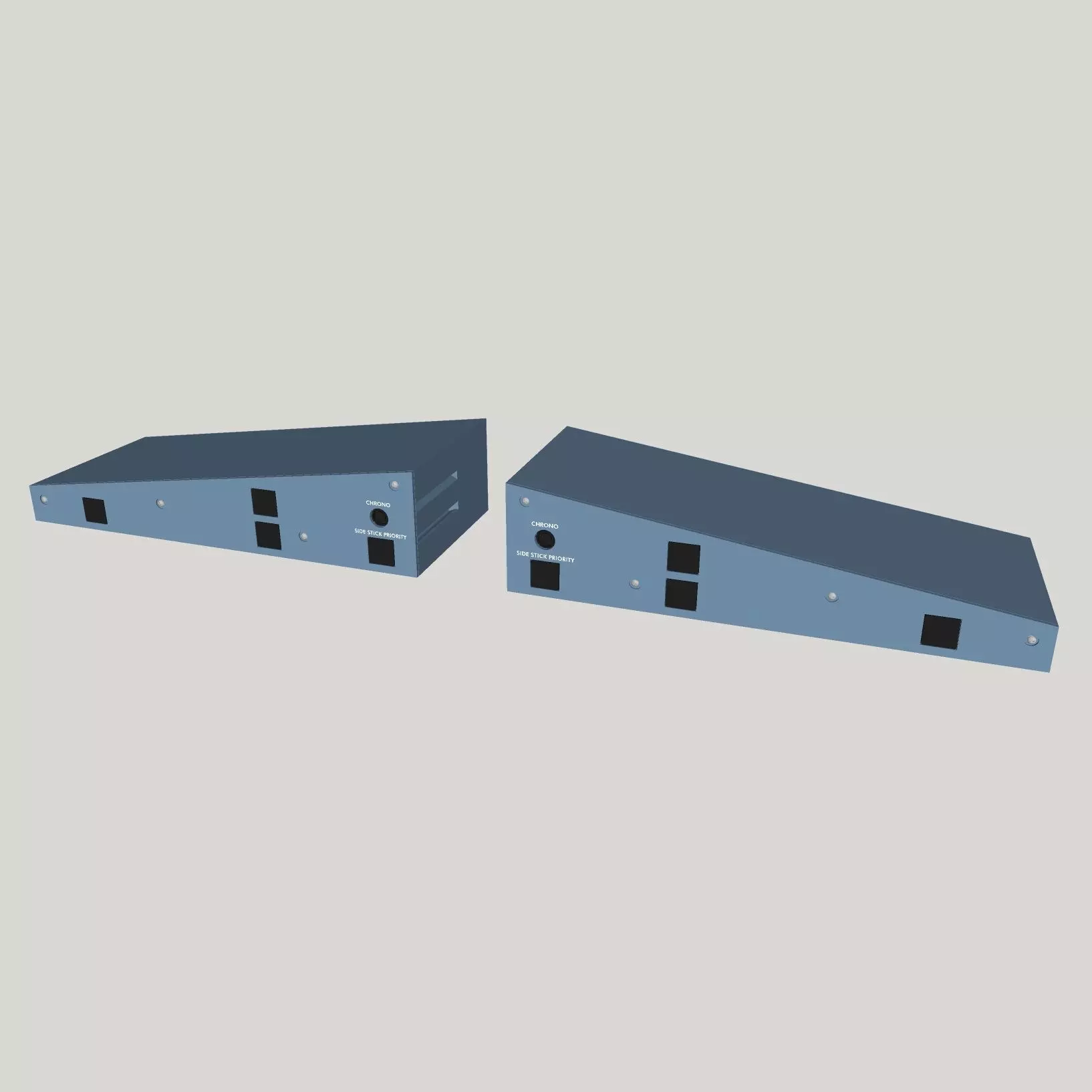

A320/A330 131VU panel

NO PCB NEEDED!

This panel do not need any PCB as it has the unique Button Base panel for easily insert and attach buttons, switches, rotary, potentiometers and encoders.

This panel also compatible with MANTOGA's Korry buttons.

A link to the button is in the designated folder.

Can be connected to EFIS panel which can be purchased separately or you can buy both of them at a REDUCED PRICE

Dimensions:

Width: 165mm

Height: 76.9 mm

Depth: 133 mm

Width: 164mm

Height: 53 mm

Depth: 133 mm

Part list:

10x Mini Push Button Switch DIP Tact Switch 6X6X4.3mm

8 x M3X20 Round screws

~~~

3D printing settings:

Better be done with dual extruder 3D printer.
