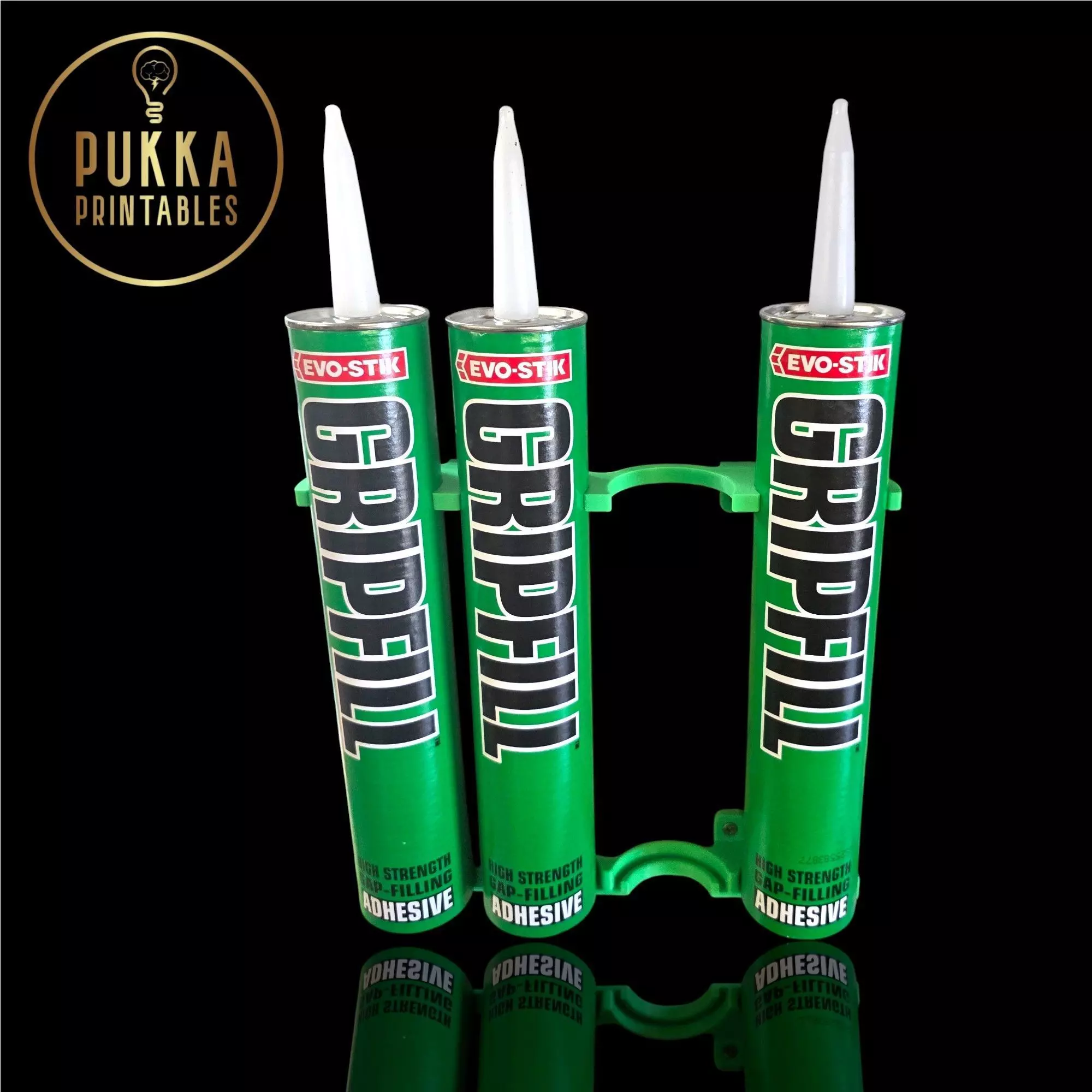

Technical 3D printable model engineered for organising standard silicone and caulk tubes with nominal 49 mm diameter (+/-1 mm). The design comprises a bottom rail and a snap-in top rail, enabling secure retention of tubes when mounted to vertical surfaces in workshop, garage, or vehicle environments.

Features

Two-part rail system: bottom mounting rail and snap-in top rail. Holds standard caulk/silicone tubes with diameters from approximately 48 mm to 50 mm. Designed for wall or vehicle interior installation. Snap-fit function secures tubes in position.

Technical Details

Format: STL file format for additive manufacturing. Printing technology: Fused Deposition Modelling (FDM). Material compatibility: Standard rigid filaments such as PLA, PETG, or ABS. Supports: May not be required depending on printer and orientation. Orientation: Recommended flat on build surface for best fit and strength. Tolerance designed around 49 mm nominal tube diameter.

Files Included

STL file for bottom rail component. STL file for top snap-in rail component.

Usage Notes

Mount both rails using appropriate fasteners (not included) to desired surface. Verify printed tolerances before final installation due to filament and printer accuracy variations. Intended for organisation and storage of compatible caulk or silicone tubes only.
