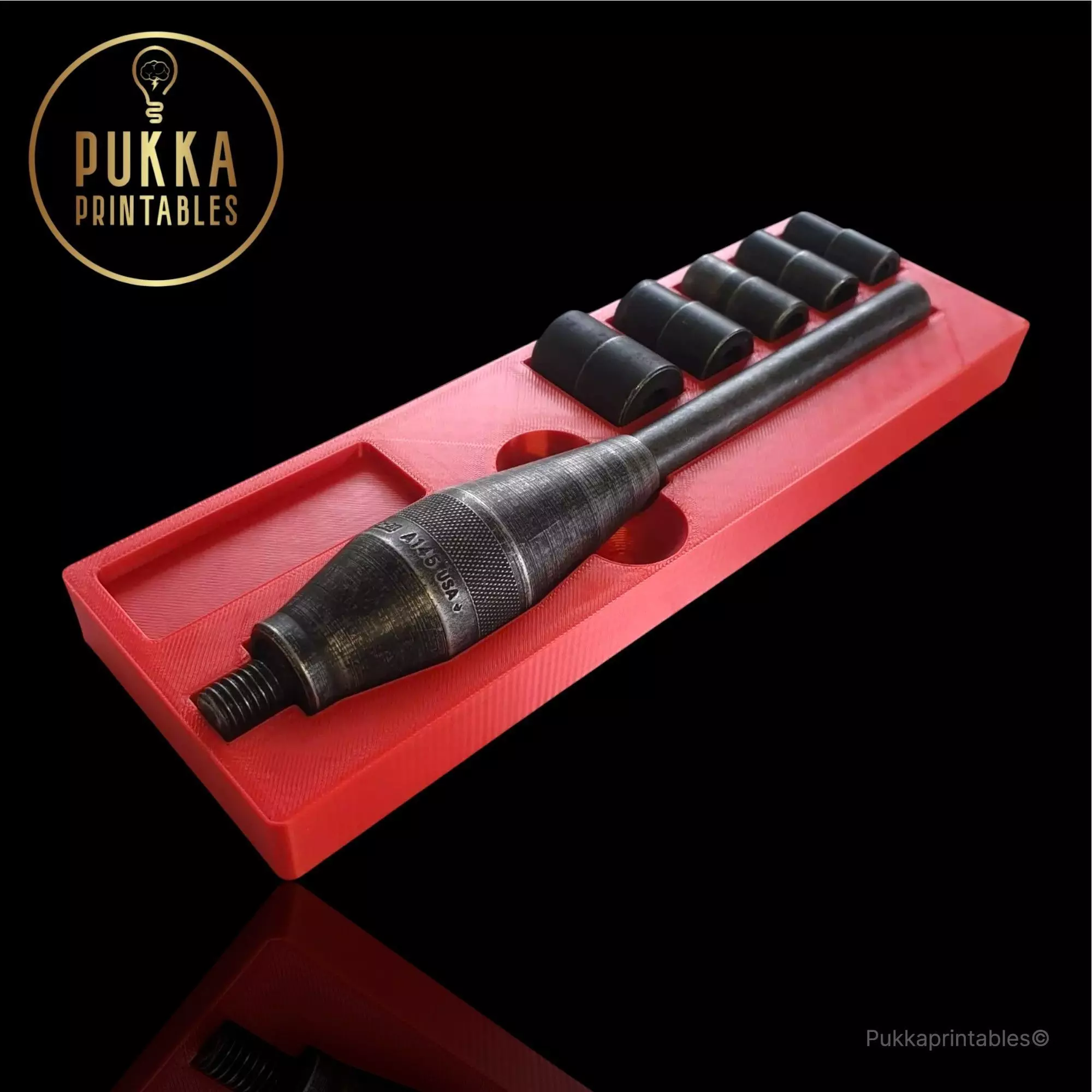

This is a precision 3D model of a storage tray designed to organise and secure the A145 Snap-On 7-piece clutch aligner set. The design includes integrated magnet recesses to retain tools firmly in place, reducing roll-away and misplacement in workshop and toolbox environments.

Features

Magnet recesses positioned behind each tool pocket for secure magnetic retention.Clean, support-free geometry optimised for FDM printing.Single-piece tray for straightforward fabrication.

Technical Details

Compatible with FDM 3D printers.Magnet recess diameter 12 mm and depth suitable for a 12 mm × 5 mm magnet per pocket.Optimised to print without supports.Recommended materials include PLA, PETG, and ABS.Suggested print settings: 0.2–0.28 mm layer height, 3+ perimeters, 20–40% infill.

Files Included

1 × STL file for the complete storage tray with magnet holes.

Usage Notes

Prepare and press-fit 12 mm × 5 mm magnets into the designated recesses after printing.No additional parts are included or required.Suitable for workshop, toolbox or drawer organisation.
