A specialized 3D-printable mounting system designed specifically for sloped or attic ceilings. This 3-part bracket solves the common problem of installing standard curtain rods on angled walls (approx. 45°), providing a secure and aesthetic fit.
The design features a modular construction with a sleek decorative cap, ensuring all mounting hardware is hidden for a clean, professional finish.
Specifications
-
Angle: Optimized for ~45° slopes
-
Rod Diameter: Up to 30 mm
-

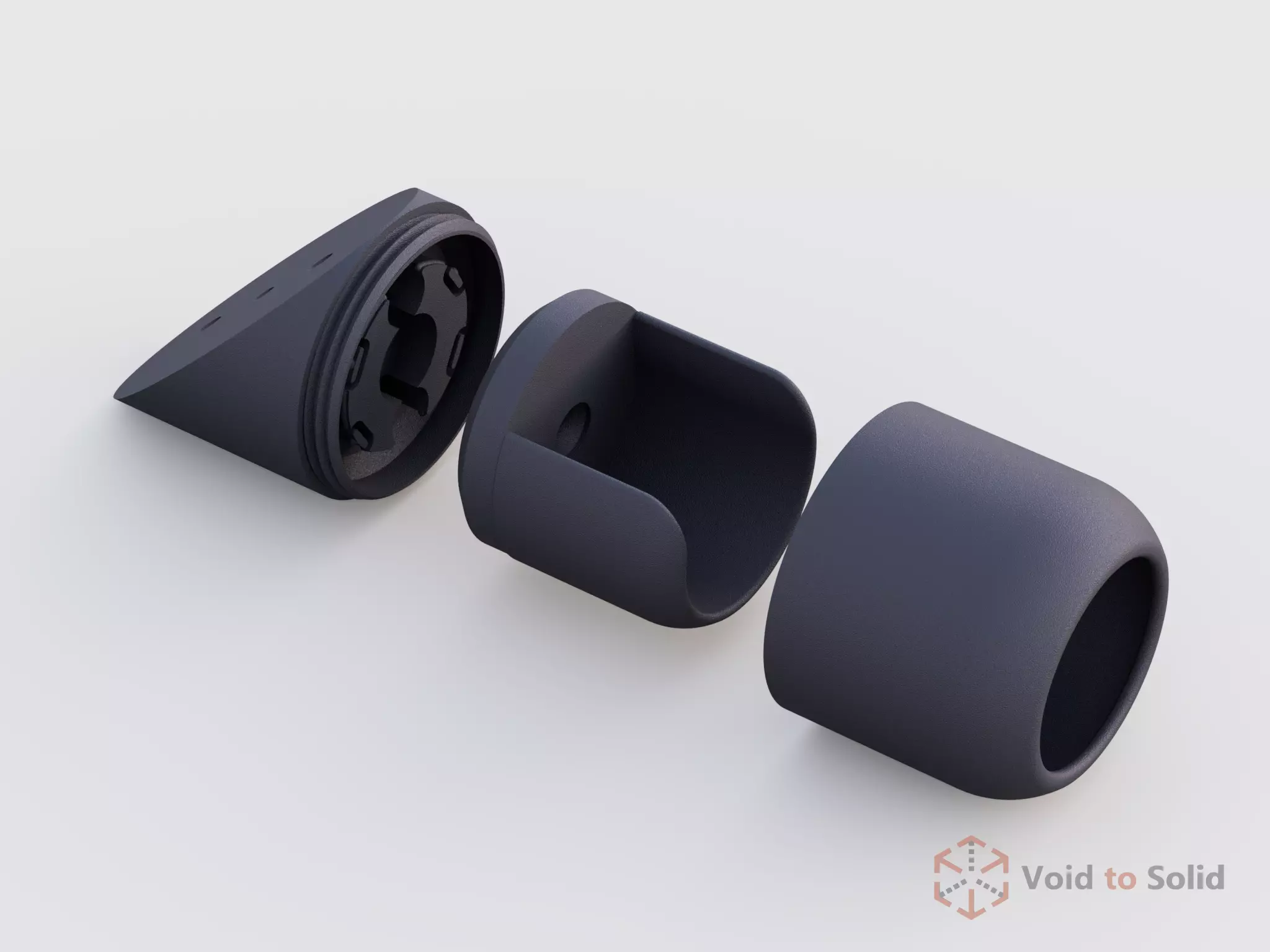

Components: 3-part interlocking system (Base, Holder, Cap)
-
Application: Attic rooms, loft windows, or sloped walls
Material Recommendations
-
PET-G: Highly recommended for its mechanical strength and UV resistance.
-
ASA: Excellent for windows with direct sunlight exposure (won't yellow or warp).
-
Wall Thickness: Use at least 3-4 walls and 30%+ infill for structural load-bearing.
Notes & Assembly
-
Clean Look: The snap-on decorative cap hides the screws completely.
-
Easy Installation: Mount the base first, then slide the holder and lock with the cap.
-
Hardware: Designed for standard countersunk screws.
