WATER JET PROPULSION 60MM

WATER JET PROPULSION 60MM 3D print model

Description

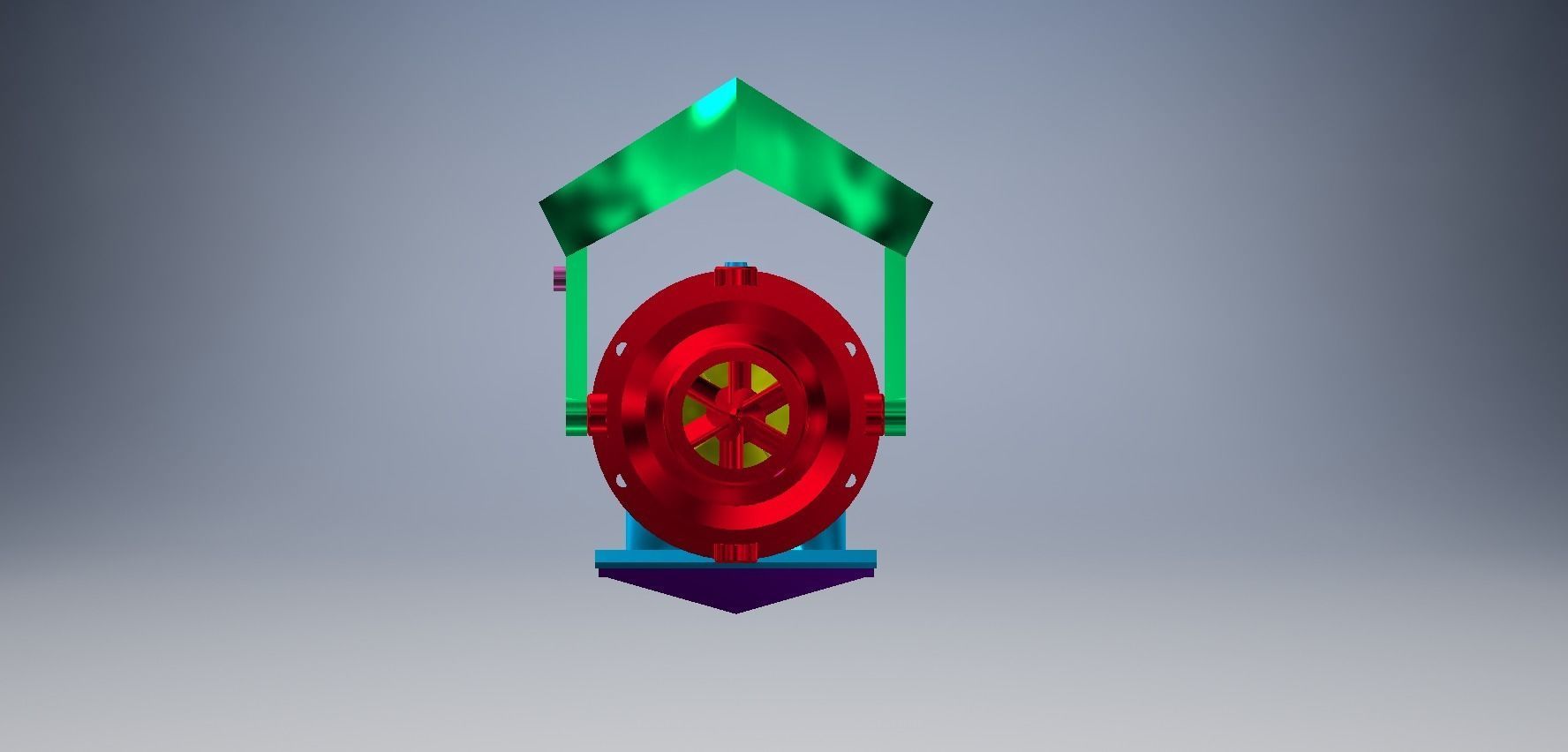

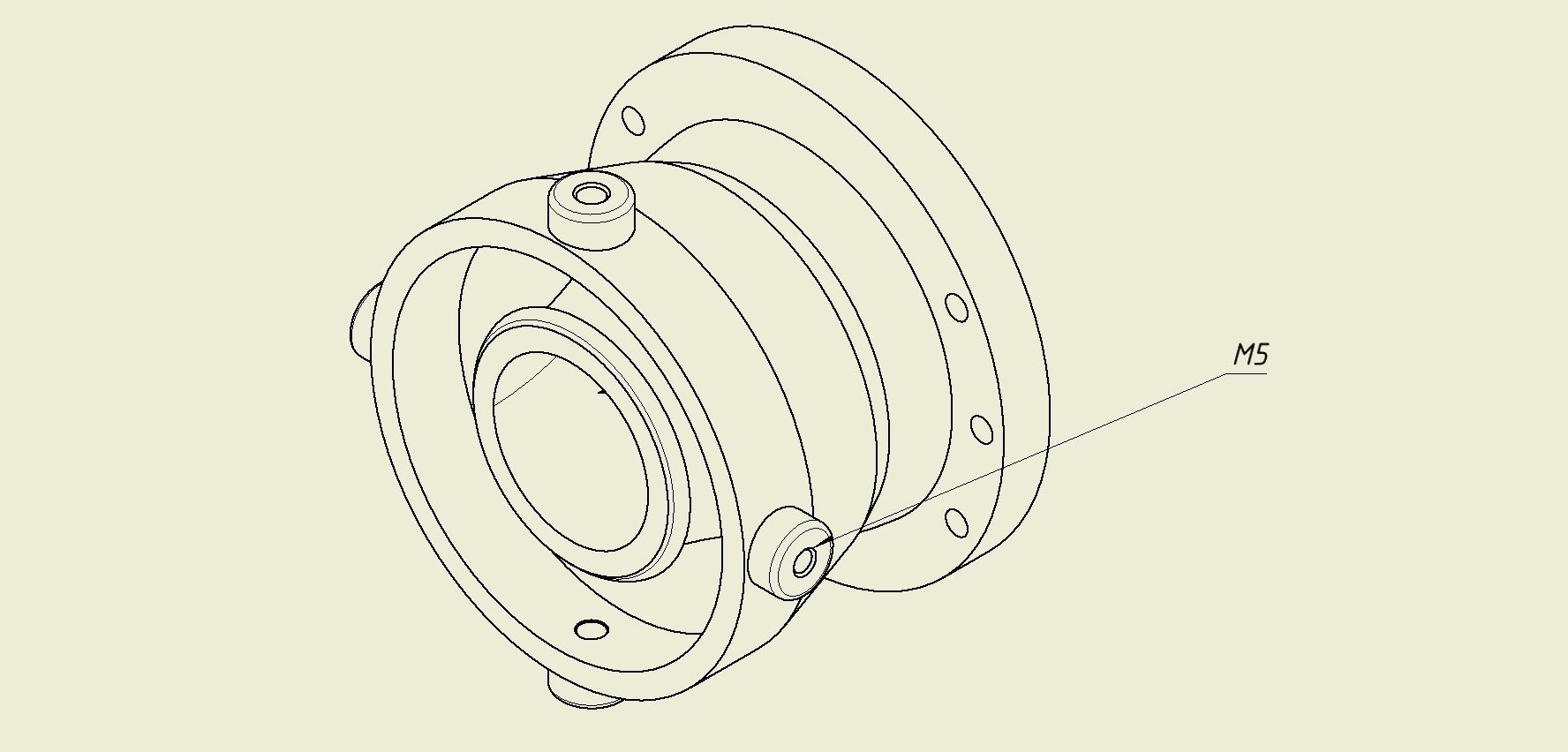

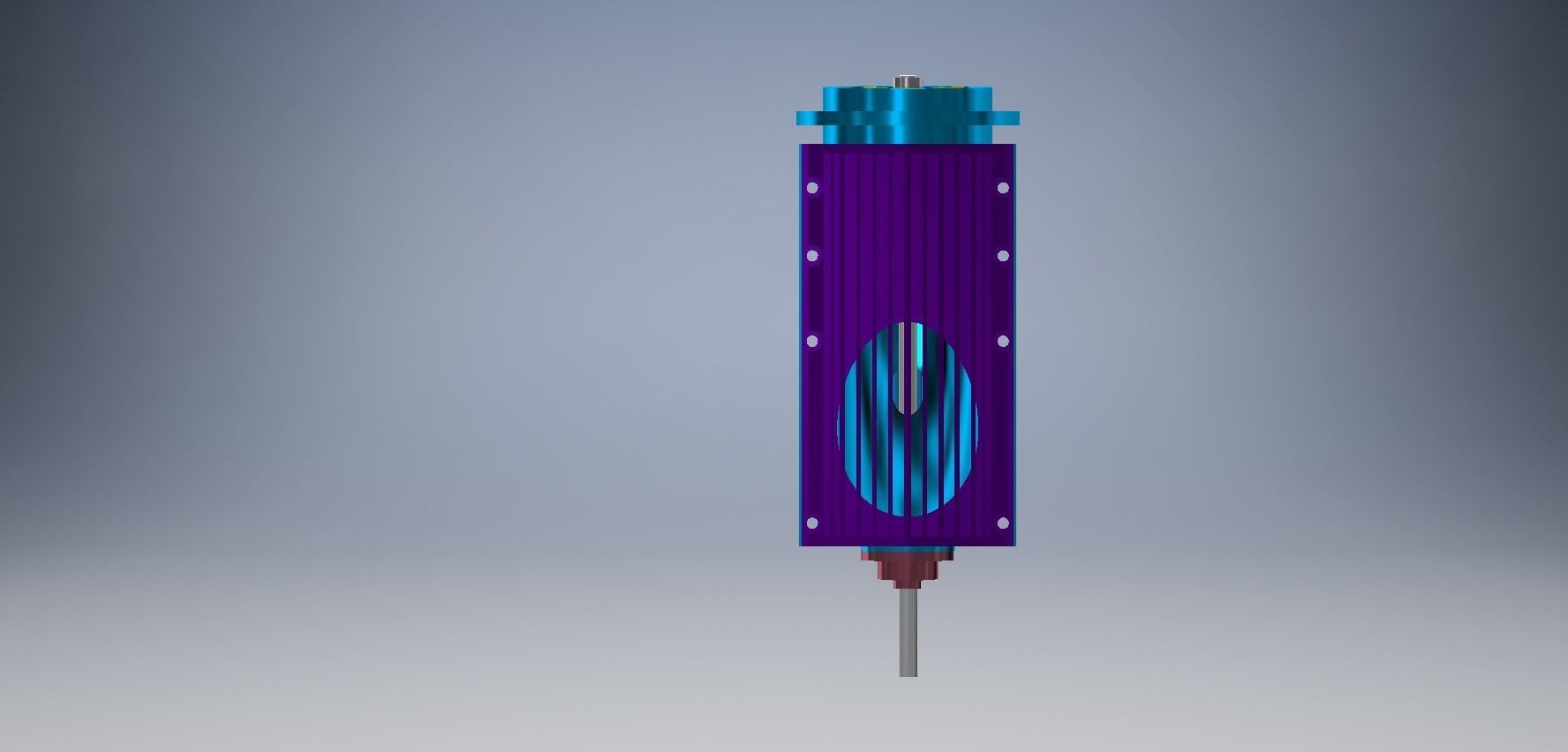

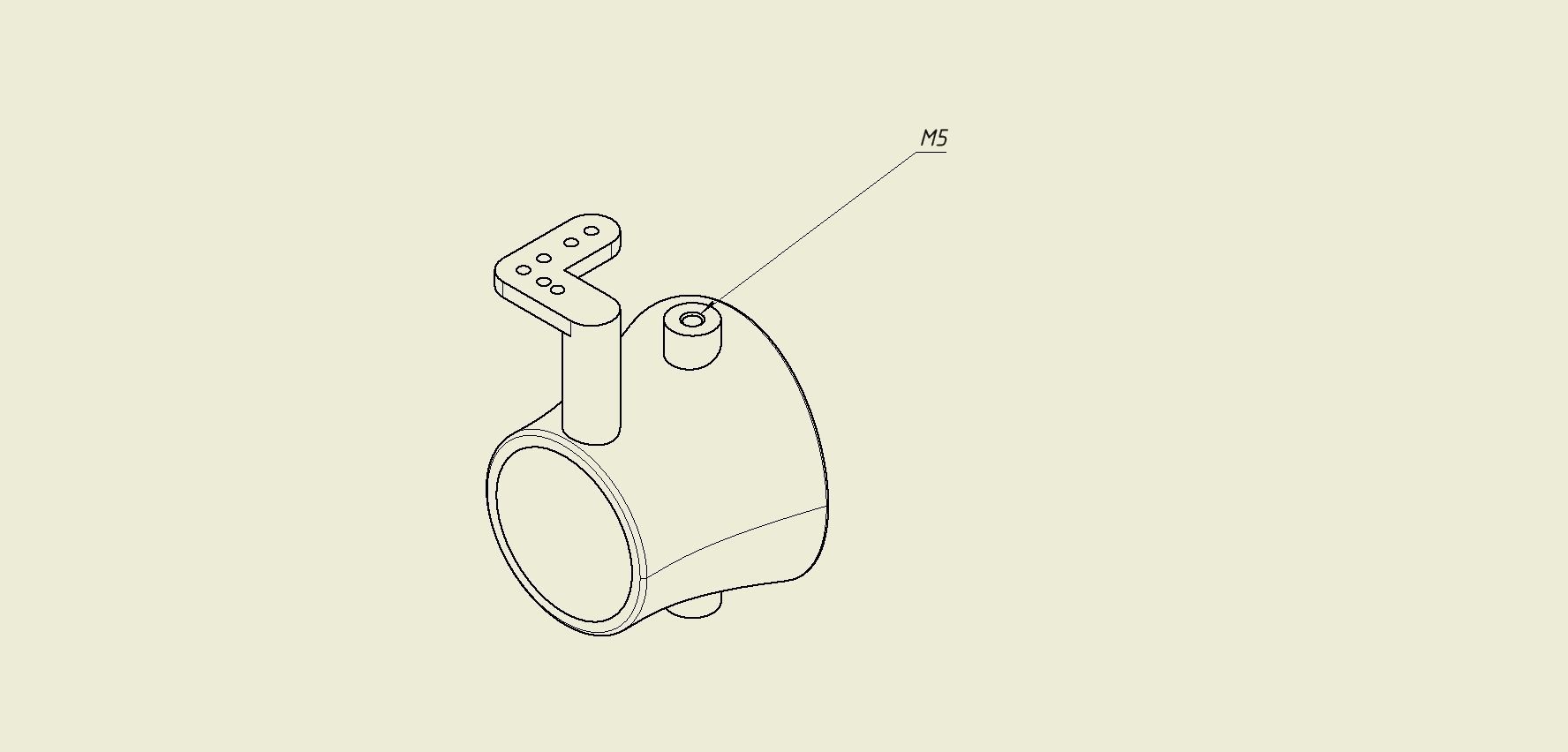

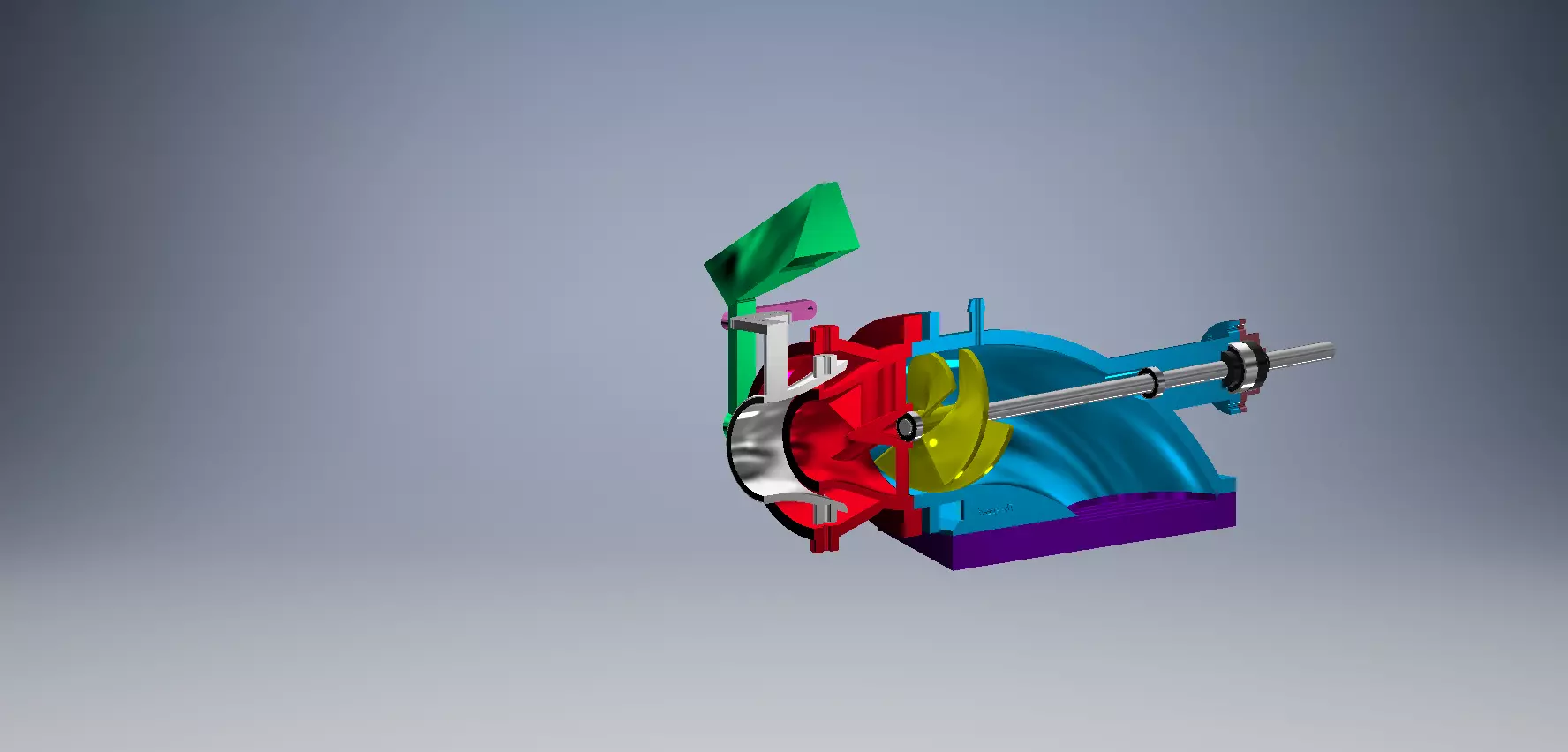

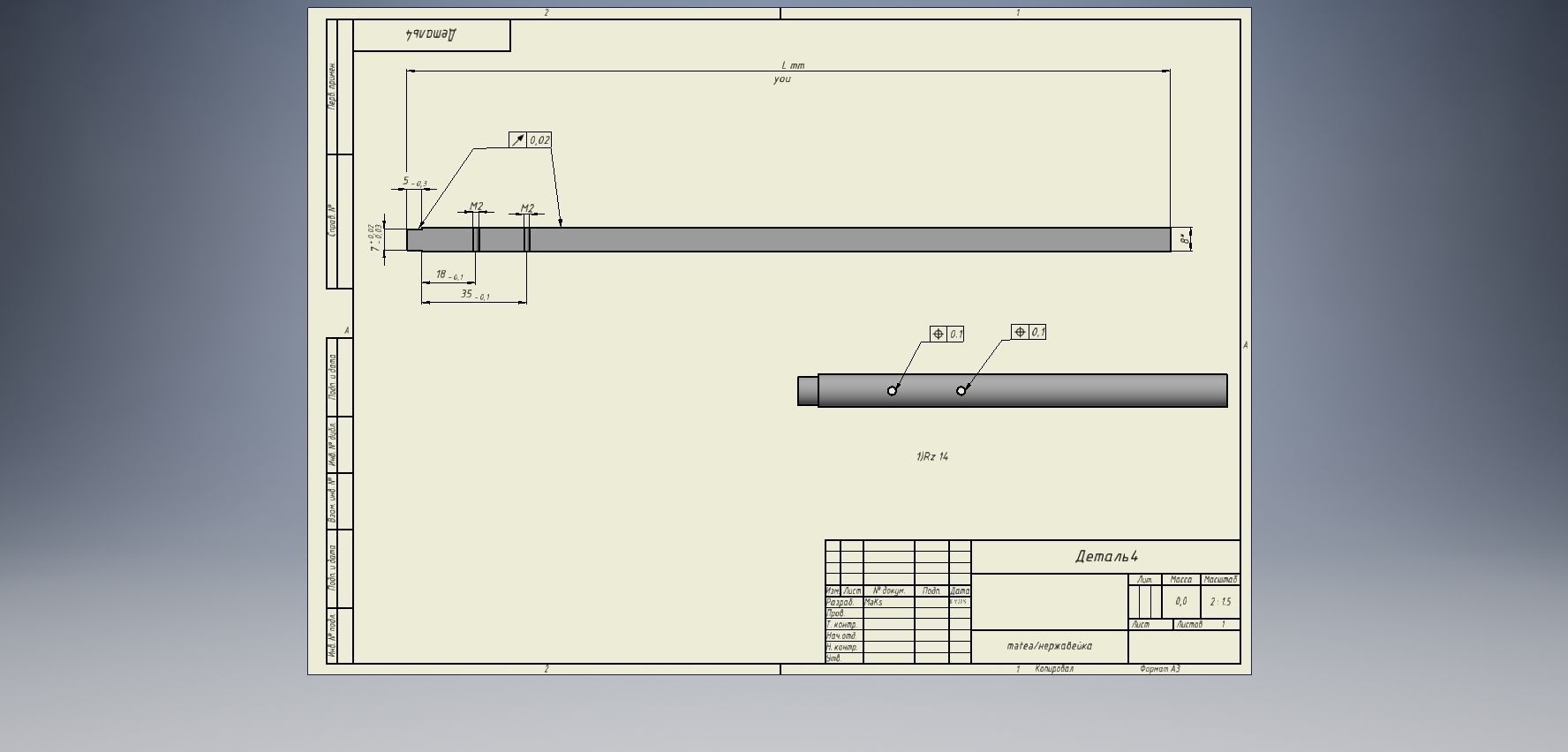

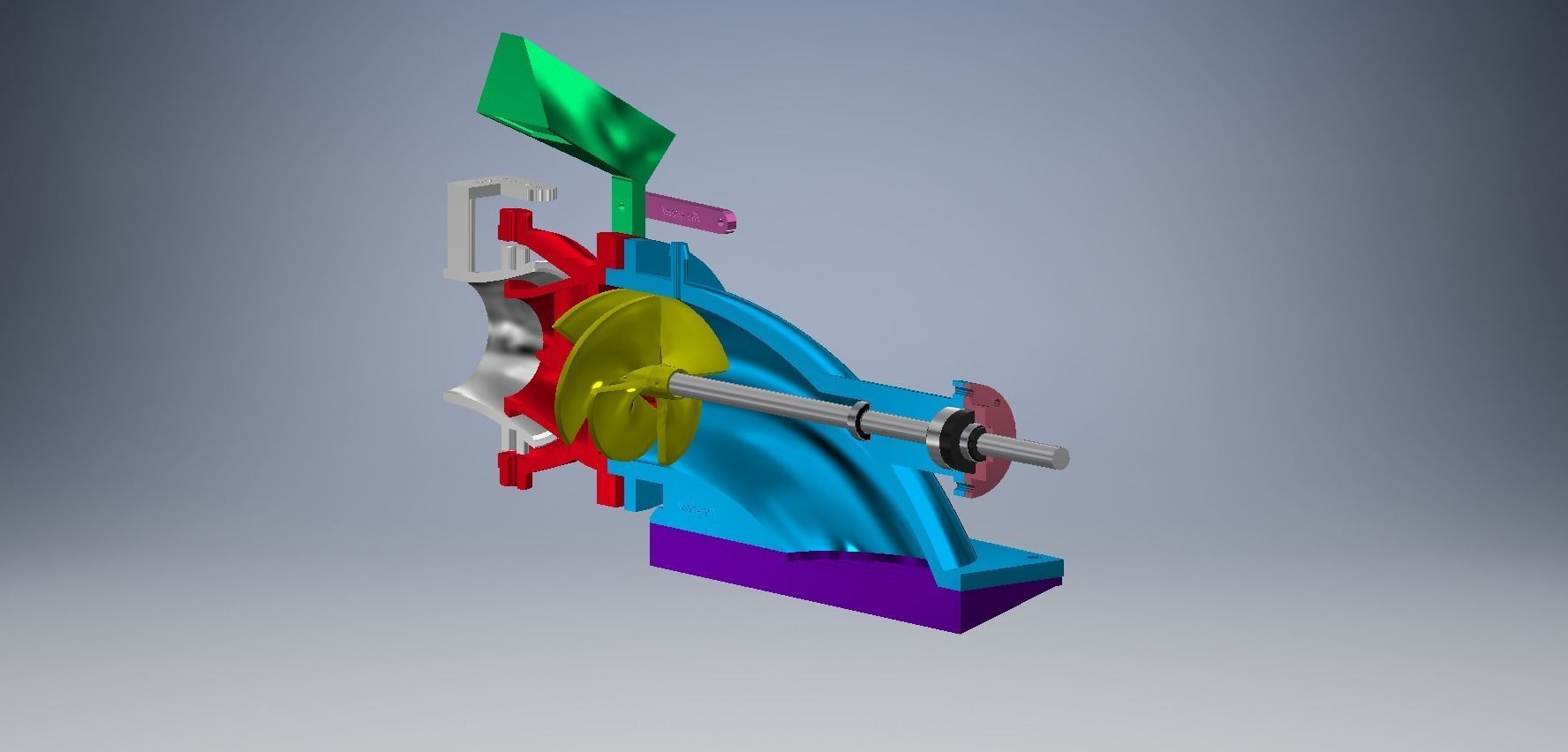

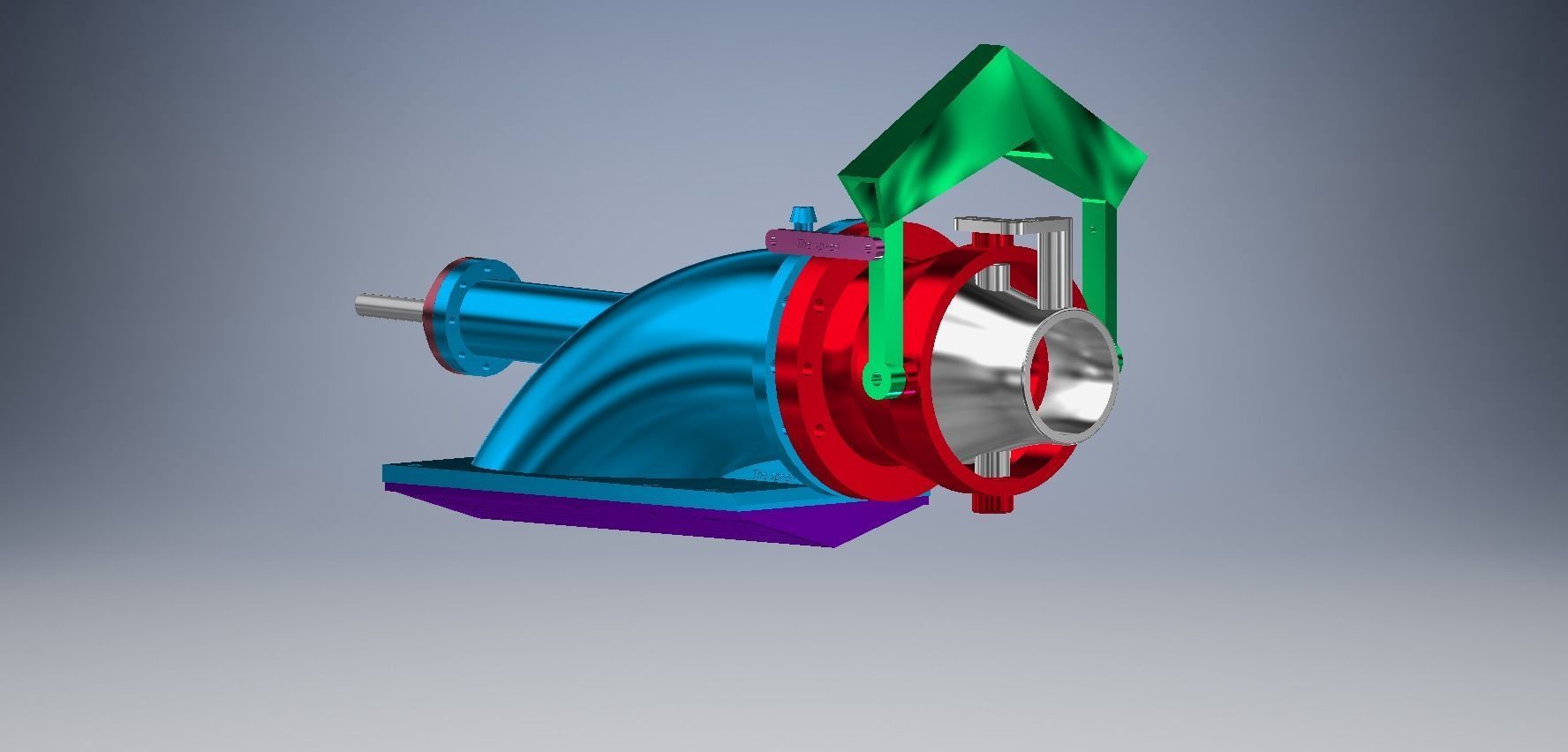

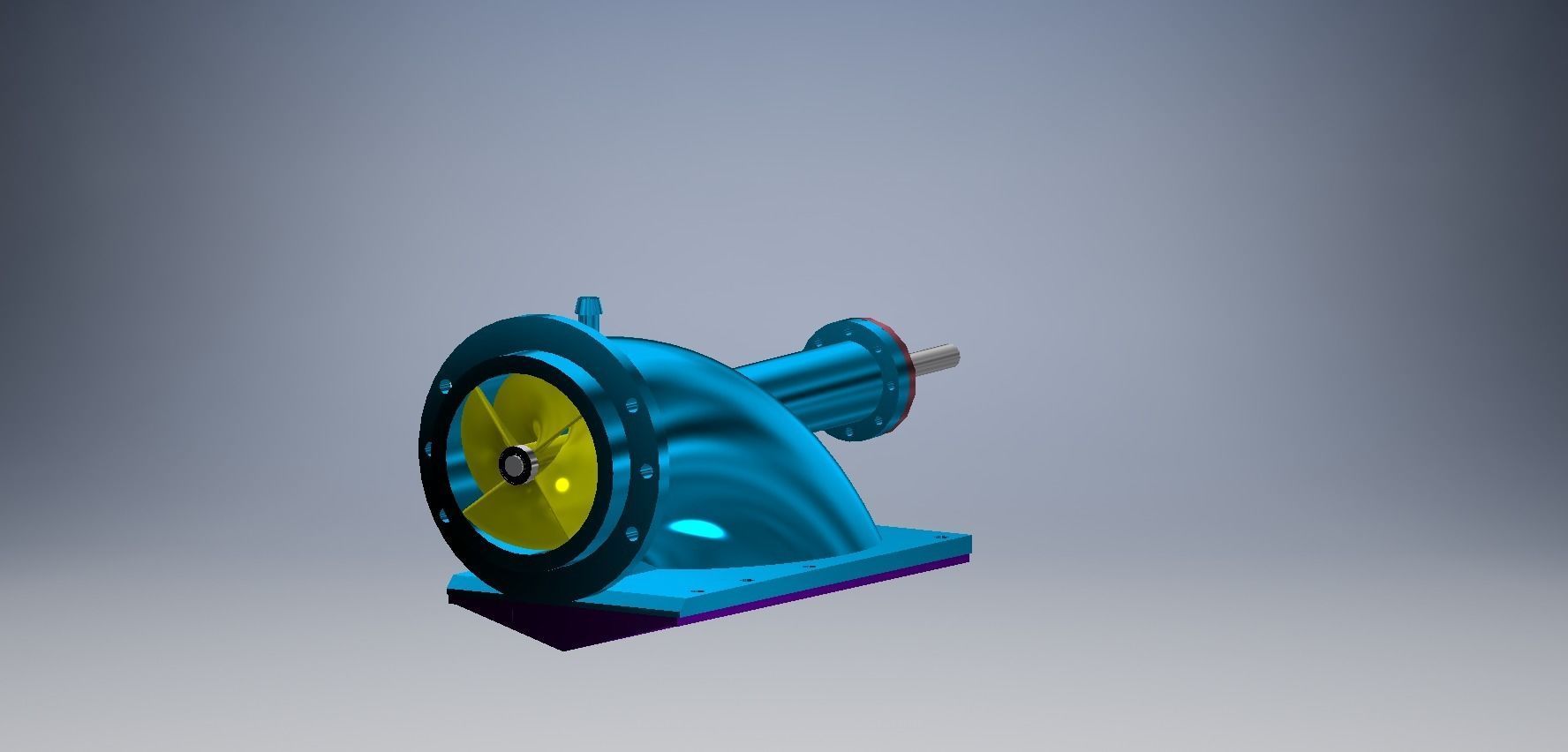

Это водометный движатель с наклоном в 1 градус и 60мм диаметром, предназначен для RC катеров и сёрф досок! Он подходит для двигателя с левым и правым вращением, вам нужно выбрать сопло с лепестками и винт для вашего двигателя! Винтов очень много с разной тягой, (.....x..... Это тяга X сколько лепестков")! Так же я начертил эскиз для вала который вам должен выточить токарь или вы сами если есть станок, материал нержавейка размер L вы должны сами выбрать так как у всех разное расстояние от двигателя! На картинке есть резиновые прокладки от протекания воды они черного цвета, продаются в сантехническом магазине, но вырезать нужно самому! На картинках показано где нужно нарезать резьбу М5 0.8! Но у меня болты нарезали резьбу без метчика; но нет гарантий что будет тогда надежно держатся! У некоторых станок печатает на пару десяток в минус, тогда нужно будет почистить сверлом отверстия диаметром 14 мм 8.1 мм чтоб влез подшипник и вал! Так же болты нужны м5 м3 м2; гайки под м5 м3!

This is a water jet engine with a slope of 1 degree and 60mm diameter, designed for RC boats and surf boards! It is suitable for the engine with left and right rotation, you need to choose a nozzle with petals and a screw for your engine! There are a lot of screws with different thrusts, (..... x ..... This is thrust X how many petals ")! I also drew a sketch for the shaft that you need to turn a turner on or you yourself if there is a machine tool, stainless steel material you must choose the L size yourself since everyone has a different distance from the engine! The picture shows rubber gaskets from the water flowing in black, they are sold in a plumbing store, but you need to cut yourself! The pictures show where you need to cut M5 0.8 thread! But I have the bolts cut the thread without a tap; but there is no guarantee that it will then be reliably de For some, the machine prints a couple of dozen in minus, then it will be necessary to clean the holes with a diameter of 14 mm by 8.1 mm to drill the bearing and shaft! Also bolts need m5 m3 m2; nuts for m5 m3

1) Ссылка на вал!

https://ru.aliexpress.com/item/32560455225.html?spm=a2g0s.9042311.0.0.7ce033edfHtqhR

2)Ссылка на подшипник!

https://ru.aliexpress.com/item/32932783080.html?spm=a2g0s.9042311.0.0.274233edYL4HZ1

3)Ссылка на подшипник!

https://ru.aliexpress.com/item/32946886835.html?spm=a2g0s.9042311.0.0.274233edYL4HZ1

4)Ссылка на подшипник! https://ru.aliexpress.com/item/32759953813.html?spm=a2g0s.9042311.0.0.274233edBOcfWO

5)Ссылка на метчик!

https://ru.aliexpress.com/item/32847457746.html?spm=a2g0o.productlist.0.0.35a51e7cWWB2Tb&algo_pvid=fd14cab3-2c85-4dda-809d-1726f507720b&algo_expid=fd14cab3-2c85-4dda-809d-1726f507720b-4&btsid=ce3db8c5-789d-4139-82e6-71739472db77&ws_ab_test=searchweb0_0,searchweb201602_7,searchweb201603_52

6)Ссылка на болт М2!

https://ru.aliexpress.com/item/32880129909.html?spm=a2g0o.productlist.0.0.4d4e5b61QH5U8W&algo_pvid=3d822917-edc1-4365-be6c-7806c2c00f5f&algo_expid=3d822917-edc1-4365-be6c-7806c2c00f5f-11&btsid=23a9d251-bb88-44a3-a246-d71317a53a0d&ws_ab_test=searchweb0_0,searchweb201602_7,searchweb201603_52

7)Ссылка на болт М3!

https://ru.aliexpress.com/item/32880129909.html?spm=a2g0o.productlist.0.0.58934031xvWSPP&algo_pvid=6833dcb6-3e82-4467-8411-3e0d956f09ed&algo_expid=6833dcb6-3e82-4467-8411-3e0d956f09ed-0&btsid=a01163dc-d119-4456-92d0-3304beaebda2&ws_ab_test=searchweb0_0,searchweb201602_7,searchweb201603_52

8)Ссылка на болт М5 для соединения подруливающего сопла!

https://ru.aliexpress.com/item/33024110301.html?spm=a2g0o.productlist.0.0.501458d2JR8T8k&s=p&algo_pvid=227f32c3-482f-487c-9500-e3b5f4126352&algo_expid=227f32c3-482f-487c-9500-e3b5f4126352-25&btsid=55624322-aa5e-429e-80c1-5a305e0eb54c&ws_ab_test=searchweb0_0,searchweb201602_7,searchweb201603_52

9)Ссылка на болт М5 для соединения трубы водометной и сопла!

https://ru.aliexpress.com/item/33024110301.html?spm=a2g0o.productlist.0.0.501458d2JR8T8k&s=p&algo_pvid=227f32c3-482f-487c-9500-e3b5f4126352&algo_expid=227f32c3-482f-487c-9500-e3b5f4126352-25&btsid=55624322-aa5e-429e-80c1-5a305e0eb54c&ws_ab_test=searchweb0_0,searchweb201602_7,searchweb201603_52

10)Ссылка на гайку м5 и м3!

https://ru.aliexpress.com/item/32988995881.html?spm=a2g0o.productlist.0.0.5d627dcfqZiZSG&algo_pvid=dfd91a00-d186-4eb9-9001-823d8b9b6cbe&algo_expid=dfd91a00-d186-4eb9-9001-823d8b9b6cbe-0&btsid=aaed2e99-86d9-4d59-a722-2f10748a455f&ws_ab_test=searchweb0_0,searchweb201602_7,searchweb201603_52

Это все надо купить!
