Shaper Machine Tool Head Slide Assembly 3D print model

DESCRIPTION

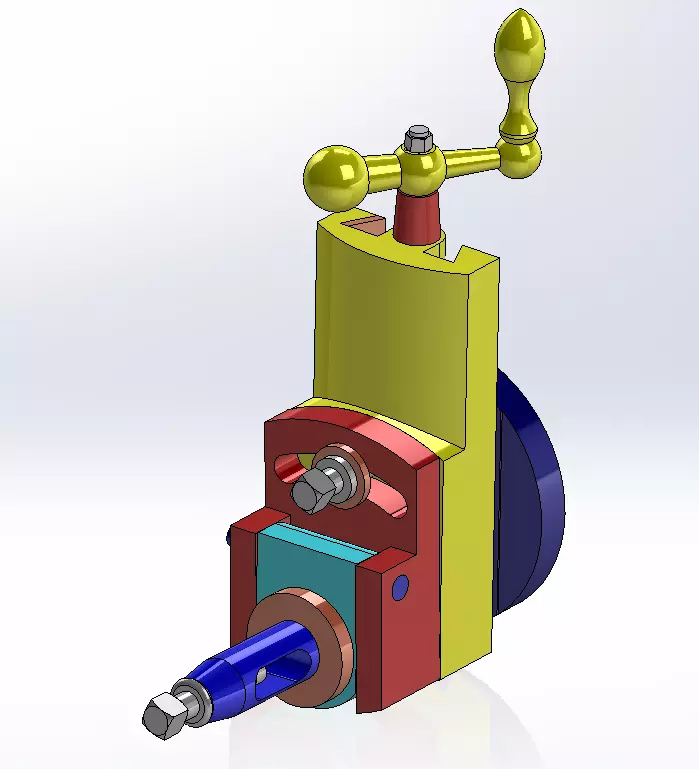

This Shaper Machine Tool Head Slide assembly is a detailed mechanical model designed in SolidWorks. The model accurately represents the tool head sliding mechanism used in conventional shaper machines for metal cutting operations.

The assembly includes all major components and is suitable for:

• Mechanical engineering projects• Manufacturing engineering demonstrations• Motion and assembly study• Educational presentations• 3D printing (STL included)

Files Included:• SolidWorks Assembly (.SLDASM)• Part files (.SLDPRT)• STEP file• STL files

Clean structure and properly organized components for easy editing and modification.
