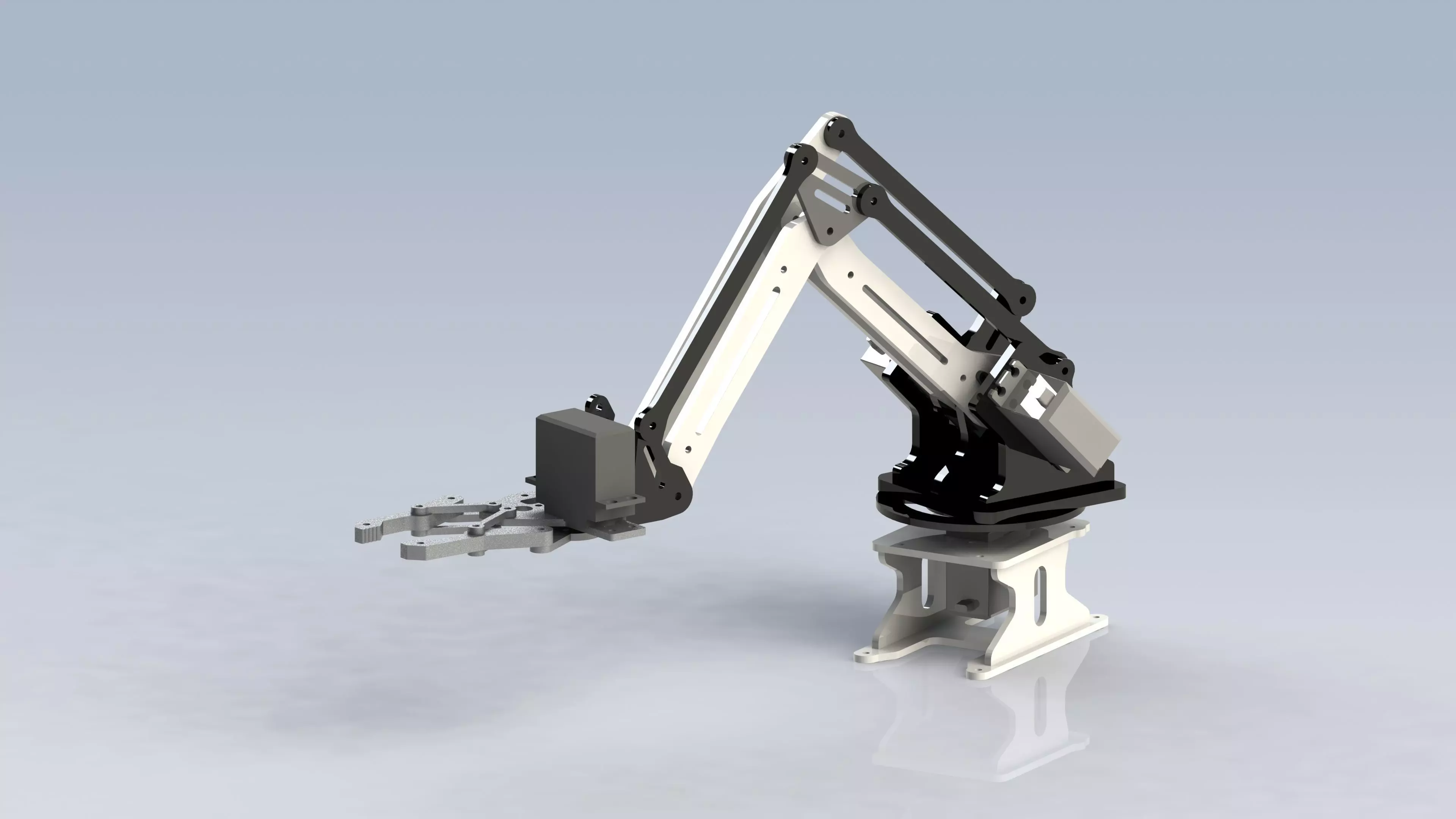

3DOF Robotic Arm with Vertical Object Picking Gripper – v1.1The 3DOF Robotic Arm v1.1 is a compact, efficient, and precision-oriented robotic solution designed for vertical object picking applications. Designed for simplicity, manufacturability, and performance, this version integrates a mechanically optimized 3-degree-of-freedom architecture with a robust parallel gripper mechanism for reliable grasping.
This robotic arm is ideal for pick-and-place operations, light industrial automation, educational projects, and prototyping environments where accuracy and repeatability are essential.
Key Features:
3DOF Mechanical Architecture:Optimized joint configuration ensuring smooth motion, adequate reach, and controlled positioning.
Vertical Object Picking Gripper:Custom-designed gripper with synchronized linkage mechanism for stable and precise gripping of objects.
Lightweight & Strong Structure:Designed for 3D printing and CNC manufacturing with balanced strength-to-weight ratio.
Compact Base Design:Stable base platform for vibration reduction and consistent operation.
Ease of Manufacturing:All components are designed for easy fabrication, assembly, and maintenance.
Modular Design Approach:Enables quick upgrades, modifications, and integration with motors, encoders, and control systems.
Applications:
Files & Resources Included:You can find all the necessary files required for manufacturing and 3D printing, including:
This ensures flexibility for both hobbyists and professional engineers to adapt the design as per their requirements.
Limited Time Offer:Get full access to all design files and resources for a limited period—perfect opportunity to kickstart your robotics project or integrate into your existing system.
