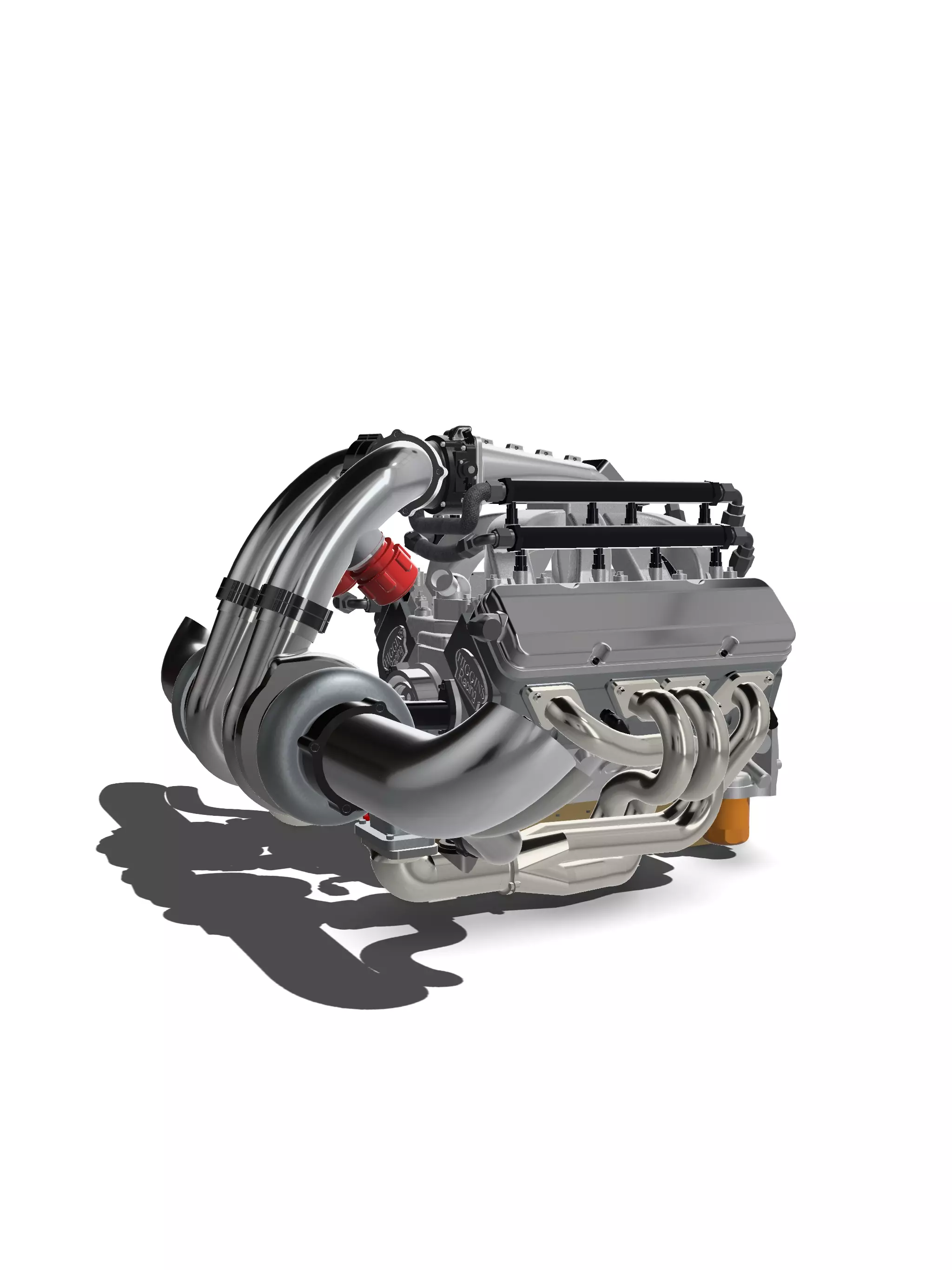

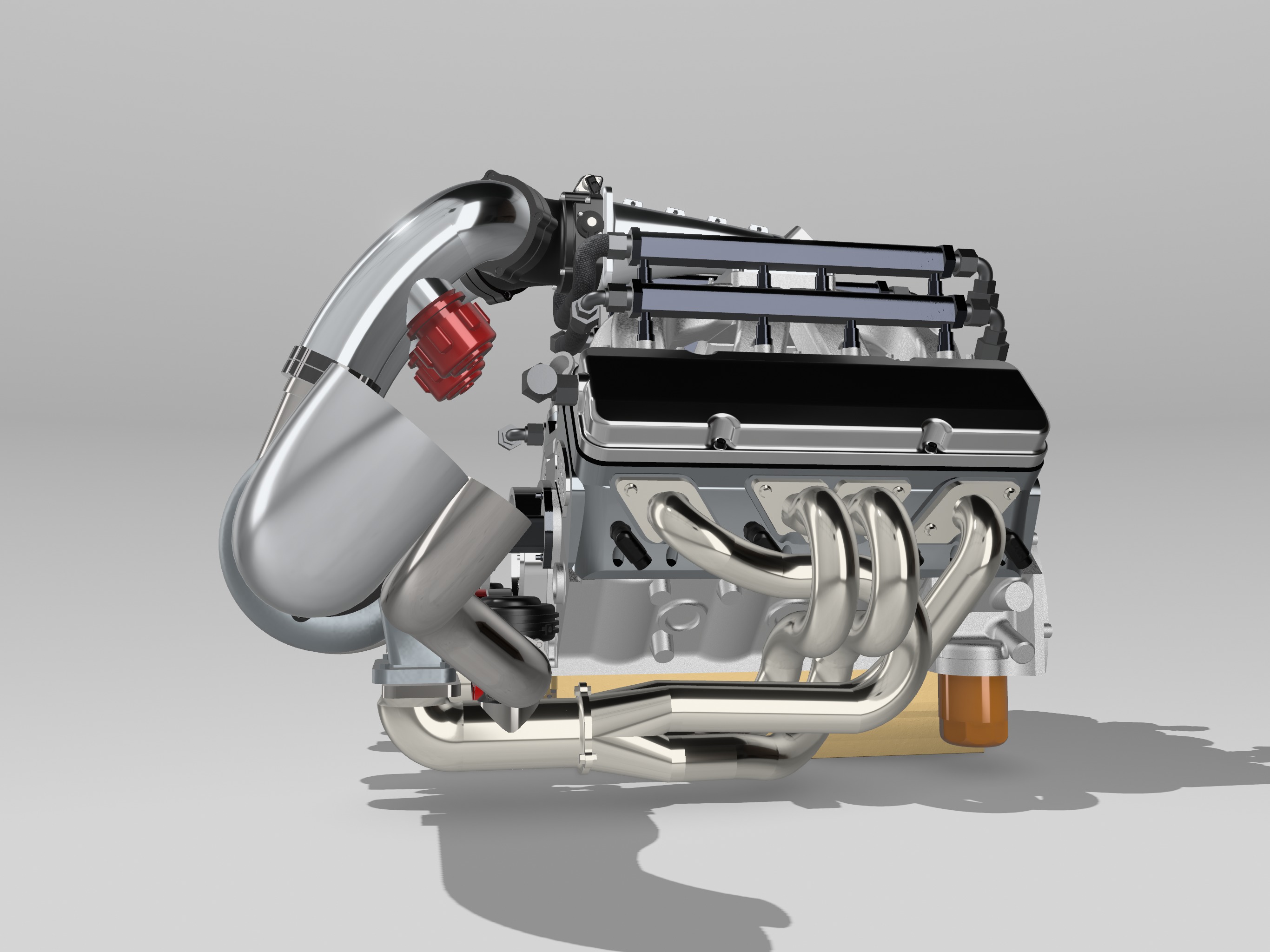

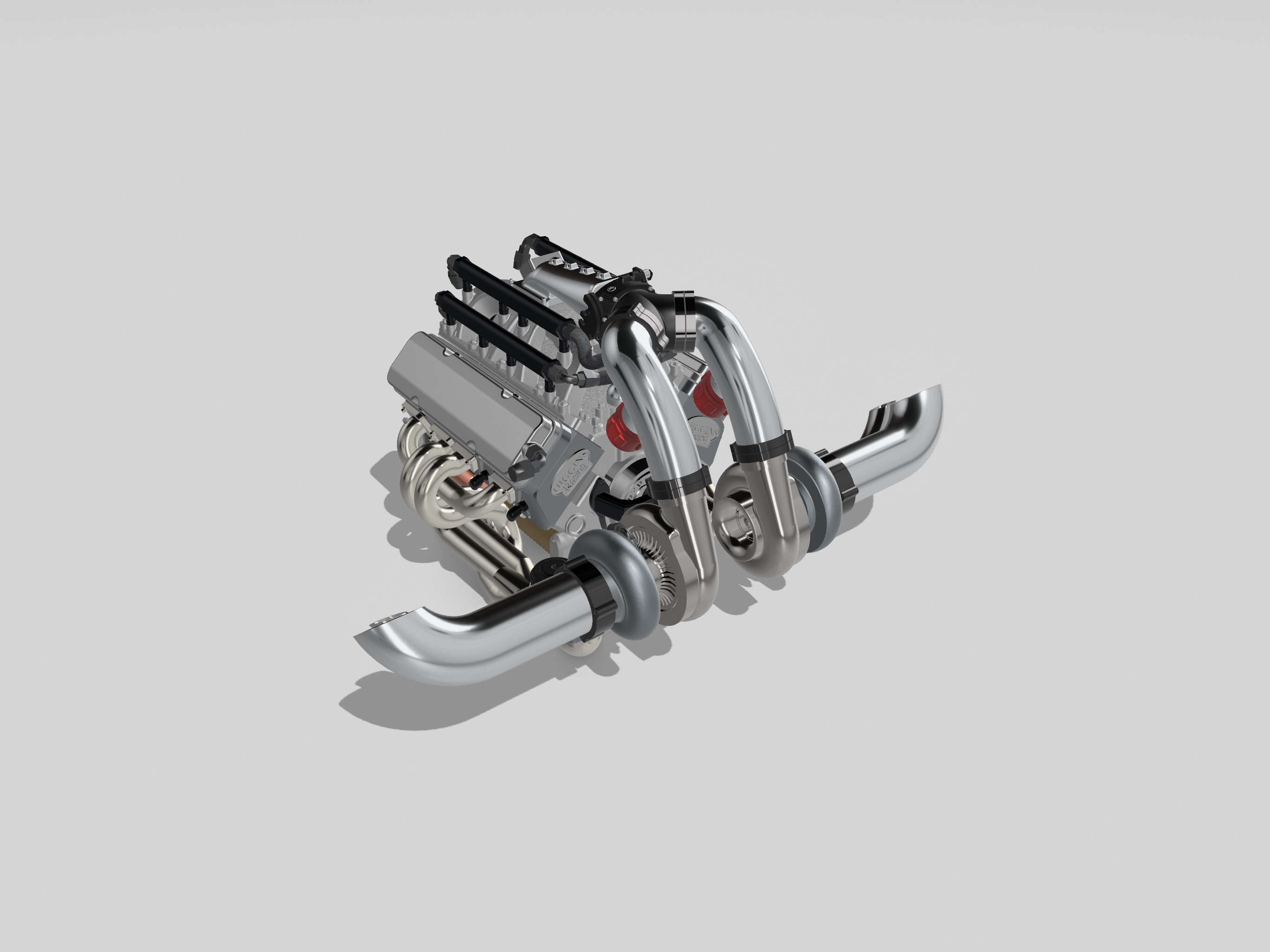

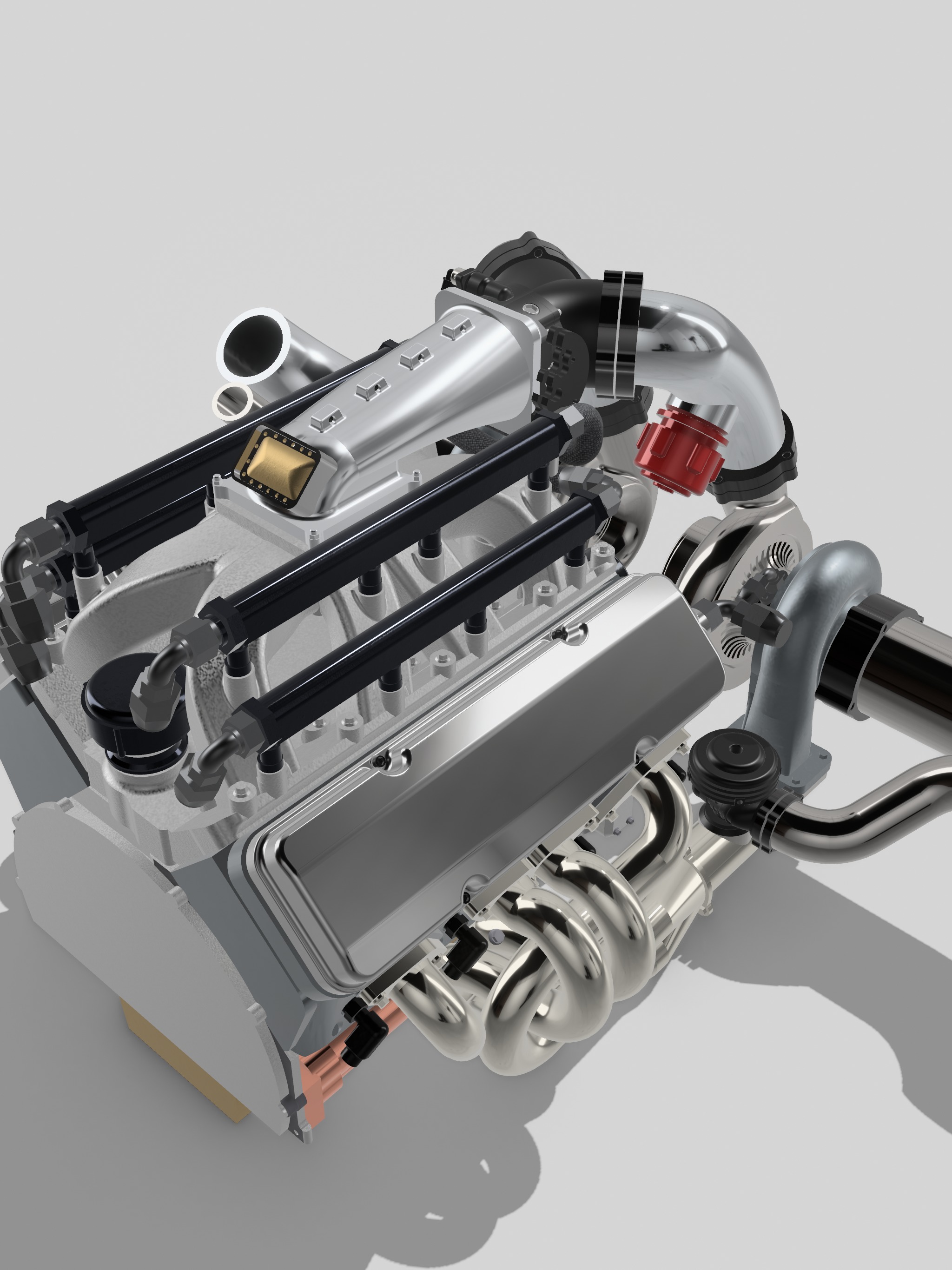

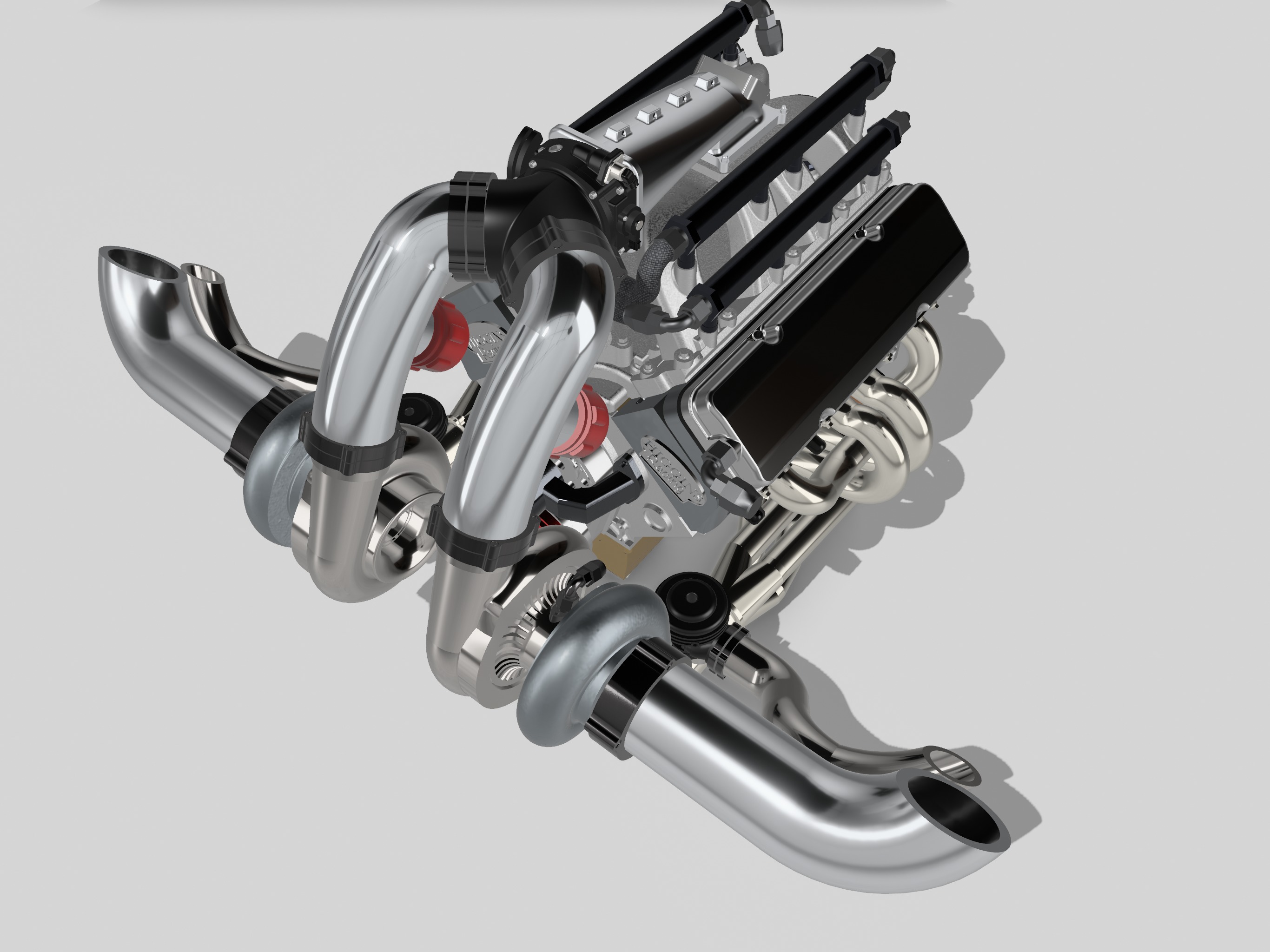

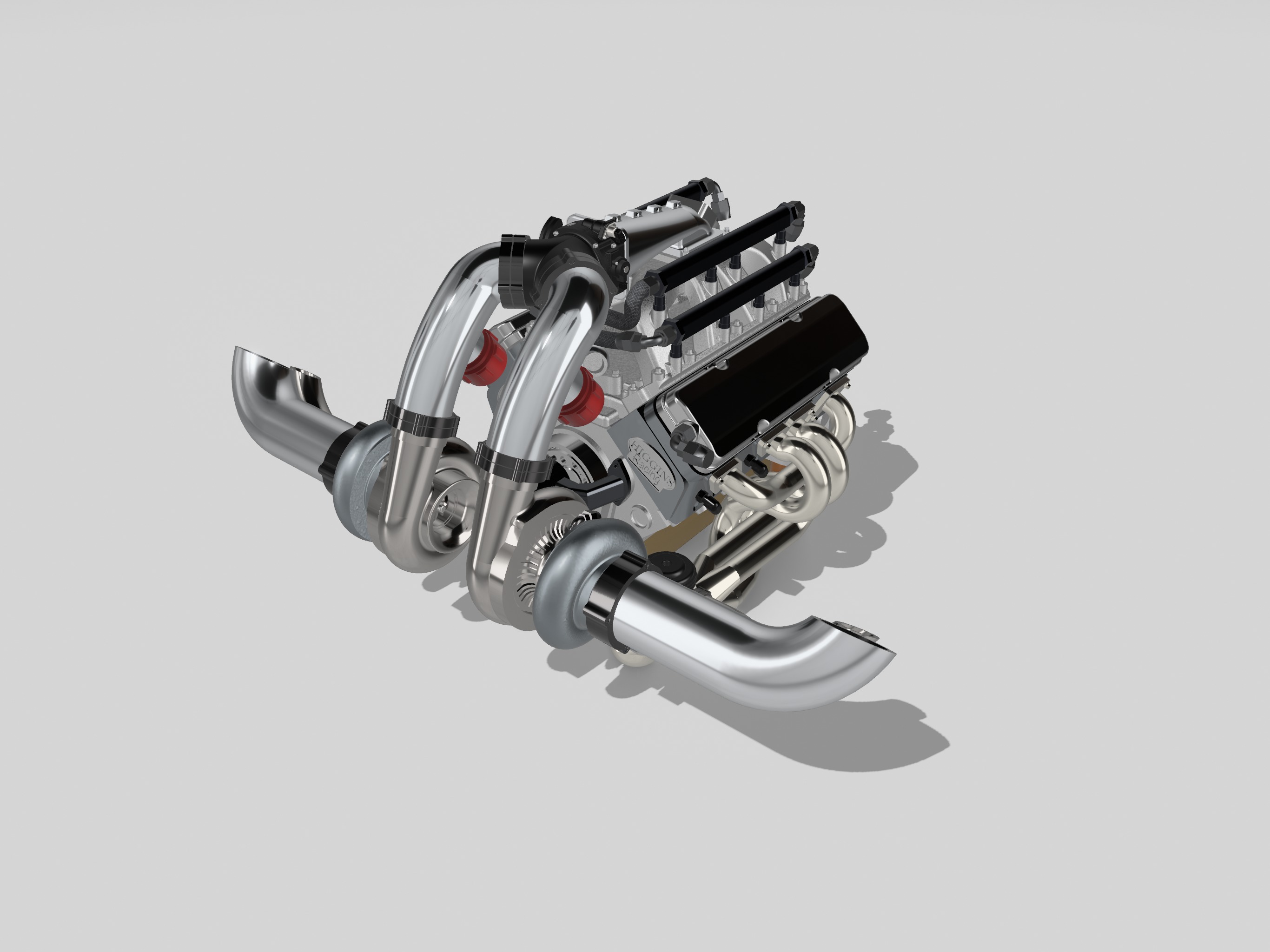

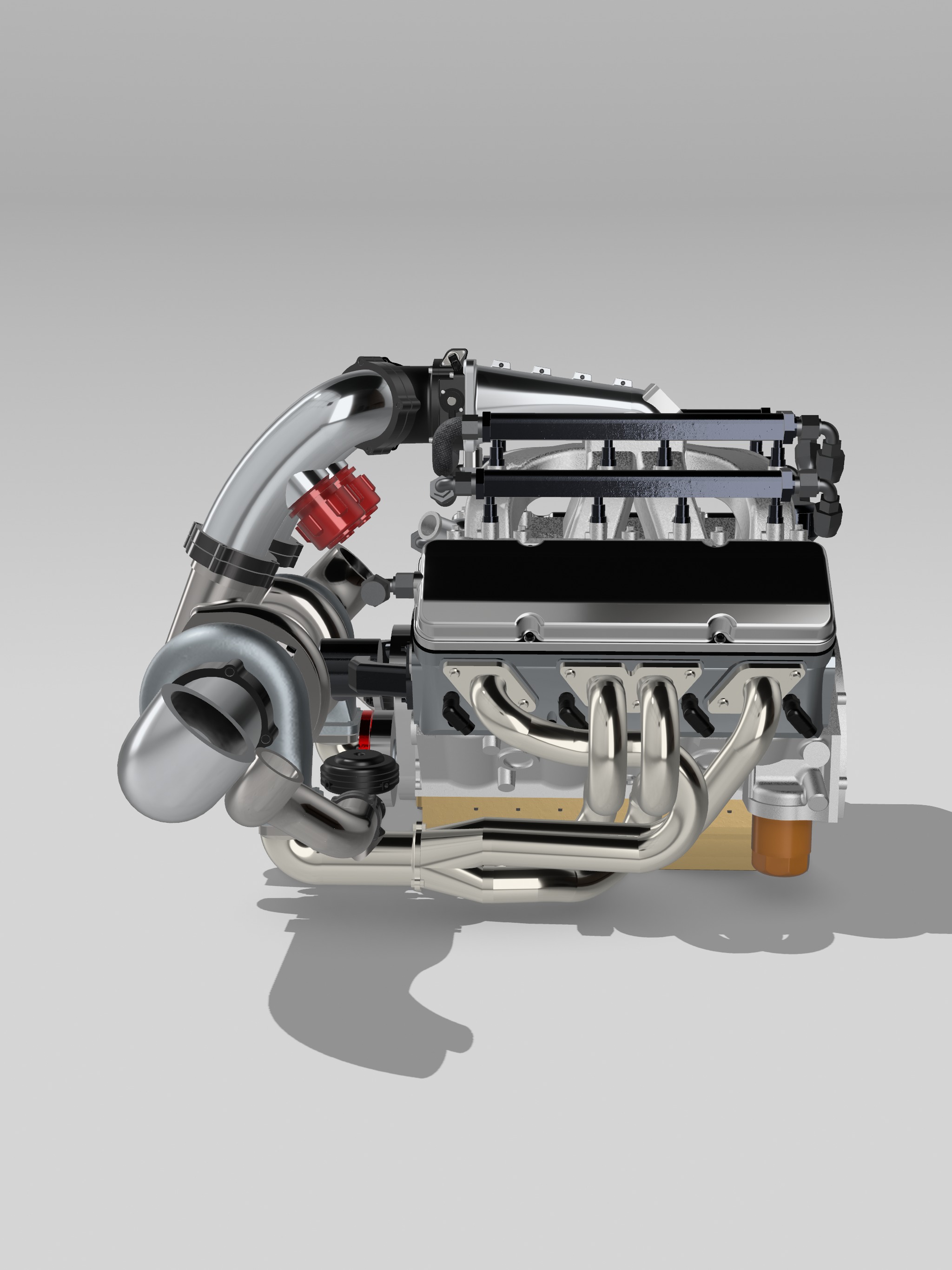

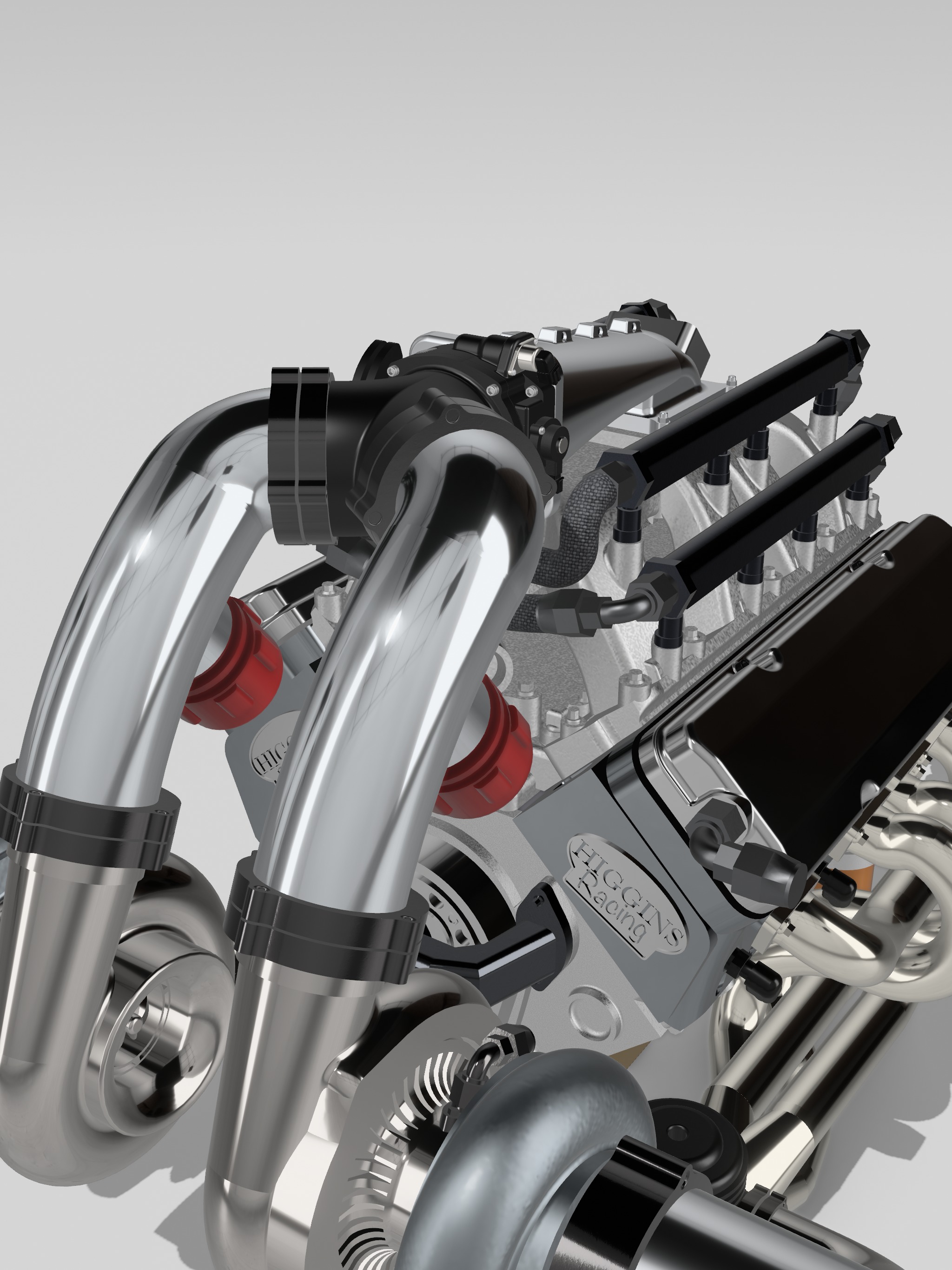

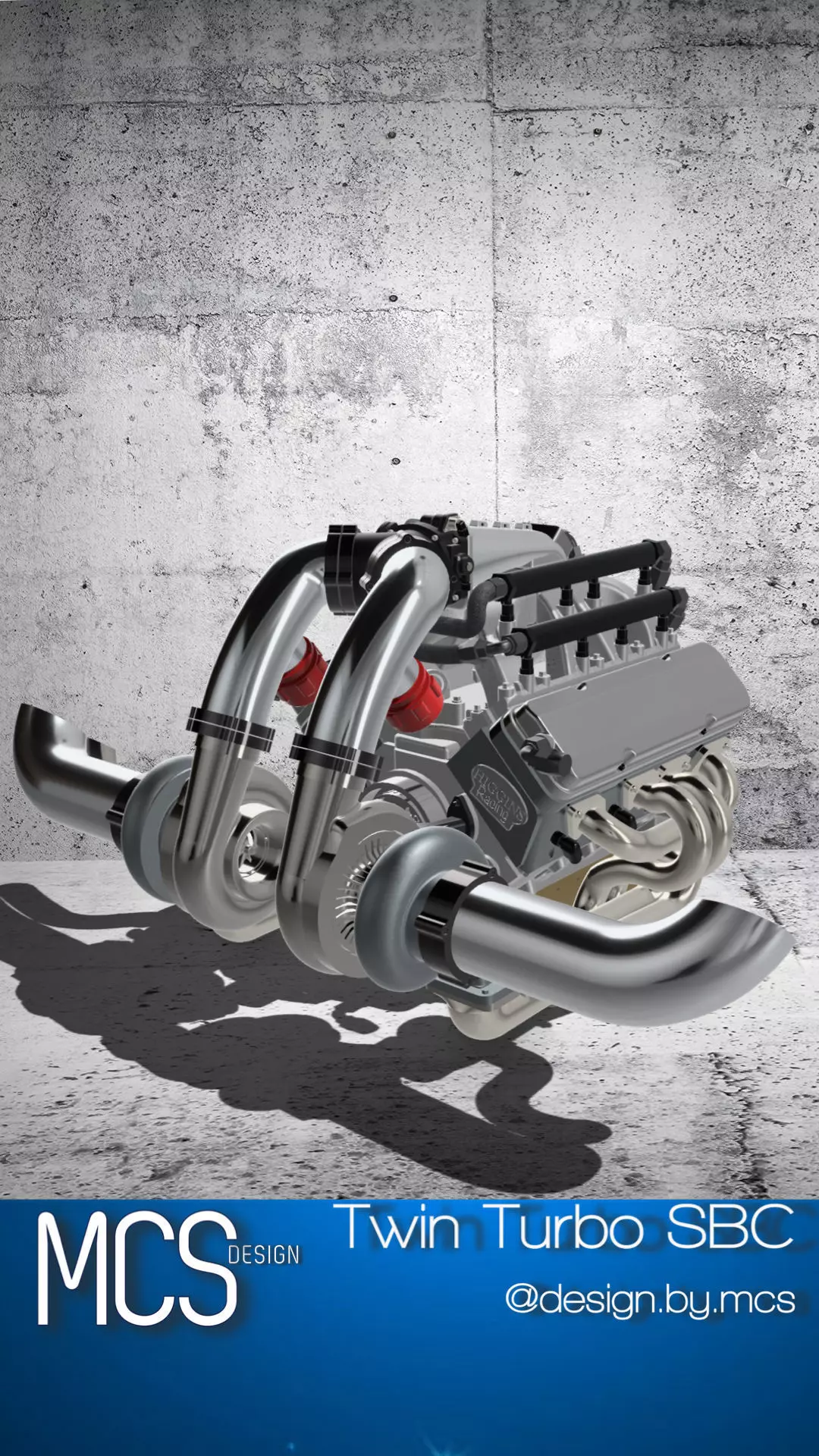

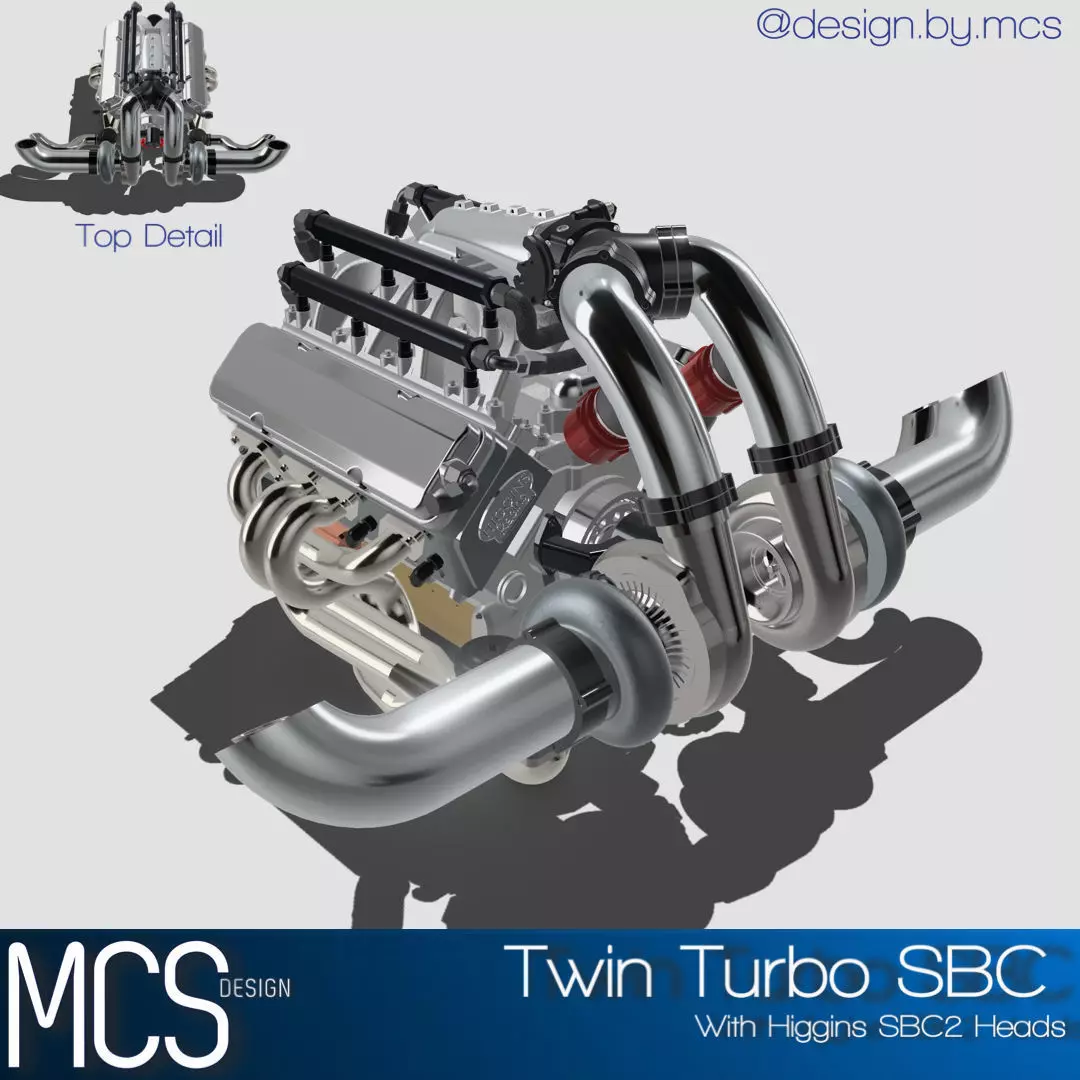

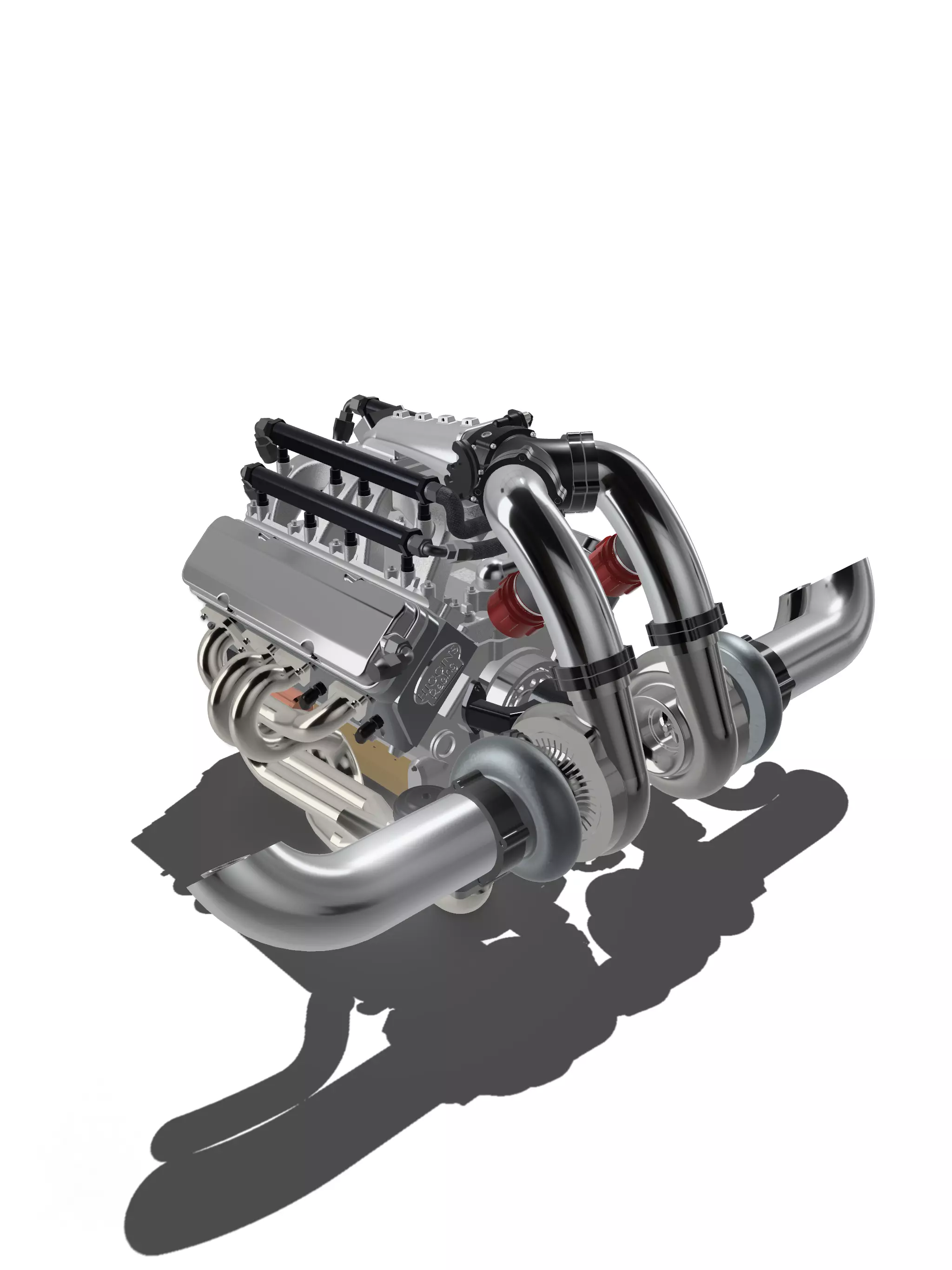

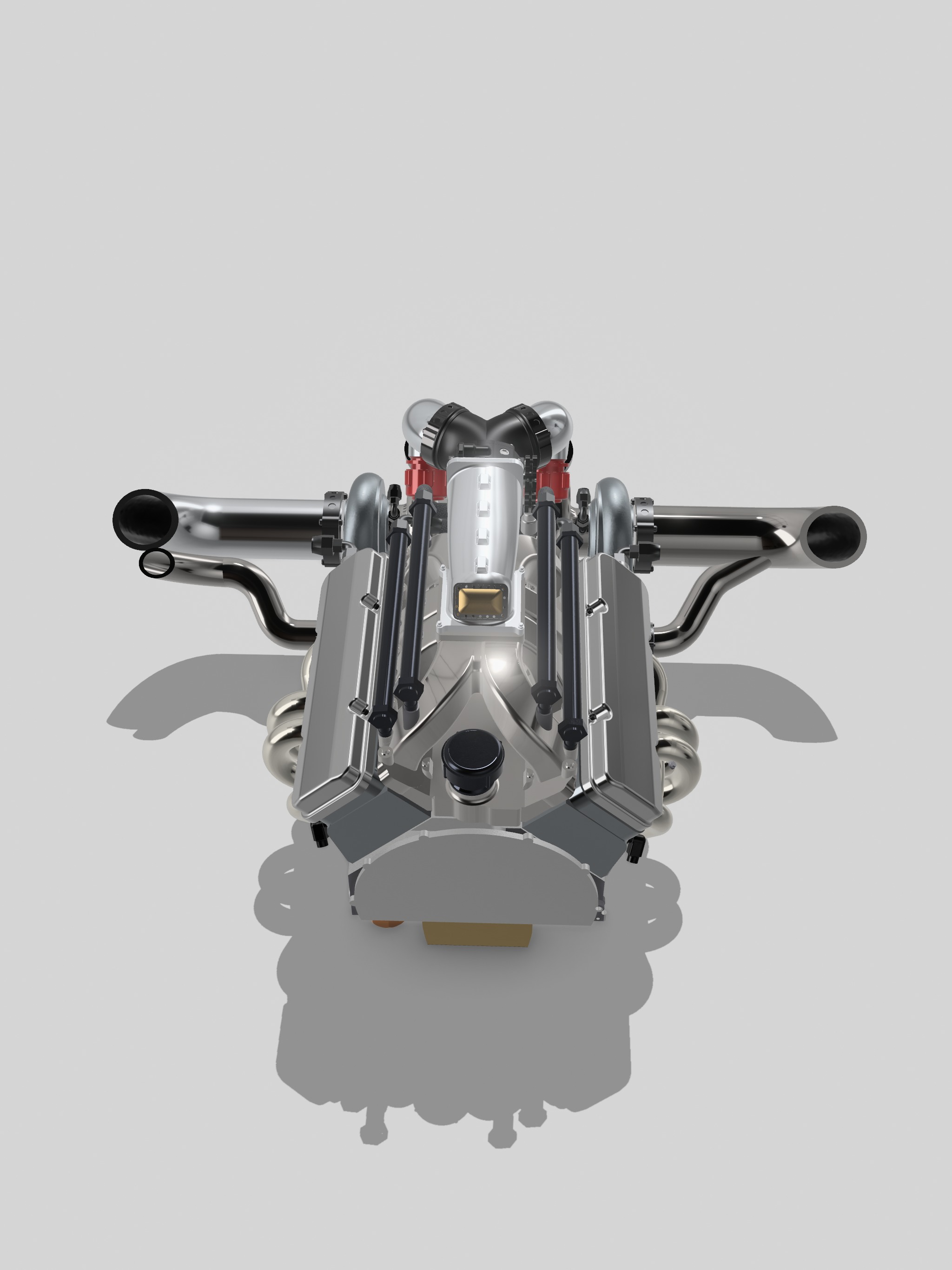

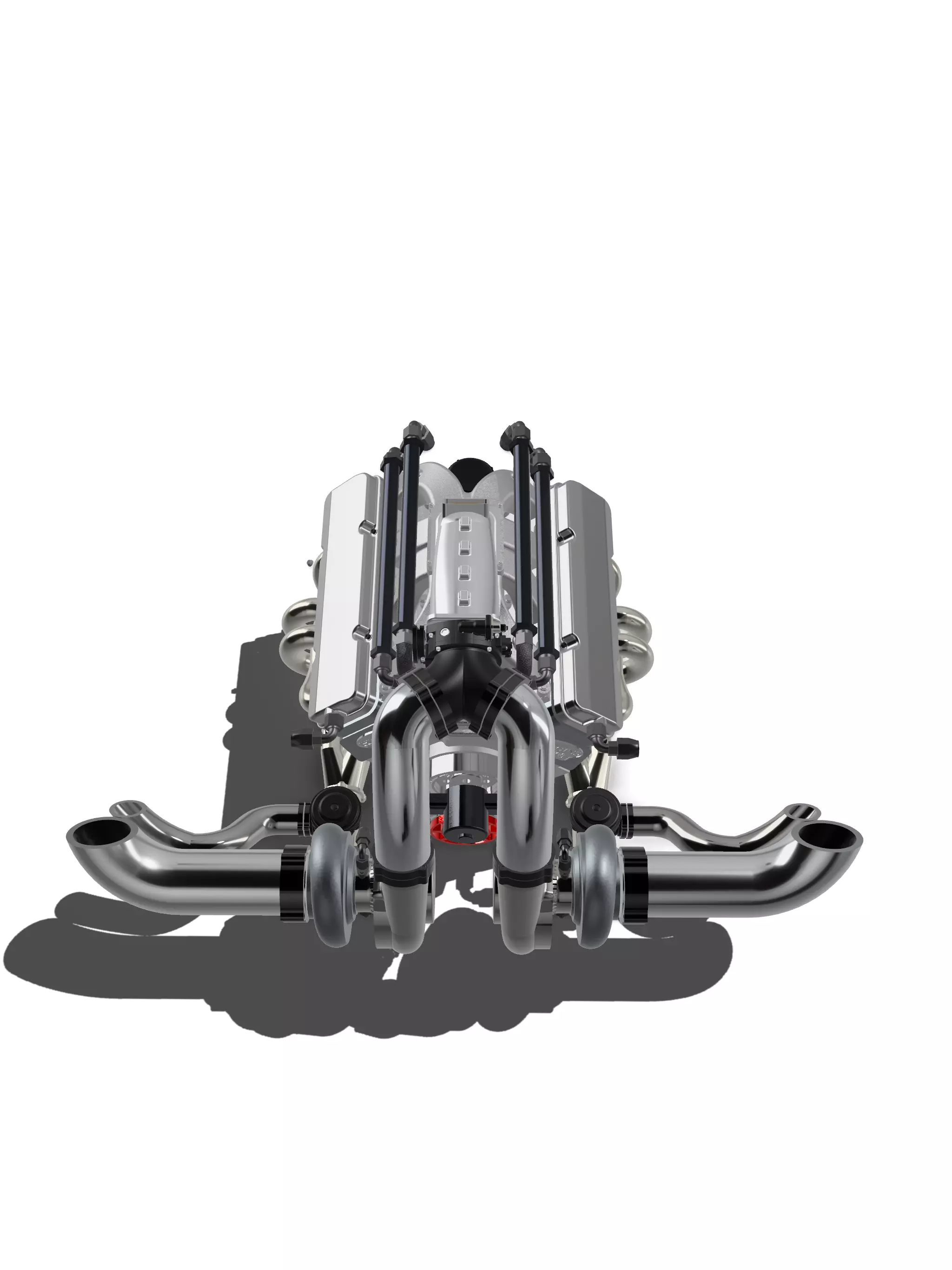

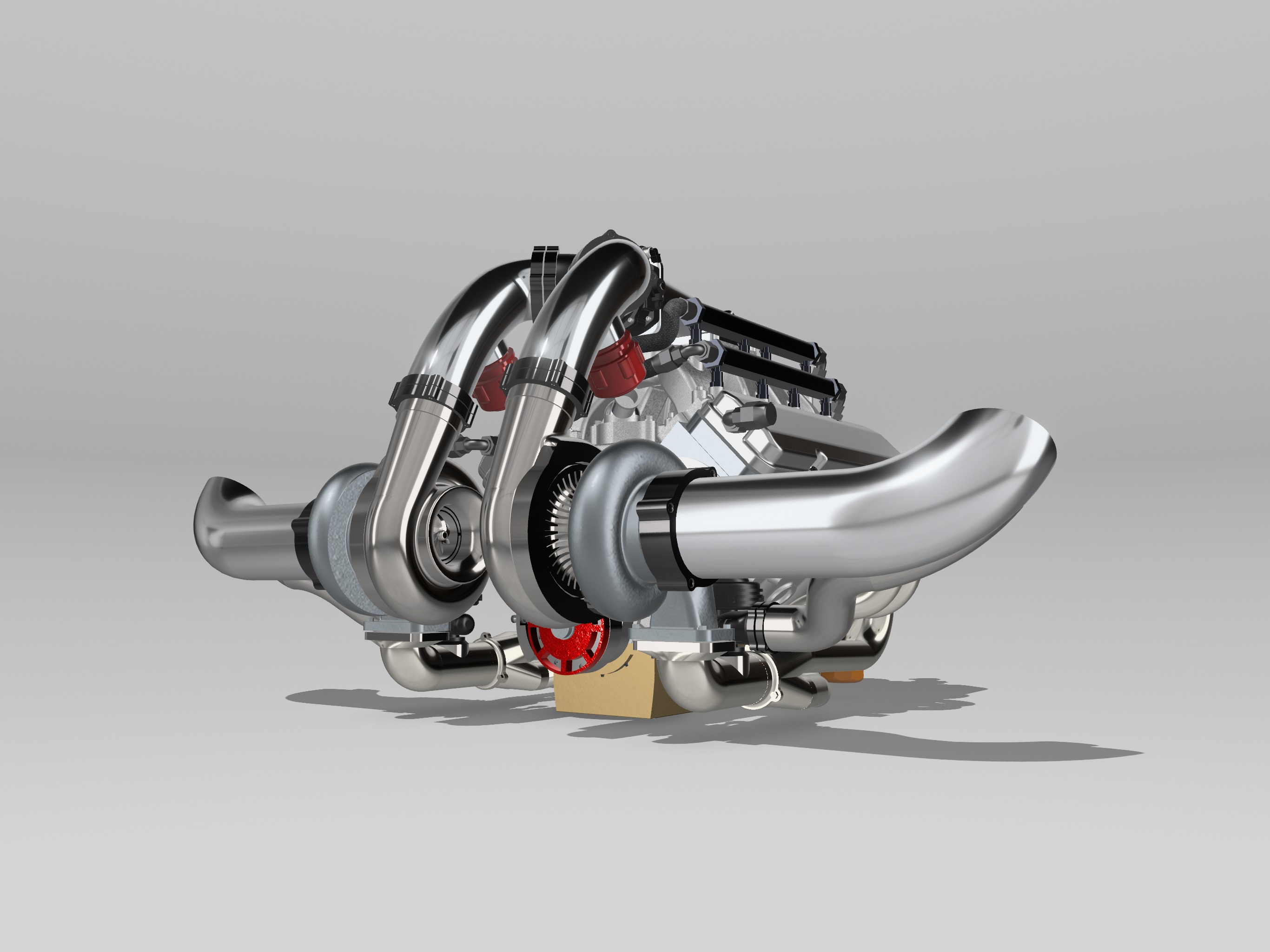

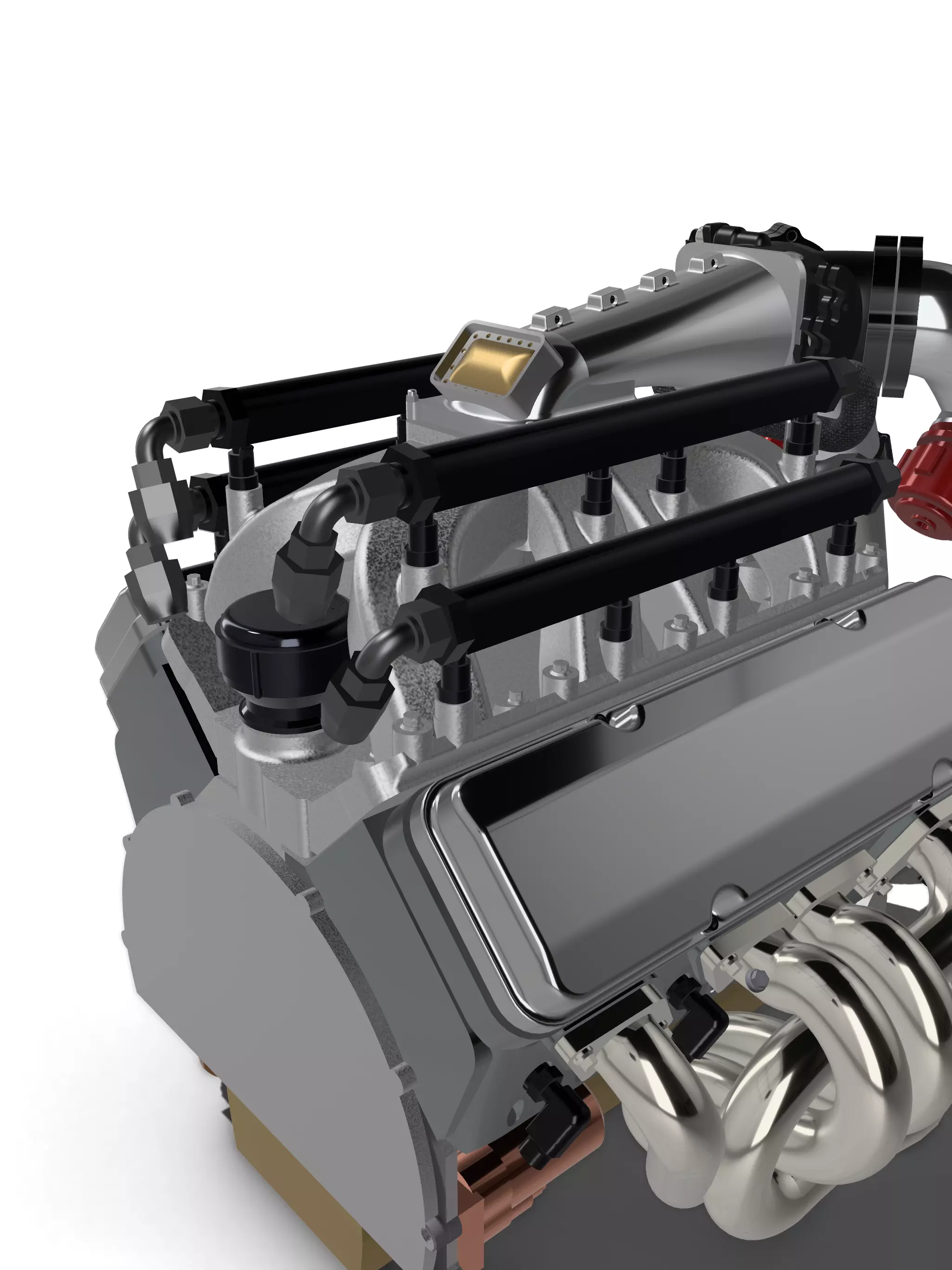

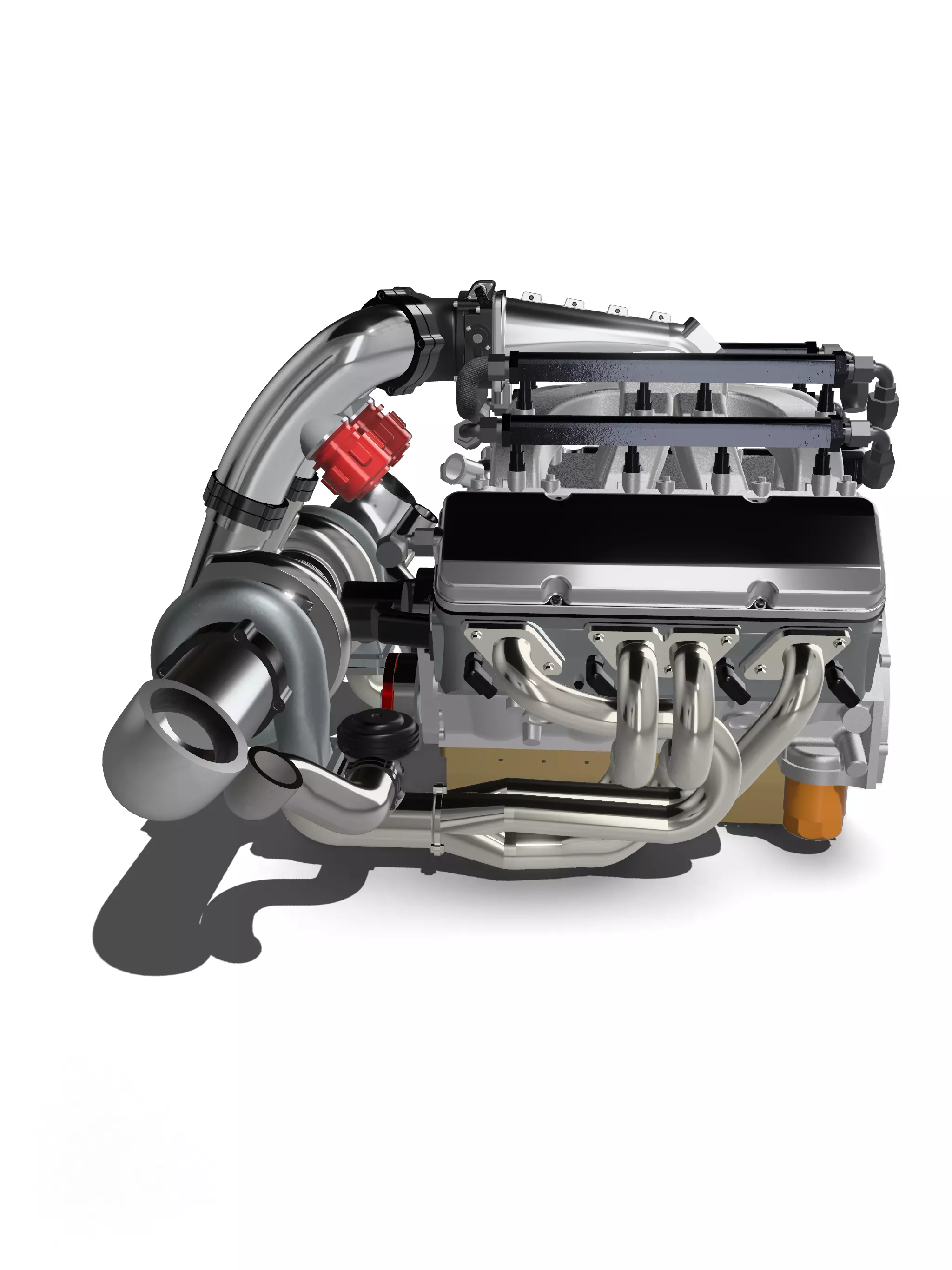

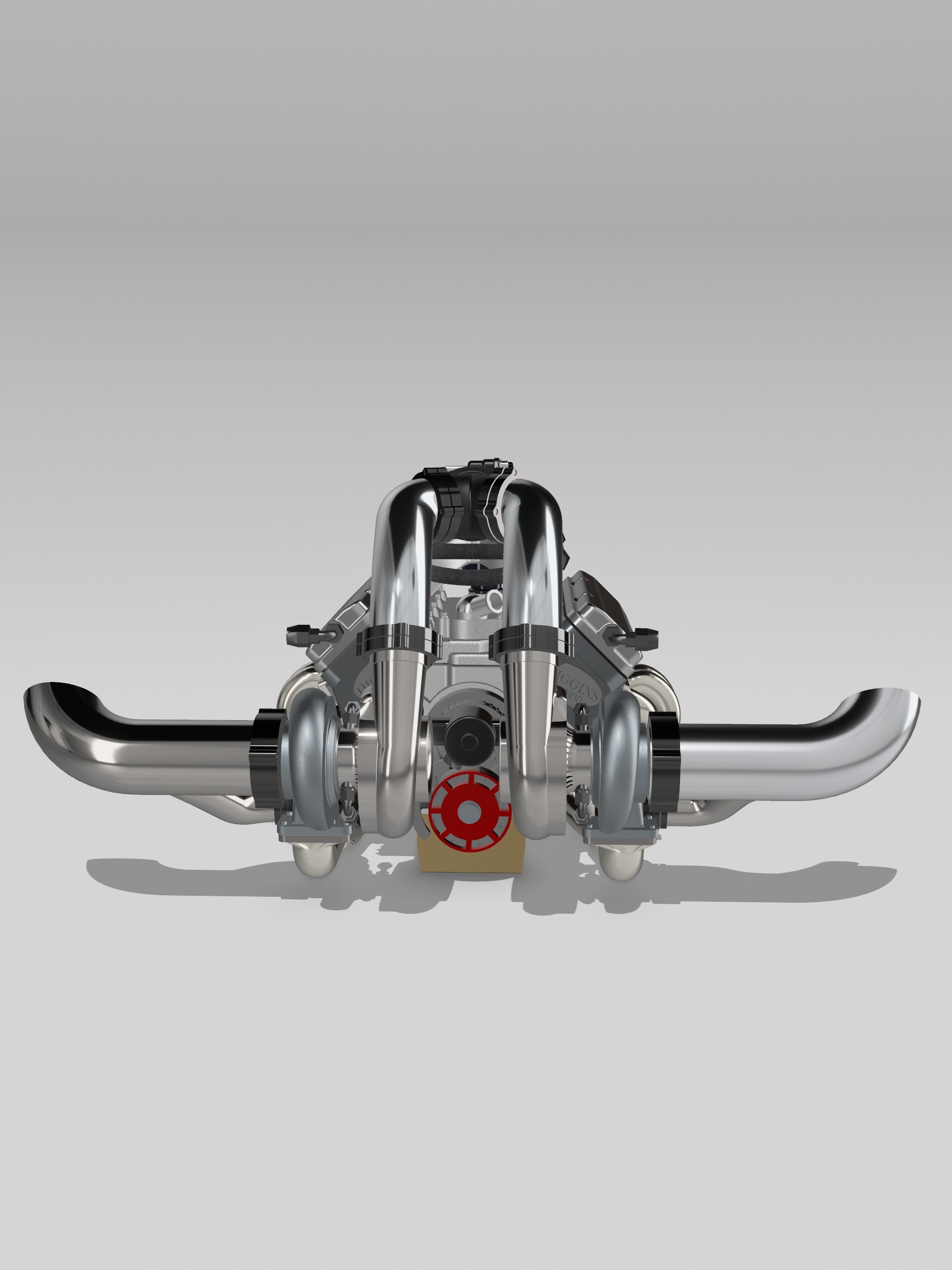

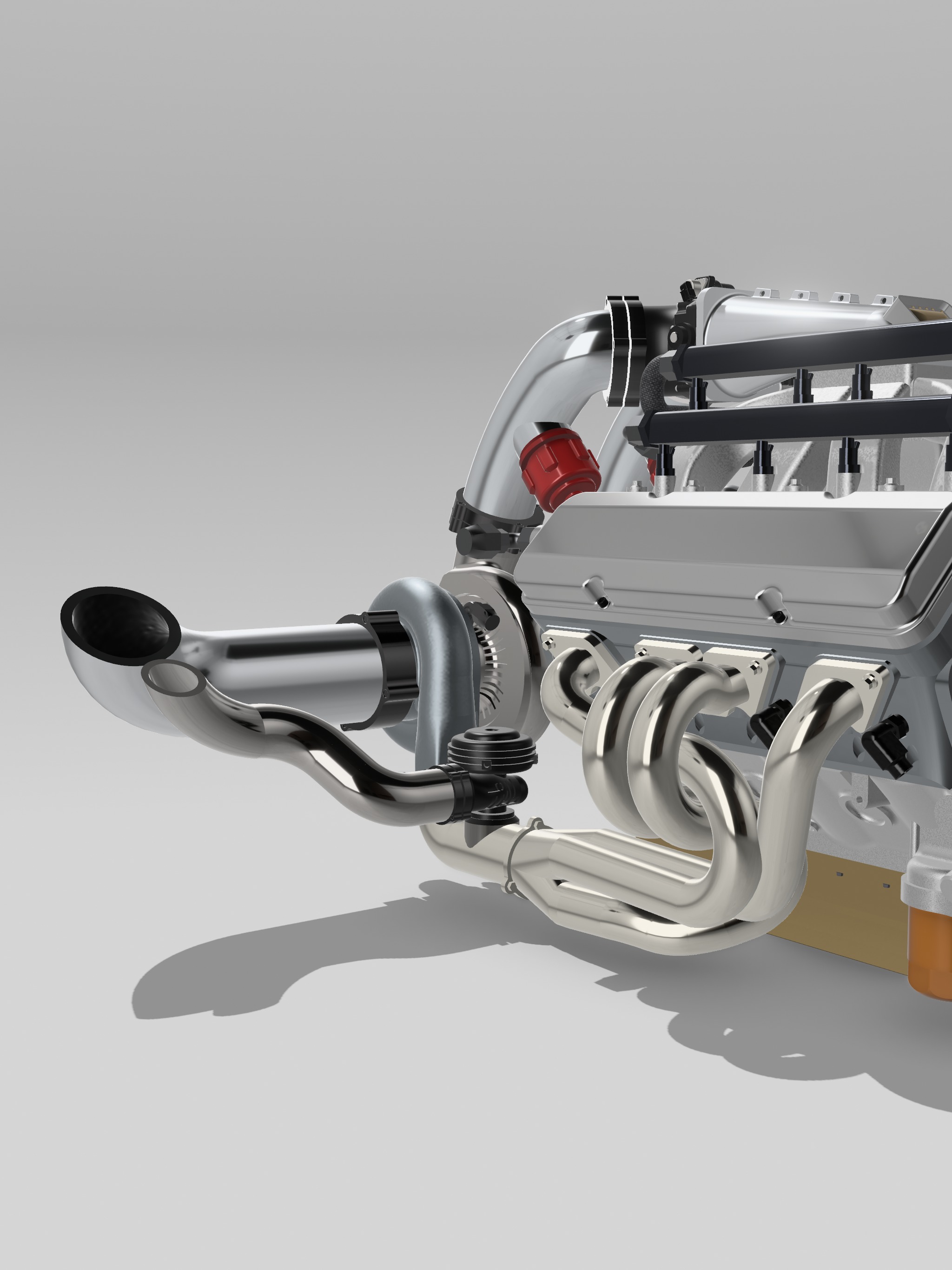

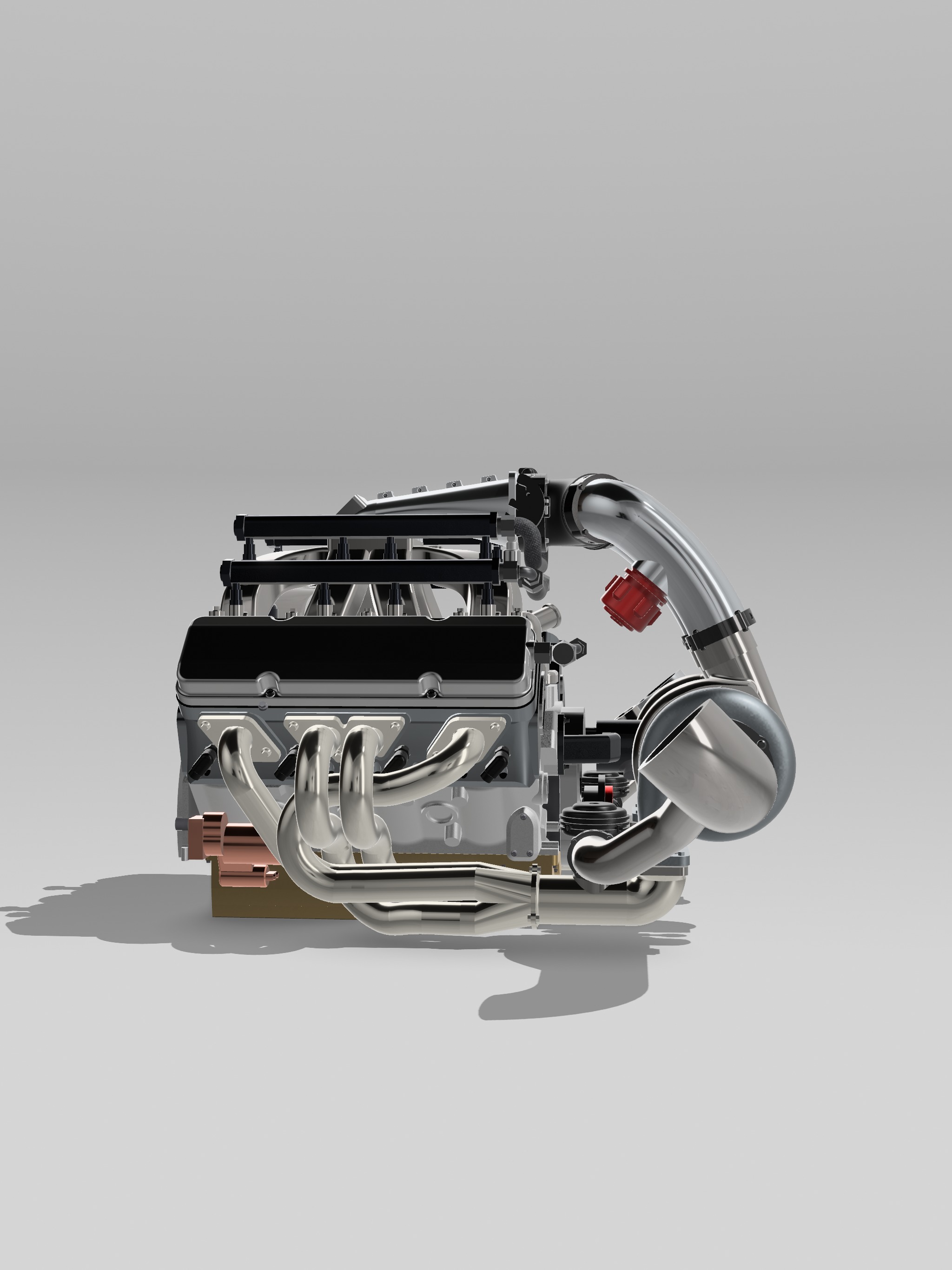

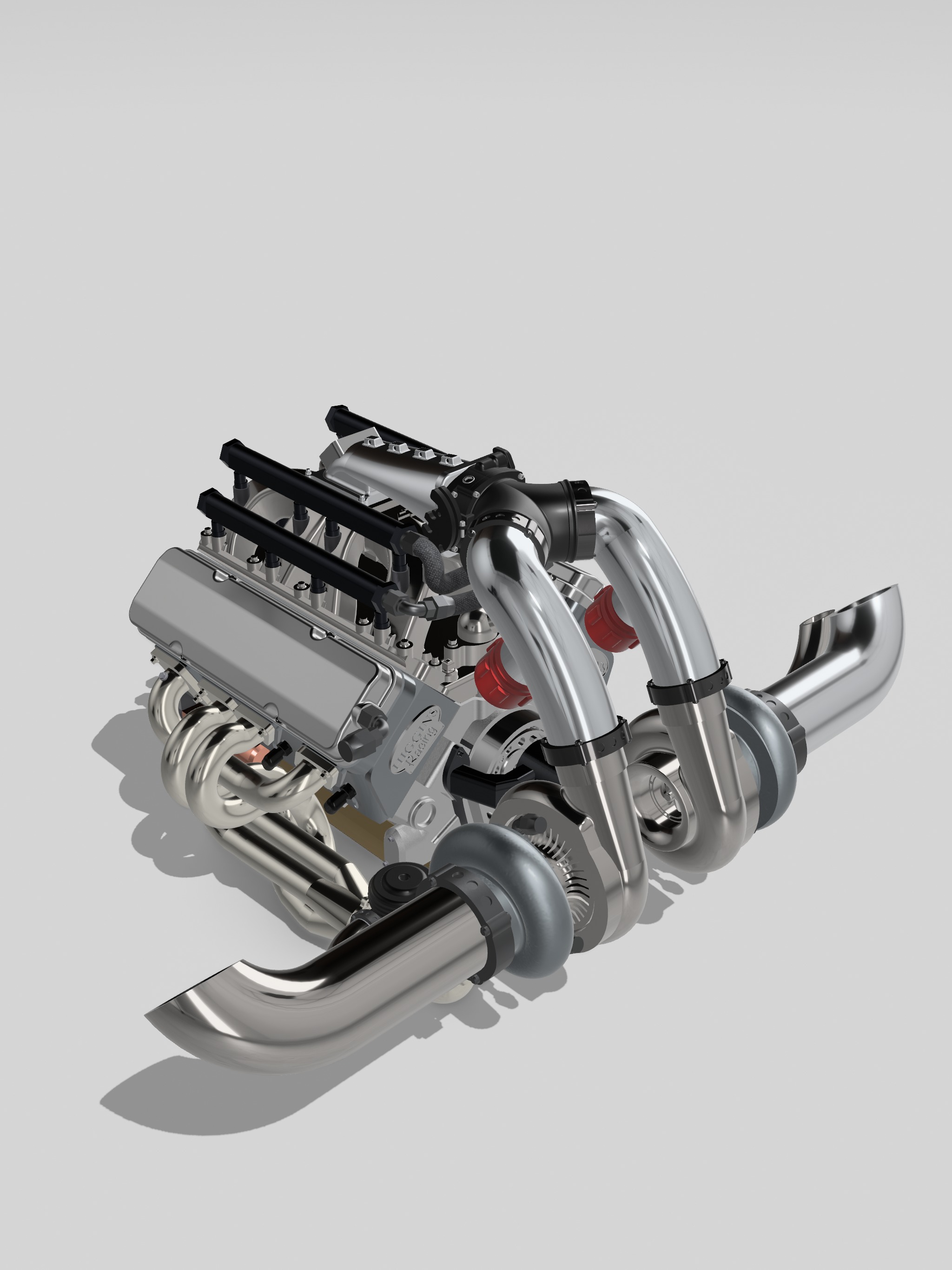

Designed from scratch is a Dart based SBC with Higgins heads, in a Twin Turbo config, complete, high in detail, ideal for scale modeling (currently in 1/24 and 1/25 scale).
'Digital tour of the engine available here;https://youtu.be/xib_FW0WTwc?si=rI0MPLMQcoaf_JN3
Perfect for those drag racing or tough street racing builds!
Details include;
- Dart block with detailed front timing set

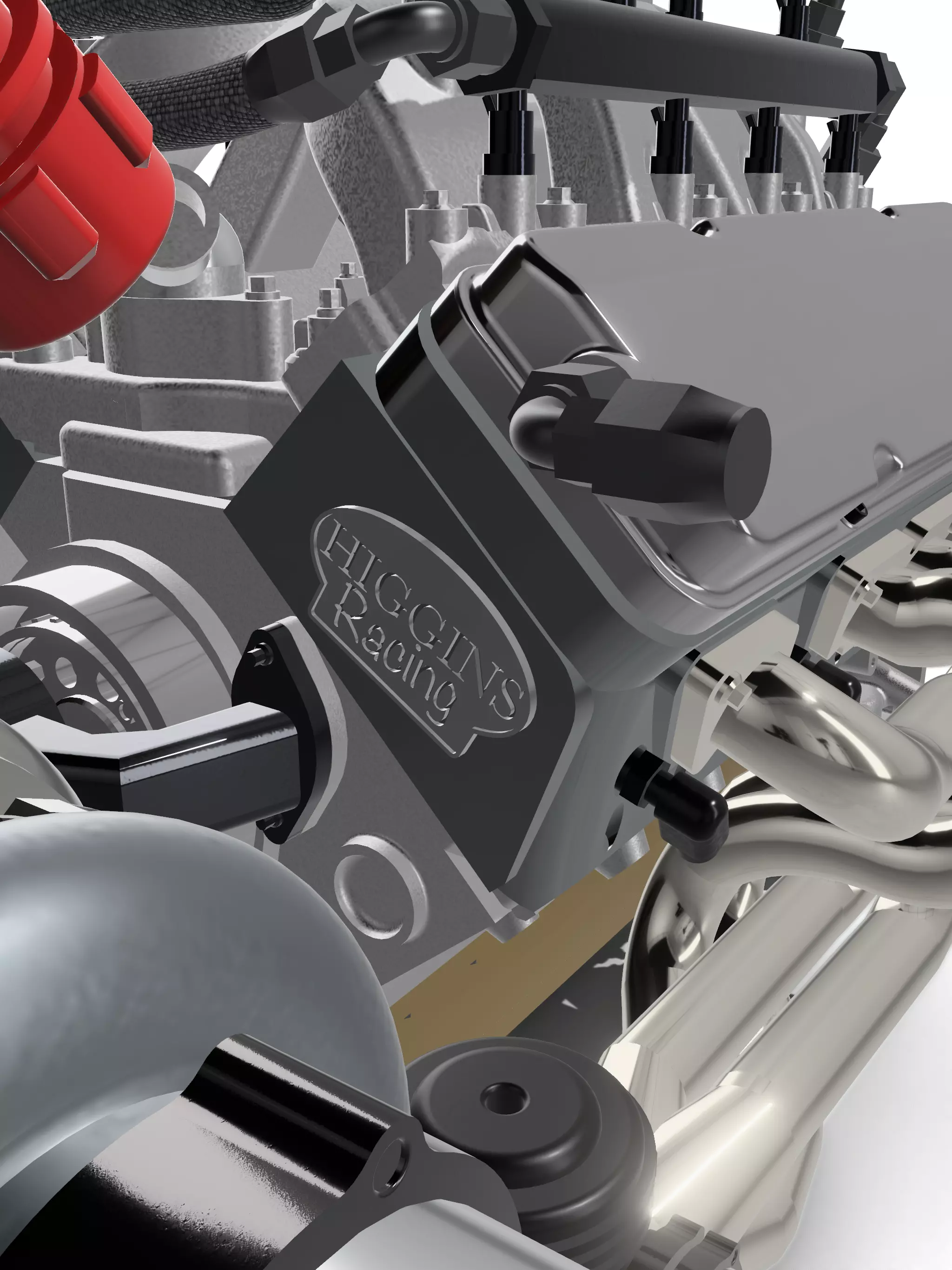

- Higgins heads with nameplates

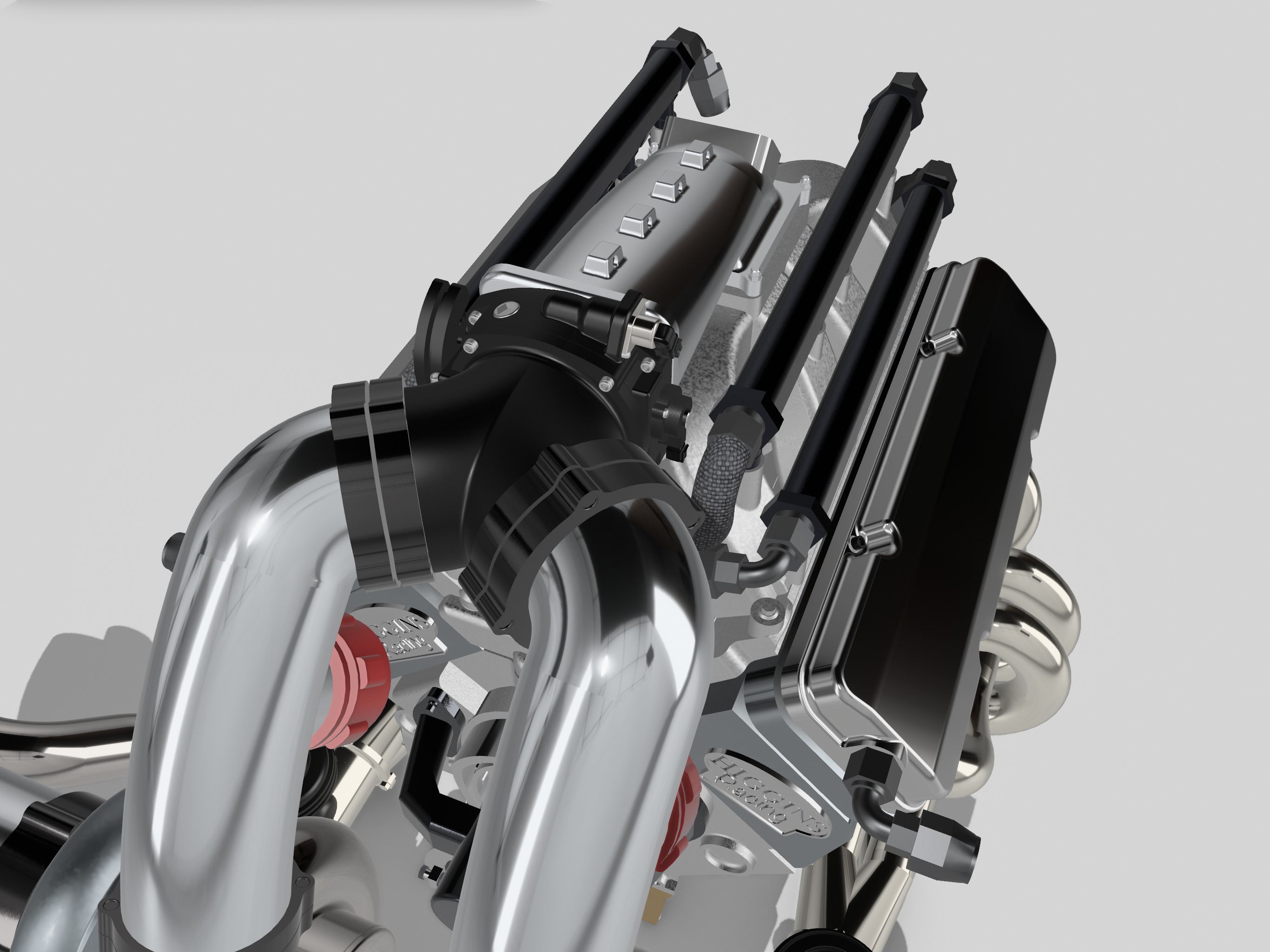

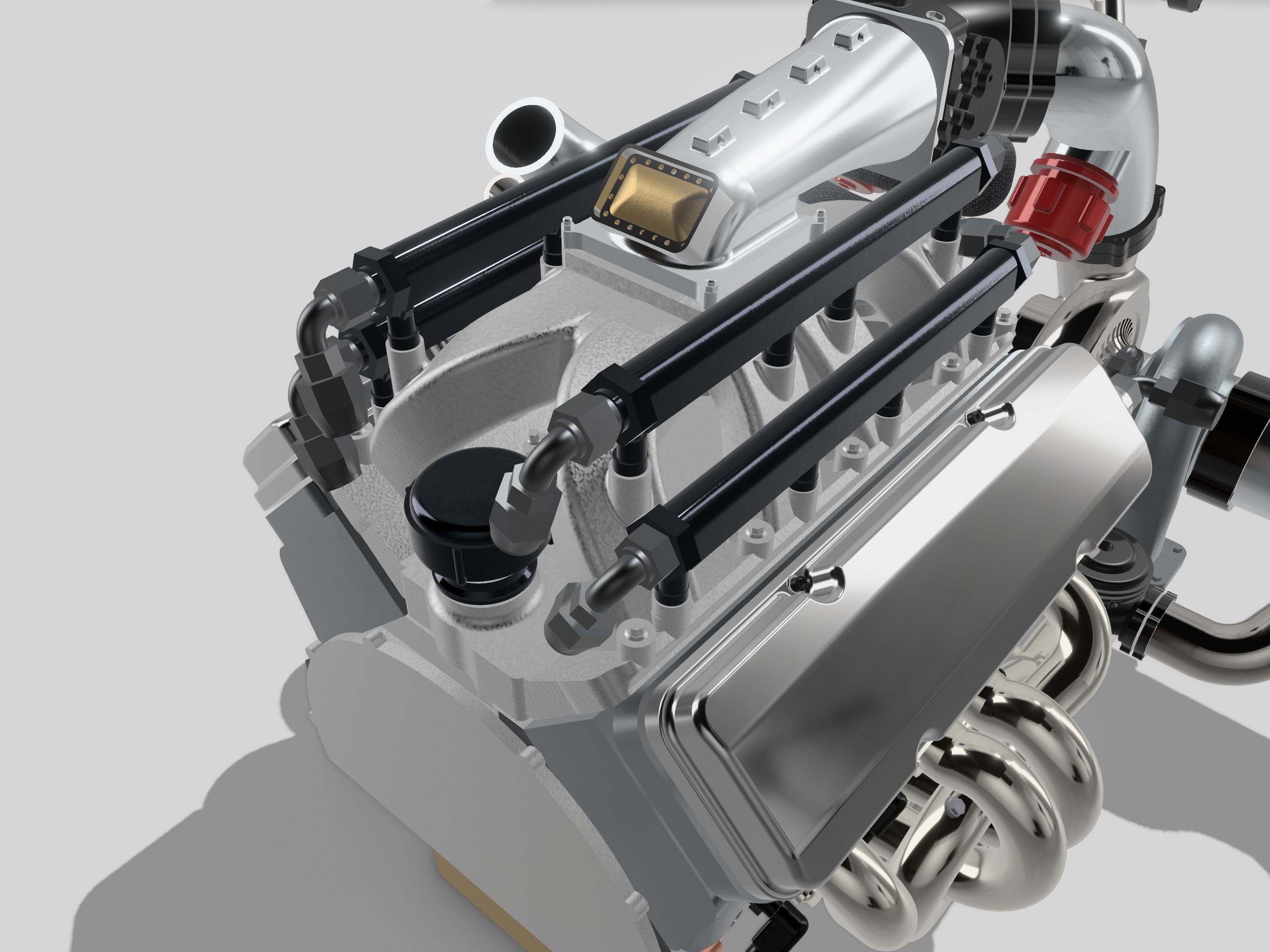

- high rise single ram intake with dual fuel rail provisions
- Wilson style low profile billet intake elbow with integrated burst plate
- Motion race works style Icon throttle body with billet twin inlet (2 wire docking locations)
- mirrored boost inlet tubes with Motion race works style v-band clamp fittings and TIAL style wastegates
- equal length headers with turbo elbow and integrated TIAL wastegate with Motion race works style vband clip
- mirrored turbos with oil inlet & return AN fittings
- fender exhaust outlet (2 styles) with integrated BOV pipe and Motion race works style v-band clamp
- low profile billet valve cover with front AN fitting for oil breather hose
- MSD blue tooth style rear mounted distributor
- Milodon style oil sump
- wiring & hose docking points on heads, throttle body, intake manifold, and plenty of AN fittings
Recent updates;
- individual intake tube files and separate wastegate added
Designed as a multi-piece for better detailing, details include holes for wires, hoses, and oil lines, and bolt/fastener details.
Gearbox pairing: Reid Rossler (with or without Gear vendors overdrive unit)
Be sure to tag @mattys_custom_scale on Instagram with your finished prints & projects!Intended for personal use, not to be redistributed without consent
