Description

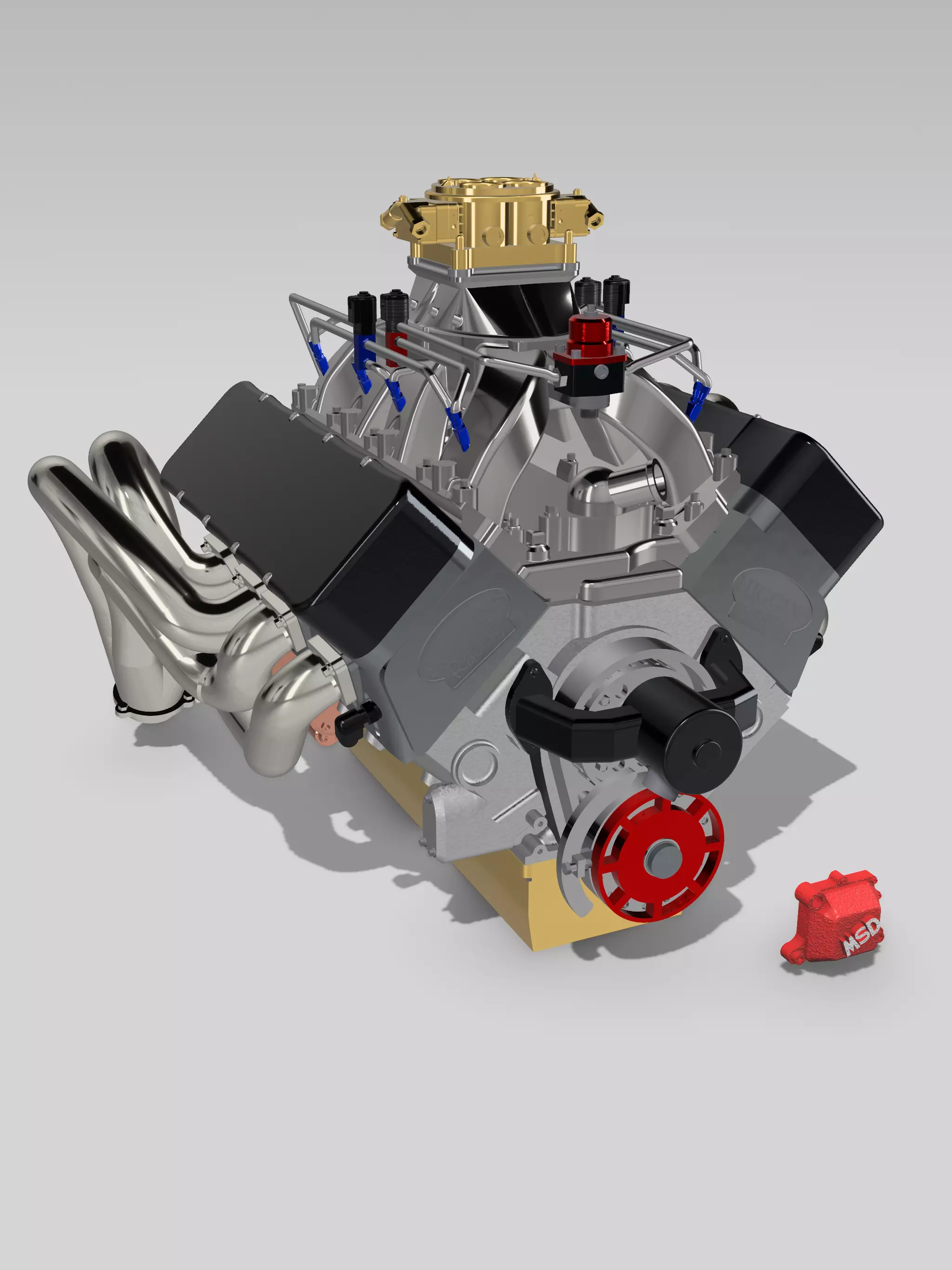

Designed from scratch is Small Block Chev street/drag style engine, with 3 configurations and several options, high in detail, ideal for scale modeling (currently in 1/24 and 1/25 scale).

Perfect for those street or drag racing builds!

Features include;

  • Dart SBC Block
  • Higgins Raving Heads with ignition plug boots
  • Higgins billet style valve covers
  • Jesel front drive
  • Innovators West balancer
  • MSD 2 piece quick wire distributor & blaster coil
  • FrankensteinED raised single plane intake with Dominator carb
  • FrankensteinED raised single plane intake with direct port Nitrous
  • Higgins tunnel ram intake with dual Wilson throttle bodies & coil packs
  • 2x equal length header options
  • Meziere water pump
  • fuel rails to suit each intake option (integrated)

Options include;

  • 3x intake options
  • 2x carb/throttle body options
  • 2x header options

Updates;

  • Additional nitrous intake option with thicker NOS lines

2 piece Distributor used on all engines allows you to quickly wire engines by laying & gluing 4x wires across the centre of the dizzy top, making sure wires are placed between the seperators, then gluing the dizzy top over it.

Designed as a multi-piece for better detailing, details include holes for wires, hoses, and oil lines, and bolt/fastener details.

Be sure to tag @mattys_custom_scale on Instagram with your finished prints & projects!

Intended for personal use, not to be redistributed without consent

C
carbonkid3 2023-07-07 01:38:17 UTC
Creator has fixed the problem its great detail and prints well in 1/43 thanks again .
Item rating
2 0
C
carbonkid3 2023-07-11 20:51:30 UTC
Recommended
Fixed model great detail prints well in 1/43
