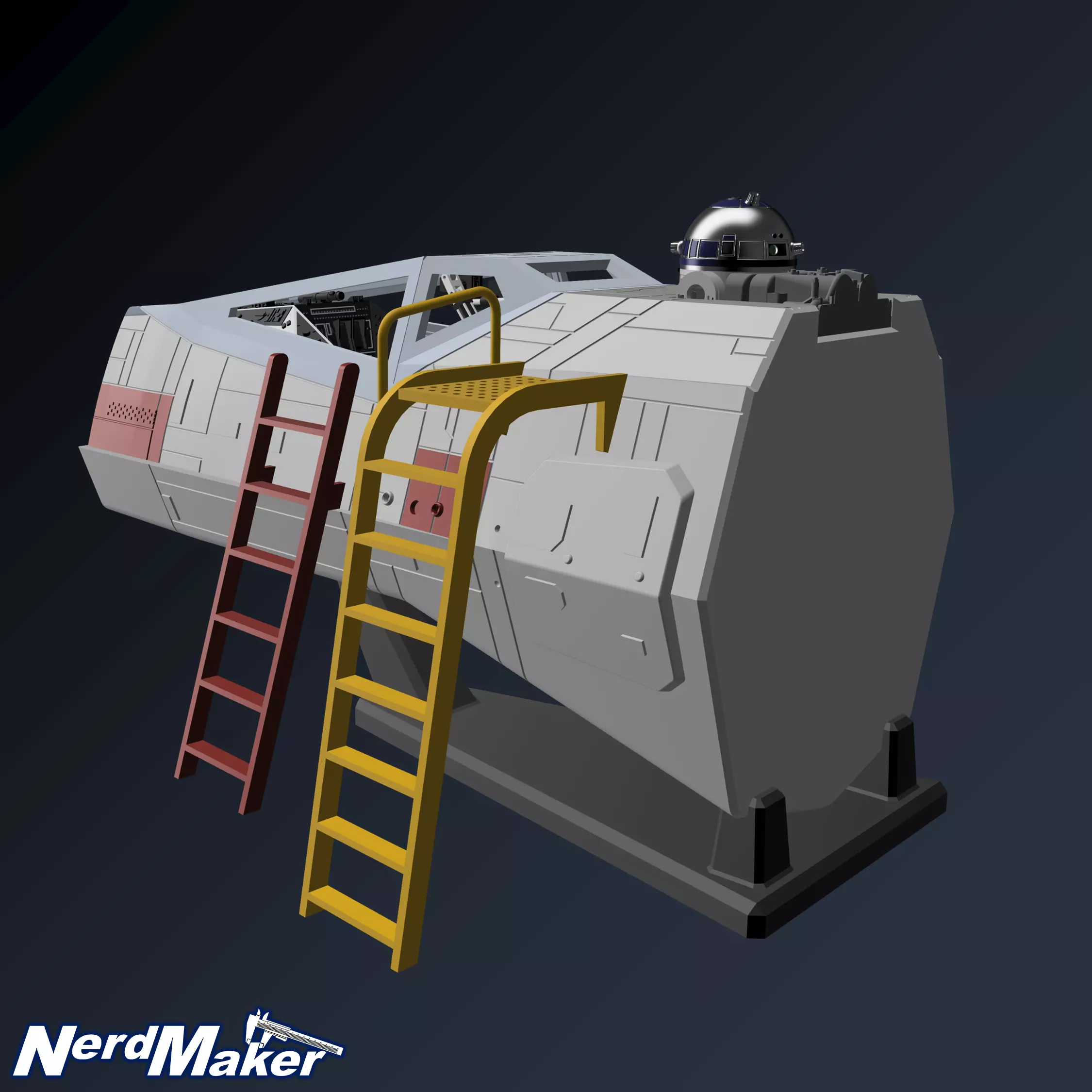

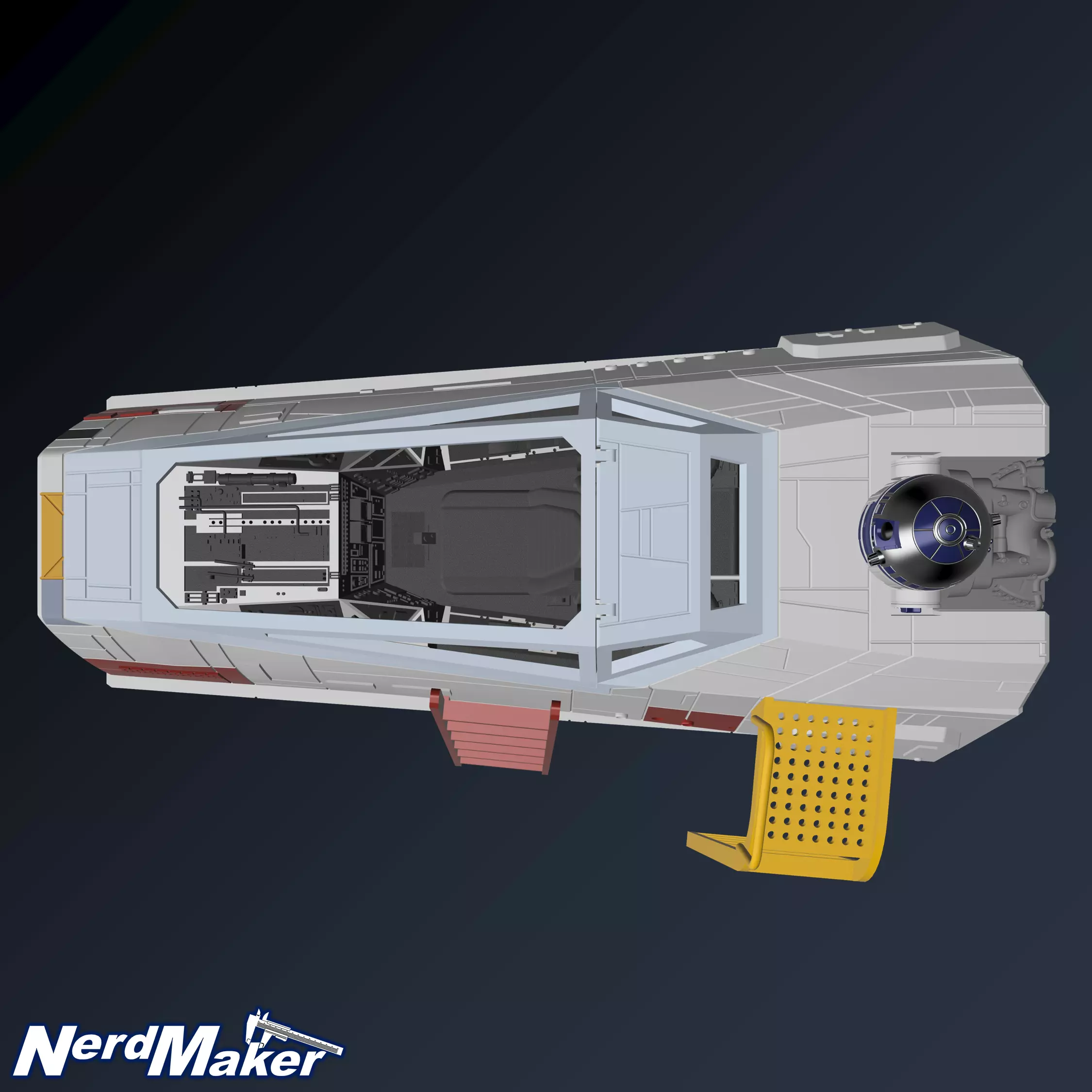

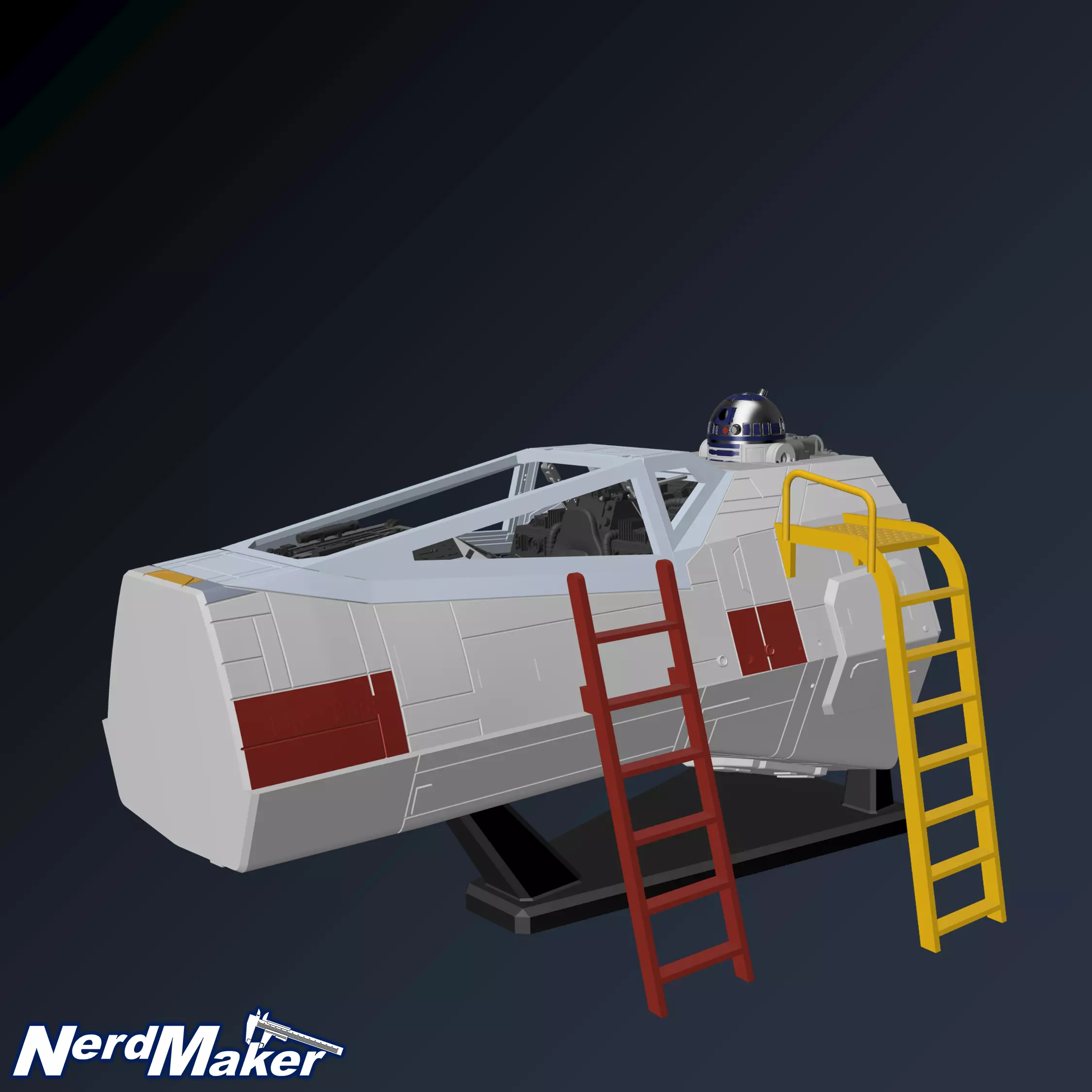

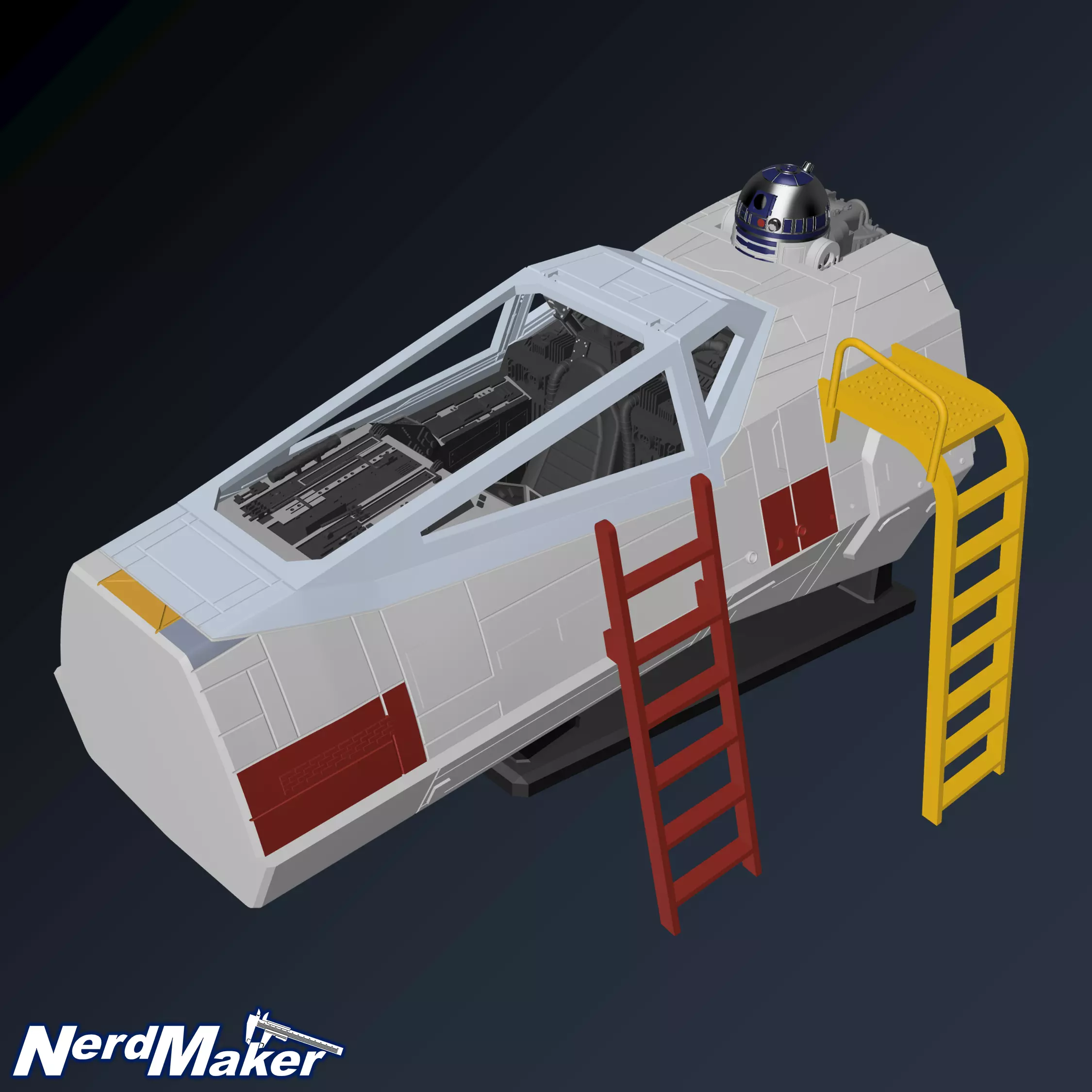

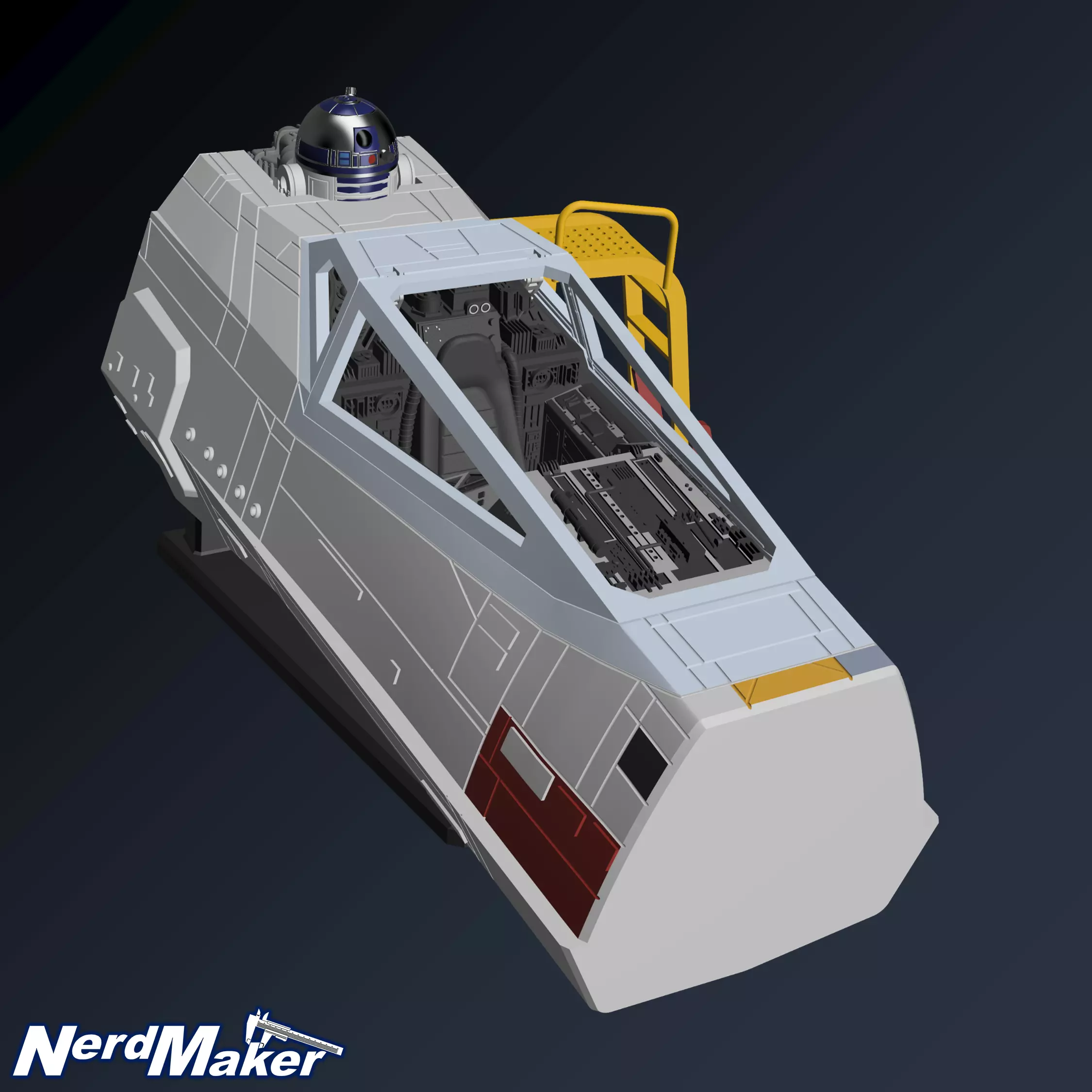

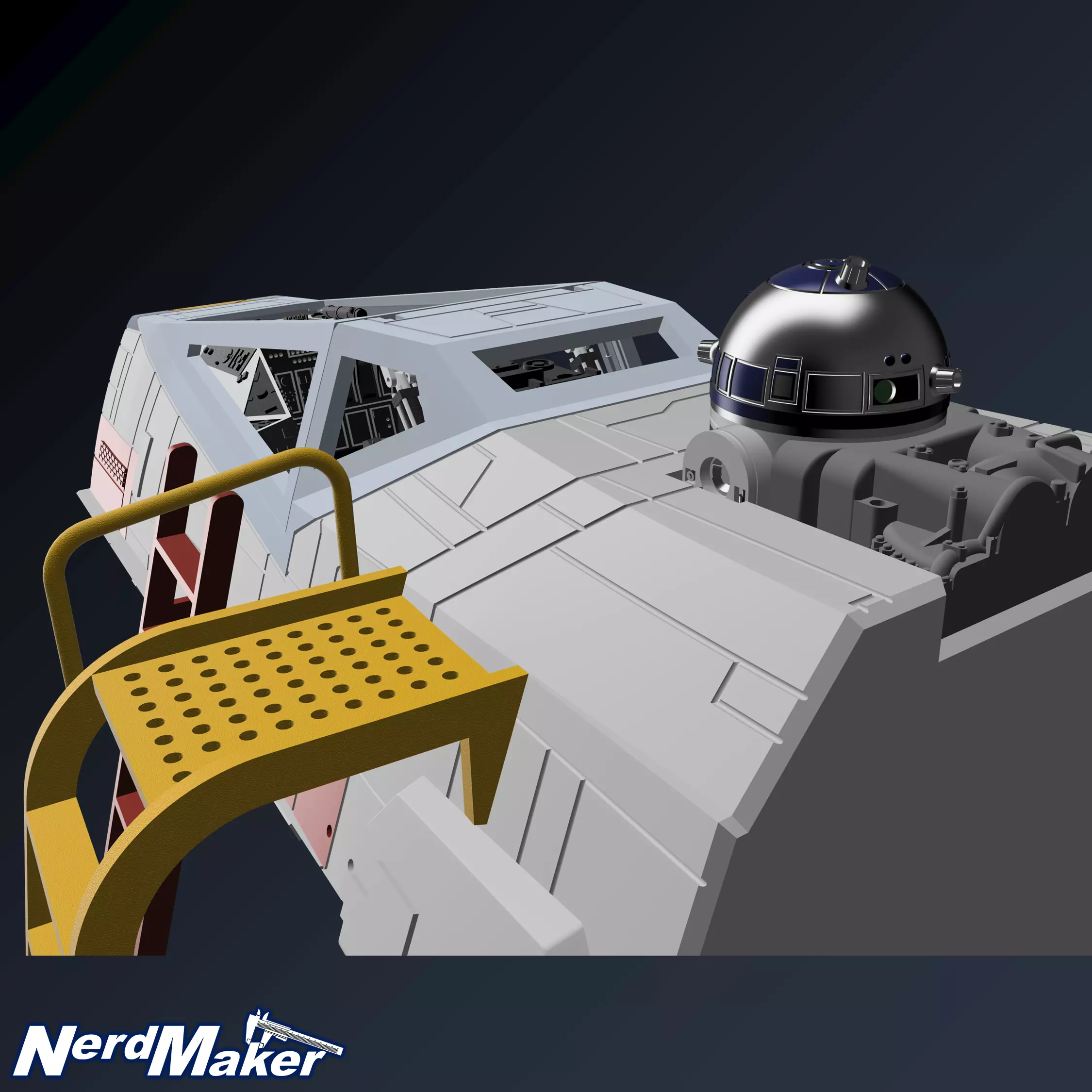

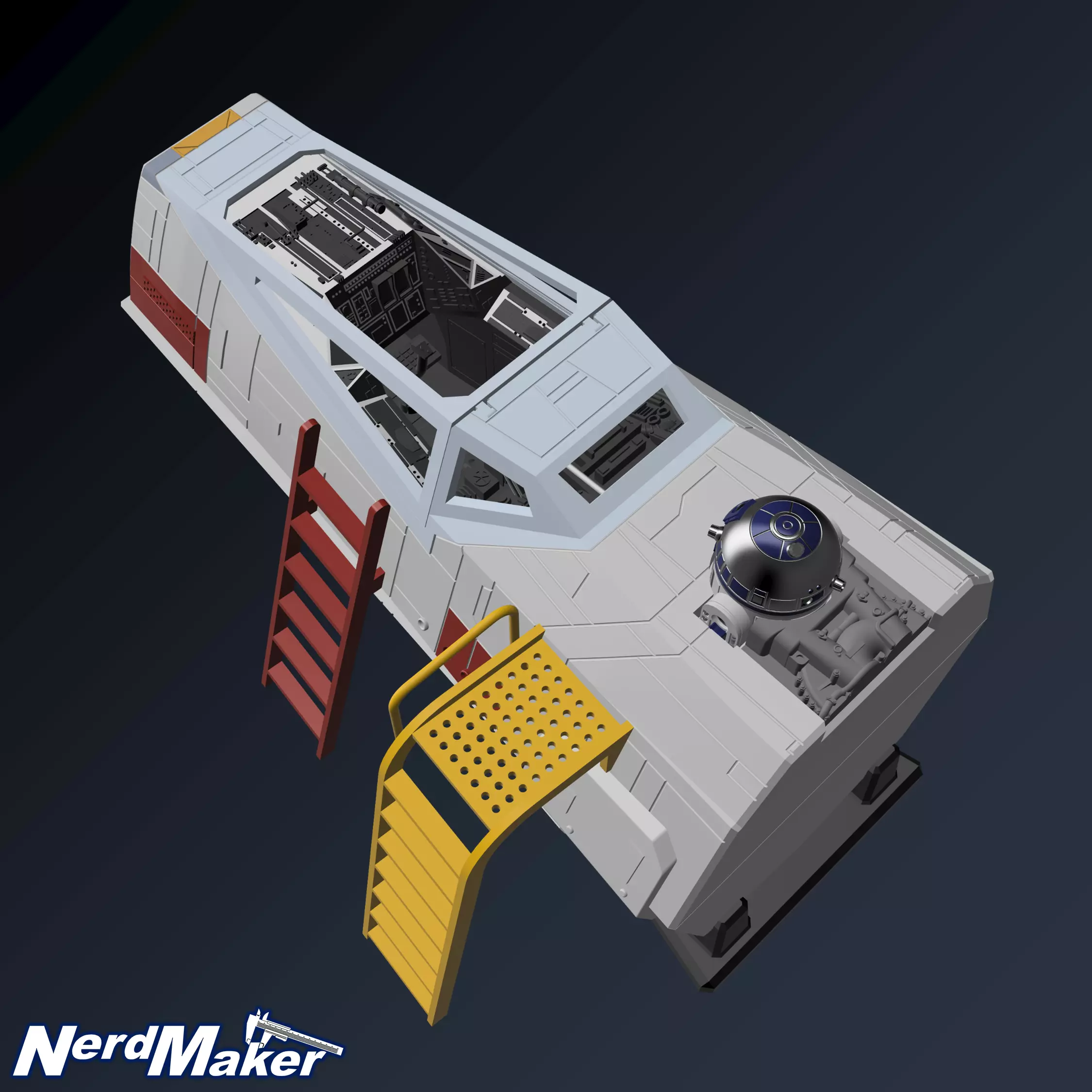

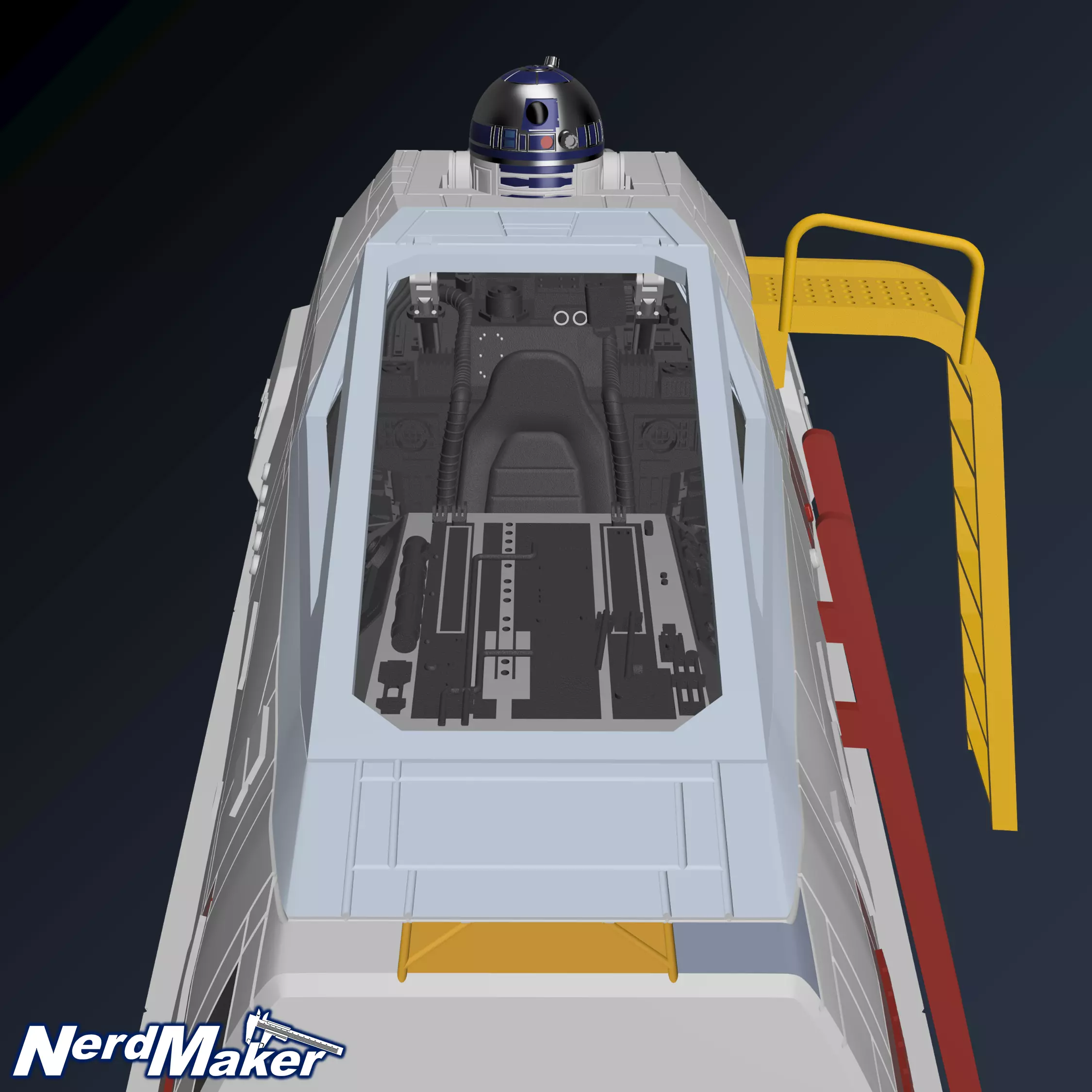

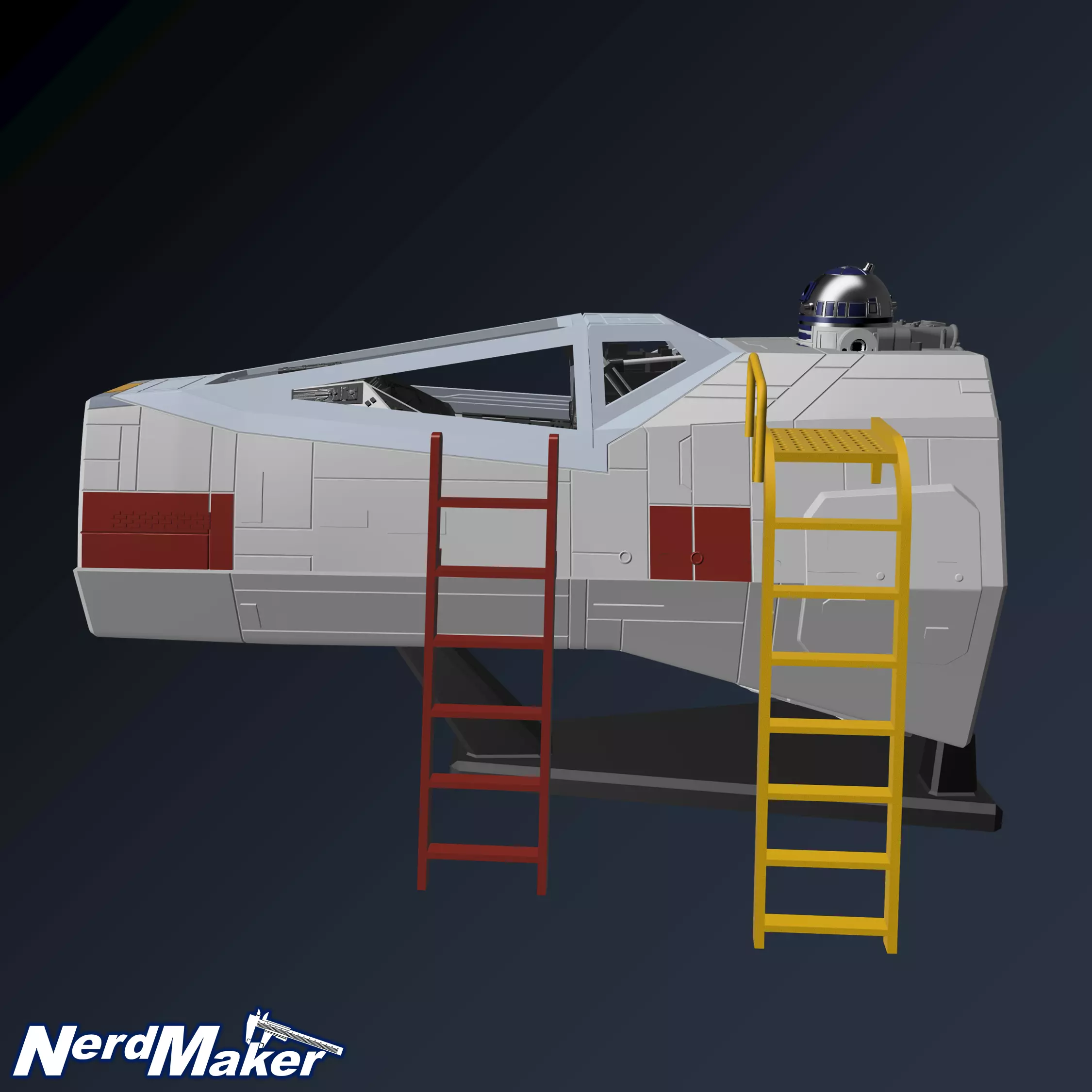

This is a 3D printable Diorama of an X-Wing Cockpit in 1/12 scale for the Hasbro Black Series 6” figures. Since not everyone has the space to display a full 1/12 scale X-Wing in their homes, I decided to create this cutout diorama. It will fit nicely on your shelf :)

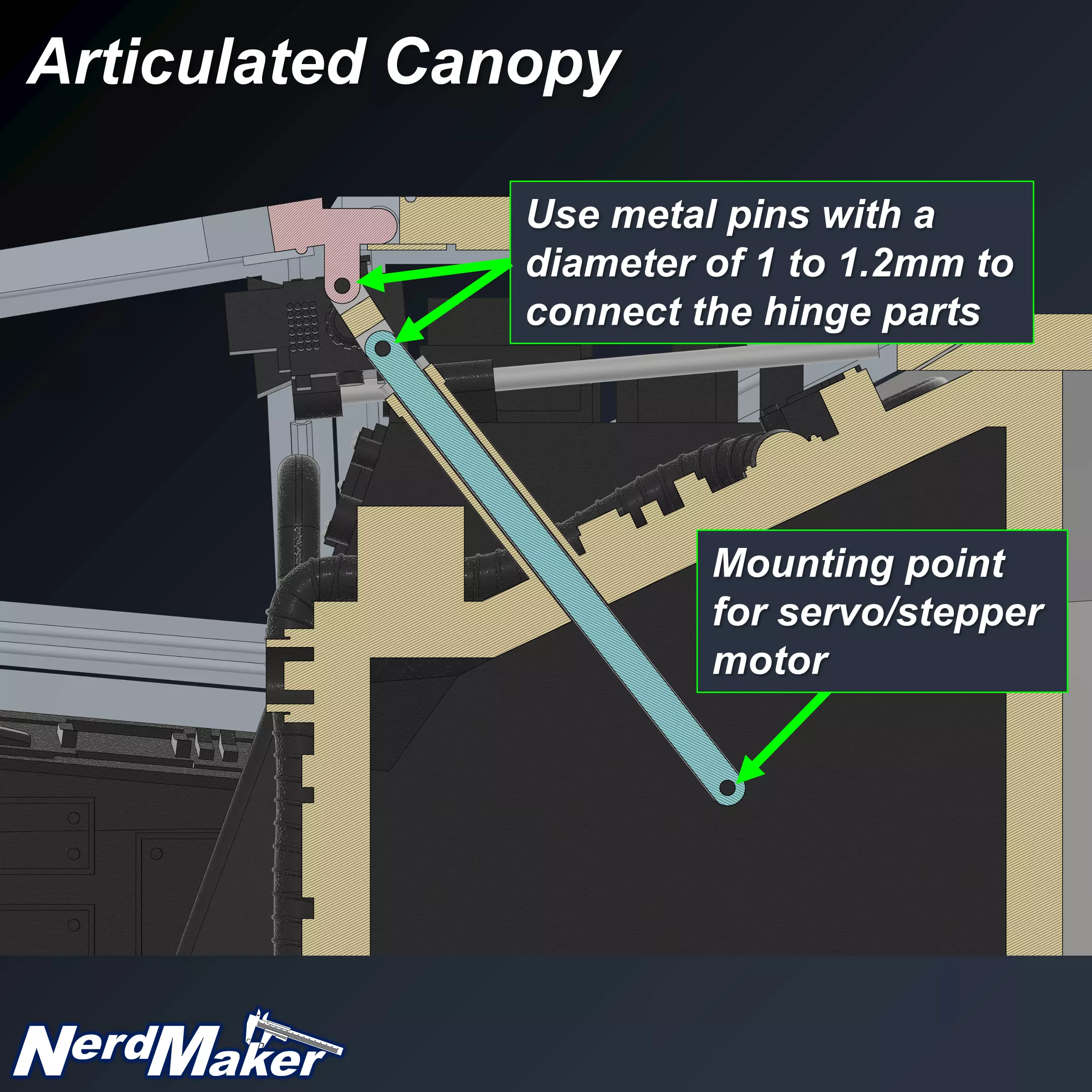

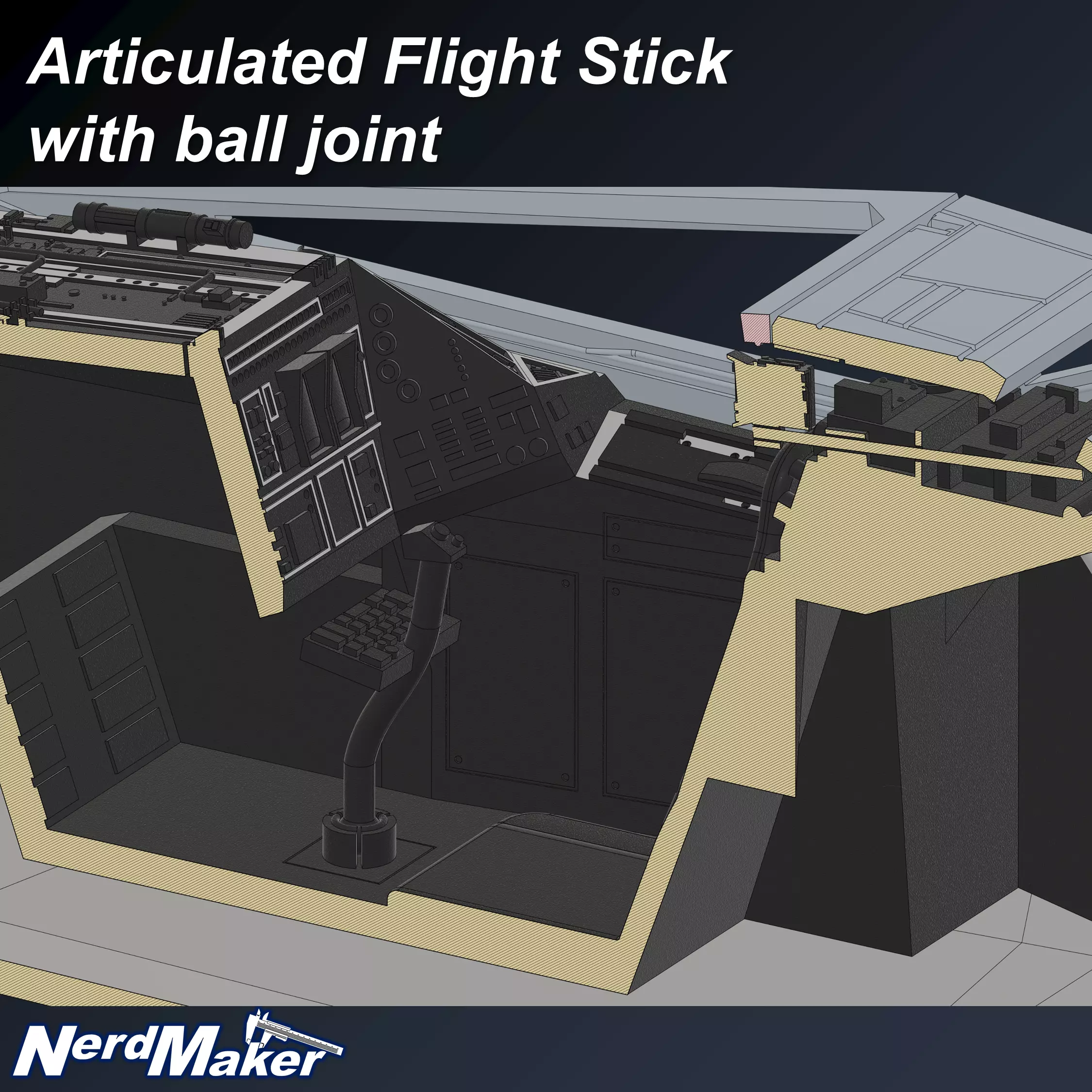

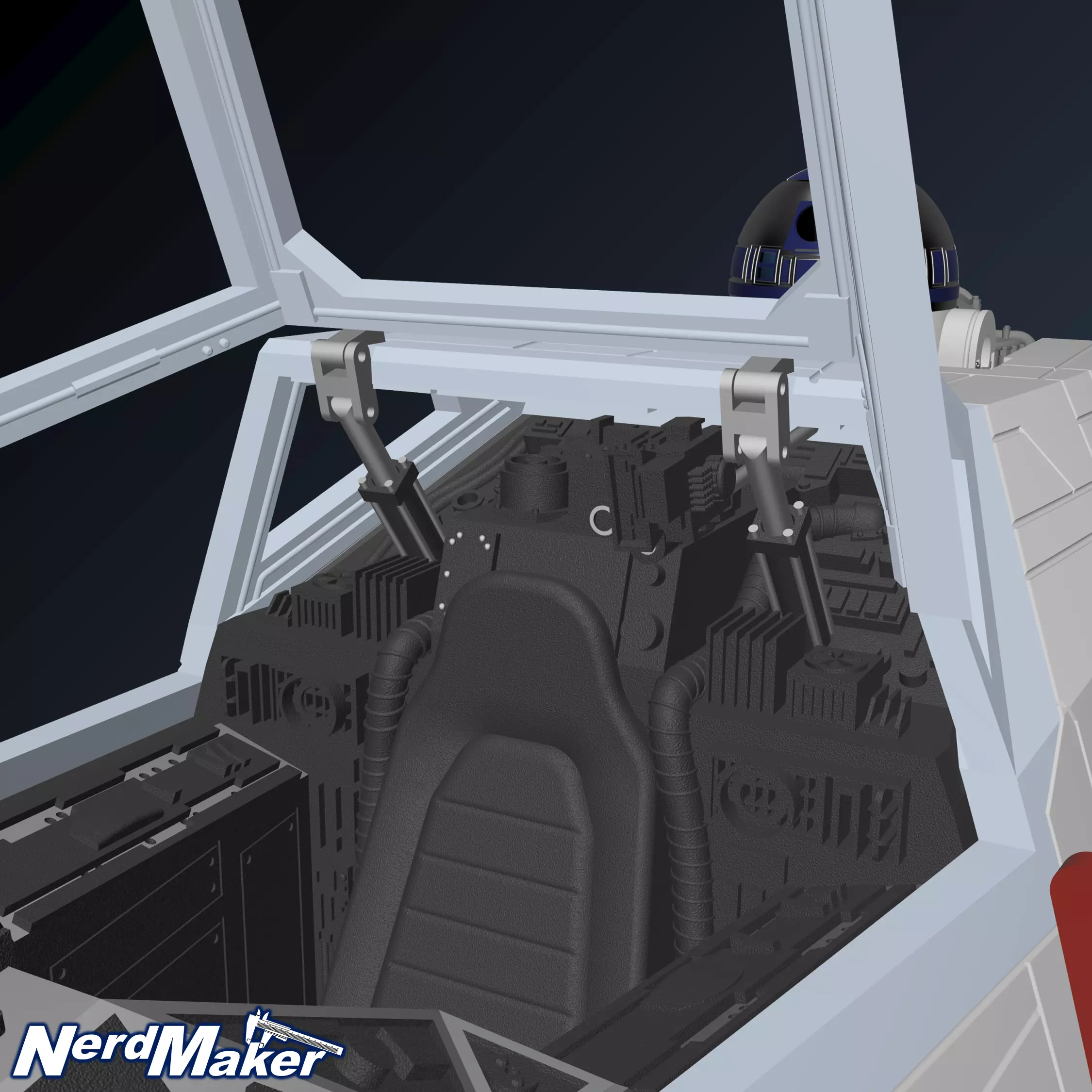

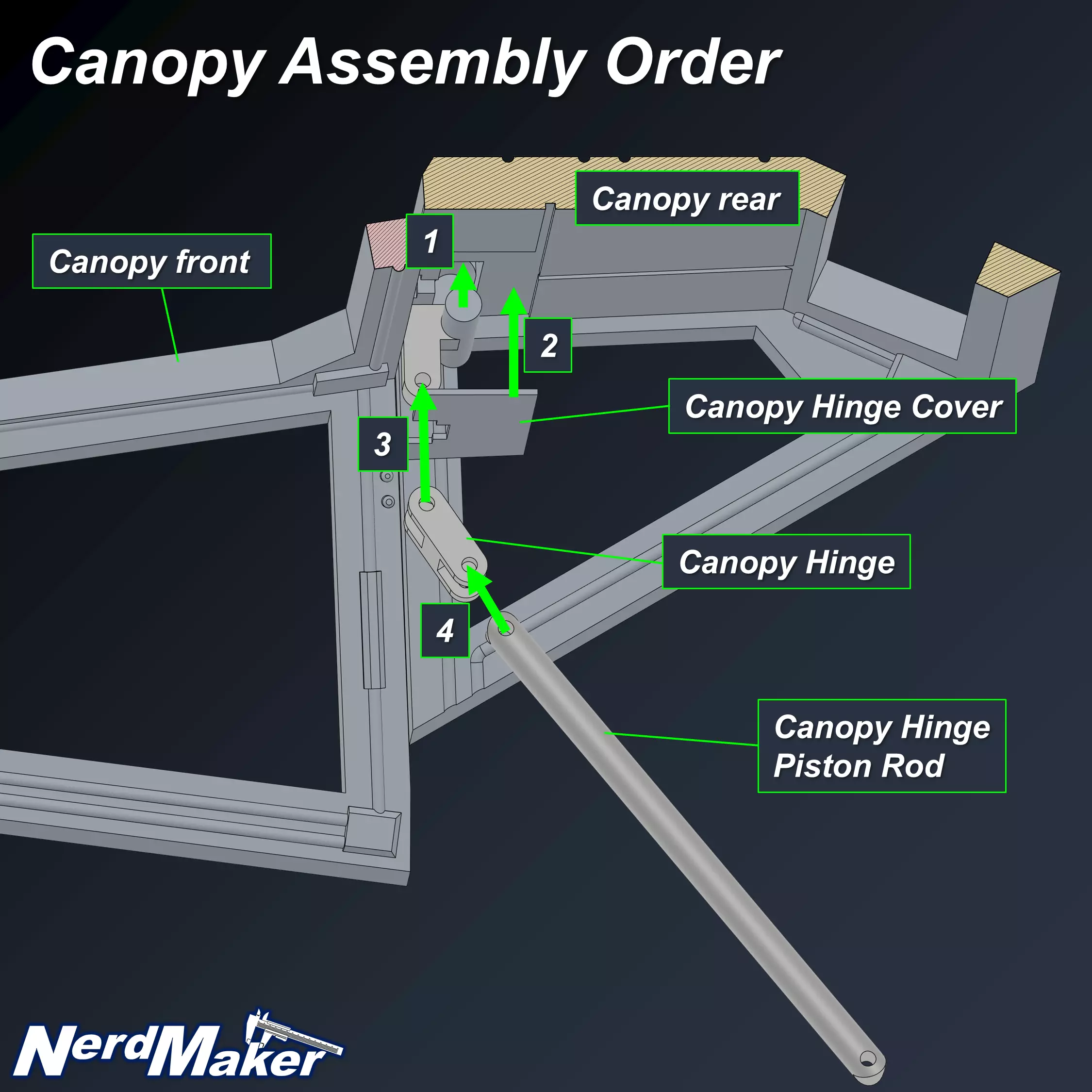

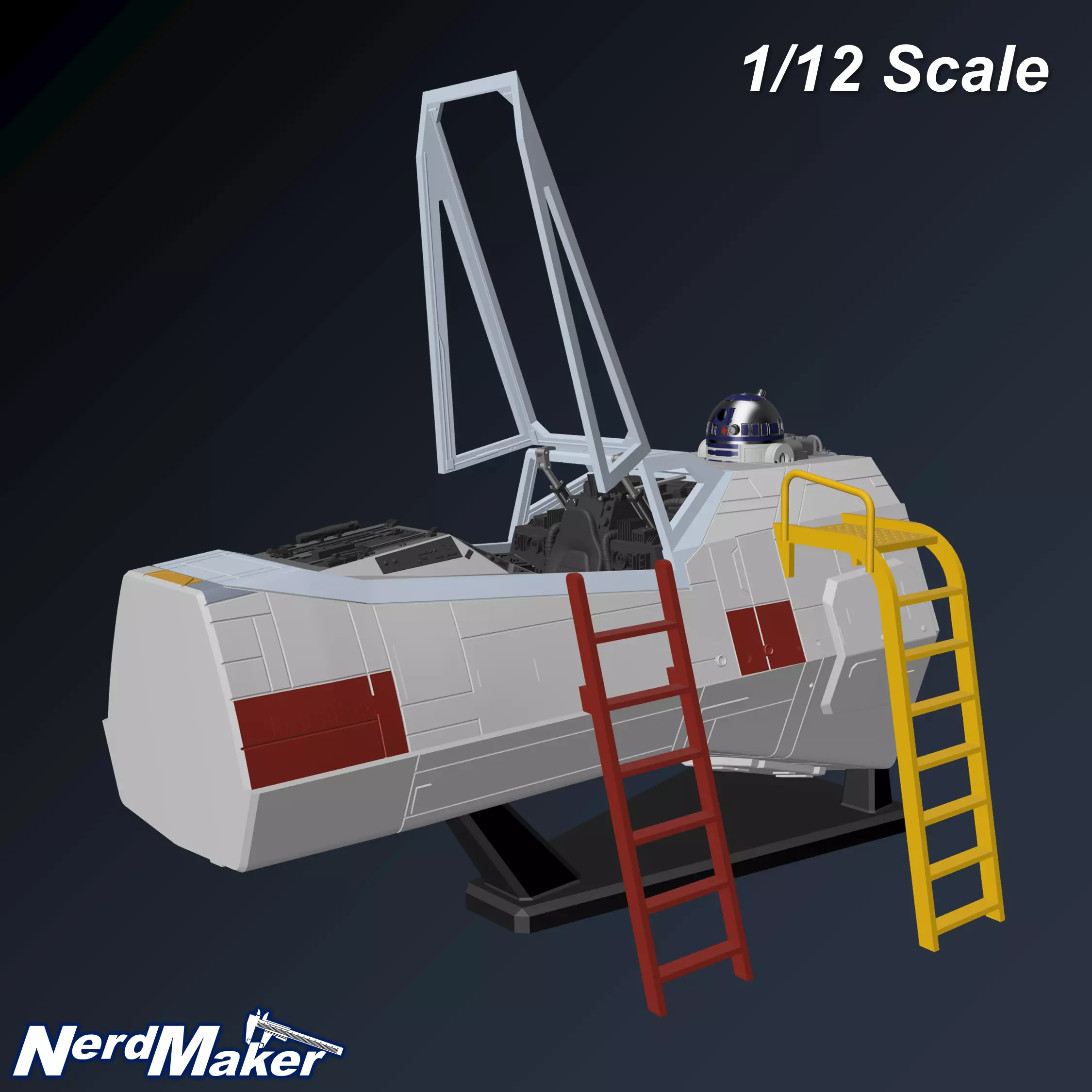

The flight stick, the targeting computer and the canopy are articulated. And not only is the canopy articulated, it also has a fully working mechanism (that can also be motorized, if wanted).

R2’s head can also be turned.

The cockpit can be lit with 1 mm fiber optics.

R2 can be lit with 0.2 and 3 mm fiber optics.

You can choose between an R2 and R5 head for the astromech.

Data

• Length: 327mm
• Width: 168 mm (without ladders)
• Height: 205 mm (with R2)

Info

• Min printer build volume: 250 x 250 x 250 mm (WxDxH)
• A Commercial License, to sell 3D-Prints of my Models, is available on Patreon > NerdMaker
