This is a 3D-Printable model kit of the Red 5 Hero studio model in 1/24 studio scale.

Red 3 can be found here: https://www.cgtrader.com/3d-print-models/miniatures/sci-fi/model-x-mk-ii-1-24-studio-scale-red3

MK III update:

With the MK III update the fuselage form and the positioning of adjacent parts like the nose, r-unit strip and backplate are even more accurate. The biggest change is the overall length of the fuselage, which is now 8.4 mm longer.A list of the changed parts is included as PDF.

The files now also include:

• Pre-Supported STL files and Lychee Slicer Scenes for resin printing
• Studio Model R-unit

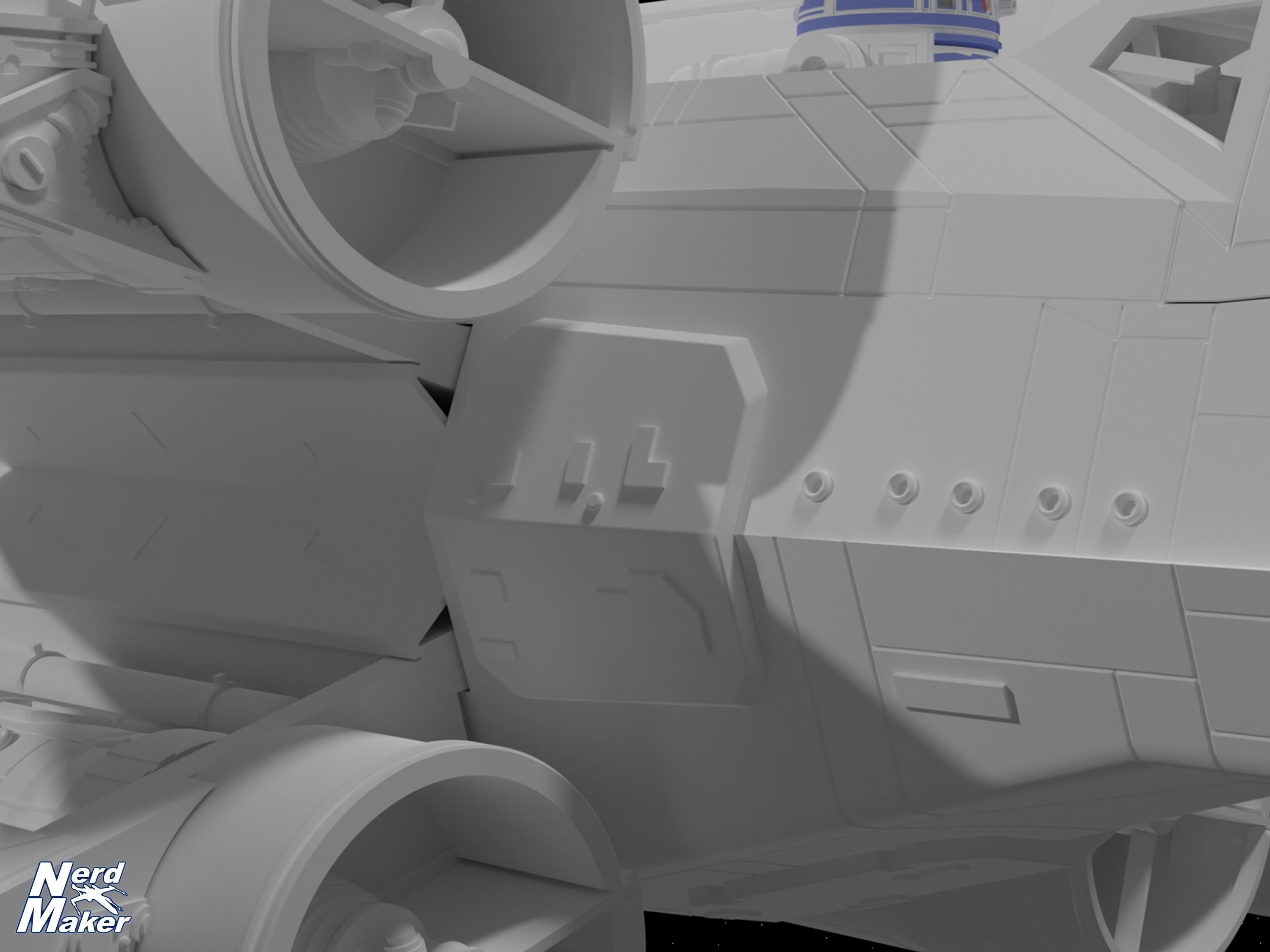

Designed with meticulous attention to detail, the use of the latest technologies like photogrammetry and with the originally used kit parts in hand, every curve, every panel line and every detail has been faithfully recreated to be as accurate as possible to the Red 5 Hero studio model, that was used for filming.

With this 3D print files you can build your own studio-model-accurate replica of Red 5. But you can of course paint it in any desired color scheme and call sign you want. The included templets for the call sign markings will help you with that.

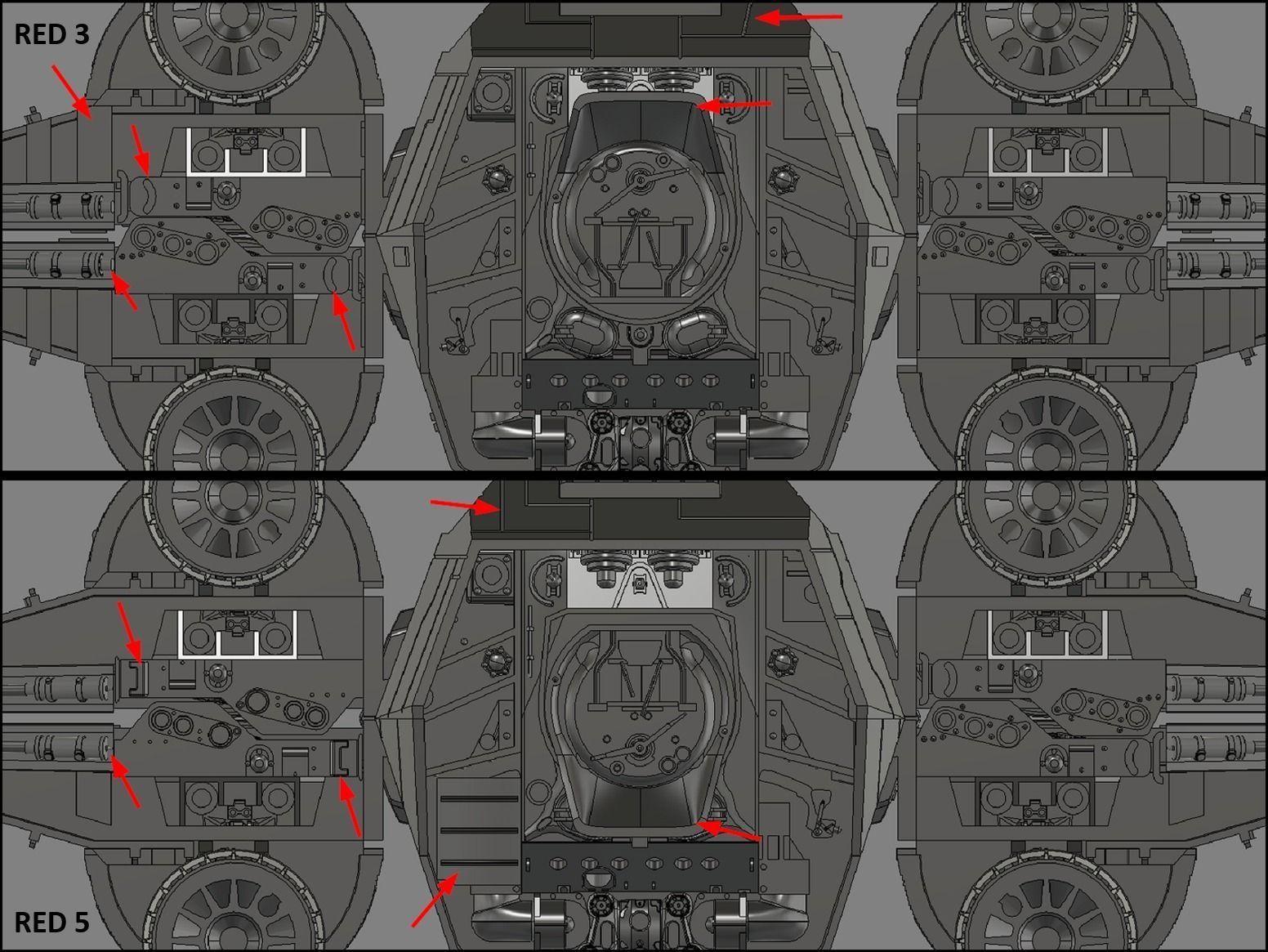

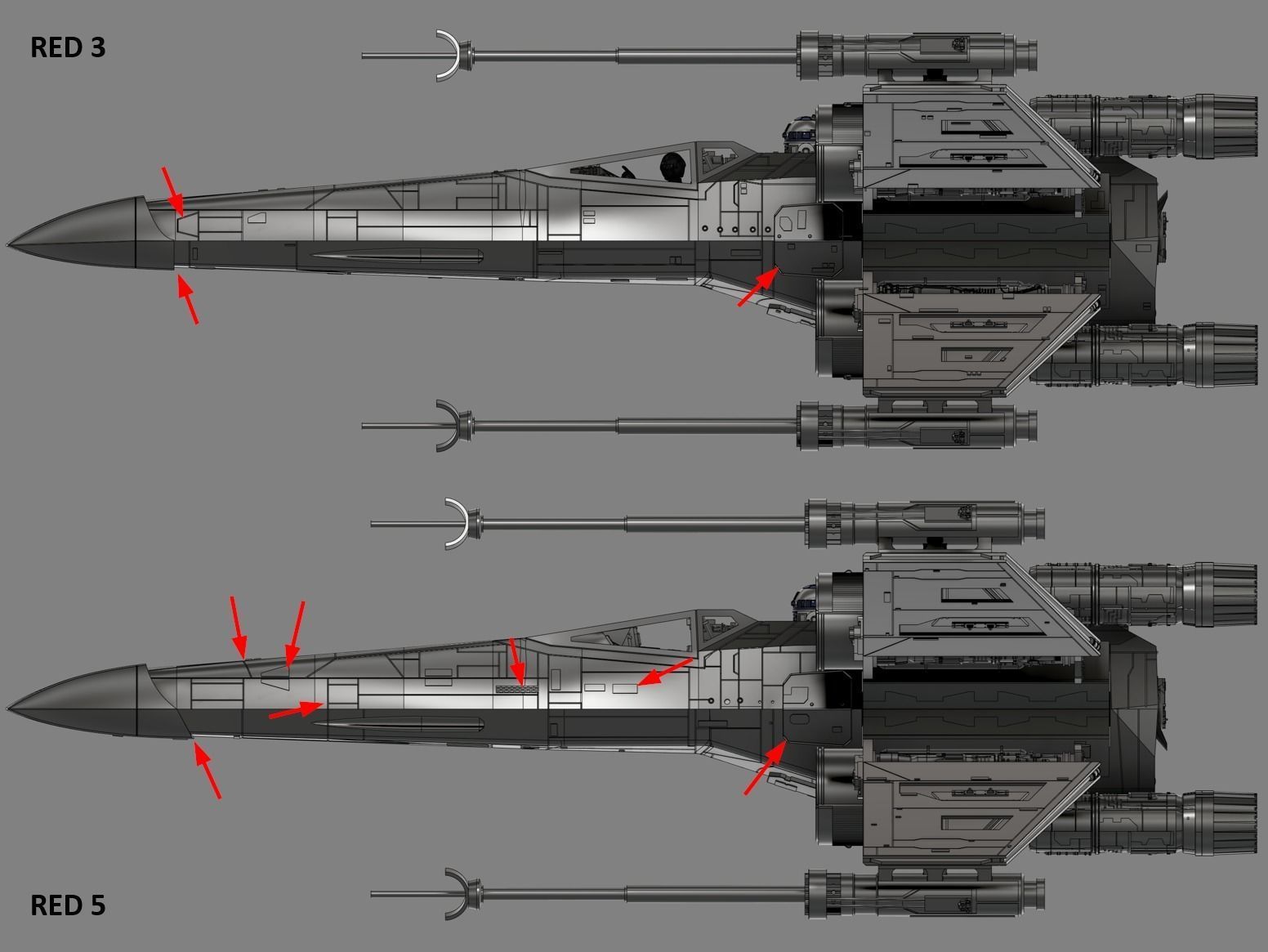

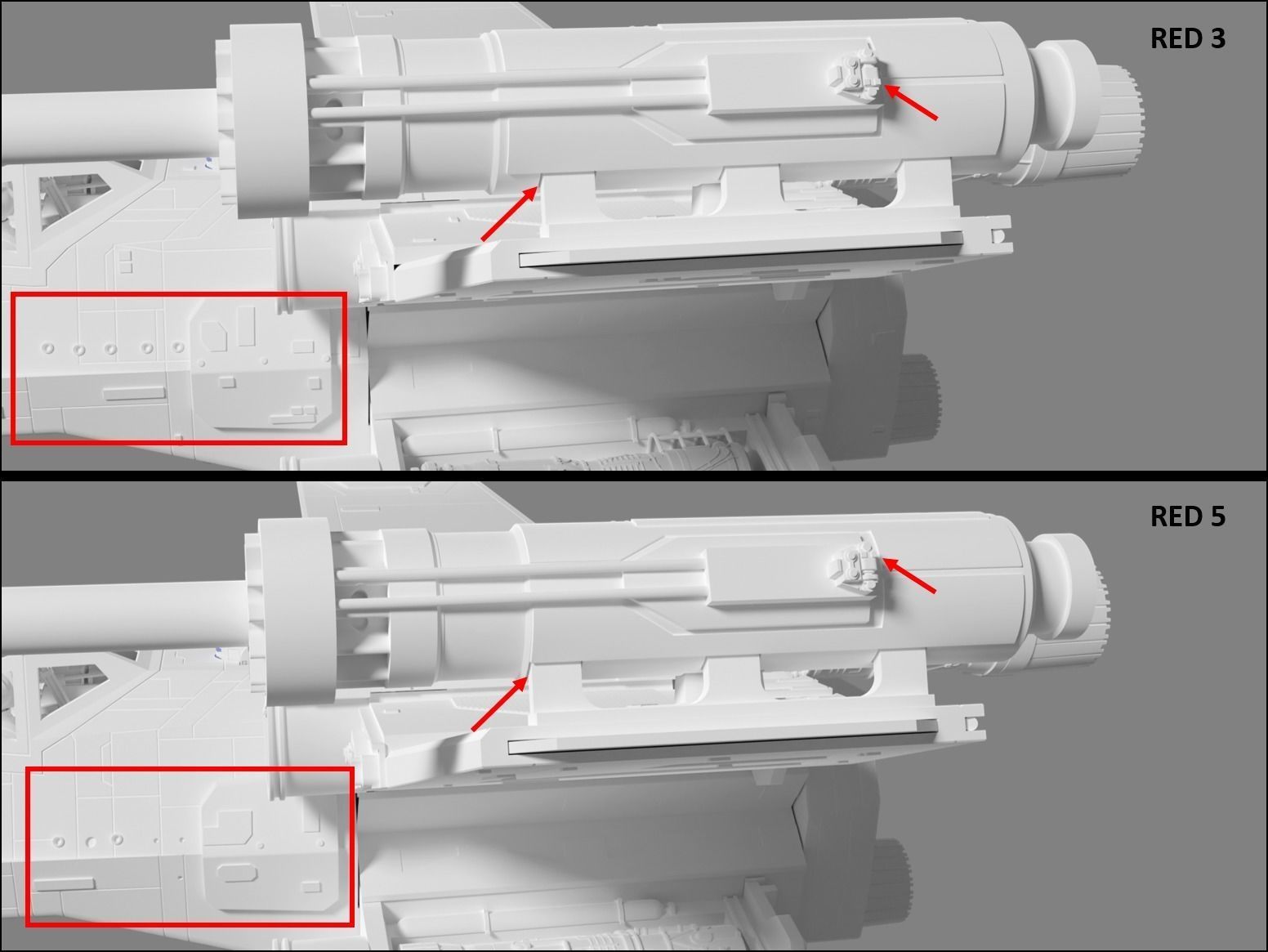

The last eight pictures show the main differences between Red 3 and Red 5.

Features

• 1/24 studio scale (studio scale = the size they used for the filming miniature)
• Articulated S-foils.

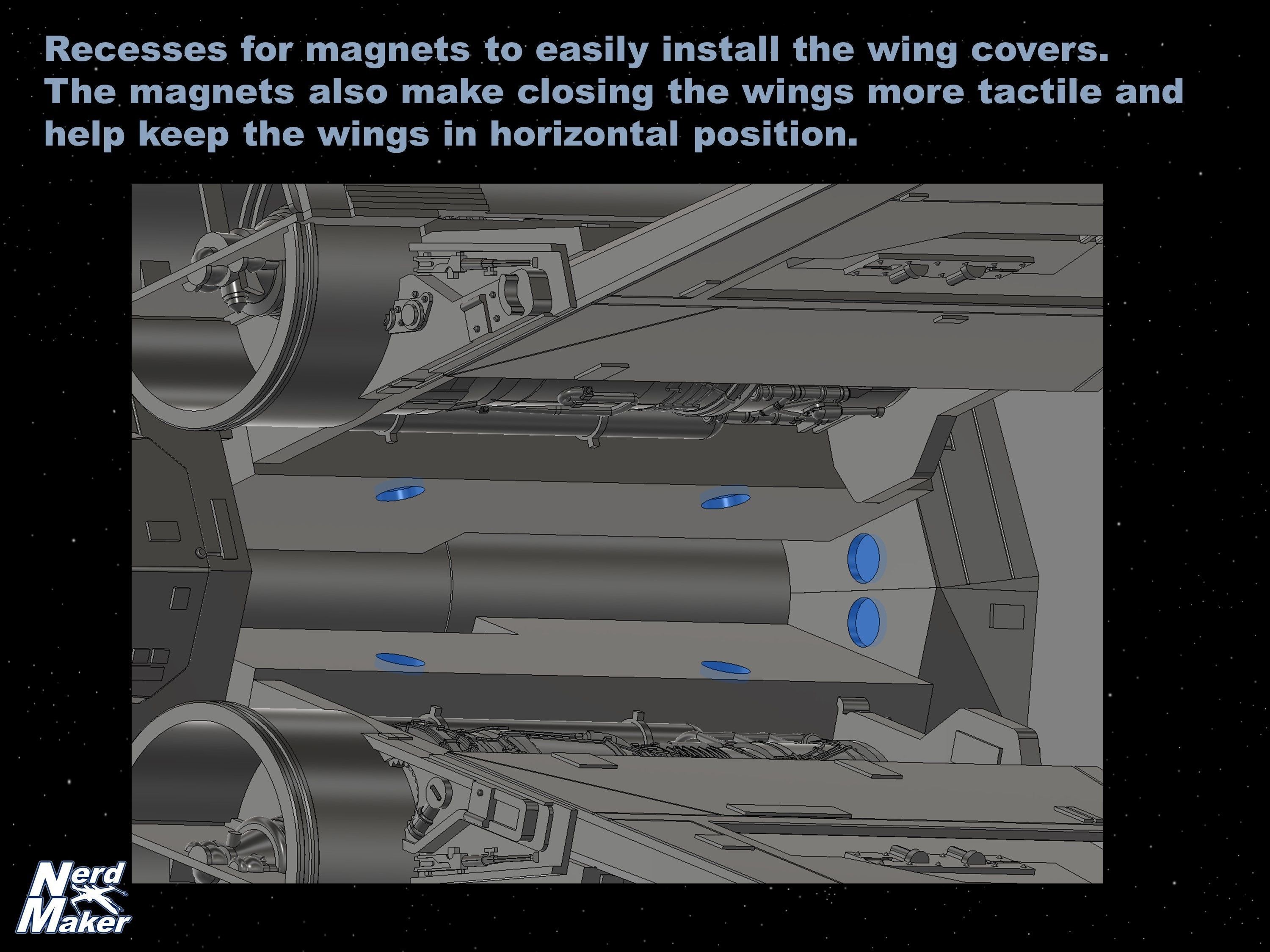

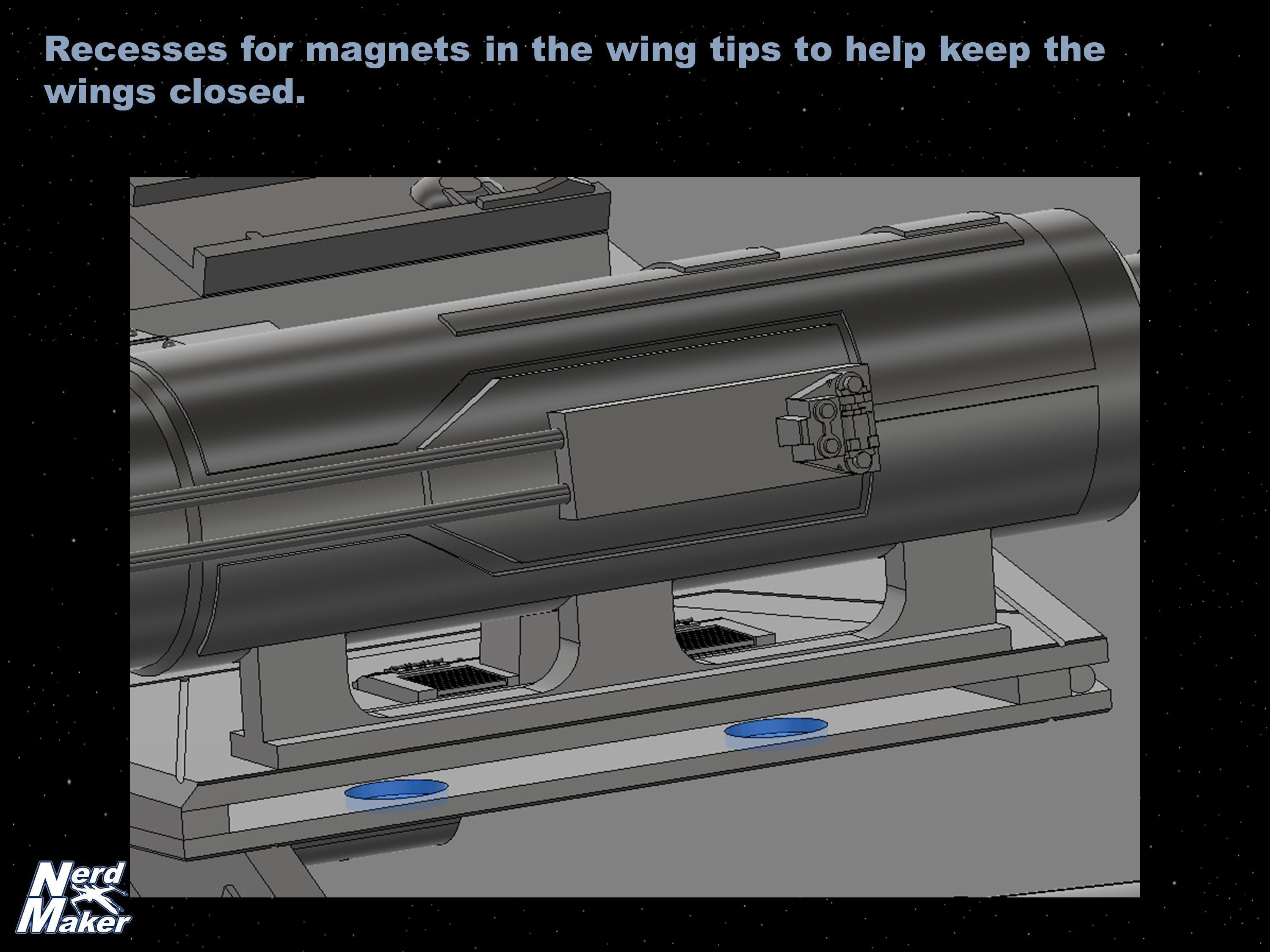

• Recesses for magnets in the wing mechanism to easily install the wing covers.The magnets also make closing the wings more tactile and help keep the wings in horizontal position. Recesses for magnets in the wing tips to help keep the wings closed.
• Articulated targeting computer.

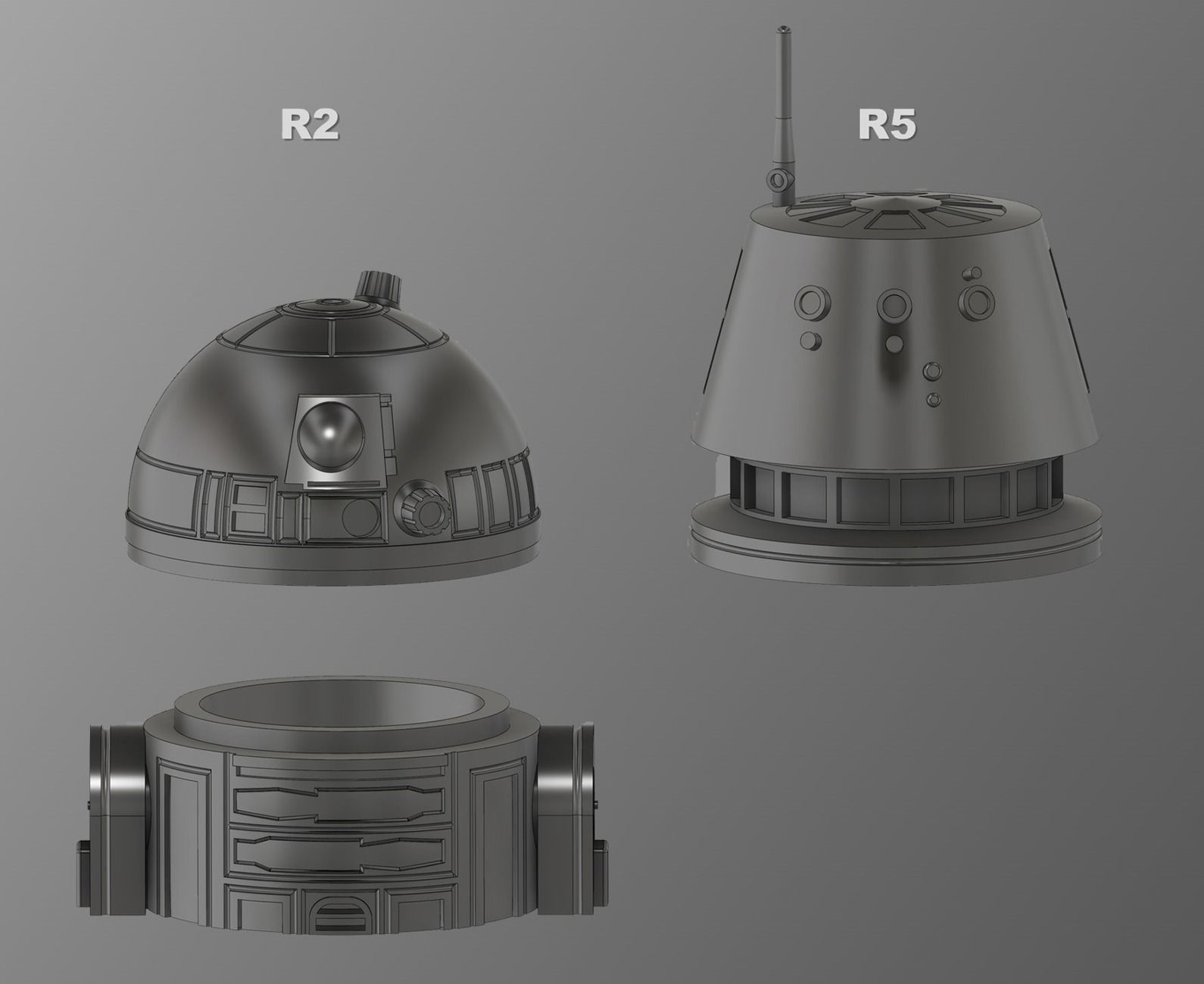

• R-units in Live Action look with rotatable head (R2, R4 and R5)
• R-unit in Studio Model look
• 3 Pilots
  • Live Action Pilot
  • Live Action Pilot with raised hand
  • Studio Model Pilot
• 2 Cockpits
  • Live Action Cockpit
  • Studio Model Cockpit
• The Live Action Cockpit has 0.6mm holes for fiber optics

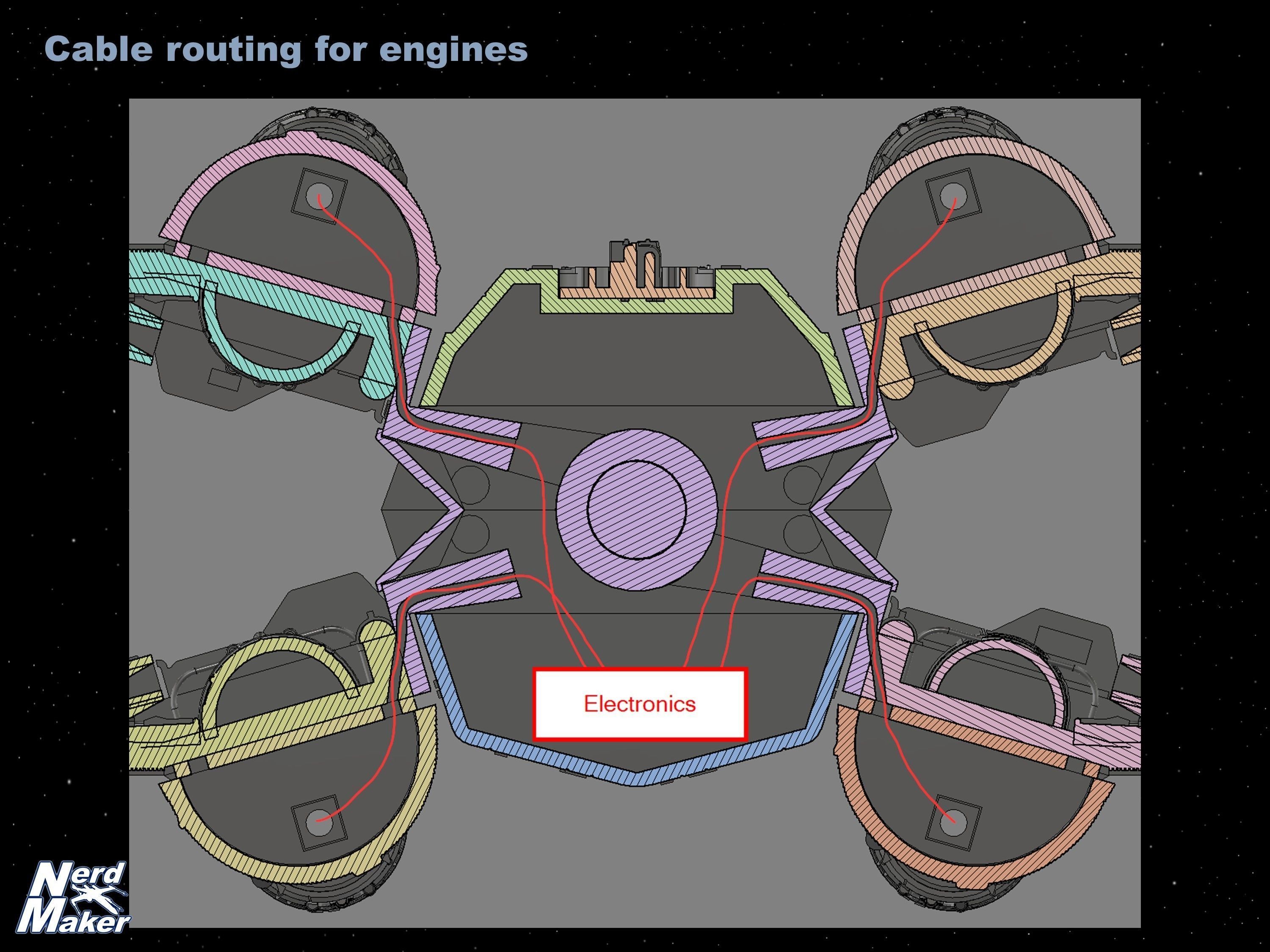

• Cable routing for engine lighting integrated in the wings
• The finished model can be mounted on a threaded stand

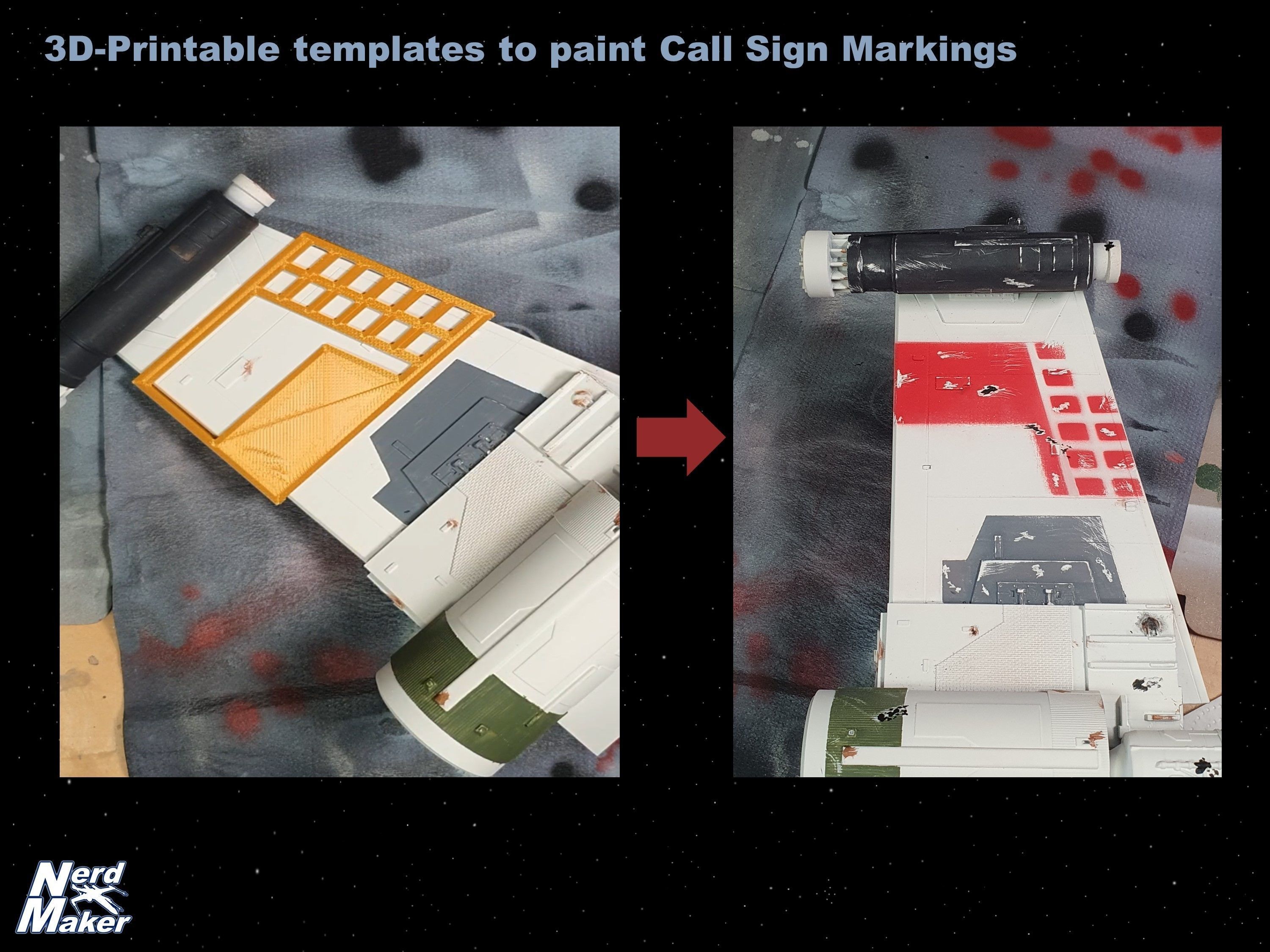

• 3D-Printable templates to paint Call Sign Markings (Red 5 and generic 1-12) included
• Optional Parts for CNC to make out of metal

Data

• Length: 570 mm / 22.45 in
• Width: 460 mm / 18 in
• Hight (with S-foils locked in attack position): 190 mm / 7.5 in

Info

• All files are developed for resin printing.
• Recommended printer build volume for the native scale: 192x120x240 mm (WxDxH)
• Min. required printer build volume for pre-supported files: 192 x 120 x 240 mm (WxDxH)
• Min. required printer build volume: 192 x 120 x 200 mm (WxDxH)

Print the wings and the fuselage with engineering resin (or similar that has little to no flex) to prevent any sagging. Don’t use an ABS-like resin.Cure the wings and the fuselage very thoroughly immediately after printing for at least 20-30 minutes (washed of course).If you still need a good slicer for resin printing, I recommend Lychee Slicer.
