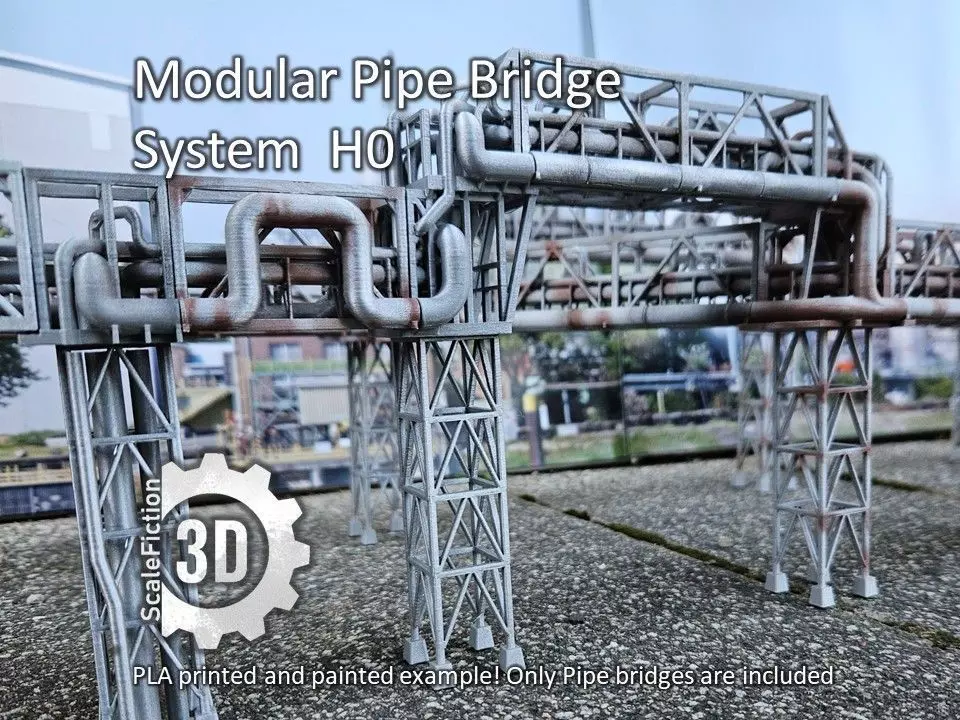

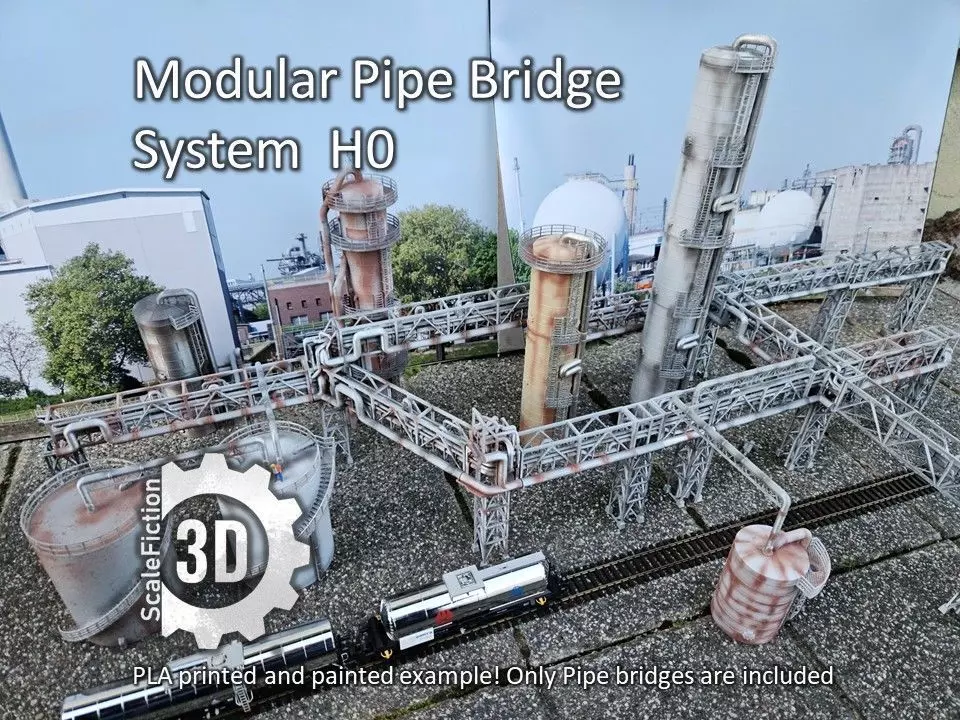

Modular Pipe Bridge System – H0 Scale Industrial Infrastructure Set

This highly detailed H0 scale pipe bridge system allows you to build complex, realistic industrial pipe networks for refineries, chemical plants, power stations, and large factory environments.

The set includes a wide variety of modular elements that can be combined to create countless geometries and layouts.

Included Elements

• Support columns: 90 mm heightDesigned so that an H0 train can comfortably pass underneath the bridge.

Straight Sections

• 52 mm
• 102 mm
• 152 mm
• 202 mm

(Your print bed must be at least as long as the longest part you intend to print — 202 mm required for the longest bridge.)

Crossings & Angles

X-crossing (90°)

T-crossing (90°)

Corner elements: 105°, 120°, 135°, 150°

Advanced Geometry

Multilevel SwitchOn the lower level, the pipe bridge bends at an angle, while a branch rises to an upper level and continues straight in the original direction.

Level Transition ElementAllows switching between lower and upper level along a straight run.

Vertical Routing

“Vertical switches” where part of the pipes descend into the ground while others continue straight.

End piece where the remaining 50% of pipes route downward — ideal for realistic termination of the bridge system.

Connection Pipes

Smaller connector pipes allow easy integration of tanks, reactors, and buildings into the bridge network.

Visual Variation & Customization

Straight sections allow selective omission of individual pipes, so you can vary how “full” the bridge appears.

Please note:Adjusting pipe count requires slightly more advanced slicer handling.If you prefer simplicity, use the versions marked “combined” in the title.

The entire system is modular and designed to create diverse industrial layouts with maximum flexibility.

Printing Information (FDM Tested)

This model is designed and tested exclusively for FDM printing.Test printer: Bambu Lab P1SMaterial: PLALayer height: 0.2 mmSupports: Not typically required for standard elements (depending on orientation)Print bed length: Minimum 202 mm for longest straight sectionUse mirror function to get mirrored pillars and end sections if you want.

The front connection faces of the pipe bridges may fit tightly depending on printer tolerances.Light sanding of the end faces may be necessary to achieve the desired fit. The tight tolerance prevents wobbling once assembled.

Only FDM printing has been tested.

Painting RecommendationPrime in silver.Add accents using darker silver, grey, or rust tones.Dry variations across sections to create visual diversity.The sample photos show slightly varied paint schemes to enhance realism and avoid repetition.

Important NotesDigital download only – no physical item will be shipped.This model was tested for FDM printing only.Models are intended for adult model makers and collectors. Not a toy.
