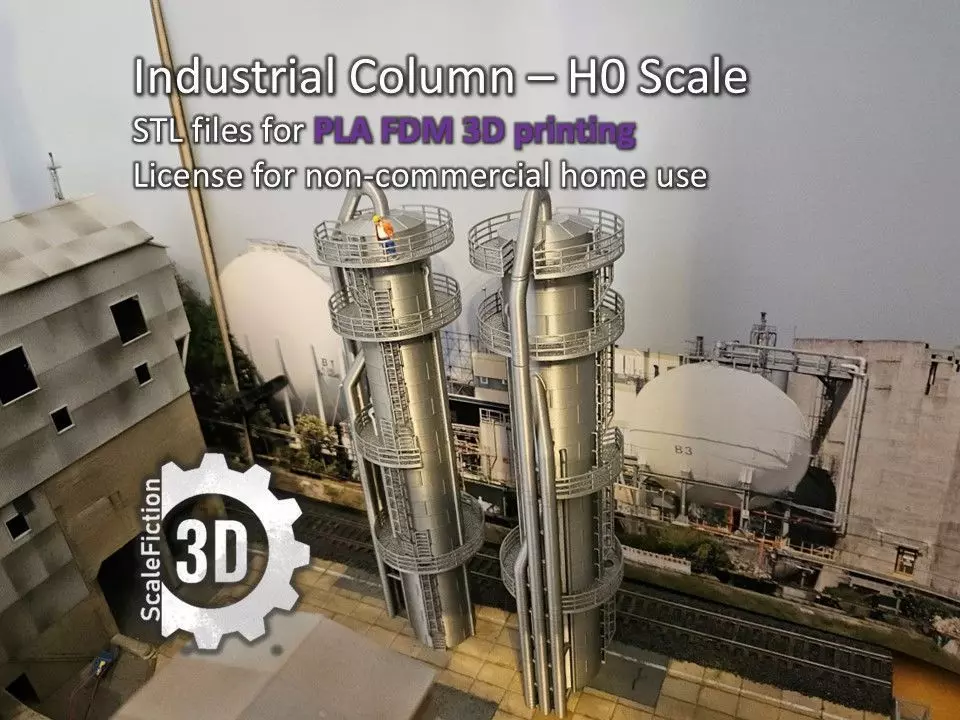

FDM-Optimized Industrial Column (H0 Scale STL Model)

This highly detailed STL model depicts a tall industrial column, perfect for chemical plants, refineries, or steelworks in H0 scale. It has been specifically designed for FDM 3D printing, with optimized geometry that ensures reliable results without the need for supports.

The assembled model stands approximately 270 mm tall, with a main tank diameter of 40 mm. Four walkways (each with safety railing) encircle the column at different levels. These are connected by vertical ladders with safety cages, adding both realism and structural detail. The walkway diameter is 65 mm, giving the model a strong visual presence.

Additional external riser pipes run along the column’s body, creating extra depth and texture. The model is split into multiple parts for easier printing, handling, and assembly.

Summary:

~270 mm tall-40 mm column diameter-65 mm walkway diameter-FDM-optimized-Modular design for easy printing & assembly

No supports required

Assembly via 250 mm threaded rod

Printing & Assembly:

-Designed for FDM printers only — no supports required.-PLA recommended-0.4 mm nozzle-0.2 mm layer height-All parts are designed to lie flat on the print bed for optimal print quality.-Grated walkways can be printed without top and bottom layers, using ~65% grid infill to simulate realistic industrial flooring.

A threaded rod (6 mm or 1/4 inch) of 250 mm length is recommended to assemble and align the central parts. Pre-modeled holes accommodate this.

If 1/4 inch threaded rod does not slide through easily, drill out the holes to 1/4 inch diameter.

A brim or skirt may improve adhesion depending on your printer setup.

Painting Recommendations:-Prime in silver or grey, then highlight valves or risers in red or contrasting colors.-Apply a sepia wash to bring out surface detail and simulate grime or rust.-For railings, ladders, and walkways, drybrushing adds realistic weathering.

Note: This is a digital product. No physical items are included. Scenery and background elements in example images are not part of this model.
