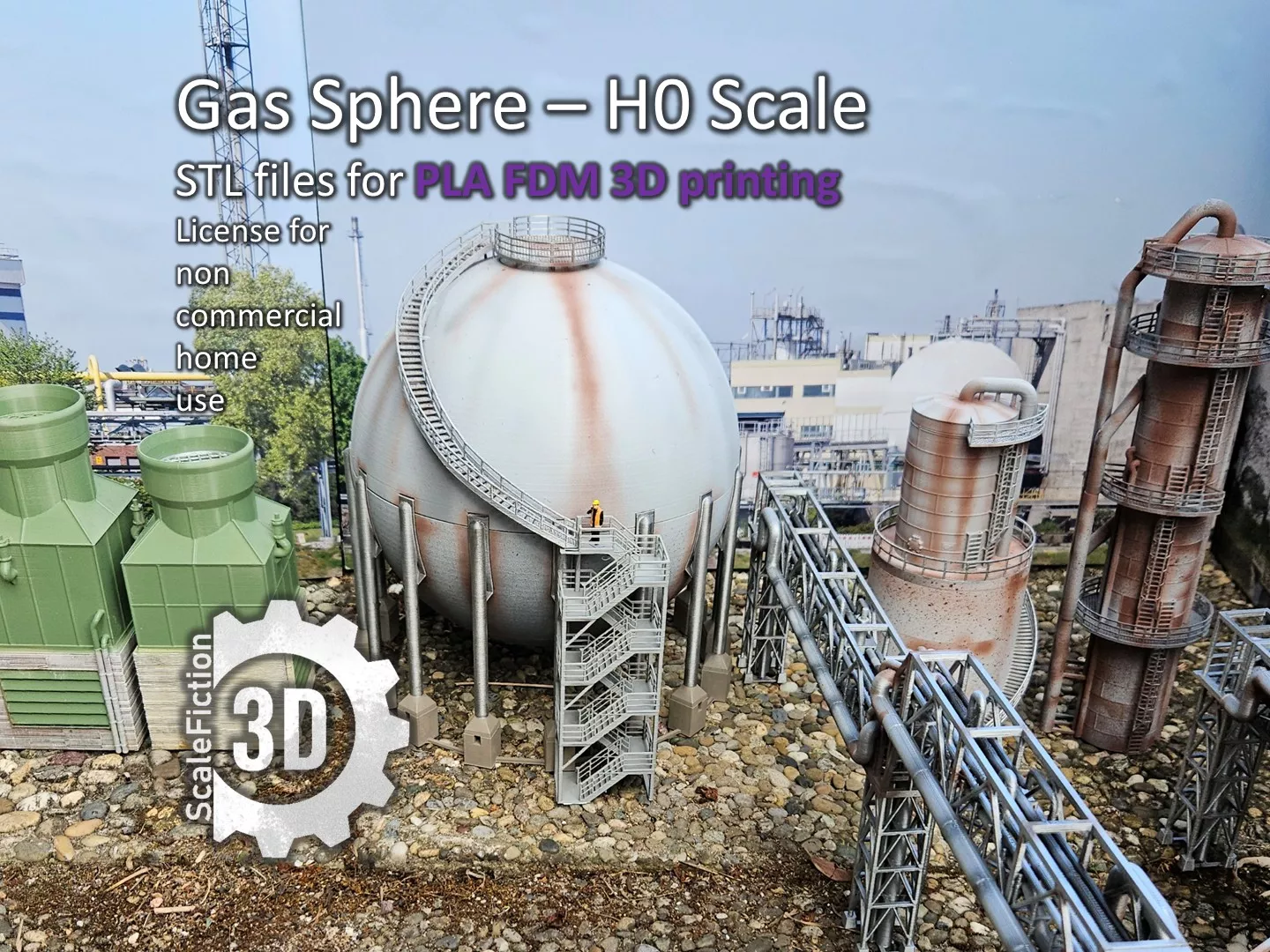

Gas Sphere / Spherical Gas Holder – H0 Scale Industrial STL ModelThis detailed STL model represents a large spherical gas storage tank, inspired by an industrial gas sphere in Cologne-Wesseling, Germany. The model is designed as a characteristic feature for chemical plants, refineries, gas works, steelworks, and large industrial dioramas in H0 scale.With its large spherical tank, supporting structure, external staircase, and access platform, it makes an impressive industrial landmark on an H0 layout.

Model Features• Scale: H0 (1:87)• Sphere diameter: approx. 210 mm• Prototype diameter: approx. 18.3 m• Overall model height: approx. 250 mm• Modular construction for easy FDM printing• Designed to fit on a 226 × 226 mm print bed• Only two main parts require mandatory gluing• The external spiral staircase is integrated into the upper sphere section and must therefore be loaded and printed together with the upper half.• Detailed support structure, access staircase and upper maintenance platformThe model has been split into sections specifically to make it printable on common consumer FDM printers while keeping the assembled model large and impressive.Approximate Prototype VolumeBased on the 210 mm model diameter and H0 scale, the prototype sphere would have a diameter of approximately 18.3 m.A perfect sphere of this diameter would have a theoretical volume of approximately:• 3,200 m³• 3.2 million liters• ≈ 846,000 US gallonsThe actual usable gas storage capacity of a real gas sphere can differ depending on its construction and operating conditions.

FDM Printing RecommendationsThis model is designed and tested for FDM printing only.Recommended settings:• Printer: FDM• Test printer: Bambu Lab P1S• Material: PLA• Nozzle: 0.4 mm• Layer height: 0.2 mm• Print bed: minimum 226 × 226 mm• Print the individual sections according to their intended orientation.The 226 × 226 mm footprint was deliberately chosen to make the model suitable for many common consumer FDM printers, including printers such as the Bambu Lab P1S.Grated Platforms and StairsThe staircase and grated floor elements can optionally be printed without solid top and bottom layers.Using:• Grid infill• approx. 60% infill density• 0 top layers• 0 bottom layerscan create a convincing open-grid appearance.The STL geometry itself contains these floors and steps as solid surfaces. The open-grid appearance is created by the slicer through the recommended printing settings.Some experimentation with the exact infill density and slicer settings is recommended to achieve the appearance you prefer.Only FDM printing has been tested with this model. SLA/resin printing has not been tested and is not guaranteed.

AssemblyThe modular construction makes assembly straightforward.Only two parts need to be glued together for the basic assembly.Please note that the spiral staircase must be loaded and printed together with the upper sphere half, as it is designed as part of this section.The remaining components are designed to fit together with minimal assembly effort.

Painting & Weathering RecommendationFor a realistic industrial appearance:

1. Prime the model in silver or grey.
2. Apply the main industrial color according to your preferred prototype.
3. Add rust effects around structural joints, edges, supports and exposed metal.
4. Use darker tones and vertical streaks to reproduce accumulated dirt and weathering.
5. A light drybrush can be used to emphasize the structural details and railings.A combination of slightly different shades across the individual components can also help create a convincing, weathered industrial appearance.________________________________________Ideal For• H0 industrial dioramas• Chemical plants• Refineries• Gas works• Steelworks• Industrial railway layouts• Heavy industry scenes• Large-scale industrial complexes• German industrial model railwaysThe gas sphere itself is the only model included in this STL set. Any other tanks, buildings, pipe bridges, figures, railway tracks, or scenery visible in the preview images are shown for illustration only and are not included.

ImportantThis is a digital download. No physical items will be shipped. Figures, buildings, and scenery shown in any preview images are not included.

Please noteThese scale models are designed for adult model makers and advanced diorama builders. They are not toys and not suitable for children.
