KUS (BIRD) - ANATOLIAN AMULET PENDANT

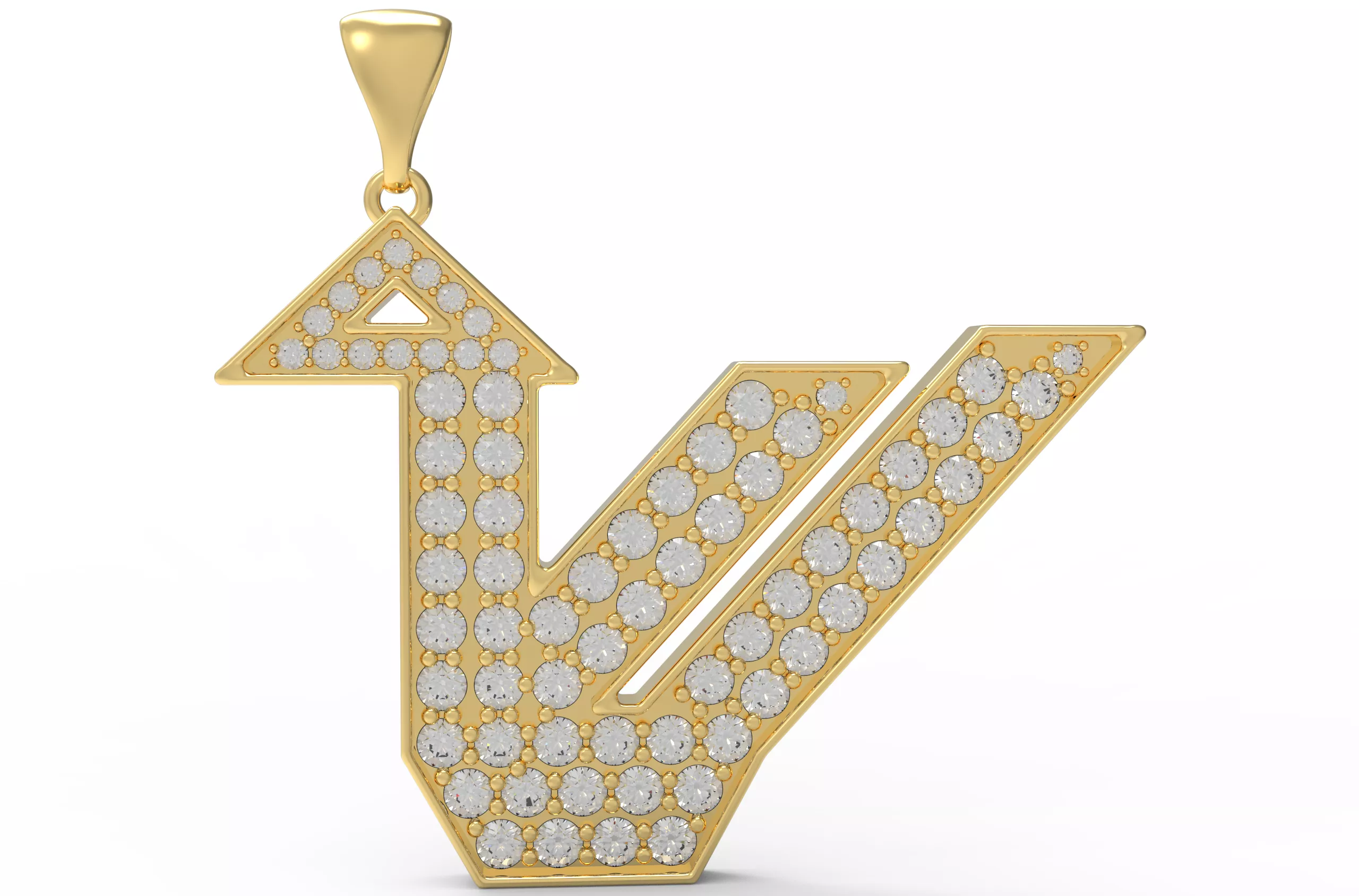

A production-ready pendant based on the Kus (Bird) motif from traditional Anatolian kilim weaving.The bird is one of the few signs in the tradition read in more than one way - carrying happiness and good news in some regions, power in others.The design holds the whole silhouette in a single sweep: a raised head with an open eye, the body, and a long tail carried out to the side.

Modeled in Rhino as a clean, closed, watertight solid.Ready for resin printing and direct casting - no repair or remeshing needed.

DIMENSIONS

Width 24.40 mmHeight 17.80 mmThickness 1.65 mmBail 4.80 mm (integrated, fully modeled)Bail opening 1.25 mmMinimum wall 0.30 mm

GEM REPORT - 72 stones

Shape Size QtyRound 1.30 mm 56Round 0.80 mm 16

Total diamond weight 0.493 ctTotal CZ weight 0.779 ct

The sixteen 0.80 mm stones sit where the form narrows - the head and the tip of the tail - so the silhouette stays clean at the edges.Stones are modeled in place with cut seats and sit on a separate layer, removable in one click.

METAL WEIGHT ESTIMATE

Yellow Gold 10K 2.00 gYellow Gold 14K 2.25 gYellow Gold 18K 2.69 gYellow Gold 22K 3.13 gWhite Gold 10K 1.92 gWhite Gold 14K 2.20 gWhite Gold 18K 2.56 gSterling Silver 925 1.81 gSteel 1.35 gWax (CNC) 0.17 g

WHAT YOU GET

• .3dm native Rhino file, organized layers (metal / stones / bail)

- .stl print-ready mesh, watertight, correct scale in mmNOTES

• Scale to any size you need; built at real jewelry scale in mm
• The seats accept any round stone of the listed sizes - diamond, CZ, ruby, sapphire or garnet
• Metal weights given for 10K to 22K gold, silver and steel
• The largest piece in the series at 24.4 x 17.8 mm - a statement pendant, also suited to a brooch or a bracelet centre
• Suitable for silver, gold and steel casting
• Designed by a jewelry CAD designer, not converted from a render mesh

Part of an ongoing series of pendants drawn from the traditional Anatolian kilim motif vocabulary.

Renders are for presentation only. Stones, chain and background are not included in the files.
