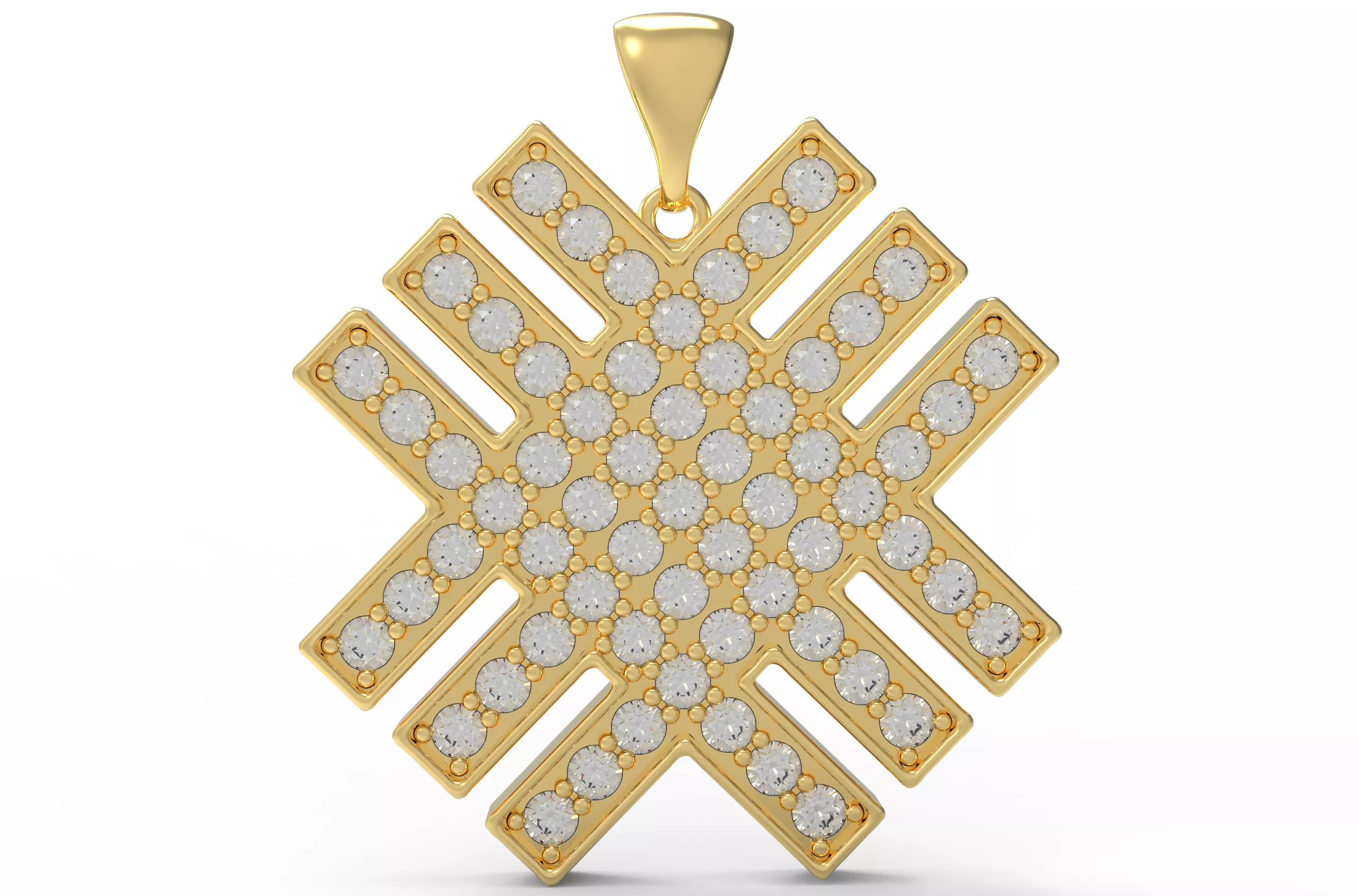

PITRAK (BURDOCK) - ANATOLIAN AMULET PENDANT

A production-ready pendant based on the Pitrak (Burdock) motif from traditional Anatolian kilim weaving.The burdock is the spiked seed head that catches on wool and clothing - woven into a kilim its thorns turn away the evil eye, while its density stands for abundance.The Turkish phrase pitrak gibi, meaning covered all over, comes from the same plant.The design follows both readings at once: eight spiked arms radiating from a densely set centre.

Modeled in Rhino as a clean, closed, watertight solid.Ready for resin printing and direct casting - no repair or remeshing needed.

DIMENSIONS

Width 18.10 mmHeight 18.10 mmThickness 1.65 mmBail 4.80 mm (integrated, fully modeled)Bail opening 1.25 mmMinimum wall 0.30 mm

GEM REPORT - 61 stones, single size

Shape Size QtyRound 1.30 mm 61

Total diamond weight 0.503 ctTotal CZ weight 0.795 ct

All 61 stones are the same size - one stone order, faster setting, no sorting at the bench.Stones are modeled in place with cut seats and sit on a separate layer, removable in one click.

METAL WEIGHT ESTIMATE

Yellow Gold 10K 1.97 gYellow Gold 14K 2.21 gYellow Gold 18K 2.65 gYellow Gold 22K 3.07 gWhite Gold 10K 1.89 gWhite Gold 14K 2.16 gWhite Gold 18K 2.52 gSterling Silver 925 1.78 gSteel 1.32 gWax (CNC) 0.17 g

WHAT YOU GET

• .3dm native Rhino file, organized layers (metal / stones / bail)

- .stl print-ready mesh, watertight, correct scale in mmNOTES

• Scale to any size you need; built at real jewelry scale in mm
• The seats accept any round 1.30 mm stone - diamond, CZ, ruby, sapphire or garnet
• Metal weights given for 10K to 22K gold, silver and steel
• Fully symmetrical at 18.1 x 18.1 mm with no fixed orientation - works as a pendant, a brooch or a bracelet centre, and the bail can be repositioned to any arm
• The highest stone weight in the series at 0.503 ct
• Suitable for silver, gold and steel casting
• Designed by a jewelry CAD designer, not converted from a render mesh

Part of an ongoing series of pendants drawn from the traditional Anatolian kilim motif vocabulary.

Renders are for presentation only. Stones, chain and background are not included in the files.
