Triangular honeycomb mesh lamp 3D print model

3D model description

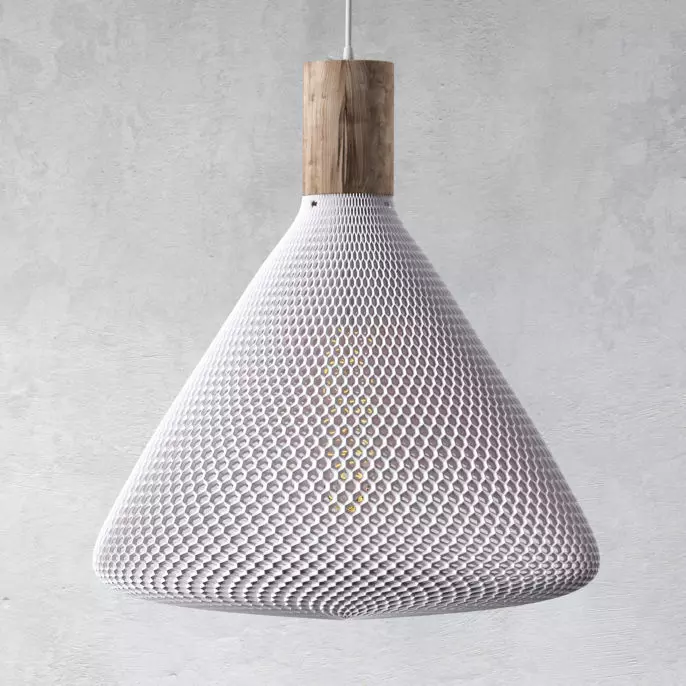

Lampshades inspired by the visual appearance of honeycombs. Using hexagonal prismatic cells built by honey bees in their nests, the lampshades are able to create a soft light and bring a cosy feeling to the environment.

These lamps are designed in different shapes to allow for a variety of styles, tastes and spaces. Other designs can be found in my profile

3D printing settings

The minimalist design can be produced in any color or size and has a wide variety of possibilities. The holes on the top can be used to be tied with strings and threads. In this way it allows more customization to fit in any socket or any other specification by the customer. You can use any standard hanging light cord and a low temp bulb (such as a LED or cfl bulb). The bulb needs to be narrow enough to go through the opening of the lampshade.

The lampshades are designed to be printed out of PLA material. When designing these shades I took into account the technology and the way how the object is printed. The design avoids using any support material and uses as little material as possible to print a very detailed and beautiful but firm structure.

The model was created in Rhino using parametric design and can be printed by any 3D printing software. You can use the settings as follows:

  • 0.2 mm to 0.4 mm Nozzle
  • 25% infill
  • no support
  • high cooling.
  • If it doesn't stick to the bed offset the object with z -0.1

You need to adopt the best retraction setting possible depending on your printer.

I used Anycubic I3 for the print and it turned out great!

I hope you enjoy this design and feel free to improve it.

    This product has no reviews yet
    Triangular honeycomb mesh lamp
    $5.00
    All prices are exclusive of VAT
    Send your price offer to the author if you want to buy it at lower price.
    Editorial License
    The product can only be used in an editorial manner (educational, non-commercializable<br/> personal project, in newsworthy and of public interest events) and may not be used for any<br/> commercial, promotional, or merchandising purposes.<br/> <a href='/pages/terms-and-conditions#general-terms-of-licensing' rel='nofollow' target='_blank'>Read more</a>
    Response - % in - h
    3D model formats
    • Stereolithography (.stl)51.1 MB
    • OBJ (.obj, .mtl) (2 files)-
    3D model details
    • Publish date2020-09-18
    • Model ID#2613764
