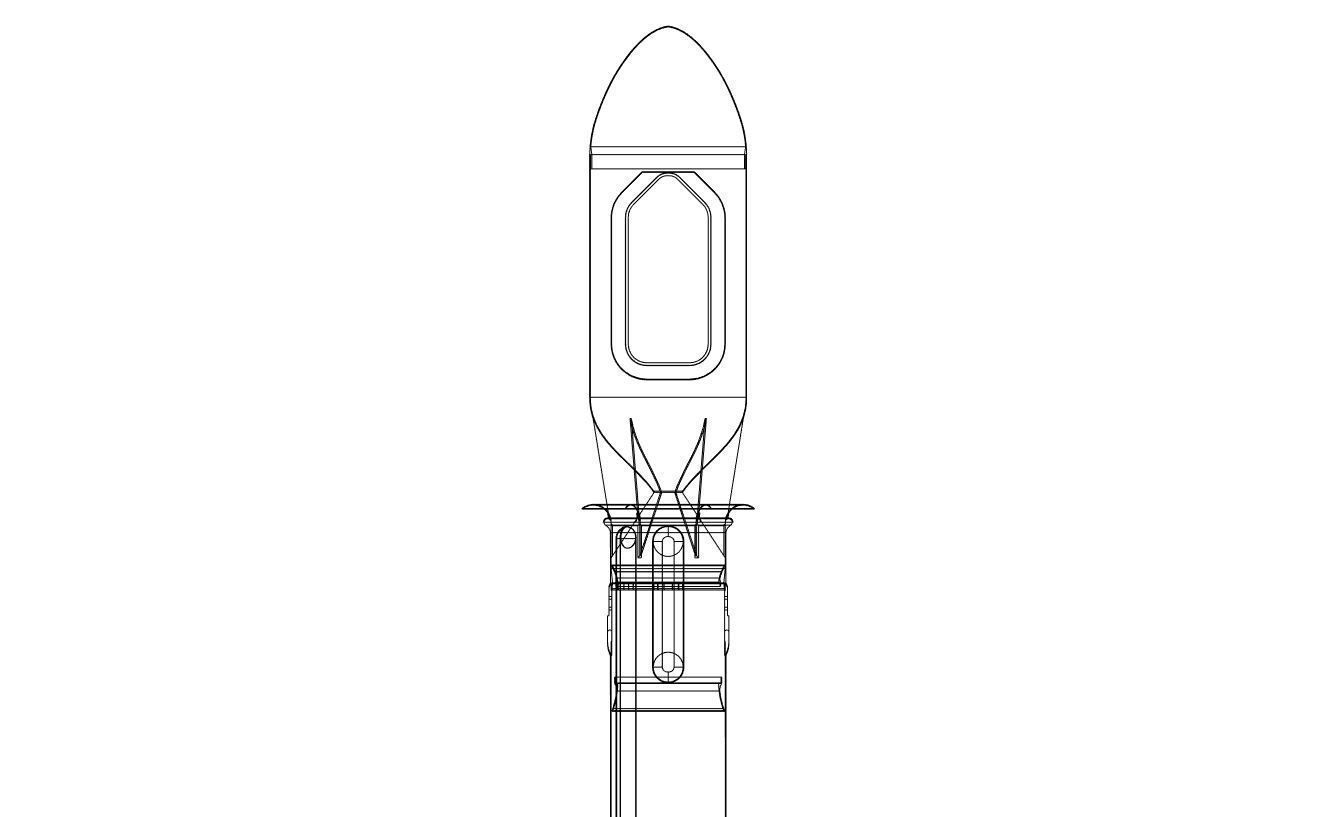

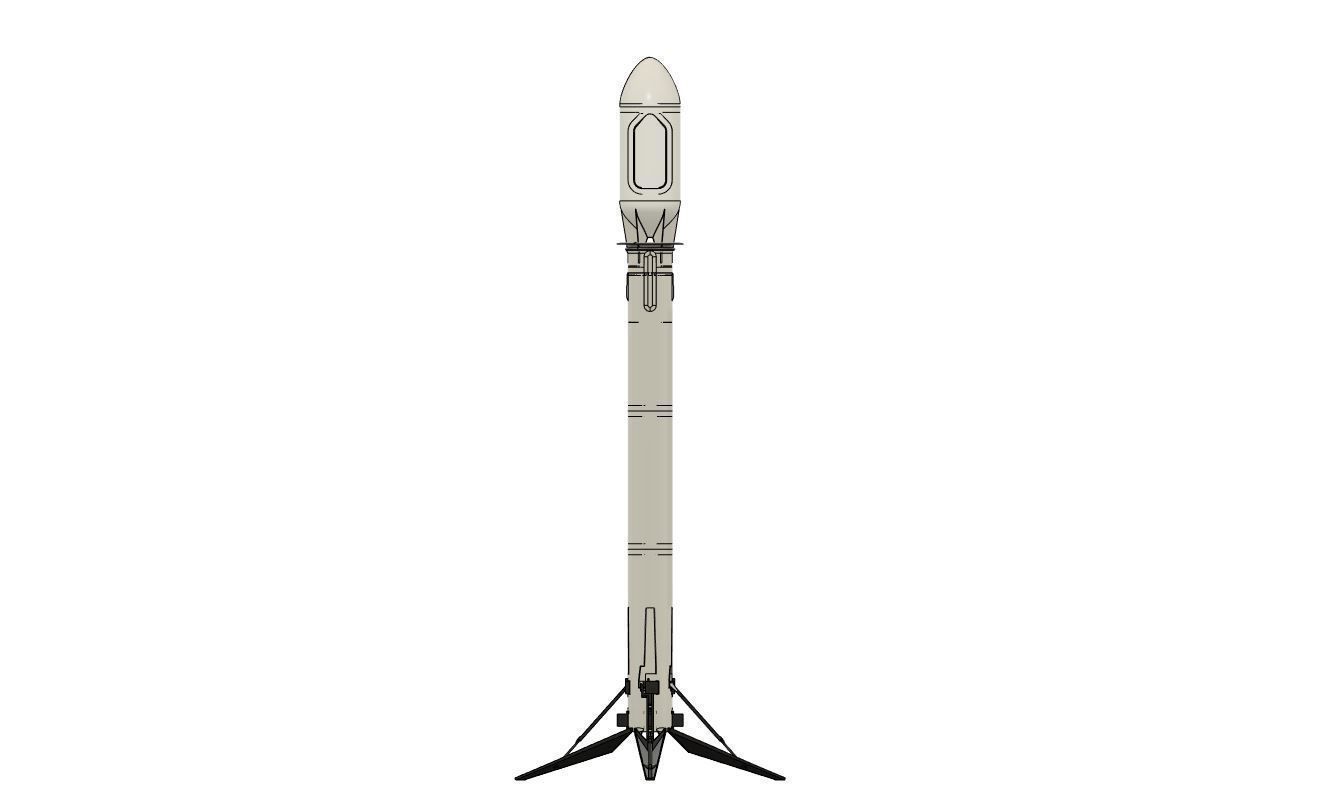

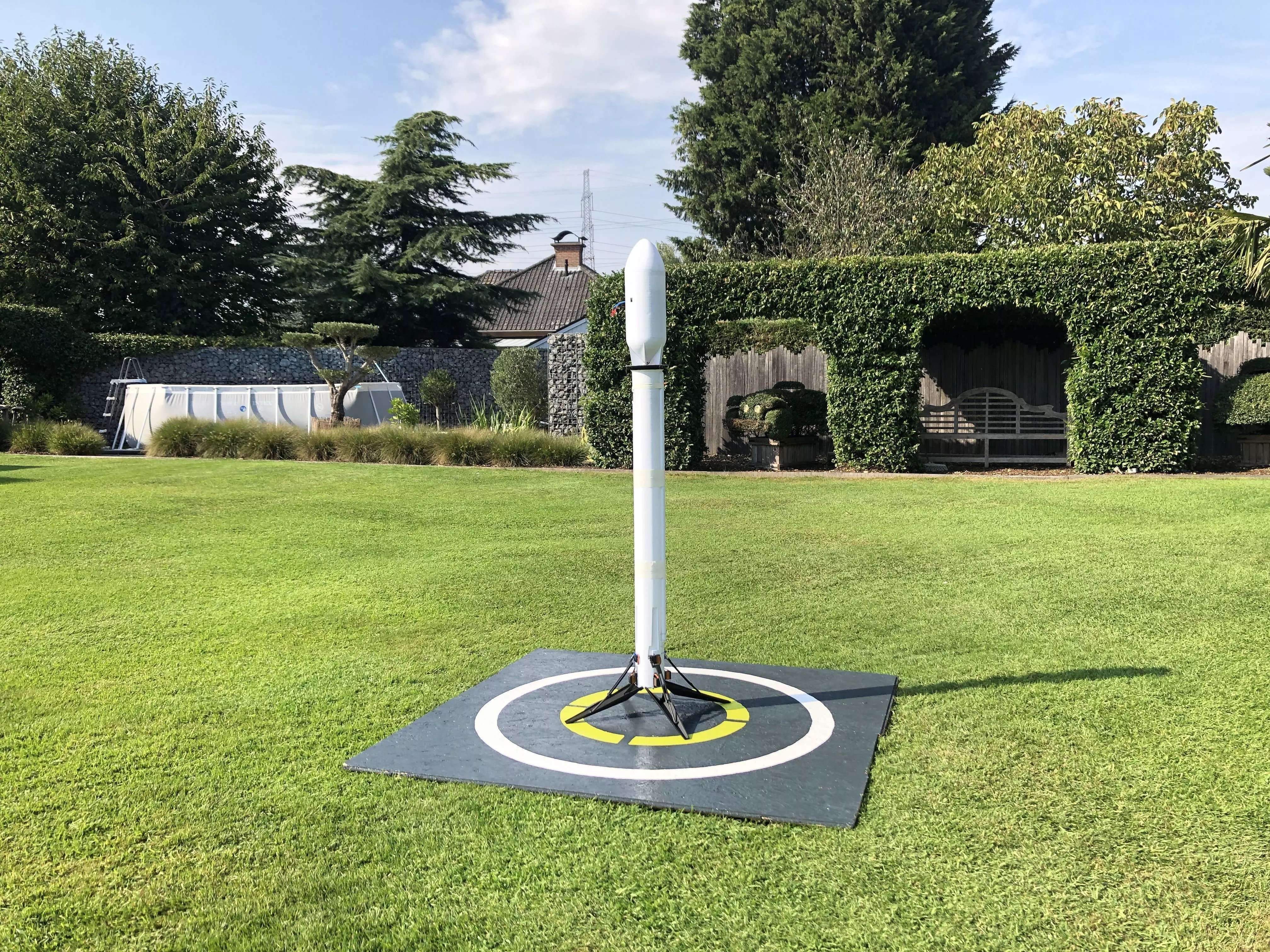

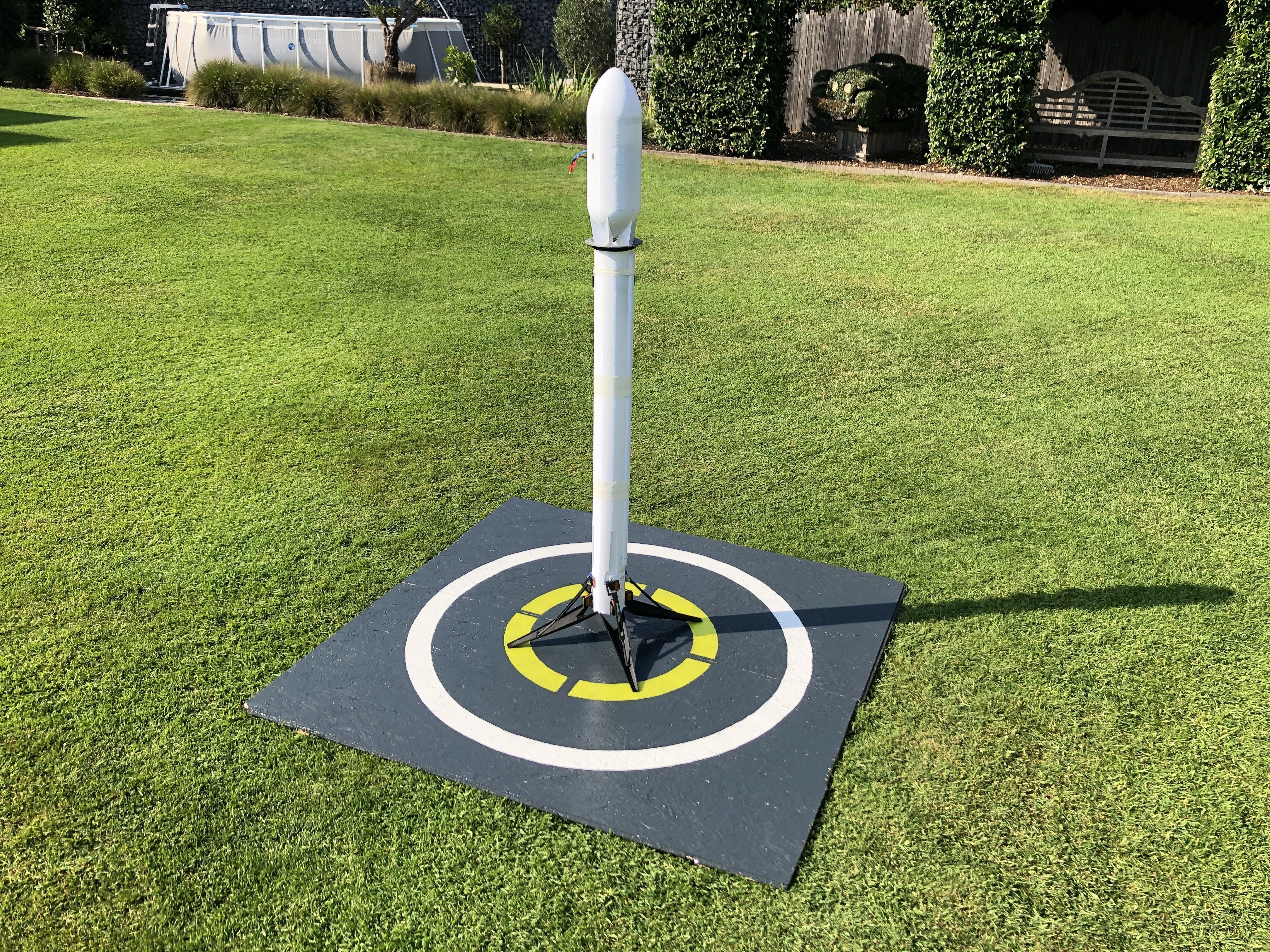

SpaceX inspired edf rocket 3D print model

Video: https://youtu.be/41UrzTPhG0g

These files are the Fusion 360 source files of this project.

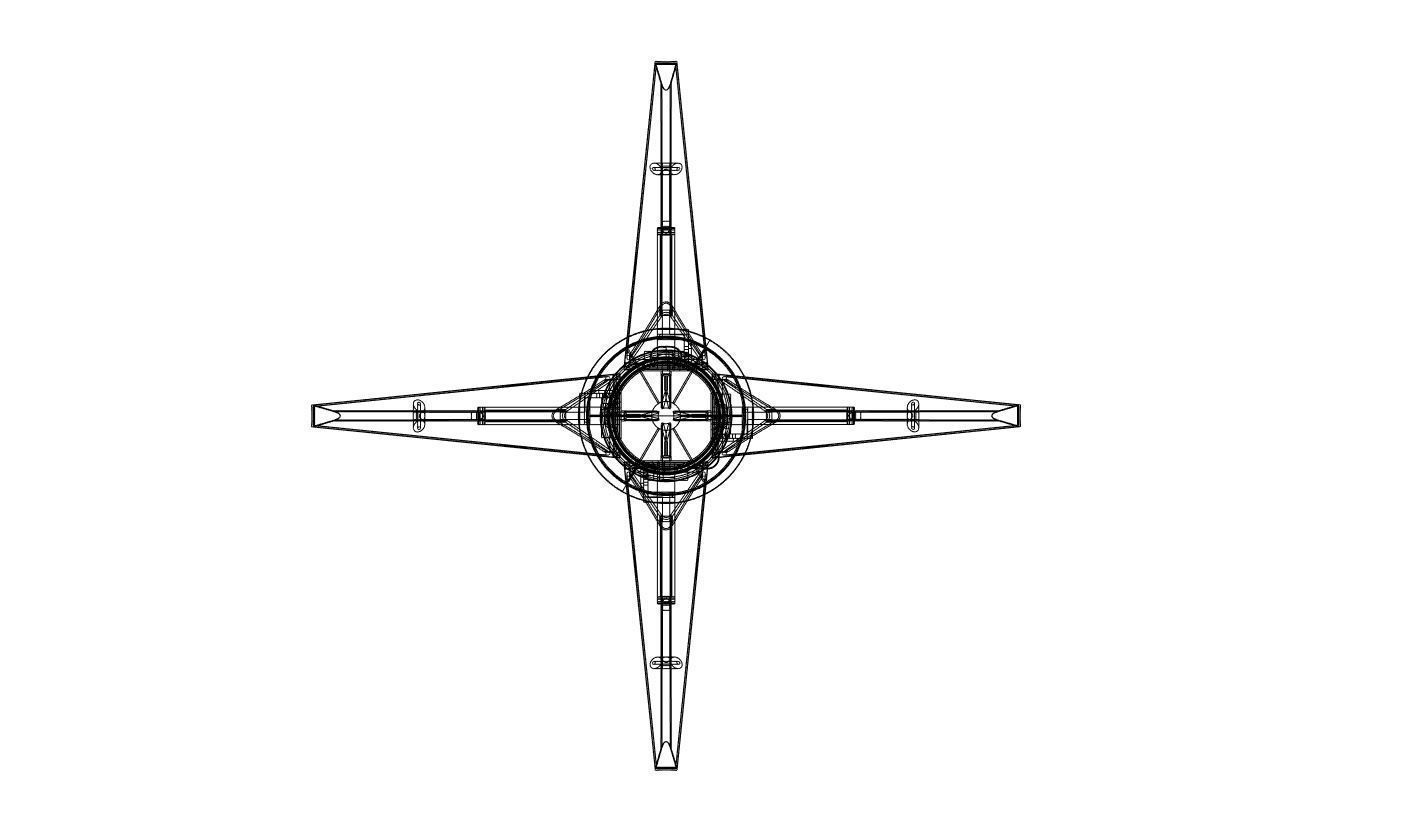

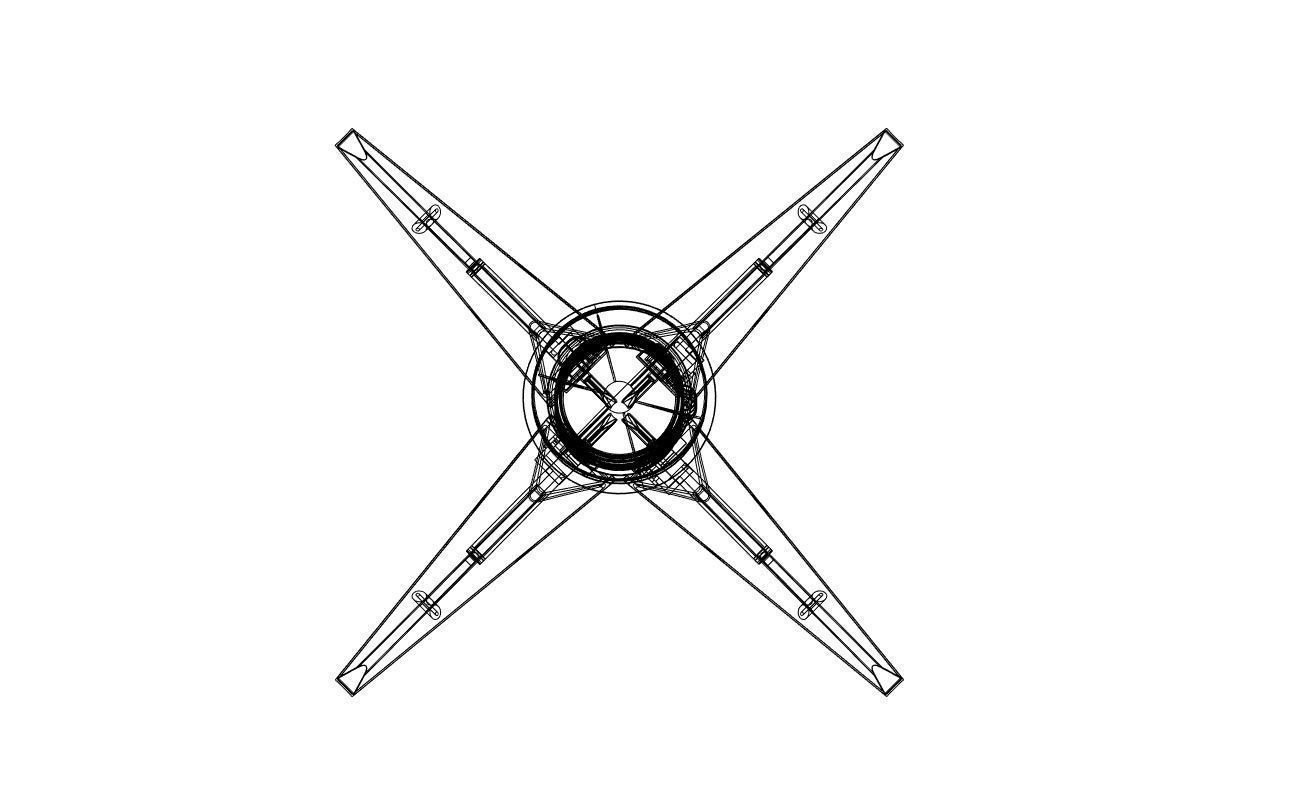

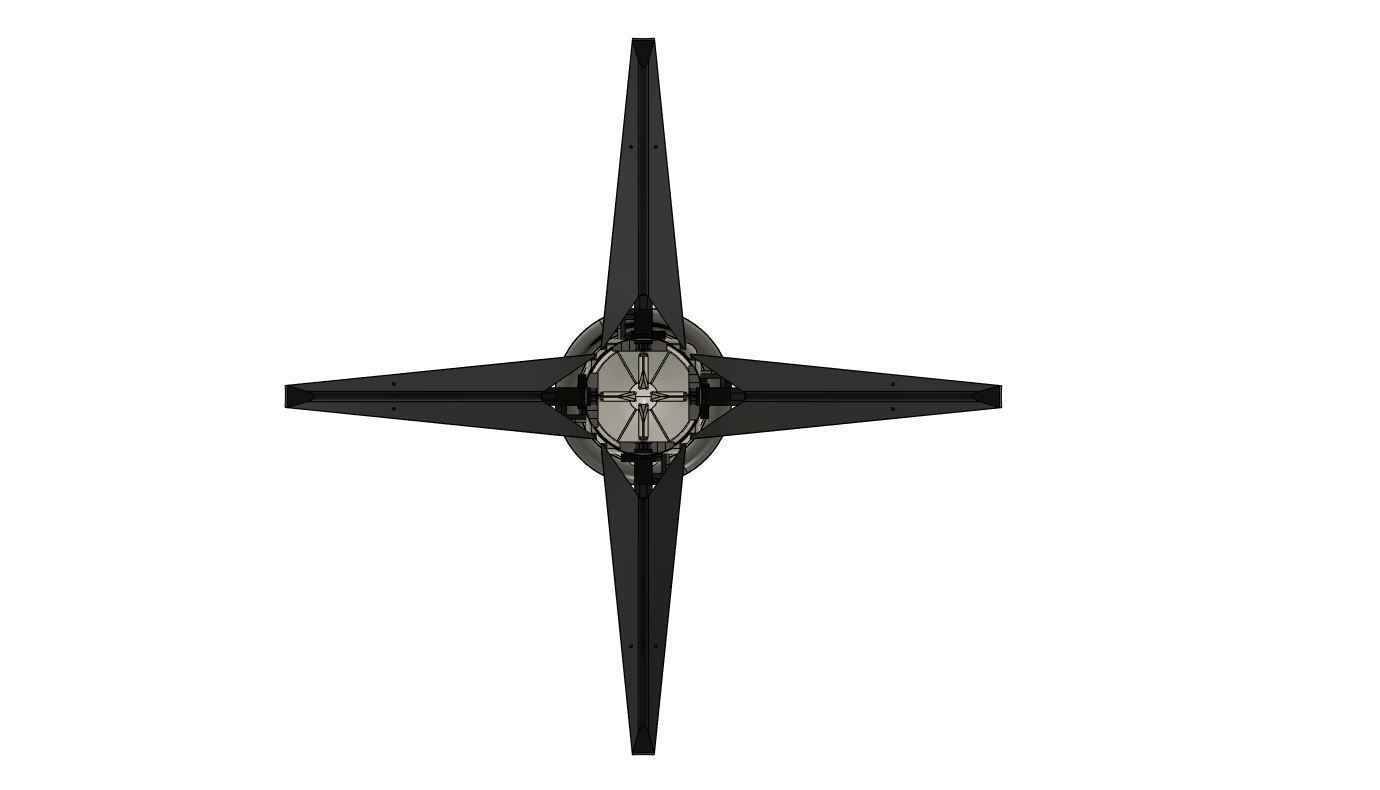

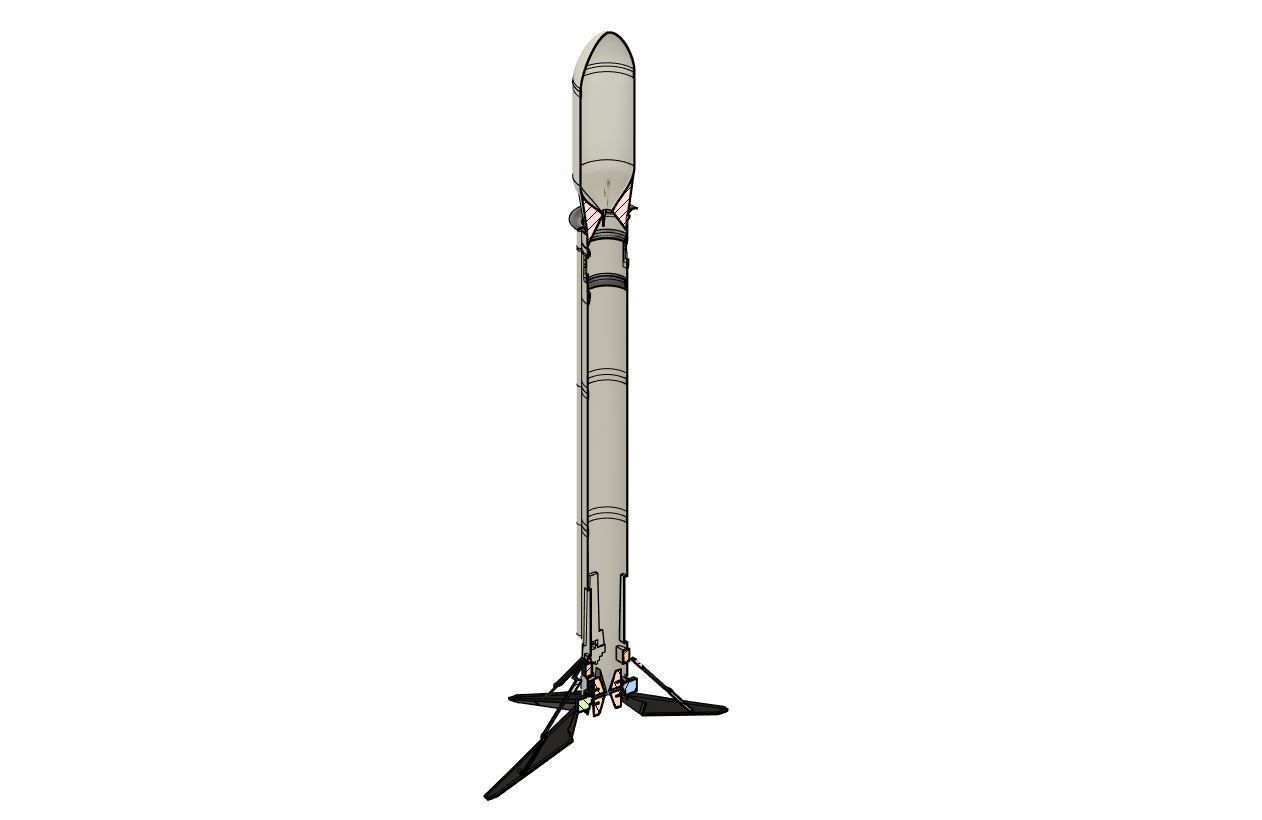

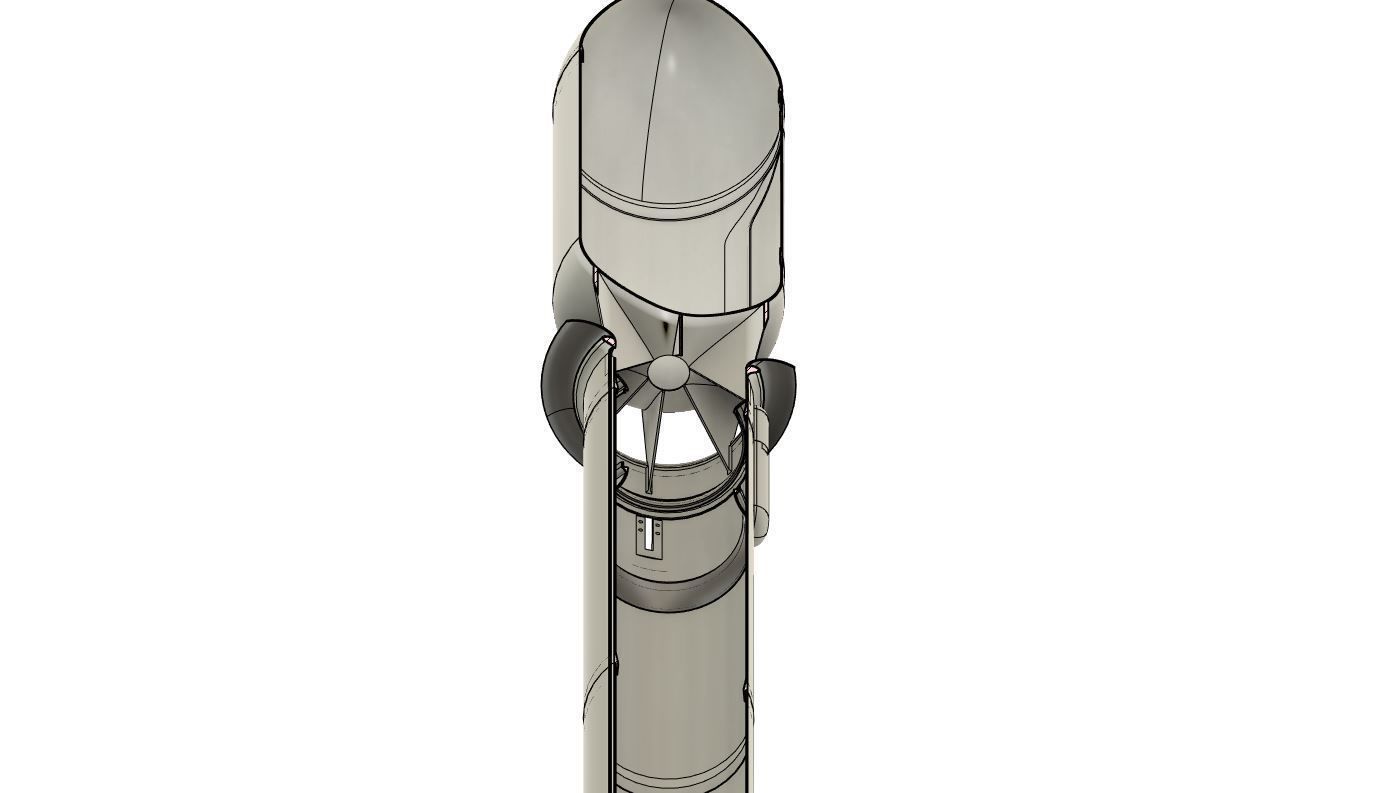

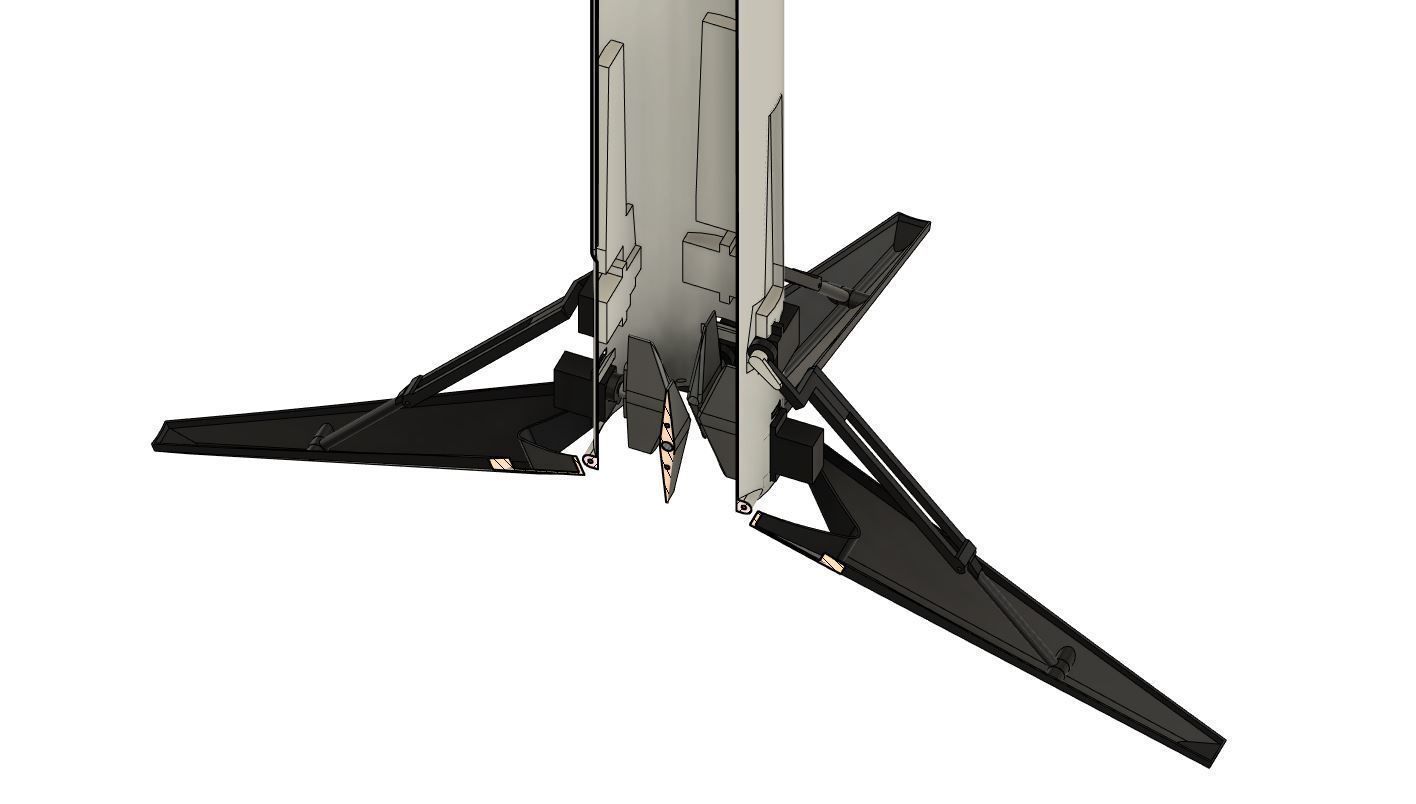

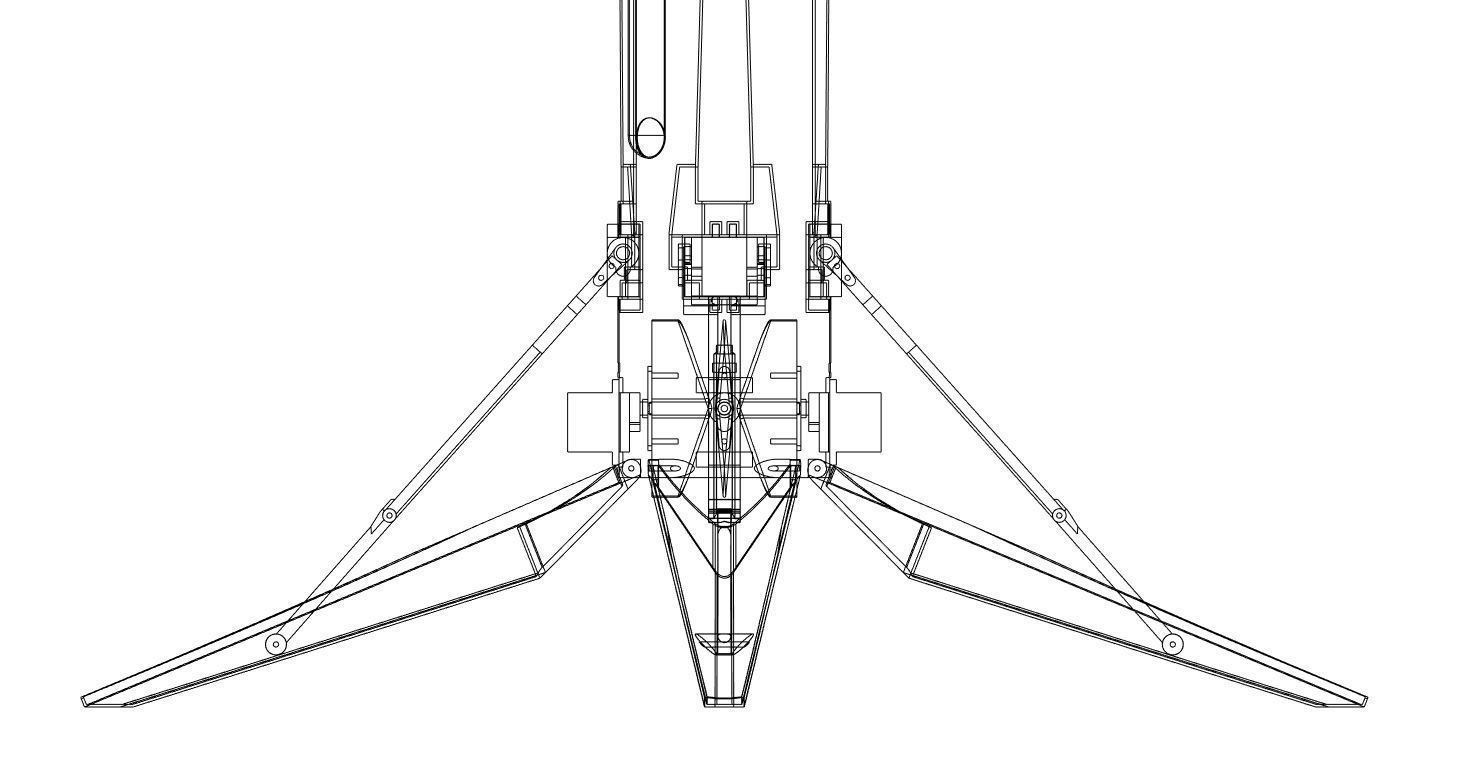

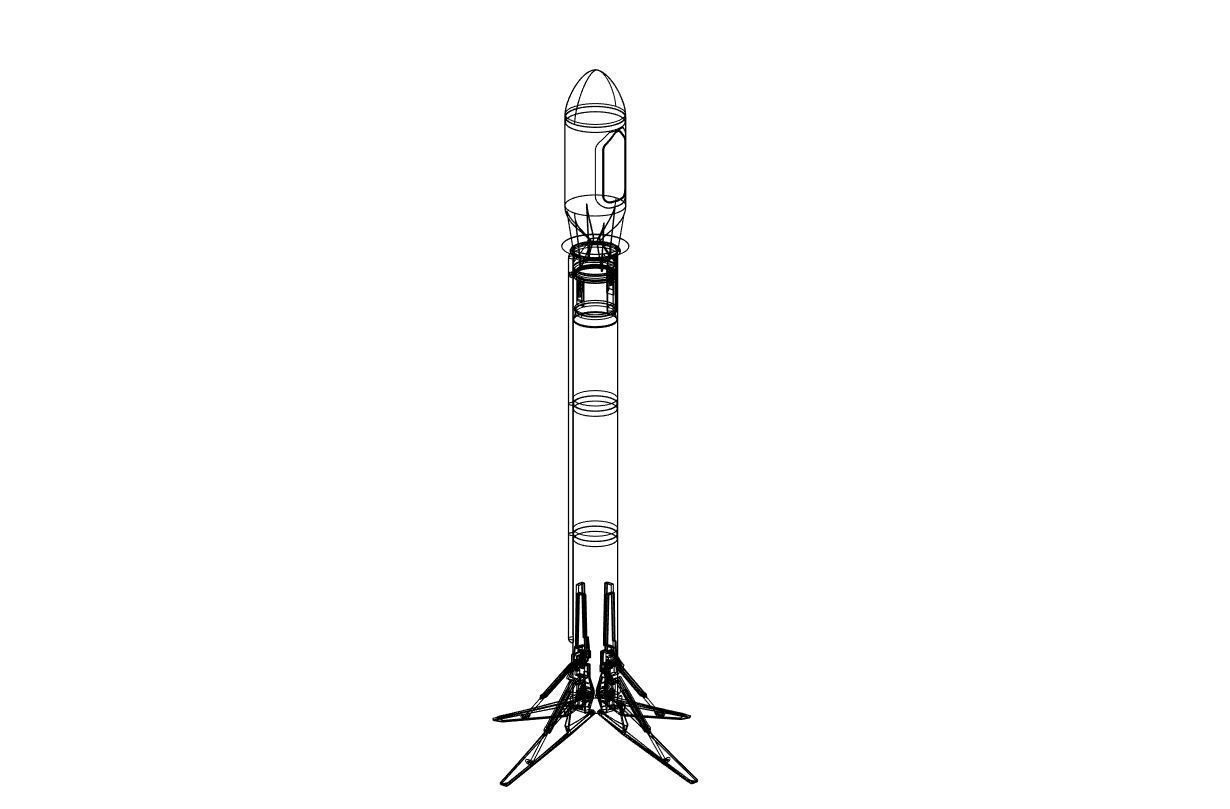

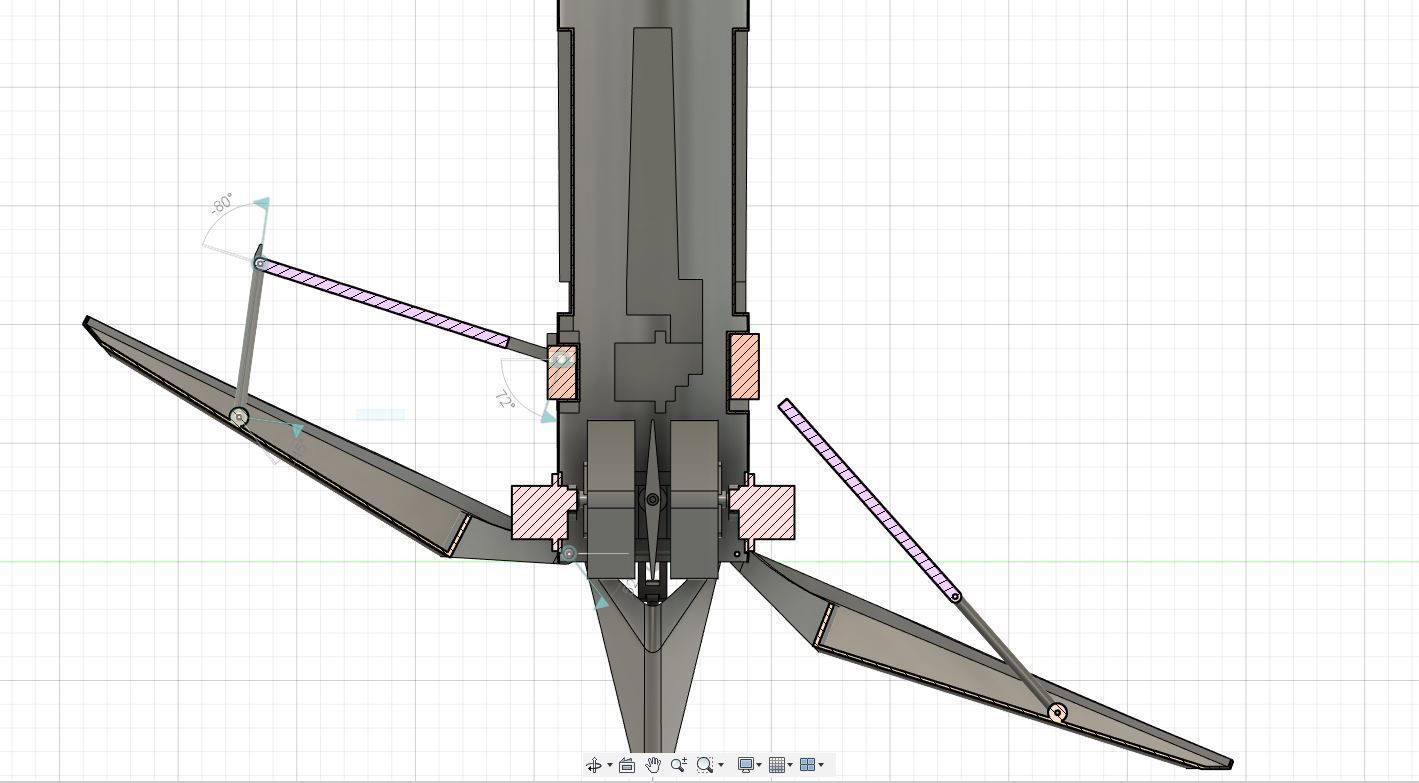

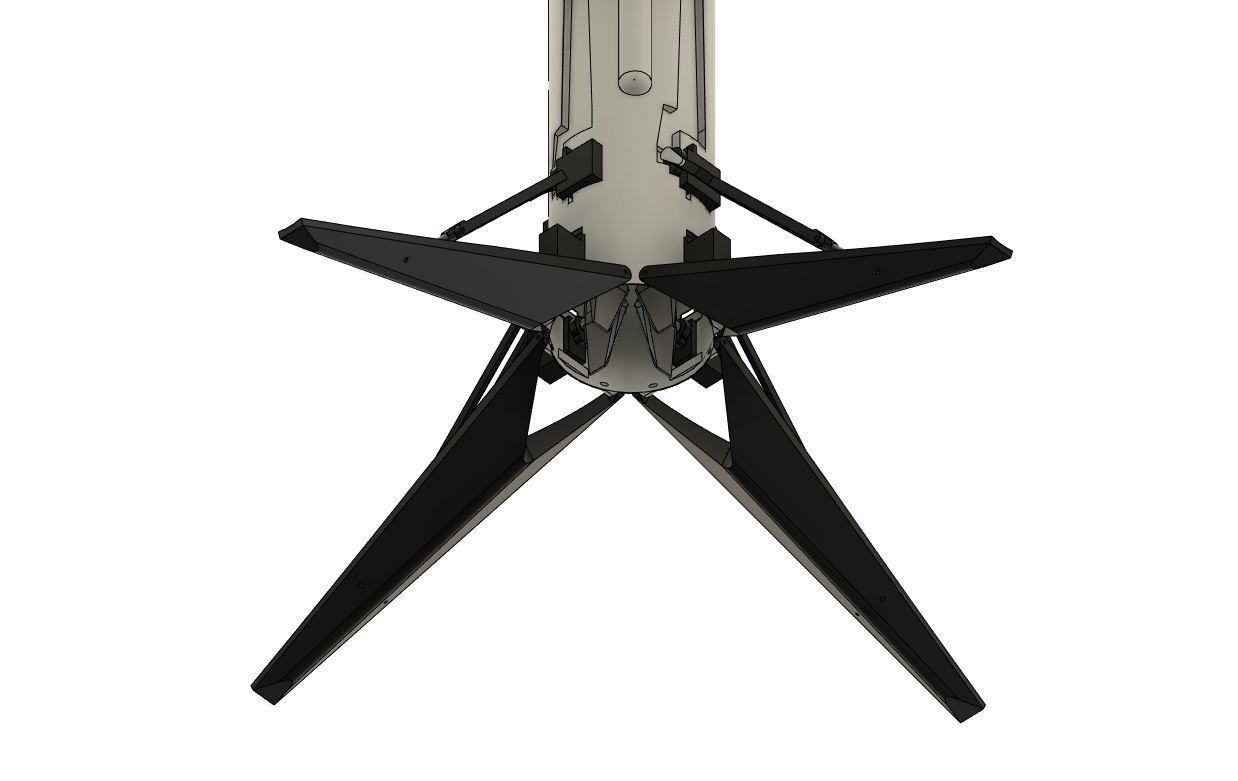

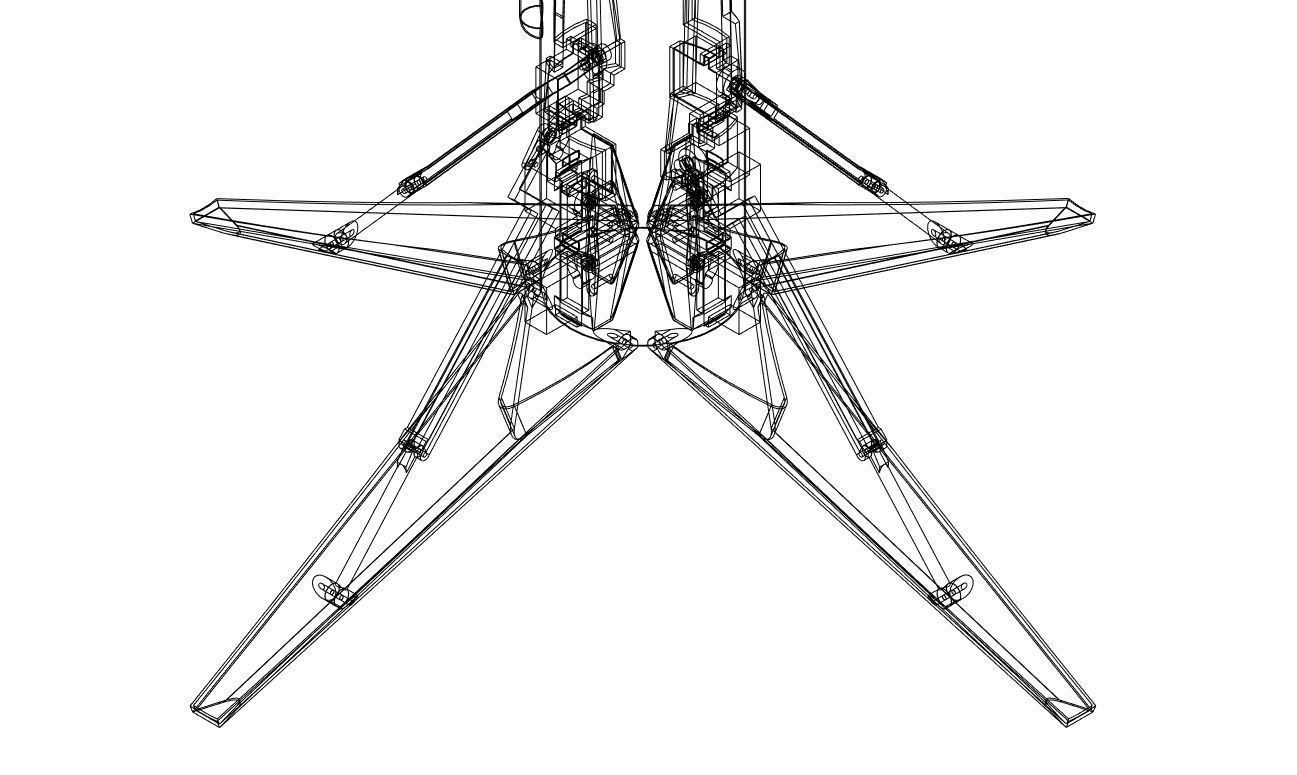

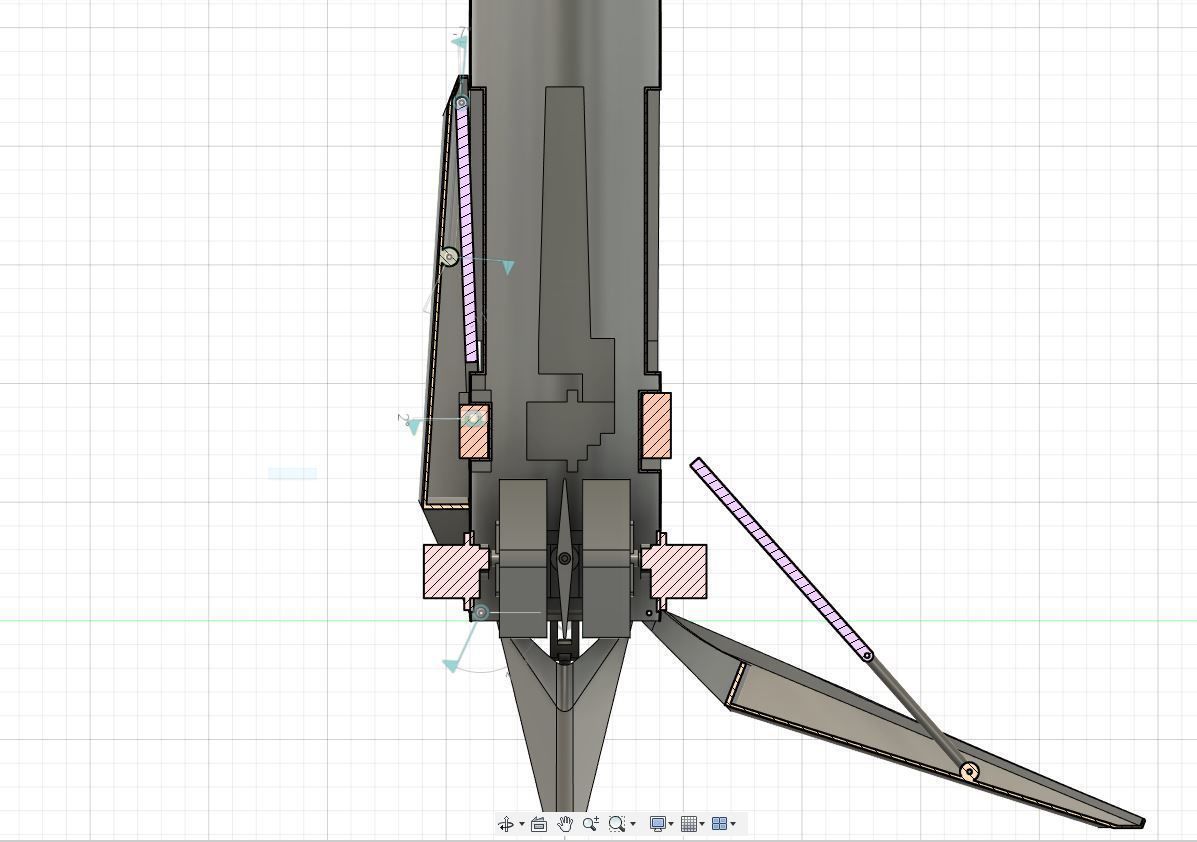

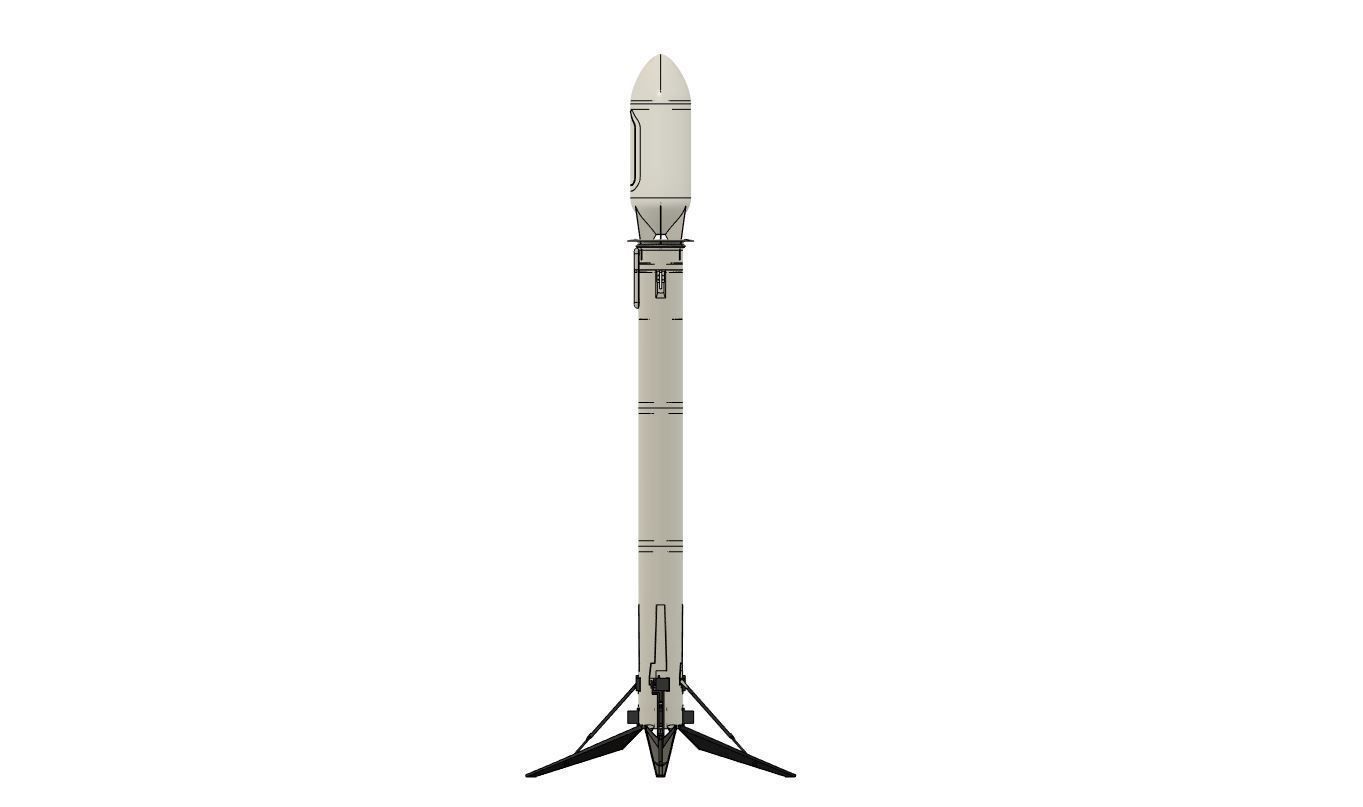

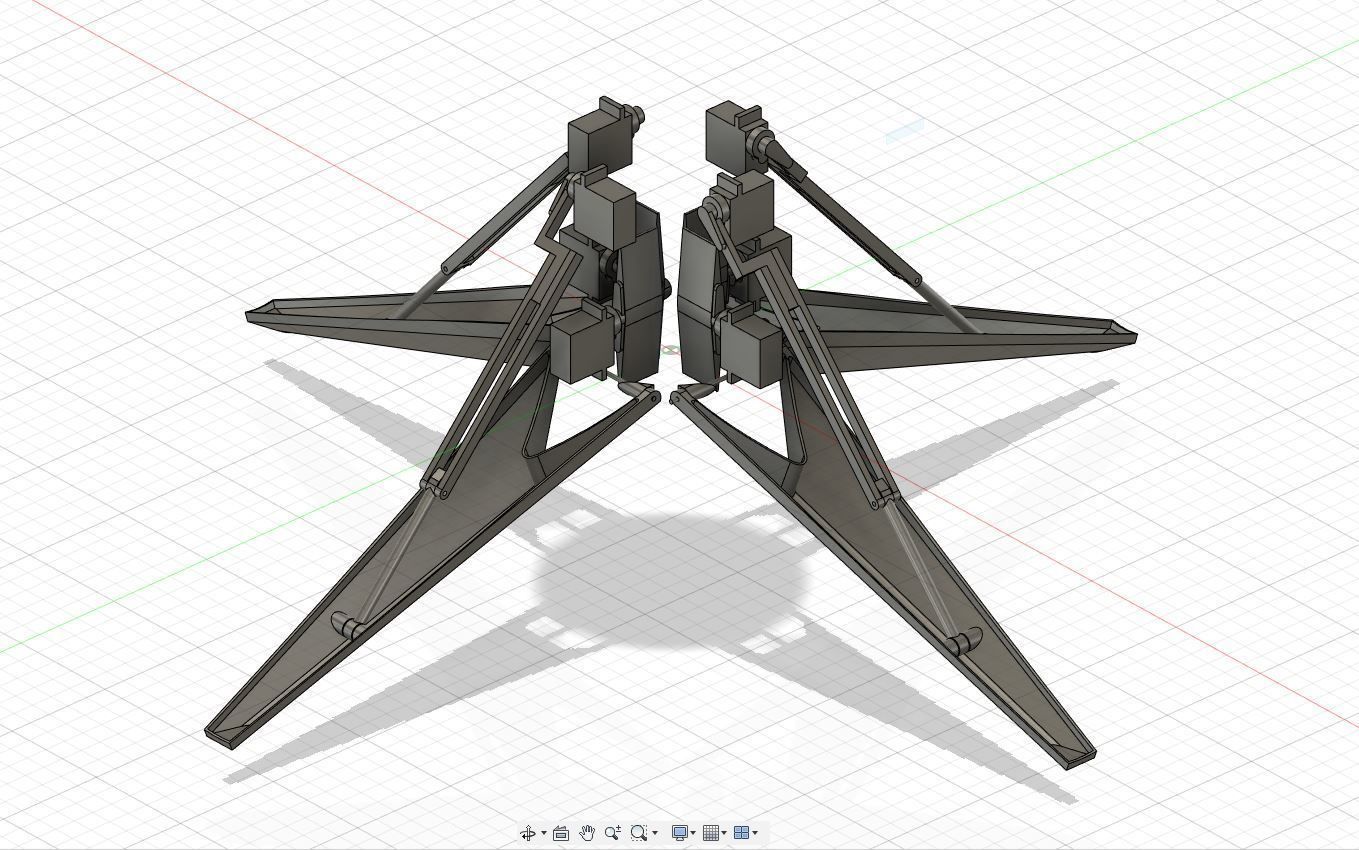

In the beginning of this year I was really amazed by the fast and succesive achievements SpaceX made. So I decided I wanted to do a SpaceX related project. Being a SpaceX fan for a few year now, I decided to go for the Falcon 9 inspired look on my build. I'm referring to 'inspired' because i took some general proportion from the Falcon 9 rocket but had to make a lot of changes to get the rocket functional on the scale I was intending to build it. The rocket has a deployable landing gear, thrust vecrtor control unit and uses a 6s 80mm 12 blade fan capable of 2.5 kg of thrust. The thrust vector controll unit is being controlled by a Pixhawk X4 running Ardupilot V4.0.4 which is configured as a single copter. this is essentially a single copter in the shape of a rocket.

More info can be found on Hackaday: https://hackaday.io/project/174329-spacex-inspired-edf-rocket

    This product has no reviews yet
    SpaceX inspired edf rocket
    $5.99
    All prices are exclusive of VAT
    Send your price offer to the author if you want to buy it at lower price.
    Editorial License
    The product can only be used in an editorial manner (educational, non-commercializable<br/> personal project, in newsworthy and of public interest events) and may not be used for any<br/> commercial, promotional, or merchandising purposes.<br/> <a href='/pages/terms-and-conditions#general-terms-of-licensing' rel='nofollow' target='_blank'>Read more</a>
    Response 70% in 2.9h
    3D Modeling
    3D Print Modeling
    Hire me
    3D model formats
    Native
    • Autodesk Fusion 360 (.f3d) (2 files)-
    Exchange
    • 3D ACIS (.sat)4.26 MB
    • OBJ (.obj, .mtl)5.98 MB
    • Autodesk Fusion 360 (.f3d) (2 files)-
    • Autodesk Inventor (.iam, .ipt)2.96 MB
    • Stereolithography (.stl) (16 files)-
    • Autodesk FBX (.fbx)1.9 MB
    • DXF (.dxf)9.29 MB
    • Sketchup (.skp)5.03 MB
    • AutoCAD (.dwg)2.02 MB
    • IGES (.ige, .igs, .iges)4.31 MB
    3D model details
    • Publish date2020-09-24
    • Model ID#2622671
