RC FPV tank rover 3D print model

These files are the Fusion 360 source files of this project.

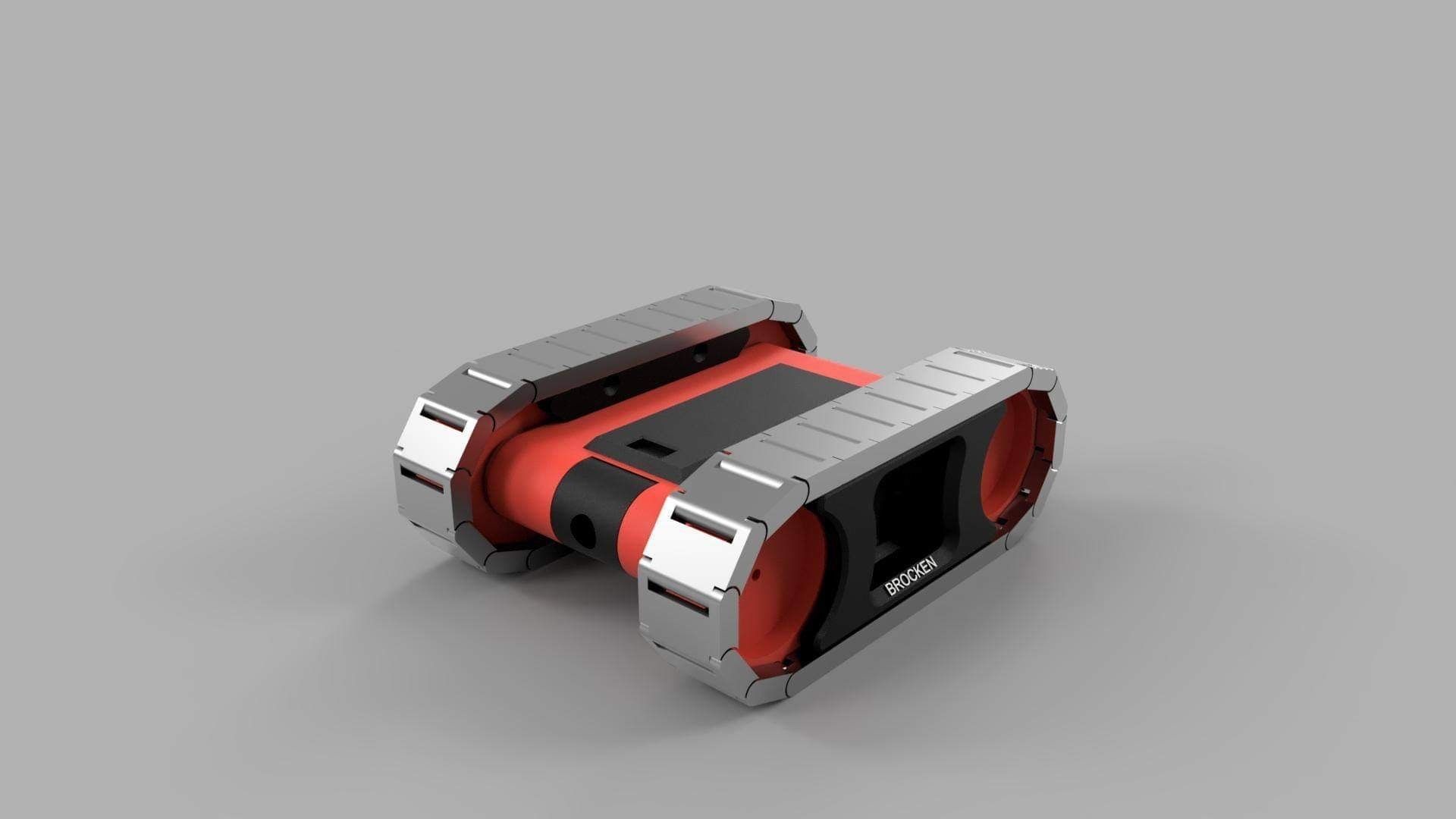

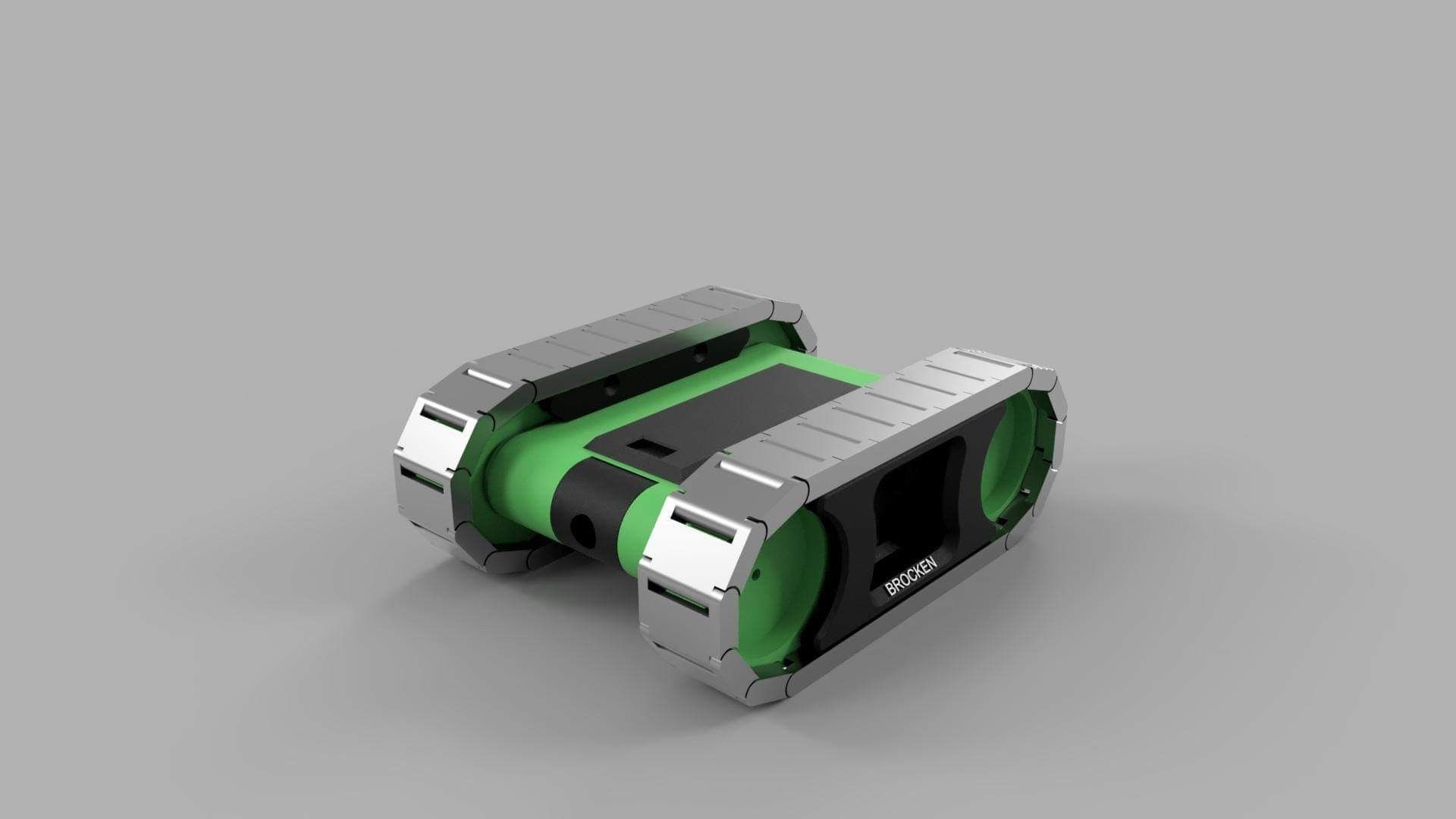

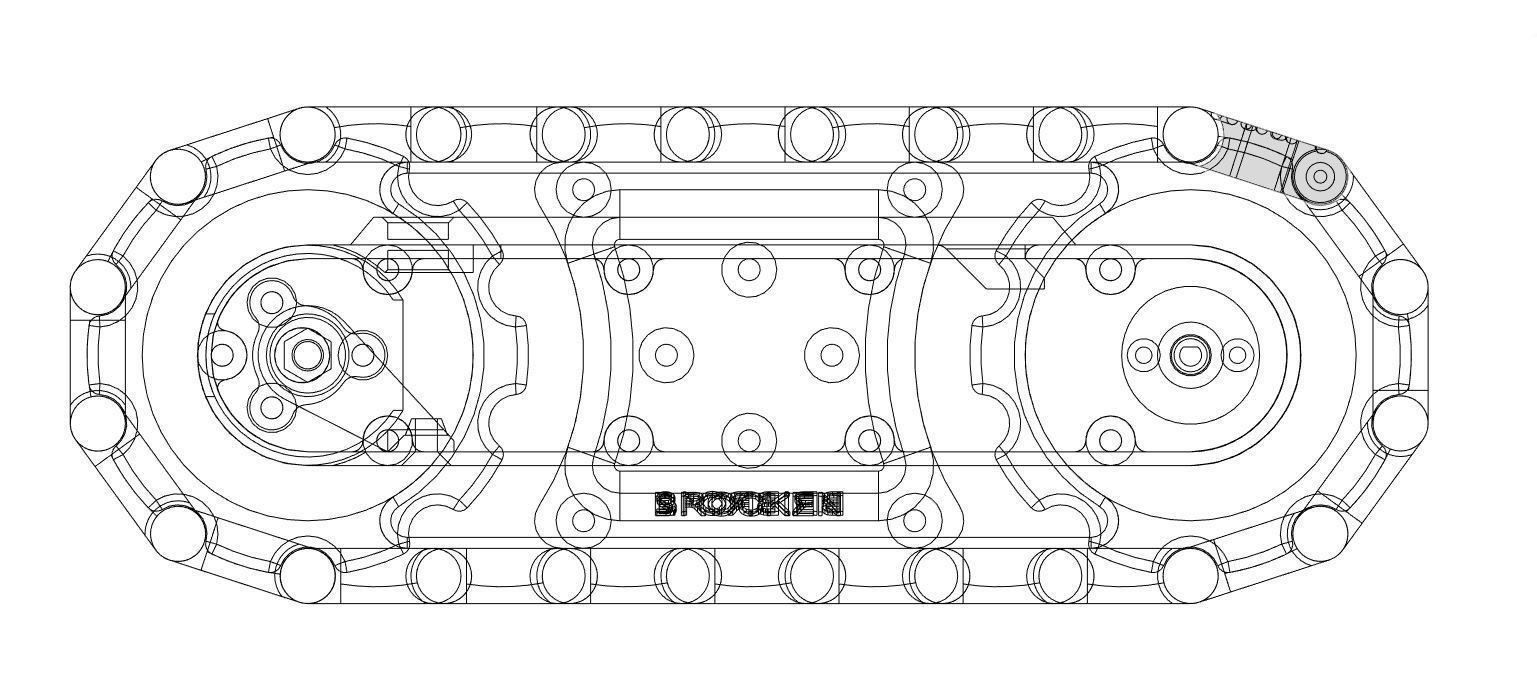

One of things that differs this tank from others are the treads wich snap together and don't need any addidtional shafts to keep them together

The small section in the body, right behind the eye was prone to breaking in the V1 version of the body, This should be fixed in the V2 version of the body.

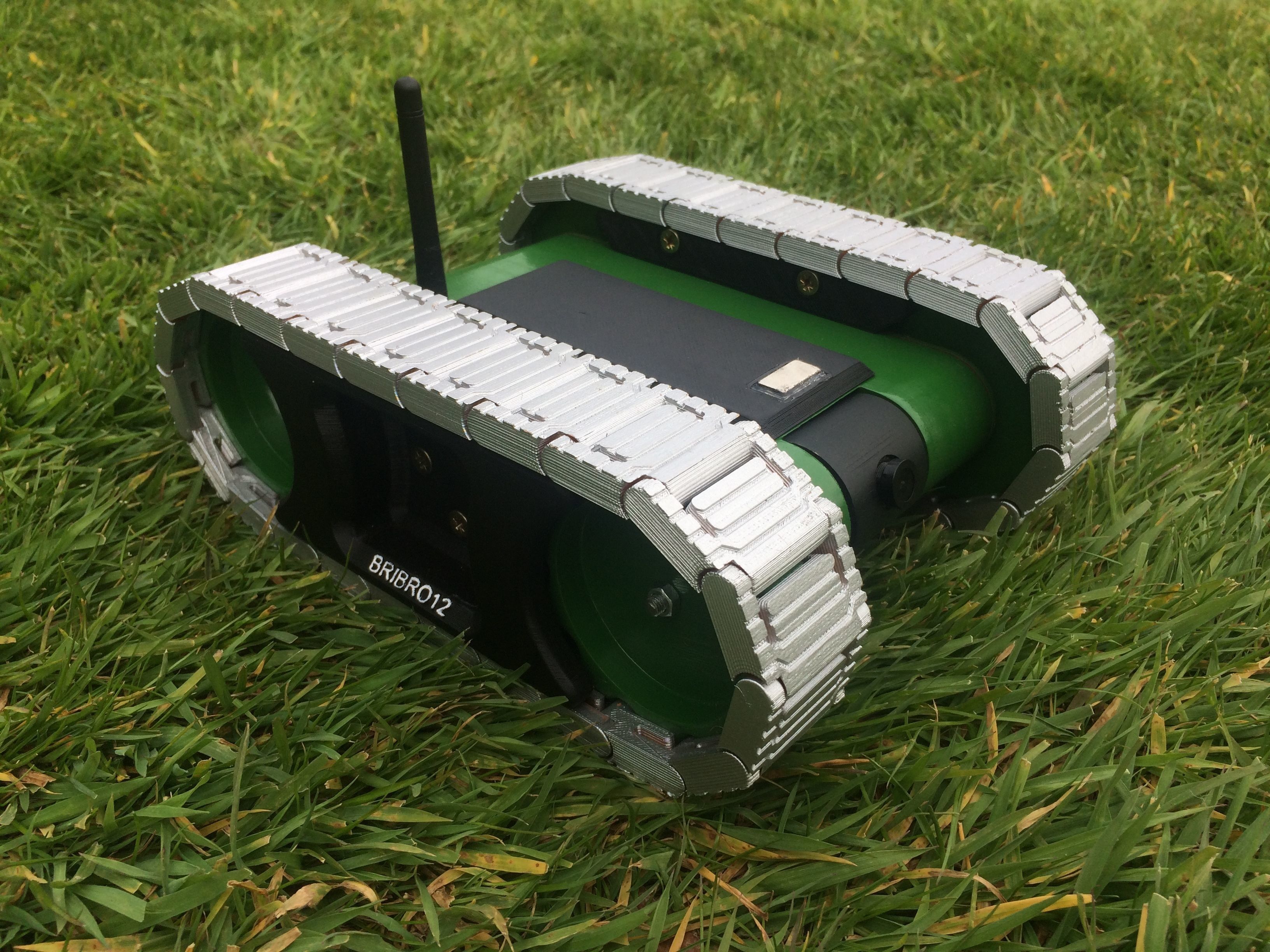

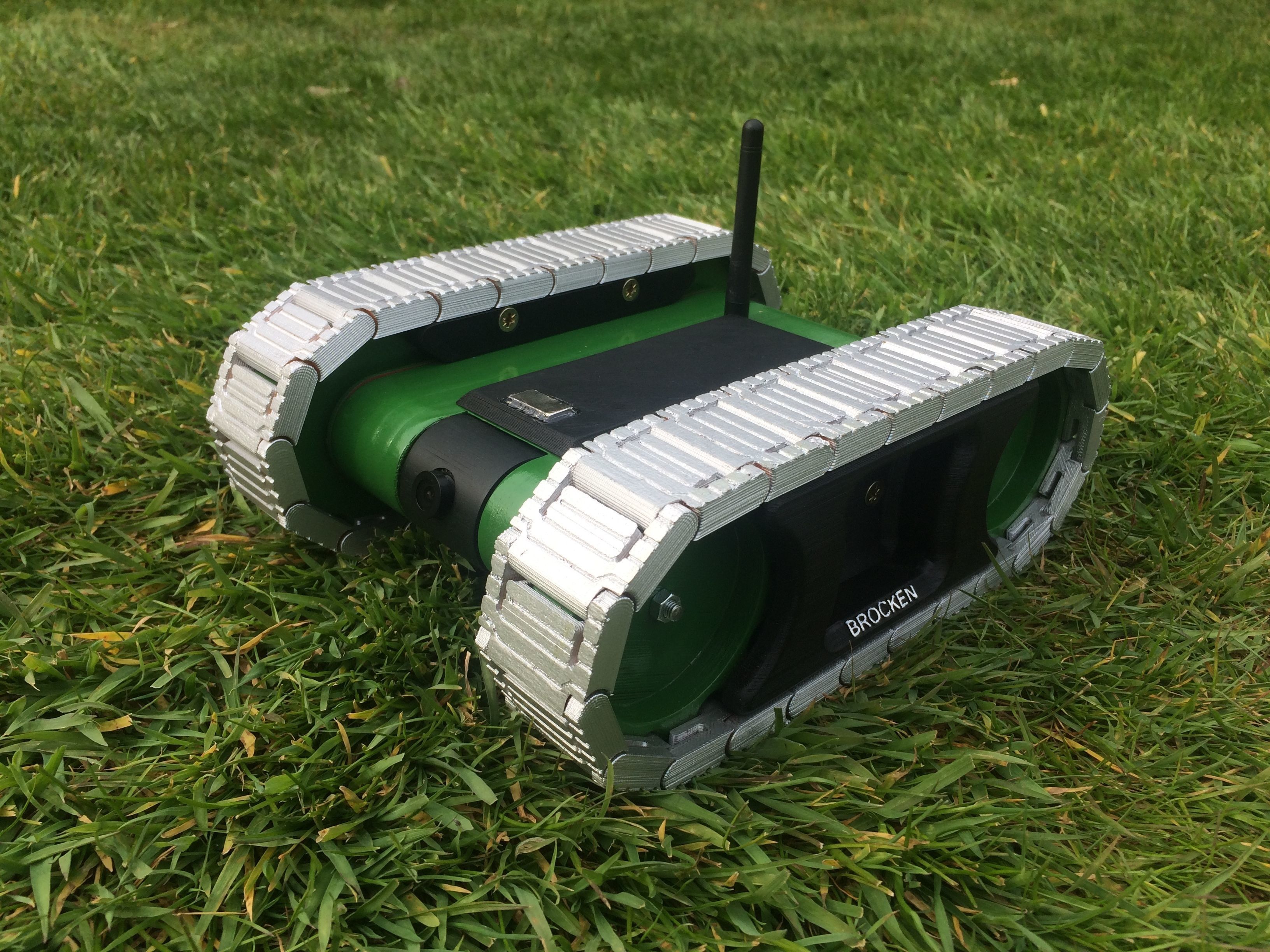

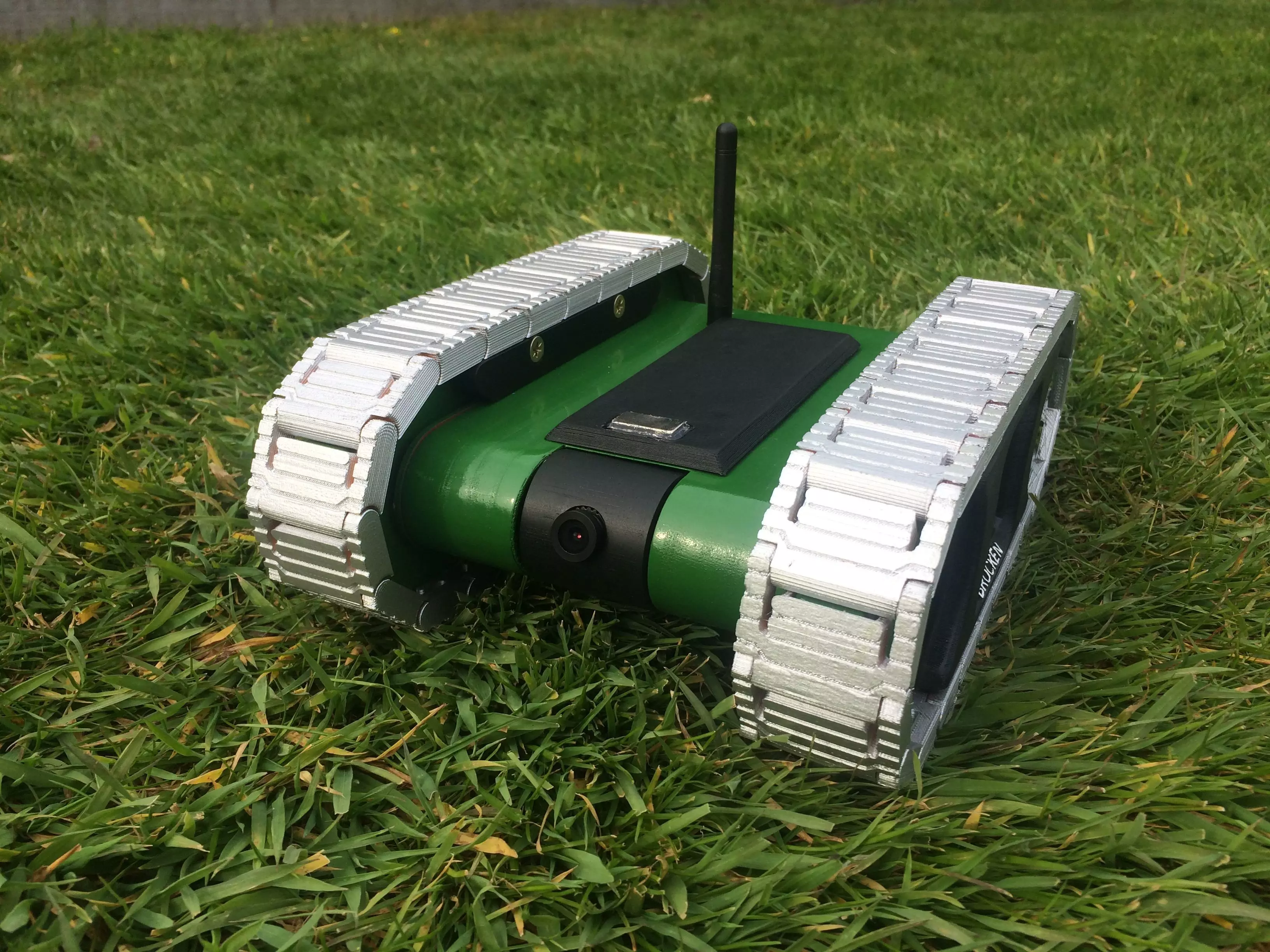

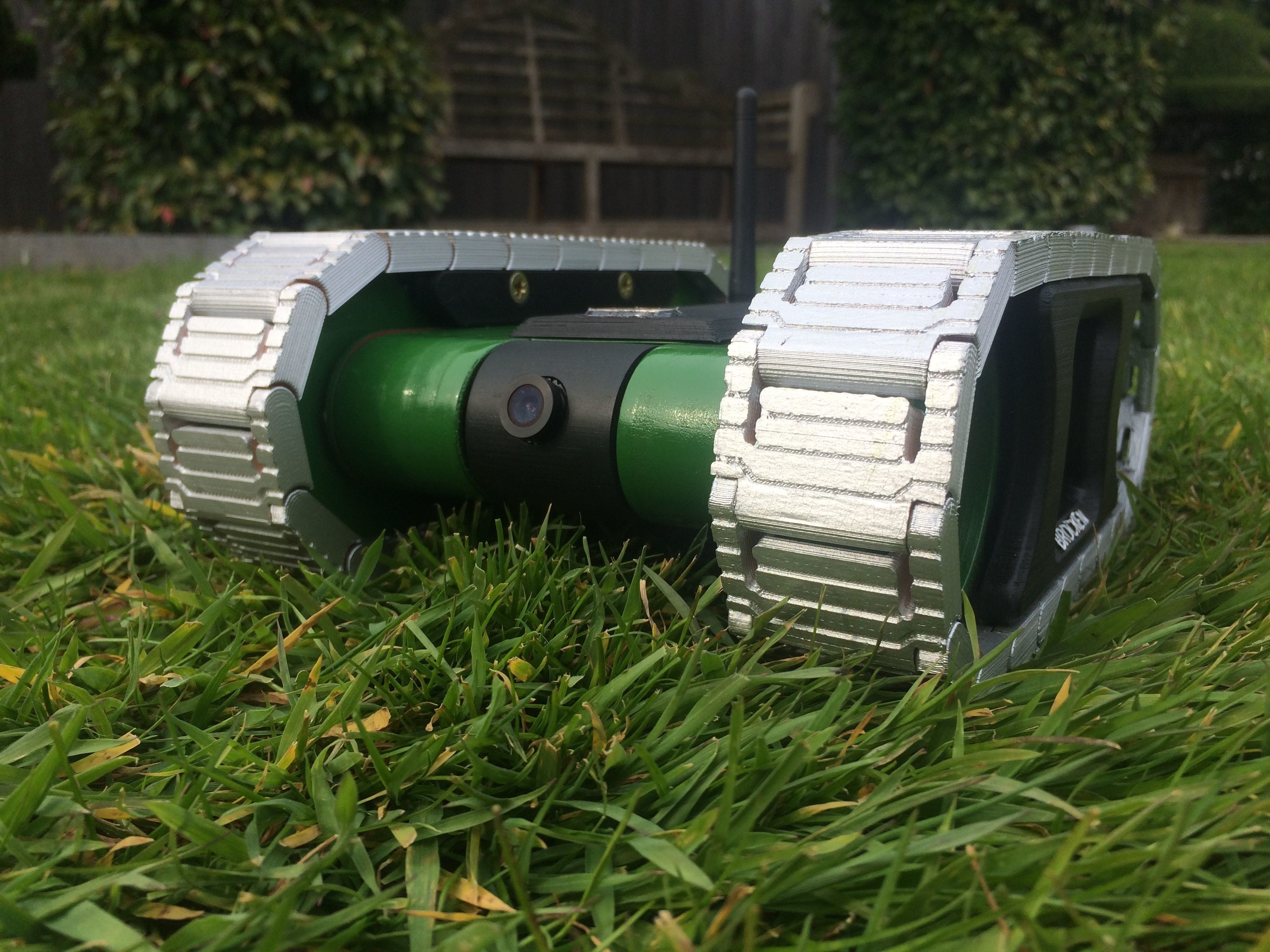

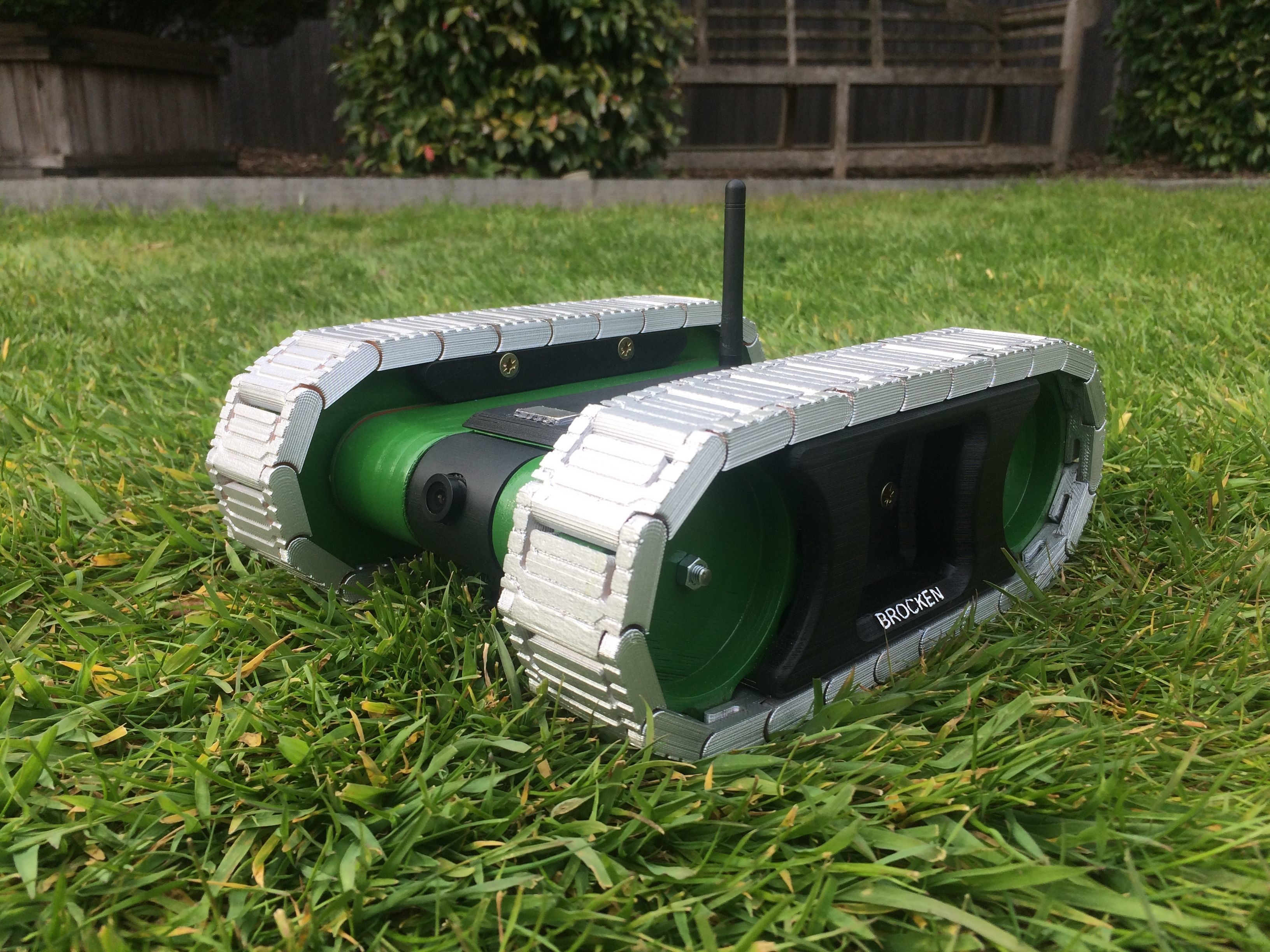

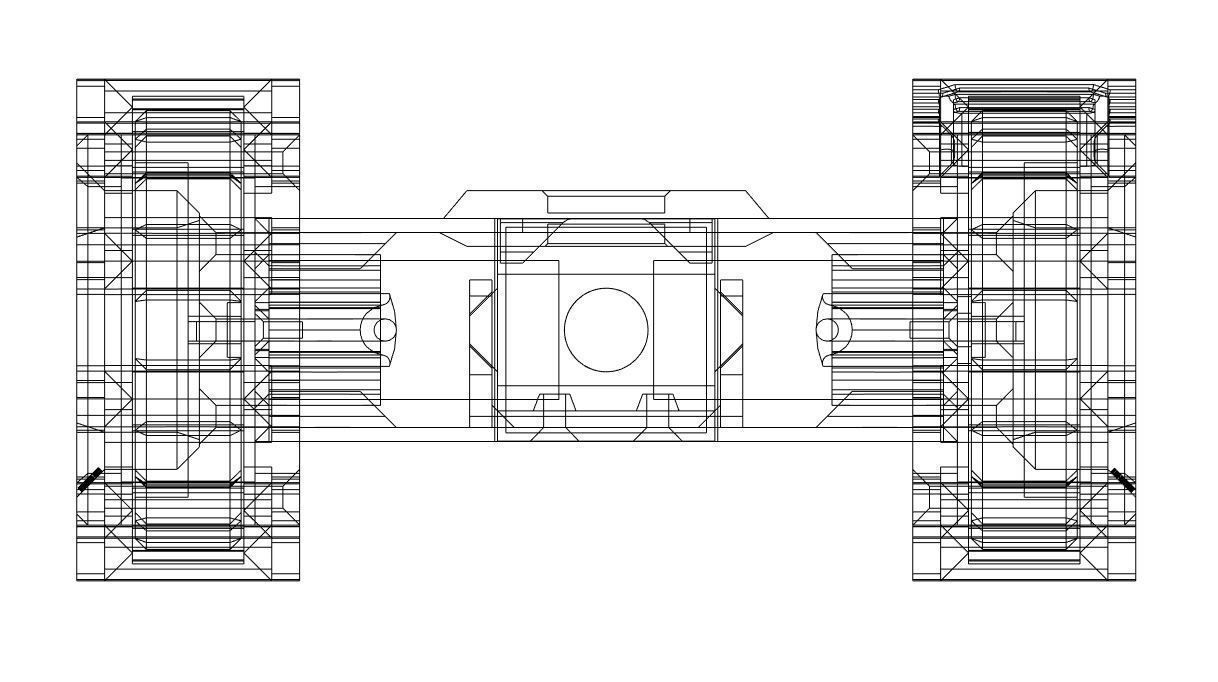

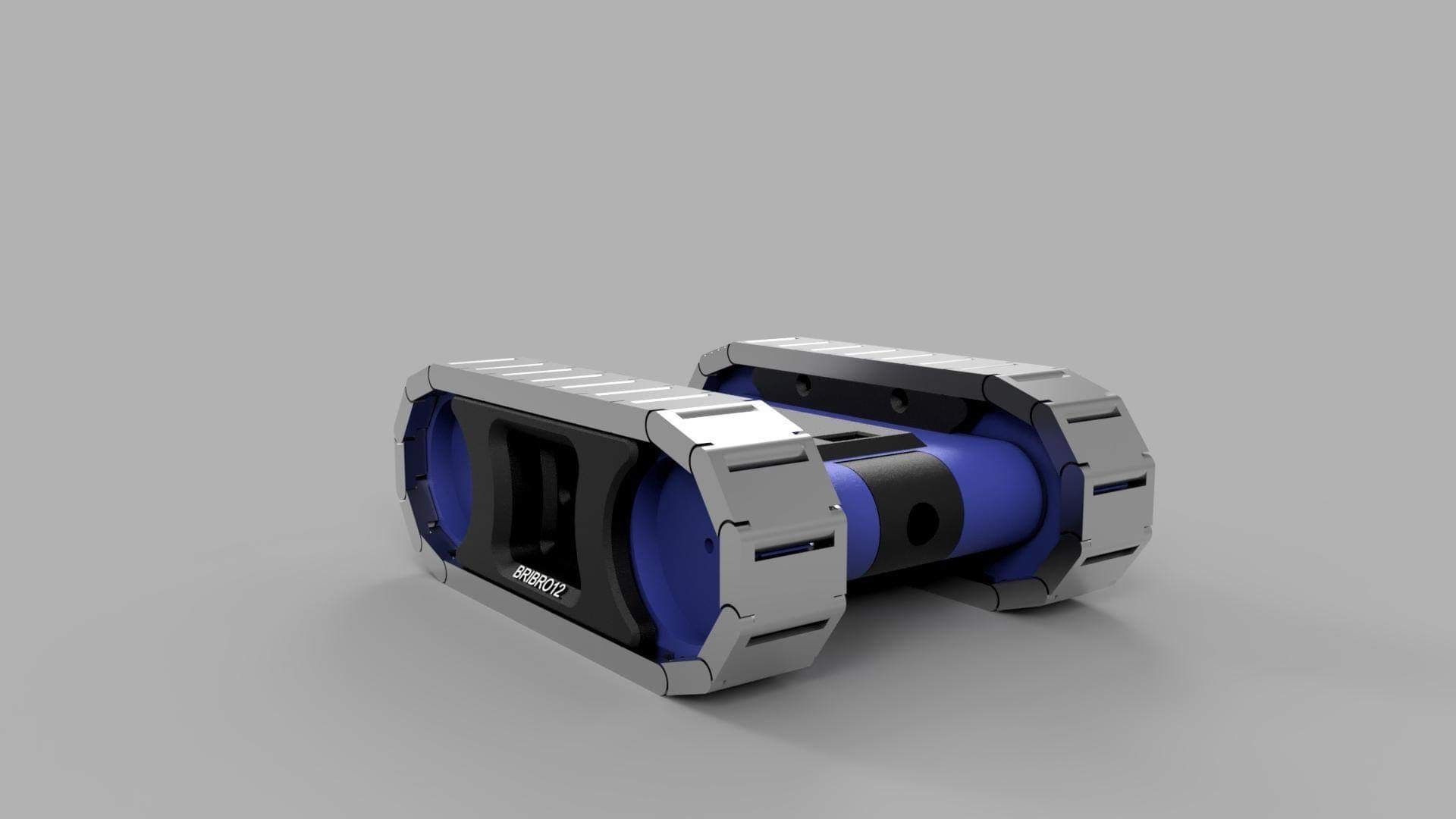

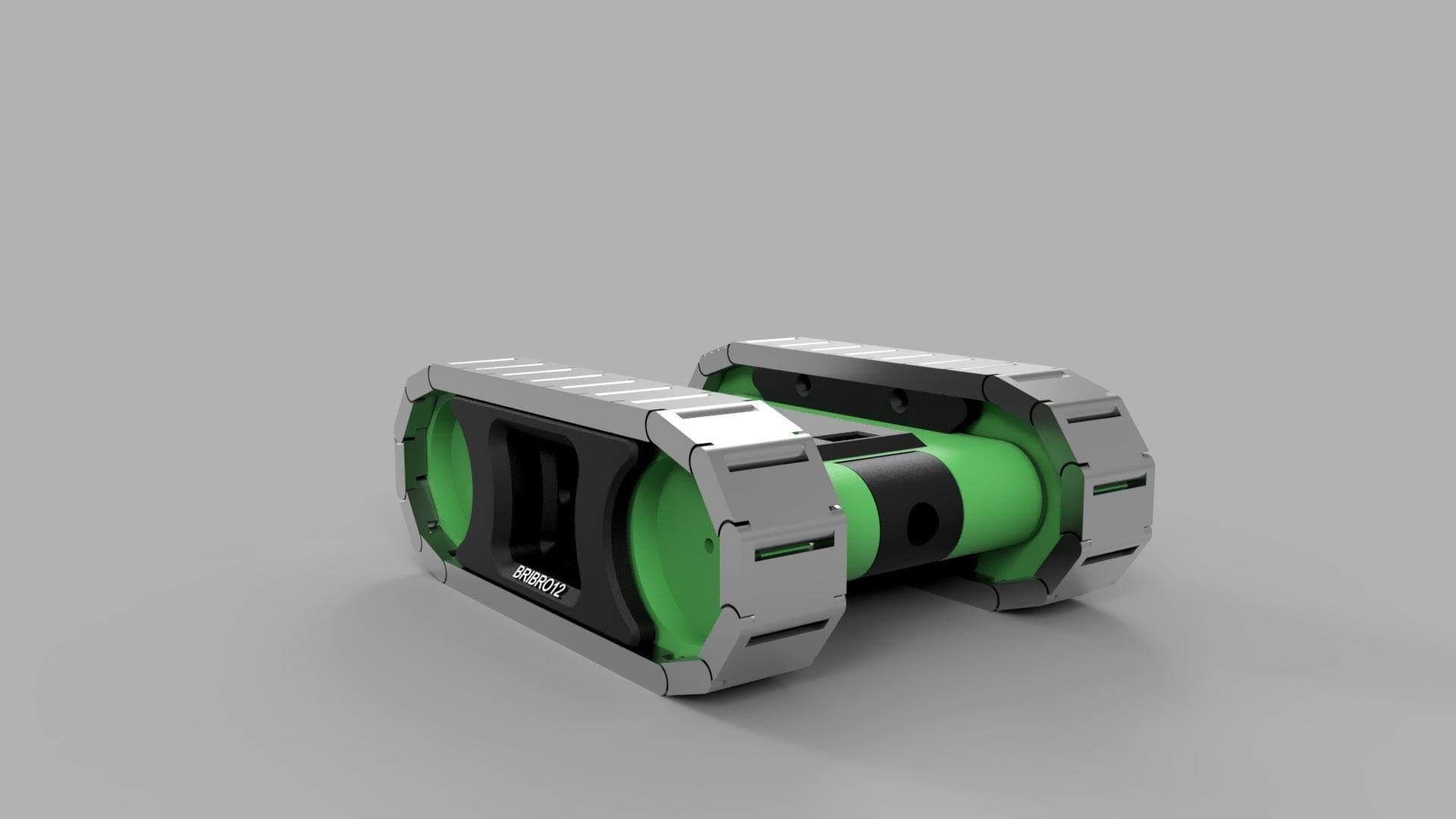

I designed the tank in a way that it can be almost completely 3D-printed. It's of course inevitable to truely completely 3D print the tank so there are small additional parts needed like bearings, shafts, screws, bolts and nuts. The tracks however are completely 3D-printed and don't need little shafts between every link. They are designed to snap together and stay together. It's very hard to take them apart after they snapped together, which is of course the intention.

I initially used 2 12V 1000 RPM motors but they turned out to be to weak so I ordered some new motors which were the same size but instead of 1000 RPM they are now 100 RPM. If I wanted to put bigger motors in it, I had to completely redesign the tank which would take up to much time as I already 3D-printed all the parts.

The 2 motors are currently being driven by one L298N motor driver which is controlled by an arduino nano V3. The arduino reads the data from 2 channels on the spektrum receiver. I might replace the arduino and motor driver by 2 car esc's but it's also possible I keep the arduino so I can connect some sensors to it so I can make the tank perform tasks autonomously.

In front of the tank is a camera which is placed inside an eye so the driver can look up and down. The up and down movement of the eye is obtained by a standard 9g servo. The video feed gets transmitted through a 600mW 5.8gHz transmitter and gets send to some FPV goggles.

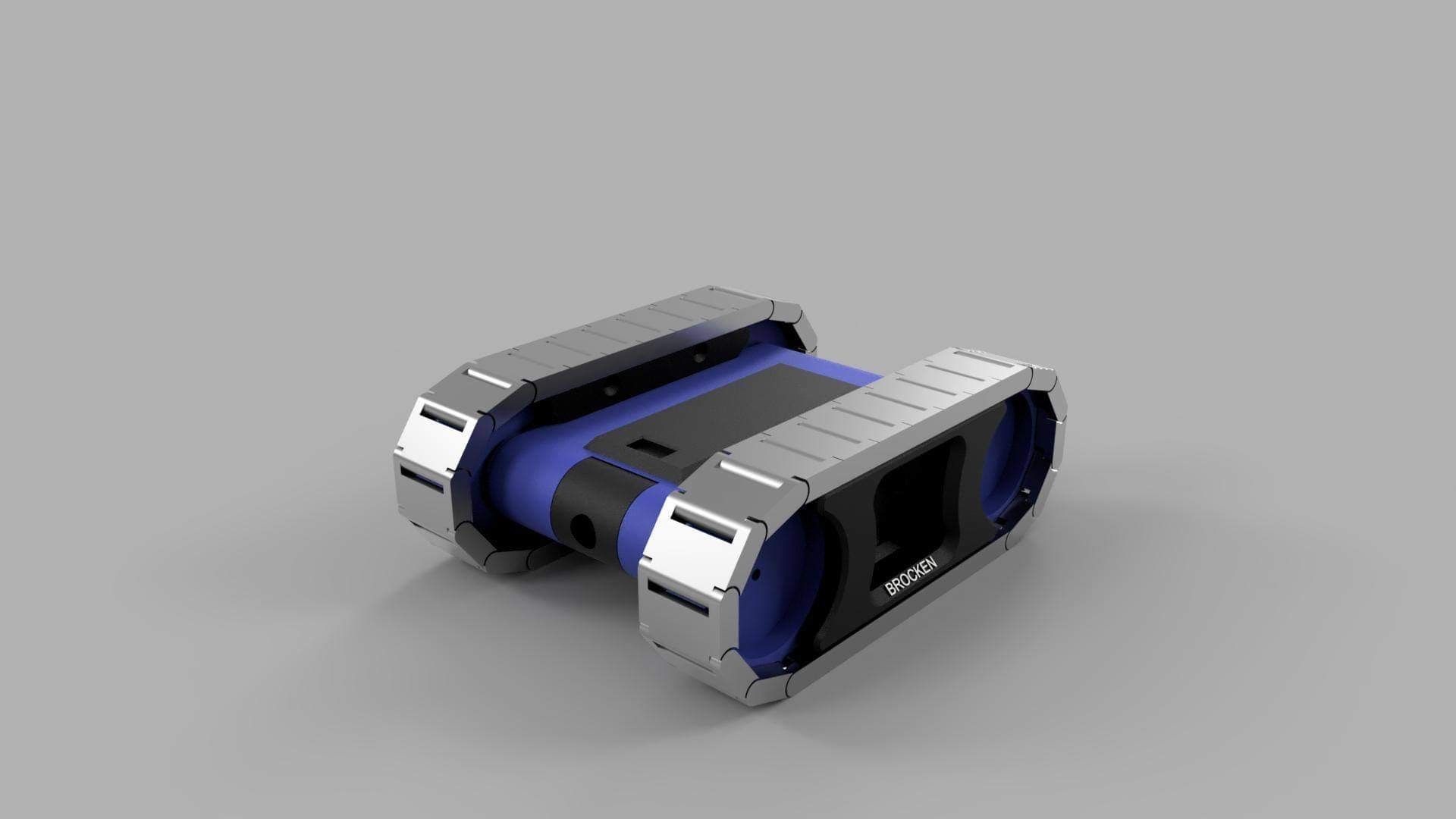

The hatch on top of the tank gets hold on by 2 neodymium magnets (1 in the body, 1 in the hatch).

Video can be found here: https://youtu.be/6qJWLcehhgU

More info can be found here: https://hackaday.io/project/164896-rc-fpv-tank-rover

Components used:

1 × Arduino nano link: https://www.banggood.com/Geekcreit-ATmega328P-Nano-V3-Module-Improved-Version-With-USB-Cable-Development-Board-For-Arduino-p-933647.html?p=E01411629100201406T1&custlinkid=255135

1 × L298N motor driver link: https://www.banggood.com/Wholesale-Dual-H-Bridge-DC-Stepper-Motor-Drive-Controller-Board-Module-Arduino-L298N-p-42826.html?p=E01411629100201406T1&custlinkid=255131

1 × RC receiver link: https://www.banggood.com/2_4G-6CH-S603-Receiver-Supported-JR-Spektrun-DSM-X-DSM2-Transmitter-p-961733.html?rmmds=search&cur_warehouse=CN

1 × 9g servo motor link: https://www.banggood.com/TowerPro-SG90-Mini-Gear-Micro-Servo-9g-For-RC-Airplane-Helicopter-p-1009914.html?p=E01411629100201406T1&custlinkid=359550

1 × FPV camera link: https://www.banggood.com/JJA-CM1200-13-CMOS-1200TVL-Mini-FPV-Camera-2_1mm-Lens-169-PALNTSC-BlackRed-For-RC-Drone-p-1259982.html?p=E01411629100201406T1&custlinkid=669118

1 × Heat shrinks link: https://www.banggood.com/328pcs-Heat-Shrink-Tubing-Insulation-Electrical-Shrinkable-Tube-Sleeve-Cable-21-p-1362019.html?p=E01411629100201406T1&custlinkid=669227

2 × Neodymium magnets link: https://www.banggood.com/8pcs-N52-20x10x5mm-Neodymium-Block-Magnets-Rare-Earth-Magnets-p-977519.html?rmmds=search&cur_warehouse=CN

4 × 5mm bearings link: https://www.banggood.com/10pcs-685ZZ-5x11x5mm-Ball-Bearings-Miniature-Bearings-p-1148729.html?rmmds=myorder&cur_warehouse=CN

2 × 12V 100RPM geared motors link: https://www.banggood.com/DC12V-100RPM-Mini-Metal-Gear-Motor-Electric-Gear-Box-Motor-p-1010697.html?rmmds=search&cur_warehouse=CN

6 × M5 nuts

2 × M5 treaded rod about 50mm long

42 × 4.5 X 40 mm wood screws I used about 42 4.5X40 mm screws and cut them to lenght when necessary.
