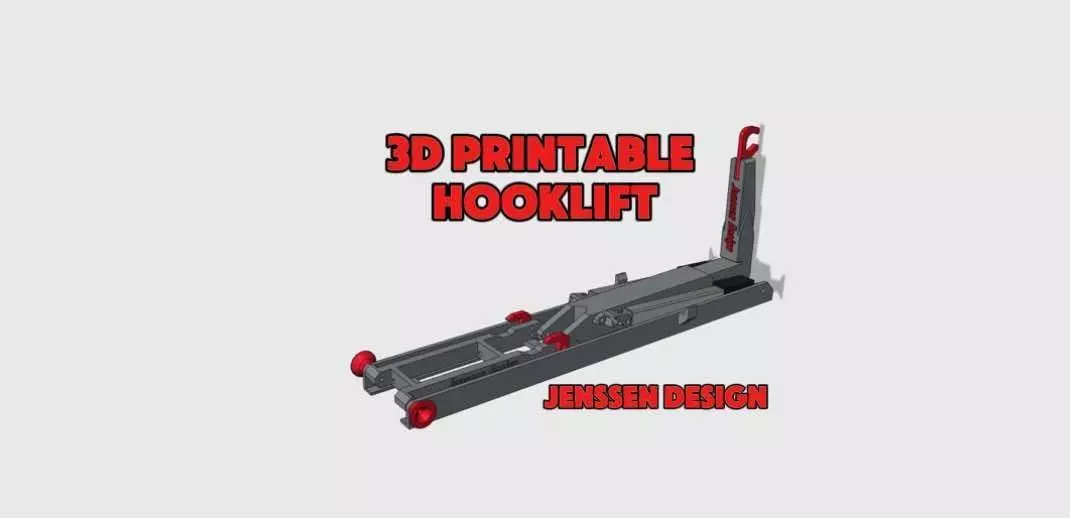

RC HOOKLIFT 3D print model

3D printable hooklift for your rc trucks!

uses 3mm and 4mm screws.4mm screws are included in the actuator when you buy it.you'll need to drill holes in your frame to make this fit your truck.easy to assemble, look at pictures for help.

in the files you will get a template for you to make the frame in aluminium.

This includes one machine deck. see picturesthis need two 3mm threaded rods and 8 3mm screws

all you need to get this functionable is 3pcs actuators and 2pcs esc's

i recommend using one 50mm (70N) and two 100mm (70N) actuators, you can buy them here:

https://www.aliexpress.com/item/1005004754019363.html?spm=a2g0o.order_list.order_list_main.309.121a1802g9UWLx

it is your choice if you want to go with 12v or 6v.

you will also need 2 esc's, you can use these ones:

https://www.aliexpress.com/item/1005004280311498.html?spm=a2g0o.detail.pcDetailTopMoreOtherSeller.10.472diCT3iCT3W6&gps-id=pcDetailTopMoreOtherSeller&scm=1007.40000.327270.0&scm_id=1007.40000.327270.0&scm-url=1007.40000.327270.0&pvid=6aeaa577-5795-4554-b173-90e91090ef79&_t=gps-id:pcDetailTopMoreOtherSeller,scm-url:1007.40000.327270.0,pvid:6aeaa577-5795-4554-b173-90e91090ef79,tpp_buckets:668%232846%238114%231999&pdp_npi=4%40dis%21NOK%2124.07%2124.07%21%21%212.25%212.25%21%40211b619a17289237988795489eb319%2112000029089922133%21rec%21NO%213796334516%21X&utparam-url=scene%3ApcDetailTopMoreOtherSeller%7Cquery_from%3A

Thank you for buying and i hope you enjoy this hooklift.

Join my facebook page and share your progress:https://www.facebook.com/groups/1768113757036325/

(not recomended to lift heavy weight and big loads!)

!!READ COPYRIGHT LAWS BEFORE BUYING!!

No commercial use or public sharing of the 3D model;No modification or adaptation of the 3D model for public sharing or sale;No distribution, sale, donation or exchange of the digital files of the 3D model.

Edit 20.10.2024

Removed a file that was not supposed to be there (krokloft ramme.stl)also added a some new files (krokloft ramme kasse krok.stl) .(flak1.stl) (flak2.stl) (flak3.stl) is a equipment deck.

3D printing settingsminimal use of support.made for 300x300 print bed printers but you could probably split the longest parts in two.

longest part is the main frame (373mm)will need to print diagonal on you printer if you don't split it.
