Crawler U452 Loaf - 1-10 RC body 3D print model

Printer minimum build volume required - 240*220*190mm

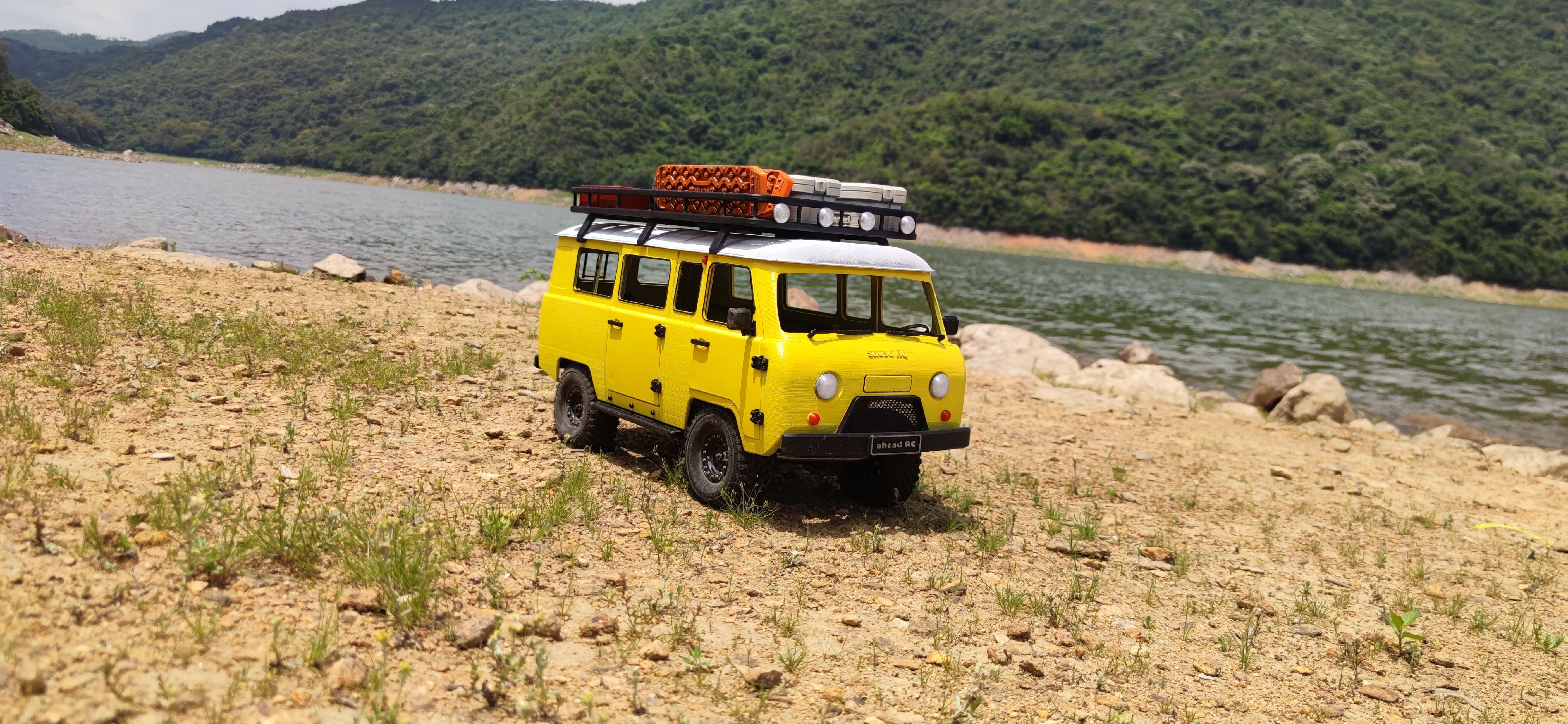

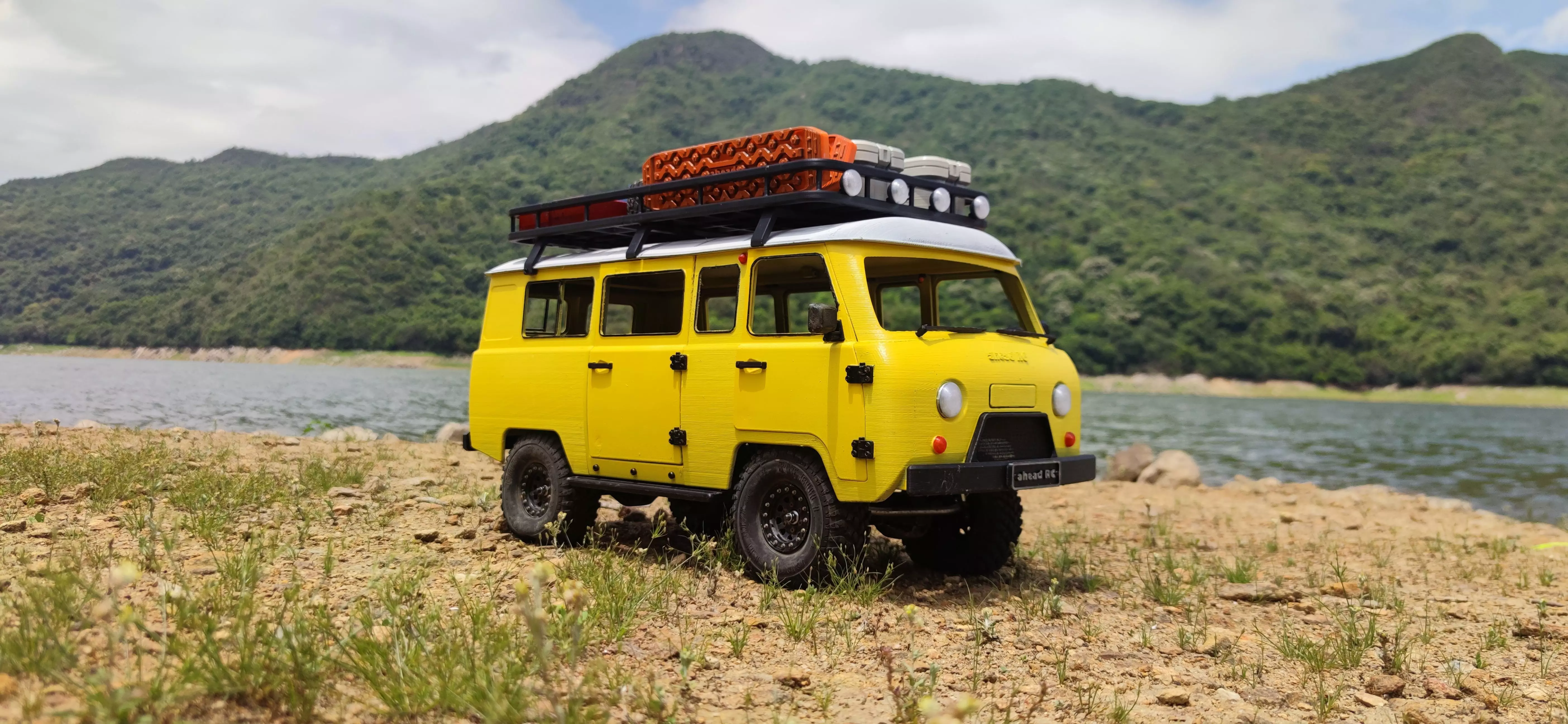

The U452is a fun little utility vehicle that can be configured in many different ways. One of the most popular conversions for this military vehicle from the past, is a modern camper.

Being roughly the same size as the Crawler V303, it is ideally matched with a chassis with a width of 235mm outer tyre to tyre, using 100mm - 105mm tyres. Wheelbase is designed at 290mm, however extended rear portions of the cab allow fitting of 313mm and 324mm wheelbases as well.

Body mounts for TRX4, SCX10 II, SCX10 III, and VS4-10 chassis are included. As with all our other mounts, these bolt directly onto the chassis rails. Please note that depending on the chassis you are using, aftermarket shock towers may be required. Additionally, all inner fenders may need to be removed.

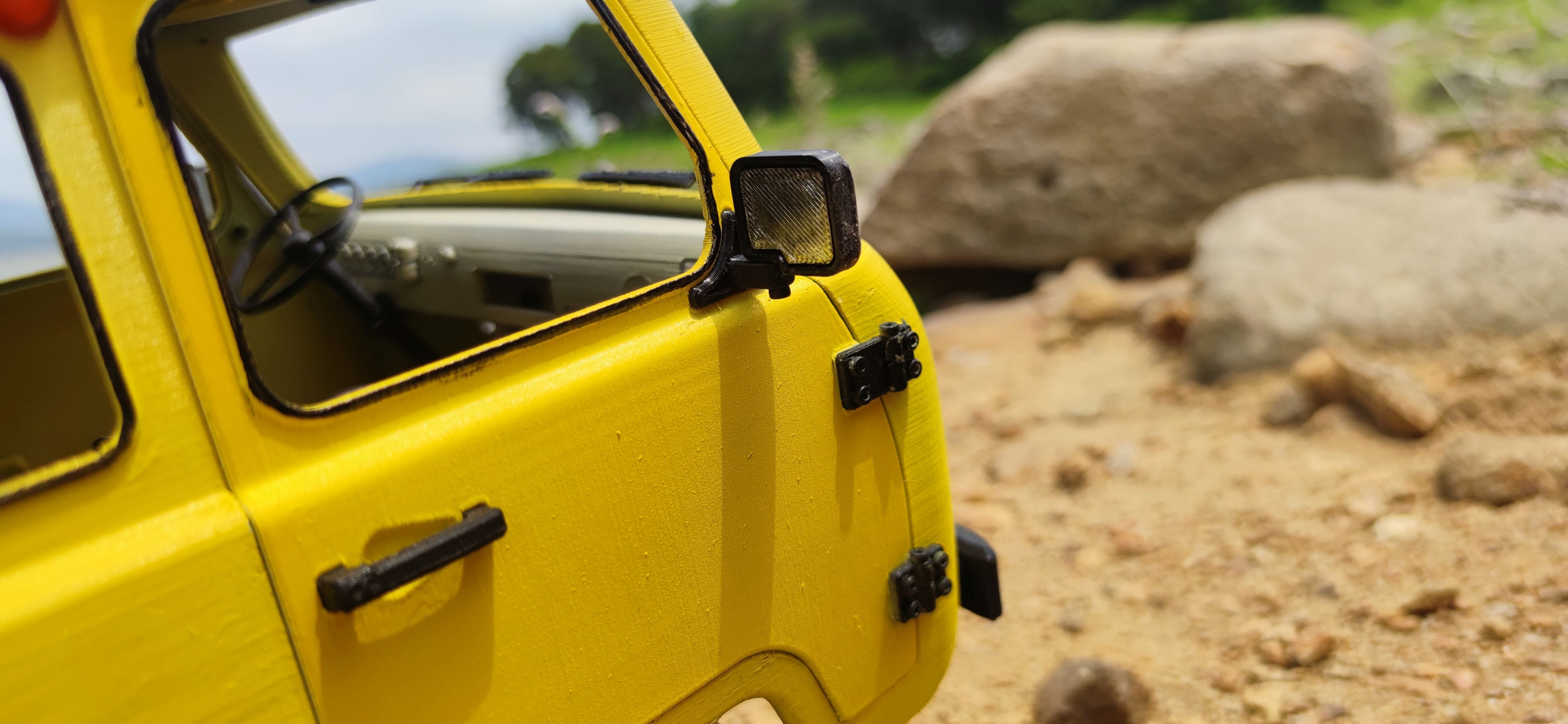

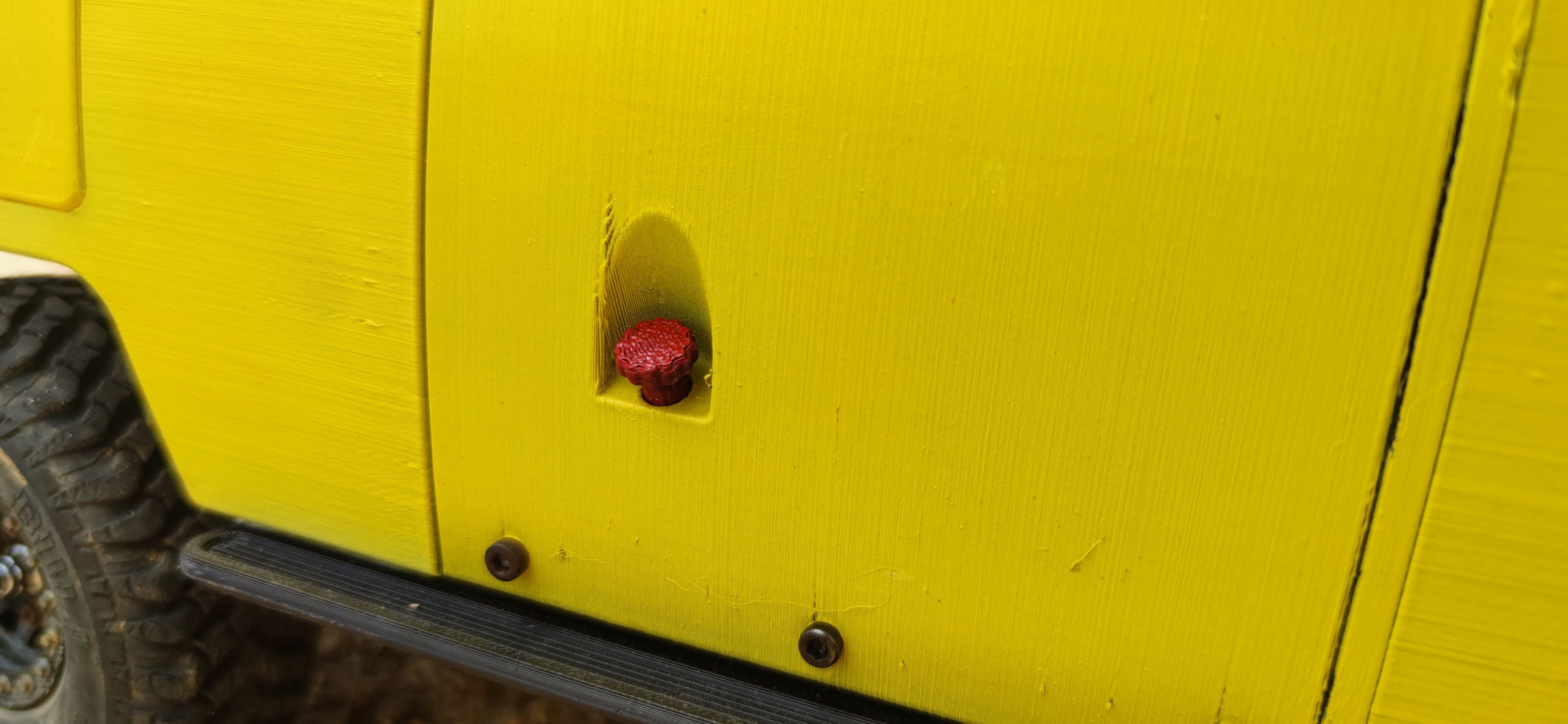

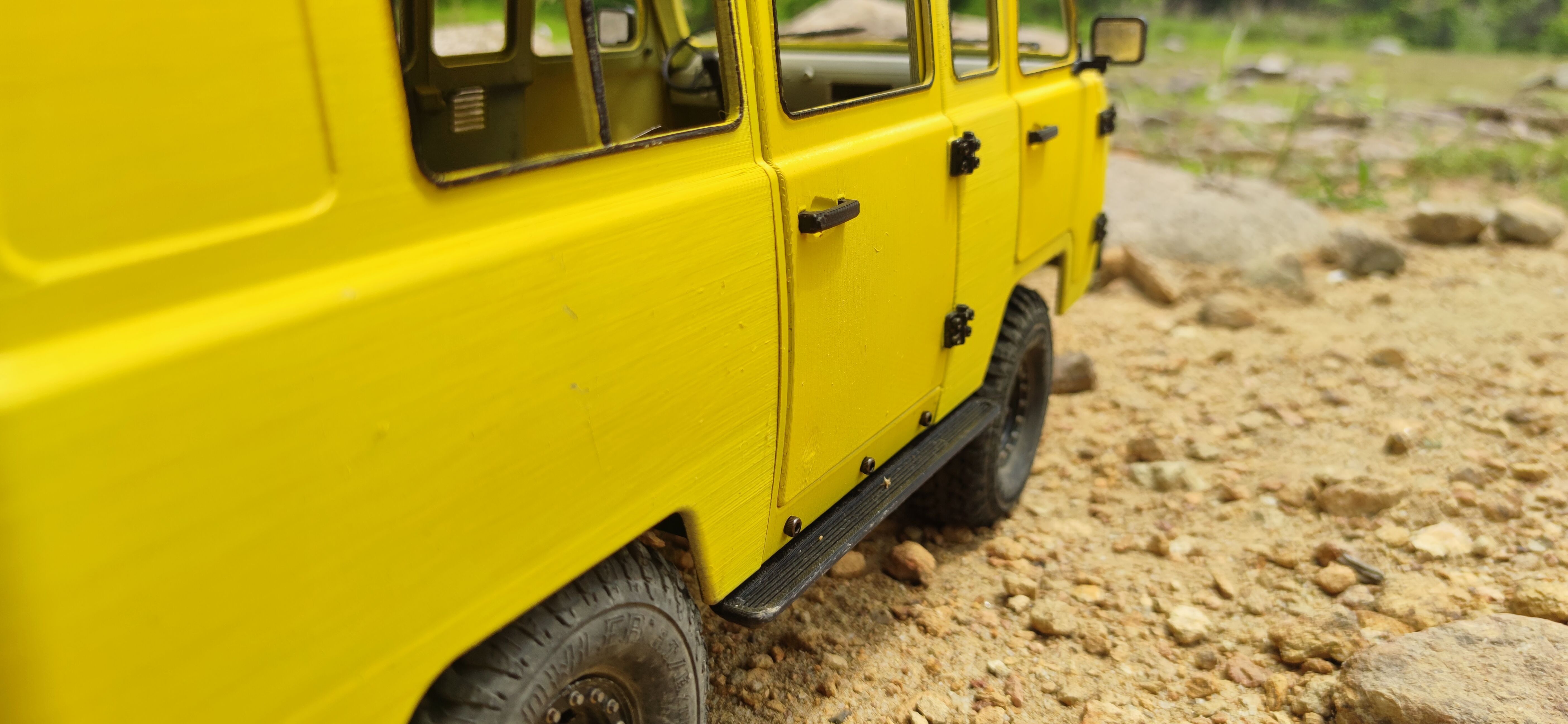

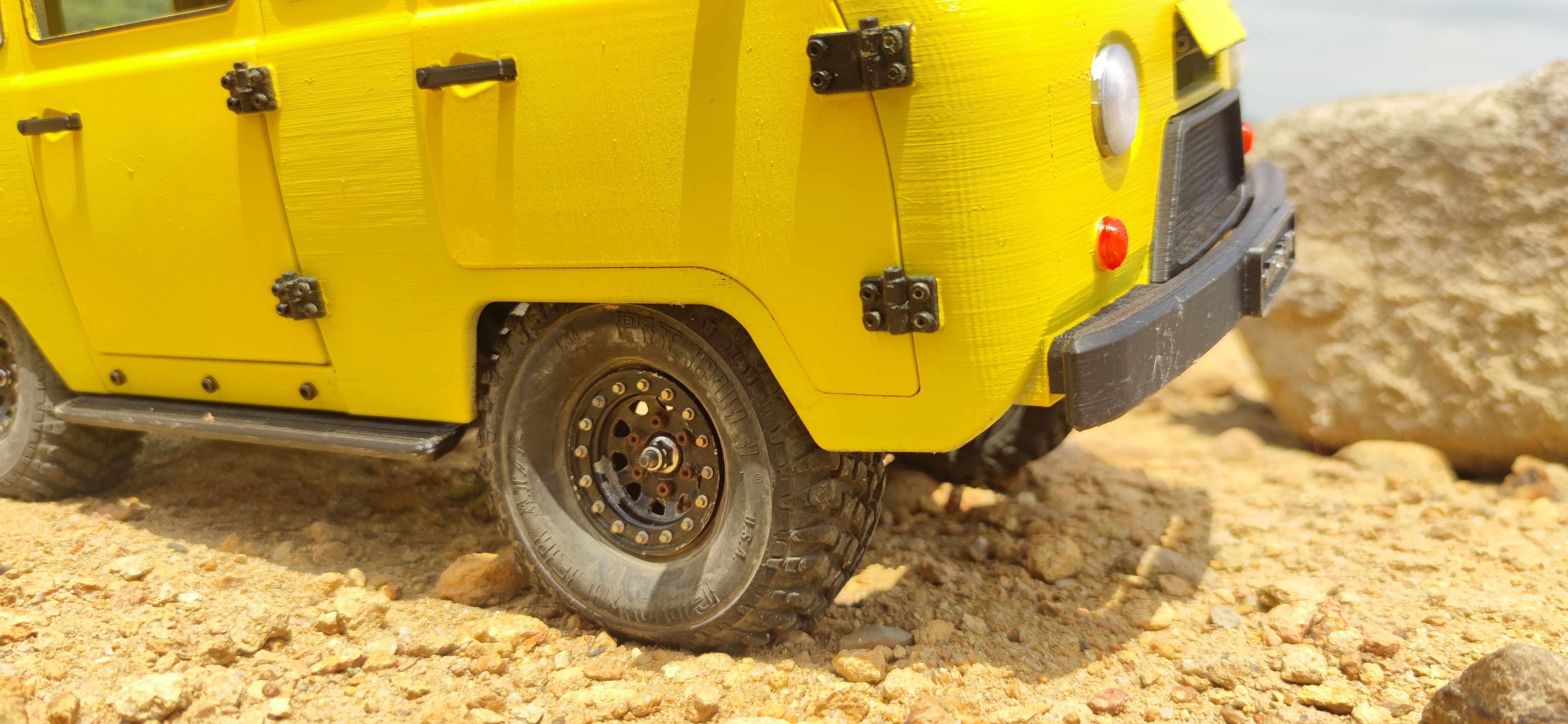

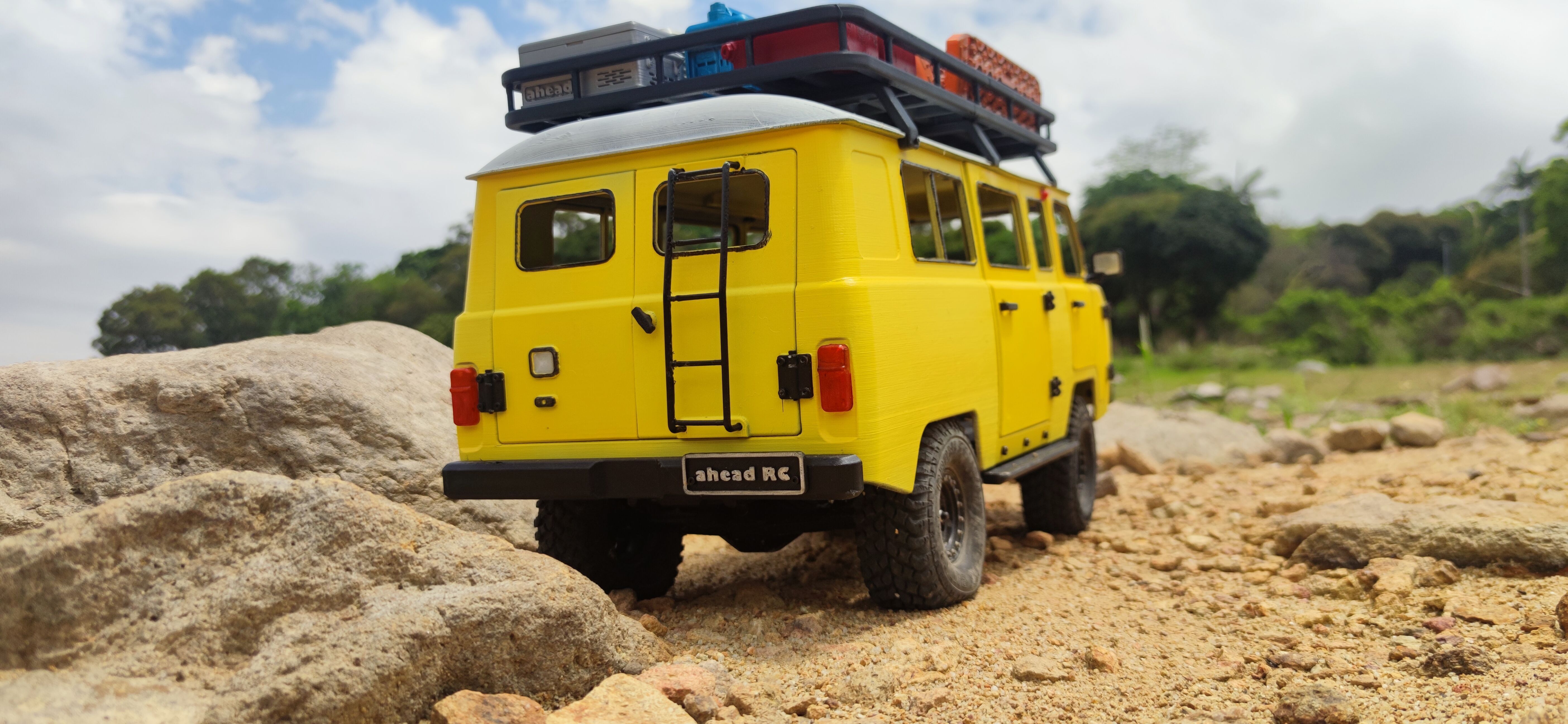

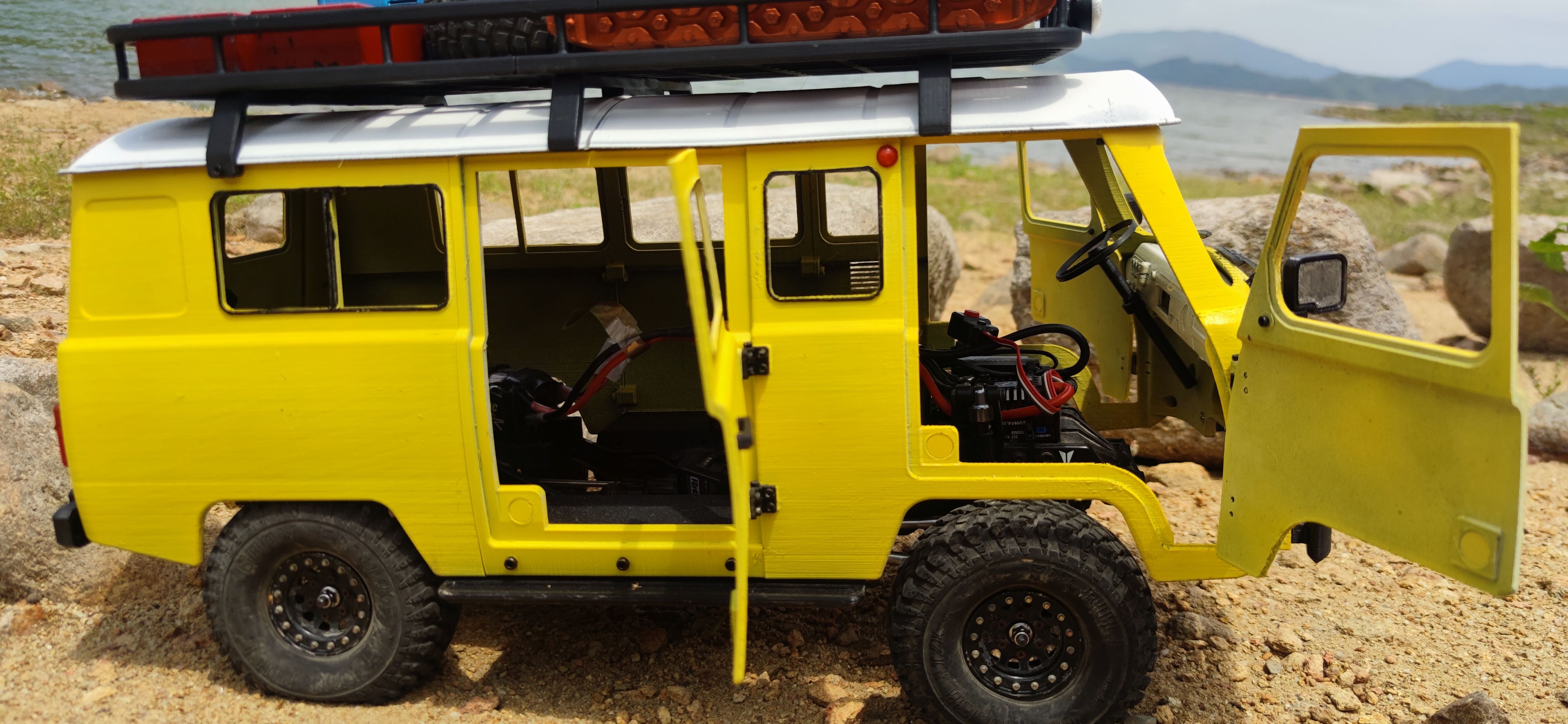

To make battery access easier, all doors are mounted on hinges. The front and side doors are snapped shut with magnets, while the rear door uses a simple 3D printed mechanical latch. To ensure the body is able to take a beating out on the trails, heavy duty rock sliders are included and can be bolted directly onto the chassis body mounts.

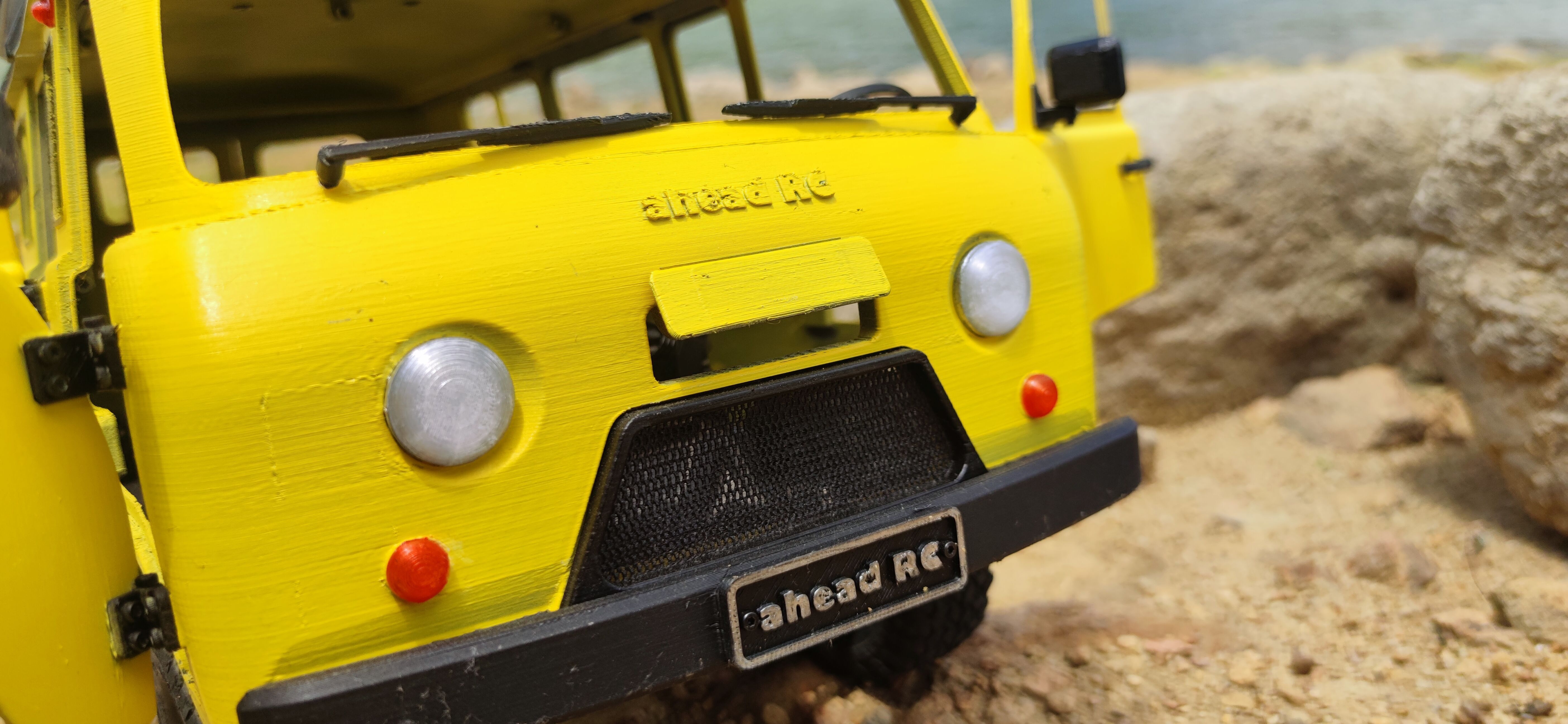

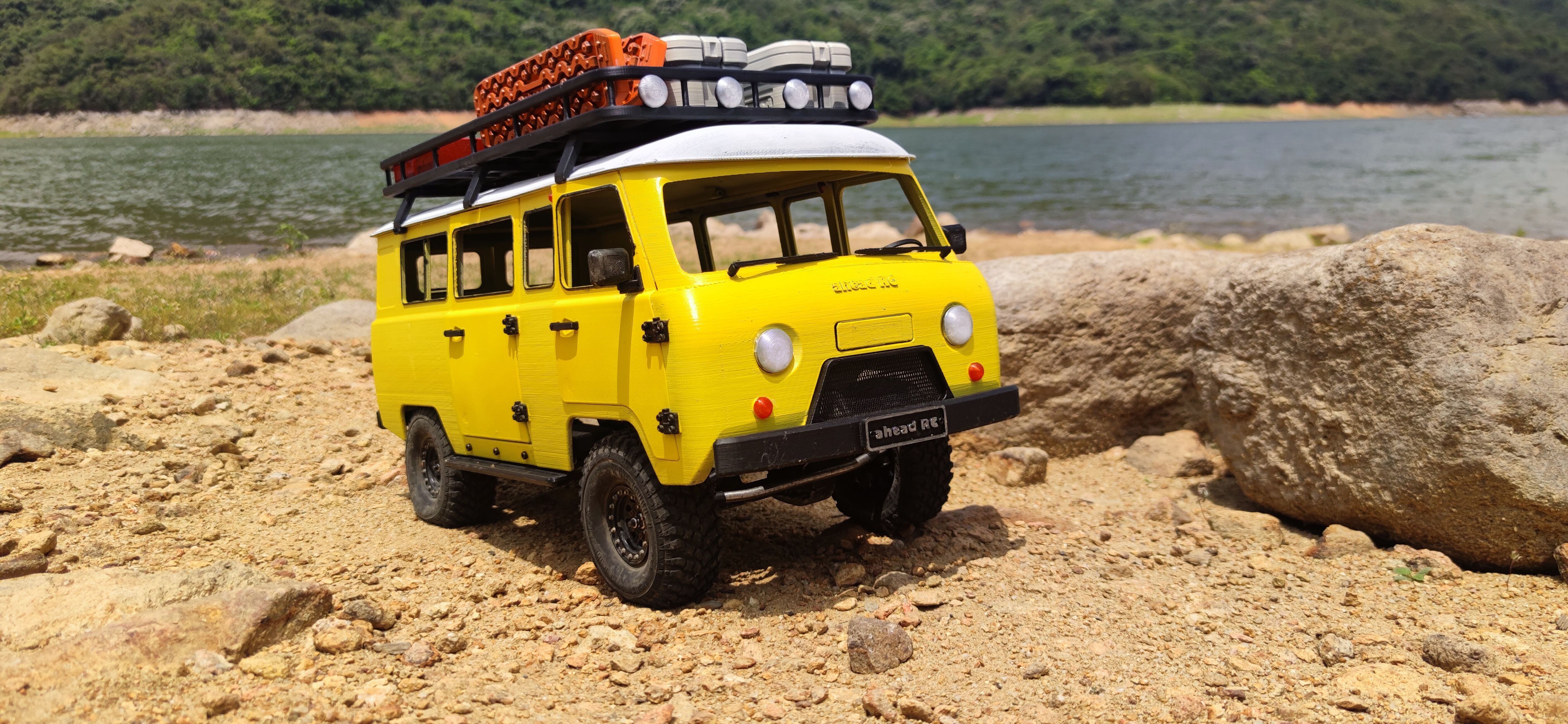

In addition to the protected undersides, there are 3 different styles of front bumpers. Ranging from a lightweight standard piece to a more heavy duty and higher clearance style bumper for light rock crawling duties, to a full on expedition bull bar bumper.

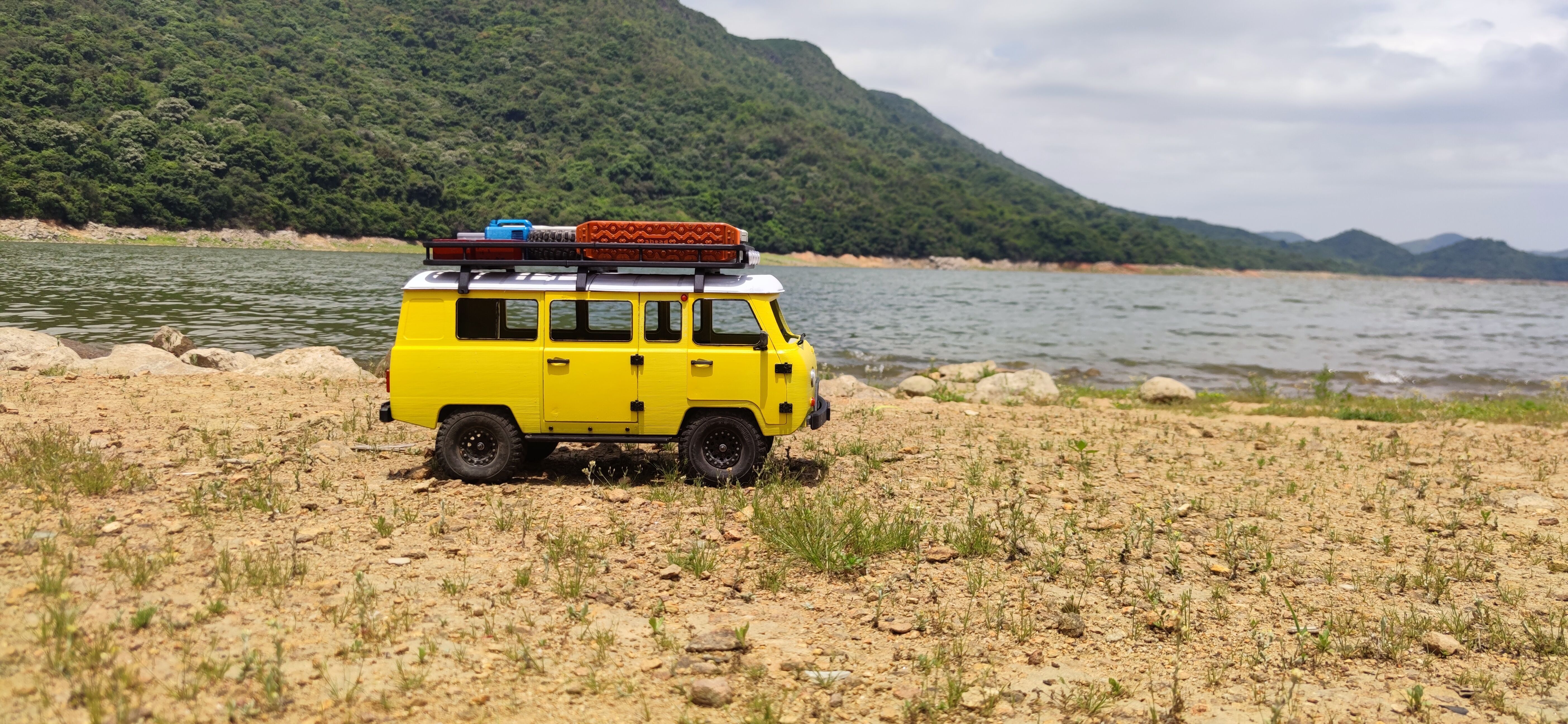

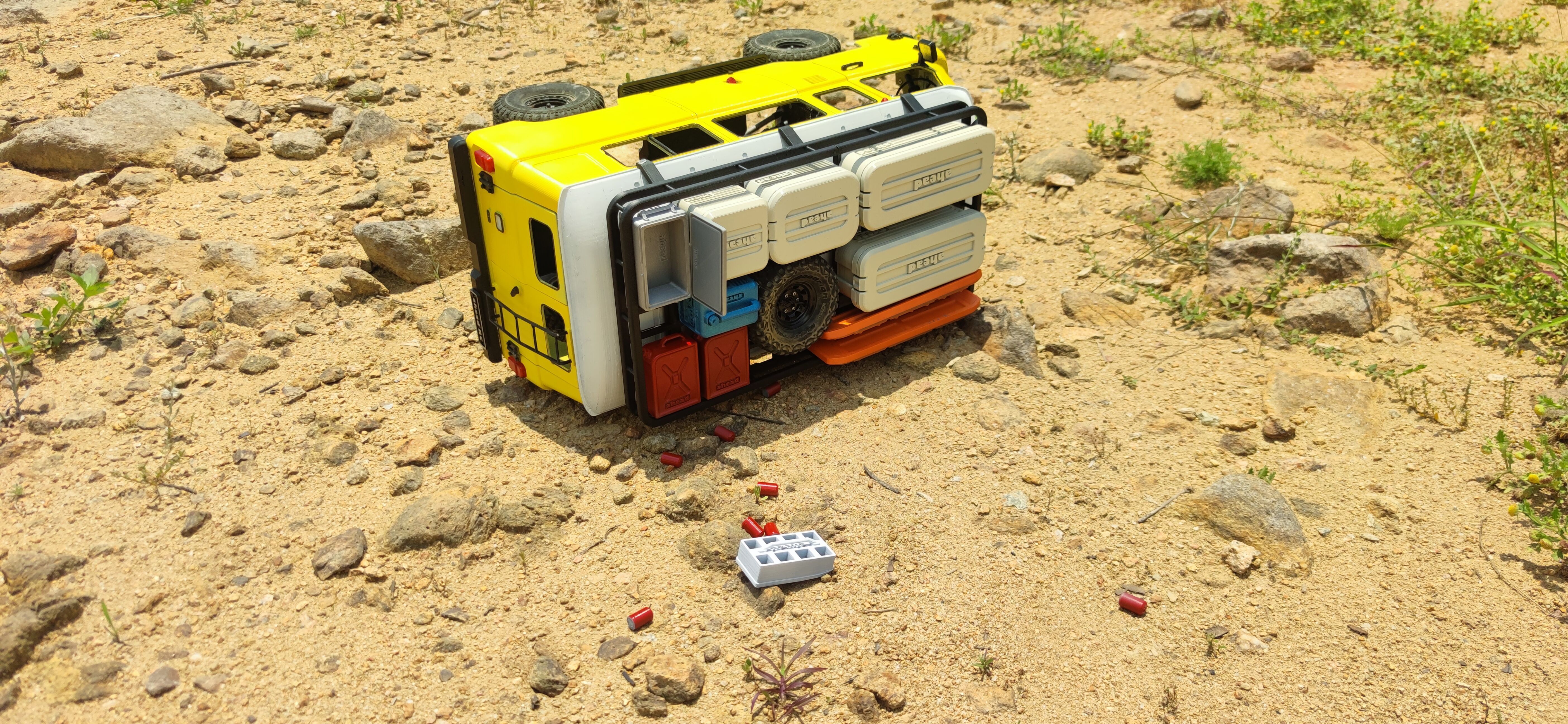

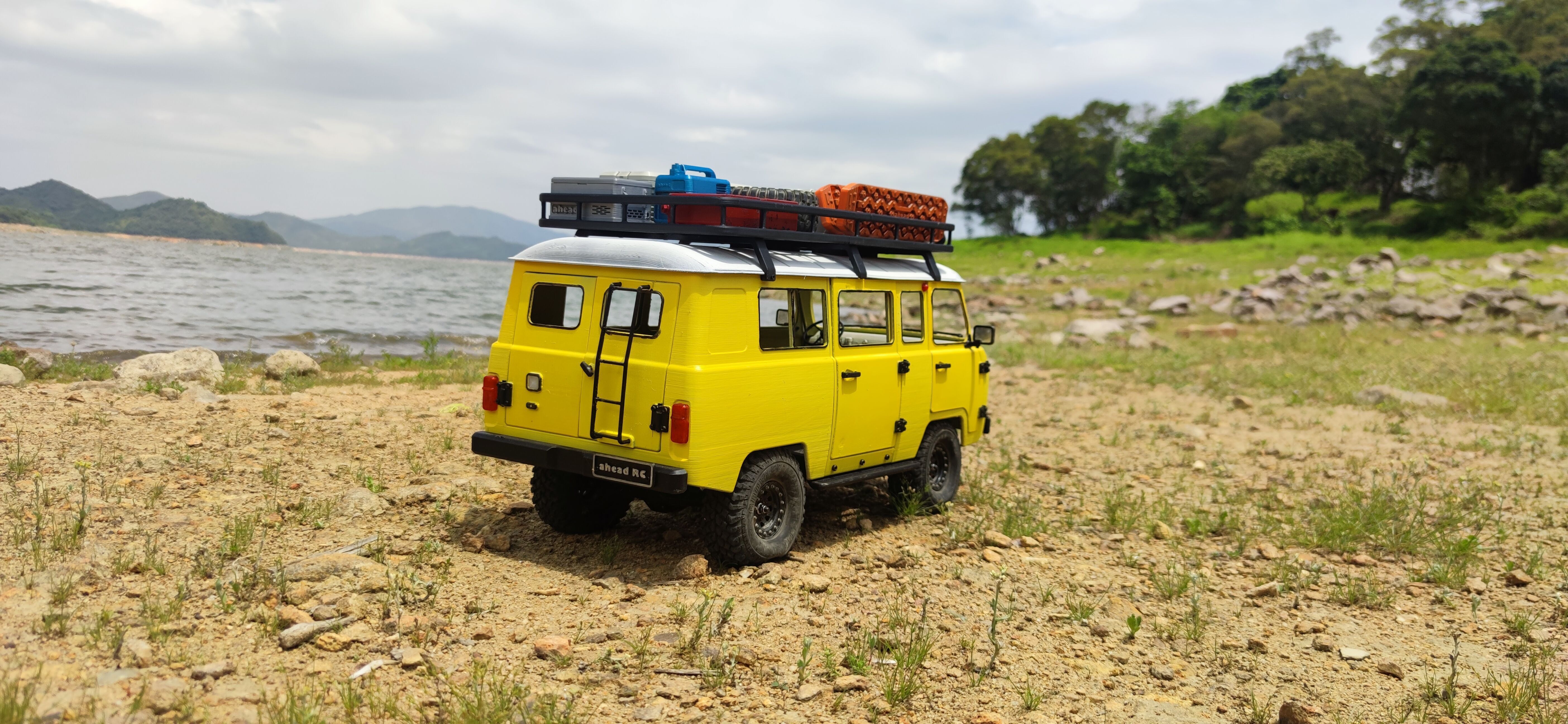

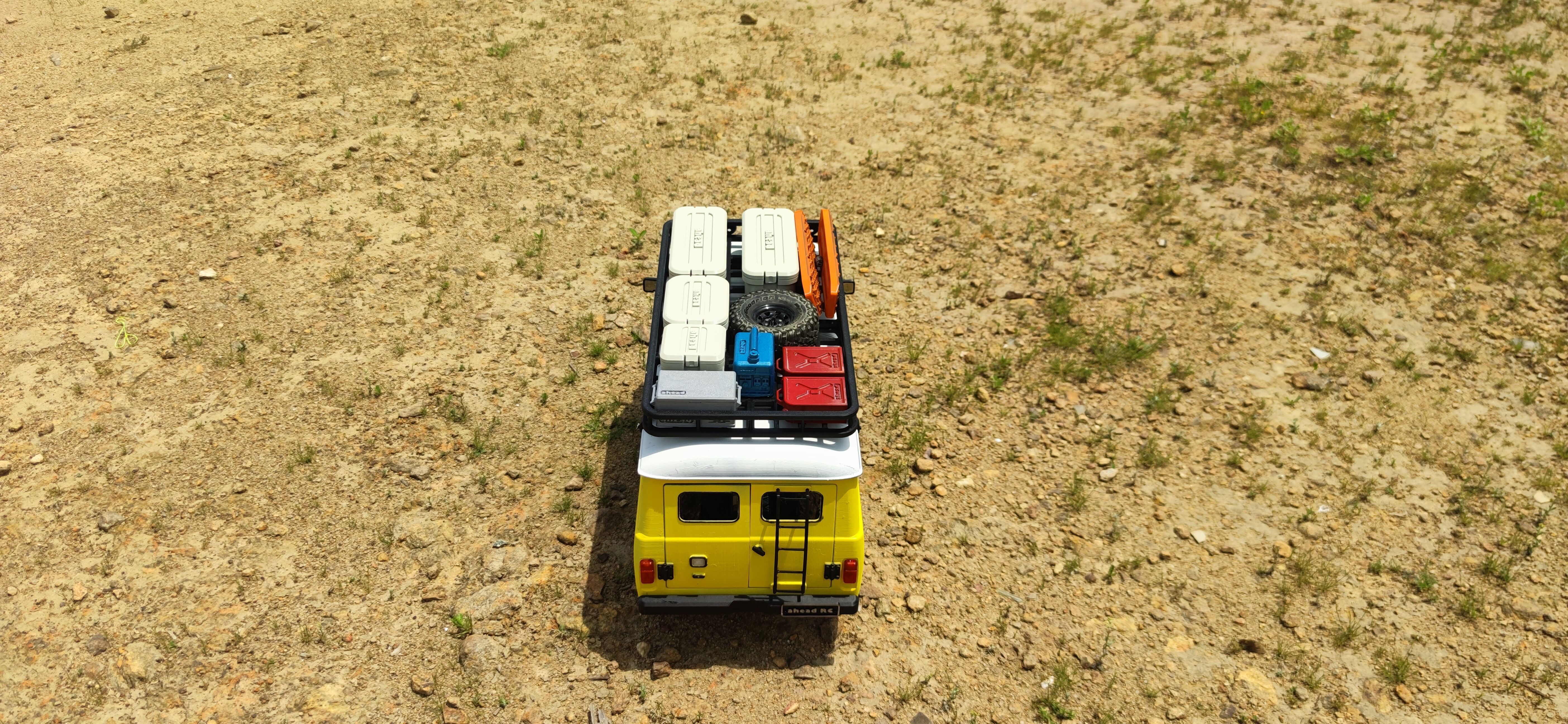

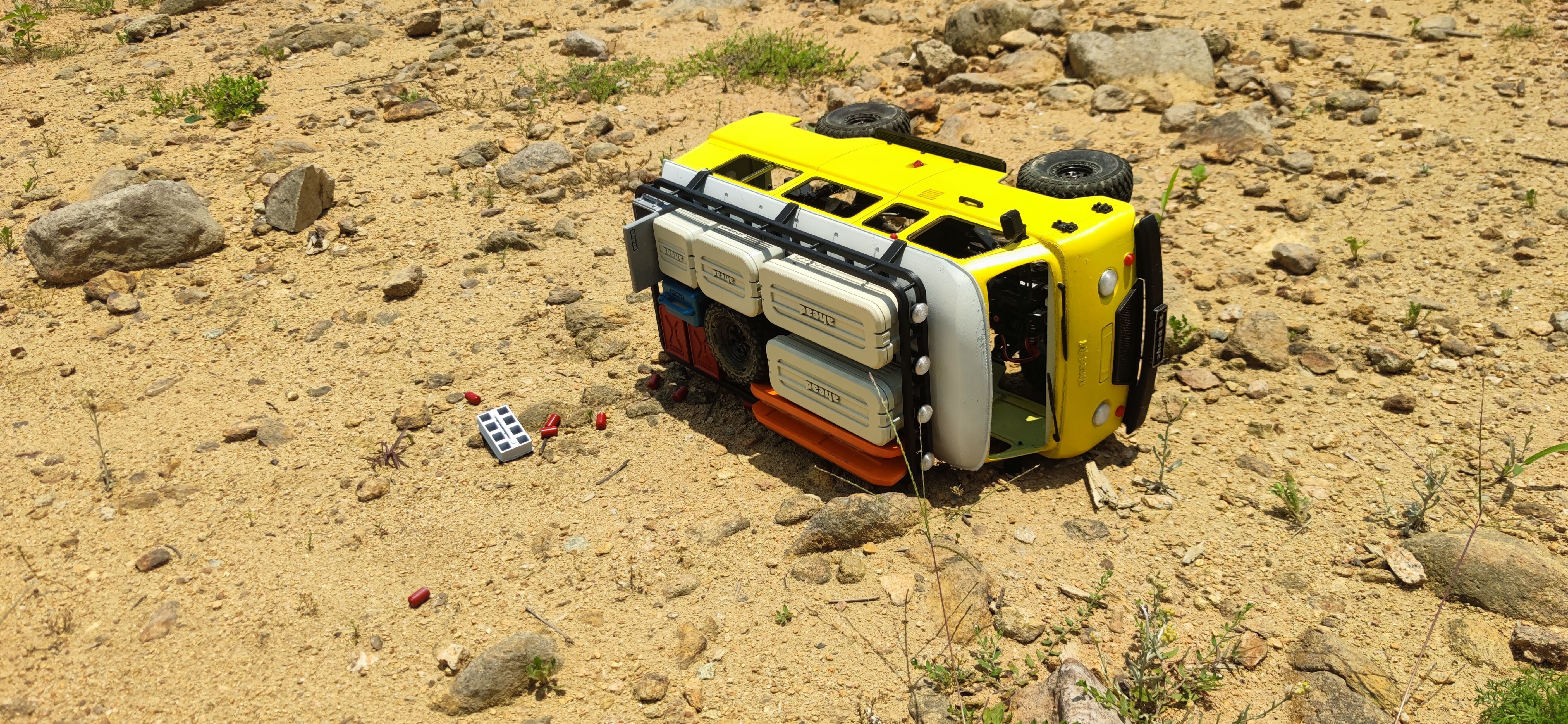

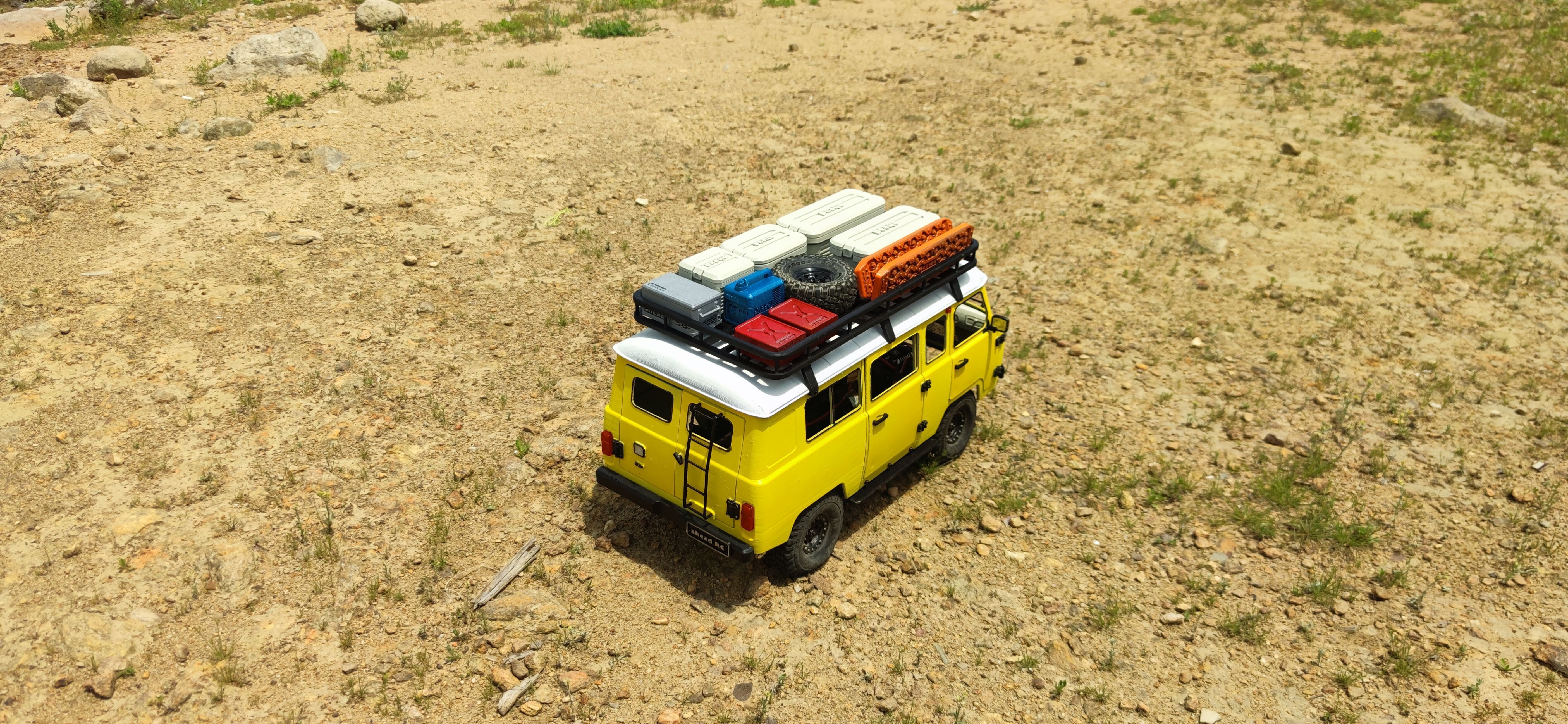

As part of the free roaming spirit, an expedition roof rack and accessories are included. This roof rack can also be removed to reduce the already high CG and roll-happy body. This will also let you configure the U452 however you’d like.

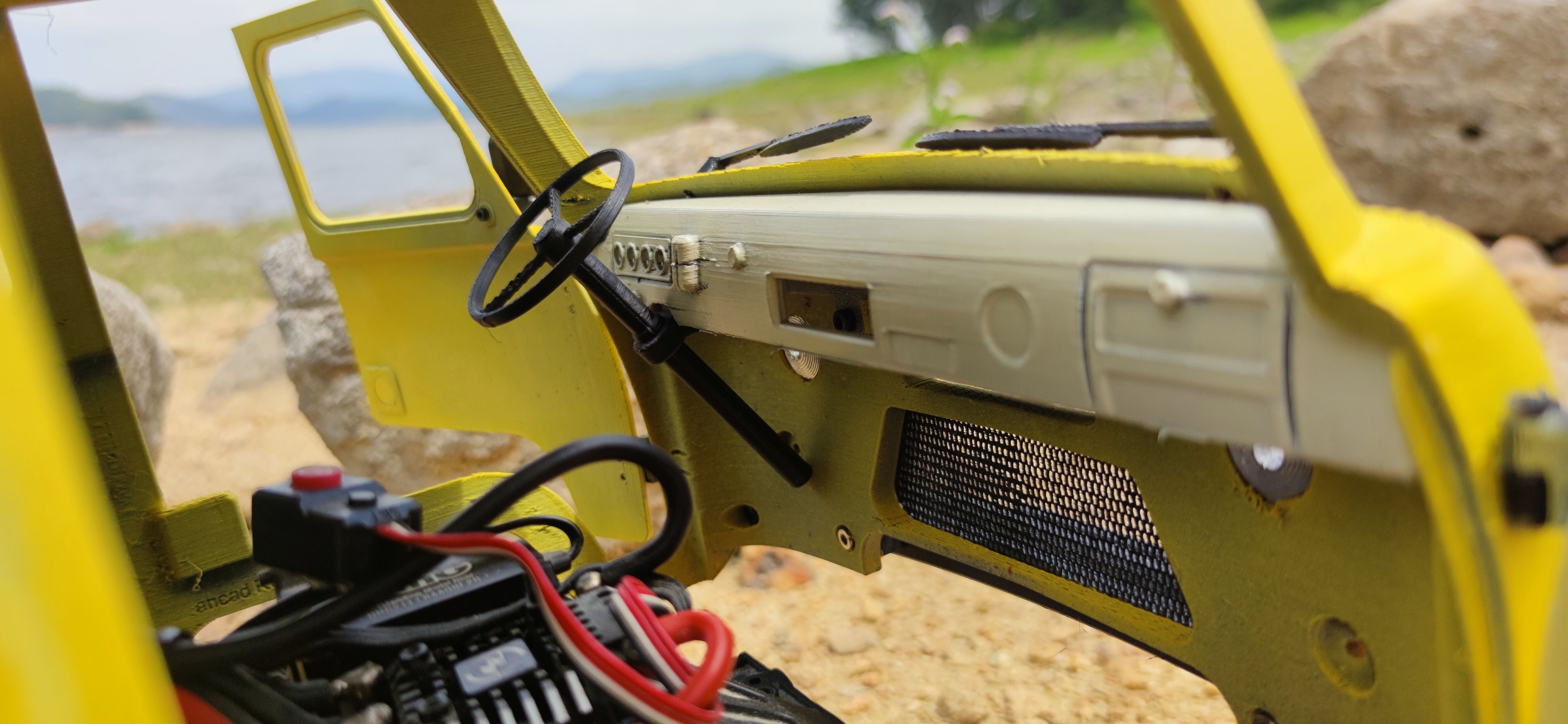

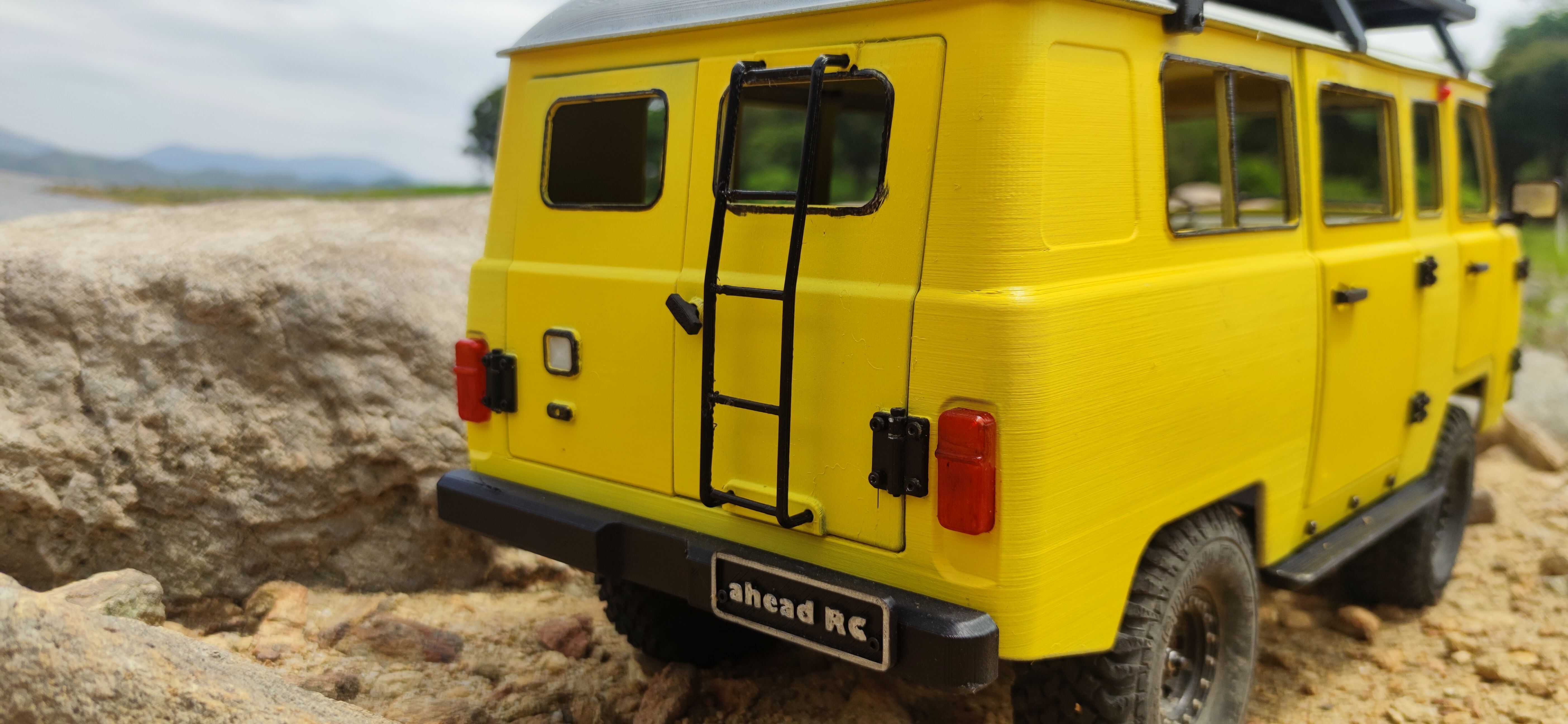

Features and details included:Full roof rack includedTraction board, long, medium, square expedition overland boxes, fridge, portable generator, fuel cans, are all included.Dashboard, steering wheel and steering columnWipers and mirrorsCab front air vent can be openedHinged doors for easy battery accessRear ladderFully functional light buckets290mm, 313mm, 324mm wheelbases are all compatible.

Be sure to check out the instruction manual and gather all required hardware for assembly.

It is highly recommended to read the instruction manual before purchasing, to ensure you have all the required tools and hardware to assemble this body.

.DXF window outline files are included with this body.Assembly instructions:View the link below to download the assembly instructionshttps://www.aheadrc.com/manual

All of these files are for personal use only. DO NOT in any way redistribute, sell in physical or digital form, or use for AI purposes.

FDM printing:PLA+ or PETG filament0.2 layer heights30-70% infill densitySupports are necessary
