Printer minimum build volume required - 200*155*55mm

Bog 406 crew cab SOLD SEPARATELY.All inner fenders need to be removed. Printed rear shock towers are included. Use aftermarket front shock towers (ideally with multiple shock mounting positions) and panhard mount if your shock towers are integrated into inner fenders.

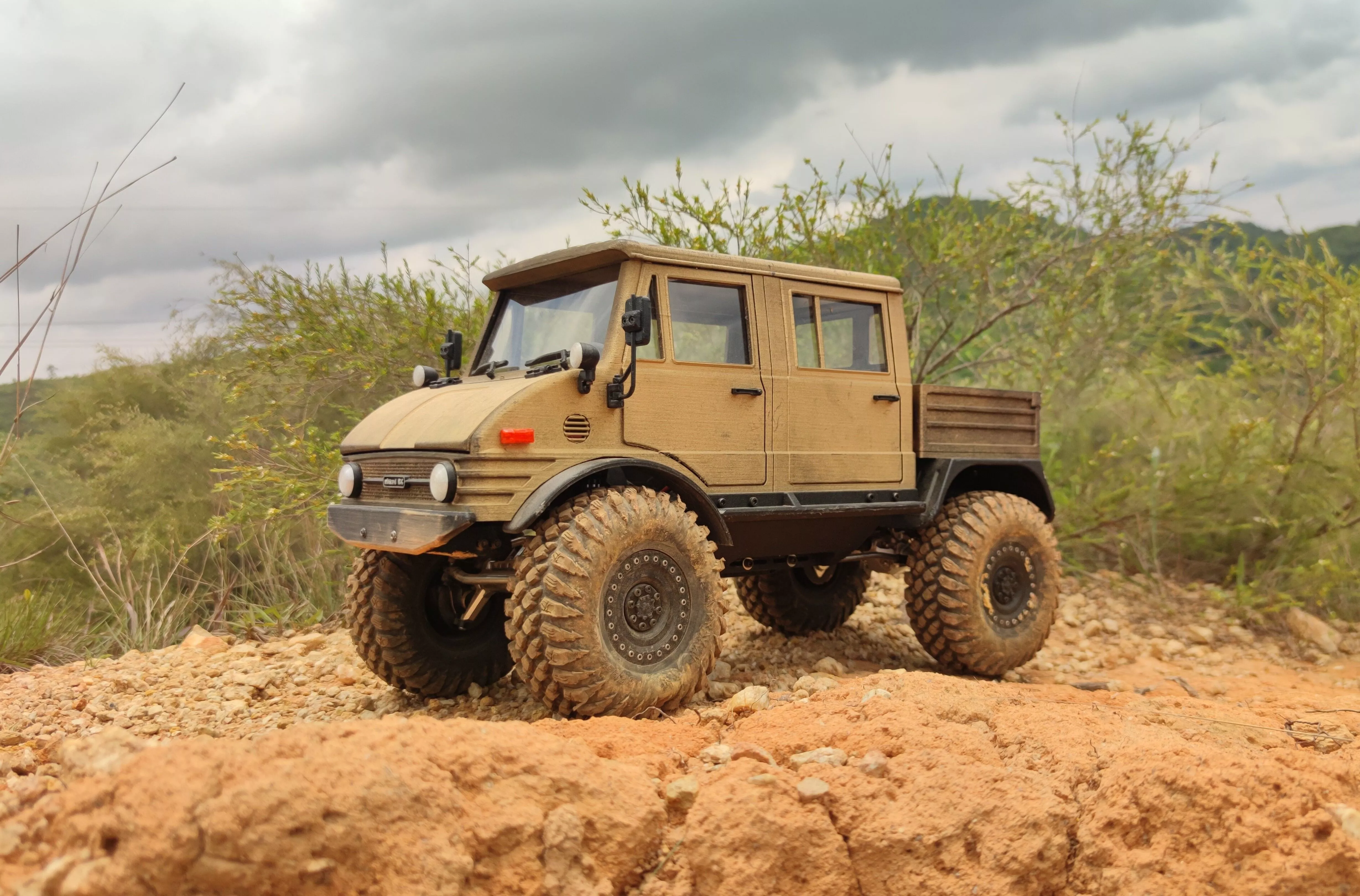

The Bog 406 Doka bed was designed specifically for the Bog 406 Crew Cab, matching a double cab with a small bed and providing an alternative look to the Bog 406. Please be sure to use the newly updated Bog406 Crew Cab cab files!

The bed CANNOT be used as a standalone. It MUST be used with the Bog406 crew cab.

The bed is compatible with 313 mm and 324 mm wheelbases, with CAB BODY MOUNTS included for the SCX10 II, SCX10 III, VS4‑10 Pro, and TRX4.

The way it mounts is that the Bog 406 crew cab bolts onto the chassis using the provided mounts from this listing, and then the Doka bed bolts directly to the rear of the crew cab. Once installed, the bed floats above the chassis rails with no attachment points to the chassis.

SCX10 iii: Dig and 2 speed servos need to be removedVS4-10: Dig and OD servos may have to be removed

It is highly recommended to use 2.2in 130mm diameter tyres. The standard 1.9in 120mm diameter tyres will also work but fender gaps may end up looking too big.

Features and details included:

• Each cab mount has 5 levels of height adjustability, going from extremely lifted to lowered positions.
• 2 Styles of beds included, cargo hook and no hook
• Extended bed designed for 324mm and 324mm wheelbase, standard bed for 313mm
• 2 widths of fenders and side steps
• Functional light buckets
• New and improved heavy duty rear shock tower design for SCX10 ii, SCX10 iii, VS4-10, TRX4
• Heavy duty functional rear bumper shackles
• 2.2in beadlock wheel cover included (52.3mm BCD, 24 bolt). Should fit generic 2.2in beadlock wheels. If you are unsure, measure the diameter of your beadlock wheel’s bolts. Also ensure that it uses 24 bolts.

Due to different chassis geometries, the VS4-10 rear bumper style is designed to be slightly different to the SCX10 ii, SCX10 iii, and TRX4. This is to minimise the gap between the rear bumper and the bed. See image gallery above.

Standard bed internal dimensions: 177x115.4x41mmExtended bed internal dimensions: 177x133.4x41mm

Printing tip: If layer steps appear too big on parts, orientate them so they are slightly angled in the slicer before printing.

It is highly recommended to read the instruction manual before purchasing, to ensure you have all the required tools and hardware to assemble this body.

All files are for personal use only. DO NOT in any way redistribute, sell in physical or digital form, or use for AI purposes. Files are embedded with trademarks. Violations will result in immediate action without exception.

Assembly instructions:View the link below to download the assembly instructionshttps://www.aheadrc.com/manual
