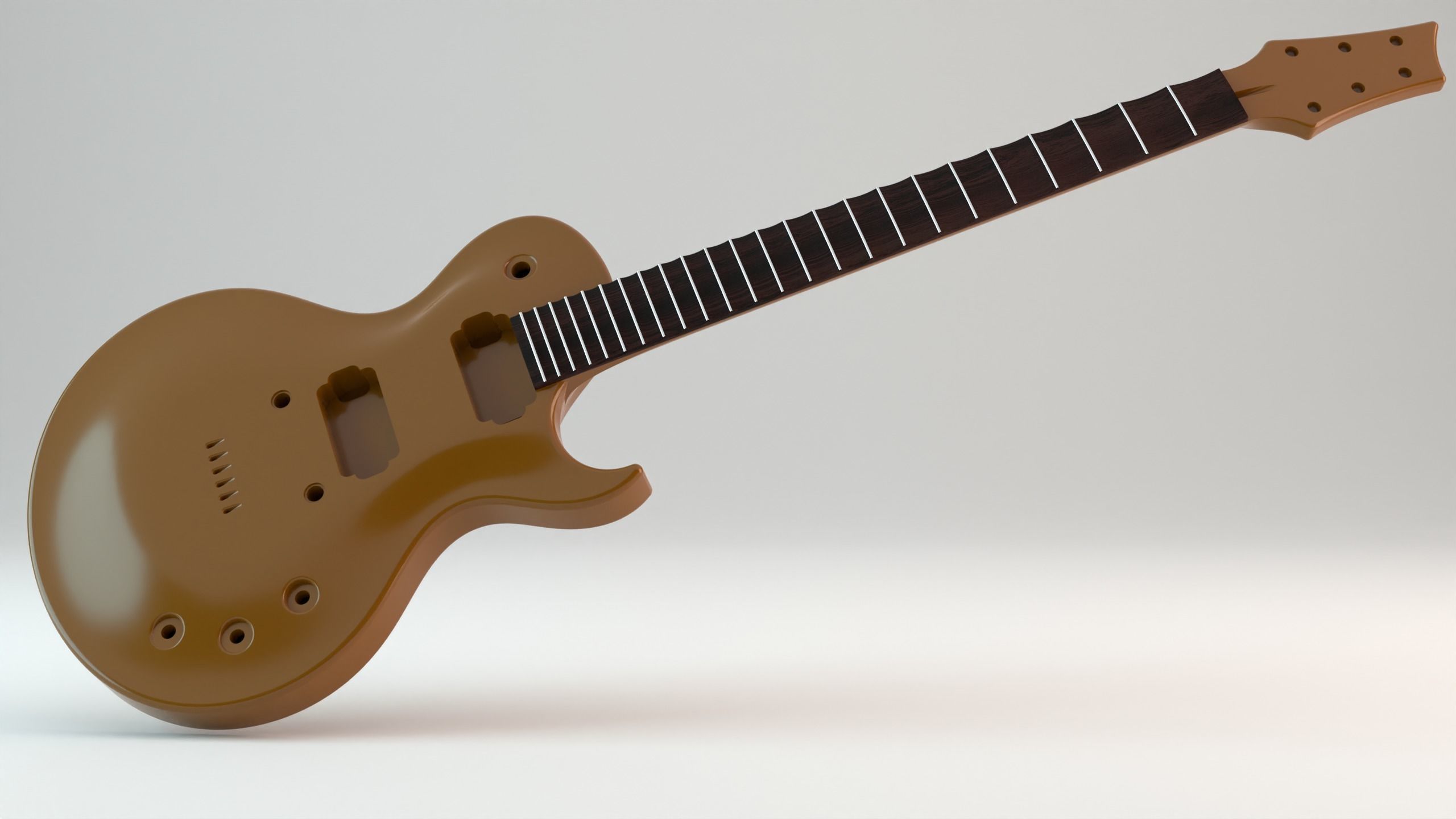

CNC Ready Single cut guitar Les Paul Style 3D print model

An original single cut Les Paul style guitar concept with complex ergonomic carves, designed for CNC machining

Features:

  • Gibson scale length, 24.75 inch
  • 24 frets
  • Top of the body has a thick carve, will be very visible with gloss finishes
  • Complex neck joint similar to modern guitars for super accessible higher frets without affecting the front look of the body, keeping its classic shape
  • Belly carve
  • Thinner body than authentic (hehe) Les Pauls for ergonomics
  • Neck can be either glued or bolted on and in both cases it'll look seamless by design
  • Neck has a 4 degree angle built into it by default, no additional setup work is needed before attaching it to the body
  • Neck extends under the pickup for structural and tonal reasons

Included:

  • Fusion360 Native file fully editable and with some user parameters I've created for common things you might need to change
  • STEP and IGES files
  • STL Files
  • Blend file that I used for rendering (Includes the model and procedural materials I've created but doesn't include the rendering room)
    This product has no reviews yet
    CNC Ready Single cut guitar Les Paul Style
    $40.00
    All prices are exclusive of VAT
    Send your price offer to the author if you want to buy it at lower price.
    Royalty Free License
    Products under Royalty Free License can be used without liability to pay any license fees for<br/> multiple lifelong uses, or sales volume of final product after being paid for once. The product<br/> may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.<br/> <a href='/pages/terms-and-conditions#general-terms-of-licensing' rel='nofollow' target='_blank'>Read more</a>
    Response 83% in 9.0h
    3D Modeling
    3D Print Modeling
    Low-poly Modeling
    Lighting
    Rendering
    Rigging
    Skinning
    Shaders
    Hire me
    3D model formats
    Native
    • Autodesk Fusion 360 (.f3d)3.37 MB
    Exchange
    • Stereolithography (.stl)2.44 MB
    • Blender (.blend)8.33 MB
    • STEP (.stp)1.18 MB
    • IGES (.ige, .igs, .iges)1.44 MB
    • 3D Studio (.3ds) -
    • Autodesk FBX (.fbx) -
    • OBJ (.obj, .mtl) -
    3D model details
    • Publish date2021-02-20
    • Model ID#2881409
