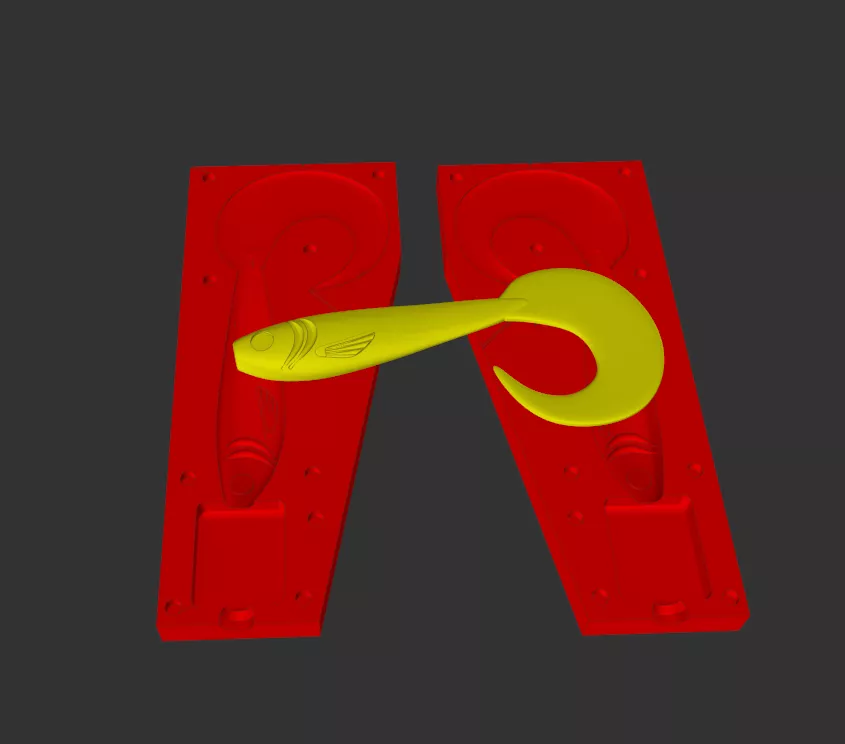

This is a 3D printable injection mold for producing soft plastic lures inspired by the legendary Fox Rage Pro Grub Loaded — a pre-rigged curly tail grub designed for predator fishing over weed, shallow venues, or higher in the water column. The mold features a single cavity and is optimized for FDM printing (Bambu Lab, Prusa, Creality, etc.), while also being compatible with SLA/DLP resin printers.

The Pro Grub Loaded is renowned for its irresistible curly tail action that triggers bites even at very slow retrieve speeds. The soft, durable PVC body is precisely molded with a distinctive ribbed profile and a large comma-shaped tail. Note: This master model recreates the soft plastic body only — the original comes pre-rigged with a 50lb wire harness and treble hooks, which are not included in the mold.

Injection Specifications:

Injector diameter: 16mm (compatible with standard hand injectors and small injection machines)

FDM Printing Recommendations:

Layer height: 0.08mm maximum for best surface quality and detail reproduction

Recommended material: PETG or any filament with a higher temperature resistance than PLA (ABS, ASA, Nylon, PET‑CF, PC, etc.)

For large models (over 5 inches / 125mm):

Wall loops (perimeters): 12–15 lines

Top solid layers: 10 layers

Bottom solid layers: 10 layers

Infill density: 10–20% (adjust as needed for strength vs. material usage)

Recommended orientation: cavity side up for best surface quality

Can be printed without supports or with minimal supports depending on orientation

For best results, print with a brim or raft to improve bed adhesion

Mold Features:

Single cavity for the large-format Pro Grub profile

Ribbed body design with distinctive curly tail geometry for bite-triggering action even at slow speeds

Soft, durable PVC body geometry for lifelike movement

Hook slot for optional custom rigging setups

Optimized runner system for proper material flow

Venting channels along the cavity for air escape during injection

Alignment pins and matching holes for consistent mold closure

Designed for use with hand injectors and small injection machines

Compatible with plastisol, soft PVC, and other soft plastic materials

Thick, durable mold geometry designed for repeated use

Important note: This is an inspired/replica design based on the original Fox Rage Pro Grub Loaded lure. Not an official Fox Rage product. For personal use and small‑batch production only.
