TWO TREE BLUER DIRECT DRIVE (ORIGINAL MOUNT) KIT-4

In order to be able to assemble the table as shown in the “Axis X Direct Drive video 8”, it is necessary to use kit 4. This kit consists of a series of parts, printed and manufactured. With information on what the kit is made of and links to additional parts that must be purchased separately.

Note:

The kit is designed and produced for a Two Trees Bluer 3D printer, but it has to be original from the factory. There are two ways to buy Kit 4 (the printed parts). They read or download the STL files and in this case screws, nuts, and cable, sold separately.

Axis X Direct Drive :

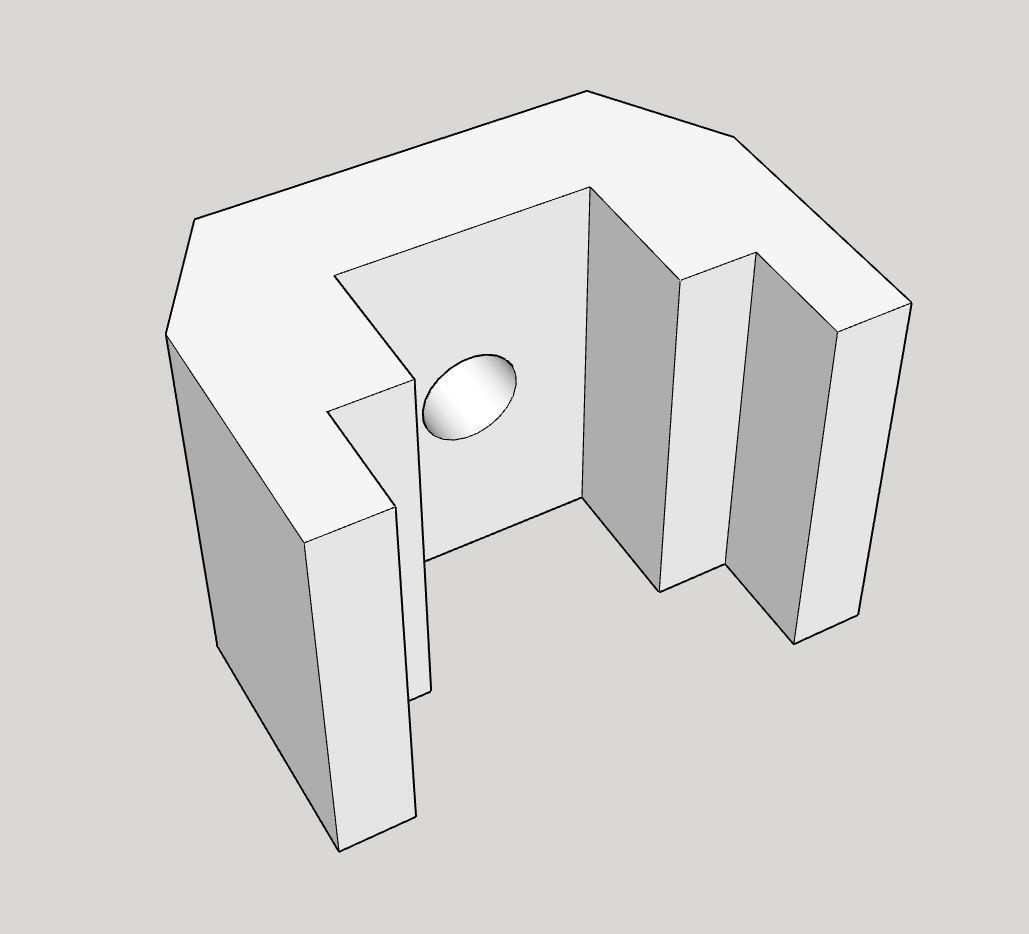

• (1) Profile Fixed Block For MGN12 Rail Linear Guide
• (1) Hole tamplate to Endstop X axis (JIG)

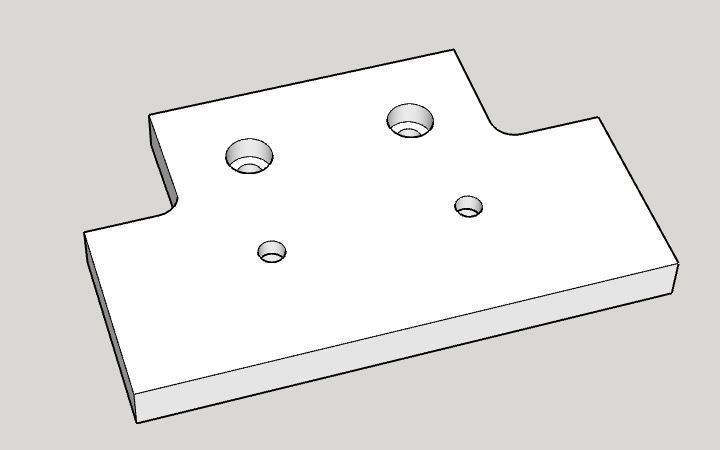

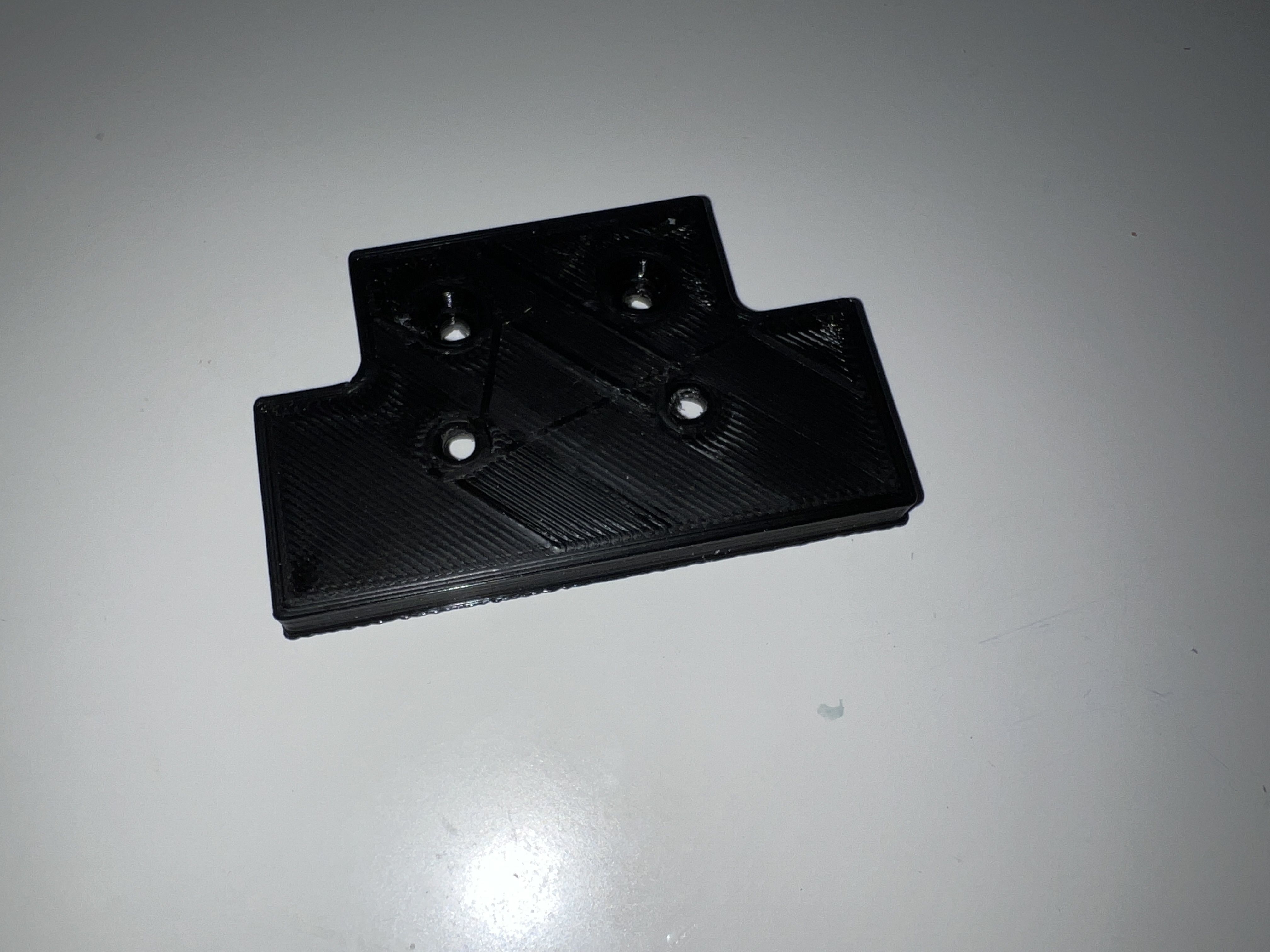

• (1) Hotend plate adapter (to original hotend mount)

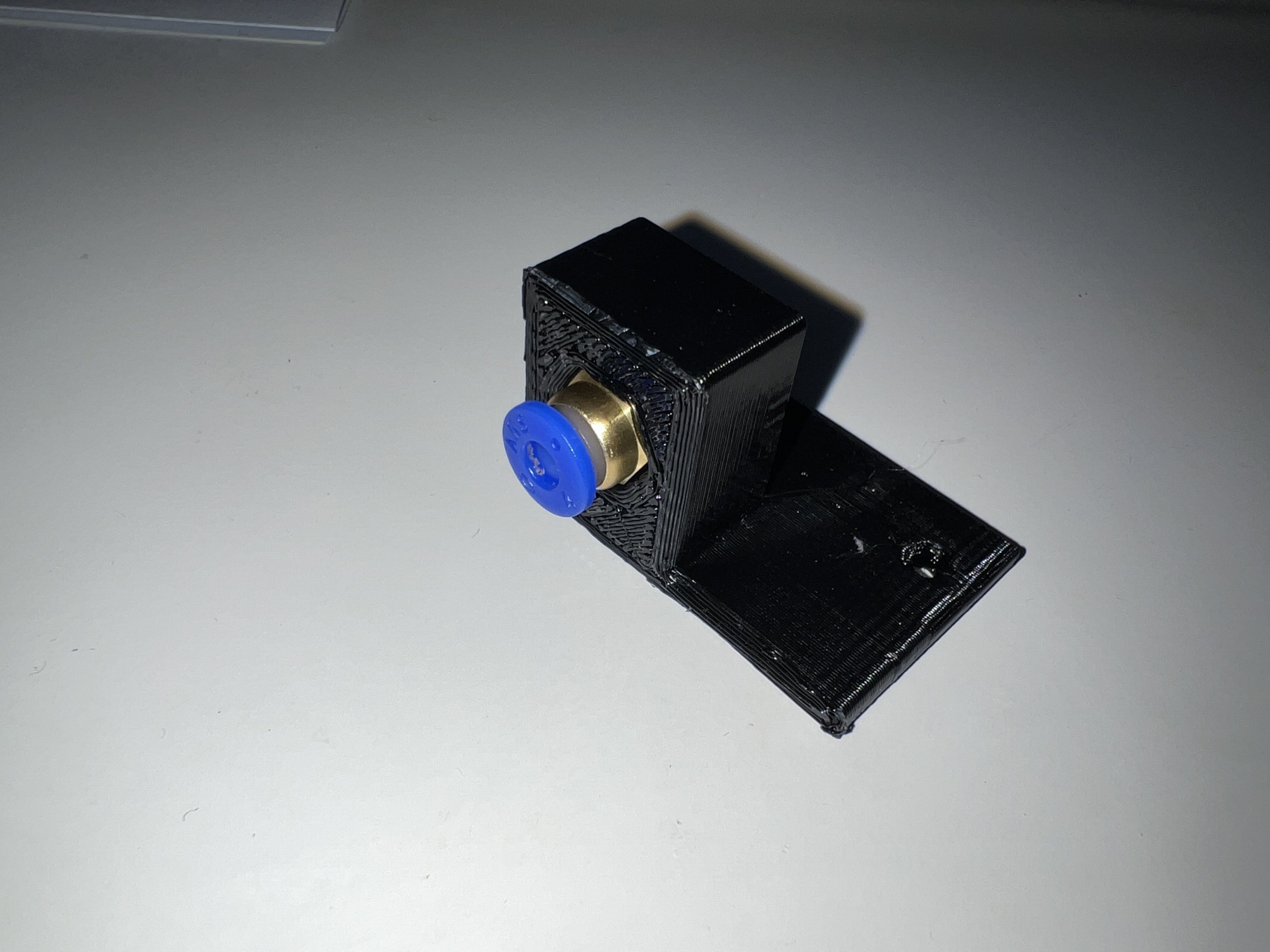

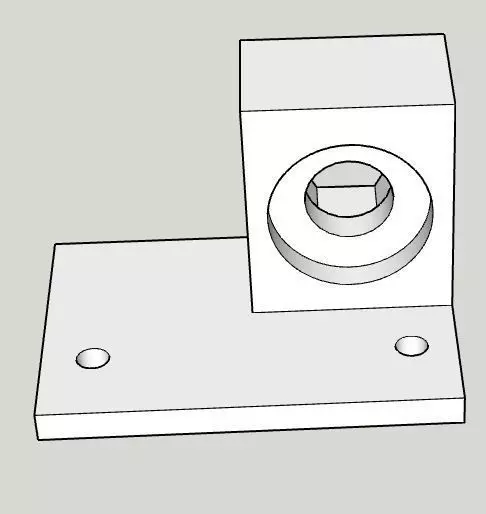

• (1) Connector Bowden Mount

IS NOT INCLUDED:

• (4) M3 6mm screw
• (2) M3 8mm screw
• (2) M3 10mm screw
• (4) M3 nut
• (1) Aluminum spacer M4 10mm - you can use you can use what was taken out of the axes
• (1) M4 16mm screw
• (1) PC4-M6 Pneumatic Fitting Push to Connect (connector bowden)
• (1) M6 Hex Jam Nut Standaed Extra Fine Pich

The Profile Fixed Block For MGN12 Rail Linear Guide, is for free

Links:

line rail 305mm, carrige MGN12H: https://s.click.aliexpress.com/e/_Dd0bGsf

Hotend : https://s.click.aliexpress.com/e/_DBvqjh9

Extruder Dual drive: https://s.click.aliexpress.com/e/_DEfzpQB

Nema 17 motor extruder high temperature: https://s.click.aliexpress.com/e/_DnEpkUH

Axis X Direct Drive video 8: https://www.youtube.com/watch?v=vAEnyrrI4PM&list=PLcqEw_QOIzp0GJz2S_vVFvadNFHx1Syr5&index=9&t=85s

contact: mybestcnc@gmail.com
