Two Tree Bluer Direct Drive KIT-3 3D print model

TWO TREE BLUER DIRECT DRIVE KIT-3

In order to be able to assemble the table as shown in the “Axis X Direct Drive video 8”, it is necessary to use kit 3. This kit consists of a series of parts, printed and manufactured. With information on what the kit is made of and links to additional parts that must be purchased separately.

Note:The kit is designed and produced for a Two Trees Bluer 3D printer, but it has to be original from the factory. There are two ways to buy Kit 3 (the printed parts). They read or download the STL files and in this case screws, nuts, and cable, sold separately.

Axis X Direct Drive :

• (1) Profile Fixed Block For MGN12 Rail Linear Guide
• (1) Hole tamplate to Endstop X axis (JIG)
• (1) Hotend plate adapter

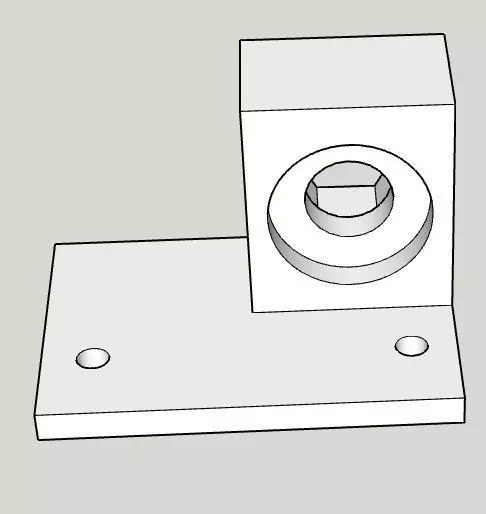

• (1) Connector Bowden Mount

IS NOT INCLUDED:

• (1) M3 35mm screw, M3 nut
• (1) Split Lock Washer
• (1) M3 nut hex nylon lock
• (1) Aluminum spacer M4 10mm - you can use you can use what was taken out of the axes
• (1) M4 16mm screw
• (1) Cable extruder stepper motor
• (1) PC4-M6 Pneumatic Fitting Push to Connect (connector bowden)
• (1) M6 Hex Jam Nut Standaed Extra Fine Pich
• (6) M3 10mm screw
• (1) Metal Rail Line carriage adapter

Links:line rail 305mm, carrige MGN12H: https://s.click.aliexpress.com/e/_Dd0bGsf

Hotend : https://s.click.aliexpress.com/e/_DBvqjh9

Extruder Dual drive: https://s.click.aliexpress.com/e/_DEfzpQB

Nema 17 motor extruder high temperature: https://s.click.aliexpress.com/e/_DnEpkUH

Wham Bam mount: https://whambam3d.com/collections/mutant/products/universal-x-gantry-plate-linear-rail-kit

Cable extruder stepper motor: https://s.click.aliexpress.com/e/_DB9wFZT

Axis X Direct Drive video 8: https://www.youtube.com/watch?v=vAEnyrrI4PM&list=PLcqEw_QOIzp0GJz2S_vVFvadNFHx1Syr5&index=9&t=85s

contact: mybestcnc@gmail.com
