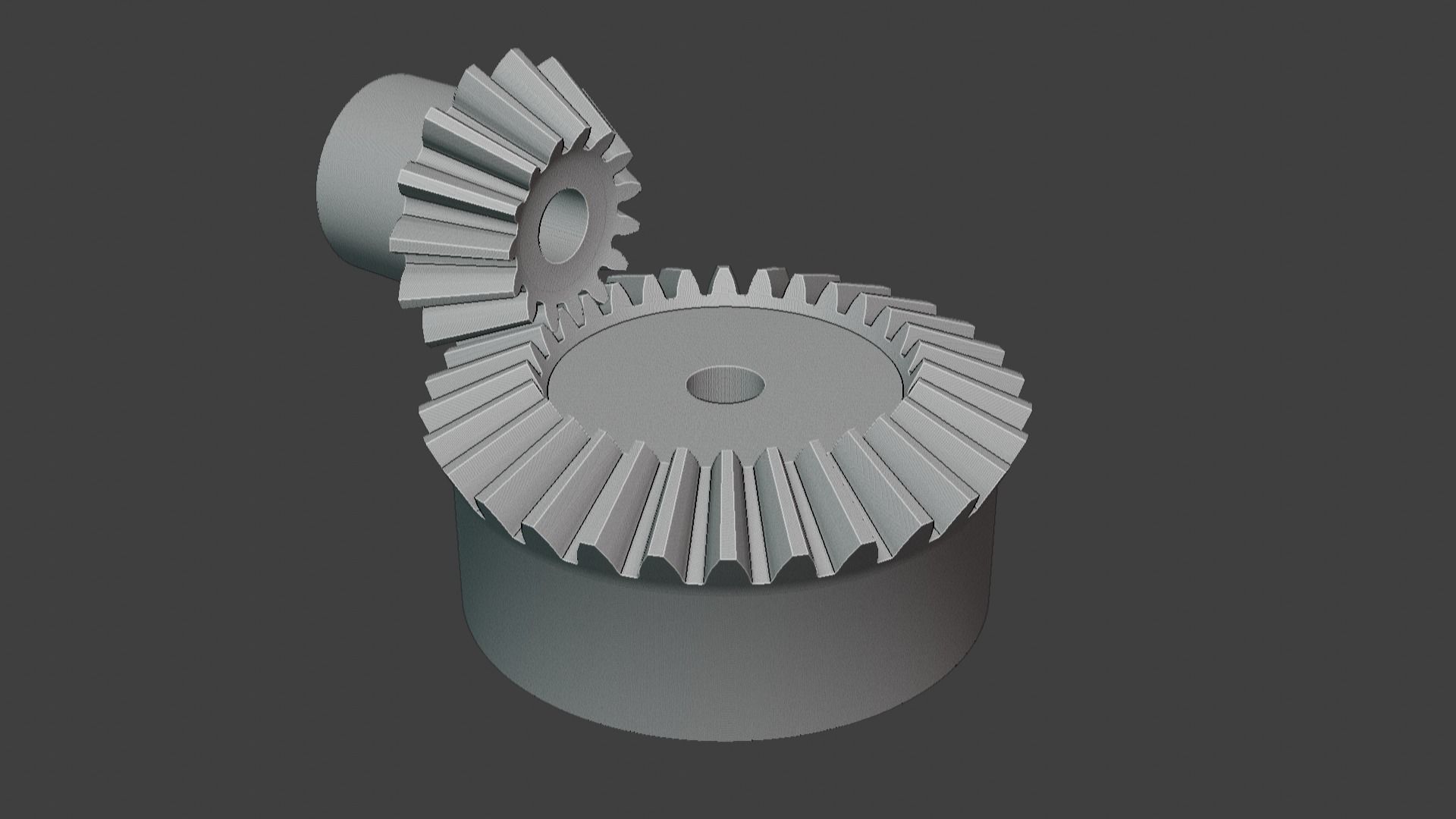

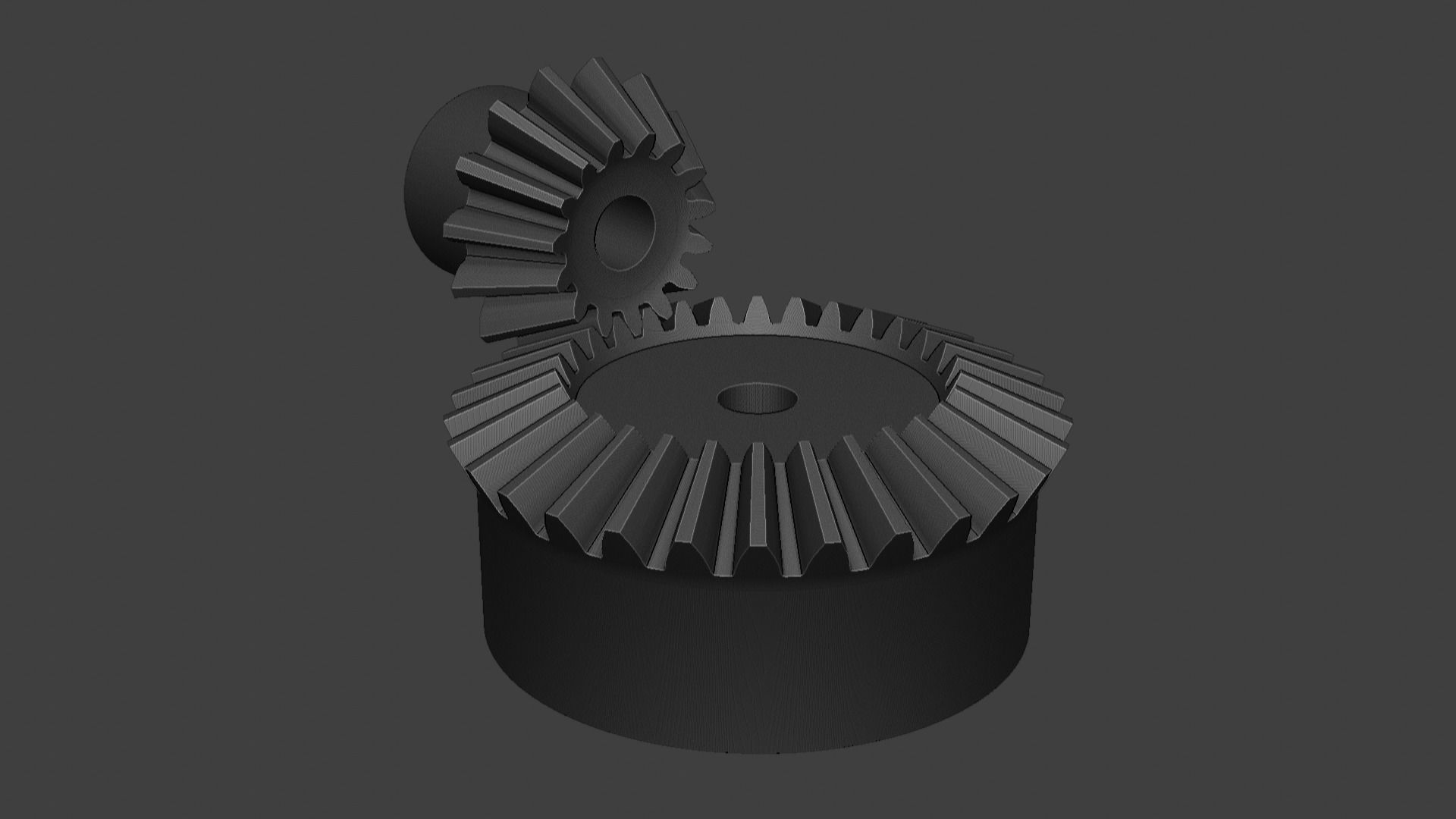

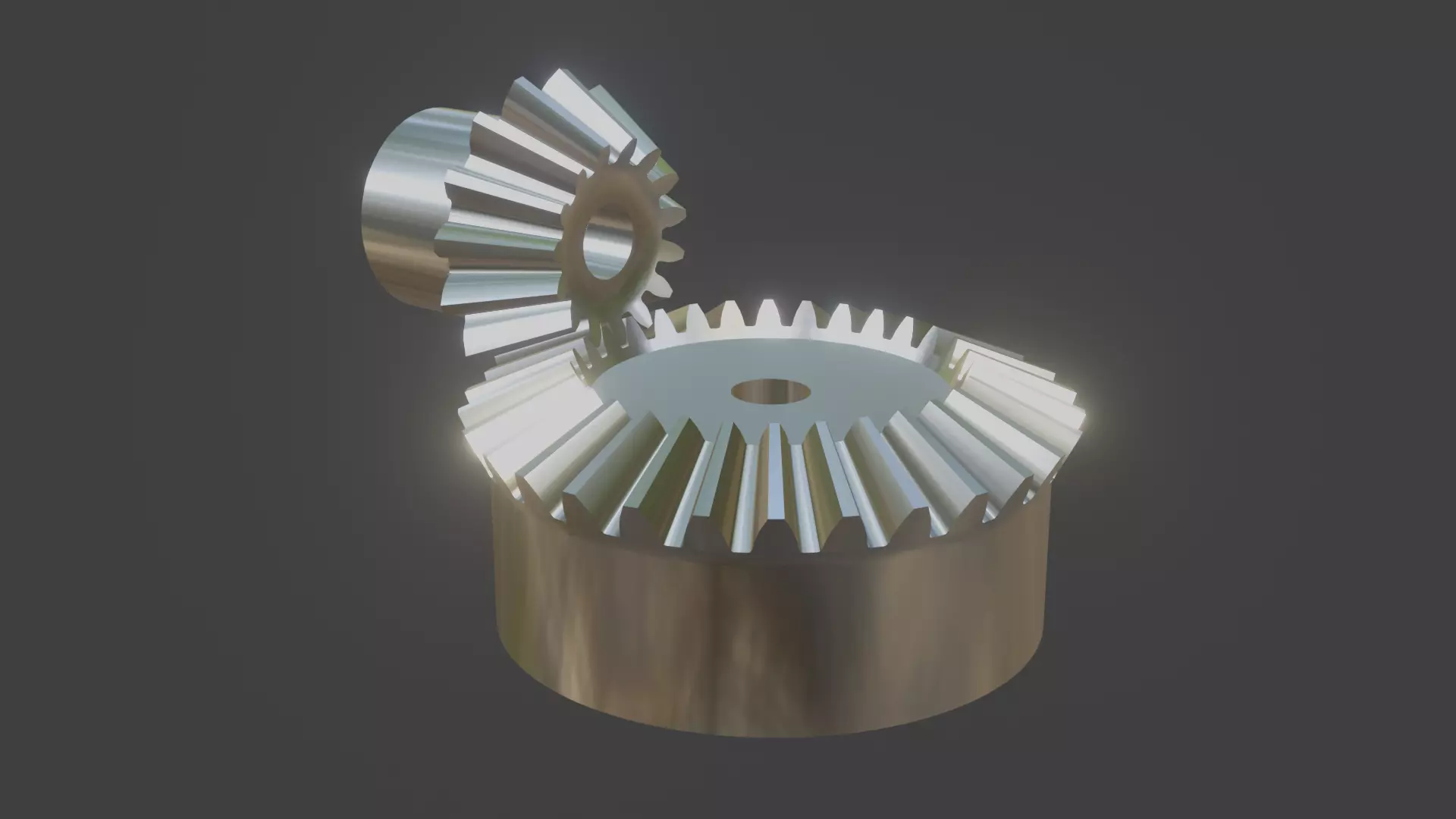

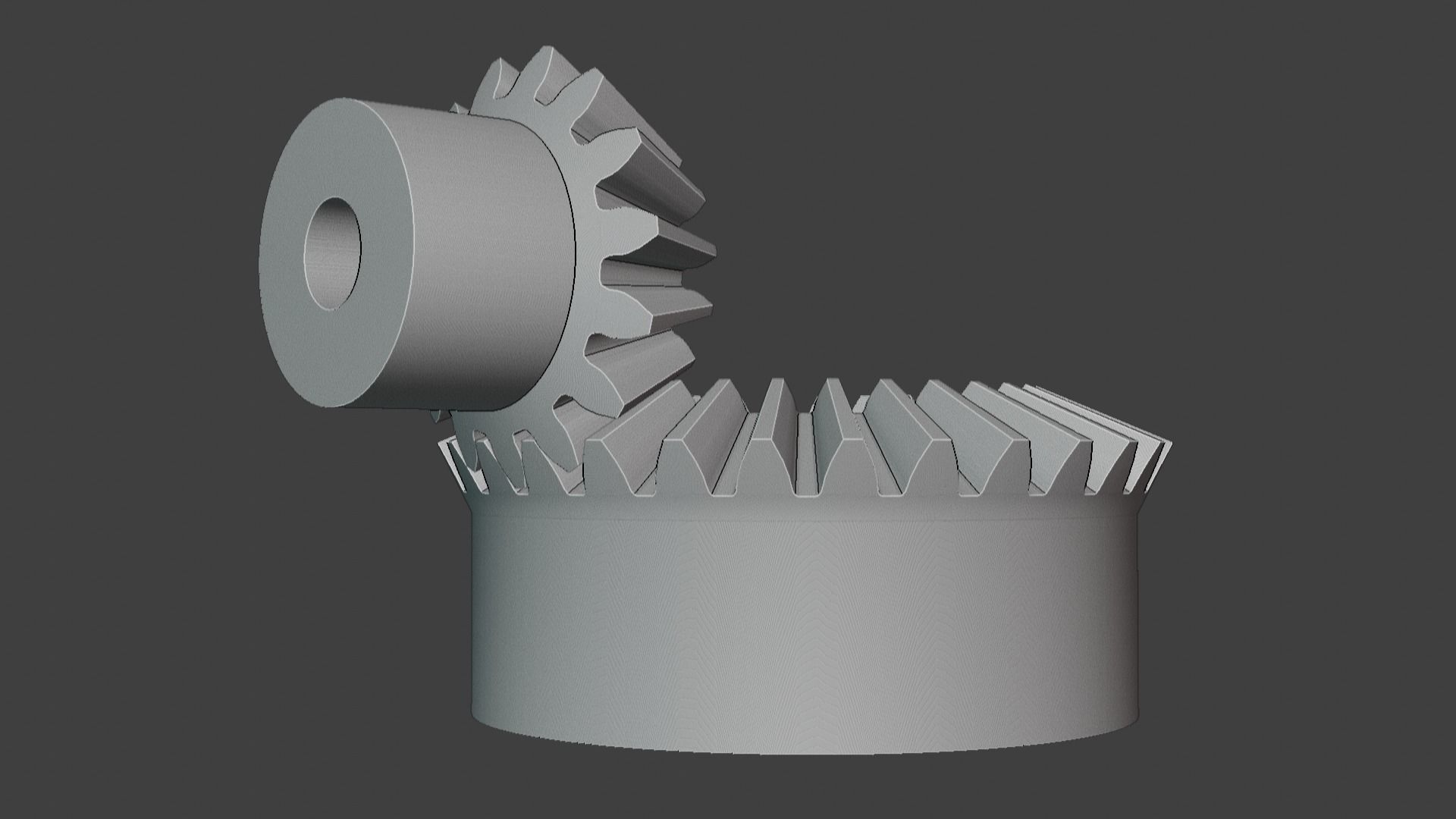

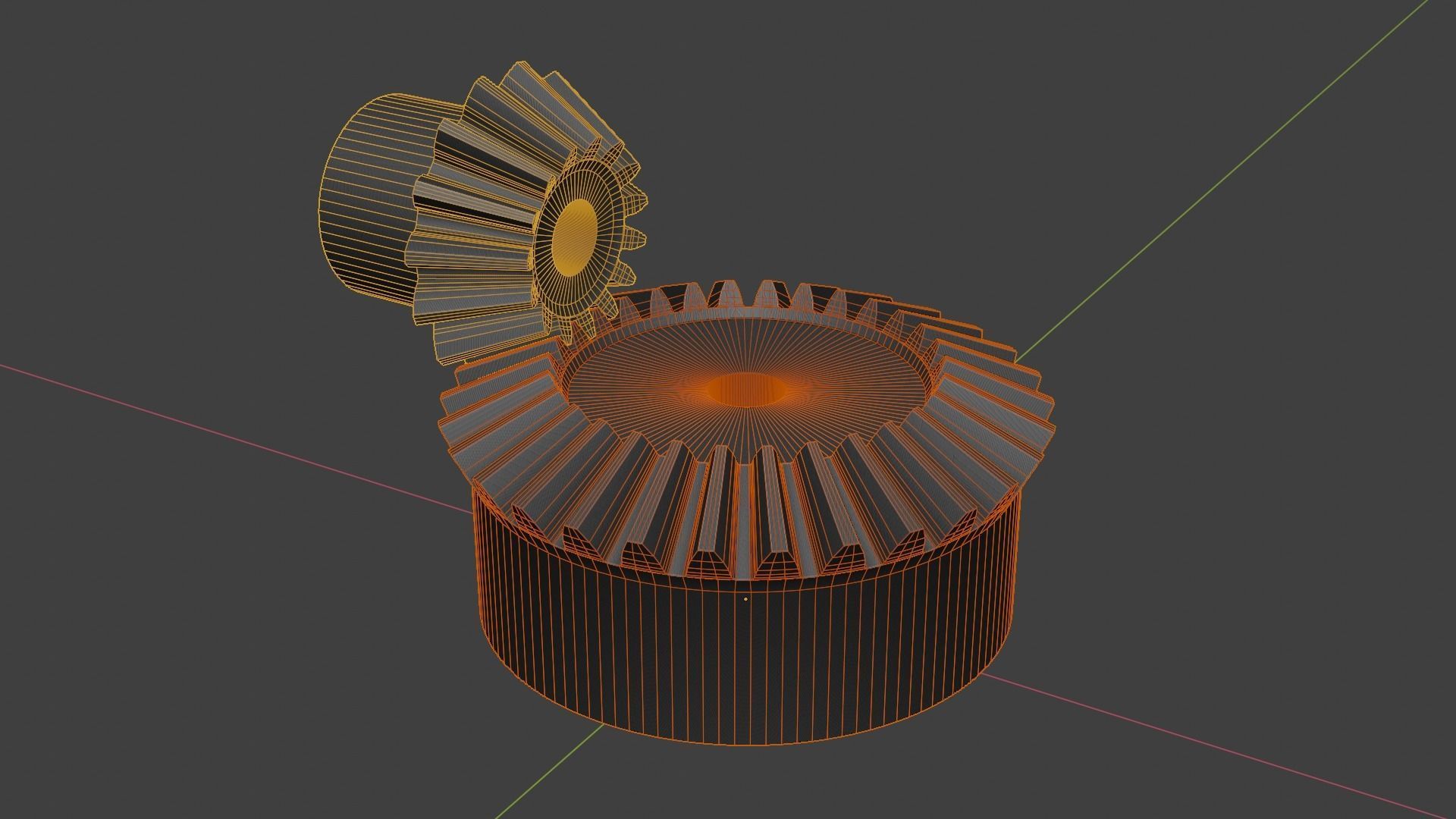

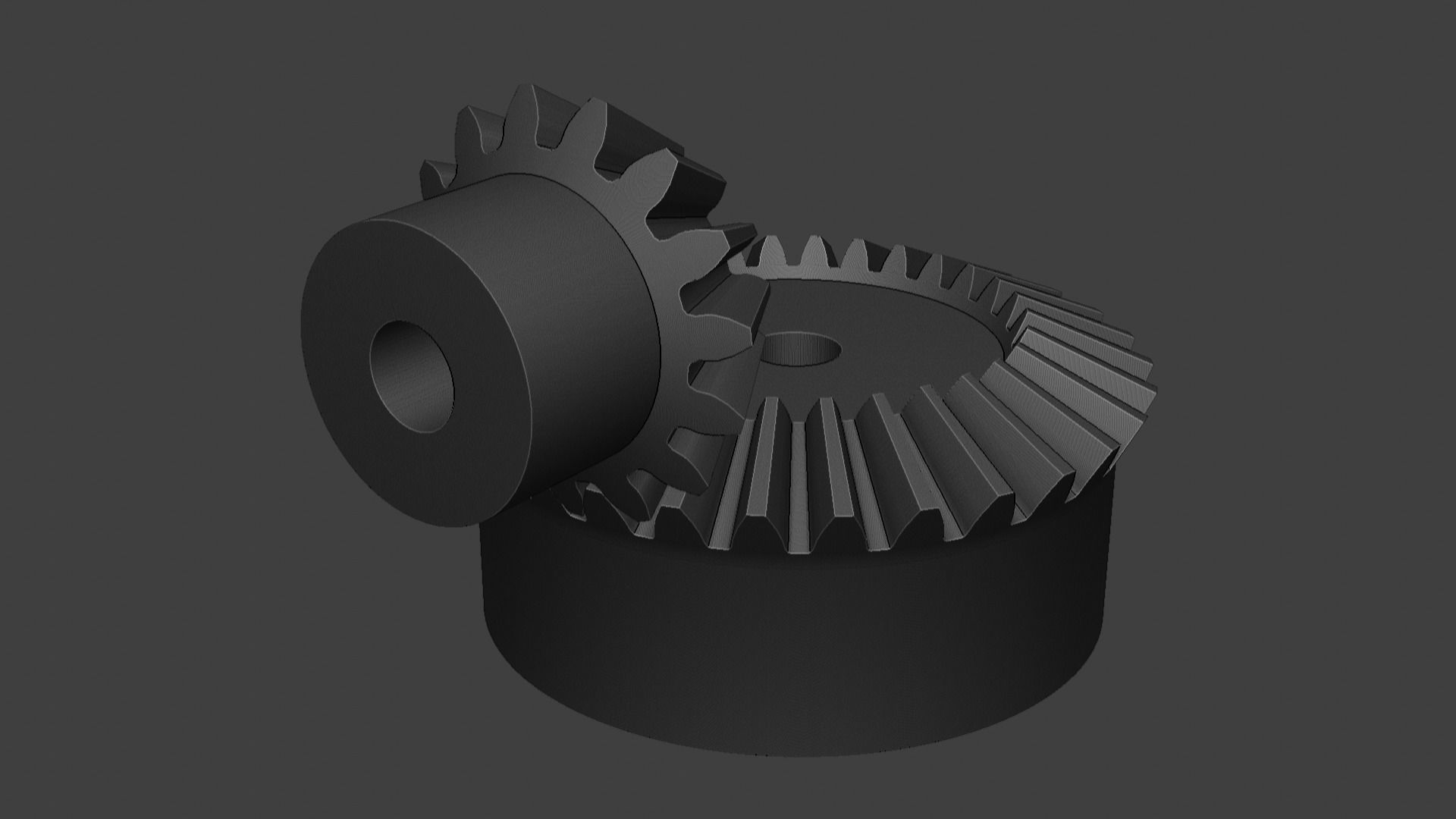

TRANSMISSION BEVEL GEAR SET 3M T15 T30 2 TO 1 RATIO 3D print model
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

BEVEL GEAR SET 3D MODEL SUITABLE FOR CNC MACHINING AND 3D PRINTING.

※ Module: 3

※ Number of teeth: 15T & 30T

※ Ratio: 1:2

※ Angle: 90°

※ Pressure angle 20°

※ Bore size: 12mm

※ Bore size: 12mm

※ T30 MAX Hight 40.8mm, T15 MAX Hight 40mm

※ T30 MAX OUTER DIA 93MM, T15 MAX OUTER DIA 51MM

※ Print ready

※ Qulity model

※ FILE FORMAT, STL 3MF
