3M BEVEL SPUR GEAR SET 3M T18 T36 3D print model
thumbnail
thumbnail
thumbnail
thumbnail
DESCRIPTION

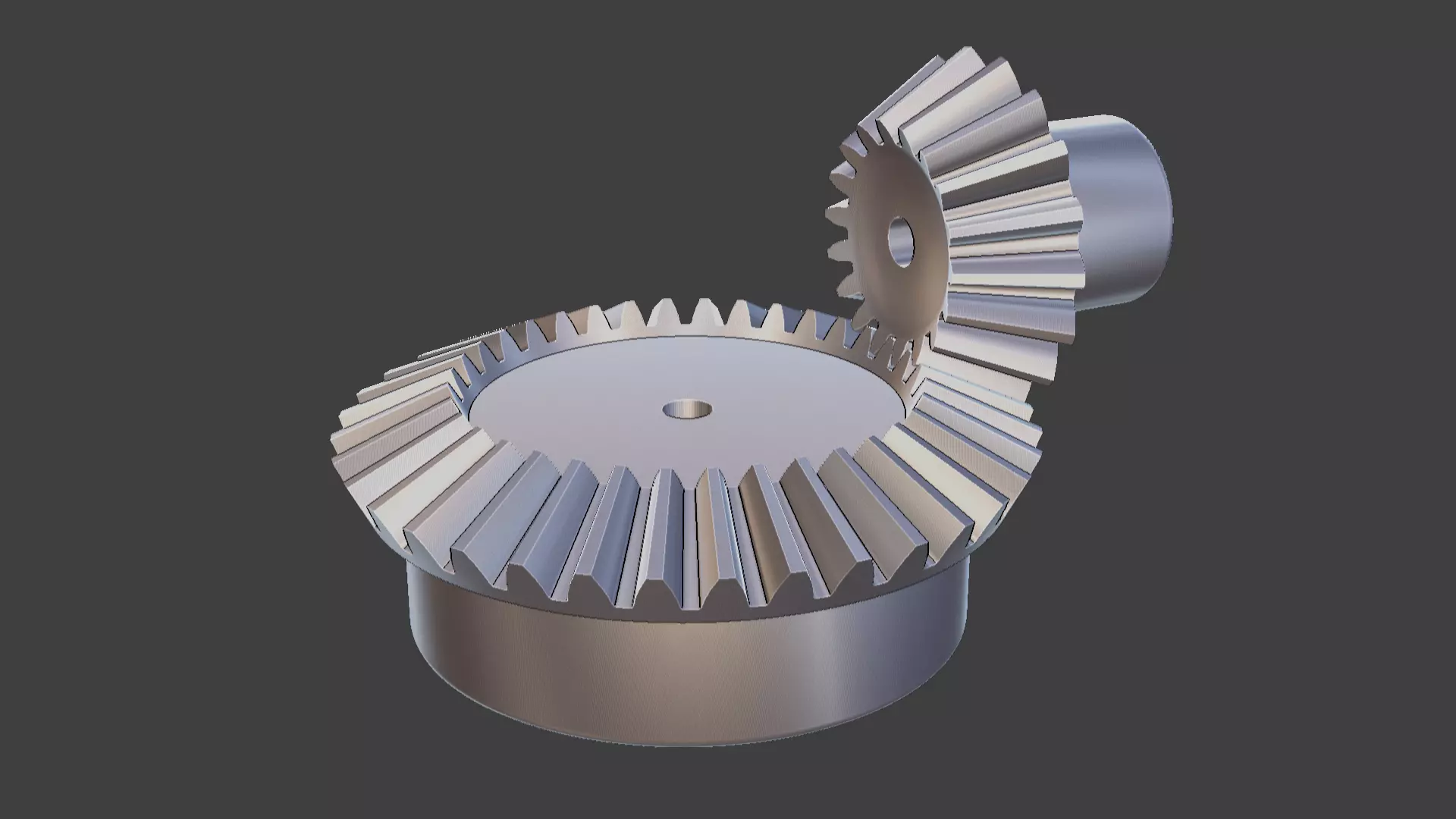

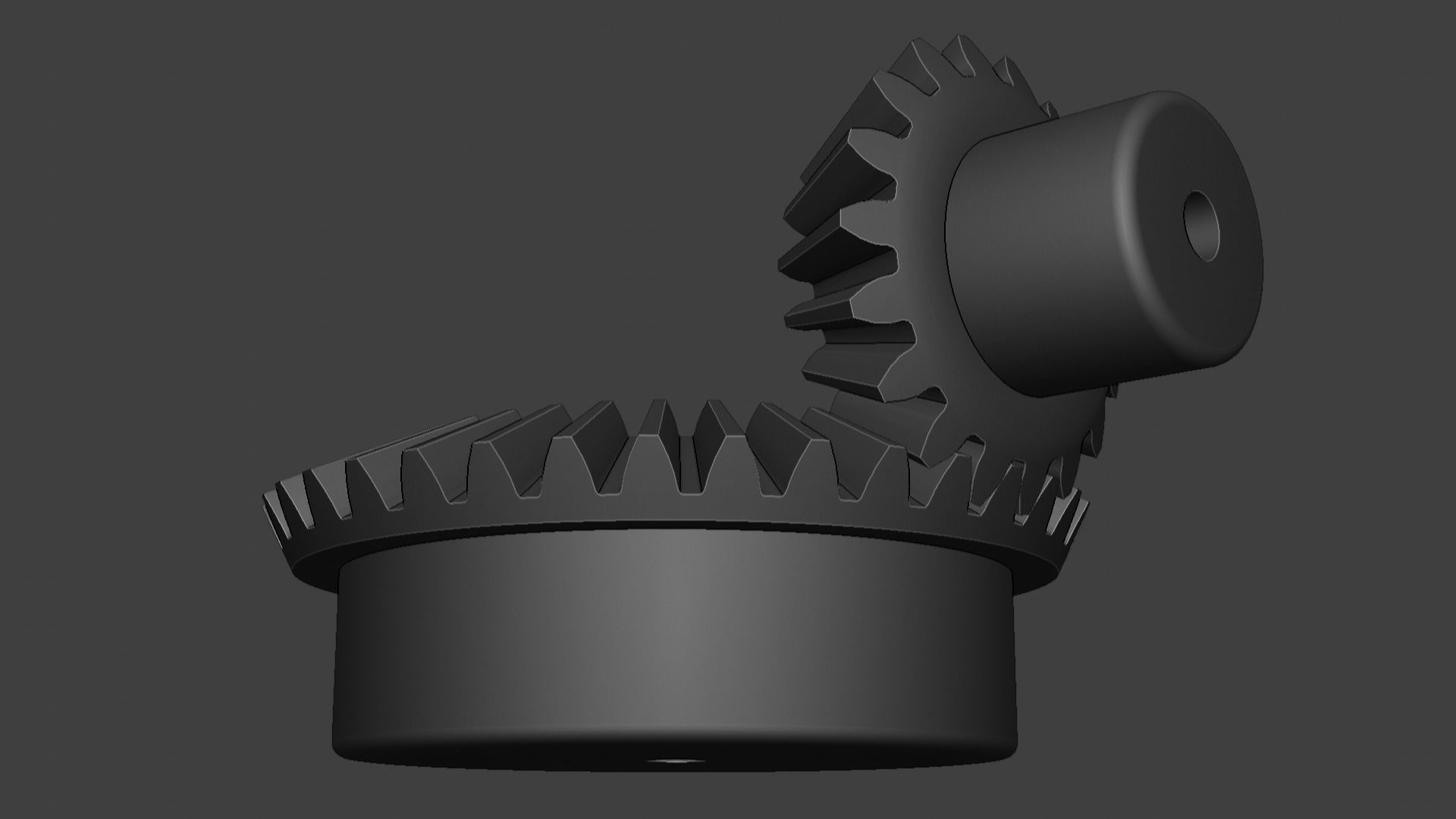

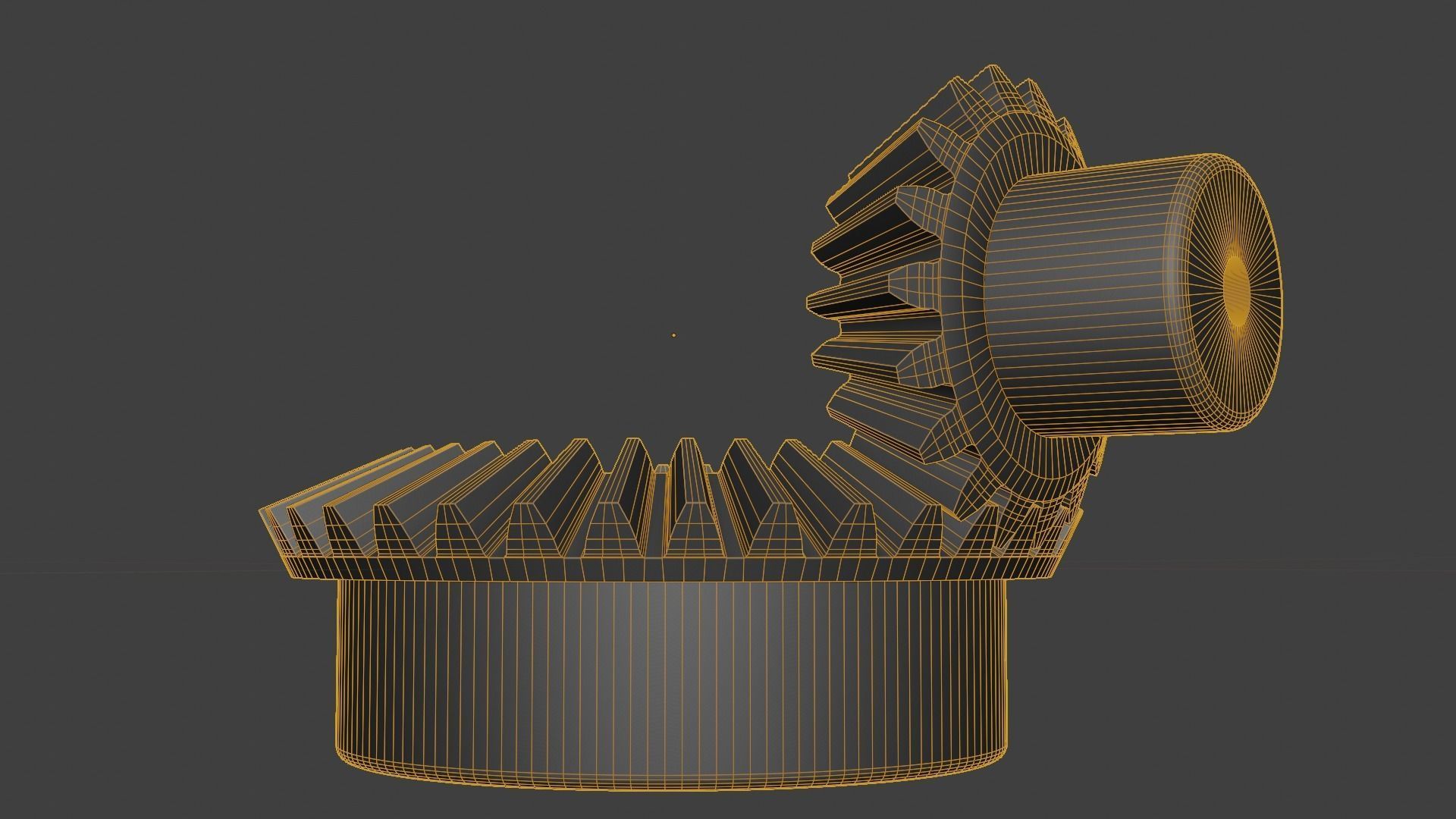

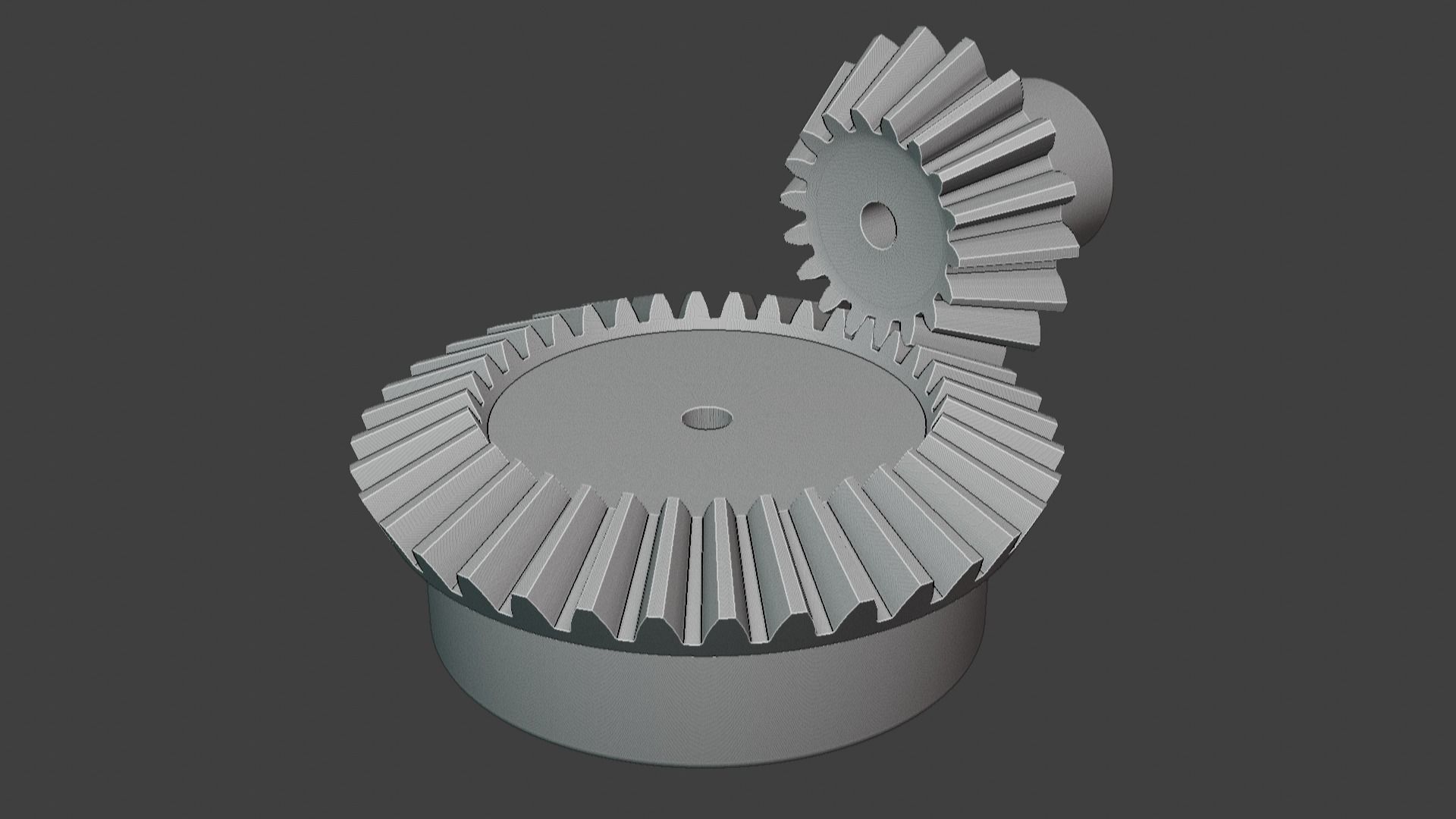

BEVEL GEAR SET 3D MODEL SUITABLE FOR CNC MACHINING AND 3D PRINTING.

※ Module: 3

※ Number of teeth: 18T & 36T

※ Ratio: 1:2

※ Angle: 90°

※ Pressure angle 20°

※ Bore size: 8mm

※ T36 MAX Hight 40.8mm, T18 MAX Hight 45.8mm

※ T38 MAX OUTER DIA 111MM, T18 MAX OUTER DIA 59MM

※ Print ready

※ Qulity models

※ FILE FORMATS: STL, 3MF. FBX

Related Tagsgearscncmachinefactoryrcengineaircraftplanejetlathemillingcommercialratio
transmition
hobbydiymechanicalpartssteelhobby diymechanical parts

REVIEWS & COMMENTS

See what other buyers think about this model - real feedback on quality,
accuracy, and usability.
There are no reviews or comments yet. Please be the first one to write it.

3M BEVEL SPUR GEAR SET 3M T18 T36 3D print model

Royalty Free License
Created by
Lilly1
Lilly1
(17 reviews)
Hire
Like this model to show appreciation to the designer.
See how many times this model was viewed.
Share this model to support the designer and boost their visibility.
File formats
STL
Stereolithography<br />File Size: 635 KB
3MF
3D Manufacturing File<br />File Size: 188 KB
FBX
Autodesk FBX<br />File Size: 309 KB
Provided by designer
Information and details shared directly by the model's designer.
3D printing
Indicates whether the designer marked this model as suitable for 3D printing.
Model is prepared for 3D printing
The designer indicates this model is prepared for physical 3D printing and includes printable file formats.
Units
Millimeters
Publish date
2023-03-26
Model ID
#4391664
