Simple Radial Blower Assembly For Experimental Ventilators

Simple Radial Blower Assembly For Experimental Ventilators 3D print model

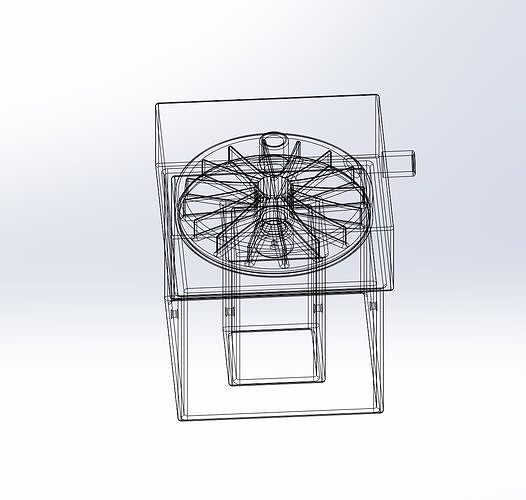

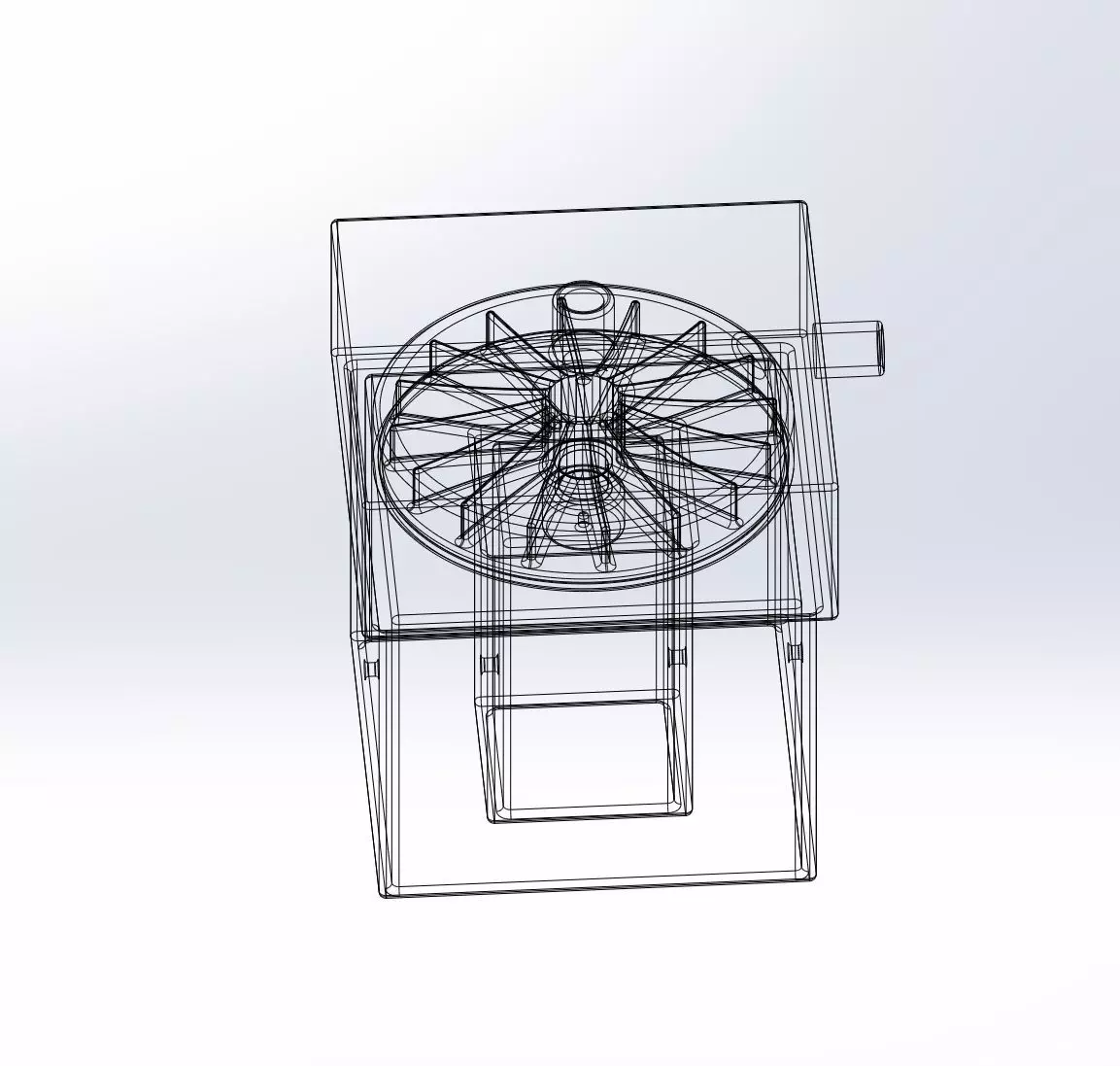

A simple design for a radial blower that can be 3d printed or cast from 3d prints and equipped with a cheap electric motor it produces a pressure of about 200mmH2O at 10000rpm but should be tested for your printing mthod and motor you can adjust pressure both by scaling or adjusting motor rpm

Item rating
0 0
Simple Radial Blower Assembly For Experimental Ventilators
$3.00

Royalty Free License
Simple Radial Blower Assembly For Experimental Ventilators
$3.00

Royalty Free License
Response 89% in 0.3h
3D Modeling
3D Print Modeling
Hire me

3D Model formats

Format limitations
  • SolidWorks (.sldprt, .sldasm, .slddrw) (5 files)9.7 MB
  • Stereolithography (.stl) (5 files)19.1 MB
  • IGES (.ige, .igs, .iges) (3 files)3.06 MB
  • OBJ (.obj, .mtl) (3 files)13.5 MB

3D Model details

  • Publish date2020-05-07
  • Model ID#2399650
