Pack of 21 Spur Gears

Pack of 21 Spur Gears 3D print model

Description

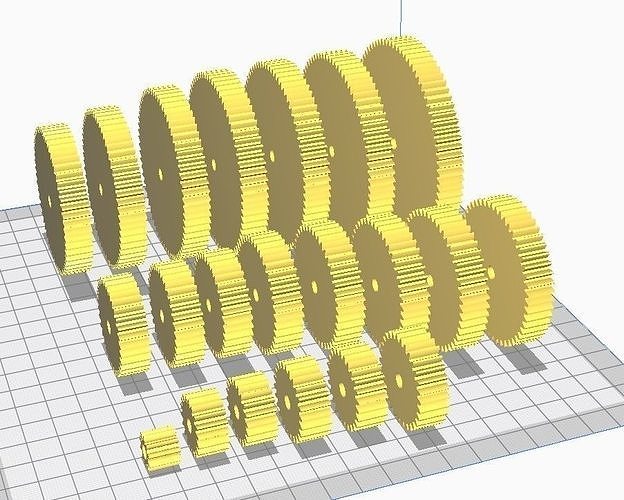

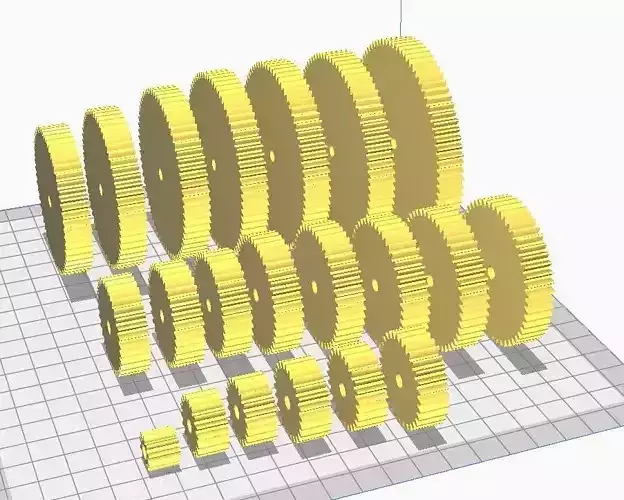

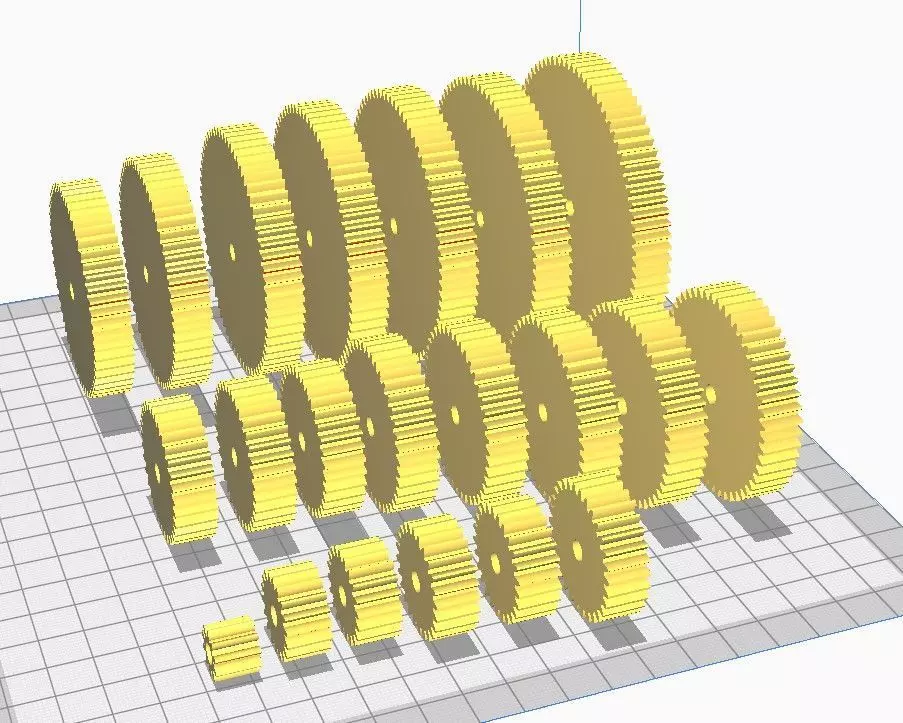

Set of different spur gears

Module : 1 It means that the primitive diameter( in mm) of the gear is equal to the number of its teeth

Thickness of the gears : 10mm

Gears in this set (per Number of teeth = Z): 10, 18, 20, 24, 25, 30, 32, 34, 35, 40, 42, 45, 48, 50, 55, 60, 65, 70, 72, 75, 80

pressure angle : 20°

Shaft diameter : 5mm

Item rating
0 0
Pack of 21 Spur Gears
$13.50

Royalty Free License
Pack of 21 Spur Gears
$13.50

Royalty Free License
Response - % in - h

3D Model formats

Format limitations
  • 3D ACIS (.sat) (21 files)6.26 MB
  • amf (.amf) (21 files)19.1 MB
  • Stereolithography (.stl) (21 files)9.56 MB
  • STEP (.stp) (21 files)9.86 MB

3D Model details

  • Publish date2022-03-13
  • Model ID#3639061
  • Ready for 3D Printing
