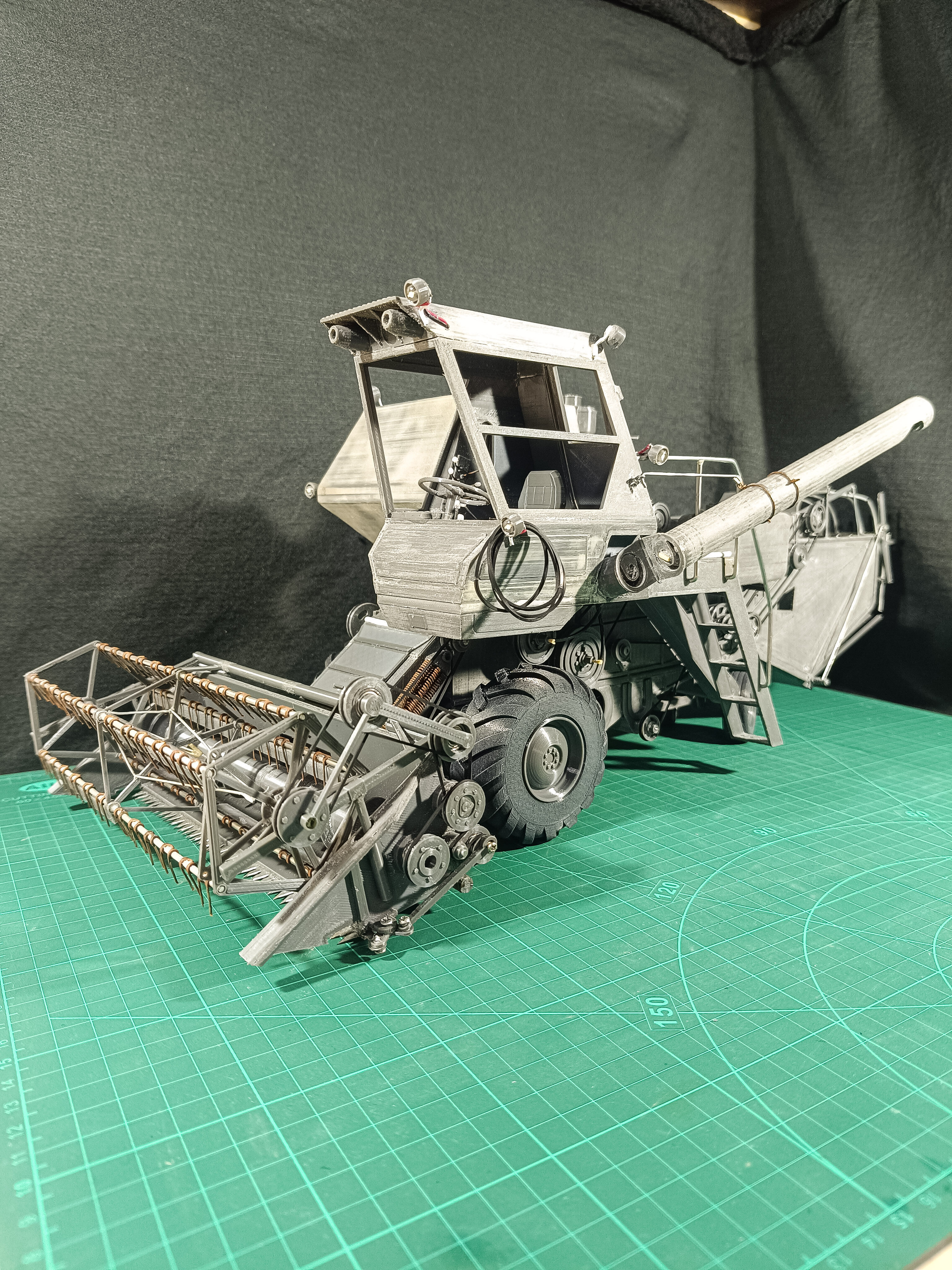

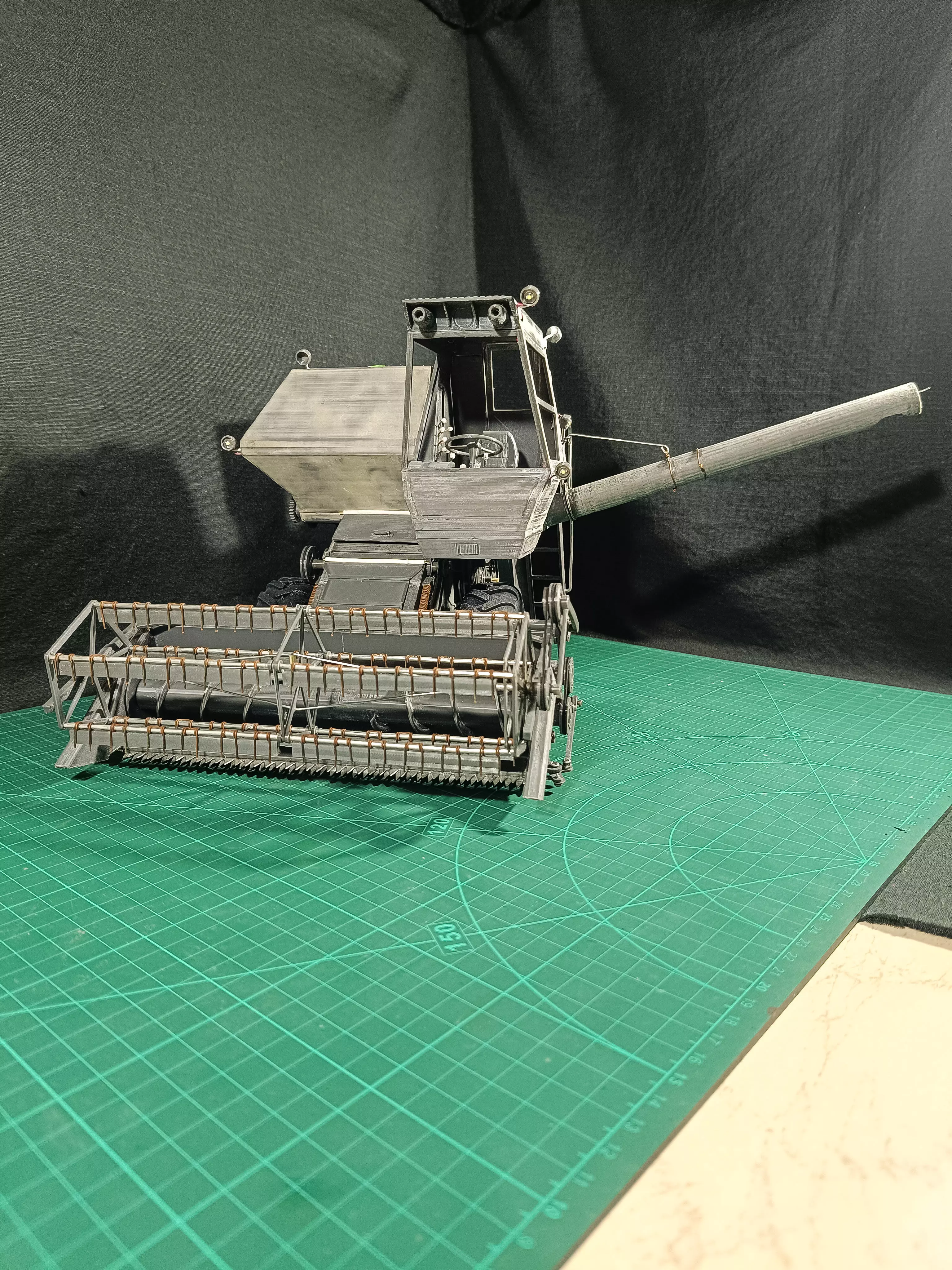

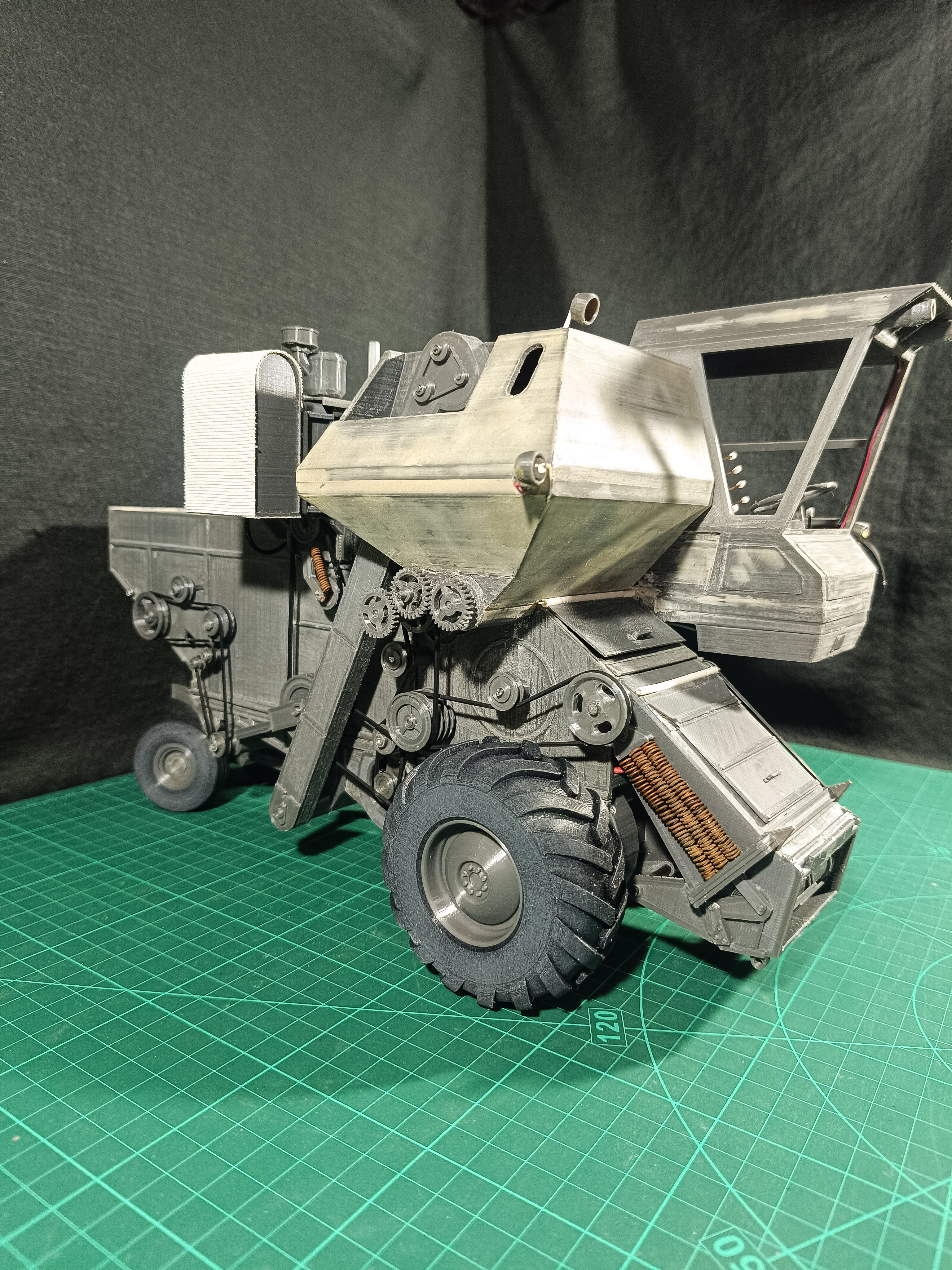

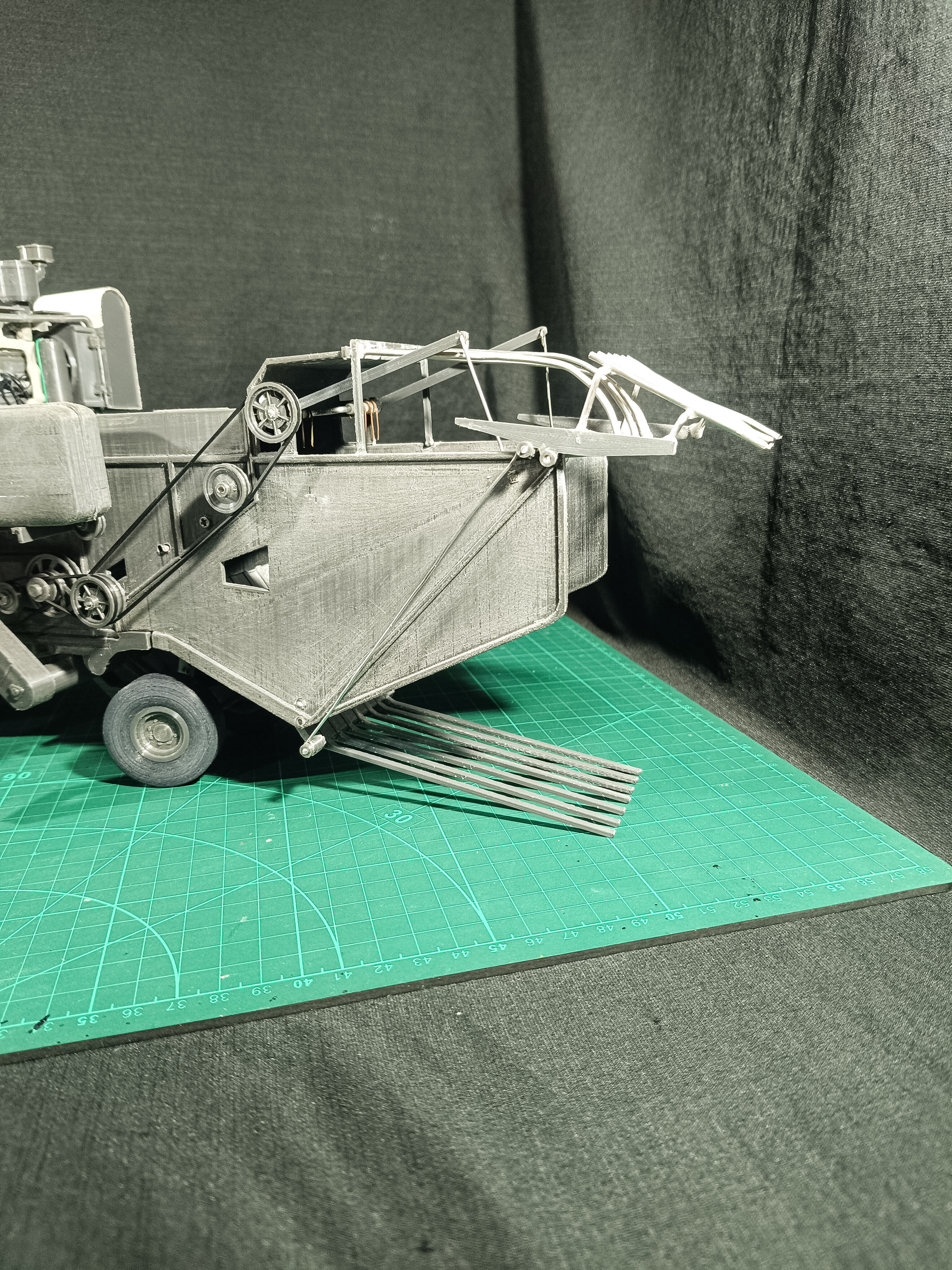

RC Soviet self-propelled combine harvester Niva SK-5 3D print model

The model is made in 18 scale, the details are divided so that there are no problems with printing (with the size of the printing platform). A text document is attached with the files explaining some of the assembly points, the dimensions of the metal shafts are also indicated and all drive pulleys are numbered. I tried to make it as close to the original as possible.

• self-propelled, radio-controlled model

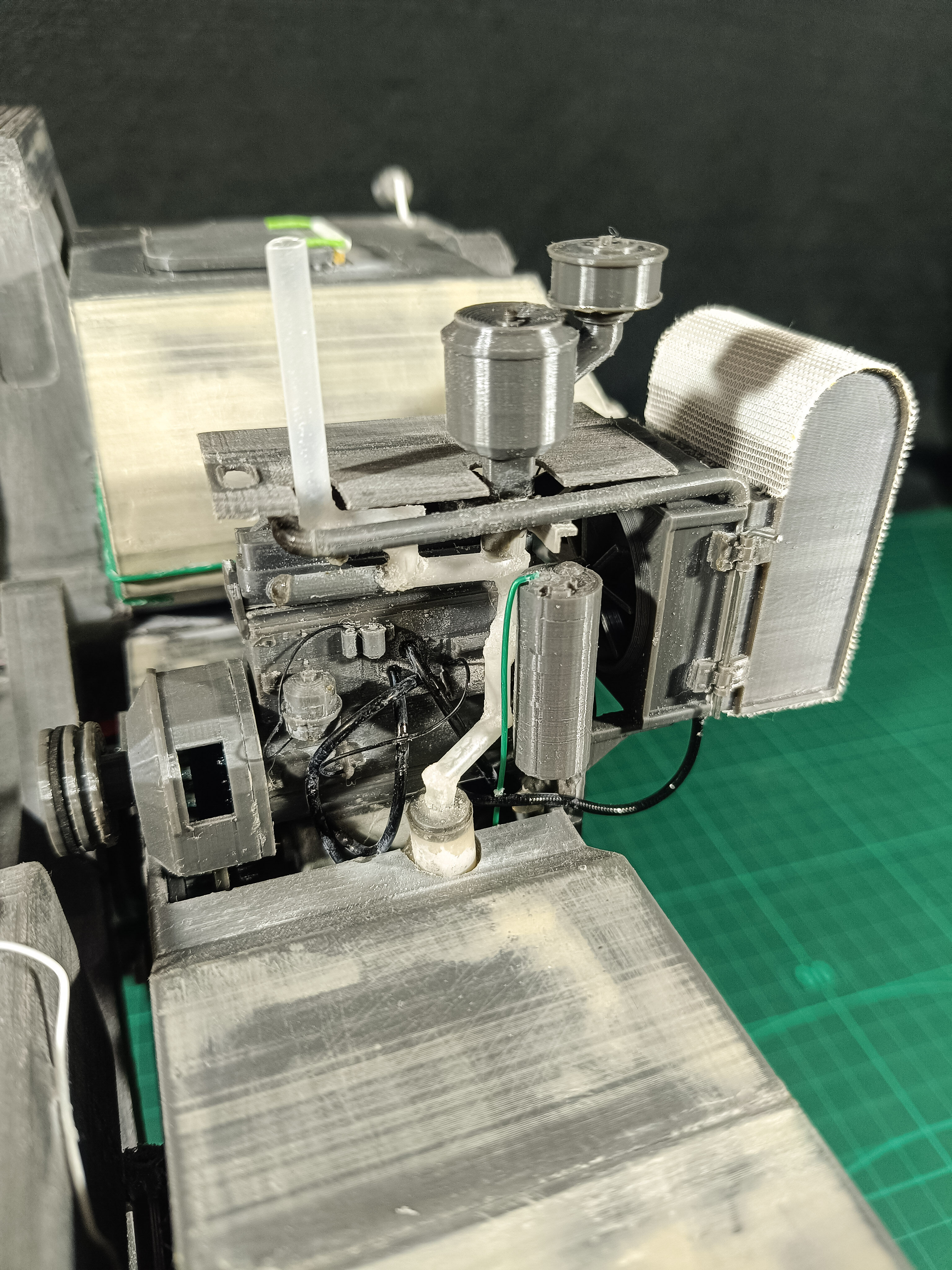

• pistons are running in the engine (which creates sound. The pulleys and the fan on the engine are also movable.
• the keys of the straw man are moving from behind
• the side pulleys of the drives are moving - the conveyor of the inclined chamber is moving

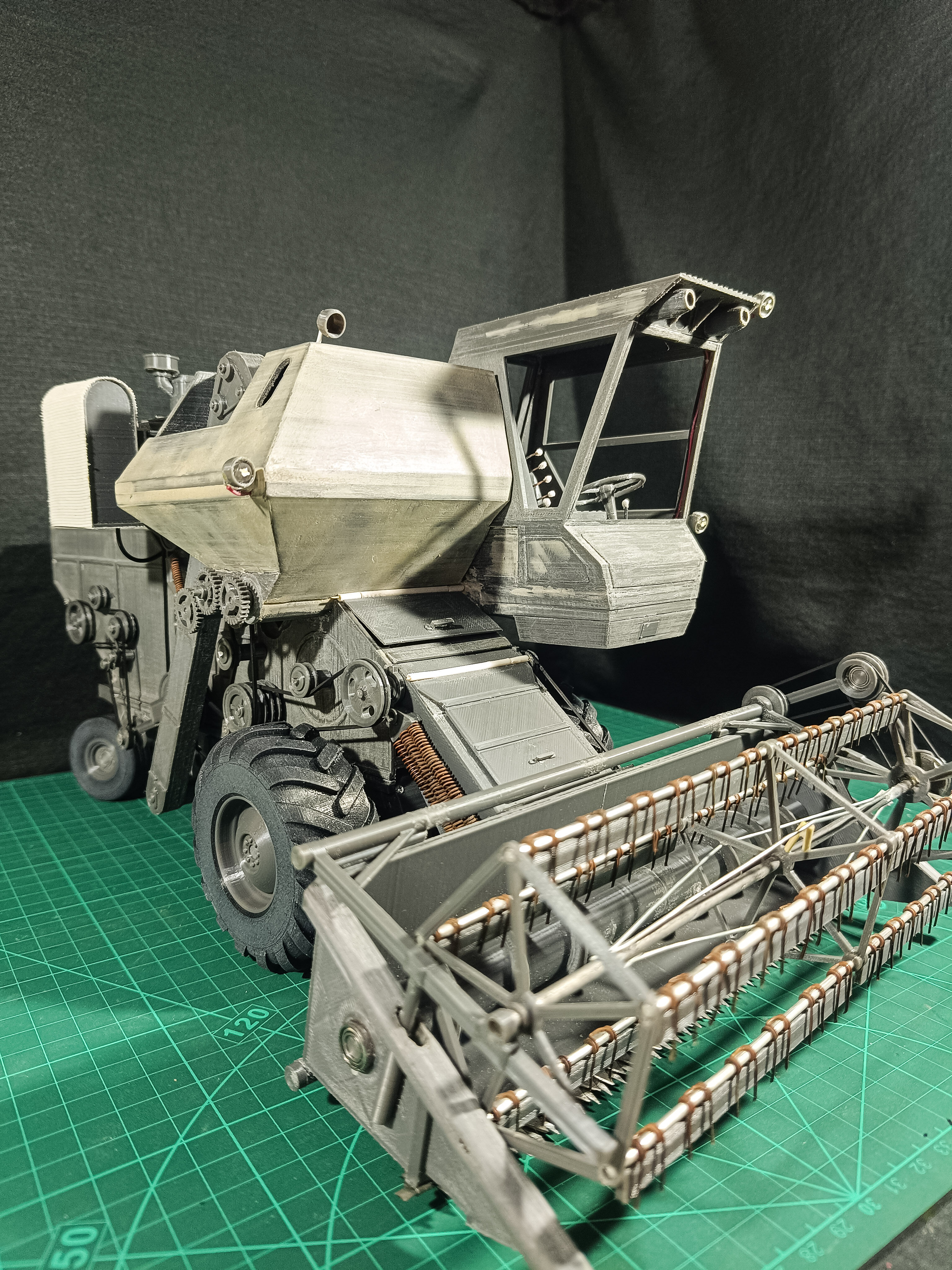

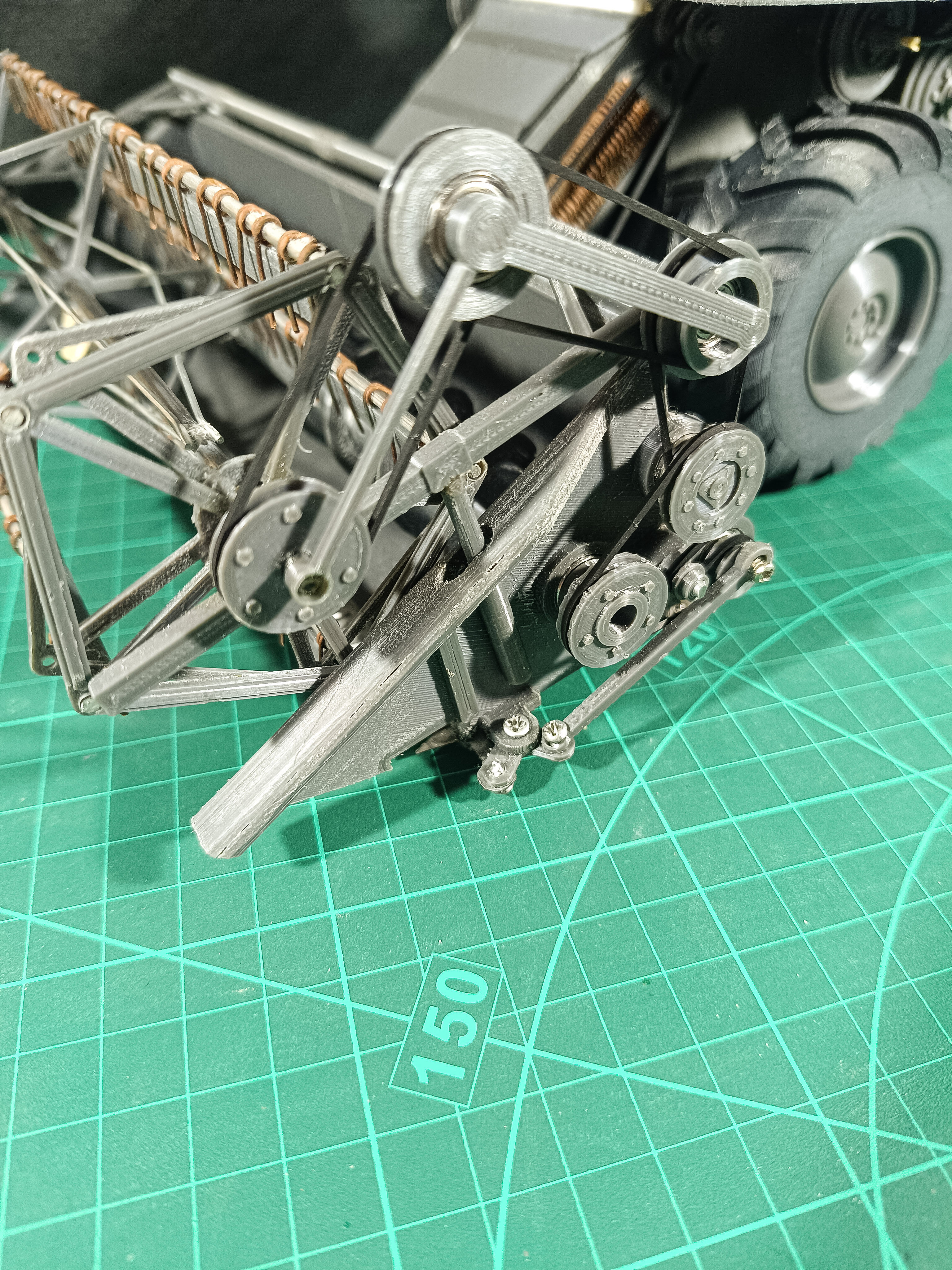

• the reaper is fully movable (reel, auger, scythe)
• there is a mechanism for lifting the reaper
• the piggy bank will open

Set:

• combine harvester Niva SK-5
• tilted camera
• harvester
• a smoker
• shredder
• tools (wrenches, hammer and drawer)

To build it, you will need:

choose the radio control equipment at your discretion (which one is convenient for whom)3 arduino gear motors2 servos SG 9025 BEARINGS MR105 (5x10x4)rubber straps for 1x1mm tape recorderaluminum wire with a diameter of 2mmcopper wire with a diameter of 0.5mmmetal shaft with a diameter of 3mmmetal shaft with a diameter of 5mmpaper clips1mm thick sheet of tinWPL gimbal3D printing settings0.1 mm layer, 100% filling. It will take about 2 kg of plasticfor the TPU 0.1mm layer, filling 20%
